Electronic machine safety: anti-restart and motor brake systems, E-stops, light curtains, interlocks, press safety controls and safety cameras.
Showing all 28 products

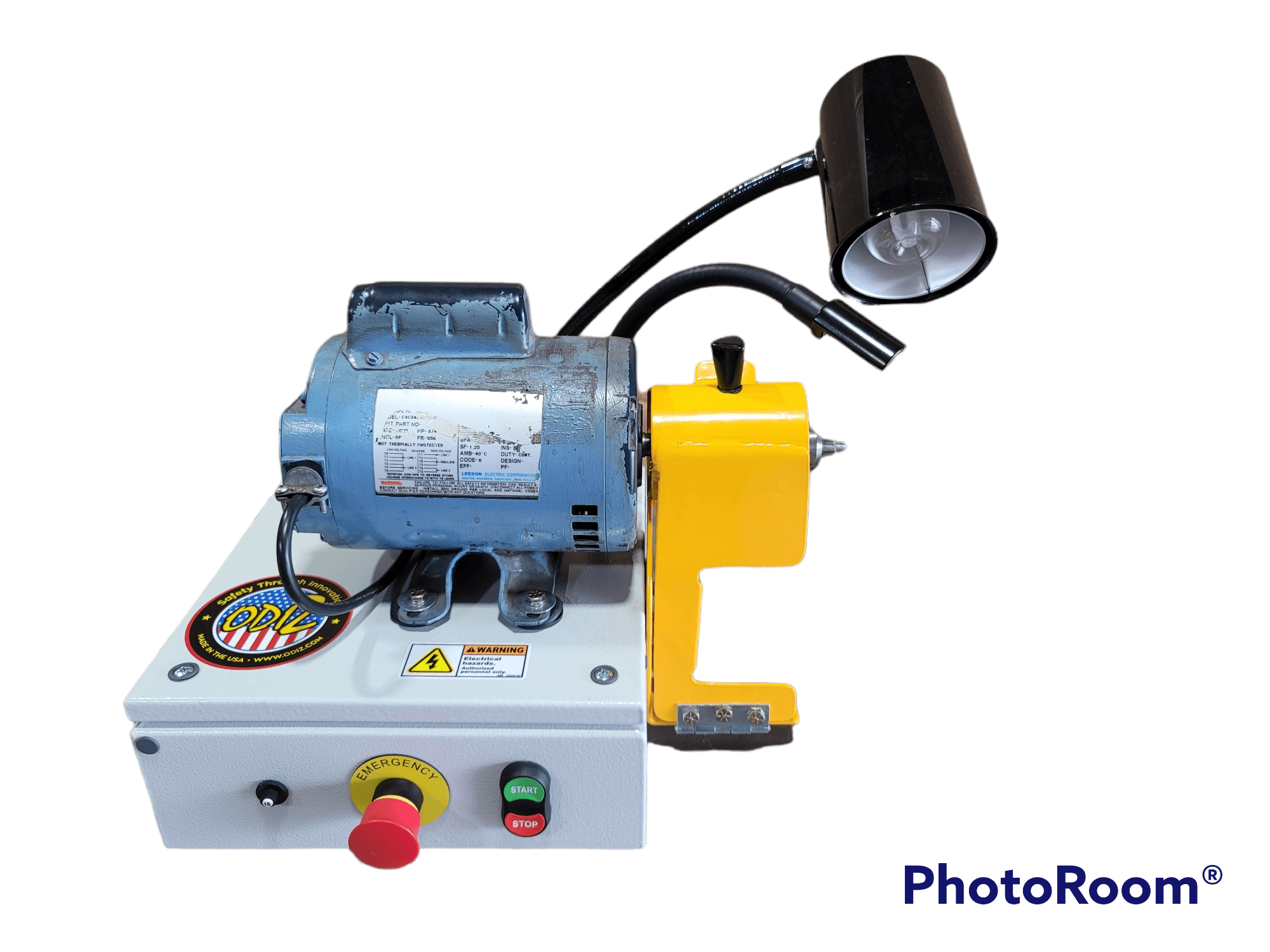

Electronic safeguarding devices watch for a person, a guard position or an operator command and act through the machine’s control circuit to stop hazardous motion or keep it from starting. Many come in their own housings, from anti-restart start/stop/E-stop boxes to E-stop stations and custom control cabinets. OSHA 1910.212(a)(1) names electronic safety devices and two-hand tripping devices, alongside barrier guards, as examples of machine guarding methods. Under 1910.212(a)(3)(ii), a point of operation guarding device must conform to the appropriate standards or, where none apply, keep the operator’s body out of the danger zone during the operating cycle.

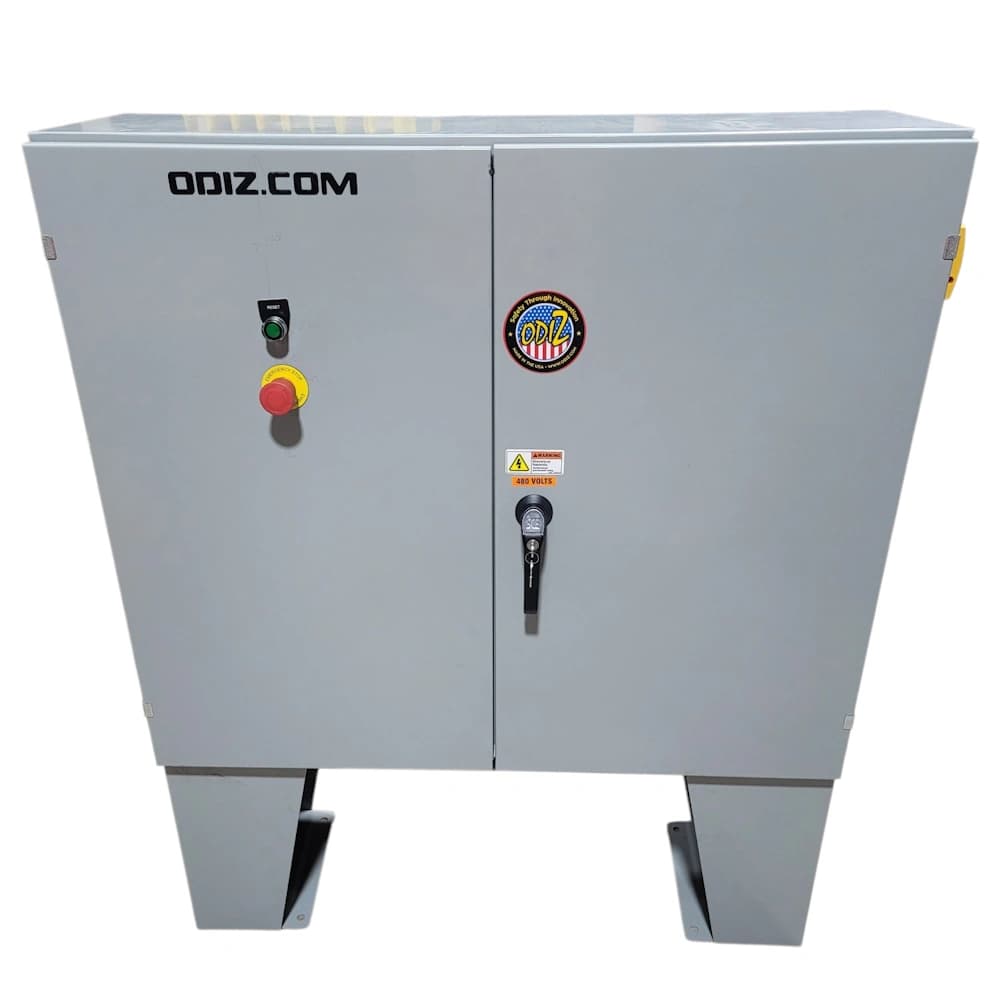

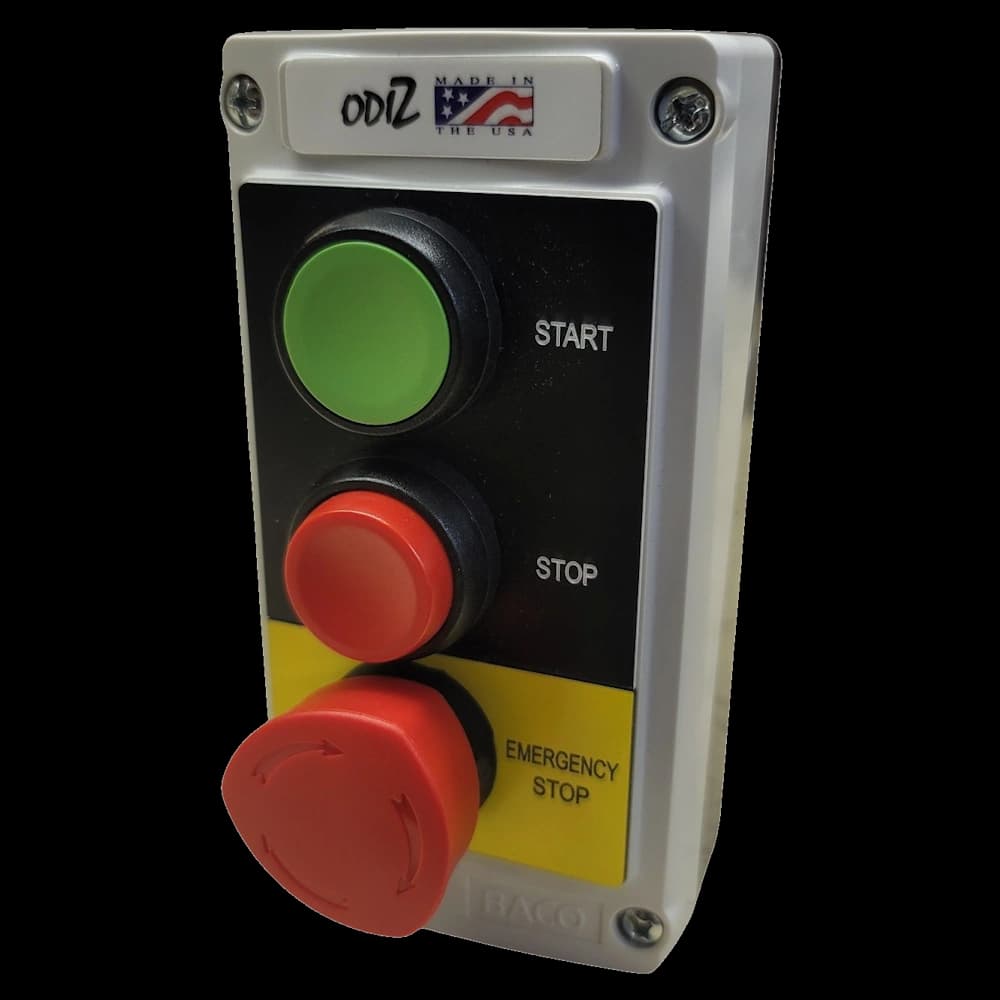

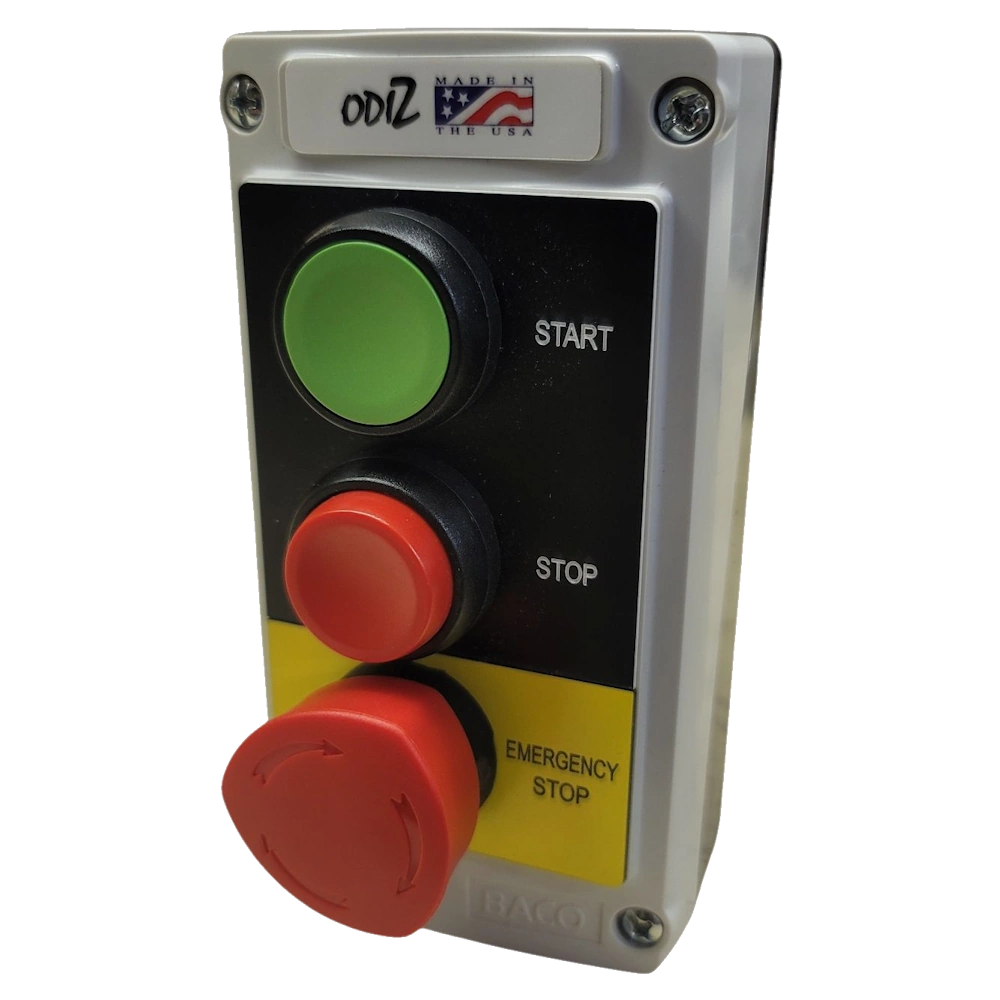

Input devices only protect people if the circuit behind them responds correctly. A safety relay or safety controller monitors E-stops, interlock switches, light curtains and two-hand controls, checks for faults such as a welded contact, and switches redundant outputs to the motor contactors or valves. With a manual reset, closing a guard or clearing a light curtain does not restart the machine by itself. Custom electrical enclosures house these controls with circuit protection and operator buttons, and replacement controls and components include 22 mm start, stop and E-stop operator stations for control panels.
Electronic devices work alongside physical guards. Browse machine guarding for guards, enclosures and perimeter guarding, and presses for press guarding. For servicing, use lockout tagout devices: OSHA 1910.147 states that push buttons, selector switches and other control circuit type devices are not energy isolating devices.

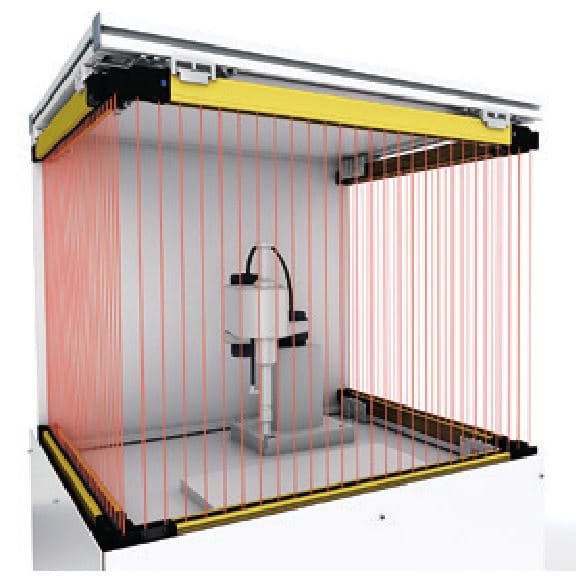

A safeguarding device, such as a light curtain or interlocked guard, stops the machine automatically when someone reaches into the hazard zone or opens a guard. An emergency stop depends on a person seeing a problem and pressing the button, pulling the cord or pushing the bar, so it supplements guarding rather than replacing it.

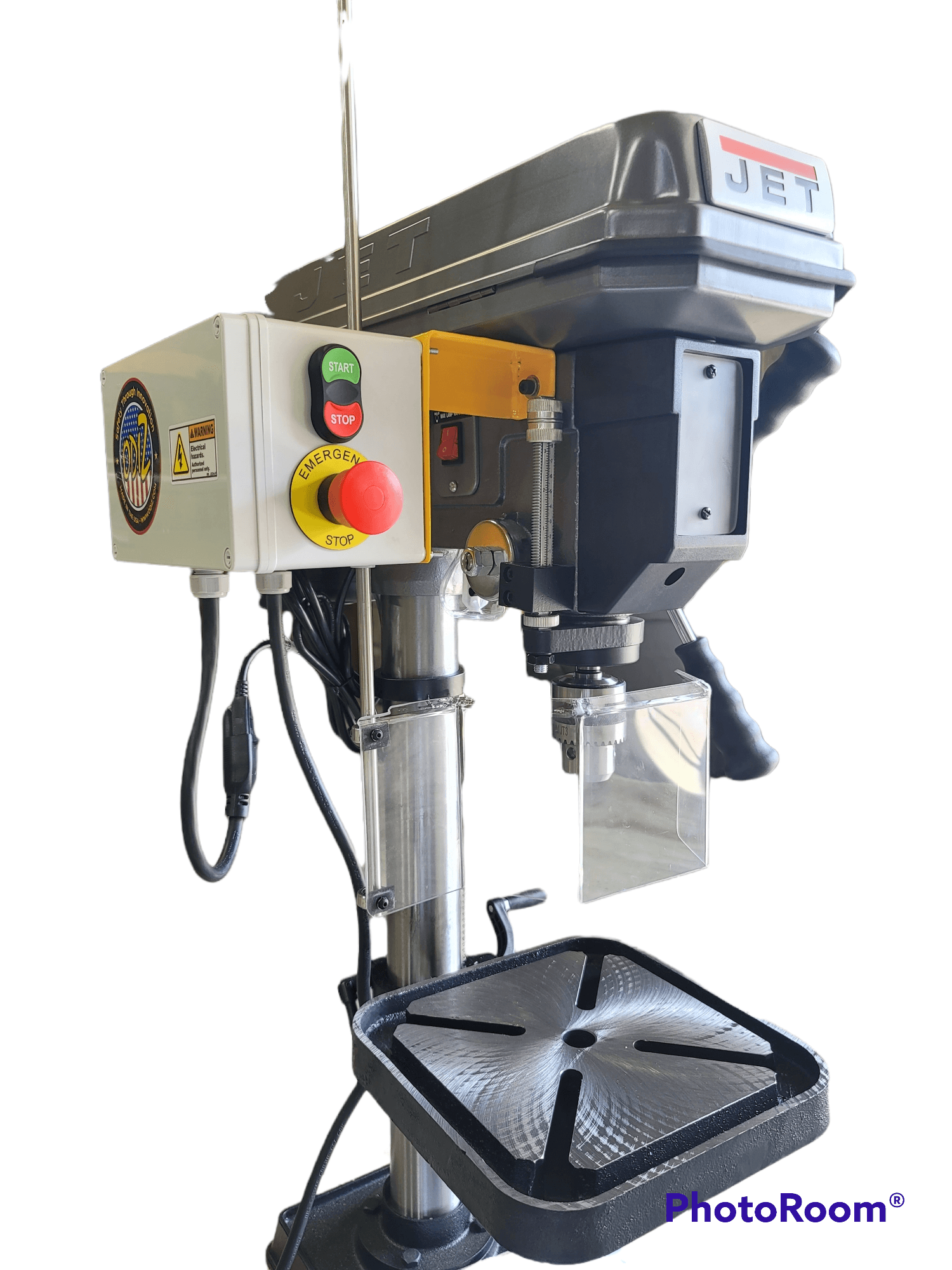

A machine with a simple on/off switch can start by itself when power returns after an outage or a tripped breaker. An anti-restart control uses a contactor that drops out on power loss and stays off until someone presses start, so a spindle, wheel or blade does not start unexpectedly while someone is working at the machine.
Often, yes. Many products in this category are designed for retrofits, including anti-restart enclosures, E-stop pull cord kits for older roll benders, aftermarket light curtain systems and the Lazer Safe Sentinel Plus retrofit press brake guarding system. The machine must be able to stop reliably, and a risk assessment confirms which devices it needs.
A safety relay monitors input devices such as E-stops, interlock switches and light curtains, checks for faults such as a welded contact, and opens redundant outputs to stop the machine when a device trips. With a manual reset, the machine cannot restart just because a guard was closed or a light curtain cleared.
Test every safety function to confirm it stops the machine as intended and that a reset does not cause an unexpected start, and measure stopping time wherever the safety distance depends on it. ISO 13849-2 covers validating safety-related parts of control systems by analysis and testing. Recheck the devices after any change to the machine or its controls.
