Press safety controls: Lazer Safe Sentinel Plus, Unitrol Soft Touch, two-hand control systems and custom press safety systems.
Showing all 4 products

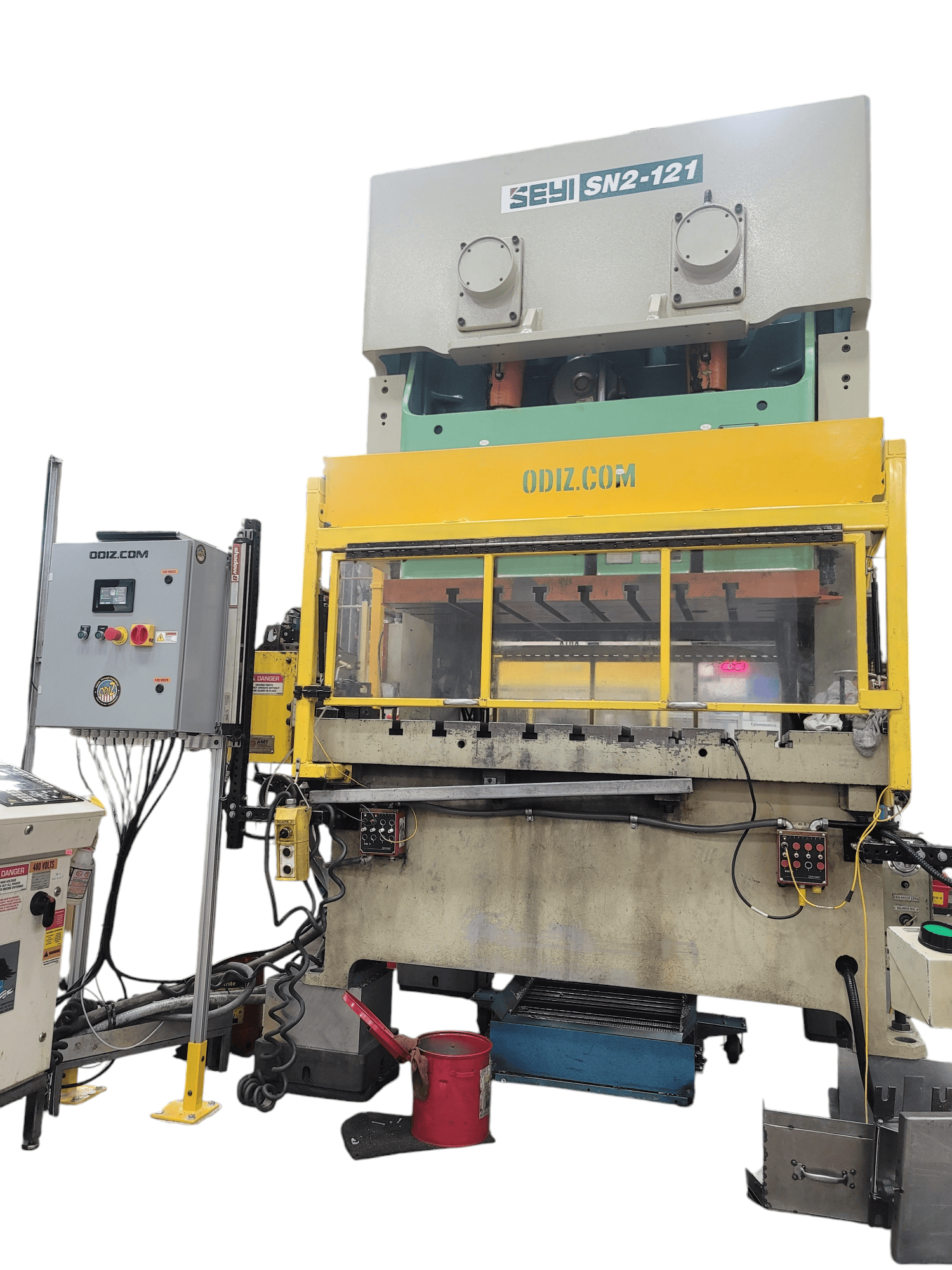

Presses, press brakes and press-type machines close tooling with enough force to crush or amputate fingers, often while the operator holds or feeds the part. Press safety controls keep hands out of the die area during the closing stroke, or stop the stroke if a hand gets there. OSHA 1910.212(a)(3)(iv)(d) lists power presses among the machines that usually require point of operation guarding.
OSHA 1910.217 covers mechanical power presses. For two-hand controls it requires concurrent use of both hands, an anti-repeat feature, controls fixed in position and a safety distance greater than a hand speed constant of 63 inches per second multiplied by the press stopping time. It excludes press brakes and hydraulic and pneumatic power presses, which fall under the general requirements of 1910.212. ANSI B11.2 covers hydraulic and pneumatic power presses, B11.3 covers press brakes, and B11.19 sets performance requirements for safeguarding devices such as two-hand controls and presence-sensing devices.
See also press guarding, safety light curtains and press safety tools, which supplement point of operation safeguarding but do not replace it.
No. Two-hand controls protect only the operator whose hands are on the controls. Helpers, additional operators and anyone at the sides or back of the press need their own protection, such as separate two-hand controls for each operator, fixed guards or light curtains.
No. OSHA 1910.217 covers mechanical power presses and excludes press brakes and hydraulic and pneumatic power presses. Those machines fall under OSHA's general machine guarding requirements in 1910.212, with ANSI B11.2 covering hydraulic and pneumatic power presses and ANSI B11.3 covering press brakes.

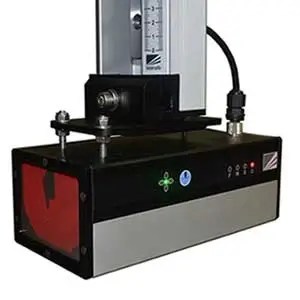

A laser transmitter and camera receiver mounted to the press brake's upper beam create a continuous protective field around the punch tip. The operator can hold the workpiece as the tools close, and the machine stops automatically if the field detects an obstruction such as a finger.
The press type, drive and controls, how parts are loaded and unloaded, how many operators work at the press and any existing guarding. Odiz uses this with a risk assessment and stopping-time calculations to select guards, light curtains, interlocks and safety-rated controls.
