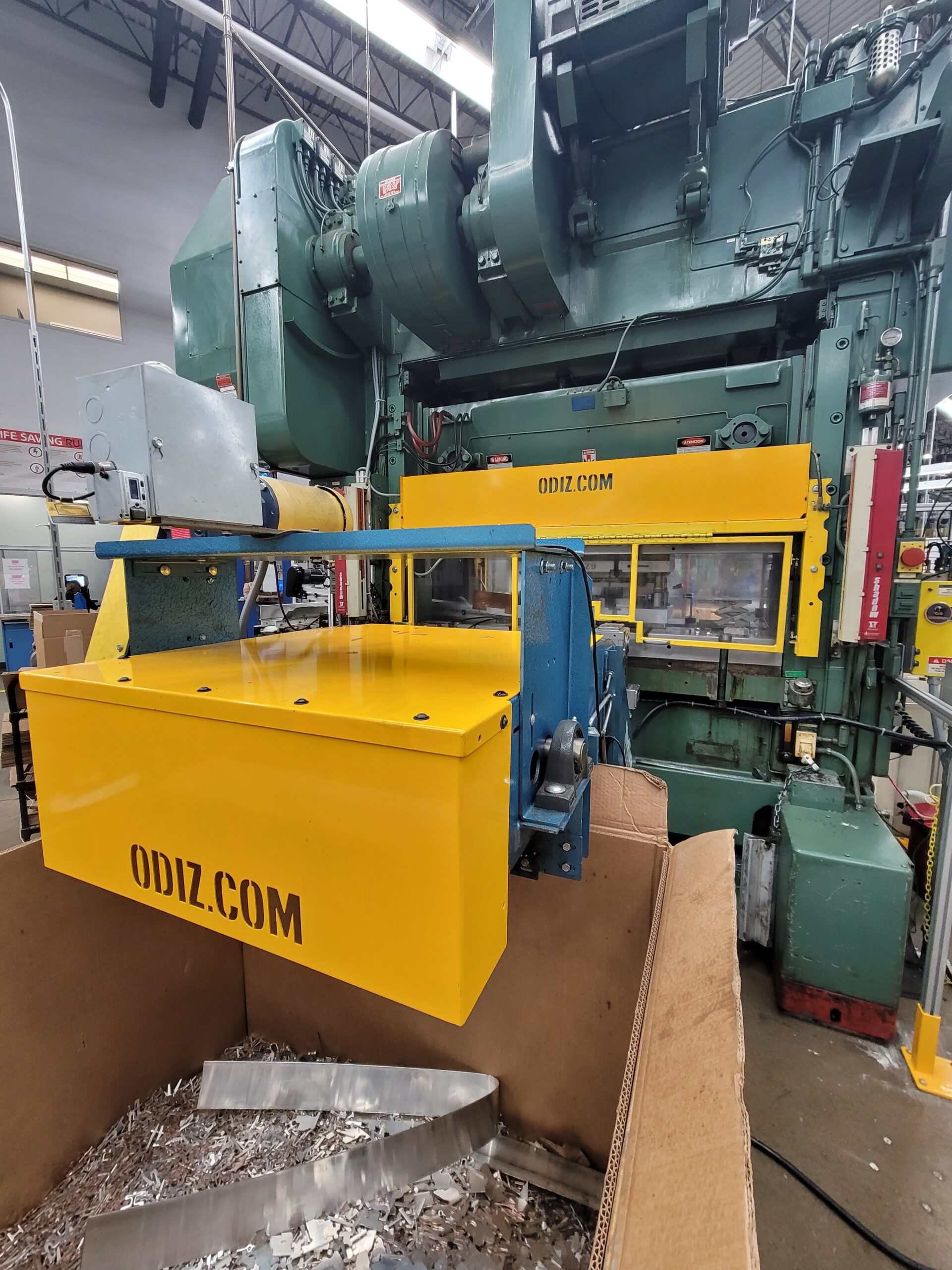

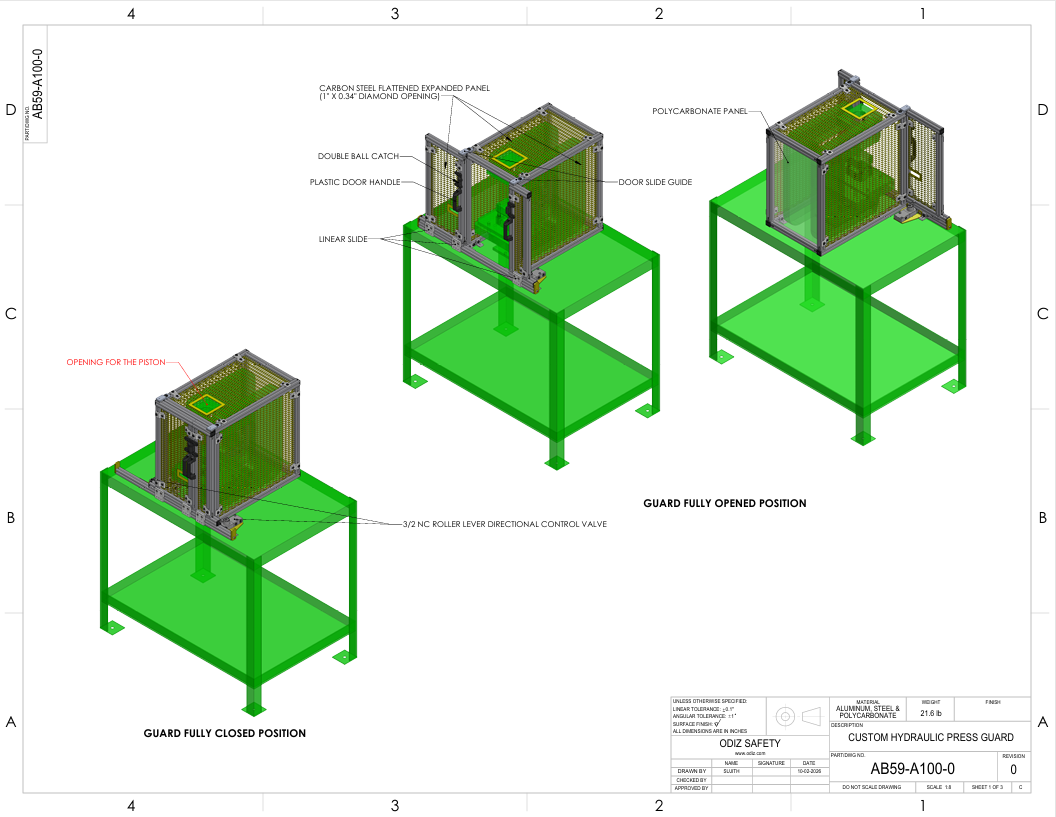

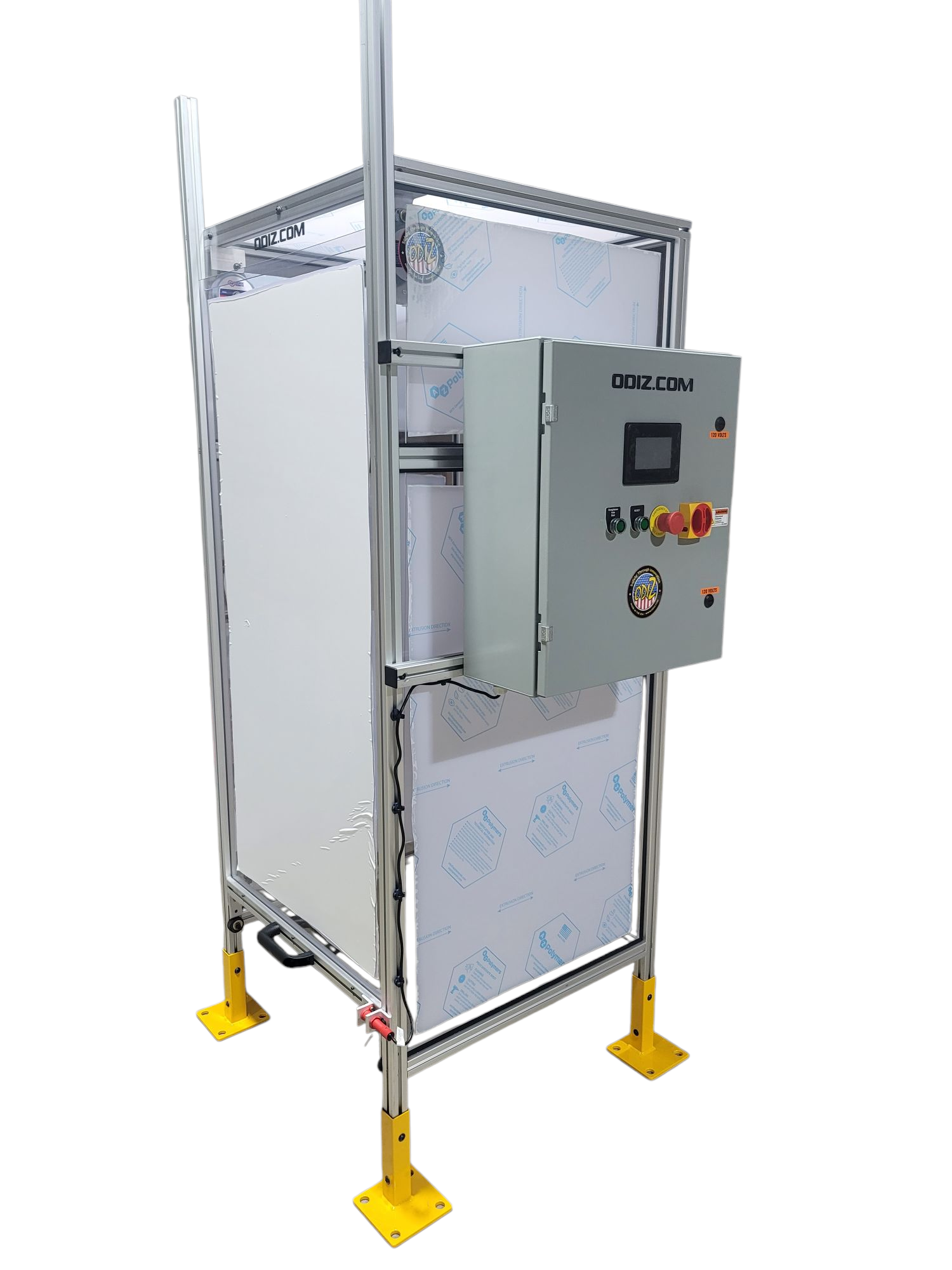

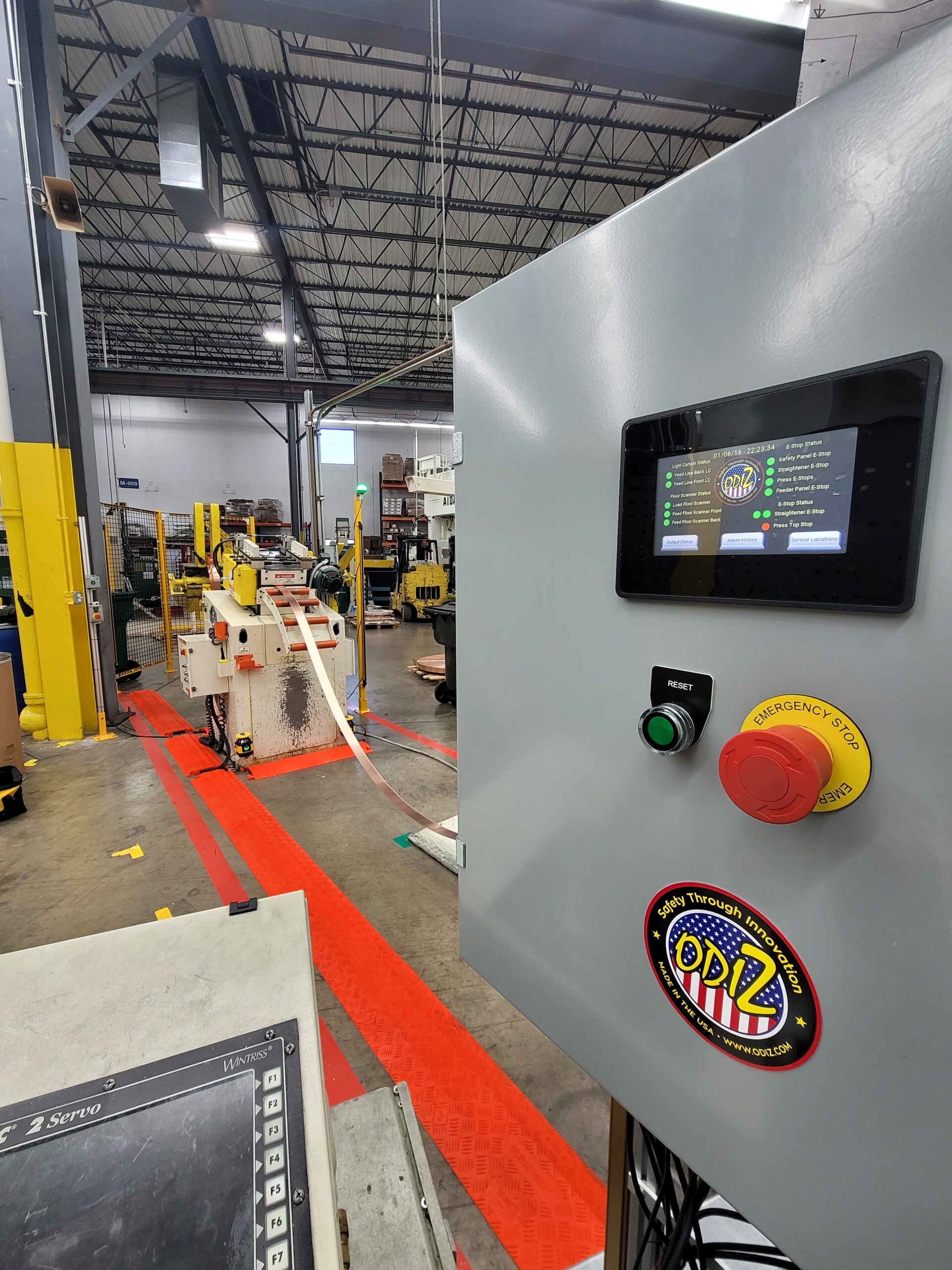

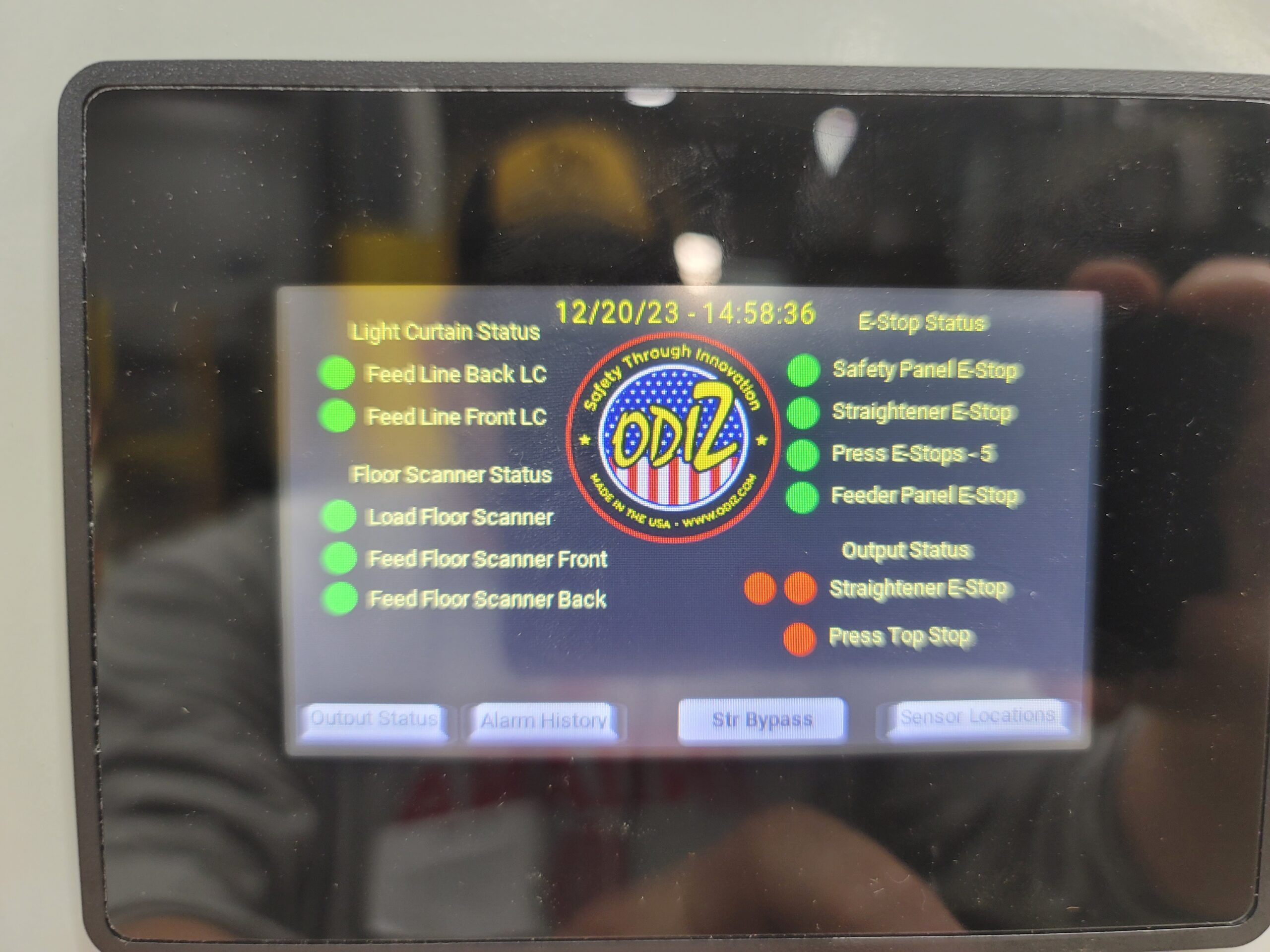

Custom Press Safety System

OSHA 1910.212 — General Requirements for All Machines

OSHA 29 CFR 1910.212 is the core machine guarding standard that applies to nearly all machinery in general industry.
It requires employers to provide guards and protective devices to shield workers from points of operation, rotating parts, in-running nip points, flying chips, sparks, and other hazards.
As a “catch-all” standard, OSHA 1910.212 is often cited when no specific machine regulation exists, making it one of the most frequently enforced provisions in Subpart O.

Key Guarding Requirements

• Point of Operation: Machines must be guarded so operators are not exposed to the point where the work is performed.
• Rotating & Moving Parts: Guards must cover exposed belts, pulleys, gears, shafts, and flywheels to prevent accidental contact.
• In-Running Nip Points: Hazards created where two parts rotate toward each other or where one part moves past a stationary object must be guarded.
• Flying Chips & Sparks: Guards or shields must contain debris, sparks, and fragments generated during machine operation.
• Anchoring: Machines designed for fixed location use must be securely anchored to prevent movement or tipping.

Examples of Machines Covered

Because OSHA 1910.212 is a broad standard, it applies to a wide range of equipment including drill presses, lathes, milling machines, conveyors, punch presses, saws, and grinders.
If a machine has moving parts that could injure a worker, 1910.212 requires guarding.

Common Violations

• Missing point-of-operation guards on presses or saws.
• Exposed belts, pulleys, or rotating shafts without guarding.
• Improperly adjusted or removed guards during production.
• Lack of anchoring on floor-mounted equipment.
• Failure to contain sparks or flying material in grinding, cutting, or drilling operations.

Why OSHA 1910.212 Matters

Machine guarding violations are consistently among OSHA’s top cited standards.
Without proper guards, workers face severe risks of crushed fingers, amputations, lacerations, and eye injuries.
Compliance with OSHA 1910.212 helps facilities protect employees, avoid costly citations, and establish safer production environments.

Relation to Other Standards

OSHA 1910.212 is a general requirement that works in tandem with OSHA 1910.215 (Abrasive Wheel Machinery)
and machine-specific rules under Subpart O. It also aligns with ANSI B11 machine safety standards,
which provide technical safeguarding criteria.

Compliance Checklist

• Install guards at the point of operation on all applicable machines.
• Cover all rotating parts, belts, pulleys, gears, and shafts.
• Guard in-running nip points created by rollers, belts, or chains.
• Provide shields for flying chips, sparks, or debris.
• Anchor floor-mounted machines to prevent shifting.
• Train employees to use machines only with guards in place.

Internal Linking Opportunities

• Cross-link to Lockout/Tagout (OSHA 1910.147) for energy control.
• Link to Abrasive Wheel Machinery (OSHA 1910.215) for grinder rules.
• Connect to ANSI B11 for machine safeguarding performance standards.
• Promote relevant machine guarding products, light curtains, and safety devices.

FAQ

OSHA 1910.212(a) — General Machine Guarding Requirements

OSHA 29 CFR 1910.212(a) defines the core safety principles for machine guarding in general industry.
It requires employers to protect workers from mechanical hazards created by points of operation, rotating components, in-running nip points, and flying chips or sparks.
This paragraph serves as the primary enforcement reference for machinery that does not have its own specific OSHA standard.

Scope and Purpose

The goal of 1910.212(a) is to prevent contact injuries, entanglement, crushing, and amputation by ensuring all hazardous machine motions are either guarded or controlled.
It applies to virtually all machinery used in manufacturing, maintenance, fabrication, and processing operations.

Key Guarding Principles

• Comprehensive Protection: Guards must cover any moving part or area that could cause injury through contact or ejection of material.
• Design Flexibility: Employers may choose fixed, adjustable, or interlocked guards, provided they effectively prevent worker exposure.
• Performance Standard: The rule is performance-based rather than prescriptive—meaning the employer must demonstrate that the guarding method eliminates or controls the hazard.
• Continuity of Protection: Guards must remain in place and secure during operation and be adjusted only when the machine is off and locked out.
• Applicability: This paragraph acts as a “catch-all” requirement whenever a machine presents a hazard not addressed by another OSHA provision.

Examples of Covered Hazards

Machines governed by 1910.212(a) include drill presses, milling machines, conveyors, polishing lathes, grinders, and mechanical cutters.
Hazards may include rotating shafts, reciprocating arms, cutting surfaces, or points where material is inserted or removed.

Compliance Practices

• Install guards that physically prevent access to moving parts.
• Inspect guards routinely for secure attachment and effectiveness.
• Ensure that guard openings prevent any part of the body from reaching the danger zone.
• Prohibit operation when guards are missing or removed.
• Train employees on safe operation, inspection, and maintenance of guarded machines.

Why OSHA 1910.212(a) Is Important

Most serious machinery accidents occur because guards are missing, removed, or inadequate.
Section (a) establishes the baseline requirements that form the foundation of all machine safeguarding programs.
Compliance not only prevents injuries and amputations but also ensures alignment with national consensus standards such as ANSI B11 and ISO 12100.

FAQ

OSHA 1910.212(a)(1) — General Duty to Guard Machines

OSHA 29 CFR 1910.212(a)(1) establishes the primary obligation to guard machinery in general industry.
It requires employers to implement one or more methods of guarding that protect both the operator and nearby employees from hazards created by points of operation, rotating parts, flying chips, sparks, or any other dangerous mechanical motions.

Scope and Intent

This paragraph serves as the foundation of all machine guarding enforcement.
It mandates that every machine presenting a mechanical hazard must be safeguarded through a combination of physical barriers or engineered safety devices.
The employer may choose the guarding method, but it must completely prevent employee exposure to the moving part or hazard zone during normal operation.

Acceptable Guarding Methods

• Fixed guards: Rigid barriers that prevent access to hazardous areas.
• Interlocked guards: Guards that automatically shut off or disengage the machine when opened or removed.
• Adjustable guards: Barriers that can be positioned for different operations but remain securely in place during use.
• Self-adjusting guards: Guards that move automatically into position as the operator works, covering the danger area as material is fed.
• Electronic safeguarding devices: Light curtains, pressure-sensitive mats, and presence sensors that prevent access to moving parts.

Key Compliance Requirements

• Guarding must protect both operators and nearby personnel.
• Guards must be securely attached and durable enough to resist normal operation and vibration.
• Openings in guards must be small enough to prevent accidental contact with moving parts.
• Guards must not introduce new hazards such as sharp edges, pinch points, or visibility obstruction.
• All guards must be kept in place and functional when machines are operating.

Common Violations

• Machines operating without guards over exposed belts, pulleys, gears, or shafts.
• Removed or bypassed barrier guards during production or maintenance.
• Improper guard materials or openings that allow hand or finger access to moving parts.
• Lack of guarding for nearby employees who may be struck by flying material or sparks.

Practical Compliance Tips

• Conduct a full hazard assessment for all equipment to identify points of operation and motion hazards.
• Install fixed guards wherever possible; use interlocked or adjustable guards only when process requirements demand it.
• Include guarding checks in your preventive maintenance program.
• Train operators to recognize unsafe conditions and never remove or modify guards.

Why OSHA 1910.212(a)(1) Is Important

This paragraph represents OSHA’s general duty clause for machinery safety.
Most machine-related injuries occur when guards are removed or missing, and OSHA 1910.212(a)(1) gives inspectors the authority to cite any unguarded moving part that poses a risk.
Compliance ensures that workers remain protected from crushing, entanglement, amputation, and impact injuries.

FAQ

OSHA 1910.212(a)(2) — General Requirements for Machine Guards

OSHA 29 CFR 1910.212(a)(2) establishes the design and construction standards for machine guards.
This provision requires that guards be securely fastened to the machine and designed to protect operators and nearby employees from injury caused by moving parts, flying debris, or accidental contact.
The intent is to ensure that guarding not only provides protection but also does not create new hazards in the process.

Key Guard Design Requirements

• Secure Attachment: Guards must be firmly attached to the machine. If fastening directly to the machine is not possible, guards must be securely mounted elsewhere to provide equal protection.
• Structural Integrity: Guards must be made of materials strong enough to resist impact, vibration, and normal wear during operation.
• No New Hazards: Guards must not introduce additional risks such as pinch points, sharp edges, or visibility obstruction.
• Durability: Guard materials must withstand operational stresses and environmental factors like heat, coolant, or debris.
• Accessibility: Guards should allow safe maintenance, lubrication, and adjustments without requiring complete removal when possible.

Performance Intent

The focus of 1910.212(a)(2) is performance-based guarding design.
OSHA does not prescribe specific guard materials or thicknesses; instead, the guard must perform effectively under real-world conditions.
Employers have the flexibility to design guards suited to their machines—as long as the guarding prevents contact and remains in place during operation.

Examples of Guard Types Covered

• Fixed guards enclosing belts, pulleys, gears, and rotating shafts.
• Interlocked guards that shut off power when opened or removed.
• Adjustable guards for variable-sized stock or cutting operations.
• Self-adjusting guards that move automatically with the workpiece.

Best Practices for Compliance

• Inspect guards regularly for looseness, cracks, or corrosion.
• Use guard materials that match the operational environment (e.g., metal for high-impact areas, polycarbonate for visibility).
• Train employees to recognize damaged or missing guards and to report deficiencies immediately.
• Ensure all guards are reinstalled and secured after maintenance or adjustments.

Common Violations

• Guards loosely attached or easily removable during operation.
• Improvised guards made from inadequate materials such as thin sheet metal or plastic covers.
• Guards with sharp edges or openings large enough to allow finger or hand access.
• Removed or bypassed guards not replaced before restarting the machine.

Why OSHA 1910.212(a)(2) Is Important

Even when a guard is present, poor design or weak construction can fail to protect workers.
OSHA 1910.212(a)(2) ensures that guards are engineered and maintained to perform effectively throughout a machine’s life cycle.
Properly designed guards prevent crushing, amputation, and laceration injuries while maintaining usability and productivity.

FAQ

OSHA 1910.212(a)(3) — Point of Operation Guarding

OSHA 29 CFR 1910.212(a)(3) sets forth the point of operation guarding requirements for machinery used in general industry.
The “point of operation” is the area on a machine where work is performed—such as cutting, shaping, boring, forming, or assembling a part.
This section requires that each machine have a guard or safeguarding device that prevents the operator from having any part of the body in the danger zone during operation.

Purpose and Scope

The purpose of 1910.212(a)(3) is to eliminate exposure to moving tools or dies that can cause crushing, amputation, laceration, or puncture injuries.
It applies to all machines with a point of operation hazard, regardless of size or industry.
Typical examples include presses, saws, milling machines, lathes, shears, and drills.

Key Requirements

• Every machine must be equipped with a guard that prevents the operator from reaching into the danger zone.
• Guards must be designed and constructed to provide maximum protection while allowing the machine to be operated safely and efficiently.
• Special hand tools may be used to handle materials when guarding at the point of operation is not practical.
• Guards must be securely fastened, maintained in place, and not easily removed or bypassed during operation.
• Safeguarding devices such as light curtains, presence-sensing devices, or two-hand controls may be used if they provide equivalent protection.

Examples of Point of Operation Hazards

• Cutting blades or rotating cutters that can amputate or lacerate fingers.
• Press dies or molds that can crush hands or fingers during operation.
• Drill bits, boring tools, or milling heads that can pierce or entangle body parts.
• Shearing or punching points that can sever material—and body parts—with the same force.

Acceptable Guarding Methods

• Fixed barrier guards enclosing the point of operation.
• Interlocked guards that stop machine motion when opened or removed.
• Adjustable or self-adjusting guards that move automatically to block access as material is fed.
• Two-hand controls requiring both hands to activate the cycle, keeping them out of danger.
• Electronic presence-sensing devices such as light curtains or safety mats that halt motion when triggered.

Common Violations

• Operating a machine with missing or disabled point of operation guards.
• Using hand-feeding where fixed or adjustable guards should be installed.
• Removing guards to increase production speed.
• Failure to provide safeguarding when machine design allows operator access to hazardous movement.

Compliance Tips

• Identify all machine points of operation and assess potential contact hazards.
• Install fixed guards where feasible; use engineered safety devices when full enclosure is not possible.
• Inspect all guards before each shift and re-secure after adjustments or maintenance.
• Train operators to recognize guarding deficiencies and to report missing or damaged safety devices immediately.

Why OSHA 1910.212(a)(3) Is Important

Point of operation injuries are among the most severe and preventable workplace incidents.
By enforcing 1910.212(a)(3), OSHA ensures that all machines have reliable guarding or safety devices that keep operators’ hands, fingers, and bodies outside the danger zone during work.
This rule remains one of the most frequently cited machine safety violations nationwide.

FAQ

OSHA 1910.212(a)(3)(iv)(d) — Power Presses

OSHA 29 CFR 1910.212(a)(3)(iv)(d) lists power presses among the machines that usually require point-of-operation guarding.
Power presses—whether mechanical, hydraulic, or pneumatic—use high force and rapid motion to punch, form, or shape metal and other materials.
Because the operator often works close to the die area, these machines present one of the highest risks of amputation, crushing, and pinch-point injuries in manufacturing.

Understanding the Hazard

The point of operation on a power press is where the upper die or ram descends to meet the lower die or workpiece.
Any body part entering this zone during cycling can be instantly crushed or severed.
OSHA requires employers to use physical guards or safeguarding devices that eliminate the possibility of hand or finger entry while the press is in motion.

Primary Safeguarding Methods for Power Presses

• Fixed barrier guards: Enclose the die area with openings too small for hand or finger access.
• Adjustable barrier guards: Allow different stock sizes while maintaining full coverage of the hazard zone.
• Interlocked barrier guards: Prevent press cycling unless the guard is closed; opening it stops motion immediately.
• Presence-sensing devices (light curtains): Stop the press stroke if the sensing field is interrupted before the die closes.
• Two-hand controls: Require the operator to press two buttons simultaneously to cycle the press, ensuring both hands are outside the danger zone.
• Pull-backs or restraint devices: Physically remove or restrict the operator’s hands from entering the die space during the stroke.

Design and Performance Requirements

• Safeguards must prevent any part of the body from entering the point of operation during the downstroke.
• Guards must be durable, securely attached, and tamper-resistant.
• Safeguarding devices must be fail-safe—a failure should stop the machine, not allow cycling.
• Controls must include anti-tie-down and anti-repeat features so operators cannot bypass protection.
• Emergency stop controls must be accessible and tested regularly.

Types of Power Presses Covered

• Mechanical stamping presses
• Hydraulic forming presses
• Pneumatic or air-powered presses
• Flywheel-driven punch presses
• Brake presses used for bending and forming

Common Violations

• Operating presses without point-of-operation guards or safety devices installed.
• Disabled or bypassed interlocks and light curtains.
• Failure to perform required safety device inspections and die-setting checks.
• Inadequate control reliability or anti-repeat functions.
• Improper use of hand tools instead of engineering controls for feeding or removing material.

Best Practices for Compliance

• Install and maintain engineered safeguarding—avoid relying solely on work rules or procedures.
• Conduct daily safety checks of guards, light curtains, and two-hand controls before production begins.
• Train die setters and operators on control system function, safe distances, and response testing.
• Inspect and document safety system function after every die change or maintenance event.
• Lockout and tag out power sources before clearing jams or making adjustments.

Related Considerations

In addition to 1910.212(a)(3)(iv)(d), OSHA maintains a specific standard—1910.217, Mechanical Power Presses—that details inspection, maintenance, and control reliability requirements for these machines.
Section 1910.212 remains applicable to all press types, including hydraulic and pneumatic models not covered by 1910.217, reinforcing the need for comprehensive point-of-operation safeguarding.

Why OSHA 1910.212(a)(3)(iv)(d) Is Important

Power presses are among the leading sources of workplace amputations in metal fabrication and stamping.

ANSI B11 — Machine Safety & Machine Tool Standards

The ANSI B11 standards series comprises a robust framework for machinery and machine tool safety. It addresses risk assessment, design, guarding, control systems, risk reduction measures, and installation and maintenance of machines. Although not regulatory law, B11 standards are widely referenced by industry and used to interpret OSHA’s machine guarding rules (e.g. 29 CFR 1910.212). :contentReference[oaicite:2]{index=2}

Structure of the B11 Family

The B11 family is organized into three types of standards:

• Type A (Basic Safety Standards): e.g. ANSI B11.0 defines general concepts, terminology, risk assessment, and safety principles. :contentReference[oaicite:3]{index=3}
• Type B (Generic Safety Standards): These address safeguarding methods, performance, or safety aspects used across machines (for example, B11.19—Performance Criteria for Safeguarding). :contentReference[oaicite:4]{index=4}
• Type C (Machine-Specific Standards): Focused on individual machines or categories (e.g. B11.1 for power presses, B11.9 for grinding machines, B11.10 for sawing machines). :contentReference[oaicite:5]{index=5}

Core Themes & Provisions

• Risk Assessment / Reduction: B11 emphasizes identifying hazards, assessing risk, selecting and validating protective measures, and verifying that risk is reduced to acceptable levels. :contentReference[oaicite:6]{index=6}
• Safeguarding Methods: Fixed guards, interlocked guards, presence sensors, two-hand controls, light curtains, etc., are all covered with performance criteria. :contentReference[oaicite:7]{index=7}
• Performance Criteria: Guards and safety devices must meet minimum response times, strength, durability, fail-safe behavior, and integration with control systems. :contentReference[oaicite:8]{index=8}
• Safety in Existing (“Legacy”) Equipment: B11 encourages adaptation of older machines via retrofitting or supplementary safeguarding where feasible. :contentReference[oaicite:9]{index=9}
• Design, Modification & Integration: Covers requirements for design, safe modifications, wiring, control logic, maintenance access, risk during changeover, and system integration. :contentReference[oaicite:10]{index=10}

Relation to OSHA & Enforcement Context

OSHA itself does not mandate ANSI B11 by law, but OSHA’s machine guarding standards allow referencing consensus standards like B11 for technical interpretation. For example, OSHA’s eTool on machine guarding lists ANSI B11 standards as guidance resources. :contentReference[oaicite:11]{index=11}
Many safety professionals use B11 standards to design compliant machine guards and safety systems that satisfy both OSHA rules and best practices.

Common Substandards in the Series

• ANSI B11.0 — Safety of Machinery (baseline, risk methodology) :contentReference[oaicite:12]{index=12}
• ANSI B11.19 — Performance Criteria for Safeguarding (applies across many machines) :contentReference[oaicite:13]{index=13}
• ANSI B11.1 / B11.2 / B11.3 — Press, hydraulic, brake machines :contentReference[oaicite:14]{index=14}
• ANSI B11.10 — Metal sawing machines :contentReference[oaicite:15]{index=15}
• ANSI B11.9 — Grinding machines (ties into OSHA 1910.215 & 1910.213) :contentReference[oaicite:16]{index=16}

Internal Linking & Application Ideas

• Link to child categories like ANSI B11.0, ANSI B11.19, ANSI B11.9 (Grinding), etc.
• Cross-link to your OSHA machine guarding pages, e.g. OSHA 1910.212 General Machine Guarding.
• Link to safety device and guarding product pages: light curtains, interlocked guards, protective covers, control systems.

FAQ

ANSI B11.0 — Safety of Machinery

The ANSI B11.0 standard (Safety of Machinery) is the foundational “Type A” standard of the B11 series of American National Standards for machine safety.
It is intended to apply broadly to power-driven machines (new, existing, modified or rebuilt) and to machinery systems, not portable tools held in the hand. :contentReference[oaicite:0]{index=0}
ANSI B11.0 provides the essential framework: definitions, lifecycle responsibilities, risk assessment methodology, acceptable risk criteria, and guidance for using Type-C standards in conjunction with this general standard. :contentReference[oaicite:1]{index=1}

Scope & Purpose

ANSI B11.0-2020 covers machines and machinery systems used for material processing, moving or treating when at least one component moves and is actuated, controlled and powered. :contentReference[oaicite:2]{index=2}
The standard’s purpose is to help suppliers, integrators, and users of machinery identify hazards, estimate and evaluate risks, and implement sufficient risk reduction to achieve an “acceptable risk” level. :contentReference[oaicite:3]{index=3}
It also clarifies responsibilities across the machine lifecycle (supplier, user, modifier) and addresses legacy equipment, prevention through design (PtD) and use of alternative methods for energy control. :contentReference[oaicite:4]{index=4}

Key Concepts & Requirements

• Terminology & Definitions: Establishes key machine-safety terms (e.g., machine, hazard zone, safeguarding, risk, risk reduction). :contentReference[oaicite:5]{index=5}
• Risk Assessment Methodology: Describes how to identify hazards, estimate risk severity and probability, evaluate risk, and decide on corrective safeguards. :contentReference[oaicite:6]{index=6}
• Risk Reduction Principles: Focuses on designing out hazards, applying engineered controls, administrative controls and PPE only when higher-level measures aren’t feasible. :contentReference[oaicite:7]{index=7}
• Lifecycle Approach: Applies to design, construction, installation, commissioning, operation, maintenance, modification and dismantling of machines. :contentReference[oaicite:8]{index=8}
• Use of Type-C Standards: ANSI B11.0 explains how to use machine-specific Type-C standards (e.g., B11.9 for grinding machines) together with this standard for full compliance. :contentReference[oaicite:9]{index=9}

Why It Matters

ANSI B11.0 sets the groundwork for safe machine design and use. Without a consistent foundational standard, machine-specific standards may lack coherence or completeness in hazard control.
By following B11.0, manufacturers and users can build robust safety programs, ensure they cover all phases of machine use (including legacy equipment), and demonstrate that hazard identification, risk assessment and risk reduction are performed systematically.
Because the standard is widely referenced by regulatory authorities and industry best practices, compliance strengthens both safety performance and regulatory defensibility.

Relationship to OSHA & Other Standards

Although ANSI B11.0 is a voluntary consensus standard and not a regulation, it is widely acknowledged as “recognized and generally accepted good engineering practice (RAGAGEP)”.
Regulatory bodies like the Occupational Safety and Health Administration (OSHA) reference the B11 series for technical guidance in areas like machine guarding (e.g., 29 CFR 1910.212) and risk assessment. :contentReference[oaicite:11]{index=11}
Furthermore, ANSI B11.0 aligns with the international standard ISO 12100 (Safety of Machinery — General Principles for Design — Risk Assessment and Risk Reduction) but adds U.S.-specific supplier/user responsibilities and lifecycle responsibilities. :contentReference[oaicite:13]{index=13}

FAQ

B11.1 — Safety Requirements for Mechanical Power Presses

The B11.1 standard (Safety Requirements for Mechanical Power Presses) is part of the B11 machinery safety series and applies specifically to mechanically-powered machine tools commonly referred to as mechanical power presses. :contentReference[oaicite:0]{index=0}
These machines transmit force to cut, form or assemble metal or other materials using tools or dies attached to or operated by slides. :contentReference[oaicite:1]{index=1}
B11.1-2009 (R2020) is the most recent edition referenced for this machine category. :contentReference[oaicite:2]{index=2}

Scope & Exclusions

B11.1 applies to mechanical power presses but explicitly excludes many other types of presses and machines, such as hydraulic or pneumatic presses, forging presses and hammers, cold-headers, iron workers, metal shears, and portable hand tools. :contentReference[oaicite:3]{index=3}

Key Safety Topics Addressed

• Guarding of point of operation: Ensuring that the point where the press performs its work is safeguarded so operator hands or fingers cannot enter during a cycle. :contentReference[oaicite:4]{index=4}
• Control systems & safe operation: Two-hand controls, interlocks, presence-sensing devices (PSDI), and safe mode selection are part of the standard’s focus. :contentReference[oaicite:5]{index=5}
• Risk assessment, modification & lifecycle responsibilities: The standard recognizes that presses may be modified or rebuilt and requires that changes maintain or improve safety performance. :contentReference[oaicite:6]{index=6}
• Training & competency: Operators and maintenance personnel must be trained and demonstrate competence in safe operation of mechanical power presses. :contentReference[oaicite:7]{index=7}
• Auxiliary and system hazards: Modern press systems include feeding, transfers, automation, and robots; B11.1 addresses safeguarding beyond just the press itself. :contentReference[oaicite:8]{index=8}

Why It Matters

Mechanical power presses are high-energy machines with potential for serious injuries such as amputations, crush injuries, and ejection of parts or tooling. By following B11.1, manufacturers and employers adopt a recognized baseline for safe design, safeguarding and operation of these presses. It also supports compliance with regulatory frameworks (such as Occupational Safety and Health Administration (OSHA) requirements) by providing technical detail not always present in regulation. :contentReference[oaicite:10]{index=10}

Relation to Regulation & Best Practices

Although B11.1 is a voluntary standard, OSHA’s mechanical power press standard (29 CFR 1910.217) is based on earlier editions of B11.1 and acknowledges its usefulness in interpreting safe practices. :contentReference[oaicite:11]{index=11}
Many safety professionals view B11.1 as the “recognized and generally accepted good engineering practice” (RAGAGEP) for mechanical power press safety.

FAQ

B11.12 — Safety Requirements for Roll Forming & Roll Bending Machines

B11.12 (Safety Requirements for Roll Forming and Roll Bending Machines) addresses the specific safety needs of machines used to form or bend metal by means of rolls or rotary tooling. :contentReference[oaicite:0]{index=0}
The standard applies to machines that reshape material by progressive forming or bending—such as roll-formers and roll-benders—and covers their full lifecycle: from design and installation through operation, maintenance, modification and dismantling. :contentReference[oaicite:1]{index=1}

Scope & Machine Types

This standard applies to powered machines that change the shape or direction of material by use of rolls, rotary forming dies and associated tooling. :contentReference[oaicite:2]{index=2}
Examples include roll-formers: continuous lineal forming machines where strip material passes through sets of rotating rolls; and roll-benders: machines producing bends across widths of flat or preformed material by one or more rotating rolls. :contentReference[oaicite:3]{index=3}
The standard also lists many exclusions—machinery types not covered under its scope—such as bar mills, power presses, shears, portable hand tools, etc. :contentReference[oaicite:4]{index=4}

Key Safety Topics Addressed

• Responsibility assignment: The standard outlines distinct responsibilities for suppliers (manufacturers, modifiers, integrators) and users (owners, operators) for hazard identification and risk reduction. :contentReference[oaicite:5]{index=5}
• Hazard identification & risk assessment: Users and suppliers must identify machine tasks and hazard scenarios, assess risk and apply appropriate safeguards. :contentReference[oaicite:6]{index=6}
• Design & construction: Machines must be designed and built to minimize exposure to hazards—including appropriate guarding, feed/exit systems, emergency stops, control integration. :contentReference[oaicite:7]{index=7}
• Installation, testing & start-up: Machines must be installed, tested and commissioned under safe conditions before full operation. :contentReference[oaicite:8]{index=8}
• Safeguarding of the production system: The standard emphasizes that in roll-forming/bending operations, safeguards must consider the full system: the machine, feeding/out-feed, tooling, roll sets and worker interaction. :contentReference[oaicite:9]{index=9}
• Operation & maintenance: Procedures must be established for safe operation, maintenance, change-over, inspection and training of personnel. :contentReference[oaicite:10]{index=10}

Why It Matters

Roll-forming and roll-bending machines involve high speeds, heavy tooling, upstream feeding mechanisms and large pieces of moving material. Without proper safeguarding these machines can cause crushing, entanglement, contact injuries, ejection of stock or tooling, severe lacerations or amputations.
B11.12 provides a comprehensive framework to help manufacturers and users apply recognized engineering practices to reduce these risks—and support regulatory compliance and best-practice machine safety programs.

Practical Implementation Tips

• During machine design or procurement, reference B11.12 for required safeguarding of roll sets, feed/in-feed/out-feed, emergency stops, guarding of points where material enters or exits.
• Perform a task-based risk assessment per B11.12 before start-up, especially for change-over or maintenance tasks where tooling is changed or material thickness varies.
• Ensure feeding and exit systems are integrated with machine safeguards so that operators cannot reach into hazard zones during operation or maintenance.
• Train operators and maintenance personnel in hazards specific to roll-forming/bending machines—feeding, bending, roll changes, material ejection and emergency response.
• Maintain documentation of modifications, maintenance, inspections and risk assessments to demonstrate alignment with recognized good practice (RAGAGEP).

FAQ

B11.2 — Safety Requirements for Hydraulic & Pneumatic Power Presses

The B11.2 standard (ANSI B11.2-2013 (R2020)) establishes safety requirements for machines powered by hydraulic or pneumatic systems that transmit force to cut, form, or assemble metal or other materials by means of tools or dies attached to or operated by plungers or slides. :contentReference[oaicite:0]{index=0}
It defines the obligations of machine builders, modifiers, integrators, and users across the machine life-cycle—from design, installation and commissioning to operation, maintenance, modification and dismantling.

Scope & Exclusions

This standard applies only to hydraulic or pneumatic power presses—commonly referred to as “hydraulic/pneumatic power presses”. :contentReference[oaicite:1]{index=1}
It explicitly excludes other machines such as mechanical power presses, powdered-metal presses, horizontal hydraulic extrusion presses, metal shears, pipe or tube bending machines, and other equipment where the principal force transmission is not hydraulic or pneumatic. :contentReference[oaicite:2]{index=2}

Key Safety Topics Addressed

• Risk Assessment & Lifecycle Responsibility: Requires that hazards associated with hydraulic/pneumatic presses are identified and evaluated, and that risk-reduction measures are applied throughout the machine lifecycle. :contentReference[oaicite:3]{index=3}
• Design & Construction of Press Systems: Ensures structural integrity, proper platen or slide design, safe closure, appropriate tooling attachment and safe ejection or unloading of workpieces or scrap.
• Guarding & Safeguarding of Point of Operation: Defines how operators must be separated or protected from the hazardous zones (such as the closure area of the slide/platen) using guards, interlocks or presence-sensing devices. :contentReference[oaicite:4]{index=4}
• Control Systems & Safe Operation: Requires that hydraulic/pneumatic circuits controlling hazardous motion be designed to meet safety-reliability criteria (e.g., preventing a single fault from losing the safety function). :contentReference[oaicite:5]{index=5}
• Modification, Maintenance & Retrofit: If a press is modified or rebuilt, it must be treated on the same basis as a new machine—risk-assessment revalidation, safeguarding updates, and verification of performance. :contentReference[oaicite:6]{index=6}

Why It Matters

Hydraulic and pneumatic power presses operate with high forces, require reliable control of motion, and possess unique hazards associated with fluid power systems (unexpected motion, leakage, contamination, high pressure, slide/ram ejection).
By following B11.2, manufacturers and users adopt recognized good engineering practice for design and safe use of these presses—and help demonstrate alignment with industry consensus safety standards and machine-safeguarding expectations.
The standard is also cited by regulatory bodies (for example Occupational Safety and Health Administration (OSHA) mentions B11.2 in its rulemaking notice for power presses). :contentReference[oaicite:8]{index=8}

Relation to Other Standards

Although B11.2 is voluntary, it is part of the broader B11 series of machine-safety standards and should be used in conjunction with:

• B11.0 – Safety of Machinery: General risk assessment and machine-safety terminology and methodology.
• B11.19 – Performance Requirements for Risk Reduction Measures: Performance criteria for guarding and control systems.
• Machine-specific guidance or other Type C standards if relevant (though B11.2 is itself a Type C standard for hydraulic/pneumatic presses).

FAQ

B11.24 — Safety Requirements for Transfer Machines

The B11.24 standard (Safety Requirements for Transfer Machines – ANSI B11.24-2002 (R2020)) applies to machines equipped with more than one processing station and one or more work-piece transport or transfer systems. These machines may perform machining, assembly, inspection, testing or combinations thereof in a predetermined sequence of operations. :contentReference[oaicite:0]{index=0}

Scope & Key Considerations

This standard is intended for transfer machines—a class of production equipment that moves workpieces between fixed stations (e.g., loading, machining, unloading) via shuttles, wheels, dials, conveyors or indexing mechanisms. :contentReference[oaicite:1]{index=1}
It excludes manufacturing systems/cells that consist of multiple machines integrated with material handling and controls (those are covered by other standards). :contentReference[oaicite:2]{index=2}

Key Safety Topics Addressed

• Machine design & construction: Structural integrity, safe access, work-piece transfer mechanisms, tool change/load zones and guarding of moving parts. :contentReference[oaicite:3]{index=3}
• Guarding & safeguarding: Protection of operators from tool stations, transfer mechanisms, pinch points, ejected parts and automatic motion between stations. :contentReference[oaicite:4]{index=4}
• Work-piece transport & transfer systems: Safe design of shuttle systems, indexing tables, in-feed/out-feed zones, prevention of access during movement, containment of ejected stock. :contentReference[oaicite:5]{index=5}
• Installation, testing, operation & maintenance: Requirements for start-up, routine maintenance, modification or rebuild, operator training, safe implementation of special modes or automatic sequences. :contentReference[oaicite:6]{index=6}
• Energy control & safety distance: Means for isolation of stored or residual energy, safe stopping, required safety distances for presence-sensing devices or guards when access to hazard zones is possible. :contentReference[oaicite:7]{index=7}

Why It Matters

Transfer machines are widely used in production for high-volume operations and typically involve multiple tools, motions, work-holding, handling and material transfers. Because of their complexity and automation, they present hazards such as entanglement, crushing, impact, ejection of parts, inadvertent access during transfer motion, and unexpected machine cycles. Using B11.24 helps manufacturers, integrators and users apply recognized safety practices focused specifically on these hazards, enhancing operator safety and aligning with engineering-best-practice risk reduction.

Practical Implementation Tips

• Map out all stations, transfer paths and mechanisms; identify zones where operators may interact or be exposed during loading, unloading, maintenance or automatic transfer motion.
• Ensure guards, interlocks or presence-sensing devices protect access to transfer motion or tool changes; transfer motion should not begin if an operator is in the zone.
• Integrate loading/unloading zones so that operator presence does not coincide with automatic motion; design safe access paths and interlocks accordingly.
• During maintenance or modification of a transfer machine, treat the machine as new: re-validate risk assessment, safeguard functions, control reliability, and ensure documentation is updated.
• Train operators and maintenance personnel on transfer machine-specific hazards: automatic motion, indexing, work-piece ejection, residual energy in feeding systems and locking out sources during servicing.

B11.3 — Safety Requirements for Power Press Brakes

The B11.3 standard (ANSI B11.3-2012 (R2020)) applies to machines classified as power press brakes — machines designed specifically to bend material by use of a ram, dies, tooling and associated feed/back-gauge systems. :contentReference[oaicite:0]{index=0}
Its primary objective is to eliminate, control or reduce hazards to individuals associated with power press brake use throughout the machine lifecycle. :contentReference[oaicite:1]{index=1}

Scope & Exclusions

B11.3 applies exclusively to press brakes—machines furnished for bending material (sheet, plate, etc.) by means of fixed or moving dies. :contentReference[oaicite:2]{index=2}
The standard specifically excludes mechanical power presses, hydraulic or pneumatic power presses (for other press types), powered folding machines, hand brakes, tangent benders, apron brakes and similar machines. :contentReference[oaicite:3]{index=3}

Key Safety Topics Addressed

• Point of operation safeguarding: Protecting the operator and helper from the die-closing area, material feed zones, back gauges and other pinch/crush hazards. :contentReference[oaicite:4]{index=4}
• Control modes & actuation systems: The standard distinguishes machine types (general-purpose vs special-purpose) and specifies required controls such as interlocks, two-hand controls, safe-speed, anti-repeat, single-stroke capability for certain machines. :contentReference[oaicite:5]{index=5}
• Safe distance & alternative safeguarding methods: Where fixed guards are not feasible, the standard allows “safe distance” methods under specific conditions—but as guidance requires methods to be substantiated. :contentReference[oaicite:6]{index=6}
• Die changeover, setup, maintenance & mode transitions: Requires safe practices for tooling installation, maintenance lock-out, guarding during non-production modes, and verification after modification or retrofit. :contentReference[oaicite:7]{index=7}
• Lifecyle and responsibility allocation: The standard addresses roles and obligations of machine builders/suppliers, integrators or modifiers, and users/owners in design, installation, operation, maintenance, modification and decommissioning. :contentReference[oaicite:8]{index=8}

Why It Matters

Power press brakes are high-force machines used in bending operations; they involve ram motion, tooling change, material feed/back-gauge, and potential exposure of hands or other body parts to pinch, crush, or ejection hazards.
Because of the variety in press-brake configurations (mechanical, hydraulic, servo) and workpiece handling methods, B11.3 gives a structured framework so employers and machine builders can apply recognized engineering practices to guard them effectively. :contentReference[oaicite:9]{index=9}

Practical Implementation Tips

• Perform a risk assessment specific to the press brake: consider material size/thickness, tooling change frequency, back-gauge accessibility, operator posture during loading/unloading.
• Identify machine type (general-purpose vs special-purpose) and ensure control system meets the standard’s requirement for that category (e.g., anti-repeat, safe-speed, two-hand control etc.).
• Evaluate guarding options: fixed barriers, adjustable guards, presence-sensing devices, two-hand controls, safe-speed monitoring. If barrier is infeasible, document justification for “safe-distance” method under the conditions allowed by the standard. :contentReference[oaicite:10]{index=10}
• Calculate or validate stopping time of the ram and safe distance if presence-sensing/light curtain is used; maintain records of stop-time measurements, testing and training. :contentReference[oaicite:11]{index=11}
• Train operators and maintenance personnel: focus on load/unload hazards, die changeover, back-gauge interaction, feeding methods, reach-in hazards, and safe practices when override or maintenance mode is used. :contentReference[oaicite:12]{index=12}
• Upon machine modification, rebuild or retrofit, treat the machine as effectively new: re-validate risk assessment, safeguards, controls, training and documentation. :contentReference[oaicite:13]{index=13}

ISO 13849-1 — Safety of Machinery: Safety-Related Parts of Control Systems – General Principles for Design

The ISO 13849-1:2015 standard establishes safety requirements and guidance on the design and integration of safety-related parts of control systems (SRP/CS) in machinery — regardless of whether the technology is electrical, hydraulic, pneumatic, mechanical, or a combination thereof. :contentReference[oaicite:0]{index=0}

Scope & Purpose

ISO 13849-1 applies to SRP/CS for high-demand or continuous mode of operation of machinery. It does not itself specify which safety functions must be implemented for particular machines, but rather gives the principles to determine required performance and to design the control system accordingly. :contentReference[oaicite:1]{index=1}

Key Concepts & Requirements

• Safety functions & SRP/CS: A safety-related control function is one whose failure could lead to a hazardous situation. The SRP/CS covers the parts of the control system that contribute to that safety function. :contentReference[oaicite:2]{index=2}
• Performance Level (PL): The standard uses performance levels (PL a through PL e) to express the reliability of a safety function (higher PL = lower probability of dangerous failure). :contentReference[oaicite:3]{index=3}
• Architecture Categories: Based on earlier EN 954-1 categories, ISO 13849-1 defines architecture categories (B, 1, 2, 3, 4) which influence achievable PLs depending on diagnostics, redundancy, and fault tolerance. :contentReference[oaicite:4]{index=4}
• Reliability metrics: The standard addresses mean time to dangerous failure (MTTF_D), diagnostic coverage (DC_avg) and common-cause failure (CCF) factors as part of determining PL. :contentReference[oaicite:5]{index=5}
• Control system design & software: The standard includes guidance for safety-related software and programmable electronic systems as part of the SRP/CS. :contentReference[oaicite:6]{index=6}

Why It Matters

Machinery control systems often integrate multiple technologies and modes of operation. When a machine’s guarding, interlocks or control functions rely on electronic logic or software to reduce risk, ISO 13849-1 gives a recognized engineering framework to ensure that the control part is reliable enough for its role. This helps manufacturers, integrators and users demonstrate that control systems meet generally accepted good engineering practice (RAGAGEP) in functional safety. :contentReference[oaicite:7]{index=7}

Practical Implementation Tips

• Start with a full risk assessment (per ISO 12100) to identify hazards, determine required safety functions and decide the required PL (PL_r) for each function.
• For each safety function, select an appropriate architecture category, check component reliability (MTTF_D), diagnostics (DC_avg) and design for protection against common-cause failures (CCF).
• Document the safety-function specification, the architecture block diagrams, verification of diagnostics and validation testing of the SRP/CS. Treat programmable systems (software/firmware) according to the standard’s guidance for SRP/CS design. :contentReference[oaicite:9]{index=9}
• When modifying or retrofitting a machine’s control system, review whether the existing SRP/CS still meets the PL_r and properly re-assess, re-validate and document the changes.

ISO 13849-2 — Safety of Machinery: Validation of Safety-Related Parts of Control Systems

The ISO 13849-2:2012 (E) standard specifies the procedures and conditions to be followed for the validation (by analysis and testing) of the specified safety functions, the category achieved, and the performance level achieved by the safety-related parts of a control system (SRP/CS) designed in accordance with ISO 13849‑1. :contentReference[oaicite:1]{index=1}

Scope & Purpose

ISO 13849-2 applies when you have designed safety-related parts of control systems per ISO 13849-1 and now need to validate that the system actually meets the required performance level (PL) and categorical architecture (B, 1, 2, 3, 4) under actual or simulated conditions. :contentReference[oaicite:2]{index=2}
The goal is to demonstrate, via analysis and/or testing, that the implemented SRP/CS fulfils its safety functions under foreseeable conditions, as specified in the design rationale. :contentReference[oaicite:3]{index=3}

Key Validation Principles

• Validation Plan: A documented plan must outline what will be validated, under what conditions, what analysis and tests will be conducted, referencing design specifications and required PL/category. :contentReference[oaicite:4]{index=4}
• Analysis & Testing: Validation typically involves both analytical methods (e.g., failure-mode analysis, fault simulation) and testing of the SRP/CS under fault and normal conditions to verify correct performance. :contentReference[oaicite:5]{index=5}
• Independence: The standard specifies that validation should be performed by someone independent of the design of the SRP/CS (or at least at a sufficient level of independence) to avoid bias. :contentReference[oaicite:6]{index=6}
• Documentation & Records: The validation process must be documented—showing that the SRP/CS meets the design criteria, category considerations, PL achieved, and that residual risk has been evaluated. :contentReference[oaicite:7]{index=7}
• Residual Risk & Lifecycle Consideration: Validation isn’t only about control logic correctness but also ensuring the safety function works under actual operating conditions, over its lifecycle, and that residual risk is tolerable. :contentReference[oaicite:8]{index=8}

Why It Matters

Control systems increasingly rely on electronic, software-based, programmable logic controllers (PLCs) and complex architectures. Designing per ISO 13849-1 alone doesn’t guarantee the machine’s SRP/CS will perform as intended in real-world conditions. ISO 13849-2 closes that gap by requiring validation. Without validation, uncontrolled or untested changes can leave hidden faults, leading to increased risk of failure. :contentReference[oaicite:9]{index=9}

Practical Implementation Tips

• Start by gathering all documentation from the design phase: safety-function specification, block diagrams, category selection, PLr calculation, diagnostics logic. Use this as the basis of the validation plan. :contentReference[oaicite:10]{index=10}
• Define the test matrix: include normal operation, fault injection (hardware/software failure), environmental stresses, cycle-variations, power interruptions, common-cause failure conditions. :contentReference[oaicite:11]{index=11}
• Ensure the test environment reflects likely operating conditions: machines at production loads, relevant tooling, environment parameters, and realistic human-machine interactions. :contentReference[oaicite:12]{index=12}
• Maintain independence: either have a separate validation team or third-party review to avoid designer bias in acceptance of results. :contentReference[oaicite:13]{index=13}
• Record results clearly: document actual PL/architecture achieved, any deviations, residual risk justifications, changes required, and sign-off by responsible parties. Maintain these records as part of machine safety documentation. :contentReference[oaicite:14]{index=14}
• Implement periodic re-validation or after modifications: if SRP/CS is altered, tooling changed, software updated, or machine mode modified, the validation should be repeated to ensure compliance remains valid. :contentReference[oaicite:15]{index=15}

ANSI Z244.1 — Control of Hazardous Energy: Lockout, Tagout & Alternative Methods

The ANSI Z244.1 standard (sometimes referenced as ANSI/ASSP Z244.1) provides a detailed framework for the safe control of hazardous energy sources—electrical, mechanical, hydraulic, pneumatic, chemical, thermal, gravitational or stored energy—when servicing or maintaining machines, equipment or processes. :contentReference[oaicite:0]{index=0}
While it is a voluntary consensus standard (not a regulation), it is widely used by safety professionals and referenced in relation to 29 CFR 1910.147 and other machine safety/energy control programs. :contentReference[oaicite:2]{index=2}

Scope & Purpose

ANSI Z244.1 applies to tasks such as construction, installation, adjustment, inspection, unjamming, testing, cleaning, dismantling, servicing or maintaining machines, equipment or processes when the unexpected energization or release of stored energy has the potential to cause harm. :contentReference[oaicite:3]{index=3}
The standard emphasizes the employer’s or machine owner’s responsibility to establish a hazardous energy control program, including procedures, training, audits and alternative methods when traditional lockout/tagout may not be practicable. :contentReference[oaicite:4]{index=4}

Key Elements & Themes

• Energy control program: Program elements include hazard identification, energy-isolation methods, verification of isolation, training, periodic audits, and maintaining a safe work environment. :contentReference[oaicite:5]{index=5}
• Lockout, Tagout, or Alternative Methods: The standard recognizes traditional lockout as the preferred method but allows tagout or other validated alternative methods when risk assessment justifies them. :contentReference[oaicite:6]{index=6}
• Risk assessment & justification: When using alternative methods, a documented risk assessment must demonstrate equivalent protection to traditional LOTO. :contentReference[oaicite:7]{index=7}
• Design and integration: The Z244.1 standard highlights the need for properly designed isolation devices, clear identification of energy sources, controlled transfer of isolation between shifts, and integration with existing safety control systems. :contentReference[oaicite:8]{index=8}
• Training and audits: Authorized employees must be trained, affected employees must be notified, and periodic inspections/audits must verify the program’s effectiveness over time. :contentReference[oaicite:9]{index=9}

Relation to OSHA

Although the standard is not enforceable by itself, Occupational Safety and Health Administration (OSHA) recognizes ANSI Z244.1 as a valuable consensus standard for guidance on energy control programs. :contentReference[oaicite:11]{index=11}
Compliance with 29 CFR 1910.147 remains mandatory, and using ANSI Z244.1 can help demonstrate a program meets recognized good practice or “RAGAGEP” (recognized and generally accepted good engineering practice).

Why It Matters

Unexpected machine startup or release of stored energy is a significant cause of serious injuries—including electrocutions, amputations, crushing, burns and fatalities. :contentReference[oaicite:12]{index=12}
Implementing ANSI Z244.1-based programs helps reduce these risks by ensuring controlled isolation of energy sources, validated procedures, trained personnel and audits to ensure ongoing safety.

FAQ
