Engineering and design services from Odiz, including 3D imaging and measurement and extruded aluminum design, machining and assembly.
Showing all 2 products
Catalog guards cover many common machines, but special-purpose machines, modified equipment and crowded cells often need a guard designed around them. A custom guard depends on accurate measurements and on a frame and panel design that suits how the machine is run and maintained. The two services in this category address those steps: 3D imaging and measurement, and extruded aluminum design, machining and assembly.
Odiz 3D imaging and measurement services use laser scanning to capture the measurements behind the design and fabrication of custom machine guarding. Odiz describes the approach in three words: accurate, efficient and non-invasive.
In general, laser scanning records a machine’s geometry as 3D data, so guard panels, openings and mounting points can be laid out against the machine as it stands on the floor rather than against assumed dimensions.

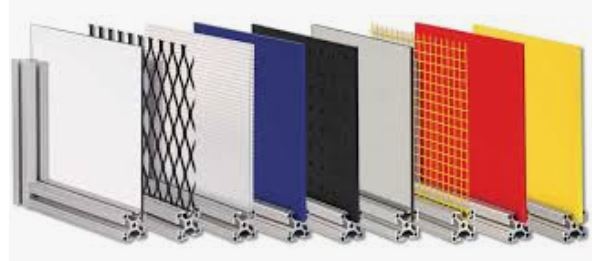

The ODIZ extruded aluminum design, machining and assembly service is quoted on request. Extruded aluminum profiles are often used for guard frames, perimeter fencing, enclosures and workstations because they can be cut to length, machined and bolted together, then extended or rearranged when a line changes. When requesting a quote, it helps to share the machine or area involved, any drawings or measurements you have and how operators need to reach the work. For finished guarding products, see robot cell and perimeter guarding, machine enclosures and workstations and tables.
A custom guard is held to the same rules as any other. OSHA 1910.212(a)(2) requires guards to be affixed to the machine where possible, or secured elsewhere if attachment is not possible, and a guard must not create an accident hazard itself. At the point of operation, 1910.212(a)(3)(ii) calls for a guarding device that conforms to any appropriate standard or, where none applies, keeps the operator from having any part of the body in the danger zone during the operating cycle. ANSI B11.19 sets performance requirements for the design, construction, installation, operation and maintenance of guards and other risk reduction measures, but it does not decide which measure a particular application needs; that comes from the risk assessment and any machine-specific standard. The B11.TR7 technical report gives guidance on applying safety and lean manufacturing principles together.
Every service group is listed on the services page.
Laser scanning captures a machine's dimensions without physical contact, an approach Odiz describes as accurate, efficient and non-invasive. The resulting measurements support designing and fabricating a custom guard that fits the machine as it stands on your floor.
The service is quoted on request. Share the machine or area involved, any drawings or measurements you already have and how operators need to reach the work, and Odiz can prepare a quote for the design, machining and assembly.
Yes. OSHA 1910.212(a)(2) requires guards to be affixed to the machine where possible and not to create an accident hazard themselves. Where no specific standard applies, a point of operation guard must keep any part of the operator's body out of the danger zone during the operating cycle.
It helps. A risk assessment identifies which hazards need guarding and how much risk reduction each needs, which shapes the guard. ANSI B11.0 describes the risk assessment and risk reduction process for machinery, and Odiz offers an on-site machine guarding risk assessment.
