Machine stands and workstations: grinder and vise stands, adjustable and quick change stands, robot stands and production assembly tables.
Showing all 15 products
A grinder, vise or press bolted to a crowded bench competes with parts and tools for space, and a light or makeshift base can rock, walk or tip when the operator leans into the work. A steel stand gives each machine its own footprint, a set working height and a base plate that can be anchored to the floor. OSHA 1910.212(b) requires machines designed for a fixed location to be securely anchored to prevent walking or moving.

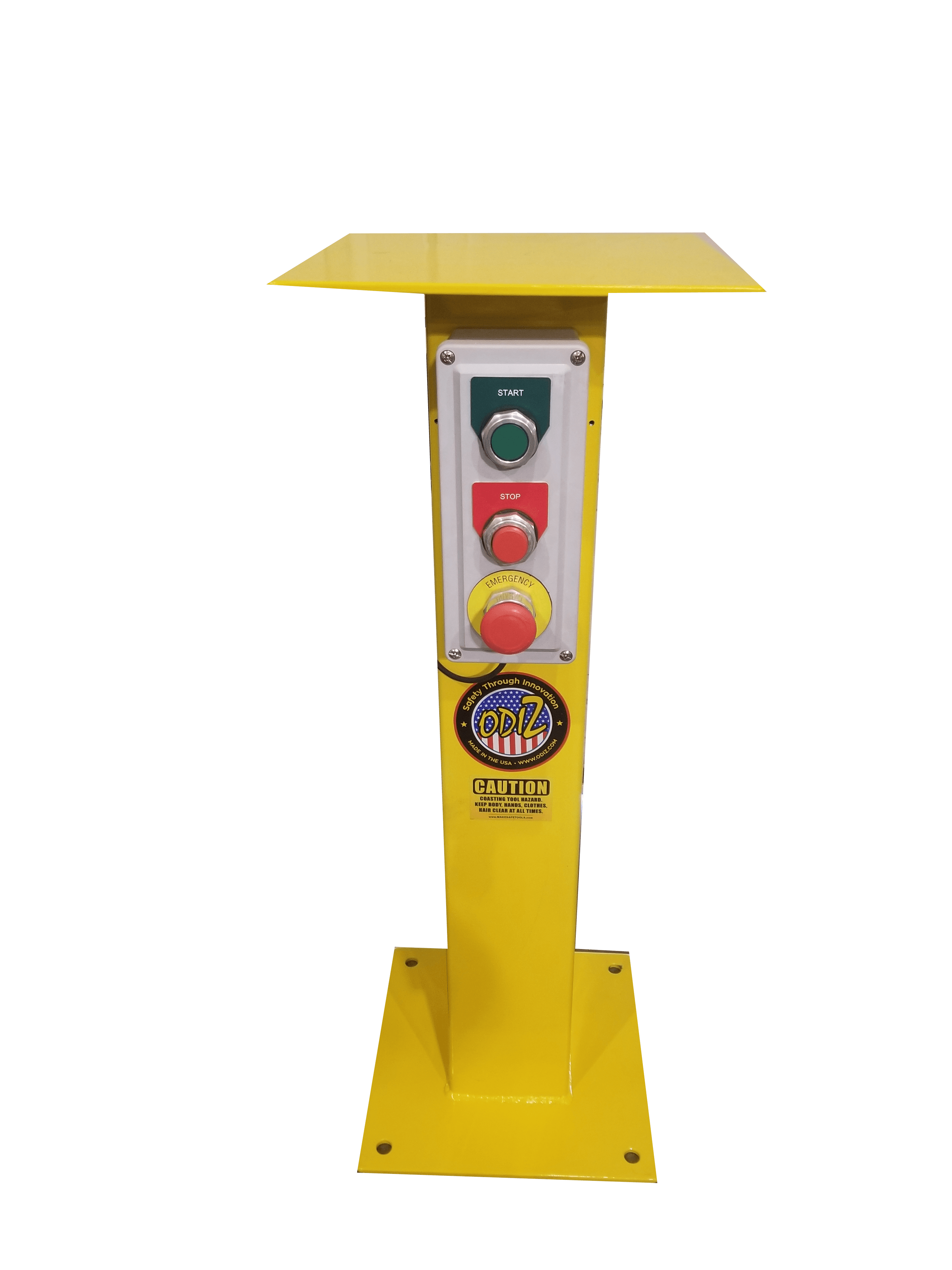

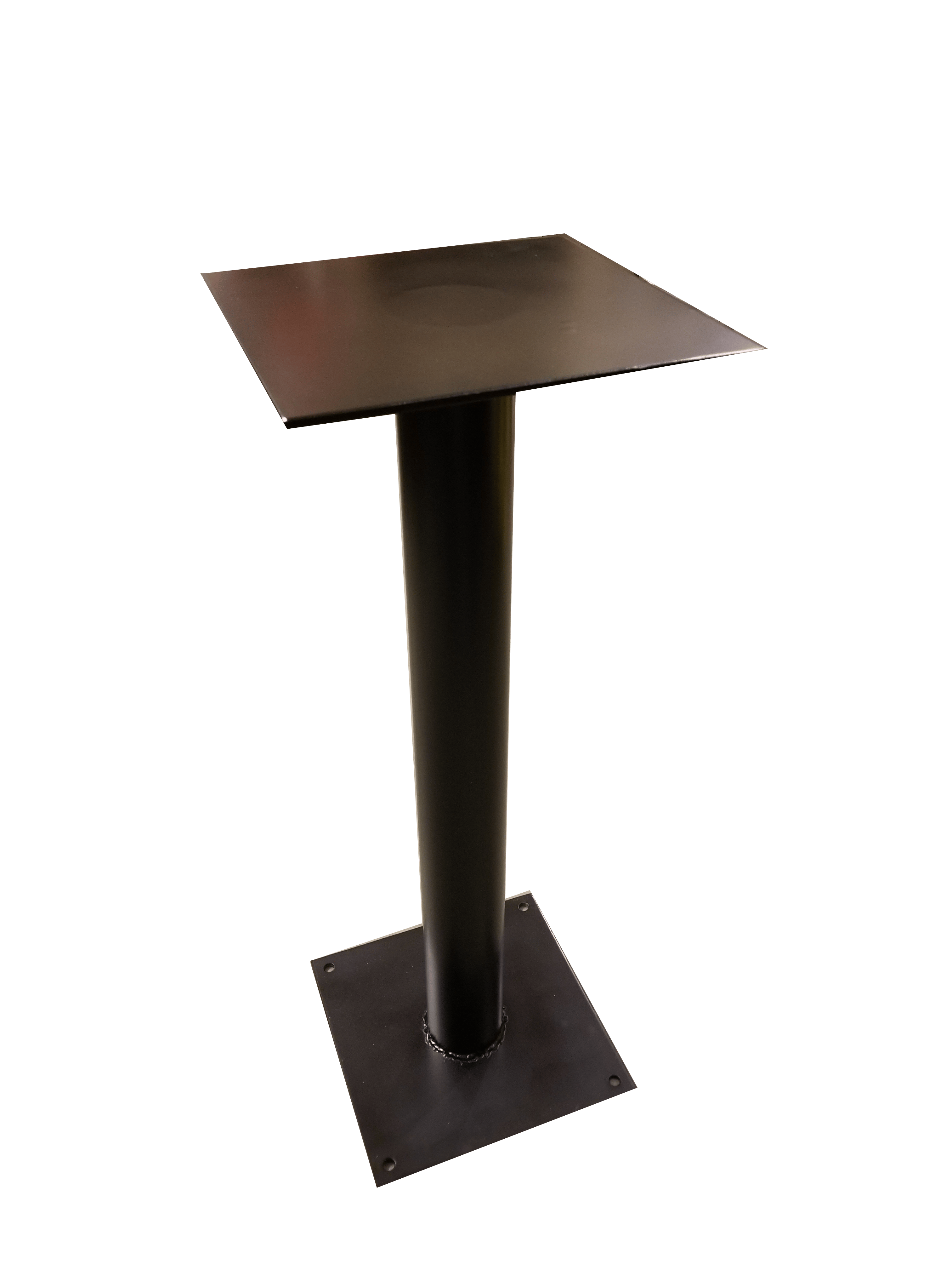

Grinding and finishing stands include the low cost bench grinder pedestal stand, the No Go™ Grinder Safety Stand, which uses work rest sensors to keep the grinder from starting when a rest is out of adjustment, and the MAKESafe Tools stand, which combines a guarded bench grinder, an industrial pedestal and a power tool brake in one package.
Machine stands include the ODIZ Quick Change Stand, which takes equipment on swappable mounting plates, the heavy duty arbor press stand and adjustable height stands designed to order.

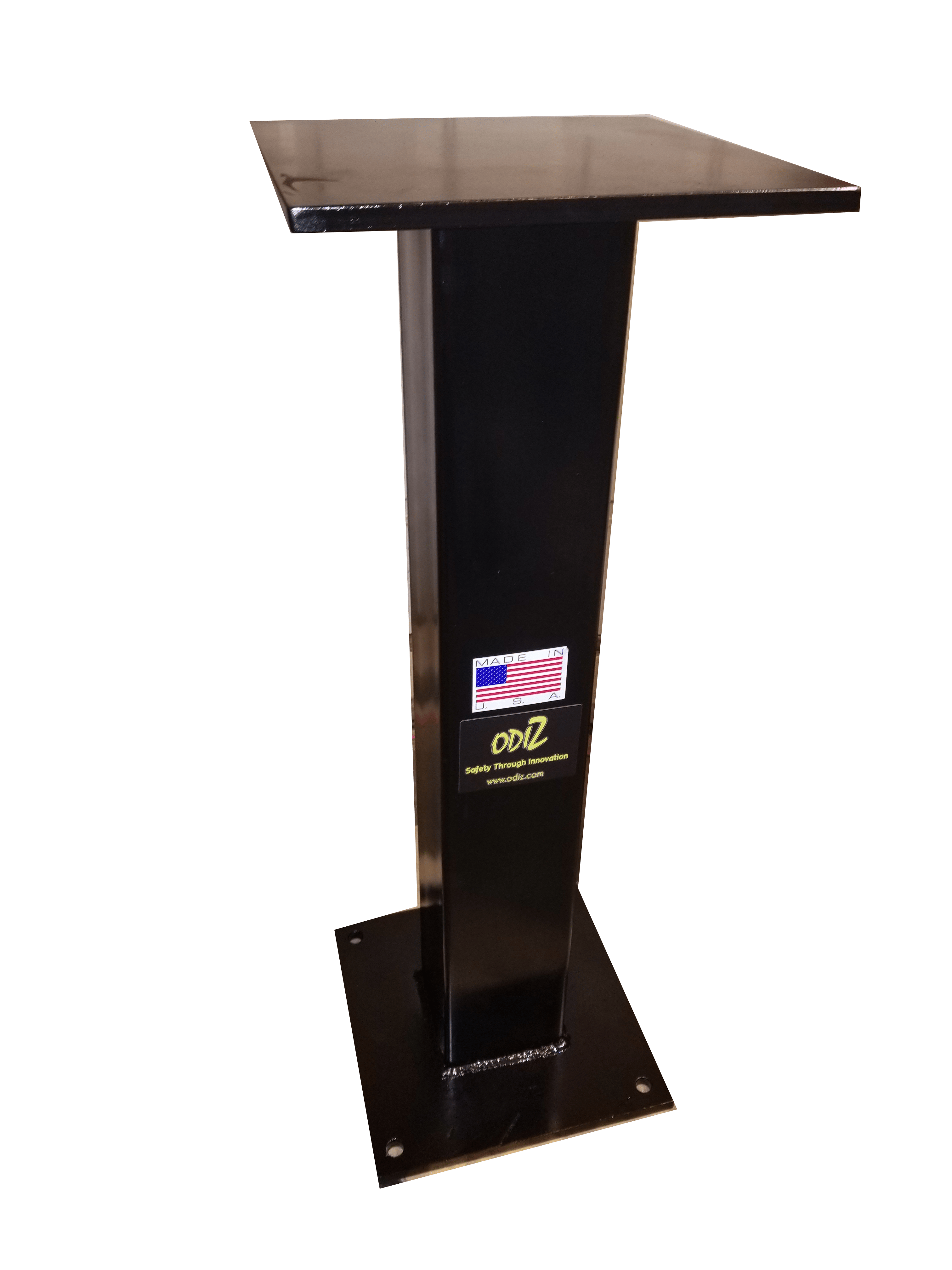

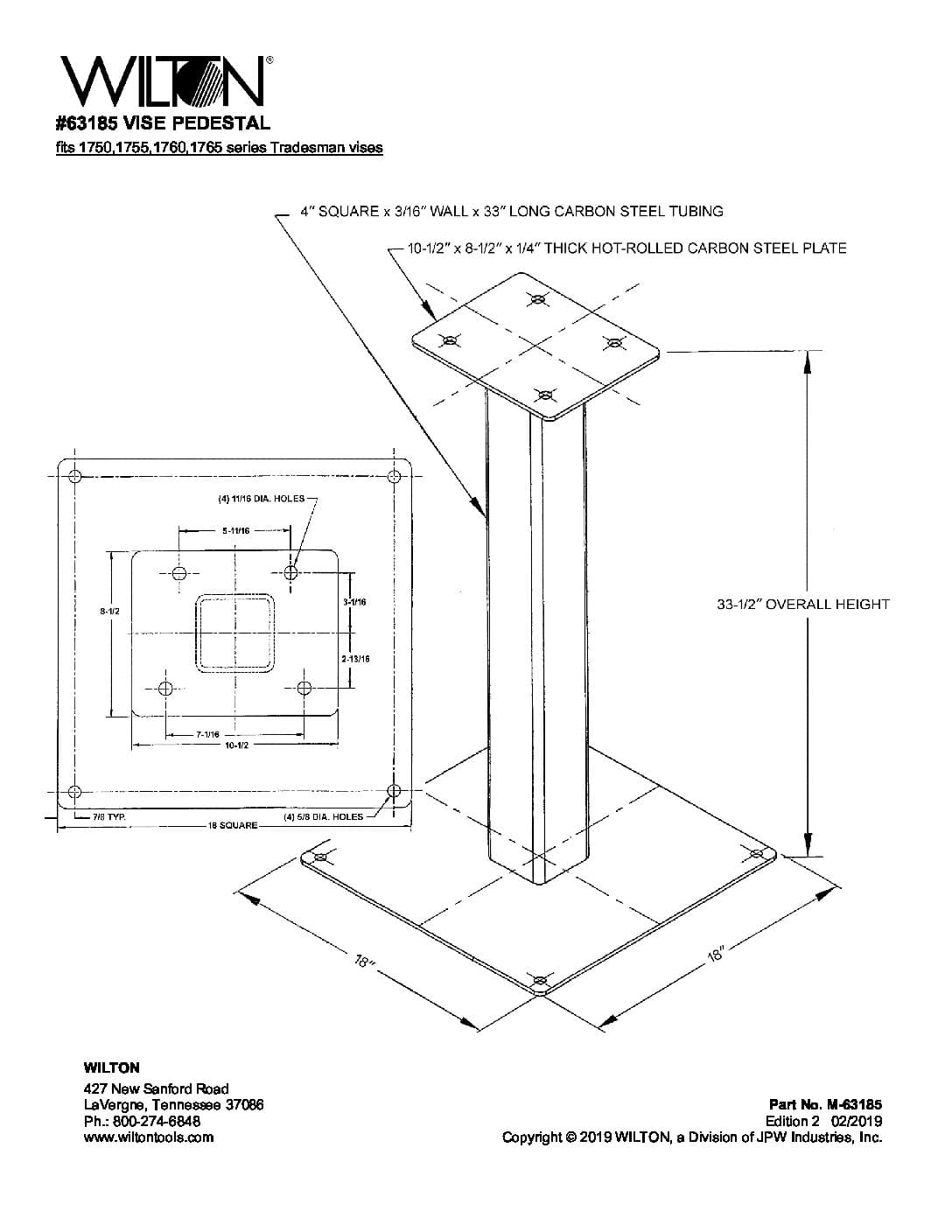

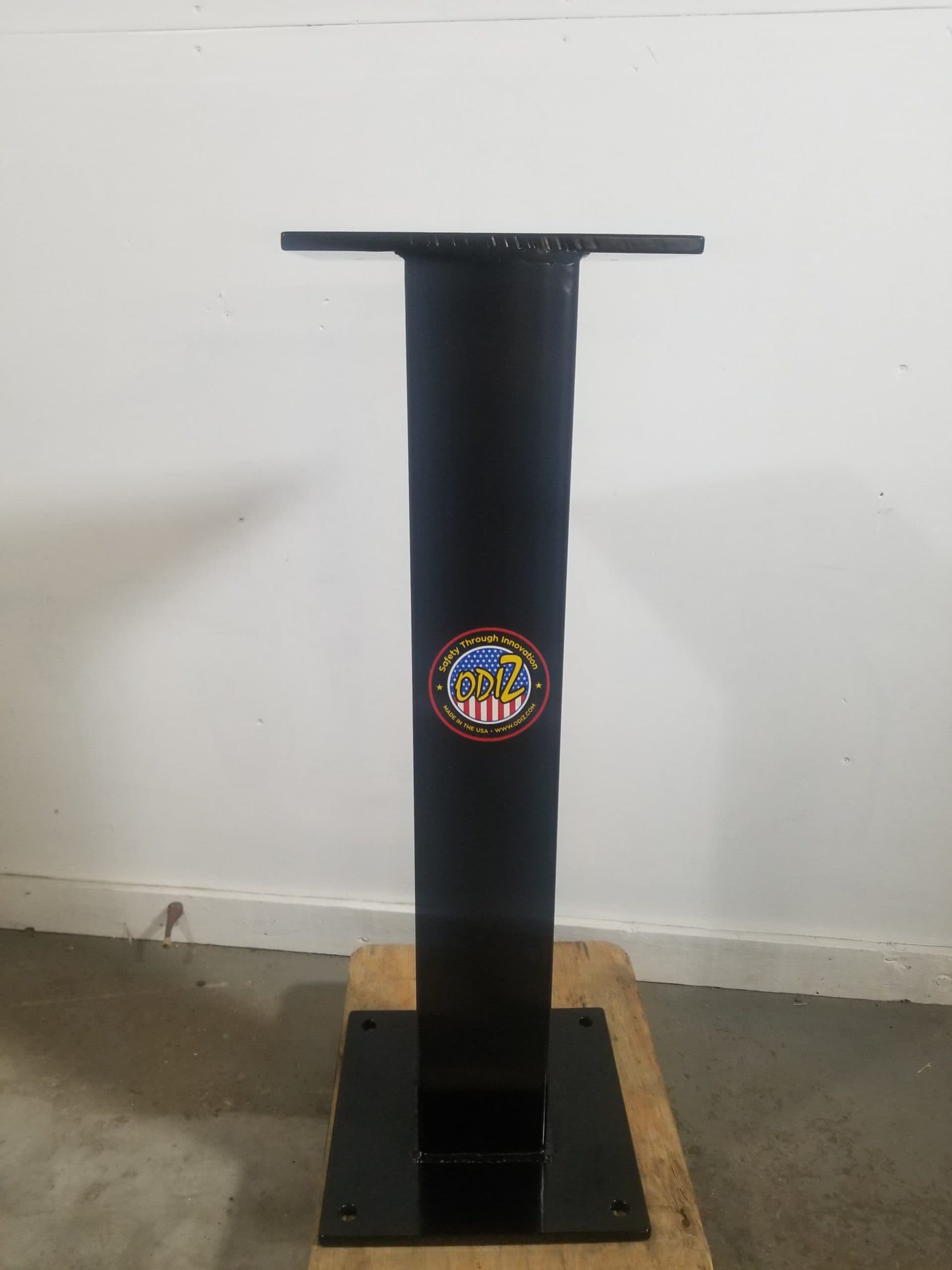

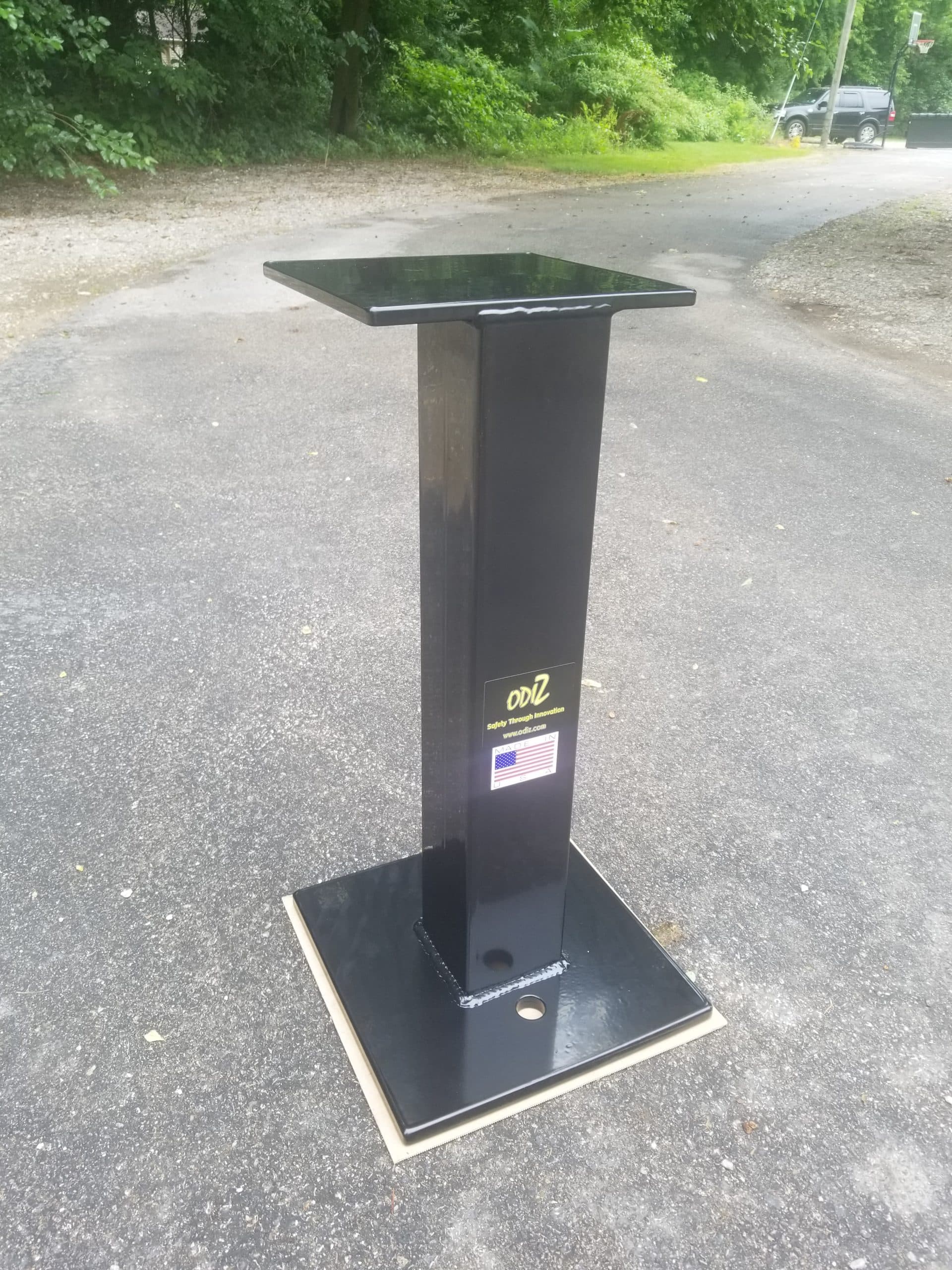

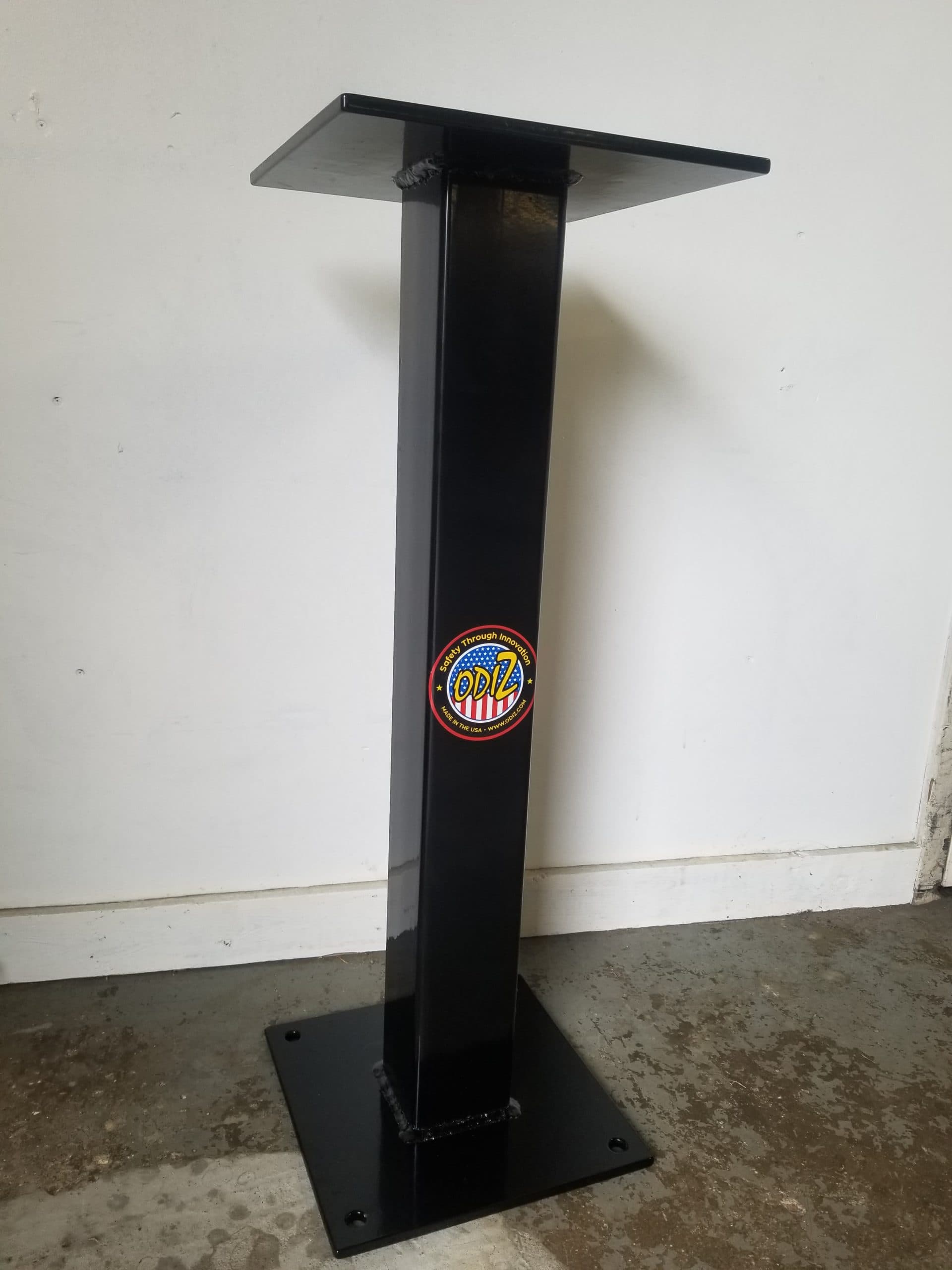

Vise stands run from the medium duty vise stand and heavy duty vise stand to blacksmith leg vise stands and a Wilton 63185 equivalent pedestal.

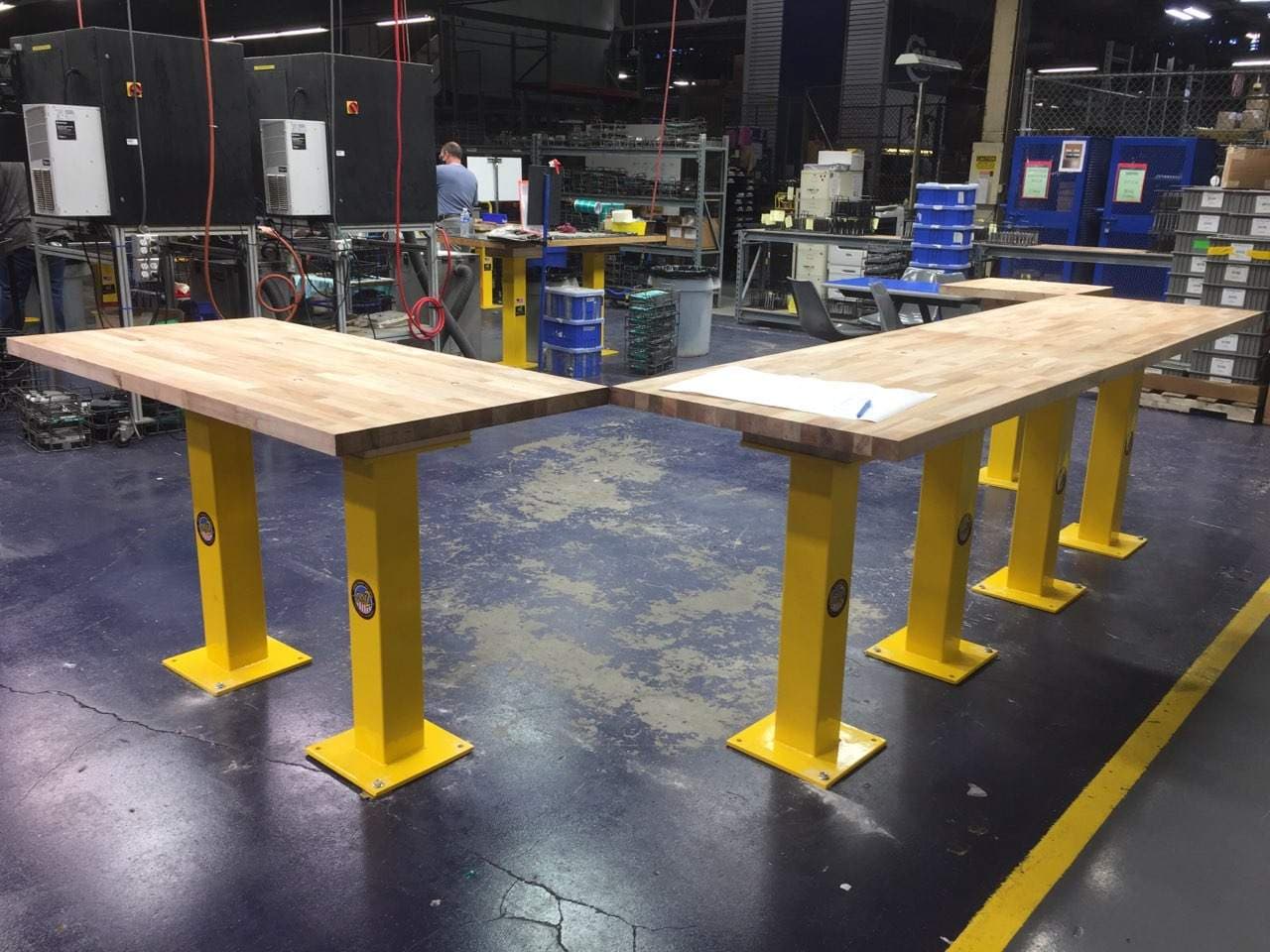

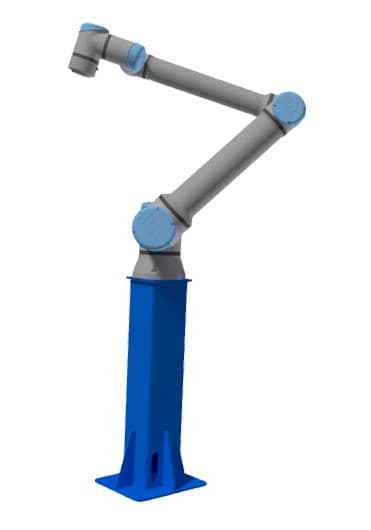

Robot stands are custom robot and cobot stand bases built to specification, with detailed drawings for your approval. Workstations and tables include production assembly tables, and Odiz also designs assembly benches, foot rests, production tools and other ergonomic solutions. The category also lists Odiz safety bollards in 24, 36 and 42 in. heights, and more are in barriers and bollards.
Anchoring under 1910.212(b) is only part of the picture, because a stand does not replace the guarding the machine on it needs. A bench grinder on a pedestal still needs its wheel guards, work rests and tongue guards set to OSHA 1910.215, and the general guarding rules in 1910.212(a) apply to every machine. For workstations and adjustable height stands, ANSI B11.TR1 gives ergonomic guidelines for designing, installing and using machine tools, a useful reference when setting working heights and reach.
Pair a grinder stand with a grinder from bench grinders, and add an ergonomic mat where operators stand at a workstation for long periods.
Machines designed for a fixed location do: OSHA 1910.212(b) requires them to be securely anchored to prevent walking or moving. Odiz pedestal stands have base plates drilled for floor anchors, so a grinder, press or other machine on top stays in place. Anchoring a vise stand also stops it from shifting under hammering or bending loads.
Most Odiz grinder and vise pedestals measure 33-1/2 to 33-3/4 in. to the top plate, and the height of the equipment adds to that. Leg vise stands can be built to the height you select, and Odiz designs adjustable height stands where operators or tasks need a different working height.
Most Odiz stands ship with a blank top plate, so you can drill it for your grinder, vise or press, and several offer an optional pre-drilled top. The Quick Change Stand uses separate drilled and tapped mounting plates, so different equipment can be changed over on one pedestal.
Yes. Build your own custom stand lets you choose the top plate, gusset and color options, and Odiz designs and builds robot stand bases, adjustable height stands and production assembly tables to specification. Odiz can start from your concept and provide detailed drawings for approval before fabrication.
