Drill guards for every drilling machine: interlocked and telescoping drill press guards, adjustable radial arm drill guards with long-reach mounts, belt guards and anti-restart controls.
Showing all 9 products
Every drilling machine concentrates its hazards around the spindle. The turning chuck and bit can catch a loose sleeve, glove or hair and wind it in. A part that is not clamped or held in a vise can grab on the bit and swing around with it, striking the operator’s hand. The cut throws hot chips, and the belts and pulleys that drive the spindle form nip points under the head cover. Older machines often start up again by themselves when power is restored after an outage, catching someone who was reaching in to clear chips.
Radial arm drills add reach. The head travels along an arm that swings around the column, so the spindle can sit well away from the base, over large parts that are hard to clamp, and any guard has to reach it there.

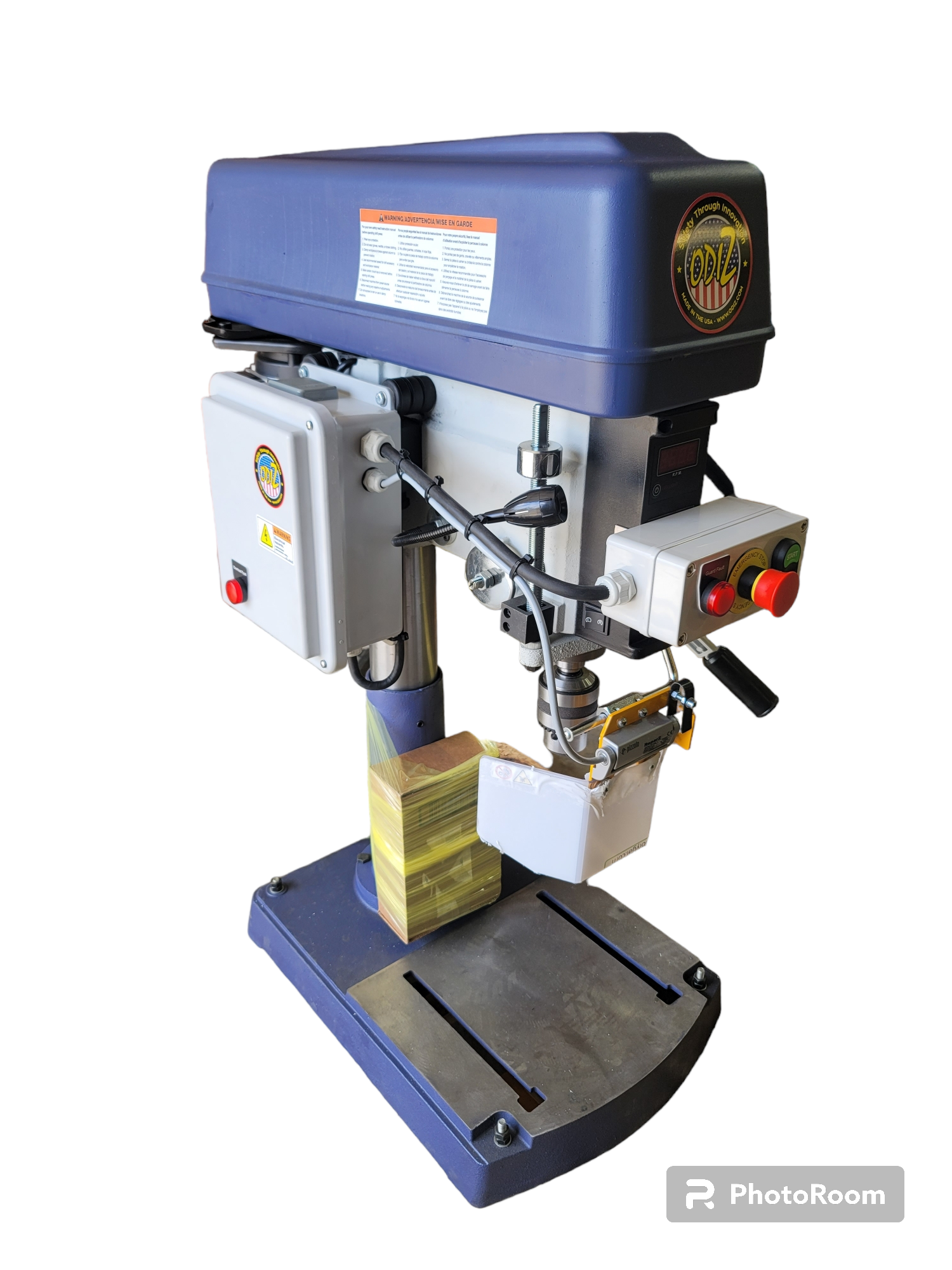

On bench and floor drill presses, choose the guard by how often the operator reaches in. The interlocked flip-up drill press guard places a clear Lexan panel in front of the chuck and tooling, and the flip-up or side-swinging drill press guard can be ordered with the Odiz interlock system and No-Go controls such as start, stop and E-stop. The Flexbar DrillGuard telescopes with the quill so the bit stays covered and visible as it feeds, with an optional LED light. Where the spindle needs covering from more than one side, the interlocked front or fully enclosed spindle guard comes in both configurations.
The adjustable radial arm drill guard shields the spindle on radial arm drills and large drill presses. Its universal knuckle mount and long, adjustable reach are designed to fit older machines.
Belts and pulleys behind an open or missing head cover need a fixed guard. Custom belt guards are built from four measurements matched to the dimension options in the product image. For small and large drill presses that need a guard designed around the machine, Odiz can assess the machine and install custom drill press and milling machine guards.
Interlocks and restart controls cover the moments a guard cannot: when it is open, and when power comes back after an interruption. The Odiz anti-restart interlocked drill press and mill Lexan guard combines the shield, interlock and restart protection in one unit. For a machine that already has a guard, the No-Go 120V contactor power loss drop-out adds start, stop and latching E-stop controls, an overload trip LED and a contactor that drops the machine out on power loss. See anti-restart and motor brake systems and machine interlock systems for more options.
OSHA 1910.212(a)(1) requires guarding that protects the operator and others in the machine area from hazards such as the point of operation, ingoing nip points, rotating parts and flying chips, which on a drilling machine means the spindle, chuck, bit and drive. 1910.212(a)(2) requires guards to be affixed to the machine where possible without creating a hazard of their own. The machine-specific consensus standard is ANSI B11.8, which covers manually controlled drilling, milling and boring machines, including those with some automatic capability but no automatic tool changing or part handling. Machining centers and automatic numerically controlled drilling machines are covered by ANSI B11.23, and ANSI B11.0 describes the risk assessment used to choose guards and interlocks.
Usually. A radial arm drill's head travels along a swinging arm, so the spindle can sit far from the column over large parts, where a guard sized for a drill press may not reach. The Odiz adjustable radial arm drill guard uses a universal knuckle mount and a long, adjustable reach for these machines and for large drill presses.
Yes. OSHA 1910.212(a)(1) lists ingoing nip points and rotating parts among the hazards guarding must address, and a belt running onto a pulley creates an ingoing nip point. Keep the head cover closed and intact, or fit a custom belt guard, which Odiz builds from four measurements matched to the product's dimension options.
ANSI B11.8 covers manually controlled drilling, milling and boring machines, including those with some automatic capability but without automatic tool changing or part handling. Machining centers and automatic numerically controlled drilling machines are covered by ANSI B11.23. ANSI B11.0 sets out the general risk assessment process for any machine.
Note the machine type and size, where a guard can mount, and how far it must reach to cover the spindle and chuck through the full stroke. Then decide whether operators open the guard often enough to need an interlock, and whether the machine needs a power-loss drop-out so it cannot restart by itself after an outage.
