Custom Milling Machines & Drill Presses
Drill Press

Custom Milling Machines & Drill Presses

SKU ODIZ-1849

This custom milling machine and drill press guarding is designed, built and installed by Odiz for machines that off-the-shelf guards do not fit. Odiz assesses the machine and guards 2 and 3 axis mills, boring mills, drawbars, and small and large drill presses, so the guard suits both the hazard and the way you work.

Request a quoteIn stock
Sizes
Weight
0 lbs

Not sure where to start? Use our Virtual Design Assistant to assess your machine, or reach out to our team to learn more.

Virtual Design Assistant

Request information

Name *
Drill PressHorizontal Boring MillHorizontal Milling MachineVertical Milling Machine
TagsBoring Mill GuardingCustom Engineered Machine GuardingDraw Bar GuardingDrill Press GuardMachine GuardingMilling Guarding

Odiz Safety assesses, designs and installs custom guards for milling machines and drill presses when off-the-shelf solutions do not fit the machine or the operation. Each guard is designed around the machine and the job, so it protects the operator and stays usable in production. Guarding options cover 2 and 3 axis mills, boring mills, drawbar guarding and small and large drill presses.

Key features

  • Assessment first: Odiz assesses each machine before designing its guard.

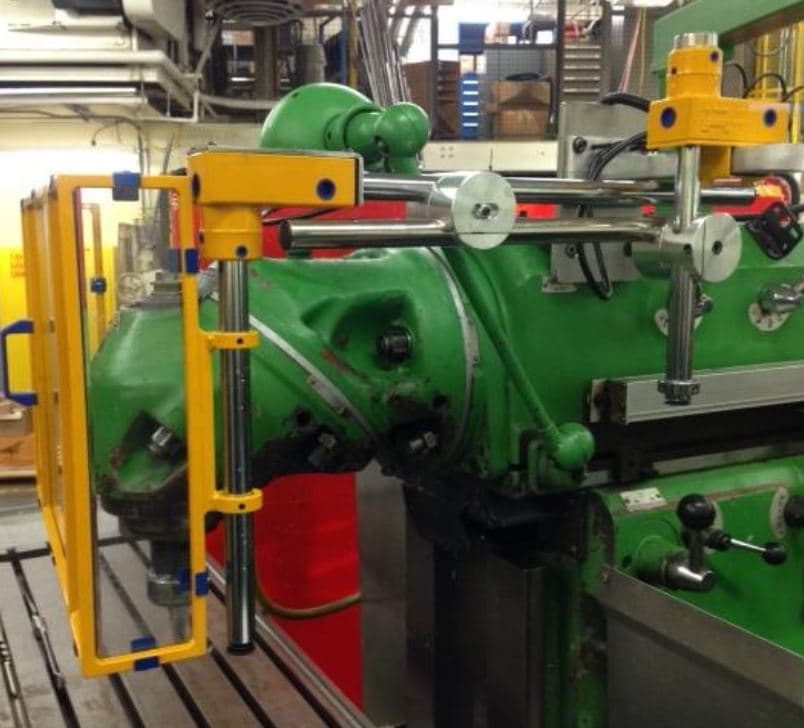

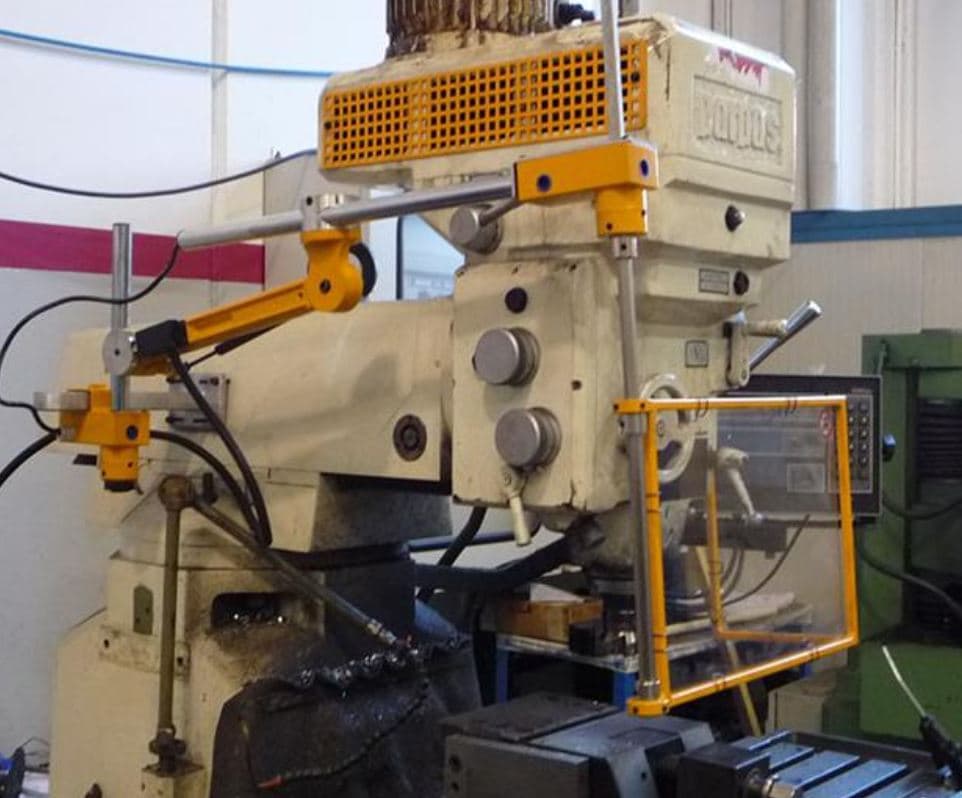

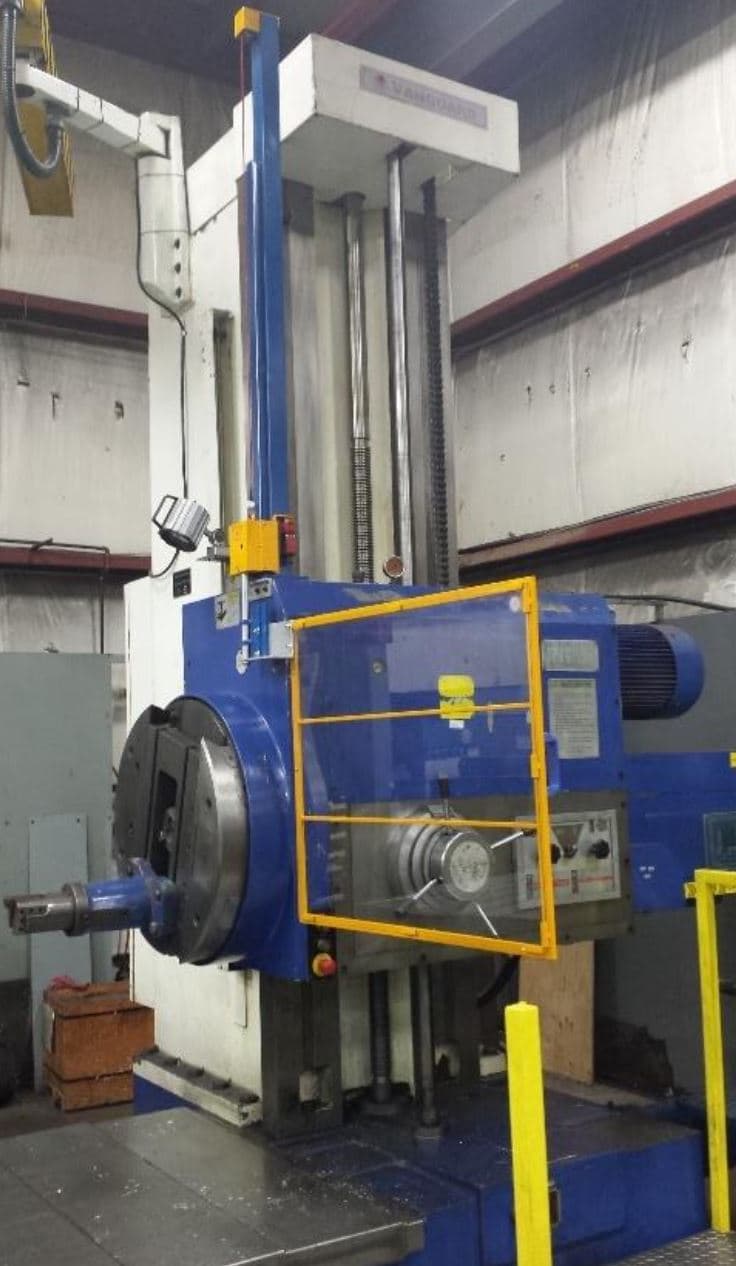

  • Mill guarding: guards for 2 and 3 axis milling machines and for boring mills.
  • Drawbar guarding: guarding for the rotating drawbar at the spindle.

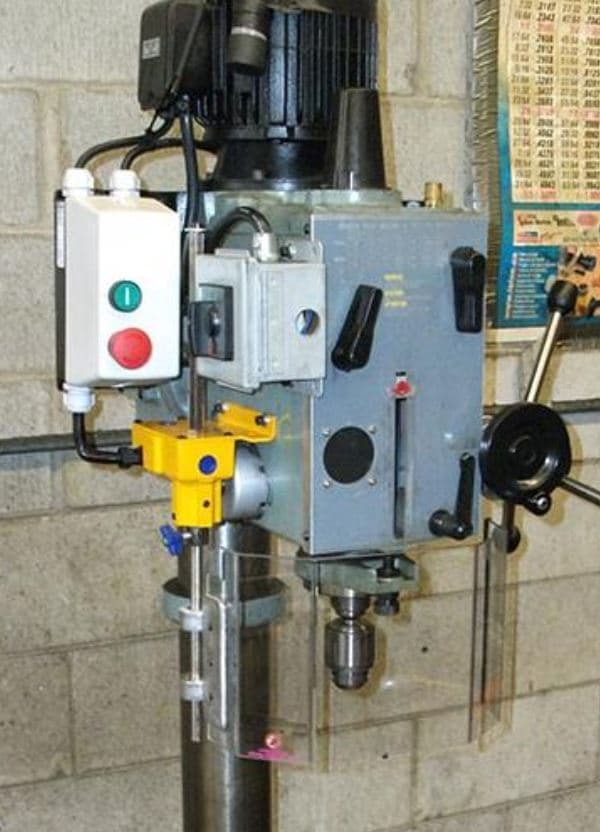

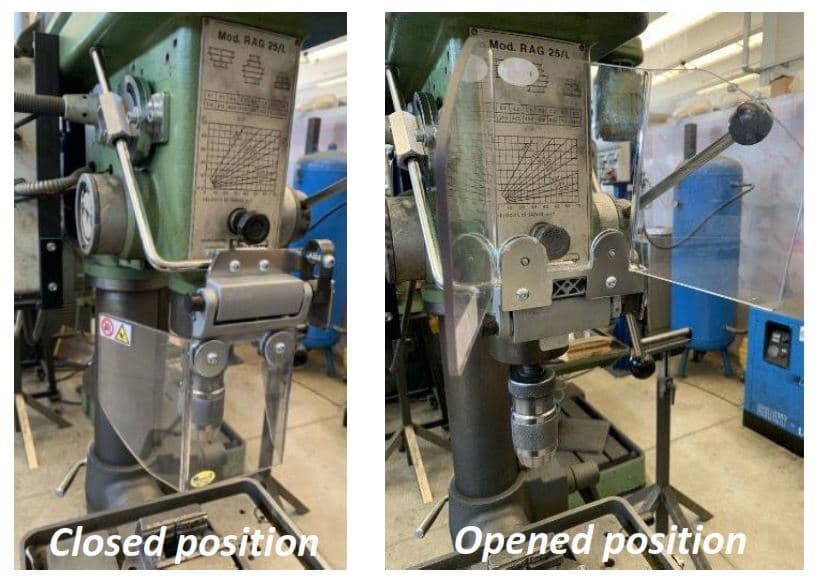

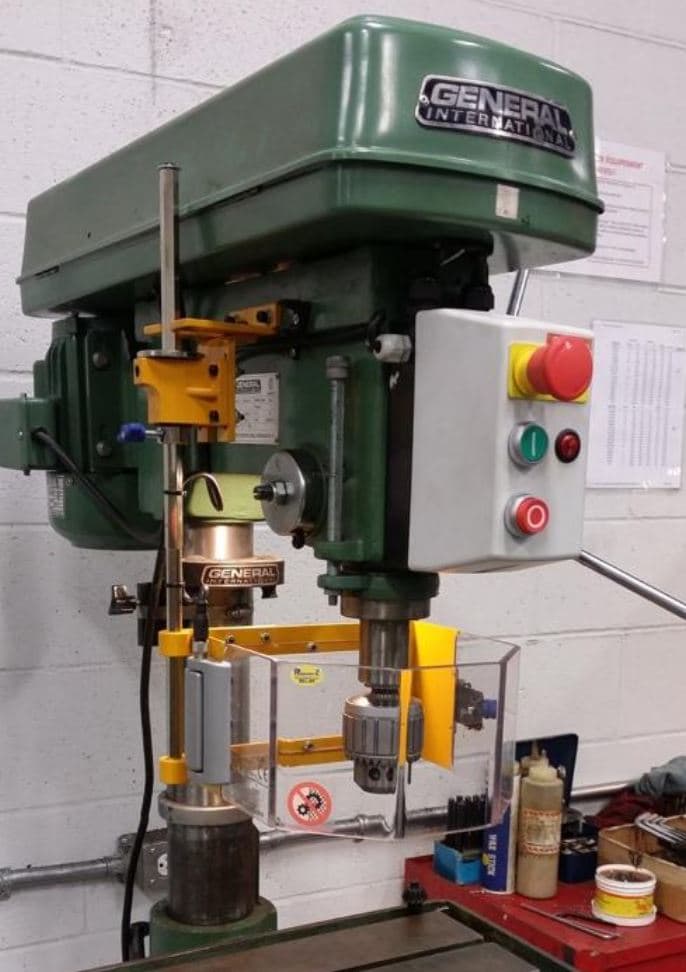

  • Drill press guarding: guards for small and large drill presses.
  • Installation: Odiz can install the guards it designs.

Specifications

  • Type: custom machine guarding
  • Machines: 2 and 3 axis mills, boring mills, small and large drill presses
  • Guarding options: mill guards, boring mill guards, drawbar guarding, drill press guards
  • Services: assessment, custom design and installation

Standards

Custom mill and drill press guards are designed to help meet OSHA 1910.212, general requirements for all machines, including 1910.212(a) machine guarding and 1910.212(a)(3)(iv)(e), which lists milling machines among the machines that usually require point of operation guarding. They are also designed to help meet ANSI B11.8, Manual Milling, Drilling and Boring Machines, B11.23, Machining Centers and Automatic Numerically Controlled Milling, Drilling and Boring Machines, and the general machinery standard B11.0. Compliance depends on the complete installation and how each machine is used.

Applications

Use Odiz custom guarding on vertical and horizontal milling machines, horizontal boring mills and drill presses in machine shops, toolrooms and maintenance departments, particularly where a standard guard interferes with setups or the parts you run.

1910.212 - General requirements for all machines.1910.212(a) - Machine guarding1910.212(a)(3)(iv)(e) – Milling Machines

1910.212 - General requirements for all machines.

OSHA 1910.212 sets the general requirements for machine guarding, covering moving parts, points of operation, in-running nip points, and flying debris. It applies to all machines to protect workers from injury caused by hazardous motion and contact.

All products for this standard

1910.212(a) - Machine guarding

OSHA 1910.212(a) establishes the general machine guarding requirements that protect employees from points of operation, moving parts, in-running nip points, and flying debris. It forms the foundation for all other machine guarding rules.

All products for this standard

1910.212(a)(3)(iv)(e) – Milling Machines

OSHA 1910.212(a)(3)(iv)(e) lists milling machines as equipment that usually requires point-of-operation guarding. These machines expose operators to rotating cutters, flying chips, and entanglement hazards that must be controlled with fixed or adjustable guards and safe operating practices.

All products for this standard
B11 – Machine Safety & Machine Tool StandardsB11.0 – Safety of MachineryB11.23 – Machining Centers & Automatic Numerically Controlled Milling, Drilling & Boring MachinesB11.8 – Manual Milling, Drilling & Boring Machines (With or Without Automatic Control)

B11 – Machine Safety & Machine Tool Standards

ANSI B11 is a suite of machine safety standards governing the design, guarding, risk assessment, and safeguarding of industrial machinery. It supports detailed safety criteria for compliance with OSHA’s machine guarding rules.

All products for this standard

B11.0 – Safety of Machinery

ANSI B11.0 outlines the foundational requirements for machinery safety, including terminology, risk assessment, and risk reduction principles. It serves as the broad “Type A” standard that supports machine-specific standards in the B11 series such as B11.19 and B11.C-type documents.

All products for this standard

B11.23 – Machining Centers & Automatic Numerically Controlled Milling, Drilling & Boring Machines

B11.23 sets industry safety requirements for machining centers and automatic numerically controlled (NC/CNC) milling, drilling and boring machines—addressing design, construction, operation and maintenance.

All products for this standard

B11.8 – Manual Milling, Drilling & Boring Machines (With or Without Automatic Control)

B11.8 provides safety requirements for manual milling, drilling and boring machines — covering design, construction, operation, maintenance and safe use whether automatic control is present or not.

All products for this standard
