Machine safety apps for stop time measurement, machine validations and daily inspections, lockout-tagout (LOTO) and LazerSafe sign-off.
Showing all 4 products

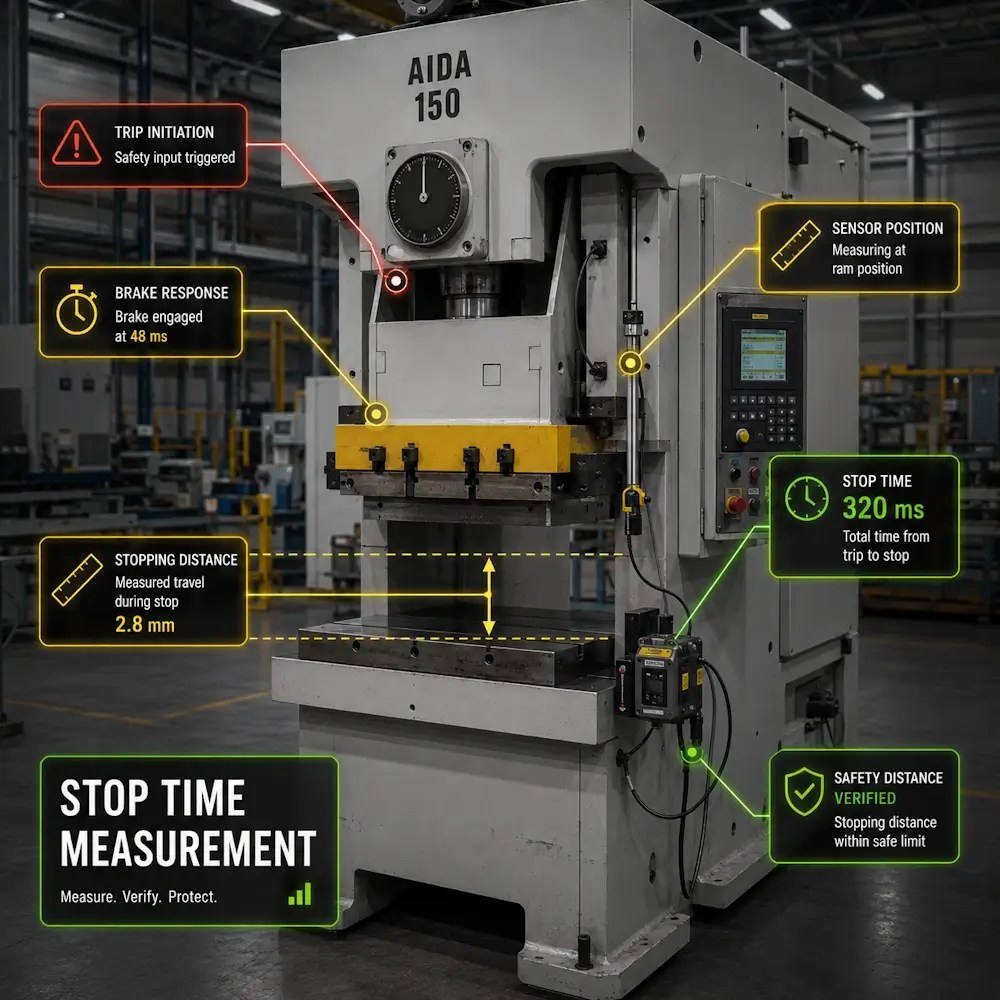

The Stop Time Measurement app verifies how long a machine takes to stop after a light curtain, safety mat, two-hand control, interlocked guard or other safety device is triggered. A safety distance is built on that stopping time: for mechanical power presses, OSHA 1910.217 bases the minimum safety distance of presence-sensing devices and two-hand controls on the press’s measured stopping time. Stopping time can lengthen as brakes wear, which is why 1910.217 calls for brake monitors in some press safeguarding setups to block the next stroke once stopping time deteriorates past what the safety distance allows.

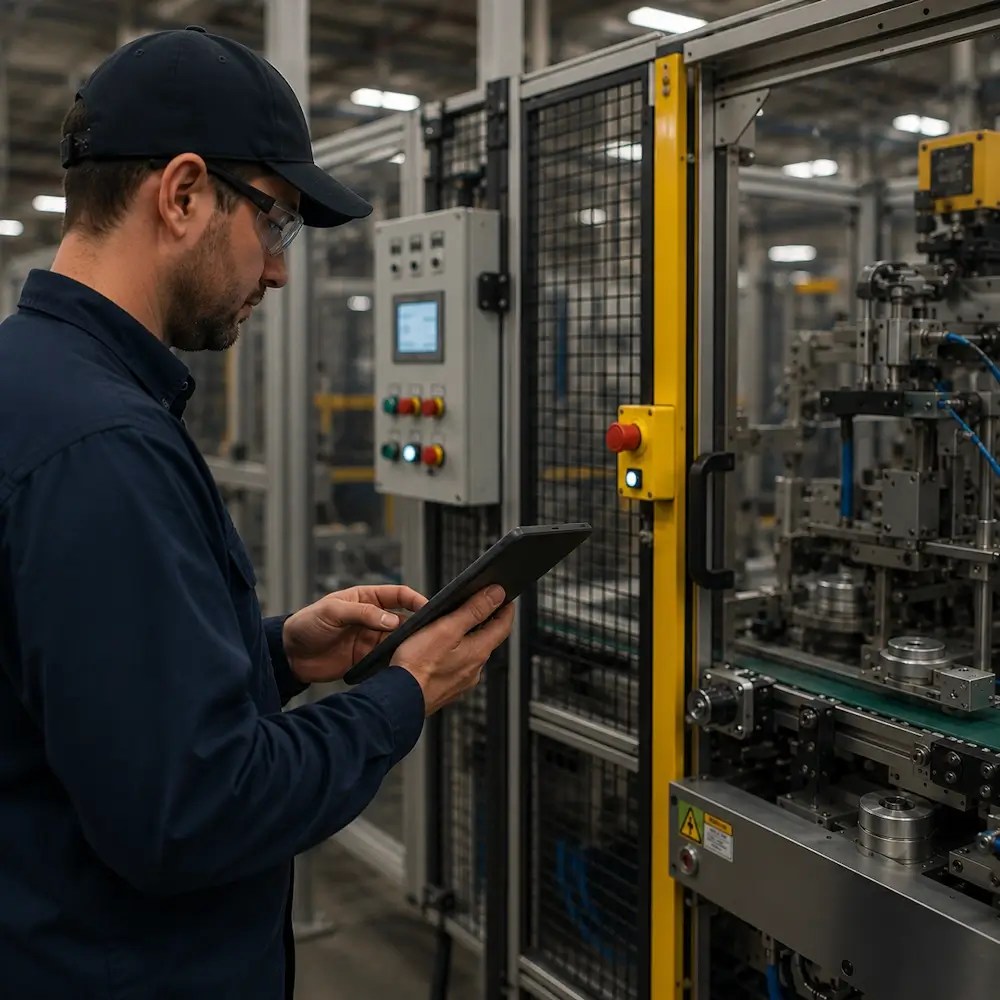

The Machine Validations and Daily Inspections app supports regular checks that guards, interlocks, light curtains, emergency stops and other safeguards are present, working and suited to how the machine is used. ANSI B11.19 sets performance requirements for these risk reduction measures, including their operation and maintenance.

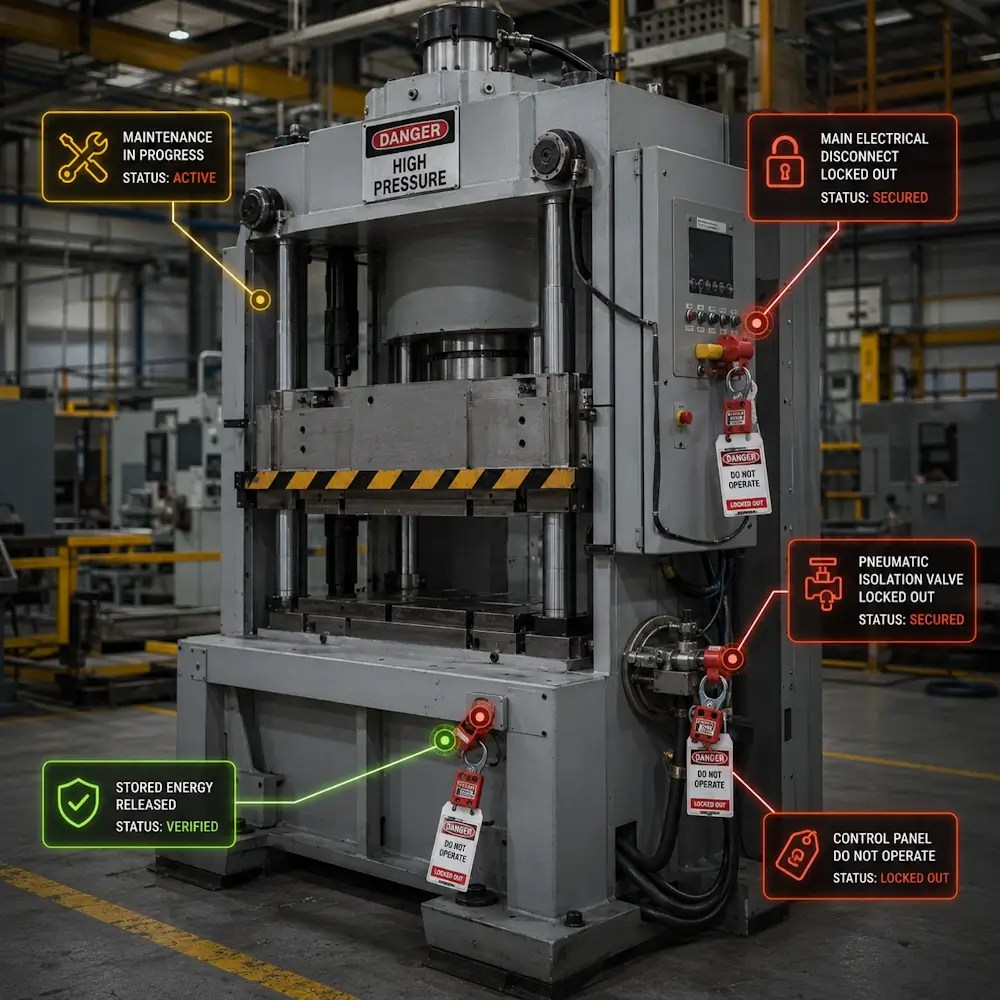

The Lockout-Tagout (LOTO) app holds lockout-tagout procedures for service, maintenance, repair, cleaning, setup and troubleshooting work, written to identify and isolate each hazardous energy source. Under OSHA 1910.147, energy control procedures must be developed, documented and used, and each procedure needs a periodic inspection at least annually. ANSI/ASSP Z244.1 sets requirements for controlling hazardous energy by lockout, tagout or alternative methods. Devices for applying the procedures are in lockout tagout.

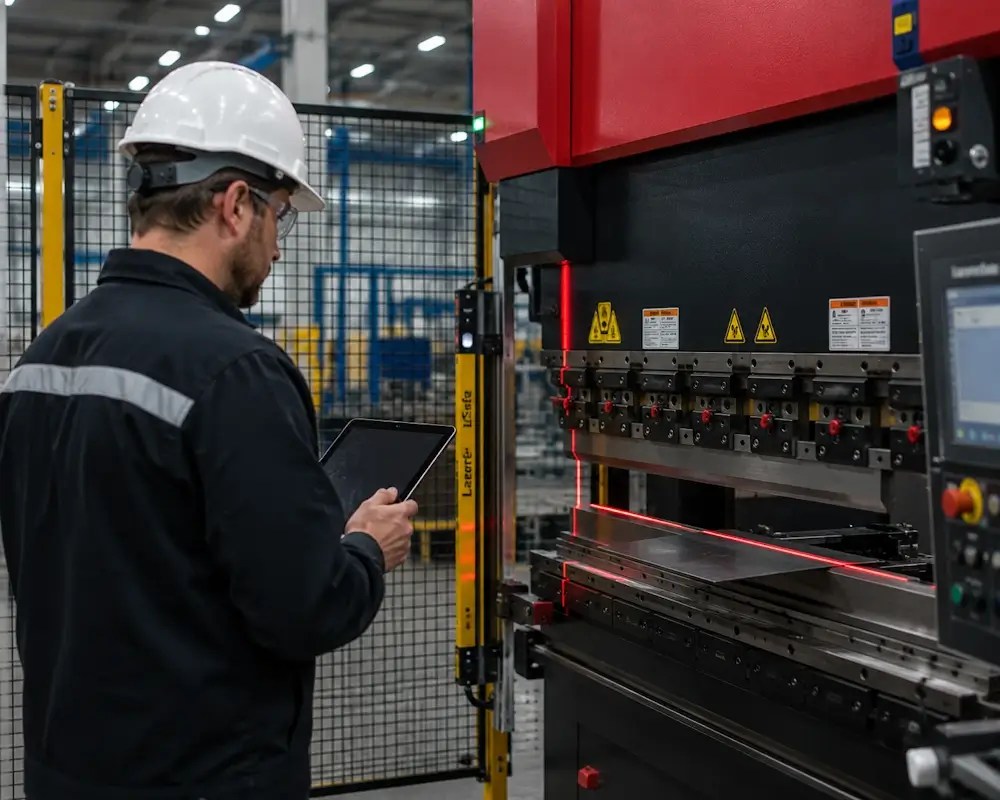

The LazerSafe Sign-Off app documents the setup, verification and approval of LazerSafe press brake safety systems, from controller and sensor details to checklist items and signatures. ANSI B11.3 covers safety requirements for power press brakes. See also the press brake and press safety controls categories.
For stop time measurement and safety device validation carried out by Odiz, see machine stop measurement and safety device validation. To follow which validations and inspections are coming due, see training and analytics.
It measures how long a machine takes to stop after a safety device is triggered, including light curtains, safety mats, two-hand controls, interlocked guards and other safety devices. The measured time is the basis for checking that each device sits far enough from the hazard.
OSHA 1910.147 requires a periodic inspection of each energy control procedure at least annually. The employer must certify that the inspection was performed, identifying the machine or equipment, the date, the employees included and the person who performed it.
It documents the setup, verification and approval of LazerSafe press brake safety systems, including controller and sensor details, checklist items and approval signatures, so each press brake sign-off is kept as a structured record.
The Machine Validations and Daily Inspections app checks that guards, interlocks, light curtains, emergency stops and other machine safeguards are present, working and suited to how the machine is used. ANSI B11.19 includes requirements for the operation and maintenance of such safeguards.
