Horizontal lathe guards for engine lathes, toolroom lathes and CNC lathes, from interlocked chuck guards and enclosed sliding guards to lead screw covers, chip shields and collet guards, designed to OSHA 1910.212 and ANSI B11.6.
Showing all 15 products
A horizontal lathe has four zones that need guarding: the chuck or collet at the headstock, the cutting zone at the carriage, the lead screw and feed rod along the bed, and the spindle bore behind the headstock where bar stock turns. A complete horizontal lathe guarding package covers all four, so no one can reach a rotating part during the cycle.

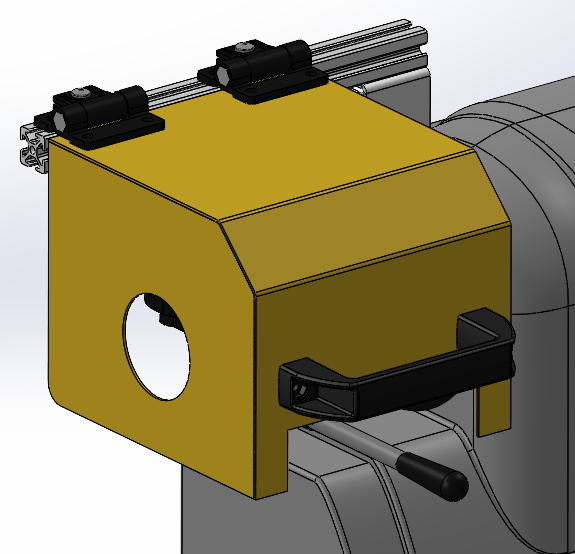

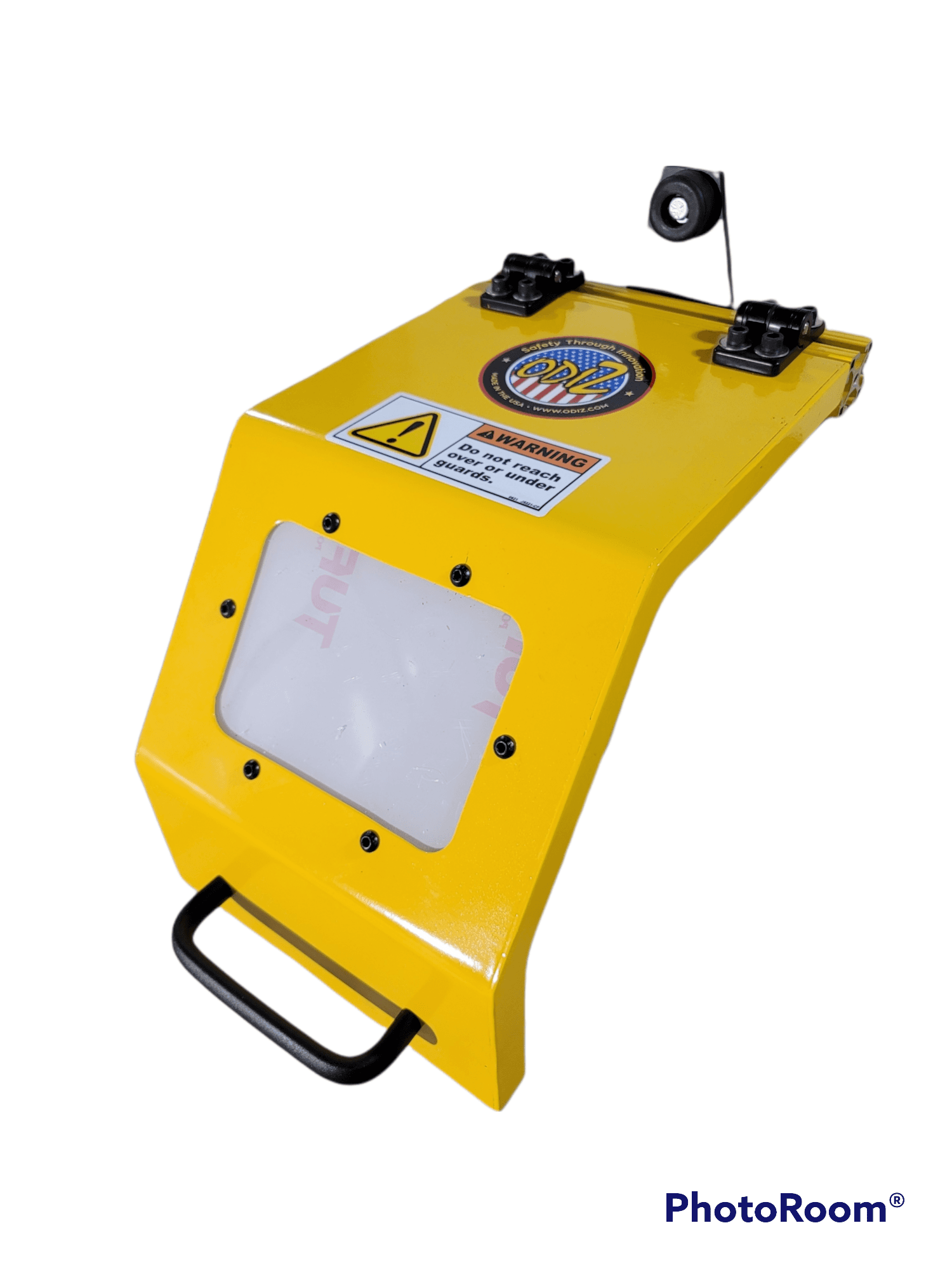

Choose the UFIT flip-up adjustable chuck guard, the UFIT slider chuck guard or a custom flip-up chuck guard sized to your chuck. Hardinge-style collet lathes take a dedicated collet guard.

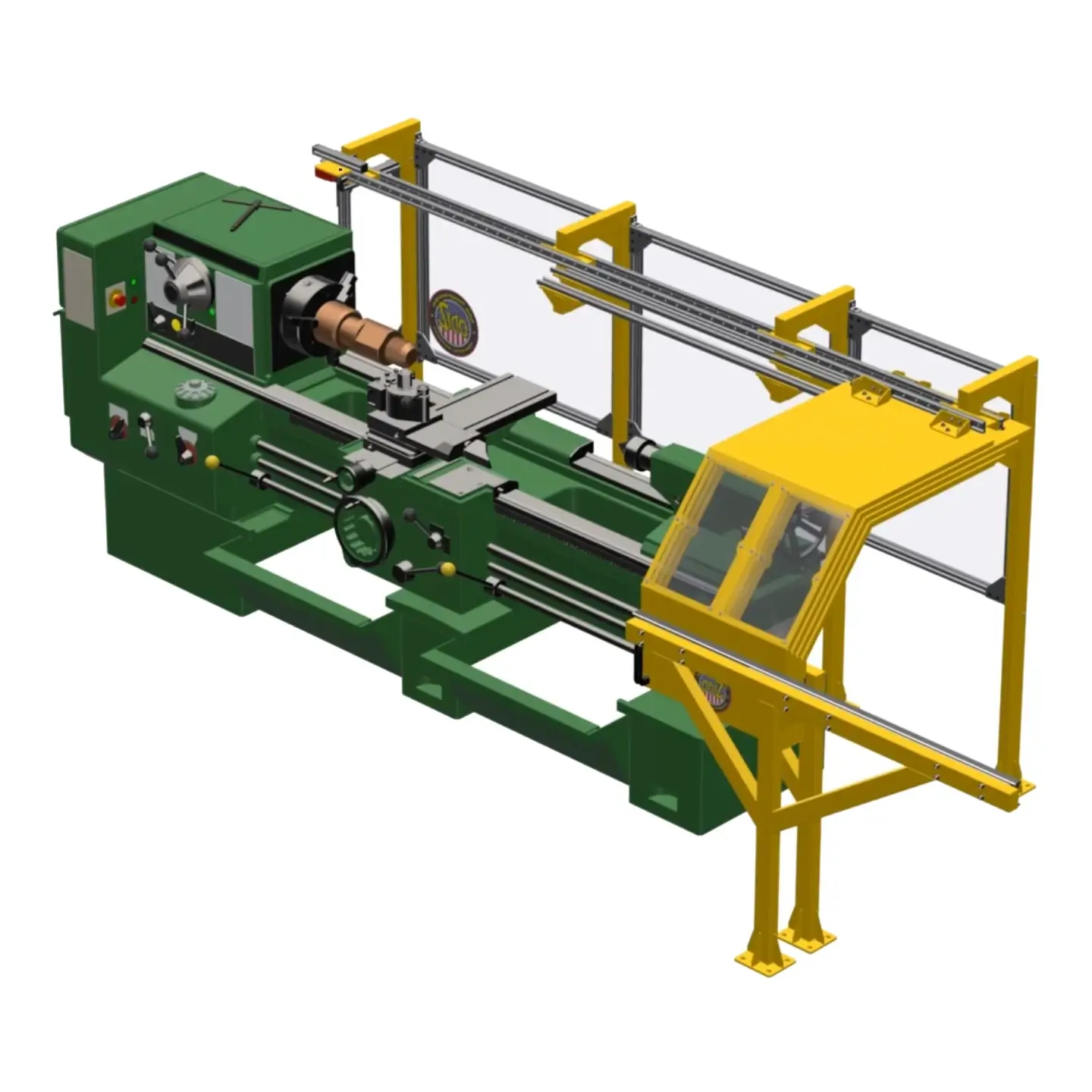

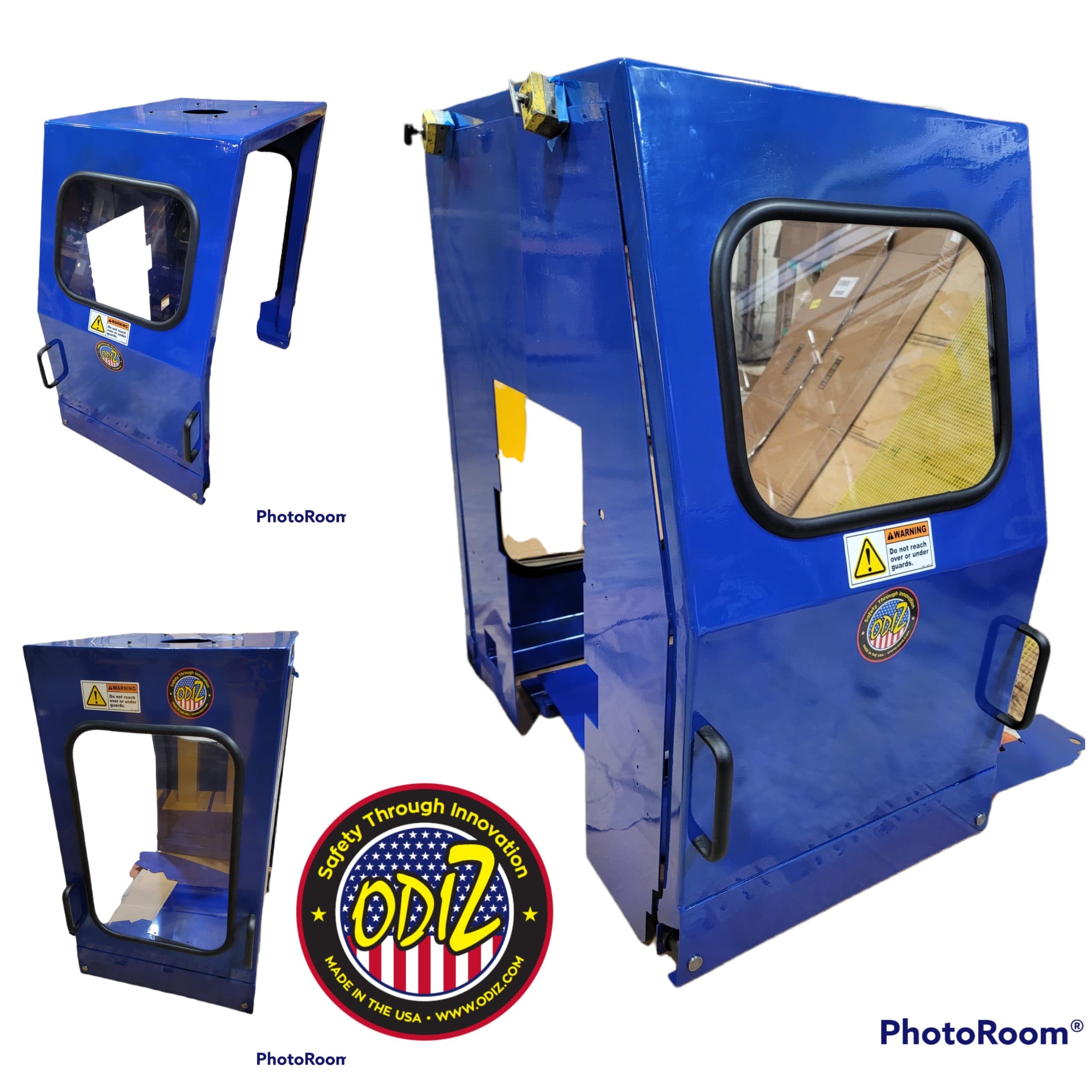

For large-swing and production lathes, the Odiz enclosed sliding horizontal lathe guard and the side sliding lathe guard enclose the work zone with panels that slide clear for loading and can be interlocked.
The double door chip and carriage guard adds dual sliding doors with an optional interlock and chip deflectors, retractable lead screw covers stop entanglement along the bed, and the backside chip guard protects people behind the machine.
Pair the guard with an interlock so the spindle stops when a guard opens, a stop and E-stop foot pedal bar along the bed, and anti-restart and motor brake controls so the lathe cannot restart by itself after a power loss.

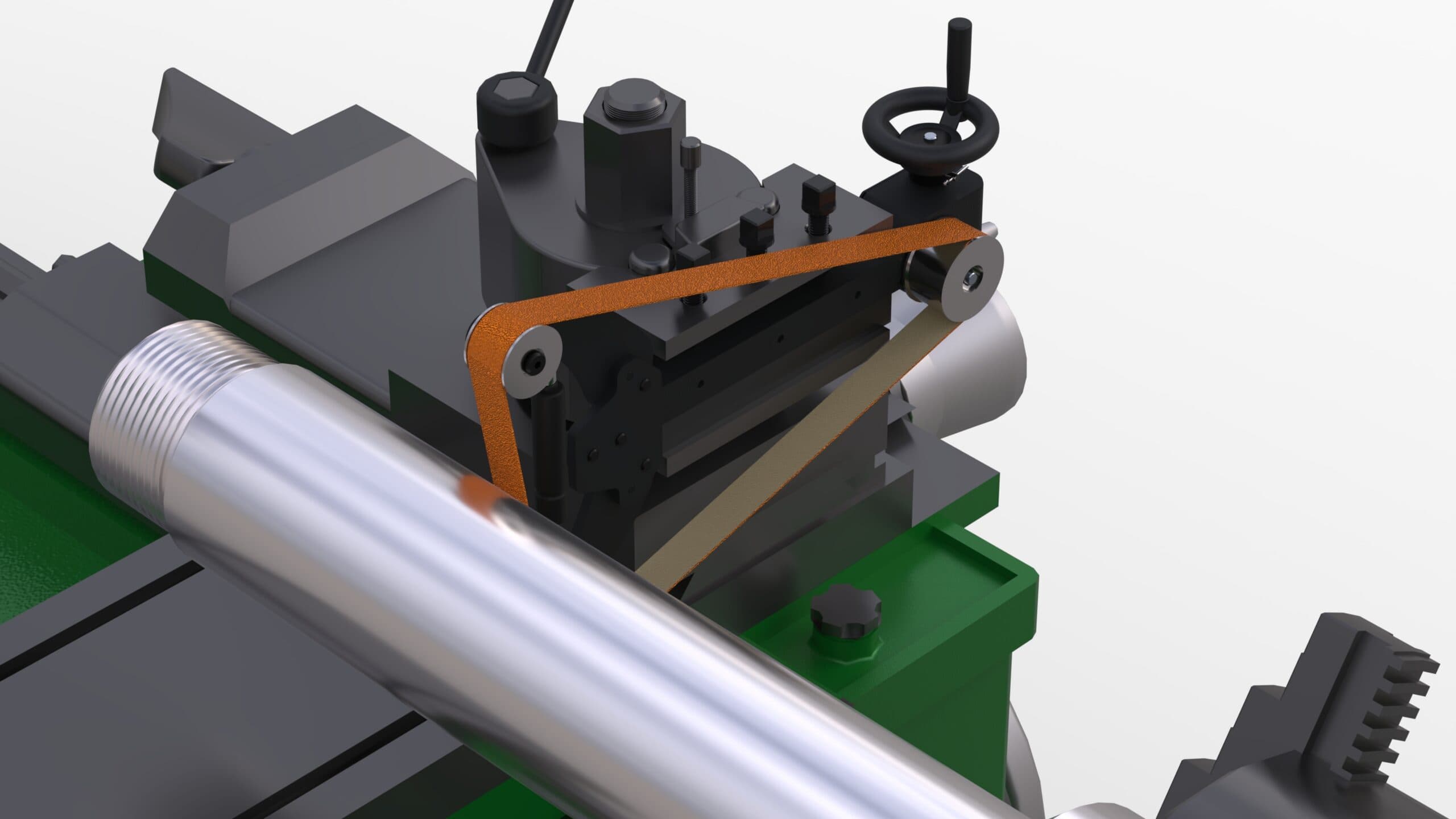

Holding emery cloth against a turning part pulls hands toward the work. The hands-free lathe polishing tool mounts on the lathe so the operator’s hands stay clear of the rotating part. See all lathe guards, or start with a machine guarding risk assessment.
A chuck guard covers only the rotating chuck. A full or enclosed lathe guard surrounds the whole work zone, including the chuck, the workpiece and the cutting area, and is common on large lathes and lathes that throw heavy chips or coolant.
Odiz guards flip up, slide or swing clear for loading, measuring and tool changes, and adjustable mounts let you position the shield around the parts you run.
An interlock is the most reliable way to keep the spindle from running while a guard is open, and ANSI B11.19 sets the performance requirements for interlocked guards. A risk assessment determines where an interlock is required and how reliable its circuit must be.
