Lathe guards for manual and CNC horizontal lathes and vertical turning lathes (VTLs). Choose interlocked chuck guards, enclosed sliding guards, lead screw covers and chip shields, or have Odiz engineer a custom lathe guard for your machine.
Showing all 18 products
Most lathe injuries happen at a few predictable points: the rotating chuck and workpiece, which can catch gloves, sleeves and hair; chips and coolant thrown from the cut; the turning lead screw and feed rod along the front of the bed; and bar stock that extends from the back of the headstock. OSHA 29 CFR 1910.212 requires one or more methods of guarding for these hazards, and ANSI B11.6 sets the safeguarding requirements for manual turning machines.

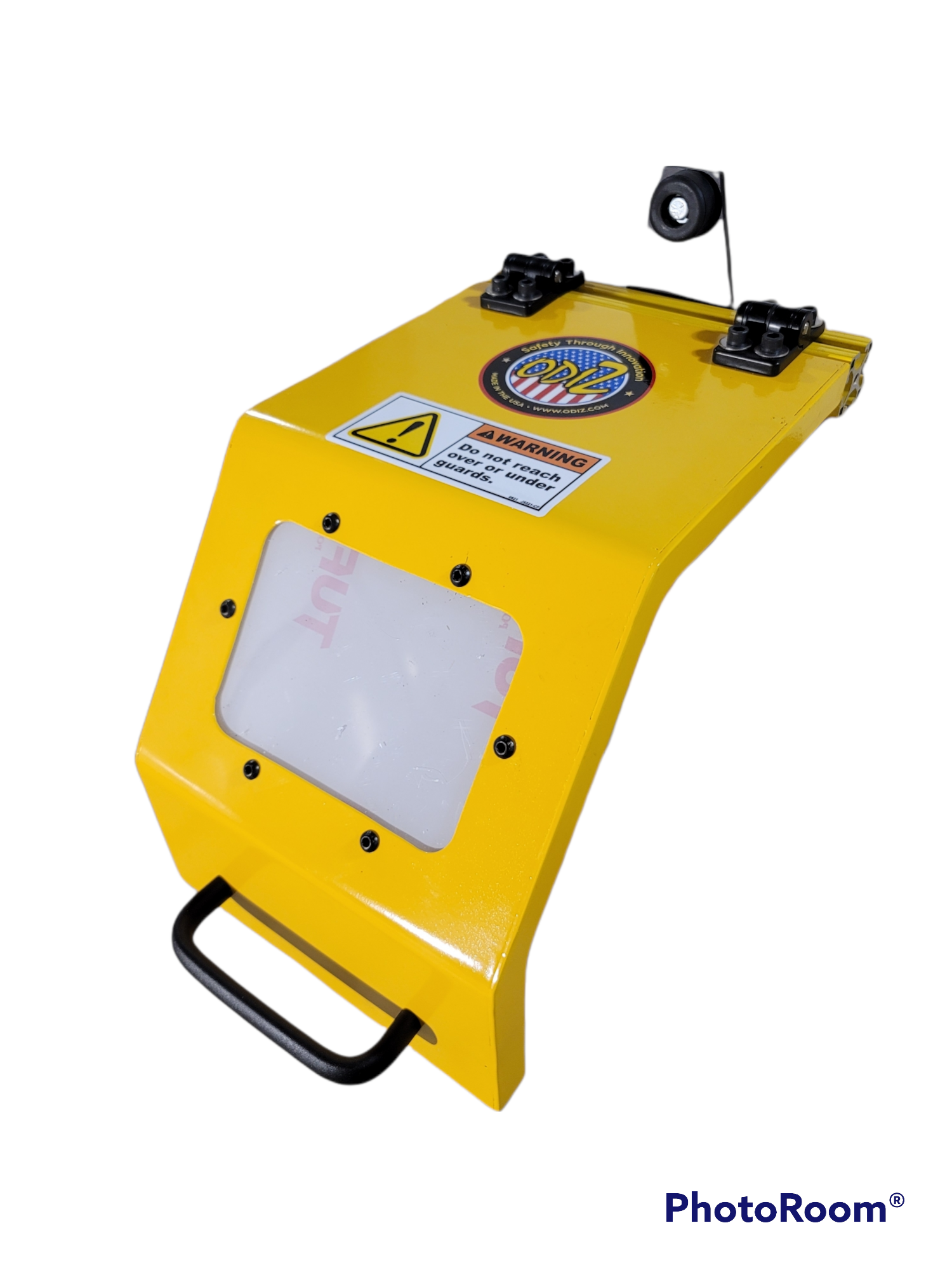

A chuck guard covers the chuck while it turns. Flip-up and sliding designs open for loading and measuring, and an interlock switch stops the spindle, or keeps it from starting, while the guard is open. Compare the UFIT flip-up adjustable lathe chuck guard for 10 to 25 inch chucks, the UFIT slider chuck guard and the clear Lexan Flexbar chuck guard.
Large lathes and production lathes often need more than a chuck shield. The Odiz enclosed sliding horizontal lathe guard encloses the work zone behind interlocked polycarbonate panels on telescopic slides, up to 117 inches wide, without blocking overhead crane loading.

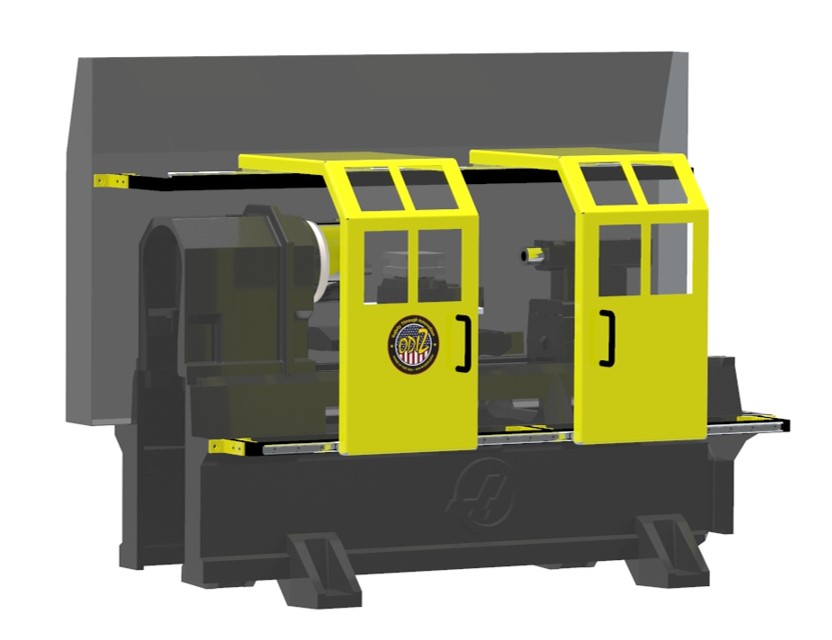

Retractable lead screw covers keep clothing from wrapping on the lead screw and feed rod, the double door chip and carriage guard and backside chip shields contain chips and coolant, and a through-spindle cover guards bar stock behind the headstock.

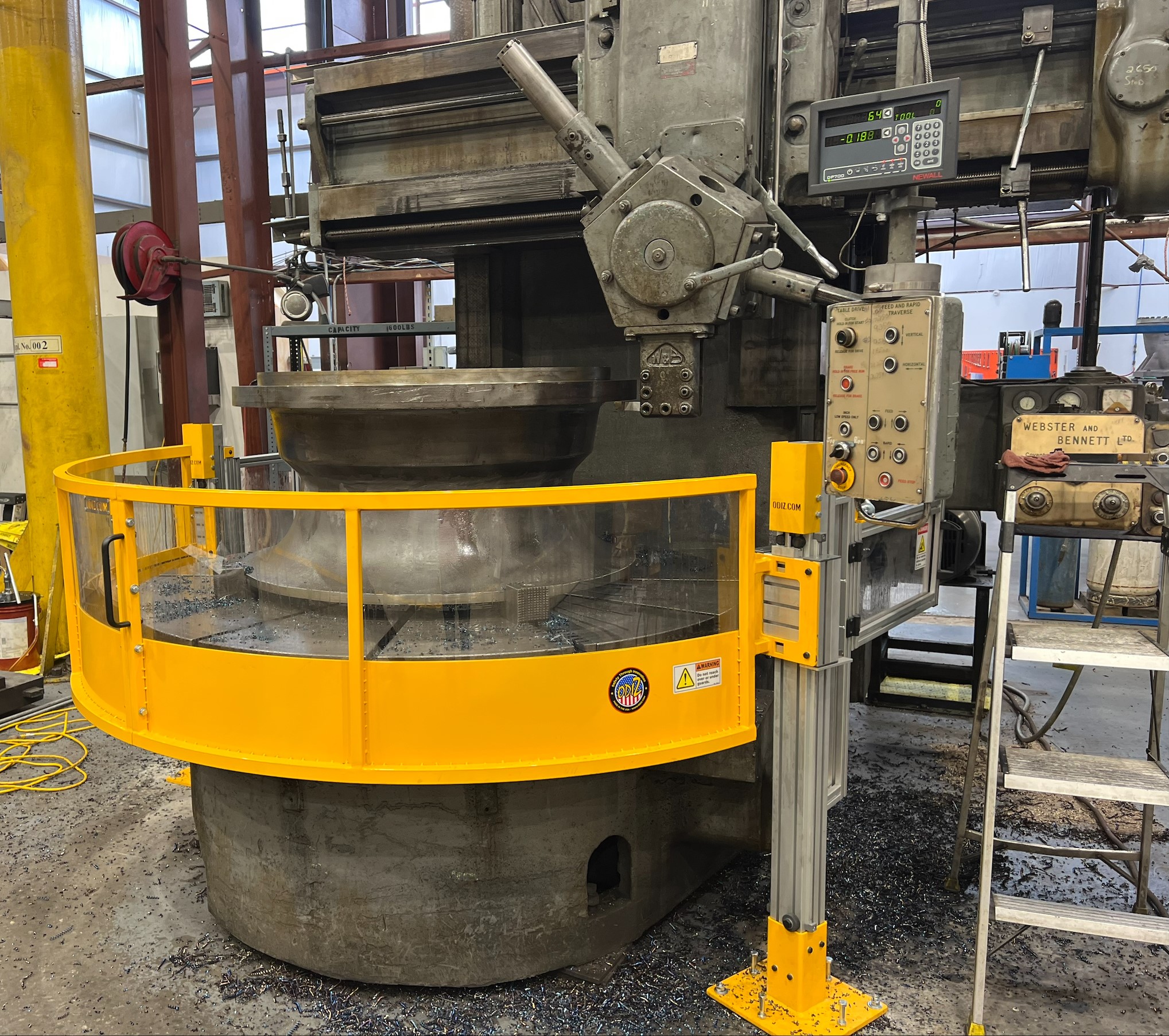

Browse horizontal lathe guards for engine, toolroom and CNC lathes, or VTL guards in vertical lift, side swing and fold-up configurations.
When an off-the-shelf guard will not fit, Odiz designs and builds custom lathe guards in the USA around your machine, your parts and the way operators load them. Not sure where to start? A machine guarding risk assessment identifies every hazard on the lathe and the guard that controls it.
OSHA 29 CFR 1910.212(a)(1) requires guarding to protect operators from hazards such as rotating parts and flying chips, and unguarded lathe chucks are commonly cited under it. ANSI B11.6 also calls for safeguarding the chuck and spindle. An interlocked chuck guard is the most common way to comply.
An interlocked chuck guard has a safety switch that signals the machine control when the guard opens. Wired through a safety relay, it stops the spindle when the guard is opened and keeps it from starting until the guard is closed again.
Yes. Odiz lathe guards mount to most engine and toolroom lathes, and custom brackets or custom-built guards cover machines that standard guards do not fit.
Most lathe guards use clear polycarbonate (Lexan), which resists impact far better than acrylic. Coolants and cutting oils can weaken polycarbonate over time, so inspect guard windows regularly and replace them when they craze, crack or cloud.
