Extra Tall VTL Guard
Vertical Turning Lathes

VTL Vertical Turning Lathe Guard - Fold Up Configuration

SKU ODIZ-6295-1

VTL Vertical Turning Lathe Chuck Guard

Fold up configuration guard

Made in USA

$5,999.00In stock
Weight
1 lbs

Options

May Extend Leadtime as Scratch Resistant Lexan is special order

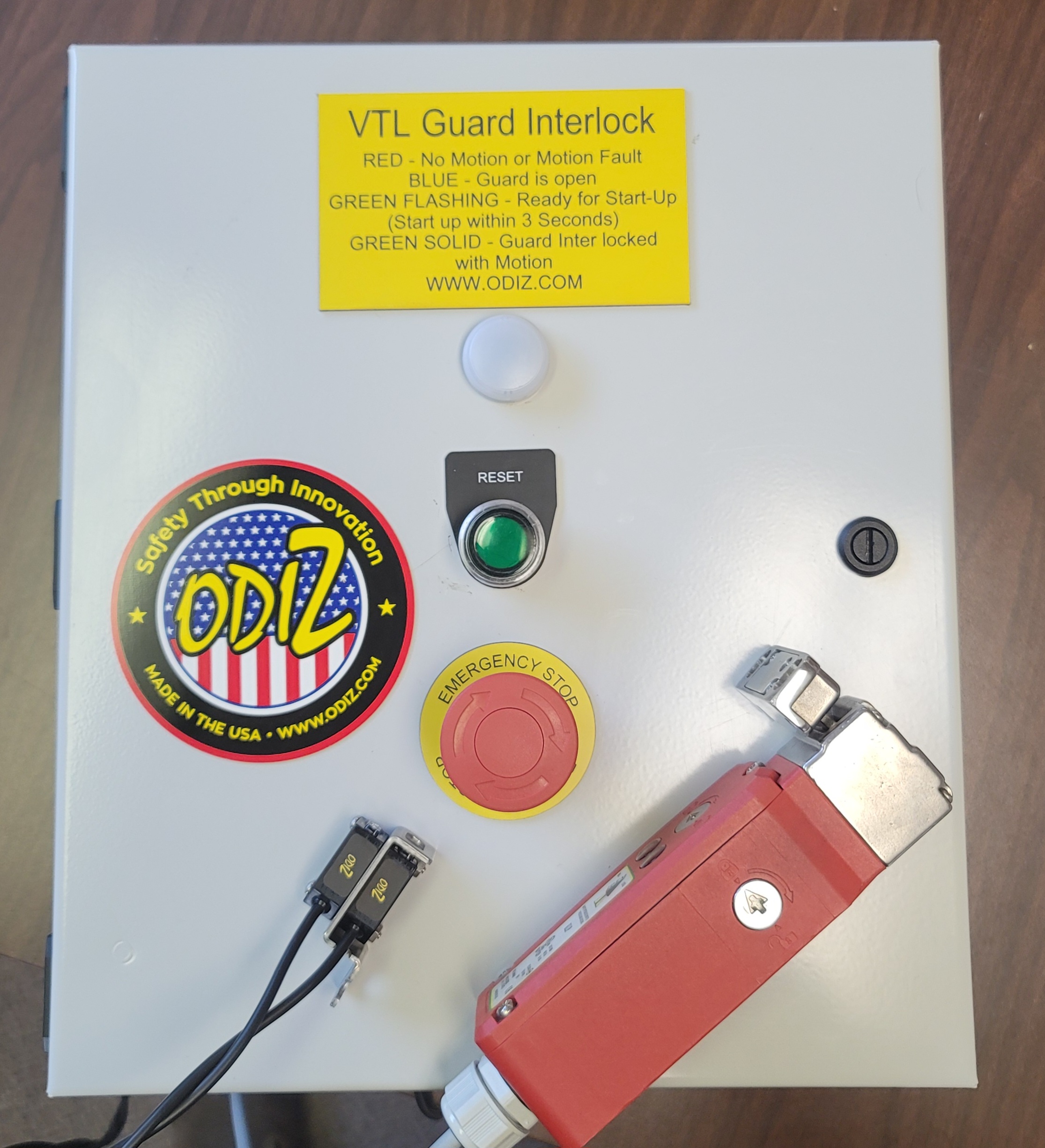

You have the option to pick just a switch or a complete control enclosure. This enclosure is designed for integration into the machines START/STOP circuitry.

If you select an RPM Detection interlock system, you may required extended length wiring based on your desired enclosure location.

1

Not sure where to start? Use our Virtual Design Assistant to assess your machine, or reach out to our team to learn more.

Virtual Design Assistant
Vertical Turning Lathes
TagsConfined space VTL guardfold up VTL guardVertical Turning Lathe Guard

ODIZ Safety VTL Vertical Turning Lathe Guard – Fold-Up Configuration

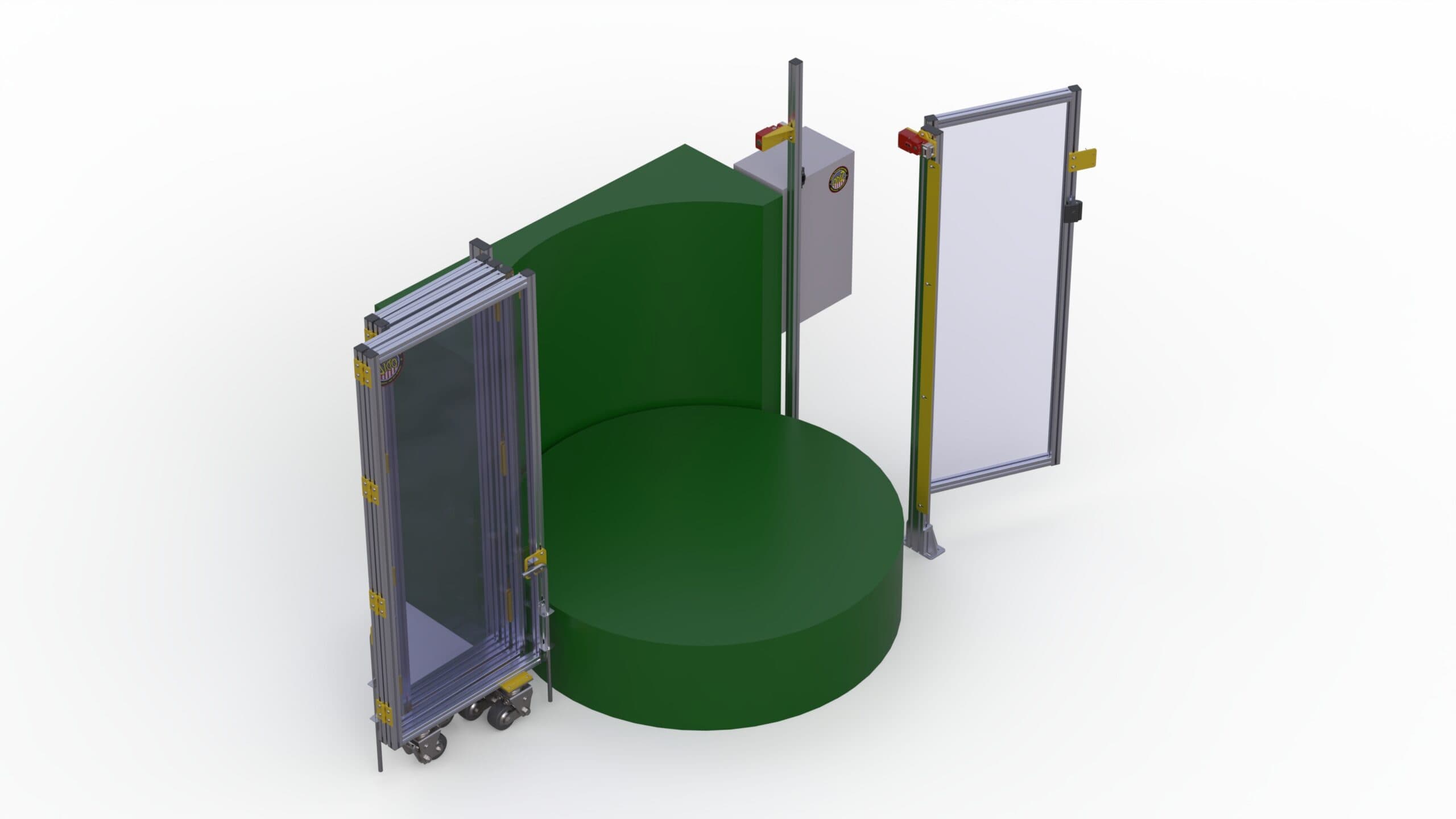

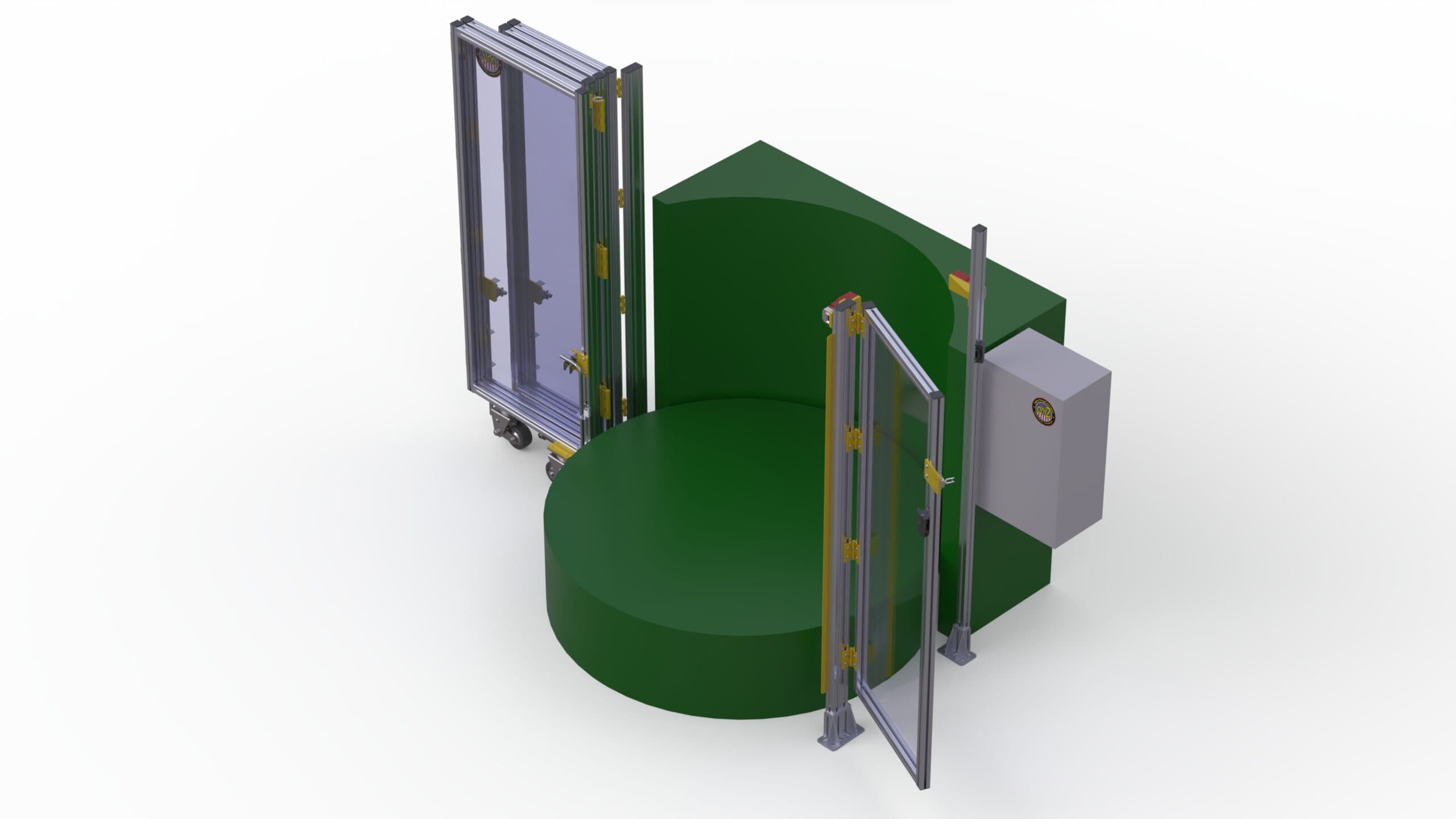

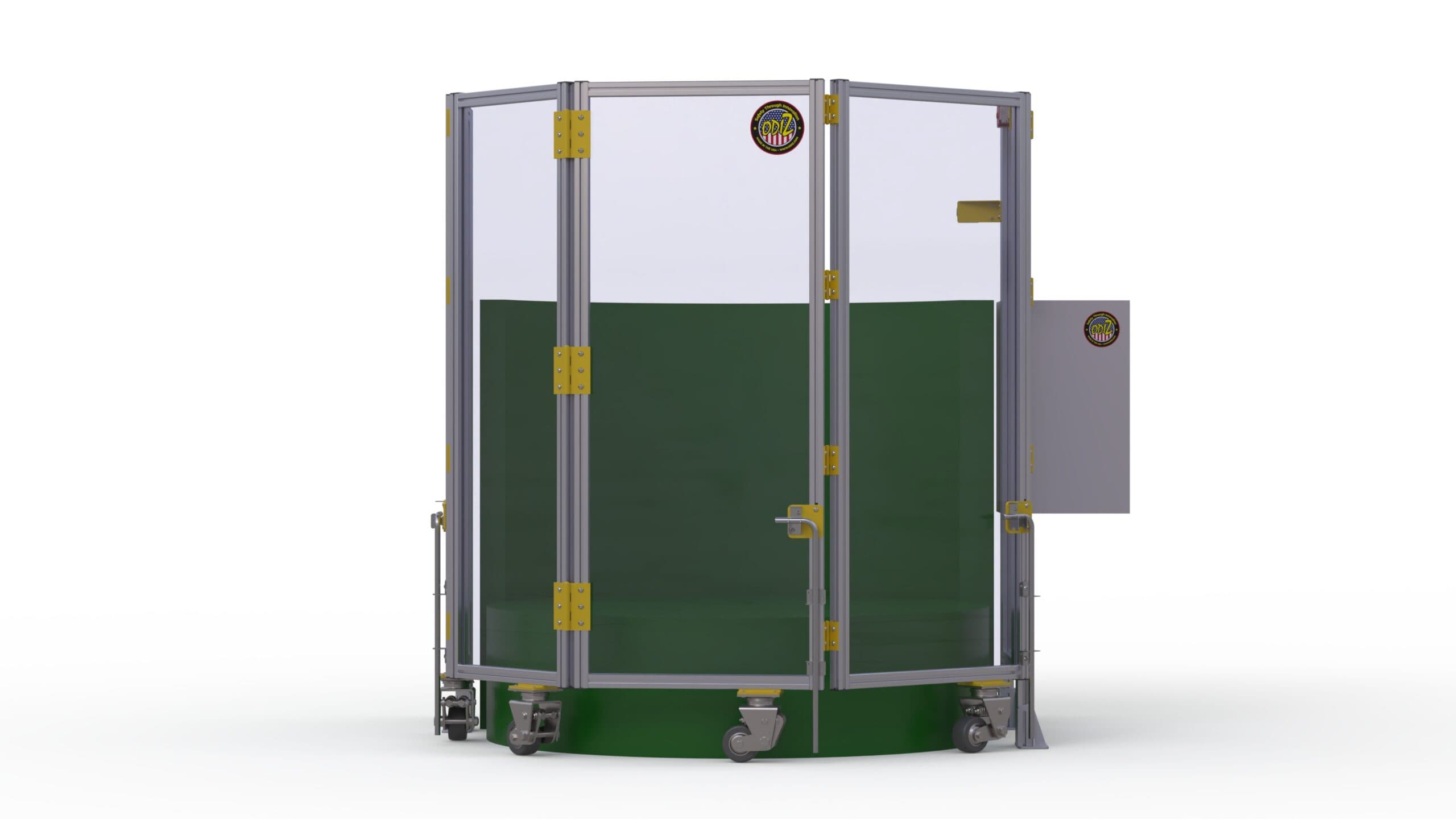

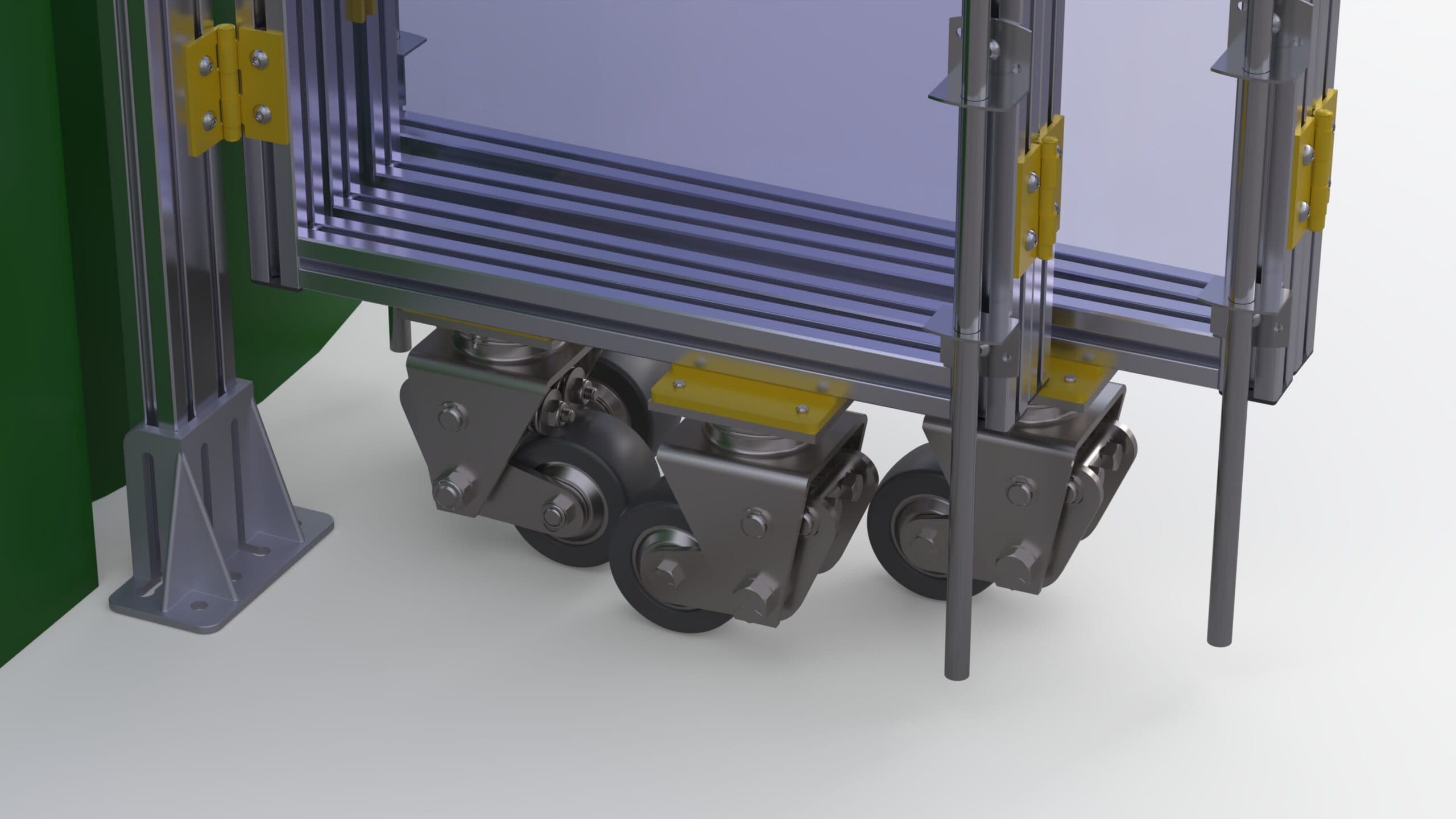

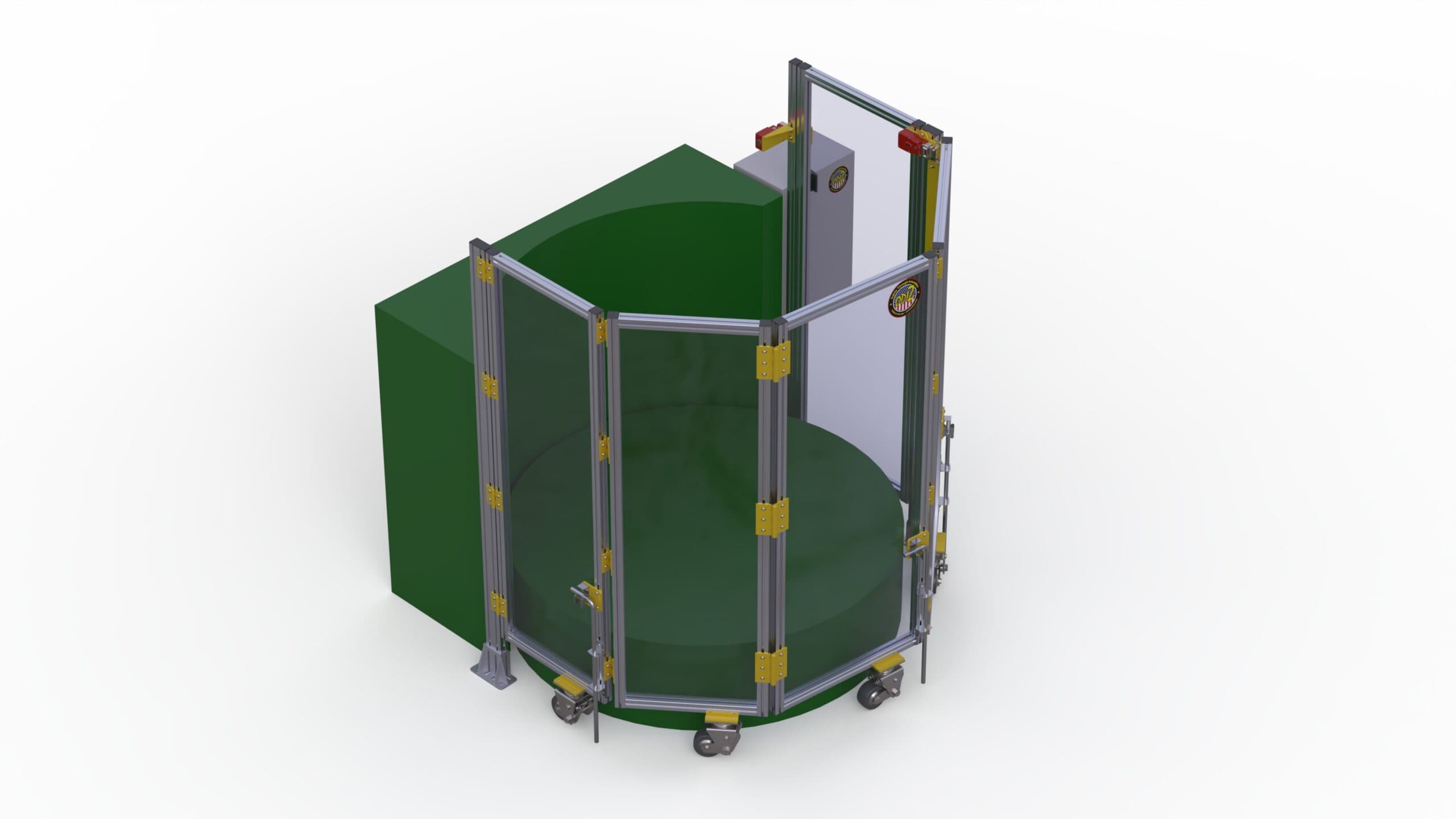

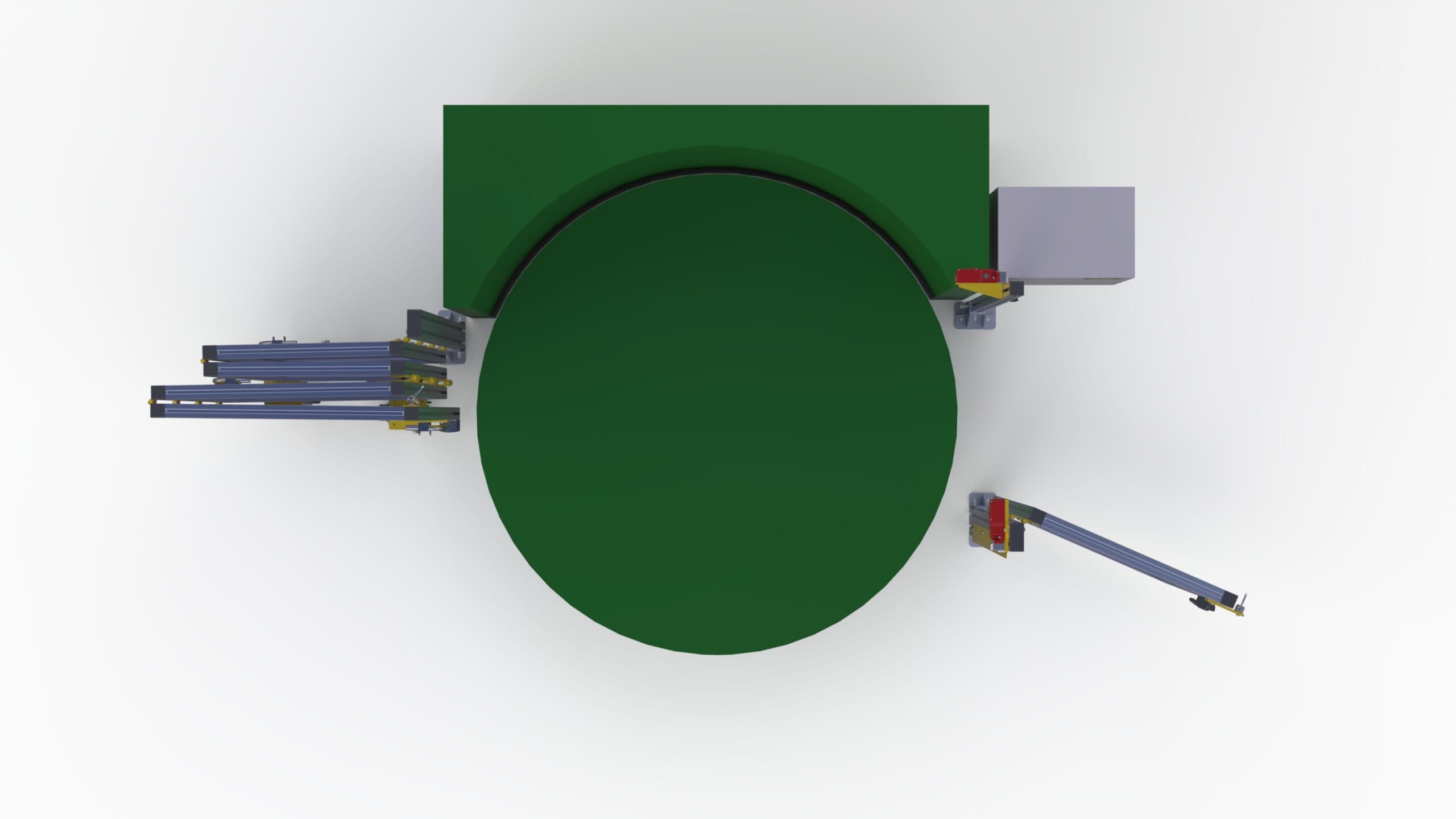

The ODIZ Safety VTL Vertical Turning Lathe Guard – Fold-Up Configuration is a custom-engineered safeguarding solution designed to provide comprehensive operator protection on vertical turning lathes while maximizing accessibility and floor space efficiency. The fold-up design completely encloses the workpiece and chuck area to help prevent access to hazardous rotating components and reduce the risk of entanglement, struck-by, and pinch-point injuries in accordance with OSHA and ANSI safeguarding expectations.

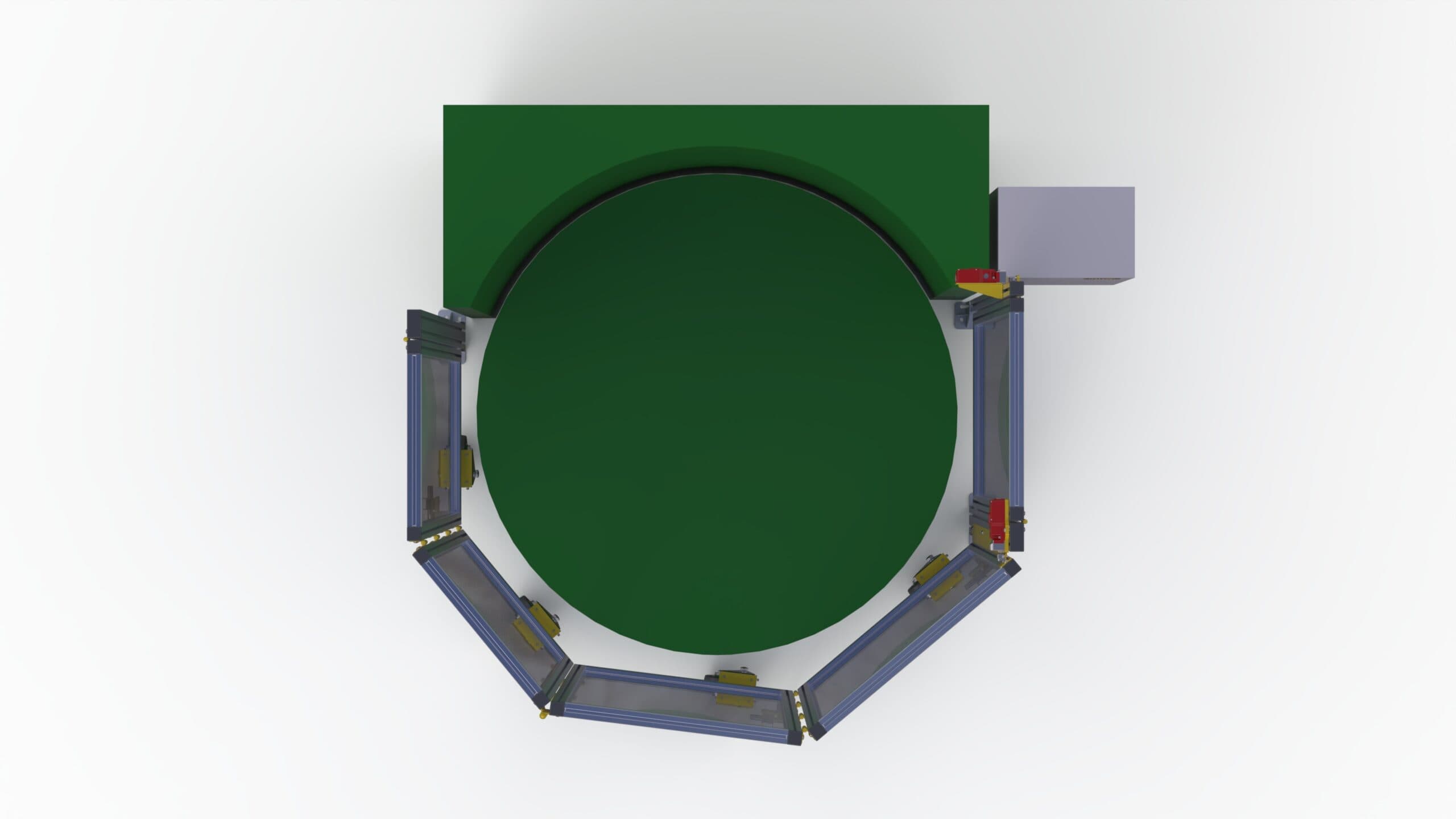

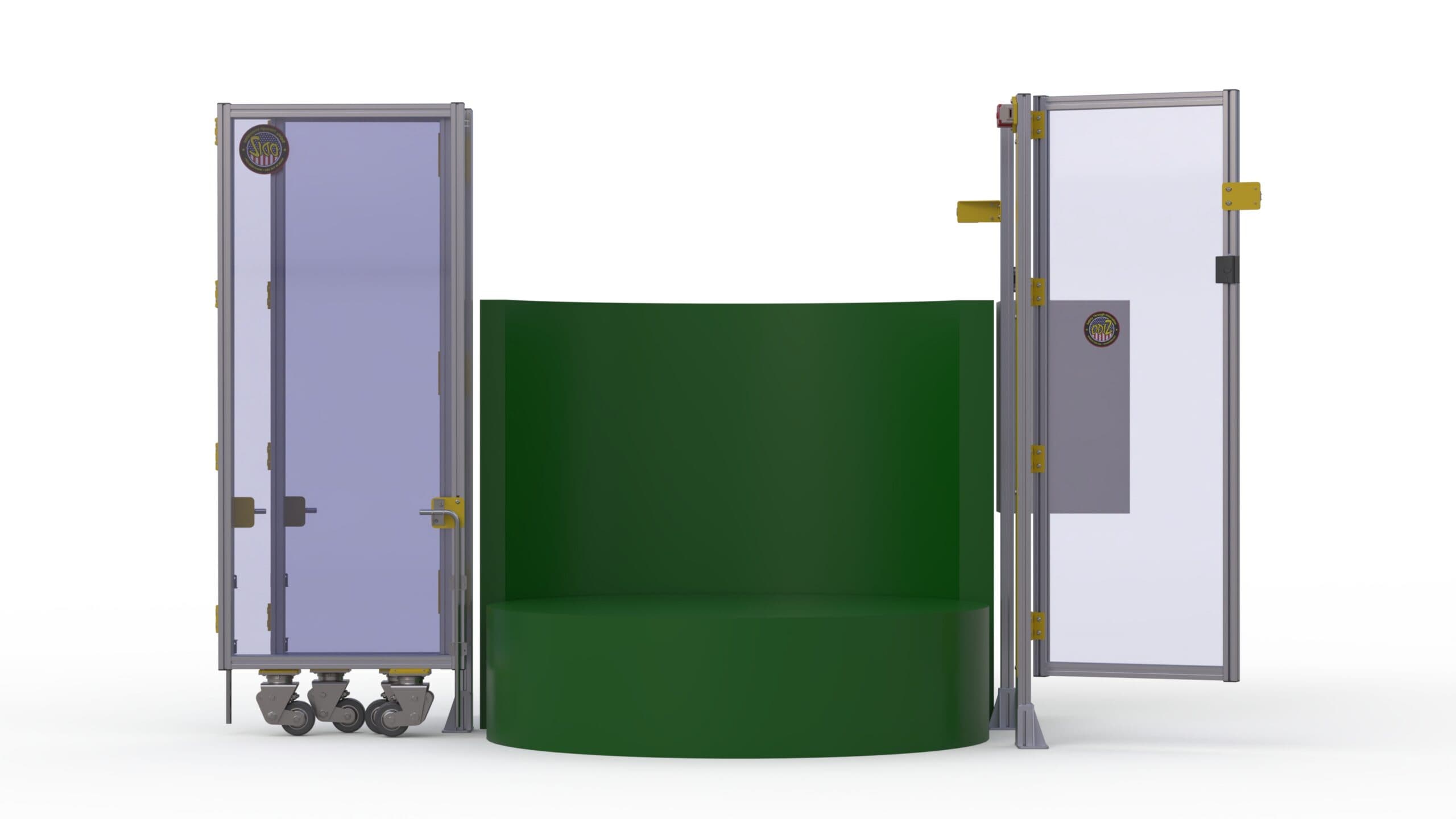

Built to match your machine's specific table diameter, this rugged guarding system features ANSI-approved Lexan® safety panels, an ergonomic fold-up mechanism, leveling-adjustable support posts, and a durable safety-yellow powder-coated finish for long-term performance in demanding industrial environments. Optional side access doors and lateral door extensions allow operators to maintain productivity while preserving protection.

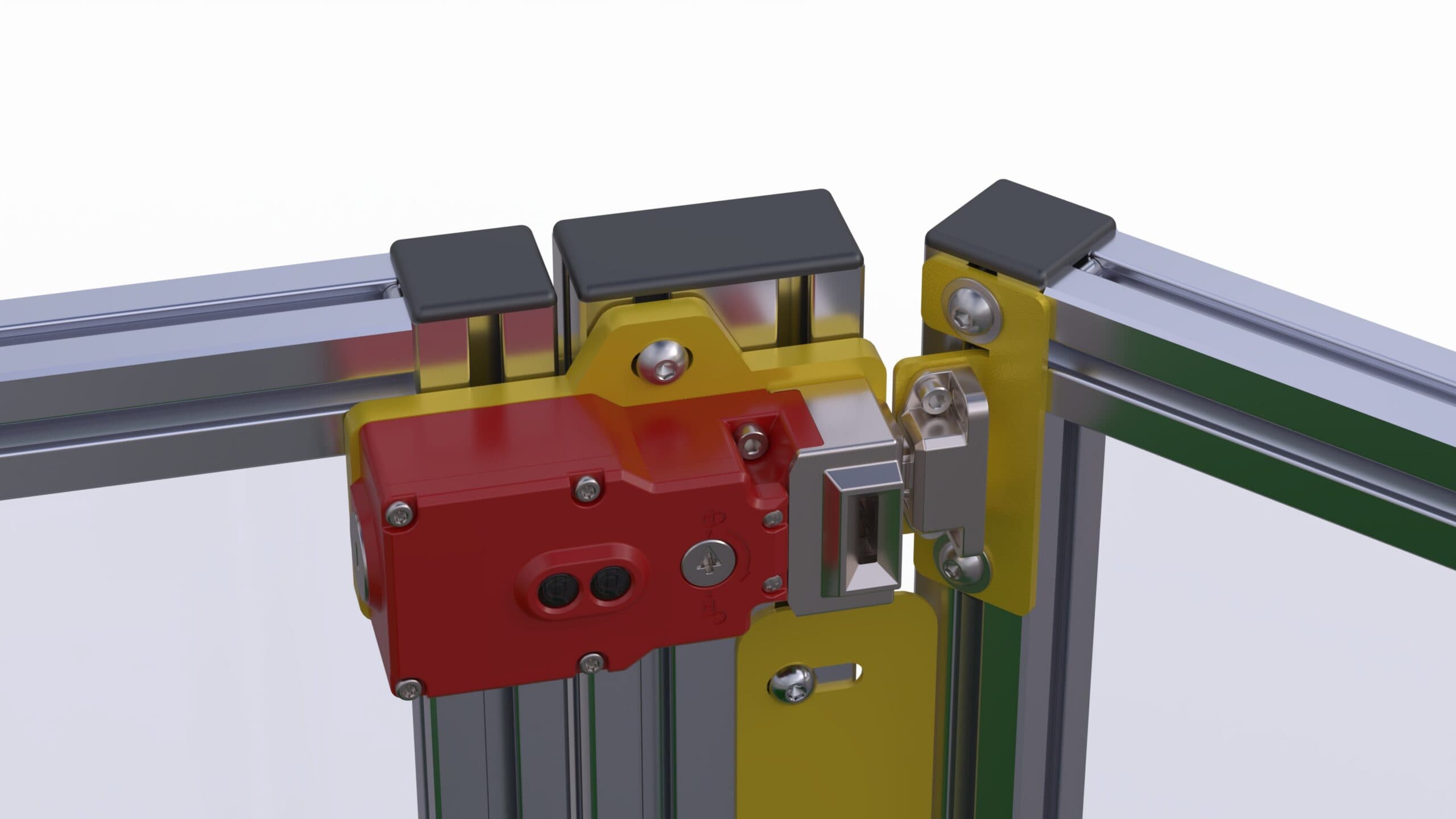

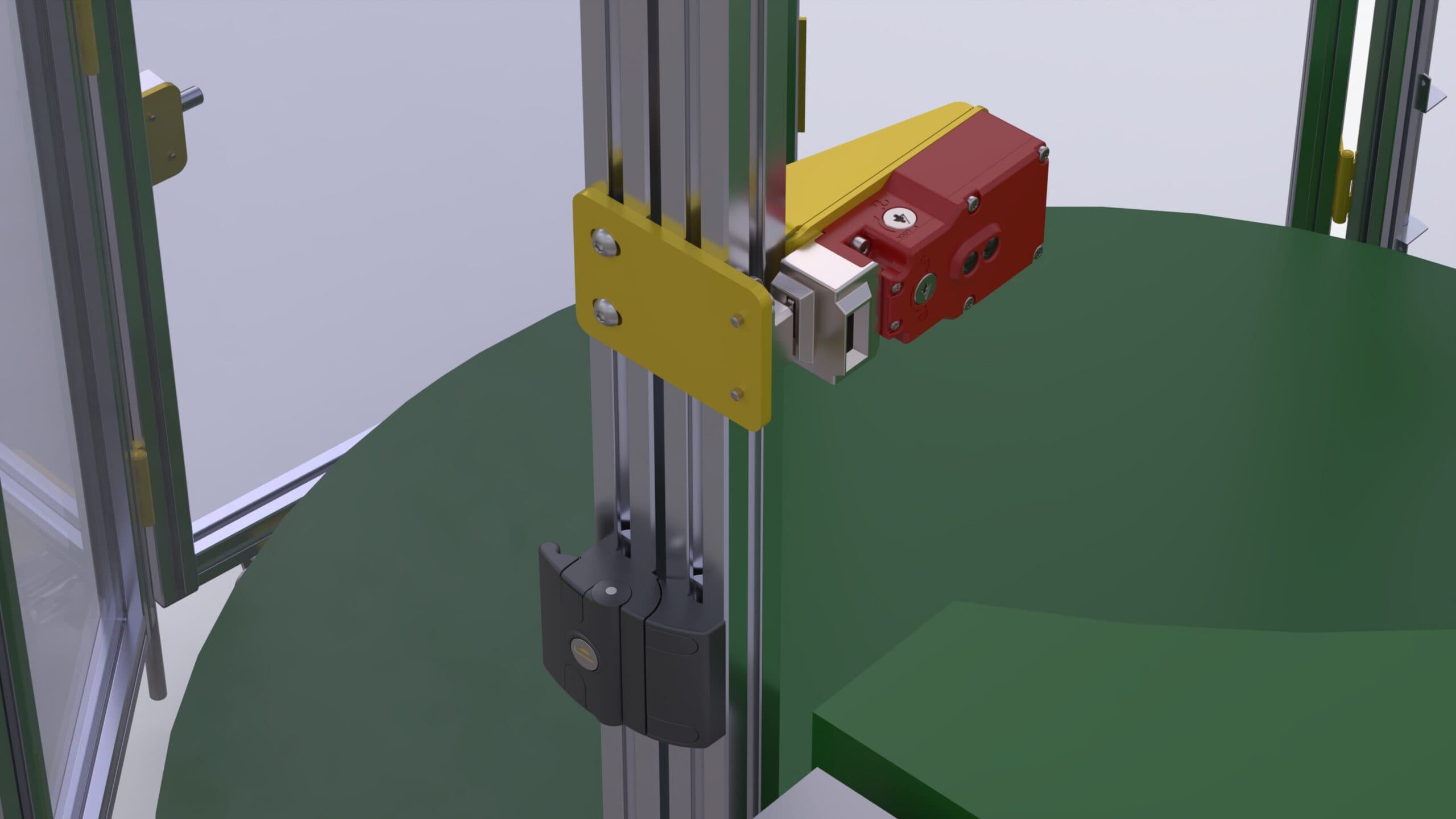

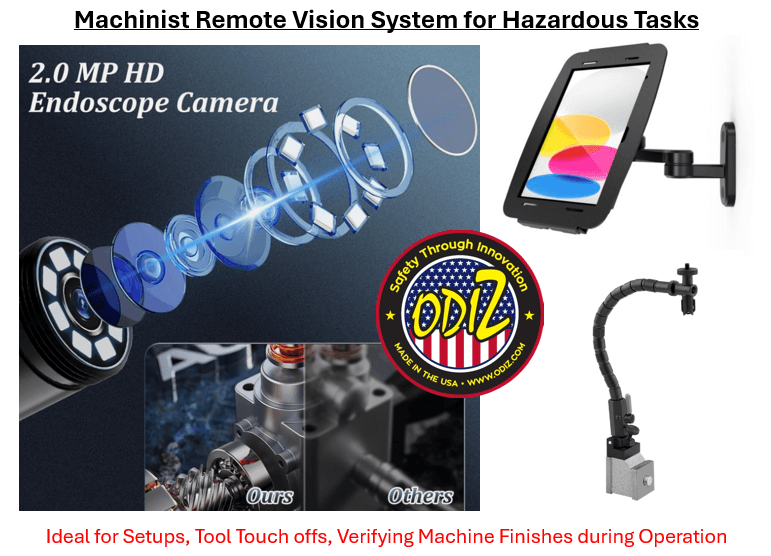

For enhanced safety performance, the guard can be equipped with hard-switch or RFID interlock systems, as well as the ODIZ RPM Detection Interlock System, which monitors table rotation and prevents guard access until the table has come to a complete stop. Additional options include solenoid locking mechanisms, safety-rated controls, integrated E-Stop functionality, task lighting, remote camera systems, and ergonomic matting.

Manufactured in the USA, the ODIZ Fold-Up VTL Guard is an ideal solution for facilities seeking to improve machine safety, achieve regulatory compliance, and protect personnel without sacrificing machine access or operational efficiency.

Key Features

  • Custom-built to fit your VTL table diameter
  • Fold-up guard configuration for space-saving access
  • ANSI-approved Lexan® safety panels
  • Ergonomic handles and leveling support posts
  • Powder-coated safety yellow finish
  • Optional operator access doors and extensions
  • RFID or mechanical interlock options
  • RPM detection system with lockable solenoid access
  • Safety-rated control integration and E-Stop capability
  • Made in the USA

Ideal Applications: Vertical Turning Lathes (VTLs), Bullard VTLs, large-diameter turning centers, heavy manufacturing, aerospace machining, power generation, and industrial fabrication environments.

If you want a custom application, feature, or different design contact us at sales@odiz.com and we'll get you a custom quote.

Lead time is typically 3-4 weeks but could vary based on backlog &/or material availability.

Pricing is based on shipping on your organizations Freight account.

Odiz Safety Custom VTL Guarding with RPM Interlock System

The OSHA/ANSI expectation is that the VTL guard is completely covering the work piece and the VTL chuck. This initiative prevents the operator from reaching under, over, and through, thus prevents the operator from getting pulled into the machine. Additionally, they expect the guard to remain up and locked in place until the table comes to a complete stop. Odiz Safety RPM Interlock System: Odiz Safety RPM Interlock system will have redundant safety sensors that monitor the table RPMs. There will be safety rated PLCs and Relay to integrated into the existing machine circuitry. There will be a safety E-stop integrated into the interlock system. There will also be a Safety Door switch with interlocked locking solenoid.

  • How to Assess and Design Guarding for Older Machines - Bullard VTL Case StudyOH&S Magazine, September 2022
1910.212 - General requirements for all machines.1910.212(a) - Machine guarding1910.212(a)(1) - Types of guarding1910.212(a)(2) – General Requirements for Machine Guards1910.212(a)(3) – Point of Operation Guarding1910.212(a)(3)(i) – Point of Operation Defined1910.212(a)(3)(ii) – Guard Design for Operator Safety1910.212(a)(3)(iv) – Machines That Usually Require Point-of-Operation Guarding1910.212(a)(3)(iv)(e) – Milling Machines

1910.212 - General requirements for all machines.

OSHA 1910.212 sets the general requirements for machine guarding, covering moving parts, points of operation, in-running nip points, and flying debris. It applies to all machines to protect workers from injury caused by hazardous motion and contact.

All products for this standard

1910.212(a) - Machine guarding

OSHA 1910.212(a) establishes the general machine guarding requirements that protect employees from points of operation, moving parts, in-running nip points, and flying debris. It forms the foundation for all other machine guarding rules.

All products for this standard

1910.212(a)(1) - Types of guarding

OSHA 1910.212(a)(1) requires that one or more methods of machine guarding be provided to protect operators and nearby employees from rotating parts, flying chips, sparks, and other mechanical hazards. It defines the core duty to guard all dangerous machine motions.

All products for this standard

1910.212(a)(2) – General Requirements for Machine Guards

OSHA 1910.212(a)(2) defines the construction and design requirements for machine guards, ensuring they are strong, secure, and effective in protecting workers from mechanical hazards without introducing new risks.

All products for this standard

1910.212(a)(3) – Point of Operation Guarding

OSHA 1910.212(a)(3) requires that machines have point of operation guards to protect operators from contact with cutting, shaping, or forming actions. This rule ensures workers are shielded wherever material is fed into or removed from a machine.

All products for this standard

1910.212(a)(3)(i) – Point of Operation Defined

OSHA 1910.212(a)(3)(i) defines the point of operation as the area on a machine where work is actually performed upon the material being processed. The guarding requirement for that area is in 1910.212(a)(3)(ii).
All products for this standard

1910.212(a)(3)(ii) – Guard Design for Operator Safety

OSHA 1910.212(a)(3)(ii) requires that the design and construction of machine guards prevent the operator from being exposed to injury during operation, setting a performance-based standard for guard effectiveness and safety.

All products for this standard

1910.212(a)(3)(iv) – Machines That Usually Require Point-of-Operation Guarding

OSHA 1910.212(a)(3)(iv) lists machine types that typically require point-of-operation guarding, including guillotine cutters, shears, alligator shears, power presses, milling machines, power saws, jointers, portable power tools, and forming rolls and calenders.

All products for this standard

1910.212(a)(3)(iv)(e) – Milling Machines

OSHA 1910.212(a)(3)(iv)(e) lists milling machines as equipment that usually requires point-of-operation guarding. These machines expose operators to rotating cutters, flying chips, and entanglement hazards that must be controlled with fixed or adjustable guards and safe operating practices.

All products for this standard
B11 – Machine Safety & Machine Tool StandardsB11.0 – Safety of MachineryB11.22 – Turning Centers & Automatic Numerically Controlled Turning MachinesB11.23 – Machining Centers & Automatic Numerically Controlled Milling, Drilling & Boring MachinesB11.8 – Manual Milling, Drilling & Boring Machines (With or Without Automatic Control)B11.TR7 – Designing for Safety & Lean ManufacturingISO 13849-1 – Safety of Machinery: Safety-Related Parts of Control Systems – General Principles for DesignISO 13849-2 — Safety of Machinery: Safety-Related Parts of Control Systems — Validation

B11 – Machine Safety & Machine Tool Standards

ANSI B11 is a suite of machine safety standards governing the design, guarding, risk assessment, and safeguarding of industrial machinery. It supports detailed safety criteria for compliance with OSHA’s machine guarding rules.

All products for this standard

B11.0 – Safety of Machinery

ANSI B11.0 outlines the foundational requirements for machinery safety, including terminology, risk assessment, and risk reduction principles. It serves as the broad “Type A” standard that supports machine-specific standards in the B11 series such as B11.19 and B11.C-type documents.

All products for this standard

B11.22 – Turning Centers & Automatic Numerically Controlled Turning Machines

B11.22 sets consensus safety requirements for turning centers and automatic, numerically controlled (NC/CNC) turning machines—covering design, construction, operation, maintenance, guarding, and life-cycle responsibilities.

All products for this standard

B11.23 – Machining Centers & Automatic Numerically Controlled Milling, Drilling & Boring Machines

B11.23 sets industry safety requirements for machining centers and automatic numerically controlled (NC/CNC) milling, drilling and boring machines—addressing design, construction, operation and maintenance.

All products for this standard

B11.8 – Manual Milling, Drilling & Boring Machines (With or Without Automatic Control)

B11.8 provides safety requirements for manual milling, drilling and boring machines — covering design, construction, operation, maintenance and safe use whether automatic control is present or not.

All products for this standard

B11.TR7 – Designing for Safety & Lean Manufacturing

B11.TR7 offers guidance on integrating machine-safety and lean-manufacturing principles—helping designers, builders and users reduce waste while simultaneously managing risk and improving productivity.

All products for this standard

ISO 13849-1 – Safety of Machinery: Safety-Related Parts of Control Systems – General Principles for Design

ISO 13849-1 (2015) provides guidance for the design and integration of safety-related parts of control systems (SRP/CS) on machinery, including performance levels (PLs), architectural categories, diagnostics, and software aspects.

All products for this standard

ISO 13849-2 — Safety of Machinery: Safety-Related Parts of Control Systems — Validation

ISO 13849-2:2012 provides the procedures and conditions for validating safety-related parts of control systems (SRP/CS) on machinery—ensuring safety functions meet design specs, category targets and performance levels via analysis and testing.

All products for this standard
