Large Sliding Lathe Chuck Guard
Horizontal Lathes

Custom Side Sliding Lathe Guard w/optional Interlock system

SKU ODIZ-3696

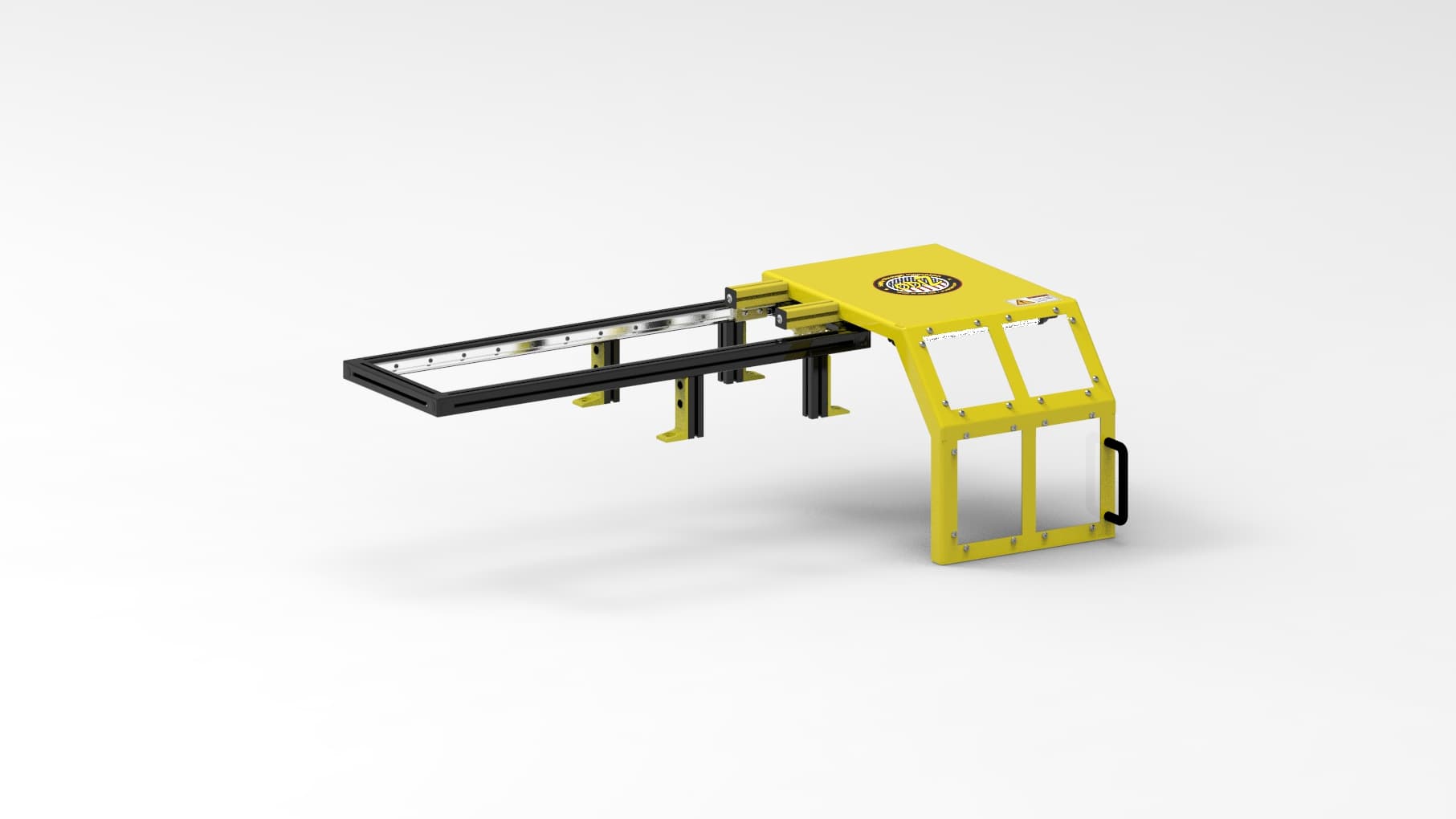

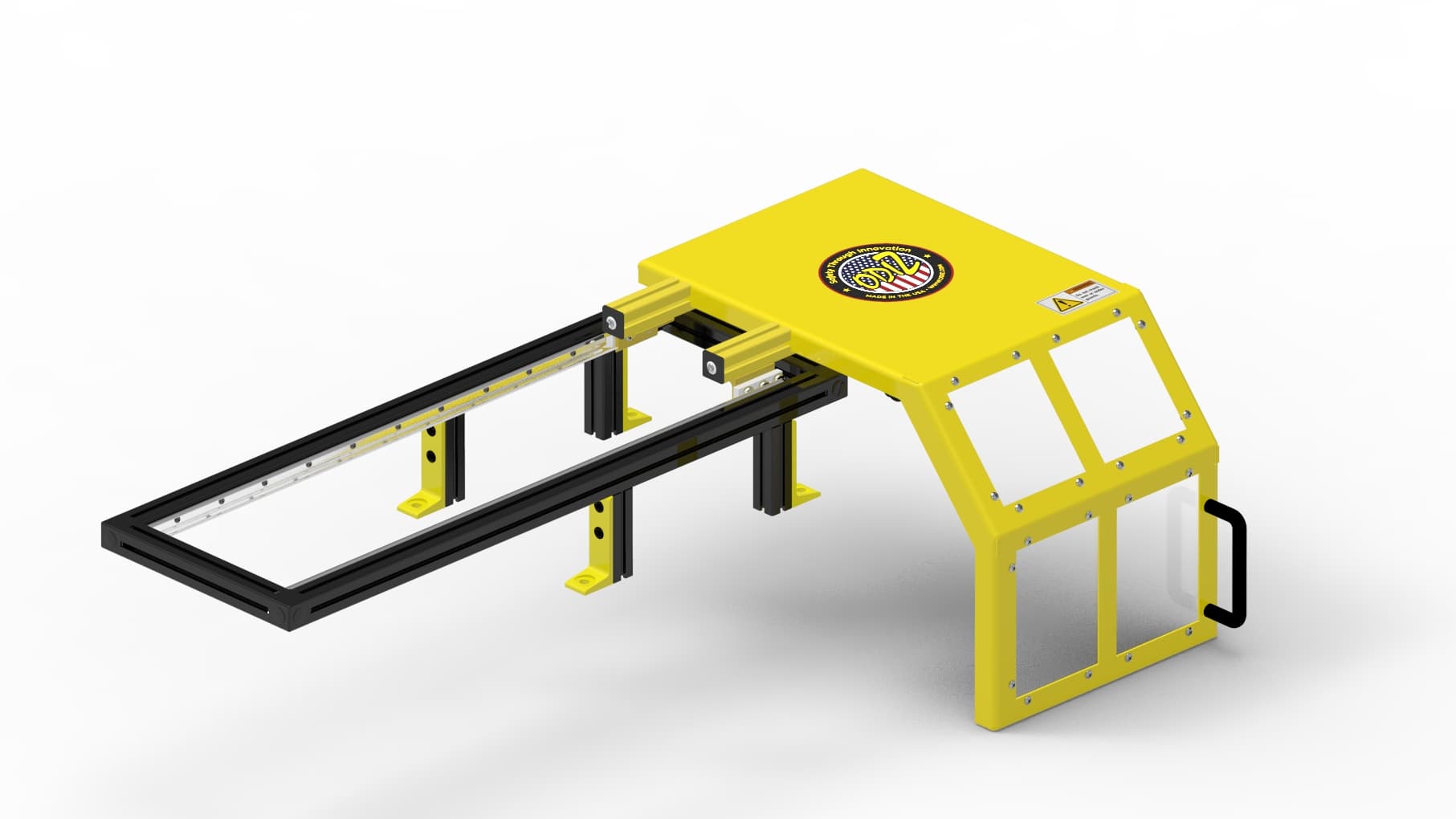

This side sliding lathe chuck guard is custom built from your machine’s measurements, from guard width to chuck centerline and mounting surface, and slides aside for chuck access. Choose solid metal or Lexan windows and add switch and interlock controls, LED lighting or a back chip deflector. Made in the USA.

$3,975.00In stock
Weight
5 lbs
Dimensions
25 × 30 × 50 in

Options

Odiz Safety LLC will contact you after order to discuss the details of the "Guard Build Guide"

Odiz Safety LLC will contact you after order to discuss the details of the "Guard Build Guide"

1

Not sure where to start? Use our Virtual Design Assistant to assess your machine, or reach out to our team to learn more.

Virtual Design Assistant
Horizontal Lathes
TagsChuck Guardchuck interlocklathe chuck guardlathe guardlathe interlockSide Sliding Lathe Chuck GuardSliding Lathe Guard

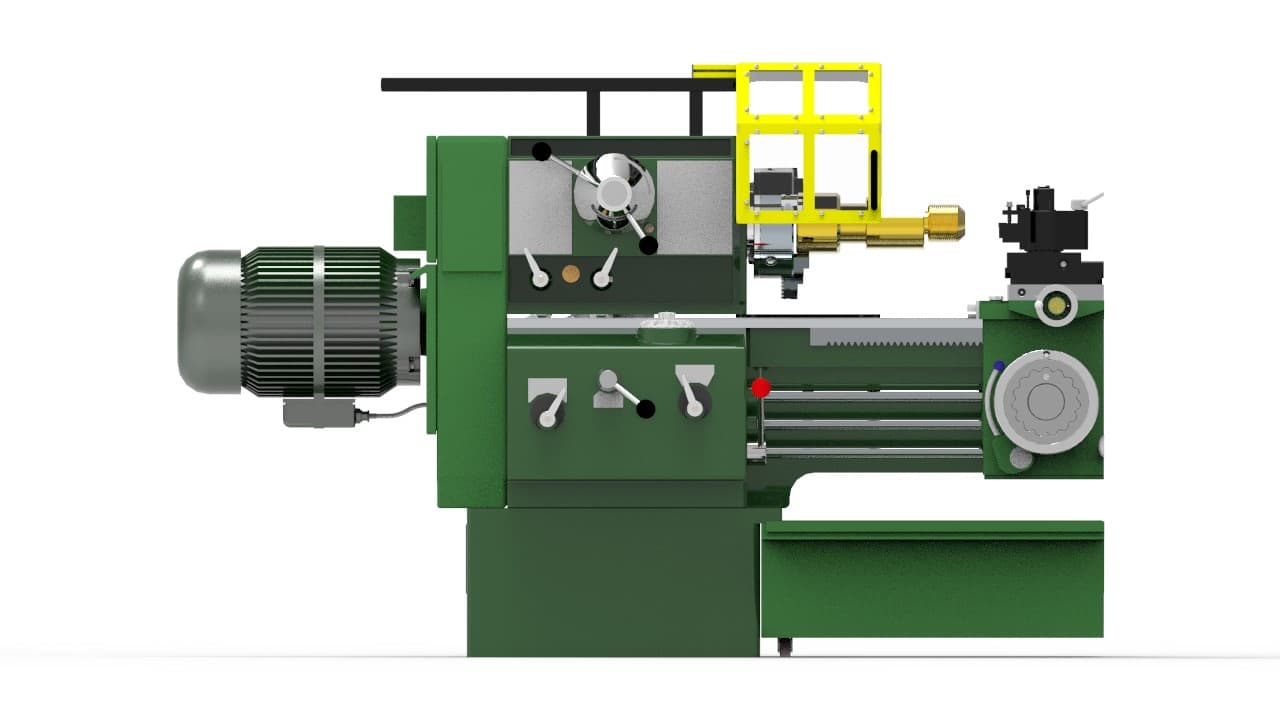

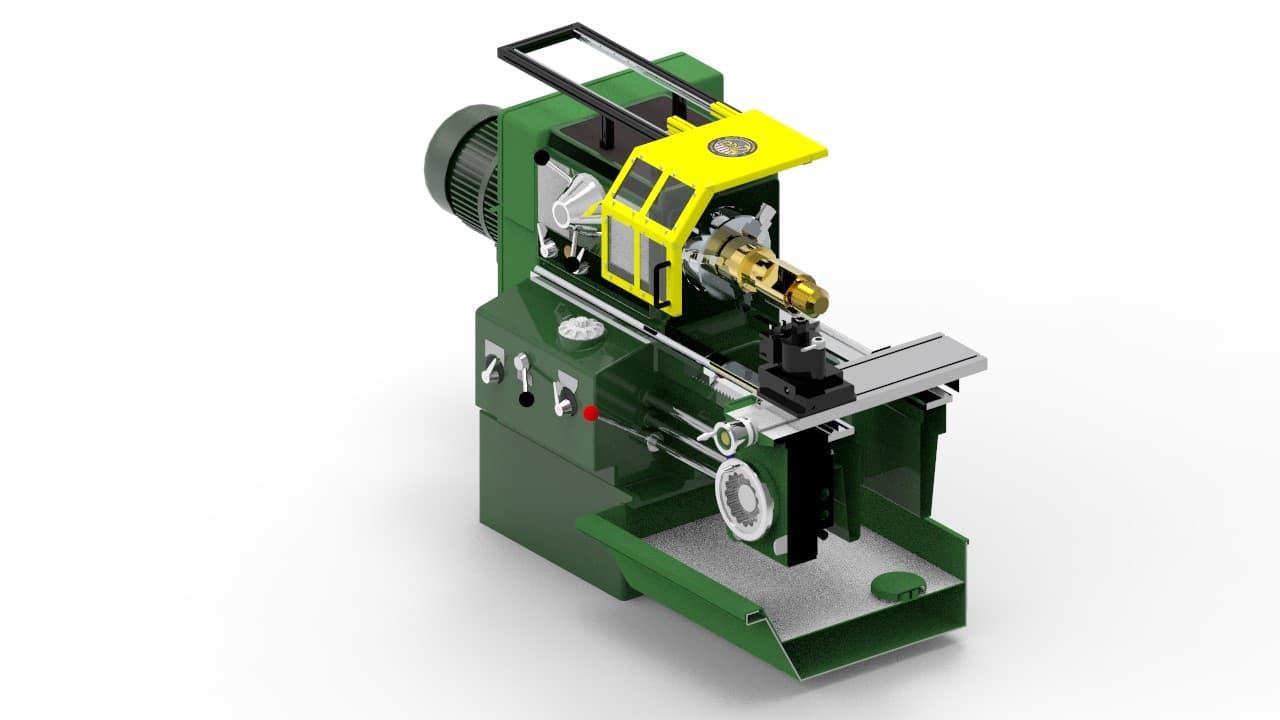

The Odiz Custom Side Sliding Lathe Guard with optional interlock system is built to your lathe from six build guide measurements. The guard covers the chuck and slides to the side for access, and Odiz sizes it to cover the area below the chuck centerline, clear the handles on the face of the machine and fit the flat mounting surface available. For a different size, feature or configuration, Odiz can custom build the guard to your application.

Key features

  • Built from your measurements: the build guide captures the dimensions Odiz needs to fit the guard.
  • Window choice: solid metal or Lexan windows.
  • Interlock option: switch and interlock controls.

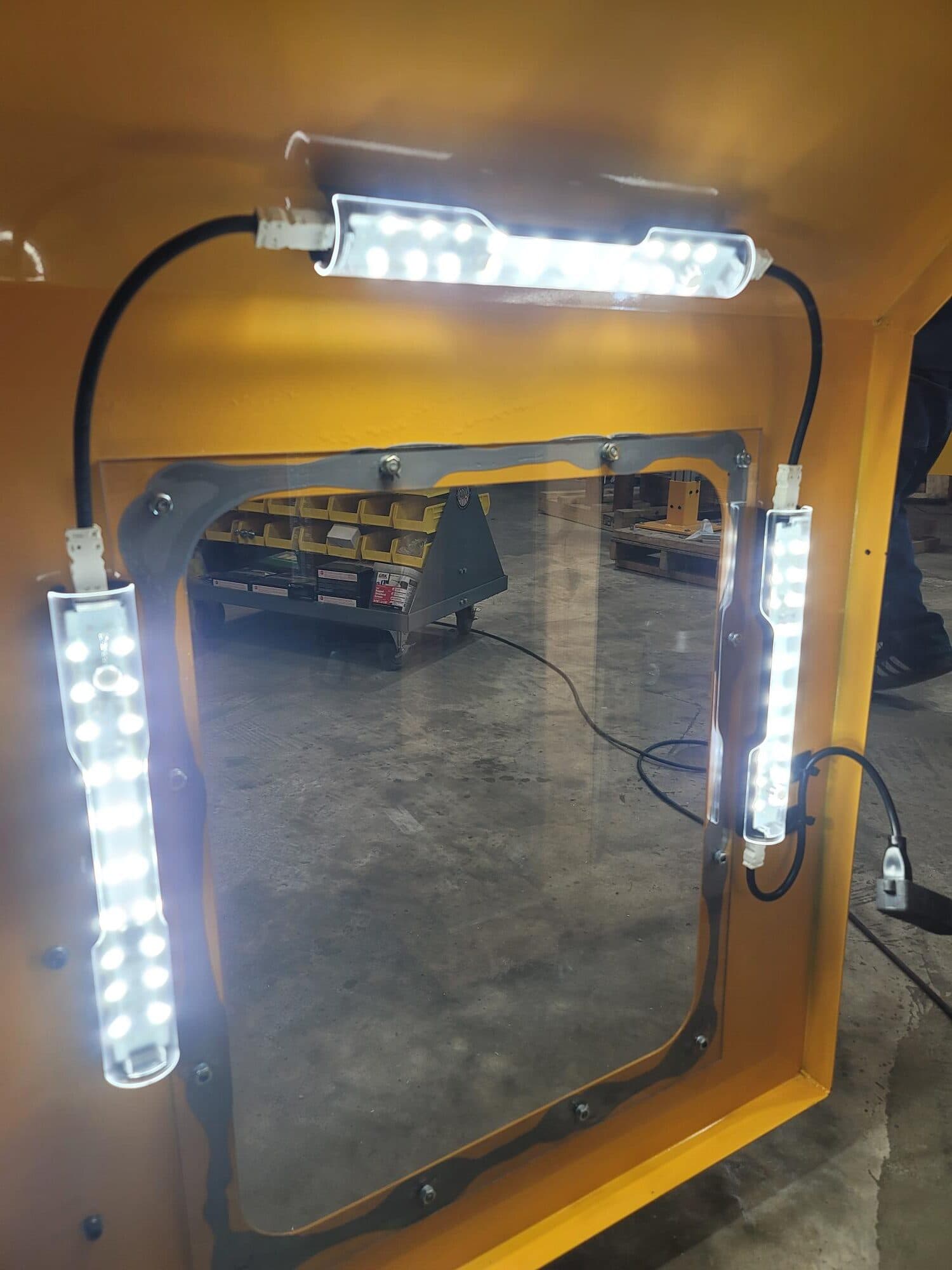

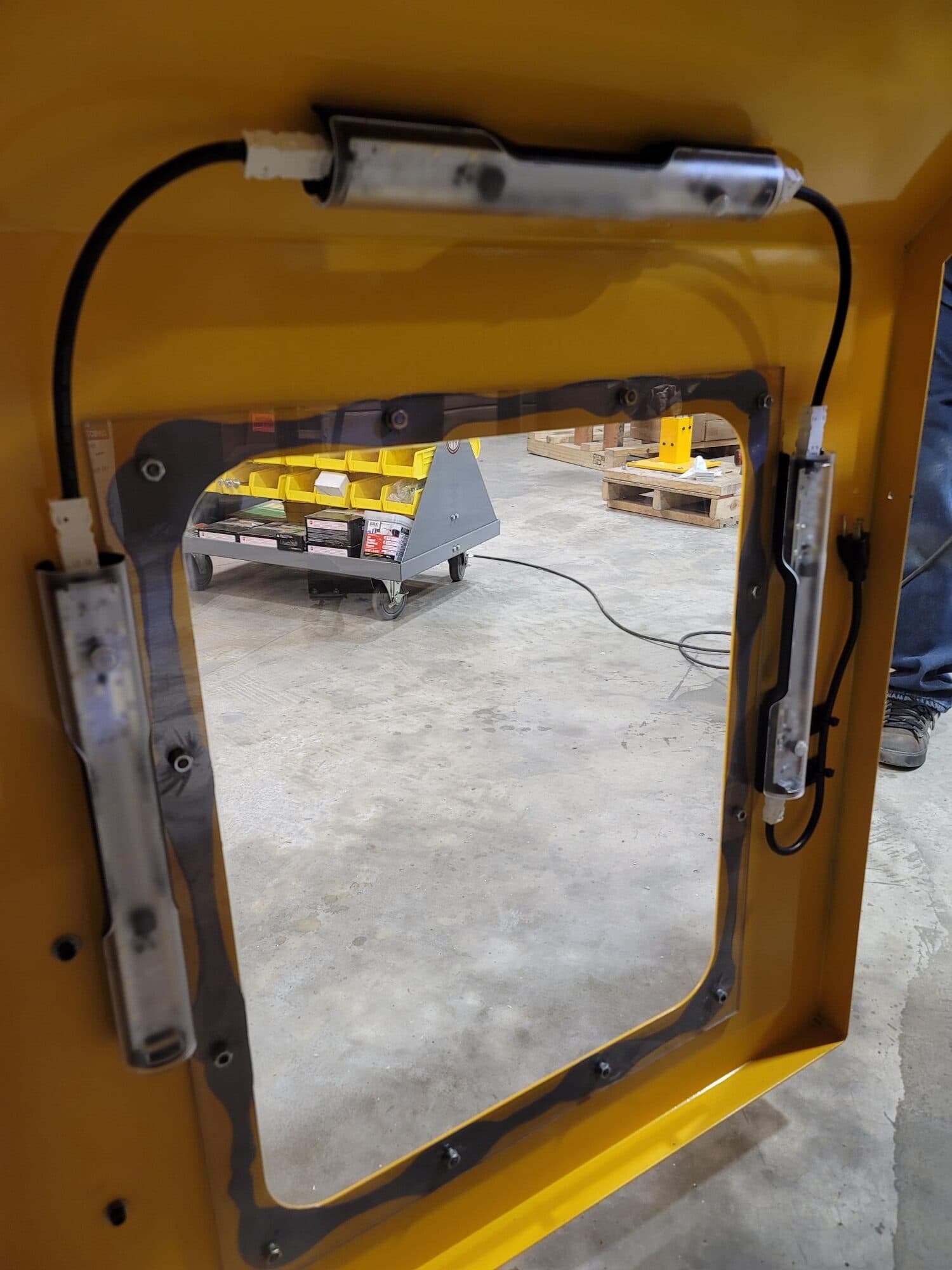

  • LED lighting: optional LED lighting for the work area.
  • Back chip deflector: optional deflector at the back of the guard.
  • Made in the USA.

Specifications

  • Build guide variables: guard width; distance of guard coverage below the chuck centerline (vertical); distance from the chuck centerline to clear all handles on the face of the machine; top of lathe chuck centerline; length of flat mounting; width of flat mounting
  • Windows: solid metal or Lexan
  • Options: switch and interlock controls, LED lighting, back chip deflector
  • Made in the USA
  • Ordering: orders are shipped on your organization's shipping or LTL account

Applications

Use the guard on horizontal lathes in toolrooms, maintenance shops and production, where operators need regular access to the chuck but the chuck area must be guarded while the spindle turns. Add switch and interlock controls when the guard should be interlocked with the lathe. The Videos tab has three videos and the Publications tab has a related publication.

  • Horizontal Guard Builder Guide
