Small Chuck Flip Up Lathe Guard
Horizontal Lathes

Custom Flip Up Lathe Chuck Guard

SKU ODIZ-6137

The Odiz Custom Flip Up Lathe Chuck Guard is built to your chuck diameter and width for horizontal lathes. Build your own guard with full metal or window construction and optional interlock switches, finished in safety yellow powder coat. This flip-up lathe chuck guard is made in the USA, with a lead time of 2-4 weeks.

$1,499.00In stock
Weight
20 lbs
Dimensions
10 × 10 × 20 in

Options

Guard will be built to this Diameter, not you chuck diameter.

1

Not sure where to start? Use our Virtual Design Assistant to assess your machine, or reach out to our team to learn more.

Virtual Design Assistant
Horizontal Lathes

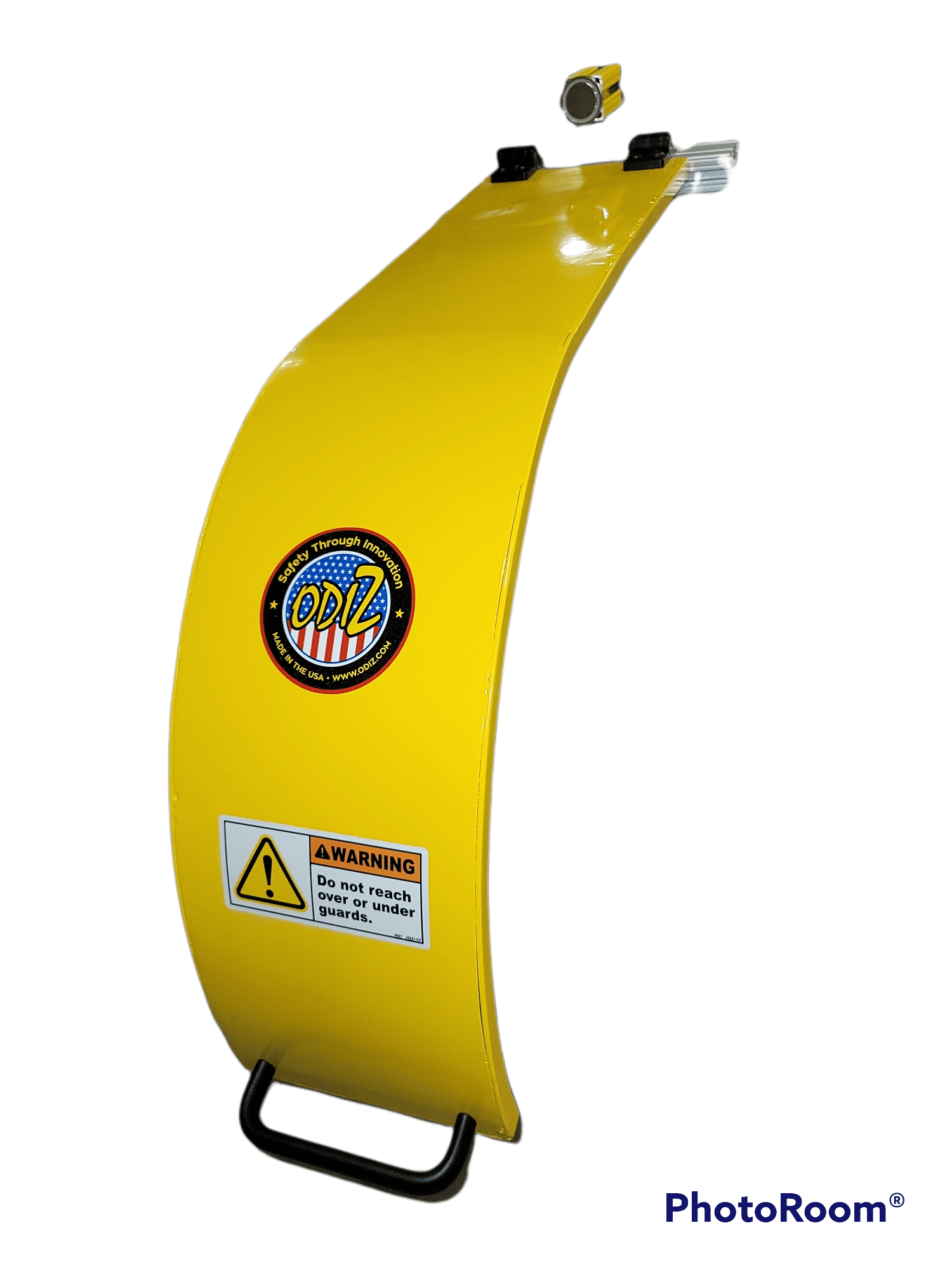

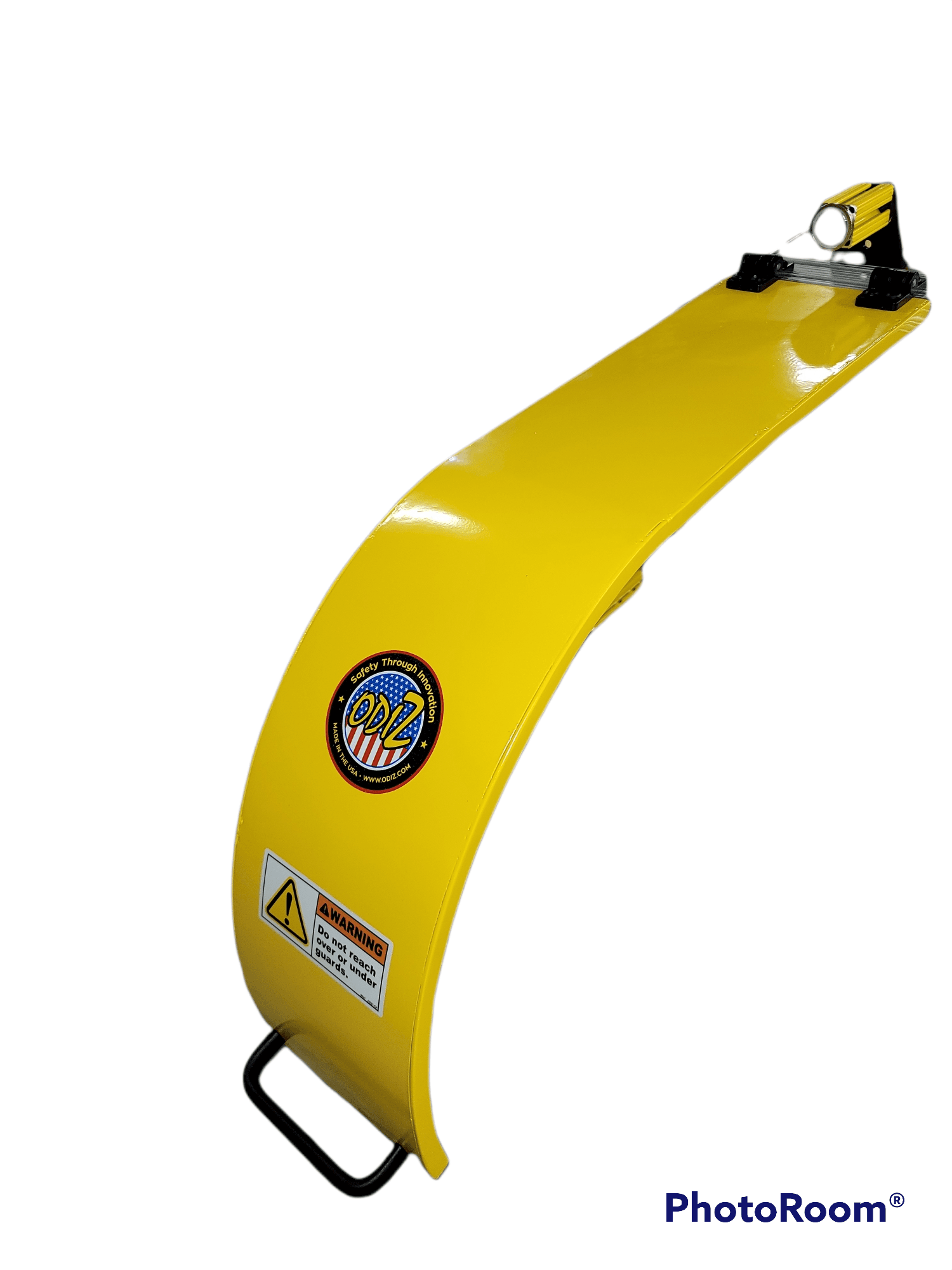

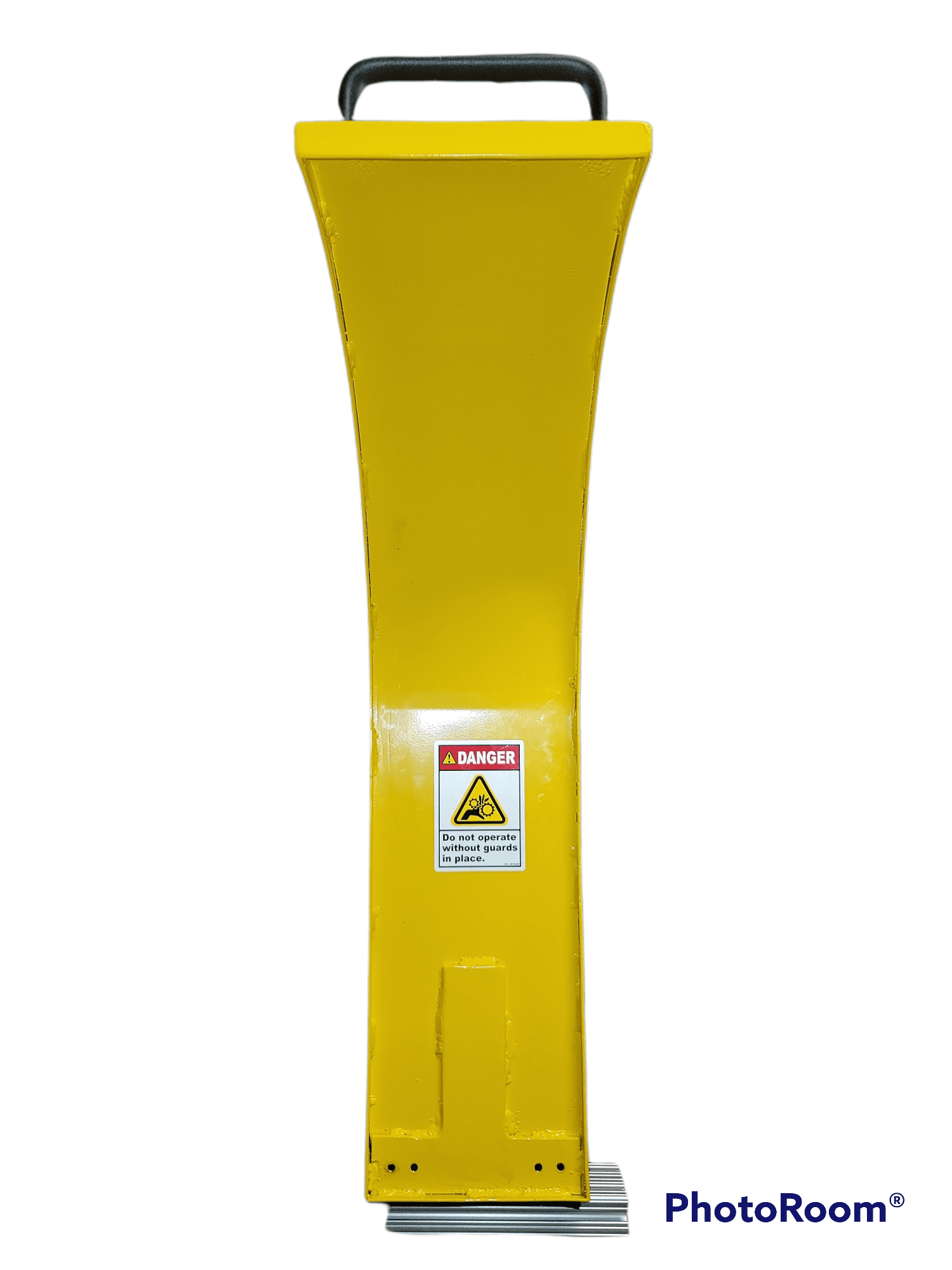

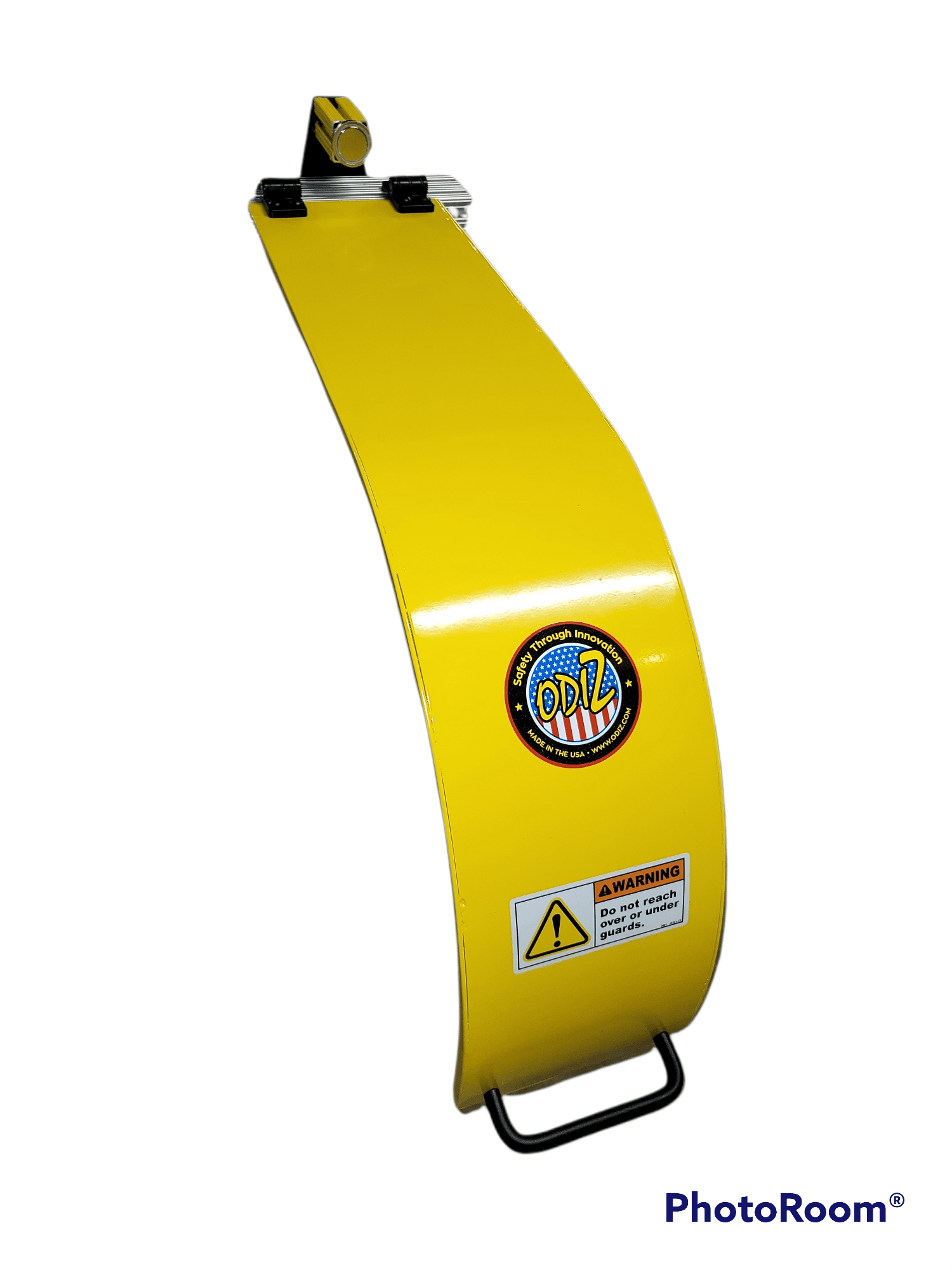

The Odiz Safety Custom Flip Up Lathe Chuck Guard is made for lathes that need a chuck guard sized to the machine rather than an off-the-shelf fit. You build your own guard around your chuck diameter and width, choose full metal or window options, and add interlock systems and switches if your application calls for them. The flip-up design lets the guard be raised by its black handle for access to the chuck and lowered to cover it. Every guard is powder coated safety yellow to withstand harsh environments and is made in the USA.

Key features

  • Built to your chuck: custom chuck diameters and widths.
  • Full metal or window options: choose a solid metal guard or one with a window.
  • Durable finish: powder coated safety yellow to withstand harsh environments.
  • Black handle on the flip-up guard.
  • Optional interlocks: interlock systems and switches are available as options.
  • Optional Odiz enclosure to simplify implementation into machines.
  • Made in USA.

Specifications

  • Guard type: custom flip up lathe chuck guard
  • Construction: full metal or window options
  • Sizing: custom chuck diameters and widths
  • Finish: powder coated safety yellow
  • Handle: black
  • Options: interlock systems and switches; Odiz enclosure
  • Origin: made in USA
  • Lead time: 2-4 weeks
  • Shipping weight: 20 lbs
  • Shipping dimensions (L x W x H): 10 x 10 x 20 in.
  • Freight: orders are assumed to ship on your organization's shipping or LTL account

Standards

This listing does not cite a specific OSHA or ANSI standard for this guard. The guarding requirements that apply depend on your lathe, its chuck and the work you run, so review them with your safety team before you configure the guard. If your review calls for an interlocked guard, interlock systems and switches are available as options. If you are looking for a different size, feature or configuration, please contact us, as we can custom build to your application.

Applications

The flip-up chuck guard is intended for horizontal lathes, including machines with chuck diameters and widths that standard guards do not cover, and for shops where a powder coated finish has to stand up to harsh environments. Plants that want interlocking can add interlock systems and switches, and the optional Odiz enclosure simplifies implementation into machines. Use the Virtual Design Assistant on this page to describe your lathe, or watch the flip up lathe chuck guard demonstration on the Videos tab.
