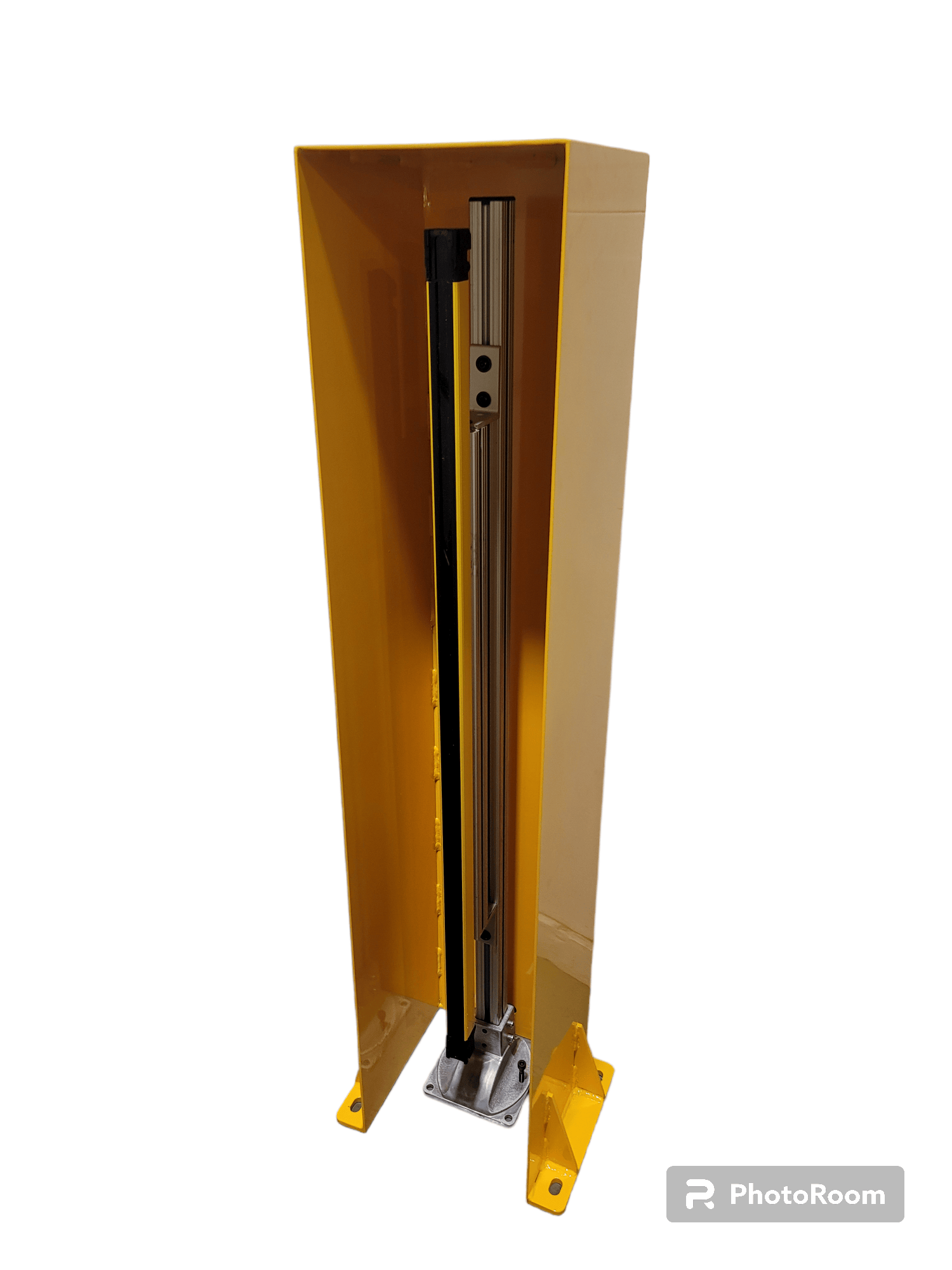

Safety light curtain solution builders in finger, hand and arm/foot resolutions, light curtain stands and pressure-sensitive body bars.
Showing all 6 products
A safety light curtain is a pair of sticks, an emitter and a receiver, that projects a field of light beams across an opening. When a finger, hand or body interrupts the field, the curtain’s safety outputs signal the machine control to stop hazardous motion. Mounted at the right distance, the machine stops before the person can reach the hazard. Unlike a fixed guard, the curtain leaves the opening clear for loading parts by hand.
OSHA 1910.212(a)(3) lists power presses and shears among machines that usually require point of operation guarding. On mechanical power presses, OSHA 1910.217 does not allow presence-sensing devices on full-revolution clutch machines, requires guards on all other areas of entry and bases the minimum safety distance on a hand speed constant of 63 inches per second multiplied by the press stopping time. ISO 13855 covers positioning safeguards such as light curtains according to how fast a body part can approach the hazard, IEC 61496 covers the design and testing of electro-sensitive protective equipment, and ANSI B11.19 sets performance requirements for safeguarding devices.
The pressure-sensitive push body bar works by contact rather than light: it acts as a barrier and trips the stop circuit when the operator’s body presses against it. For older machines and unusual openings, Odiz designs and builds custom light curtain systems as aftermarket guarding. See also press safety controls and press brake guards.
Choose the resolution for the smallest body part that could reach the hazard. A 14 mm finger resolution suits point of operation guarding where fingers can reach the tooling, 25 mm hand resolution suits hand-feeding openings, and 45 mm arm/foot resolution suits larger access openings. Coarser resolutions usually need a greater safety distance.
Measure the machine's stopping time, multiply it by an approach speed, and add any allowance the applicable standard requires for the curtain's resolution. For mechanical power presses, OSHA 1910.217 uses a hand speed constant of 63 inches per second. ISO 13855 covers positioning for other applications.
Often, yes, if the machine can stop reliably partway through its cycle. A light curtain cannot protect a machine that must complete its cycle once started, such as a full-revolution clutch press. Odiz builds custom light curtain systems for aftermarket guarding, and a stop-time measurement confirms the mounting distance.
A bar mounted across the front of a machine that trips the stop circuit when the operator's body pushes against it, so it acts as both a barrier and an emergency trip. OSHA 1910.216 lists pressure-sensitive body bars as one type of safety trip control for rubber and plastics mills with a roll height of 46 inches or more.
