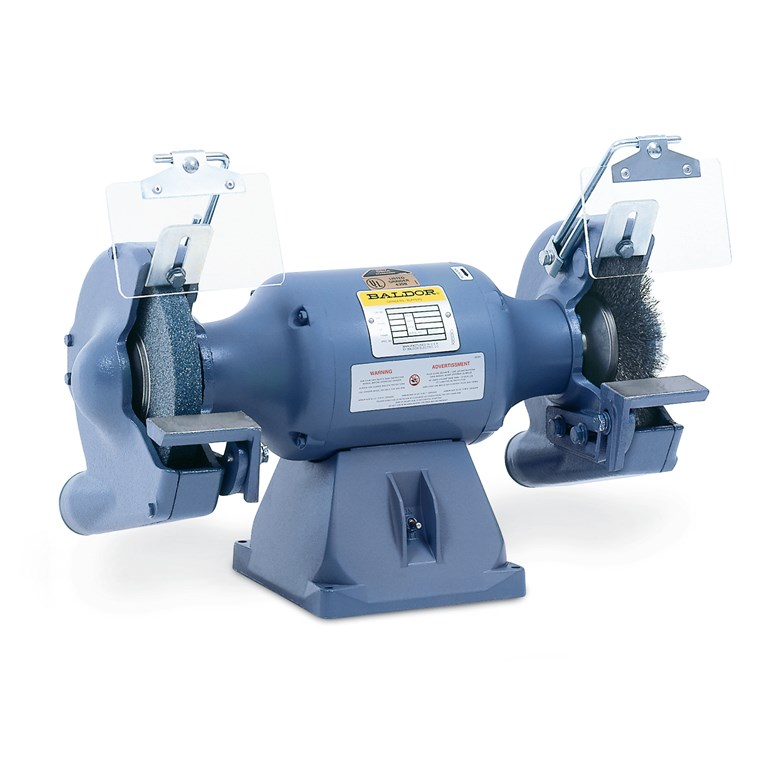

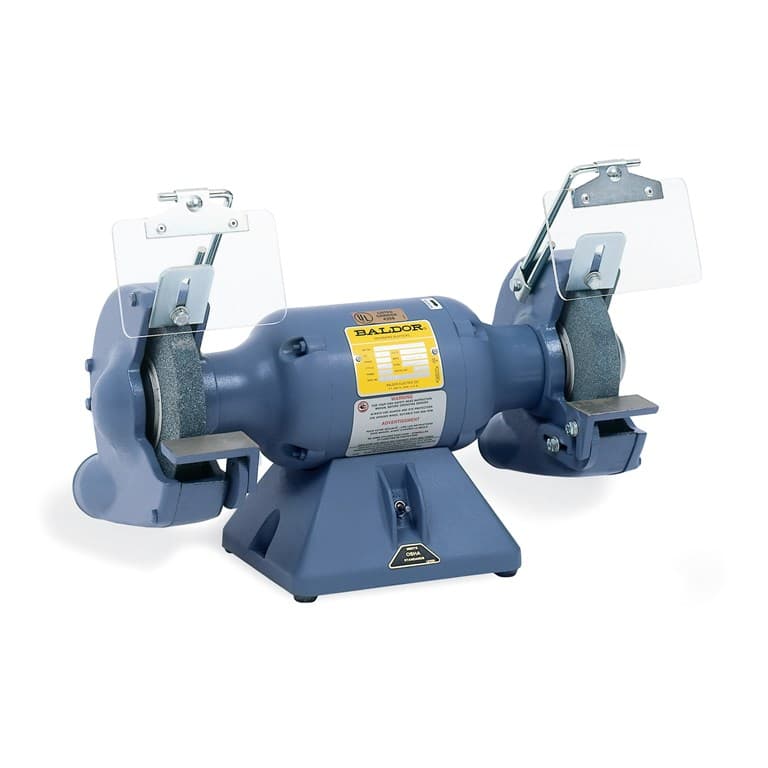

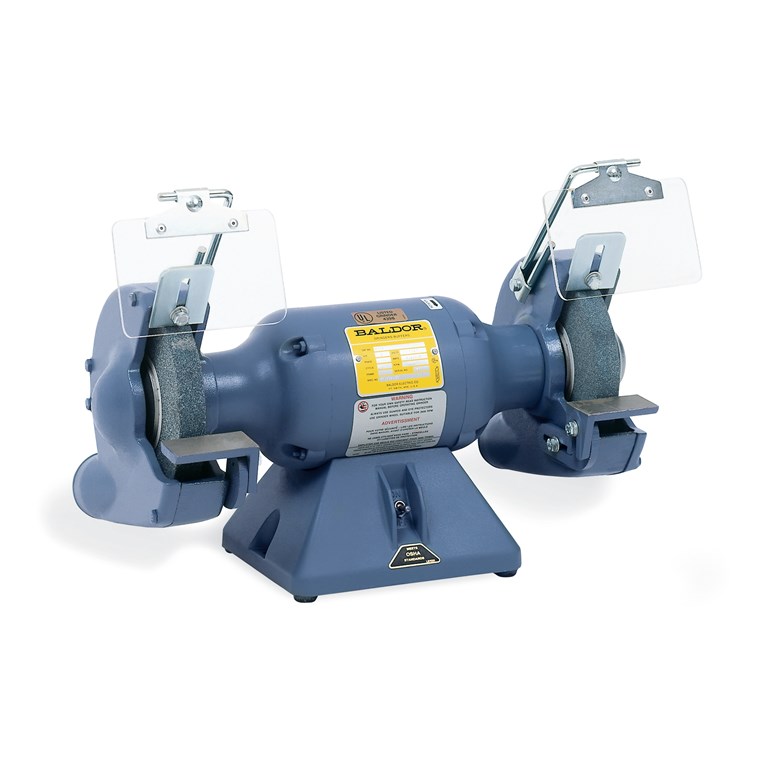

Grinding and finishing safety: Baldor industrial grinders and buffers, belt and disc sander guarding, and guards for surface and OD grinders.
Showing all 19 products
Grinding and finishing machines often share a corner of the shop, but each carries its own hazard. A bonded abrasive wheel can burst; the tongue guard setting decides how much of the wheel is exposed at the top, and the work rest setting decides whether a part can wedge between rest and wheel. Belt and disc sanders draw fingers into the nip where the belt meets a pulley. Buffers catch the edge of a part and throw it, and fill the air with lint and compound dust. Most of these machines keep spinning after they are switched off, and without a contactor they can restart by themselves after a power loss.

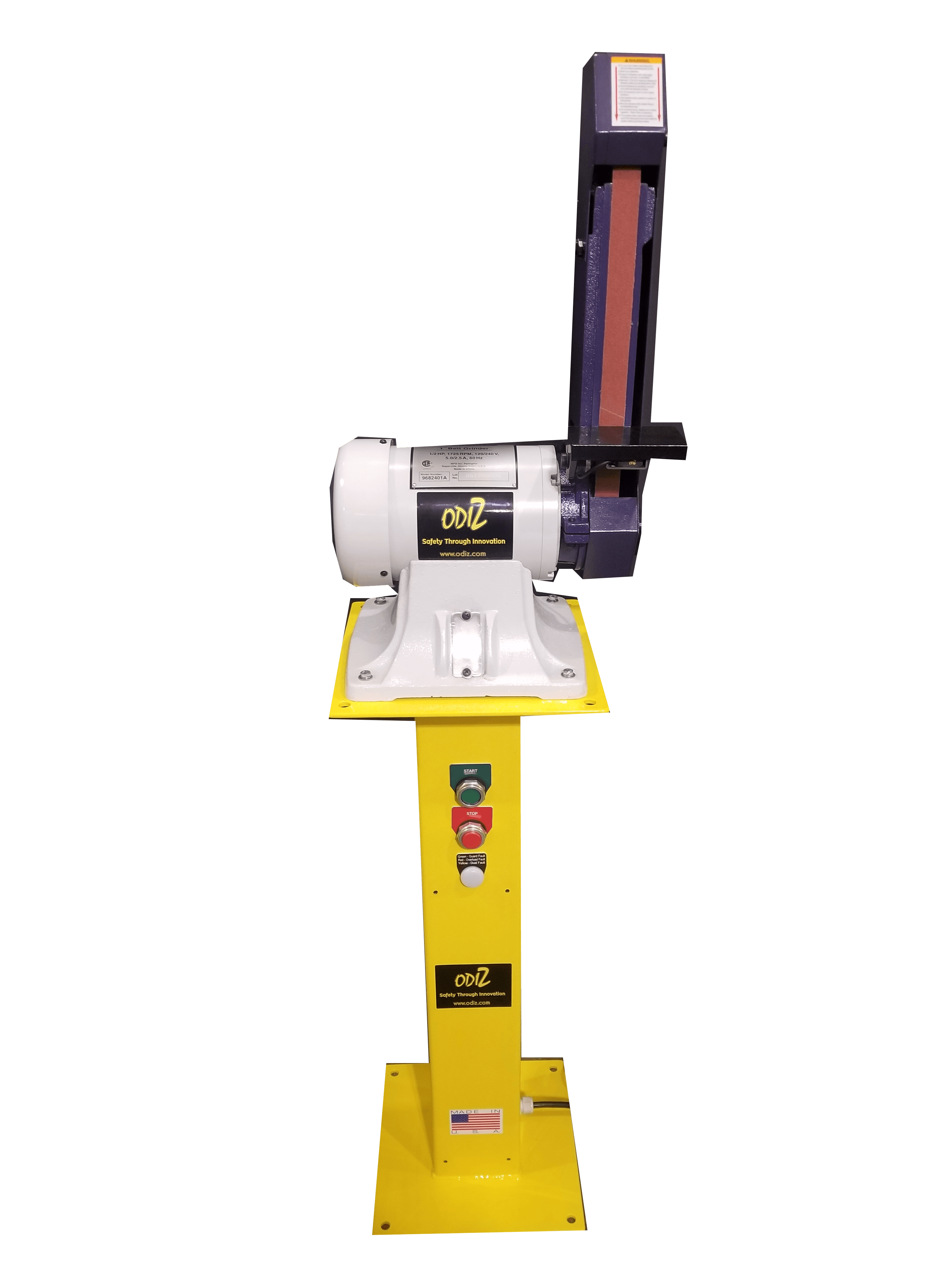

Work rest gaps widen as a wheel wears, and a manual check depends on someone remembering to do it. The Odiz No-Go system puts sensors on the work rests: when a rest is out of specification the machine will not start, and a contactor keeps it from restarting after a power loss. No-Go controls are built into the No-Go grinder safety stand, the No-Go bench grinder downdraft table with airflow dust collection, No-Go belt sanders and the No-Go belt and disc finishing machine. Shops that check gaps by hand can choose the magnetic or wire-tethered No-Go gauge, or the bench grinder adjustment safety kit for wheel changes.

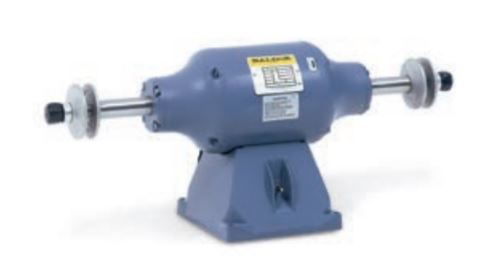

For grinders, saws and other machines that need a movable see-through barrier, there is a flex-arm polycarbonate Lexan safety shield. Surface grinder guarding is custom built to the machine table or production need. The custom Baldor downdraft buffer adds adjustable downdraft options for buffing debris, and the MAKESafe Tools grinders and MAKESafe Tools stand include the MAKESafe Power Tool Brake for motor braking. Related categories include grinder safety tools and gauges, grinding and finishing dust collection, grinding and finishing stands, grinding and finishing parts and grinding wheels.
OSHA 1910.215 covers abrasive wheel machinery. Under 1910.215(a)(1), abrasive wheels may be used only on machines with safety guards, except wheels used for internal work while inside the part being ground, mounted wheels 2 inches and smaller used in portable operations, and Types 16, 17, 18, 18R and 19 cones, plugs and threaded hole pot balls where the work offers protection. The general requirements also limit the work rest gap on offhand grinders to 1/8 inch, and the section caps the tongue guard gap on bench and floor stands at 1/4 inch. Sanding belts and buffing wheels are not bonded abrasive wheels, so the general rules in 1910.212(a) are the baseline for sanders and buffers, and 1910.212(b) requires fixed-location machines such as pedestal grinders to be anchored. ANSI B11.9 covers stationary grinding machines, including bench, pedestal and surface grinders, and excludes polishing and belt grinding machines.
Generally not. 1910.215 covers abrasive wheels, which OSHA defines as abrasive grains held together by organic or inorganic bonds. A sanding belt is not a bonded wheel, and in a letter of interpretation OSHA found that wheels classed as polishing and buffing wheels fall outside the 1910.215 guarding requirements. The general machine guarding requirements of 1910.212 still apply.
A gauge depends on someone measuring and resetting the gaps. No-Go stands, downdraft tables and sanders have sensors on the work rests, so the machine will not start when a rest is out of specification, and a contactor prevents restart after a power loss. A gauge is still useful for setting the rest after a wheel change.
Yes. Surface grinder guarding is custom built to the machine table or production need, with clear Lexan polycarbonate shields, and can include an optional low-voltage interlock system. Interlock choices range from sliding doors alone to mechanical locking clasps and electronic interlocks for engineered solutions.
OSHA 1910.212(b) requires machines designed for a fixed location to be securely anchored to prevent walking or moving. Pedestal grinders, floor-stand buffers and bench machines built to be bolted down fall under that rule, so check the anchors whenever a stand is moved or a machine is replaced.
