No Go™ Technology - 120V Contactor Power Loss Drop Out

Name: No Go™ Technology - 120V Contactor Power Loss Drop Out
SKU: ODIZ-2821
Price: 1199 USD
Availability: InStock

SKU ODIZ-2821

This 120V power loss drop out contactor package brings Odiz No-Go™ technology to plug-in shop machines: a contactor with overload drops the machine out when power is lost, so it will not restart on its own. It adds start/stop controls, a latching E-stop, an overload trip LED and a 120V receptacle for the machine.

$1,199.00In stock

Sizes

Weight: 20 lbs
Dimensions: 12 × 12 × 24 in

Options

Ergonomic Mat

Not sure where to start? Reach out to our team to learn more.

Anti-Restart and Motor Brake Systems Belt & Disc Sanders Bench Grinders Buffers Drill Press Horizontal Bandsaw Polishing Lathe Radial Arm Vertical Bandsaw

Tags120V Contactor Package Drill Press Brake Drill Press Guard Drill Press Interlocks No Start on Power Loss Safety Enclosure

The Odiz No-Go™ Technology 120V Contactor Power Loss Drop Out package is a 120 VAC contactor and overload package that makes machinery drop out on power loss. When power returns, the machine stays off until the operator presses Start, instead of starting up unexpectedly. The design also includes start/stop switch circuitry and a latching E-stop, and the machine plugs into the package's 120V receptacle.

Key features

Power loss drop out: the contactor drops out when power is lost, so the machine does not restart by itself.
Overload protection: electrical contactor package with overload, plus an LED that indicates an overload trip.

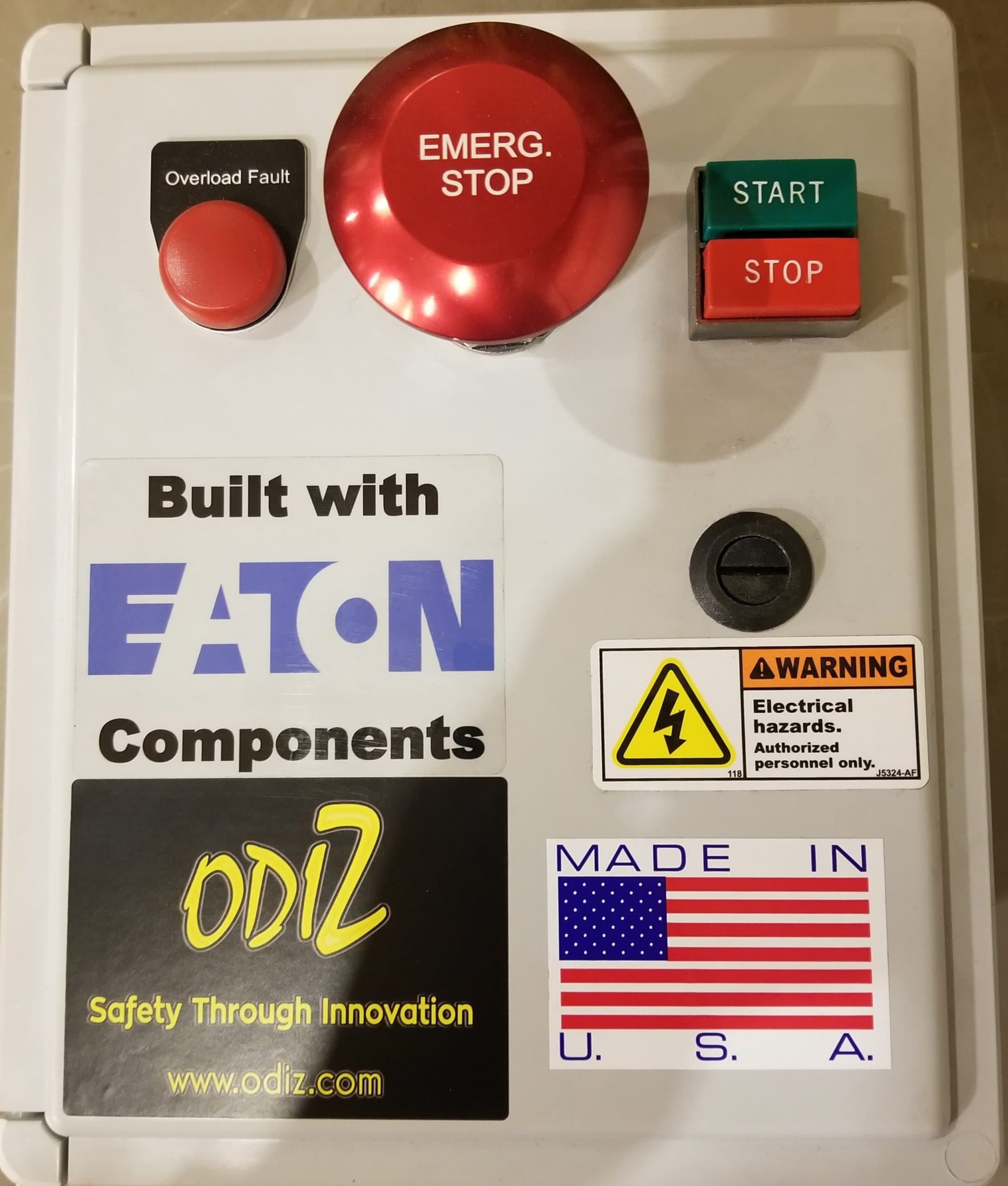

Start/stop and latching E-stop: the E-stop stays engaged until it is reset.

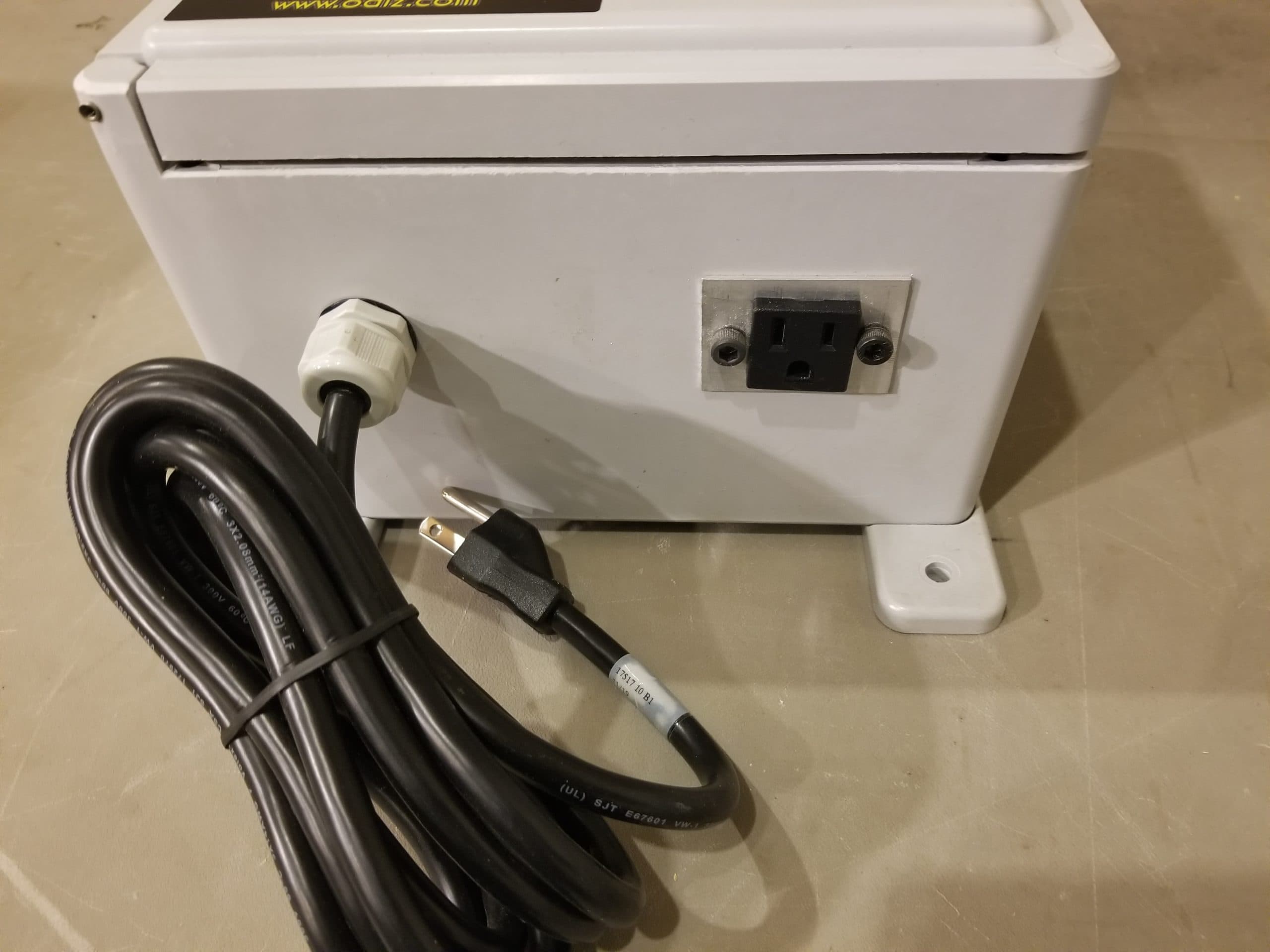

120V receptacle: plug the machine into the package.

Specifications

Voltage: 120 VAC
Controls: start/stop switch circuitry, latching E-stop
Protection: electrical contactor package with overload; overload trip LED
Connection: 120V receptacle
Shipping weight: 20 lbs
Shipping dimensions (L x W x H): 12 x 12 x 24 in.

Applications

Use the package on 120 VAC machines such as drill presses and radial arm drills, bench grinders, buffers, belt and disc sanders, polishing lathes and horizontal and vertical bandsaws. Contact Odiz to discuss your 120 VAC machine guarding needs.
