Robot cell guarding for industrial and collaborative robots: custom perimeter barrier guards that keep people out of the robot’s reach, interlocked access gates, presence sensing at load stations and custom robot stand bases.
Showing all 2 products
An industrial robot can move fast, change direction without warning and reach well beyond the parts it handles, so robot cell guarding has to keep people out of the robot’s restricted space whenever it can move. ANSI/A3 R15.06, which adopts ISO 10218, sets the safety requirements for robots and robot systems, and a task-based risk assessment such as RIA TR R15.306 decides the safeguards.

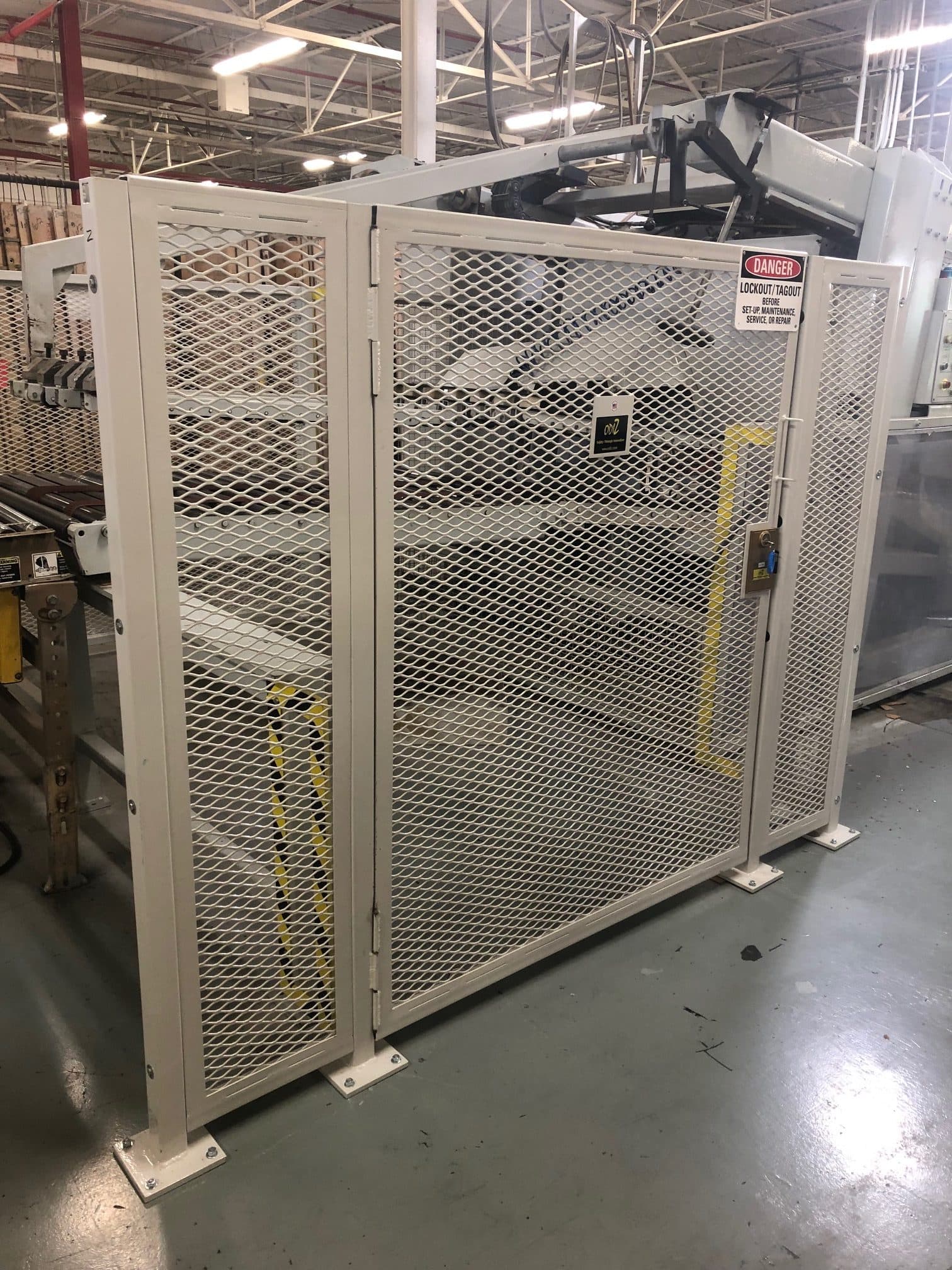

Odiz engineers and builds custom barrier guards to fit your cell and floor layout, and as a distributor of AGS barrier guard solutions can combine standard and custom components in one guard. Height, opening size and distance from the robot’s reach are set so no one can reach over, through or under the guard into the hazard.
Every door into the cell needs an interlock that stops the robot when it opens and prevents an automatic restart. See machine interlock systems.
Where operators load parts, light curtains and presence-sensing devices stop the robot when someone crosses into the cell. Mount them at the safety distance the robot’s stopping time requires.
A custom robot or cobot stand base anchors the robot at the height and position your layout needs.
Collaborative robots limit force and speed, but the tool, the part and the task can still injure someone. A machine guarding risk assessment of the application shows whether a cobot cell needs guarding. For the conveyors that feed a cell, see conveyor guarding.
ANSI/A3 R15.06, which adopts ISO 10218-1 and ISO 10218-2, sets the safety requirements for industrial robots and robot systems in the United States. RIA TR R15.306 describes a task-based risk assessment method for robot systems.
It depends on how far the fence is from the robot's reach. ISO 13857 sets the combinations of barrier height and distance that keep people from reaching over a barrier into a hazard; taller fences can sit closer.
Yes. Any door or gate people use to enter the cell should be interlocked so the robot stops when it opens and cannot restart automatically until the cell is cleared and reset.
Sometimes. A cobot's force and speed limits do not make a sharp tool, a heavy part or a pinch point safe. A risk assessment of the application determines whether guarding is needed.
