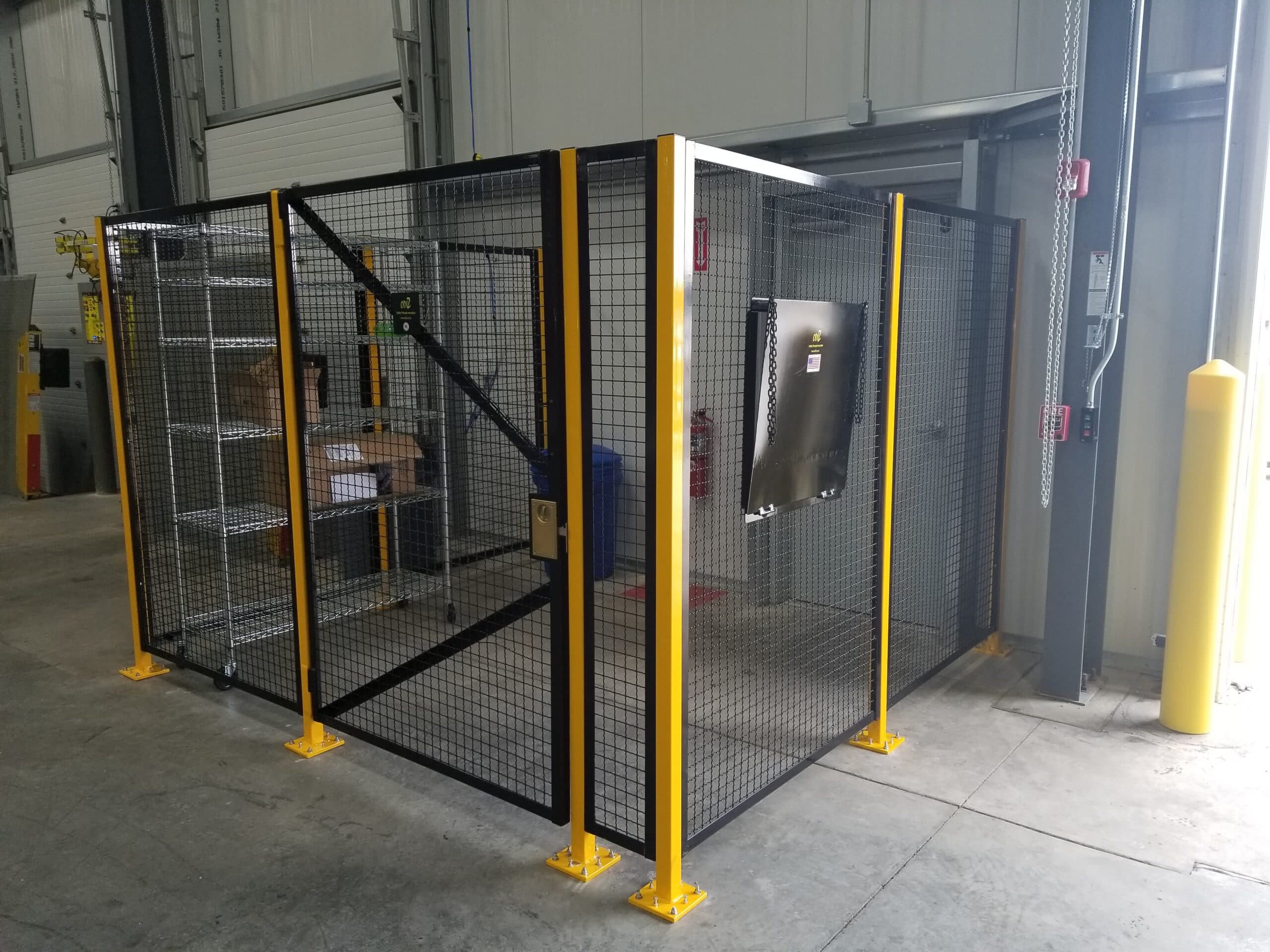

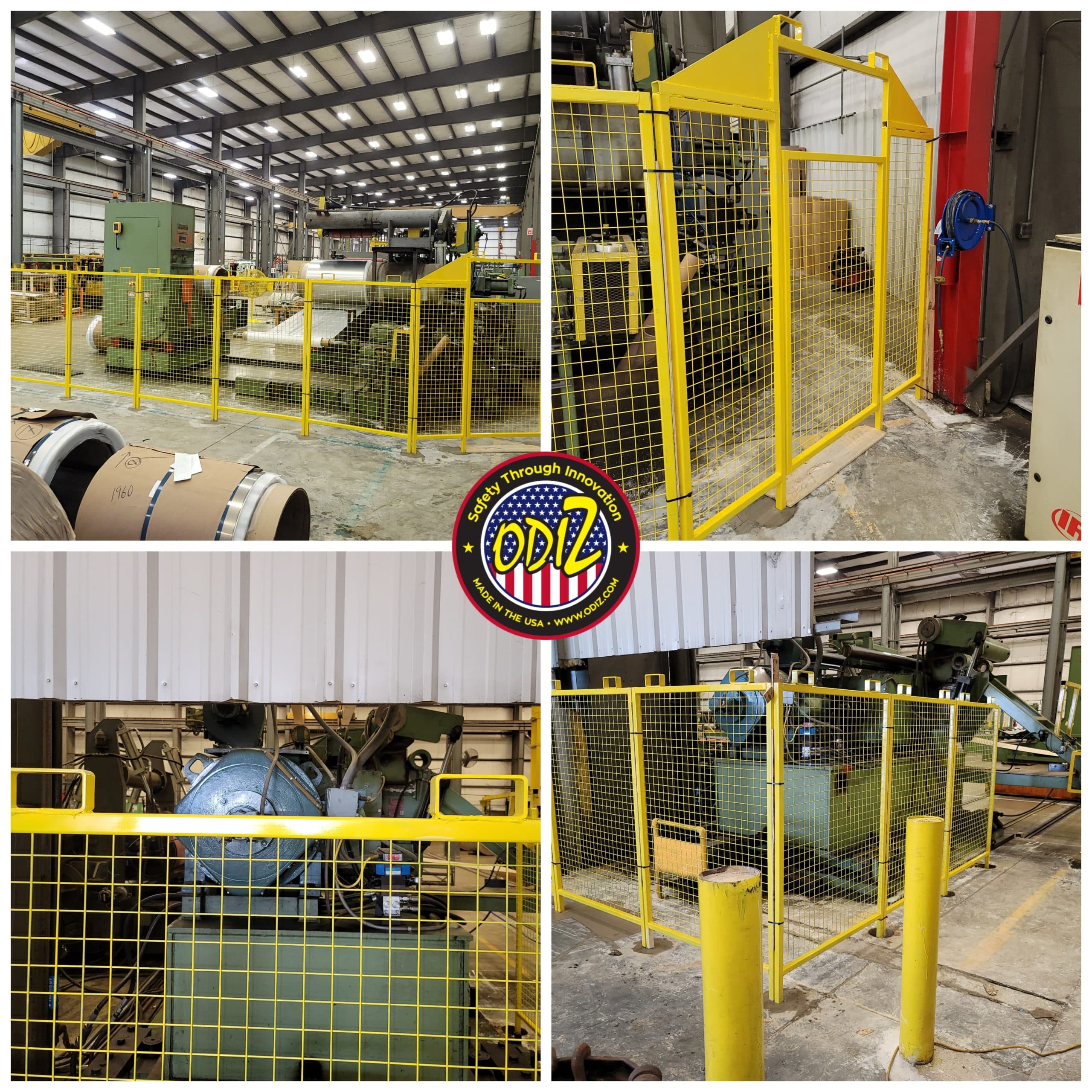

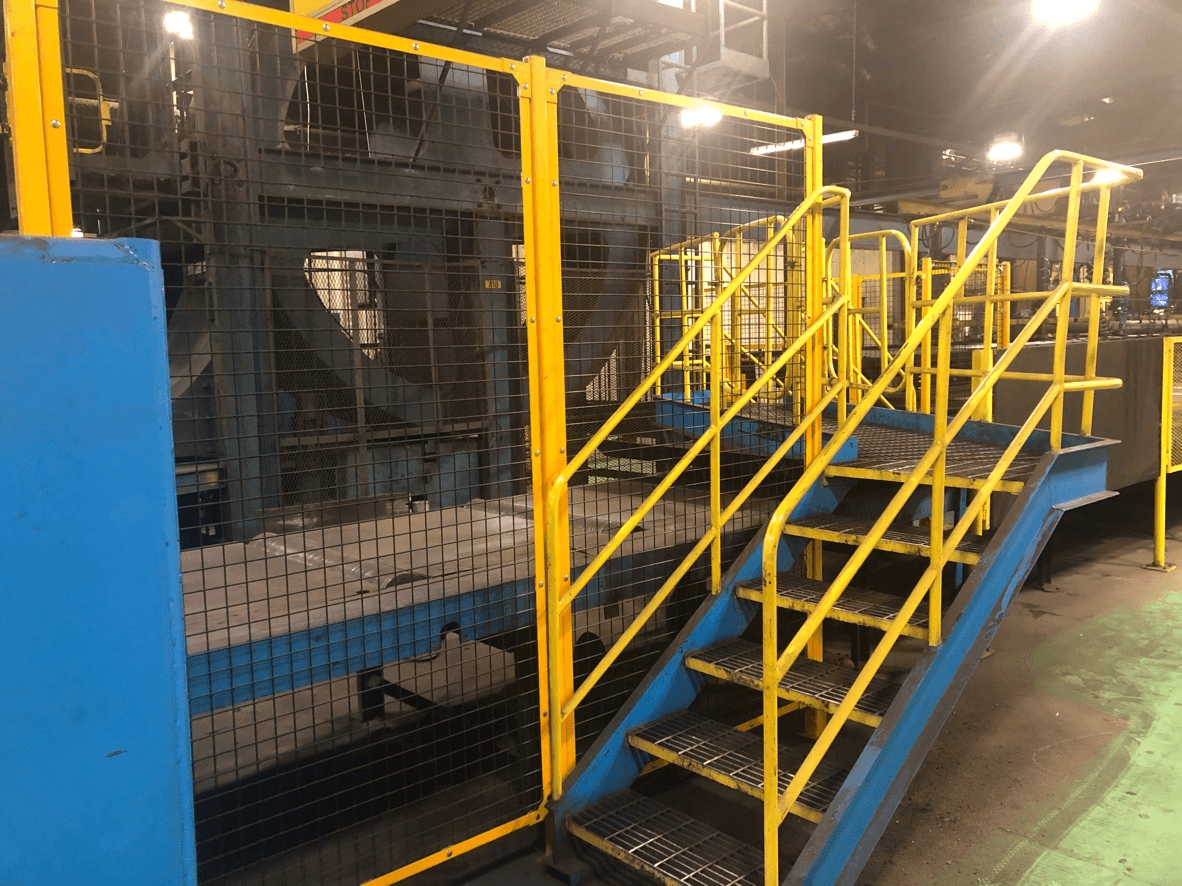

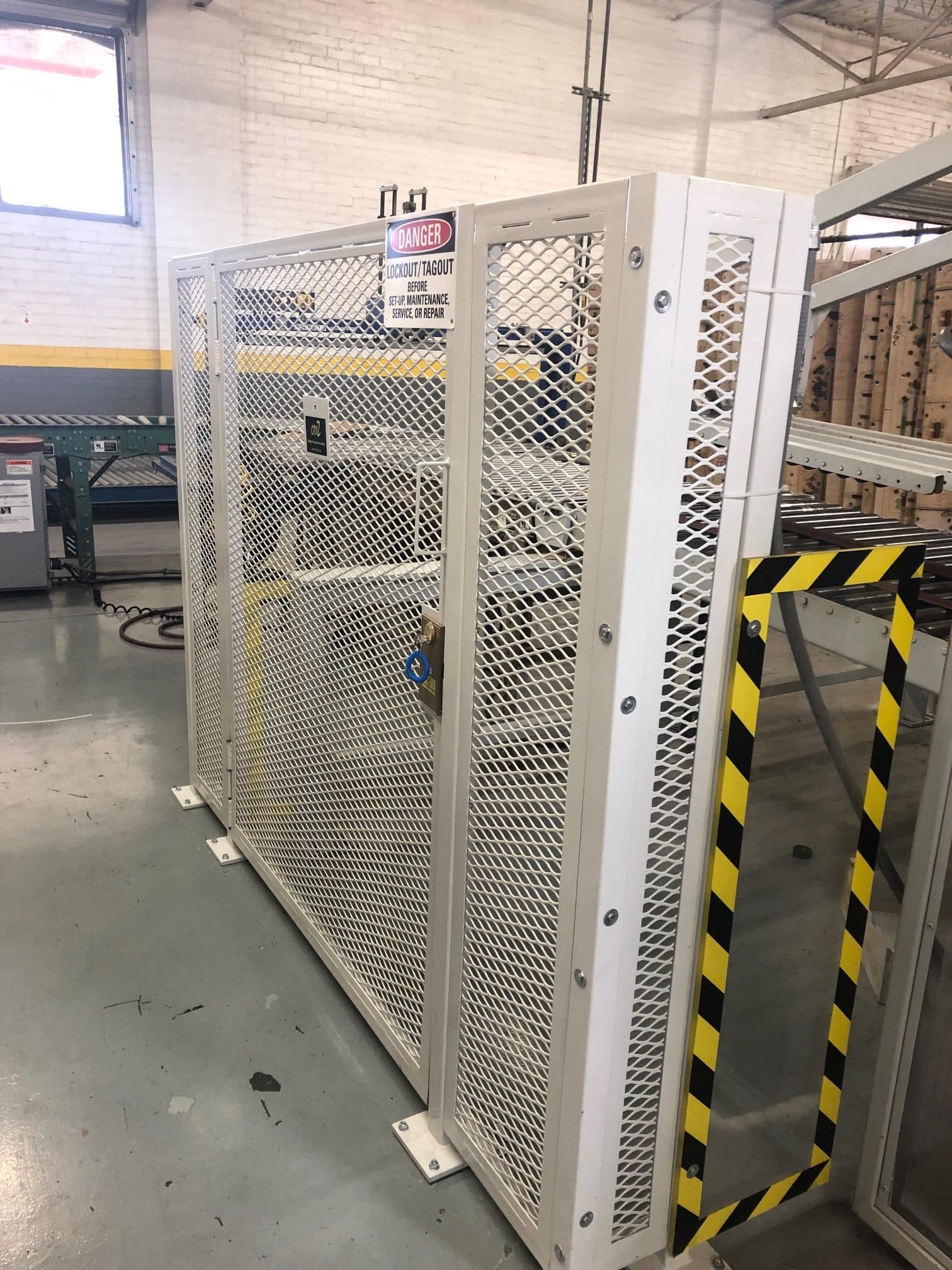

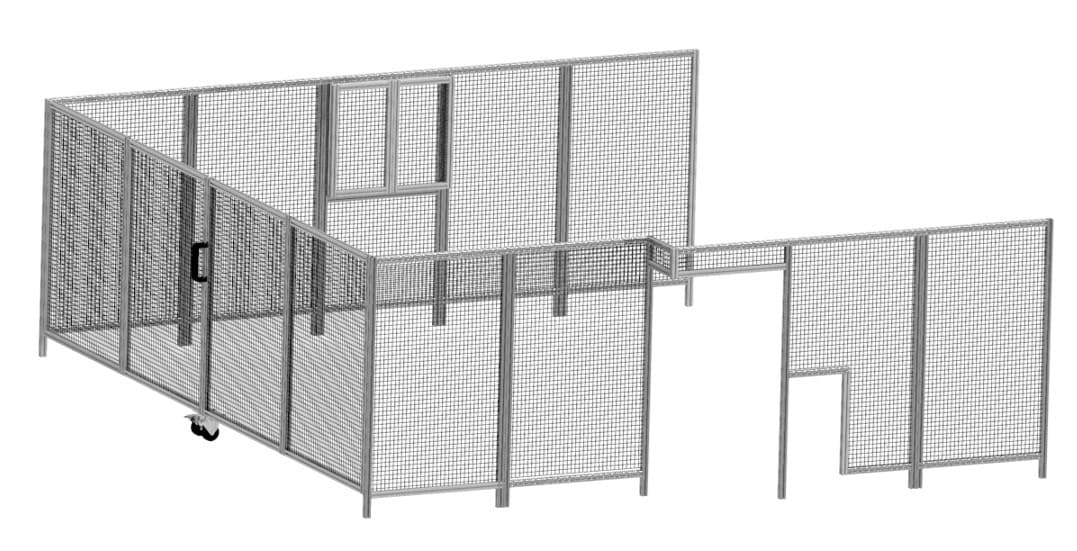

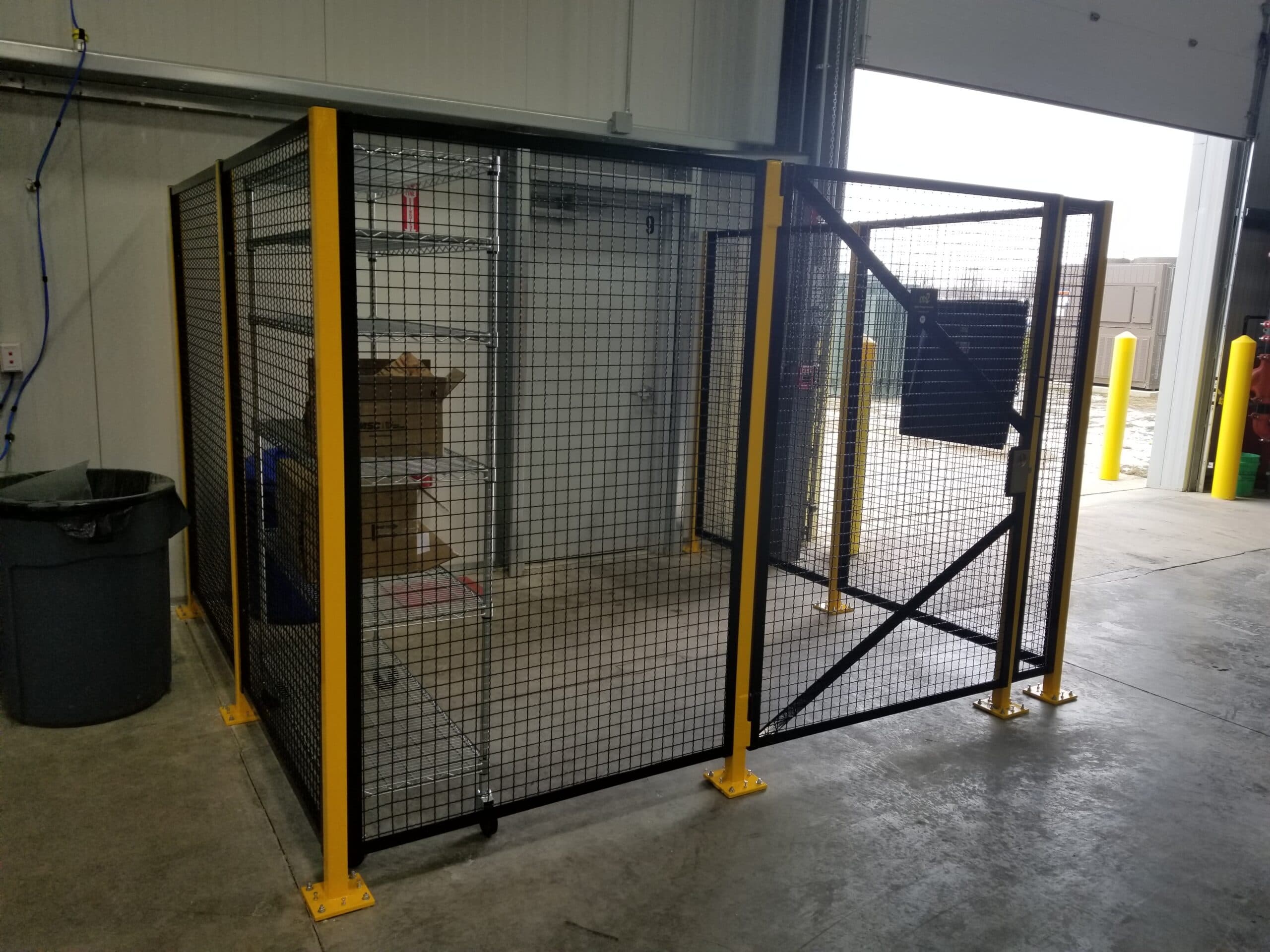

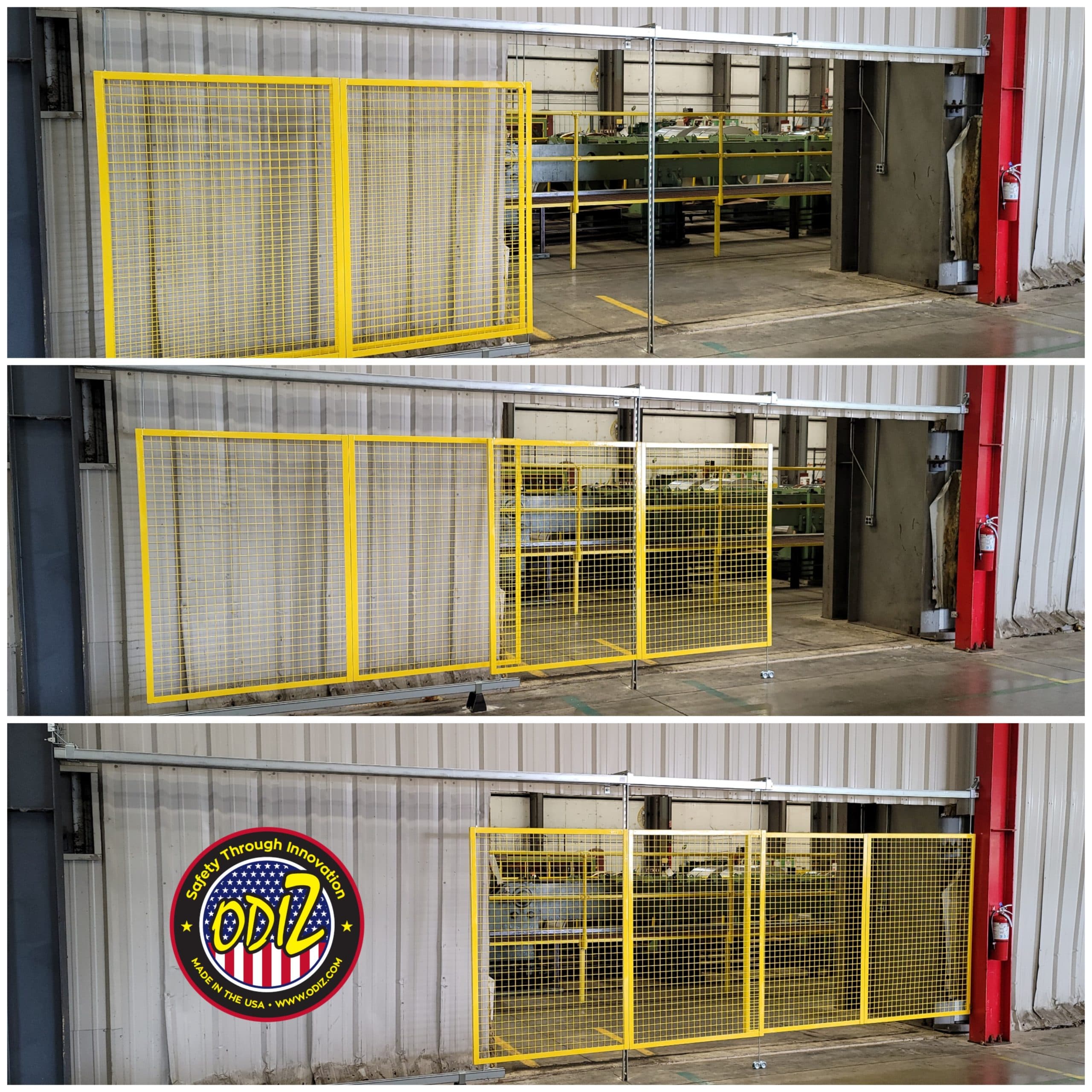

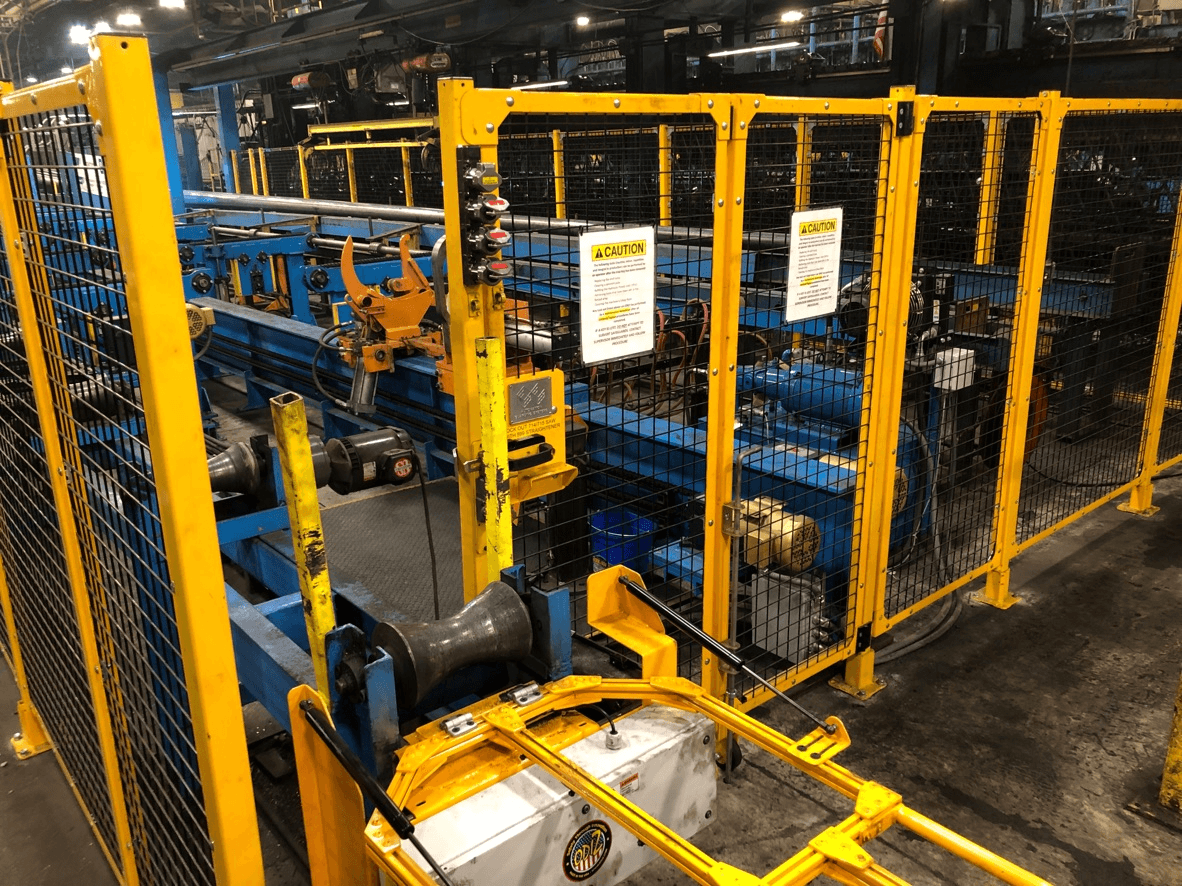

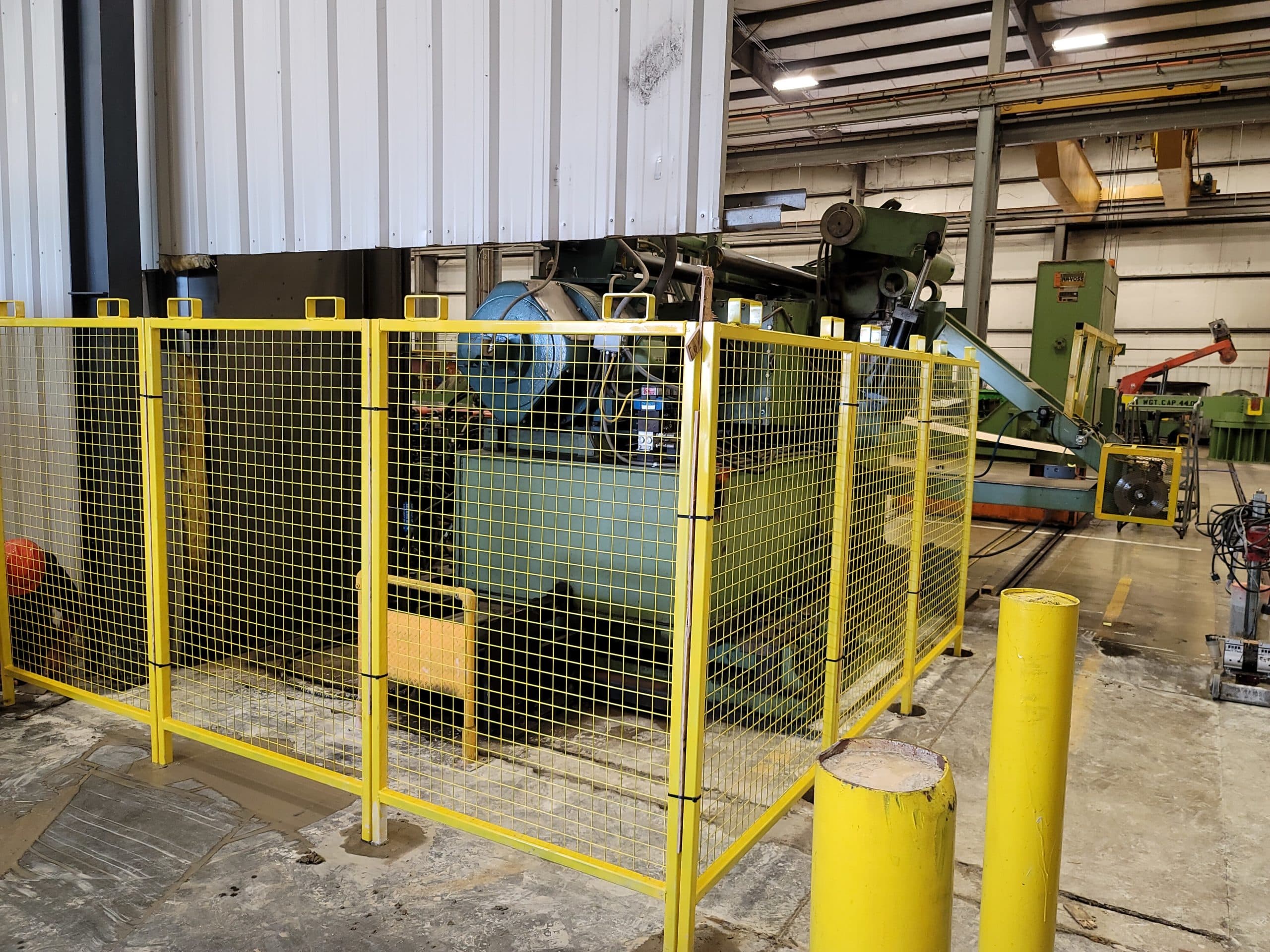

Custom Barrier Guards

OSHA 1910.212 — General Requirements for All Machines

OSHA 29 CFR 1910.212 is the core machine guarding standard that applies to nearly all machinery in general industry.
It requires employers to provide guards and protective devices to shield workers from points of operation, rotating parts, in-running nip points, flying chips, sparks, and other hazards.
As a “catch-all” standard, OSHA 1910.212 is often cited when no specific machine regulation exists, making it one of the most frequently enforced provisions in Subpart O.

Key Guarding Requirements

• Point of Operation: Machines must be guarded so operators are not exposed to the point where the work is performed.
• Rotating & Moving Parts: Guards must cover exposed belts, pulleys, gears, shafts, and flywheels to prevent accidental contact.
• In-Running Nip Points: Hazards created where two parts rotate toward each other or where one part moves past a stationary object must be guarded.
• Flying Chips & Sparks: Guards or shields must contain debris, sparks, and fragments generated during machine operation.
• Anchoring: Machines designed for fixed location use must be securely anchored to prevent movement or tipping.

Examples of Machines Covered

Because OSHA 1910.212 is a broad standard, it applies to a wide range of equipment including drill presses, lathes, milling machines, conveyors, punch presses, saws, and grinders.
If a machine has moving parts that could injure a worker, 1910.212 requires guarding.

Common Violations

• Missing point-of-operation guards on presses or saws.
• Exposed belts, pulleys, or rotating shafts without guarding.
• Improperly adjusted or removed guards during production.
• Lack of anchoring on floor-mounted equipment.
• Failure to contain sparks or flying material in grinding, cutting, or drilling operations.

Why OSHA 1910.212 Matters

Machine guarding violations are consistently among OSHA’s top cited standards.
Without proper guards, workers face severe risks of crushed fingers, amputations, lacerations, and eye injuries.
Compliance with OSHA 1910.212 helps facilities protect employees, avoid costly citations, and establish safer production environments.

Relation to Other Standards

OSHA 1910.212 is a general requirement that works in tandem with OSHA 1910.215 (Abrasive Wheel Machinery)
and machine-specific rules under Subpart O. It also aligns with ANSI B11 machine safety standards,
which provide technical safeguarding criteria.

Compliance Checklist

• Install guards at the point of operation on all applicable machines.
• Cover all rotating parts, belts, pulleys, gears, and shafts.
• Guard in-running nip points created by rollers, belts, or chains.
• Provide shields for flying chips, sparks, or debris.
• Anchor floor-mounted machines to prevent shifting.
• Train employees to use machines only with guards in place.

Internal Linking Opportunities

• Cross-link to Lockout/Tagout (OSHA 1910.147) for energy control.
• Link to Abrasive Wheel Machinery (OSHA 1910.215) for grinder rules.
• Connect to ANSI B11 for machine safeguarding performance standards.
• Promote relevant machine guarding products, light curtains, and safety devices.

FAQ

OSHA 1910.212(a) — General Machine Guarding Requirements

OSHA 29 CFR 1910.212(a) defines the core safety principles for machine guarding in general industry.
It requires employers to protect workers from mechanical hazards created by points of operation, rotating components, in-running nip points, and flying chips or sparks.
This paragraph serves as the primary enforcement reference for machinery that does not have its own specific OSHA standard.

Scope and Purpose

The goal of 1910.212(a) is to prevent contact injuries, entanglement, crushing, and amputation by ensuring all hazardous machine motions are either guarded or controlled.
It applies to virtually all machinery used in manufacturing, maintenance, fabrication, and processing operations.

Key Guarding Principles

• Comprehensive Protection: Guards must cover any moving part or area that could cause injury through contact or ejection of material.
• Design Flexibility: Employers may choose fixed, adjustable, or interlocked guards, provided they effectively prevent worker exposure.
• Performance Standard: The rule is performance-based rather than prescriptive—meaning the employer must demonstrate that the guarding method eliminates or controls the hazard.
• Continuity of Protection: Guards must remain in place and secure during operation and be adjusted only when the machine is off and locked out.
• Applicability: This paragraph acts as a “catch-all” requirement whenever a machine presents a hazard not addressed by another OSHA provision.

Examples of Covered Hazards

Machines governed by 1910.212(a) include drill presses, milling machines, conveyors, polishing lathes, grinders, and mechanical cutters.
Hazards may include rotating shafts, reciprocating arms, cutting surfaces, or points where material is inserted or removed.

Compliance Practices

• Install guards that physically prevent access to moving parts.
• Inspect guards routinely for secure attachment and effectiveness.
• Ensure that guard openings prevent any part of the body from reaching the danger zone.
• Prohibit operation when guards are missing or removed.
• Train employees on safe operation, inspection, and maintenance of guarded machines.

Why OSHA 1910.212(a) Is Important

Most serious machinery accidents occur because guards are missing, removed, or inadequate.
Section (a) establishes the baseline requirements that form the foundation of all machine safeguarding programs.
Compliance not only prevents injuries and amputations but also ensures alignment with national consensus standards such as ANSI B11 and ISO 12100.

FAQ

OSHA 1910.212(a)(1) — General Duty to Guard Machines

OSHA 29 CFR 1910.212(a)(1) establishes the primary obligation to guard machinery in general industry.
It requires employers to implement one or more methods of guarding that protect both the operator and nearby employees from hazards created by points of operation, rotating parts, flying chips, sparks, or any other dangerous mechanical motions.

Scope and Intent

This paragraph serves as the foundation of all machine guarding enforcement.
It mandates that every machine presenting a mechanical hazard must be safeguarded through a combination of physical barriers or engineered safety devices.
The employer may choose the guarding method, but it must completely prevent employee exposure to the moving part or hazard zone during normal operation.

Acceptable Guarding Methods

• Fixed guards: Rigid barriers that prevent access to hazardous areas.
• Interlocked guards: Guards that automatically shut off or disengage the machine when opened or removed.
• Adjustable guards: Barriers that can be positioned for different operations but remain securely in place during use.
• Self-adjusting guards: Guards that move automatically into position as the operator works, covering the danger area as material is fed.
• Electronic safeguarding devices: Light curtains, pressure-sensitive mats, and presence sensors that prevent access to moving parts.

Key Compliance Requirements

• Guarding must protect both operators and nearby personnel.
• Guards must be securely attached and durable enough to resist normal operation and vibration.
• Openings in guards must be small enough to prevent accidental contact with moving parts.
• Guards must not introduce new hazards such as sharp edges, pinch points, or visibility obstruction.
• All guards must be kept in place and functional when machines are operating.

Common Violations

• Machines operating without guards over exposed belts, pulleys, gears, or shafts.
• Removed or bypassed barrier guards during production or maintenance.
• Improper guard materials or openings that allow hand or finger access to moving parts.
• Lack of guarding for nearby employees who may be struck by flying material or sparks.

Practical Compliance Tips

• Conduct a full hazard assessment for all equipment to identify points of operation and motion hazards.
• Install fixed guards wherever possible; use interlocked or adjustable guards only when process requirements demand it.
• Include guarding checks in your preventive maintenance program.
• Train operators to recognize unsafe conditions and never remove or modify guards.

Why OSHA 1910.212(a)(1) Is Important

This paragraph represents OSHA’s general duty clause for machinery safety.
Most machine-related injuries occur when guards are removed or missing, and OSHA 1910.212(a)(1) gives inspectors the authority to cite any unguarded moving part that poses a risk.
Compliance ensures that workers remain protected from crushing, entanglement, amputation, and impact injuries.

FAQ

OSHA 1910.212(a)(2) — General Requirements for Machine Guards

OSHA 29 CFR 1910.212(a)(2) establishes the design and construction standards for machine guards.
This provision requires that guards be securely fastened to the machine and designed to protect operators and nearby employees from injury caused by moving parts, flying debris, or accidental contact.
The intent is to ensure that guarding not only provides protection but also does not create new hazards in the process.

Key Guard Design Requirements

• Secure Attachment: Guards must be firmly attached to the machine. If fastening directly to the machine is not possible, guards must be securely mounted elsewhere to provide equal protection.
• Structural Integrity: Guards must be made of materials strong enough to resist impact, vibration, and normal wear during operation.
• No New Hazards: Guards must not introduce additional risks such as pinch points, sharp edges, or visibility obstruction.
• Durability: Guard materials must withstand operational stresses and environmental factors like heat, coolant, or debris.
• Accessibility: Guards should allow safe maintenance, lubrication, and adjustments without requiring complete removal when possible.

Performance Intent

The focus of 1910.212(a)(2) is performance-based guarding design.
OSHA does not prescribe specific guard materials or thicknesses; instead, the guard must perform effectively under real-world conditions.
Employers have the flexibility to design guards suited to their machines—as long as the guarding prevents contact and remains in place during operation.

Examples of Guard Types Covered

• Fixed guards enclosing belts, pulleys, gears, and rotating shafts.
• Interlocked guards that shut off power when opened or removed.
• Adjustable guards for variable-sized stock or cutting operations.
• Self-adjusting guards that move automatically with the workpiece.

Best Practices for Compliance

• Inspect guards regularly for looseness, cracks, or corrosion.
• Use guard materials that match the operational environment (e.g., metal for high-impact areas, polycarbonate for visibility).
• Train employees to recognize damaged or missing guards and to report deficiencies immediately.
• Ensure all guards are reinstalled and secured after maintenance or adjustments.

Common Violations

• Guards loosely attached or easily removable during operation.
• Improvised guards made from inadequate materials such as thin sheet metal or plastic covers.
• Guards with sharp edges or openings large enough to allow finger or hand access.
• Removed or bypassed guards not replaced before restarting the machine.

Why OSHA 1910.212(a)(2) Is Important

Even when a guard is present, poor design or weak construction can fail to protect workers.
OSHA 1910.212(a)(2) ensures that guards are engineered and maintained to perform effectively throughout a machine’s life cycle.
Properly designed guards prevent crushing, amputation, and laceration injuries while maintaining usability and productivity.

FAQ

OSHA 1910.212(a)(3) — Point of Operation Guarding

OSHA 29 CFR 1910.212(a)(3) sets forth the point of operation guarding requirements for machinery used in general industry.
The “point of operation” is the area on a machine where work is performed—such as cutting, shaping, boring, forming, or assembling a part.
This section requires that each machine have a guard or safeguarding device that prevents the operator from having any part of the body in the danger zone during operation.

Purpose and Scope

The purpose of 1910.212(a)(3) is to eliminate exposure to moving tools or dies that can cause crushing, amputation, laceration, or puncture injuries.
It applies to all machines with a point of operation hazard, regardless of size or industry.
Typical examples include presses, saws, milling machines, lathes, shears, and drills.

Key Requirements

• Every machine must be equipped with a guard that prevents the operator from reaching into the danger zone.
• Guards must be designed and constructed to provide maximum protection while allowing the machine to be operated safely and efficiently.
• Special hand tools may be used to handle materials when guarding at the point of operation is not practical.
• Guards must be securely fastened, maintained in place, and not easily removed or bypassed during operation.
• Safeguarding devices such as light curtains, presence-sensing devices, or two-hand controls may be used if they provide equivalent protection.

Examples of Point of Operation Hazards

• Cutting blades or rotating cutters that can amputate or lacerate fingers.
• Press dies or molds that can crush hands or fingers during operation.
• Drill bits, boring tools, or milling heads that can pierce or entangle body parts.
• Shearing or punching points that can sever material—and body parts—with the same force.

Acceptable Guarding Methods

• Fixed barrier guards enclosing the point of operation.
• Interlocked guards that stop machine motion when opened or removed.
• Adjustable or self-adjusting guards that move automatically to block access as material is fed.
• Two-hand controls requiring both hands to activate the cycle, keeping them out of danger.
• Electronic presence-sensing devices such as light curtains or safety mats that halt motion when triggered.

Common Violations

• Operating a machine with missing or disabled point of operation guards.
• Using hand-feeding where fixed or adjustable guards should be installed.
• Removing guards to increase production speed.
• Failure to provide safeguarding when machine design allows operator access to hazardous movement.

Compliance Tips

• Identify all machine points of operation and assess potential contact hazards.
• Install fixed guards where feasible; use engineered safety devices when full enclosure is not possible.
• Inspect all guards before each shift and re-secure after adjustments or maintenance.
• Train operators to recognize guarding deficiencies and to report missing or damaged safety devices immediately.

Why OSHA 1910.212(a)(3) Is Important

Point of operation injuries are among the most severe and preventable workplace incidents.
By enforcing 1910.212(a)(3), OSHA ensures that all machines have reliable guarding or safety devices that keep operators’ hands, fingers, and bodies outside the danger zone during work.
This rule remains one of the most frequently cited machine safety violations nationwide.

FAQ

OSHA 1910.212(a)(3)(i) — Guard Construction and Safety Design

OSHA 29 CFR 1910.212(a)(3)(i) outlines the design and performance requirements for point of operation guards.
This provision mandates that guards be designed and constructed so that no part of the operator’s body can enter the danger zone while the machine is in use.
It ensures guards are not merely present, but effective in eliminating exposure to mechanical hazards.

Purpose and Intent

The purpose of this section is to establish functional performance criteria for machine guards, rather than prescribing specific materials or configurations.
The employer has flexibility in choosing a guarding method, but the chosen system must physically prevent entry into the danger zone during operation and must withstand normal working conditions.

Key Guard Design Requirements

• Complete Coverage: The guard must fully enclose or block access to the hazard area where the operation takes place.
• Strength and Rigidity: Guards must be strong enough to resist mechanical stress, vibration, and accidental impact without failure or displacement.
• Visibility: Guards should allow clear observation of the work area when necessary, using materials such as mesh or transparent panels.
• Secure Installation: Guards must be firmly attached so they cannot be easily removed, loosened, or bypassed during operation.
• Usability: The guard must allow normal machine operation, feeding, and maintenance without creating additional hazards.

Examples of Guard Types Meeting 1910.212(a)(3)(i)

• Fixed steel enclosures surrounding the cutting or forming area.
• Interlocked access doors that stop the machine when opened.
• Transparent polycarbonate guards providing visibility and protection.
• Barrier guards with restricted openings preventing hand or arm entry.

Common Compliance Errors

• Using lightweight or flexible materials that can deform and allow contact.
• Guards not secured tightly to the machine or easily removed without tools.
• Guard openings large enough to allow finger or hand access to the danger zone.
• Guards that obstruct visibility or require removal for normal operation.

Best Practices

• Design guards that exceed minimum strength requirements and resist bending or vibration.
• Test guard designs under real operating conditions to ensure reliability and protection.
• Use standardized opening-size tables to determine acceptable distances between guards and hazards based on reach limitations.
• Document guard inspection results and repair or replace any that show wear, damage, or looseness.
• Train operators and maintenance staff on safe use and adjustment procedures for all guarding systems.

Why OSHA 1910.212(a)(3)(i) Is Important

Many guarding failures occur not because guards are absent, but because they are poorly designed or improperly installed.
OSHA 1910.212(a)(3)(i) ensures that guarding methods perform their intended function—keeping the operator’s body completely outside the danger zone while allowing safe, productive operation.
Proper guard design is the first line of defense against amputations, lacerations, and entanglement injuries.

FAQ

OSHA 1910.212(a)(3)(ii) — Guard Requirements for Special Hand Tools

OSHA 29 CFR 1910.212(a)(3)(ii) addresses the limited use of special hand tools in machine operations where fixed guarding cannot be used effectively.
This provision allows tools such as tongs, holders, or push sticks to assist in feeding or removing materials from the point of operation.
However, these tools must be designed and used in a way that ensures the operator’s hands remain completely outside the danger zone at all times.

Purpose and Intent

This section acknowledges that some machine operations—particularly stamping, bending, or forming—require close access to the point of operation that cannot be guarded with a fixed barrier.
In these situations, OSHA allows specially designed tools that provide functional reach and control while maintaining operator safety.

Key Requirements

• Special hand tools may be used only when physical guards are impractical or interfere with machine function.
• Tools must be designed so the operator’s hands remain outside the danger zone during all stages of operation.
• Use of tools does not eliminate the requirement for other forms of safeguarding such as two-hand controls, interlocks, or presence-sensing devices.
• Tools must be maintained in good condition and replaced if damaged, worn, or unable to provide adequate reach and control.

Examples of Acceptable Hand Tools

• Holding tongs or pliers for feeding or removing parts from presses.
• Push sticks or push blocks for guiding materials through saws or shapers.
• Hook tools for retrieving small components or debris from guarded areas.
• Custom-designed fixtures that keep hands clear of the operating zone while positioning material.

Limitations and Restrictions

• Hand tools must not substitute for required guards when fixed or adjustable guards are feasible.
• Operators must never use bare hands to feed or remove materials from hazardous areas.
• Tools must be used as designed; makeshift extensions or altered devices are prohibited.
• Employers must ensure that workers are trained in the safe use, inspection, and replacement of these tools.

Common Violations

• Using standard pliers or hand-held items not intended for guarding purposes.
• Failing to provide special tools when physical guards are impractical.
• Allowing operators to use damaged or shortened tools that reduce reach and control.
• Assuming hand tools alone provide compliance when other safeguarding measures are required.

Best Practices

• Provide each operator with properly sized and designed hand tools for specific machines.
• Inspect and replace tools regularly to ensure safety and performance.
• Combine tool use with engineering controls such as two-hand trips or light curtains whenever possible.
• Establish written procedures and training programs outlining when and how special hand tools may be used.

Why OSHA 1910.212(a)(3)(ii) Is Important

This paragraph recognizes that total enclosure of some machine points of operation is not always feasible.
By regulating the use of special hand tools, OSHA provid

OSHA 1910.212(a)(3)(iii) — Guard Design for Operator Safety

OSHA 29 CFR 1910.212(a)(3)(iii) establishes the performance criteria for guard design and construction.
It requires that every machine guard be designed, built, and installed so that it effectively protects the operator from injury during machine operation.
This provision emphasizes that guard design must be functional, durable, and capable of providing full protection throughout the equipment’s use.

Purpose and Intent

The intent of 1910.212(a)(3)(iii) is to ensure that guarding effectiveness is not compromised by poor design or materials.
Even when a machine has guards, operators can still be injured if those guards fail under stress, vibration, or improper installation.
OSHA requires that guards maintain their protective function under all normal operating conditions.

Key Design Requirements

• Strength and Durability: Guards must resist impact, vibration, and deformation caused by routine use and environmental conditions.
• Secure Mounting: Guards must be firmly attached and cannot be easily removed, bypassed, or displaced during normal operation.
• Ergonomic Function: Guards should be designed to allow normal operation and maintenance without creating awkward or unsafe postures.
• Visibility: When feasible, guards should permit observation of the operation to ensure quality and alignment without removal.
• No New Hazards: Guard edges and surfaces must be smooth, free from sharp corners, and designed not to introduce new pinch points or catch hazards.

Acceptable Guarding Examples

• Fixed metal guards enclosing belts, pulleys, and gears.
• Transparent guards made of high-strength polycarbonate for visibility and impact resistance.
• Interlocked access doors that automatically shut off the machine when opened.
• Barrier guards preventing reach into moving parts while allowing visual monitoring.

Common Compliance Issues

• Guards that loosen or vibrate during machine operation, reducing protection.
• Materials that crack, warp, or deteriorate under heat or chemical exposure.
• Improperly designed openings that allow finger or hand access to moving parts.
• Guards that must be removed to complete normal adjustments or feeding.

Best Practices for Compliance

• Select guard materials suitable for the specific machine environment (e.g., metal for impact resistance, polycarbonate for visibility).
• Incorporate secure mounting brackets and fasteners that prevent accidental removal.
• Follow design guidelines for minimum safe distances between guard openings and hazard zones.
• Inspect and test guards periodically for wear, looseness, and stability under normal vibration and operation.
• Document guard designs, materials, and inspections as part of your facility’s machine safety program.

Why OSHA 1910.212(a)(3)(iii) Is Important

Even the best guarding concepts fail if the physical construction is inadequate.
OSHA 1910.212(a)(3)(iii) ensures that all guards are engineered for real-world performance, protecting operators and maintenance personnel from the severe hazards of rotating, cutting, or crushing machinery.
By emphasizing design integrity, this section reinforces the need for reliable, tested, and properly installed guarding systems that remain effective throughout the life of the equipment.

FAQ

OSHA 1910.212(a)(3)(iv) — Machines That Usually Require Point-of-Operation Guarding

OSHA 29 CFR 1910.212(a)(3)(iv) provides a representative list of machines that usually require point-of-operation guarding because their normal operation exposes employees to cutting, crushing, shearing, or amputation hazards at the point where work is performed on the material. This list helps employers quickly identify equipment where a guard or safeguarding device is typically necessary to prevent hand, finger, or body entry into danger zones.

Machines Typically Requiring Point-of-Operation Guards

• Guillotine cutters
• Shears
• Alligator shears
• Power presses
• Milling machines
• Power saws
• Jointers
• Portable power tools
• Forming rolls and calenders

These examples are drawn directly from OSHA’s regulatory text and are not exhaustive; any machine that exposes an employee to injury at the point of operation must be guarded. :contentReference[oaicite:0]{index=0}

What “Usually Requires” Means

The phrase “usually require” signals that, in typical use, these machines present recognized hazards at the point of operation. Employers must evaluate the actual setup and task. If exposure exists, the machine must have effective guarding or safeguarding devices that prevent entry into the danger zone during operation.

Guarding Outcomes to Achieve

• Physical separation: A fixed, adjustable, or interlocked guard prevents hand or finger access to the tool or die during the cycle.
• Maintained protection: Guarding remains secure and effective during vibration, normal wear, and routine adjustments.
• No new hazards: The guard’s construction does not introduce sharp edges, additional pinch points, or visibility issues that compromise safety.

Implementation Tips

• Perform a documented hazard assessment for each machine and task to confirm point-of-operation exposure.
• Use fixed guards where feasible; supplement with interlocks, two-hand controls, presence-sensing devices, or special hand tools only as appropriate.
• Verify guard opening sizes and safety distances so that fingers or hands cannot reach the hazard during operation.
• Inspect guards at startup and after any adjustment or maintenance; remove machines from service if guards are missing or ineffective.
• Train operators to recognize point-of-operation hazards and to never bypass or remove guarding.

FAQ

OSHA 1910.212(b) — Anchoring of Fixed Machinery

OSHA 29 CFR 1910.212(b) establishes the requirement that machines designed for fixed location use must be securely anchored to prevent walking, shifting, or tipping during operation.
This rule ensures that heavy machinery and equipment remain stable, reducing the risk of vibration-related hazards, misalignment, or sudden movement that could injure workers.

Why Anchoring Matters

Unanchored machines may shift due to vibration, torque, or accidental impact. This can lead to:

• Entanglement hazards from belts, pulleys, or shafts shifting out of guard alignment.
• Pinch points created when moving machinery drifts into work areas.
• Tip-over risks for tall or top-heavy equipment.
• Equipment damage caused by instability, leading to costly downtime.

Examples of Machines Requiring Anchoring

• Bench and pedestal grinders
• Drill presses and milling machines
• Industrial lathes
• Power presses and punch presses
• Floor-mounted saws or shears

Best Practices for Compliance

• Use bolts, lag screws, or anchor systems to secure equipment to floors, bases, or foundations.
• Verify anchoring integrity during routine inspections and after machine relocation.
• Install on a level, vibration-dampening surface to prevent loosening over time.
• Follow manufacturer’s anchoring recommendations for each machine type.
• Document anchoring checks as part of your machine guarding and safety audits.

Relation to Other OSHA Standards

OSHA 1910.212(b) works hand-in-hand with OSHA 1910.212(a) (general machine guarding)
and OSHA 1910.215 (abrasive wheel machinery). For example, pedestal grinders must be both guarded and anchored to fully comply with OSHA requirements.

Compliance Checklist

• Confirm machines designed for fixed use are bolted or otherwise secured to the floor or base.
• Inspect anchors for wear, looseness, or corrosion.
• Re-secure machines after relocation, vibration, or maintenance.
• Train employees not to operate machinery that is unstable or improperly anchored.

FAQ

OSHA 1910.213 — Woodworking Machinery Requirements (General Overview)

OSHA 29 CFR 1910.213 is the primary standard governing woodworking machinery safety in general industry.
It specifies requirements for the design, construction, operation, and guarding of woodworking equipment used in manufacturing, carpentry, furniture production, and maintenance shops.
The goal of this regulation is to reduce injuries caused by contact with cutting tools, in-running nip points, and flying wood chips while promoting safe machine design and use.

Scope and Application

This standard applies to all types of woodworking machinery used in fixed locations, including both new and existing equipment.
It covers hand-fed and power-fed saws, planers, jointers, sanders, lathes, and other machines used to cut, shape, or form wood and similar materials.
While primarily focused on stationary woodworking machines, it complements other standards such as 1910.212 (General Machine Guarding) and 1910.243 (Portable Powered Tools).

Key Objectives of OSHA 1910.213

• Ensure that all woodworking machines are designed and constructed to operate safely and resist mechanical failure.
• Require guards and safety devices that prevent operator contact with cutting edges, blades, or in-running nip points.
• Mandate proper automatic controls and emergency stops to halt machines during malfunction or maintenance.
• Standardize safety requirements for specific types of woodworking machines (e.g., saws, planers, jointers, sanders, lathes).
• Reduce the number of amputations, lacerations, and struck-by injuries in woodworking environments.

Major Sections of OSHA 1910.213

• 1910.213(a) – Machine Construction (General): Requires all woodworking machines to be built and maintained to prevent hazards, with secure guards, control systems, and proper design.
• 1910.213(b) – Hand-fed Crosscut Table Saws: Specifies guard and kickback prevention requirements for crosscut saws, including hood guards and spreaders.
• 1910.213(c) – Hand-fed Ripsaws: Outlines riving knife, anti-kickback device, and hood guard requirements for rip saws.
• 1910.213(d) – Circular Resaws: Requires enclosure of the upper blade portion and automatic feed mechanisms.
• 1910.213(e) – Band Saws: Requires fully enclosed wheels and adjustable blade guards above the workpiece.
• 1910.213(f) – Jointers: Requires automatic, self-closing cutter head guards on hand-fed jointers.
• 1910.213(g) – Planers and Moulders: Requires top and side guarding for cutting heads and feed rollers.
• 1910.213(h) – Lathes, Sanders, and Other Machines: Provides requirements for guarding rotating parts and sanding drums, including exhaust and dust collection provisions.

Core Safety Requirements

• Point-of-operation guarding: The area where wood is cut, shaped, or bored must be protected by a hood, shield, or automatic guard.
• Anti-kickback devices: Machines such as ripsaws and moulders must include pawls or spreaders to prevent material from being thrown back toward the operator.
• Automatic return and feed mechanisms: Reduce manual handling and operator exposure to cutting zones.
• Dust collection and ventilation: Machines must include exhaust systems to minimize inhalation of sawdust and airborne particulates.
• Emergency stops and disconnects: Accessible controls must be installed to stop machines quickly in case of danger.

Common Hazards Addressed by 1910.213

• Contact with saw blades or cutter heads
• Kickback and ejected materials
• In-running nip points and entanglement
• Flying wood chips and dust inhalation
• Unexpected startup or mechanical failure

Best Practices for Compliance

• Verify that all woodworking machines are equipped with manufacturer-approved guards and safety features.
• Retrofit older machines to meet current OSHA and ANSI O1.1 Woodworking Machinery Safety Requirements.
• Establish a lockout/tagout program for servicing and blade changes.
• Conduct daily pre-use inspections of guards, stops, and power transmission components.
• Train employees on hazard recognition, safe feeding techniques, and emergency response procedures.
• Maintain written records of machine maintenance, inspections, and operator training.

Why OSHA 1910.213 Is Important

Woodworking machines are among the most hazardous types of industrial equipment, accounting for a significant percentage of workplace amputations each year.
OSHA 1910.213 provides a comprehensive framework that ensures each machine—from table saws to planers—is designed, operated, and maintained with effective guards and safety devices.
Compliance with this standard not only prevents injuries but also improves production efficiency and equipment longevity by promoting proper operation and maintenance practices.

FAQ

OSHA 1910.213(i) — Bandsaws and Band Resaws (Guarding and Safety Requirements)

OSHA 29 CFR 1910.213(i) provides specific safety standards for the design, guarding, and operation of bandsaws and band resaws used in woodworking operations.
This section requires that all moving parts—including wheels, blades, and drive mechanisms—be completely enclosed and that exposed blade sections be guarded to the maximum extent possible.
The goal of this regulation is to prevent accidental blade contact, lacerations, entanglement, and kickback injuries during use.

Purpose and Intent

Bandsaws and resaws are among the most versatile and widely used woodworking machines, but their continuous blade motion and exposed cutting edges present significant hazards.
OSHA 1910.213(i) ensures that these machines are equipped with comprehensive guarding systems that minimize operator exposure while maintaining visibility and control of the workpiece.
The rule applies to both horizontal and vertical bandsaws used in wood cutting and shaping.

Key Requirements

• Wheel guards: Both upper and lower wheels must be fully enclosed with metal housings or equivalent guards strong enough to contain a blade in the event of breakage.
• Blade guards: The portion of the blade between the saw table and the upper wheel guard must be guarded except at the point of operation.
• Adjustable guard design: The upper guide and guard must be adjustable to cover the unused portion of the blade above the stock being cut.
• Drive mechanisms: Belts, pulleys, and gears driving the saw must be enclosed in compliance with OSHA 1910.219 (Mechanical Power-Transmission Apparatus).
• Blade maintenance: Blades must be properly tensioned, tracked, and kept sharp to reduce breakage and vibration hazards.

Specific Guarding Provisions

• The upper wheel must be enclosed by a metal cover or guard that completely surrounds the wheel except for the slot necessary for the blade.
• The lower wheel must be enclosed by a guard that covers the wheel and all blade return paths.
• Where stock is fed manually, the front and sides of the blade must be guarded to prevent accidental contact.
• All band resaws must include a feed roll or blade guard on the infeed side to prevent reach-in hazards.
• Any portion of the blade beneath the table must be enclosed or guarded by the machine frame or a fixed cover.

Common Hazards Controlled

• Blade contact: Operators’ hands or fingers coming into contact with the cutting edge during operation or cleaning.
• Blade breakage: Fragments or snapped blades striking the operator.
• Entanglement: Loose clothing, gloves, or jewelry caught in exposed moving parts.
• Kickback or pull-in: Improper feeding techniques causing stock to be drawn into the blade unexpectedly.
• Dust exposure: Wood dust generated by cutting can contribute to respiratory or fire hazards.

Design and Construction Recommendations

• Use steel or cast-aluminum wheel guards capable of withstanding blade failure forces.
• Equip bandsaws with automatic tension-release mechanisms to extend blade life and prevent overloading.
• Include adjustable blade guides (both upper and lower) to minimize blade deflection.
• Provide dust collection ports integrated into lower wheel housings for safe debris removal.
• Install emergency stop buttons within reach of the operator’s position.

Operation and Maintenance Practices

• Adjust the upper blade guard to cover the blade as close as possible to the top of the workpiece before cutting.
• Inspect blade tracking and tension before each shift or material change.
• Replace cracked, dull, or damaged blades immediately to avoid breakage during operation.
• Clean accumulated sawdust from guards, housings, and wheels regularly to prevent overheating or ignition.
• Train operators on proper hand positioning and feeding techniques to minimize exposure near the blade.

Best Practices for Compliance

• Ensure all wheel housings and drive guards are secured and closed before operating the saw.
• Maintain a machine-specific inspection checklist covering guard condition, blade tension, and alignment.
• Install foot brakes or electronic braking systems to stop the blade quickly after power shutdown.
• Incorporate lockout/tagout procedures for blade changes and maintenance per OSHA 1910.147.
• Post clear signage reminding operators to adjust the guard before each cut.

Why OSHA 1910.213(i) Is Important

OSHA 1910.213(i) provides a comprehensive framework for reducing serious injuries associated with bandsaws and resaws.
These machines present high-speed cutting and continuous blade hazards that demand reliable guarding and operational discipline.
By enforcing full enclosure of wheels, guards over exposed blades, and safe control access, this rule prevents lacerations, amputations, and struck-by incidents—among the most common injuries in woodworking.

Related Standards

• 1910.213(a)(9) — Guarding of belts, pulleys, gears, shafts, and moving parts.
• 1910.219 — Mechanical Power-Transmission Apparatus.
• ANSI O1.1 — Woodworking Machinery Safety Standard.
• NFPA 664 — Standard for the Prevention of Fires and Explosions in Wood Processing Facilities.

FAQ

OSHA 1910.215 — Abrasive Wheel Machinery: Guarding and Safety Requirements

OSHA 29 CFR 1910.215 establishes critical safety standards for abrasive wheel machinery—equipment such as bench grinders, pedestal grinders, surface grinders, and cutoff wheels.
This section is designed to protect operators from hazards associated with wheel breakage, contact injuries, and flying fragments by requiring appropriate wheel guards, tool rest spacing, ring testing, and maintenance practices.
Abrasive wheel machinery operates at extremely high speeds, and failure to meet these safety requirements can result in catastrophic injuries or fatalities.

Purpose and Intent

The intent of OSHA 1910.215 is to ensure that all abrasive wheel machines are equipped with properly designed guards and safety devices to contain fragments if a wheel breaks and to minimize the risk of operator contact with rotating parts.
This regulation also standardizes wheel mounting procedures, speed limits, and inspection routines to ensure that each wheel operates within its rated capabilities.

Key Requirements

• Wheel guards: All abrasive wheels must be enclosed by guards that cover the spindle end, nut, and flange projections to protect against wheel fragments.
• Tool rests: Tool rests must be adjusted closely to the wheel (no more than 1/8 inch away) to prevent workpieces from being pulled between the wheel and the rest.
• Work rests: Must be secure, adjustable, and maintained in good condition to support material during grinding.
• Flanges: Each wheel must be properly mounted with flanges of equal diameter and strength to distribute clamping force evenly.
• Ring testing: All vitrified wheels must undergo a “ring test” before mounting to detect cracks or defects.
• Speed control: Machines must not operate at speeds exceeding the maximum safe operating speed (MSOS) marked on the wheel.
• Guard openings: The guard’s exposure angle must not exceed limits based on wheel type and mounting (bench, floor stand, cylindrical, etc.).

Types of Abrasive Wheel Machinery Covered

• Bench and pedestal grinders: Must have upper wheel guards enclosing at least 75% of the wheel periphery.
• Surface grinders: Require guarding of the periphery and sides not used for grinding.
• Cylindrical and centerless grinders: Must have fixed and adjustable guards enclosing the wheel and regulating rollers.
• Portable grinders: Require wheel guards covering at least 180° of the wheel.
• Cutoff machines: Must include a fixed hood-type guard covering the wheel and spindle.

Common Hazards Controlled

• Wheel explosion: Containment of high-speed fragments from cracked or overspeed wheels.
• Contact injuries: Prevents accidental hand or body contact with rotating abrasive surfaces.
• Kickback: Reduces rebound of material due to poor work rest positioning or improper guarding.
• Flying debris: Contains sparks, dust, and fragments during grinding operations.
• Vibration and imbalance: Ensures safe wheel mounting and alignment to prevent shaft or bearing damage.

Guarding and Spacing Requirements

• Tool rests must be within 1/8 inch of the wheel surface.
• Adjustable tongue guards (spark deflectors) must be set no more than 1/4 inch from the wheel periphery.
• Bench and floor grinders must have wheel exposure limited to 90° or less of the periphery.
• All guards must be constructed of steel or equivalent material to contain wheel fragments at maximum operating speed.

Wheel Mounting and Inspection Procedures

• Perform a ring test on vitrified wheels before mounting to detect internal cracks.
• Ensure wheel flanges are of equal diameter, flat, and free from burrs or distortion.
• Use blotters (compressible paper washers) between the wheel and flange where specified by the manufacturer.
• Never force a wheel onto a spindle or use excessive pressure during mounting.
• Run the wheel at operating speed in a protected area for at least one minute before use to confirm stability.

Maintenance and Operation

• Inspect wheels and guards before each shift for cracks, wear, and secure attachment.
• Maintain speed governors and motor controls to prevent overspeeding.
• Clean guards and housings regularly to prevent buildup of grinding dust.
• Replace worn or damaged guards immediately—do not weld or patch wheel guards.
• Ensure work rests are properly adjusted after each wheel dressing or replacement.

Best Practices for Compliance

• Install clear signage showing wheel speed limits and mounting instructions near each machine.
• Train operators in safe grinding practices, including ring testing, guard adjustment, and PPE use.
• Provide eye and face protection such as safety glasses and face shields for all operators.
• Incorporate lockout/tagout procedures for wheel changes and maintenance (per OSHA 1910.147).
• Use ANSI B7.1-compliant abrasive wheels that meet manufacturing and performance standards.

Why OSHA 1910.215 Is Important

OSHA 1910.215 is one of the most critical standards in machine guarding because it addresses the hazards of high-speed rotating abrasive wheels.
Improperly guarded or mounted wheels can explode with tremendous force, causing severe lacerations, blindness, or death.
By enforcing uniform requirements for guards, tool rests, and inspection procedures, this regulation ensures that abrasive wheel machinery operates safely within its design limits, protecting both operators and nearby workers.

Related Standards

• OSHA 1910.212: General requirements for all machine guarding.
• ANSI B7.1: Safety requirements for the use, care, and protection of abrasive wheels.
• OSHA 1910.243(c): Portable powered tool safety standards.
• OSHA 1910.219: Mechanical power-transmission apparatus standards.

FAQ

OSHA 1926.304 — Woodworking Tools (Construction Industry)

OSHA 29 CFR 1926.304 establishes safety requirements for woodworking tools used in construction,
including portable saws, abrasive wheel machinery, routers, jointers, and other powered equipment.
The standard focuses on guarding, safe operating practices, and tool design to protect workers
from lacerations, amputations, kickbacks, and other common woodworking hazards.
Compliance with OSHA 1926.304 helps ensure safer job sites and aligns with the broader construction safety standards in 29 CFR Part 1926.

Key Requirements

• Portable Circular Saws: Must have a guard that covers the blade above and below the base plate. The lower guard must automatically and instantly return to cover the blade when not in use.
• Radial Saws: Equipped with upper hood guards, non-kickback devices, and automatic return to the starting position.
• Band Saws & Scroll Saws: Guard all portions of the blade except the working section; wheels must be fully enclosed.
• Jointers: Each hand-fed jointer must have a guard that automatically covers the section of the head not in use.
• Table Saws: Must include a hood guard above the blade and anti-kickback devices for ripping operations.
• Abrasive Wheels: Must meet the guarding and clearance requirements of OSHA 1910.215, adapted for construction use.

Why OSHA 1926.304 Matters

Woodworking tools are among the most hazardous pieces of equipment on construction sites.
Injuries often result from unguarded blades, poor maintenance, or unsafe operating practices.
OSHA 1926.304 requires that guards, hoods, anti-kickback devices, and proper adjustments
are in place before tools are operated.
This standard is critical for preventing serious hand and eye injuries, amputations, and fatalities.

Compliance Checklist

• Ensure saws and woodworking machines have required guards and hoods.
• Verify lower guards on portable saws automatically return to blade position.
• Confirm band saw blades and wheels are fully enclosed.
• Check that table saws are equipped with hood guards and anti-kickback devices.
• Inspect abrasive wheels for compliance with ANSI B7.1 and OSHA 1910.215.
• Train operators in safe tool use and adjustments before starting work.

Internal Linking Opportunities

• Cross-link to OSHA 1910.213 (Woodworking Machinery), which applies to general industry.
• Link to OSHA 1910.215 (Abrasive Wheels) for related grinder requirements.
• Connect to product pages for saw guards, eye protection, and push sticks.

FAQ

ANSI B11 — Machine Safety & Machine Tool Standards

The ANSI B11 standards series comprises a robust framework for machinery and machine tool safety. It addresses risk assessment, design, guarding, control systems, risk reduction measures, and installation and maintenance of machines. Although not regulatory law, B11 standards are widely referenced by industry and used to interpret OSHA’s machine guarding rules (e.g. 29 CFR 1910.212). :contentReference[oaicite:2]{index=2}

Structure of the B11 Family

The B11 family is organized into three types of standards:

• Type A (Basic Safety Standards): e.g. ANSI B11.0 defines general concepts, terminology, risk assessment, and safety principles. :contentReference[oaicite:3]{index=3}
• Type B (Generic Safety Standards): These address safeguarding methods, performance, or safety aspects used across machines (for example, B11.19—Performance Criteria for Safeguarding). :contentReference[oaicite:4]{index=4}
• Type C (Machine-Specific Standards): Focused on individual machines or categories (e.g. B11.1 for power presses, B11.9 for grinding machines, B11.10 for sawing machines). :contentReference[oaicite:5]{index=5}

Core Themes & Provisions

• Risk Assessment / Reduction: B11 emphasizes identifying hazards, assessing risk, selecting and validating protective measures, and verifying that risk is reduced to acceptable levels. :contentReference[oaicite:6]{index=6}
• Safeguarding Methods: Fixed guards, interlocked guards, presence sensors, two-hand controls, light curtains, etc., are all covered with performance criteria. :contentReference[oaicite:7]{index=7}
• Performance Criteria: Guards and safety devices must meet minimum response times, strength, durability, fail-safe behavior, and integration with control systems. :contentReference[oaicite:8]{index=8}
• Safety in Existing (“Legacy”) Equipment: B11 encourages adaptation of older machines via retrofitting or supplementary safeguarding where feasible. :contentReference[oaicite:9]{index=9}
• Design, Modification & Integration: Covers requirements for design, safe modifications, wiring, control logic, maintenance access, risk during changeover, and system integration. :contentReference[oaicite:10]{index=10}

Relation to OSHA & Enforcement Context

OSHA itself does not mandate ANSI B11 by law, but OSHA’s machine guarding standards allow referencing consensus standards like B11 for technical interpretation. For example, OSHA’s eTool on machine guarding lists ANSI B11 standards as guidance resources. :contentReference[oaicite:11]{index=11}
Many safety professionals use B11 standards to design compliant machine guards and safety systems that satisfy both OSHA rules and best practices.

Common Substandards in the Series

• ANSI B11.0 — Safety of Machinery (baseline, risk methodology) :contentReference[oaicite:12]{index=12}
• ANSI B11.19 — Performance Criteria for Safeguarding (applies across many machines) :contentReference[oaicite:13]{index=13}
• ANSI B11.1 / B11.2 / B11.3 — Press, hydraulic, brake machines :contentReference[oaicite:14]{index=14}
• ANSI B11.10 — Metal sawing machines :contentReference[oaicite:15]{index=15}
• ANSI B11.9 — Grinding machines (ties into OSHA 1910.215 & 1910.213) :contentReference[oaicite:16]{index=16}

Internal Linking & Application Ideas

• Link to child categories like ANSI B11.0, ANSI B11.19, ANSI B11.9 (Grinding), etc.
• Cross-link to your OSHA machine guarding pages, e.g. OSHA 1910.212 General Machine Guarding.
• Link to safety device and guarding product pages: light curtains, interlocked guards, protective covers, control systems.

FAQ

ANSI B11.0 — Safety of Machinery

The ANSI B11.0 standard (Safety of Machinery) is the foundational “Type A” standard of the B11 series of American National Standards for machine safety.
It is intended to apply broadly to power-driven machines (new, existing, modified or rebuilt) and to machinery systems, not portable tools held in the hand. :contentReference[oaicite:0]{index=0}
ANSI B11.0 provides the essential framework: definitions, lifecycle responsibilities, risk assessment methodology, acceptable risk criteria, and guidance for using Type-C standards in conjunction with this general standard. :contentReference[oaicite:1]{index=1}

Scope & Purpose

ANSI B11.0-2020 covers machines and machinery systems used for material processing, moving or treating when at least one component moves and is actuated, controlled and powered. :contentReference[oaicite:2]{index=2}
The standard’s purpose is to help suppliers, integrators, and users of machinery identify hazards, estimate and evaluate risks, and implement sufficient risk reduction to achieve an “acceptable risk” level. :contentReference[oaicite:3]{index=3}
It also clarifies responsibilities across the machine lifecycle (supplier, user, modifier) and addresses legacy equipment, prevention through design (PtD) and use of alternative methods for energy control. :contentReference[oaicite:4]{index=4}

Key Concepts & Requirements

• Terminology & Definitions: Establishes key machine-safety terms (e.g., machine, hazard zone, safeguarding, risk, risk reduction). :contentReference[oaicite:5]{index=5}
• Risk Assessment Methodology: Describes how to identify hazards, estimate risk severity and probability, evaluate risk, and decide on corrective safeguards. :contentReference[oaicite:6]{index=6}
• Risk Reduction Principles: Focuses on designing out hazards, applying engineered controls, administrative controls and PPE only when higher-level measures aren’t feasible. :contentReference[oaicite:7]{index=7}
• Lifecycle Approach: Applies to design, construction, installation, commissioning, operation, maintenance, modification and dismantling of machines. :contentReference[oaicite:8]{index=8}
• Use of Type-C Standards: ANSI B11.0 explains how to use machine-specific Type-C standards (e.g., B11.9 for grinding machines) together with this standard for full compliance. :contentReference[oaicite:9]{index=9}

Why It Matters

ANSI B11.0 sets the groundwork for safe machine design and use. Without a consistent foundational standard, machine-specific standards may lack coherence or completeness in hazard control.
By following B11.0, manufacturers and users can build robust safety programs, ensure they cover all phases of machine use (including legacy equipment), and demonstrate that hazard identification, risk assessment and risk reduction are performed systematically.
Because the standard is widely referenced by regulatory authorities and industry best practices, compliance strengthens both safety performance and regulatory defensibility.

Relationship to OSHA & Other Standards

Although ANSI B11.0 is a voluntary consensus standard and not a regulation, it is widely acknowledged as “recognized and generally accepted good engineering practice (RAGAGEP)”.
Regulatory bodies like the Occupational Safety and Health Administration (OSHA) reference the B11 series for technical guidance in areas like machine guarding (e.g., 29 CFR 1910.212) and risk assessment. :contentReference[oaicite:11]{index=11}
Furthermore, ANSI B11.0 aligns with the international standard ISO 12100 (Safety of Machinery — General Principles for Design — Risk Assessment and Risk Reduction) but adds U.S.-specific supplier/user responsibilities and lifecycle responsibilities. :contentReference[oaicite:13]{index=13}

FAQ

B11.26 — Functional Safety for Equipment: General Principles for the Design of Safety-Related Parts of Control Systems for Machinery

The B11.26 standard (ANSI B11.26-2018, reaffirmed and with newer editions issued) provides both the requirements and guidance for implementation of safety-related control functions (also referred to as “functional safety”) in machines. These control systems may involve electrical, electronic, pneumatic, hydraulic or mechanical components and are used as risk-reduction measures when identified hazards are mitigated through a safety function. :contentReference[oaicite:1]{index=1}

Scope & Purpose

B11.26 applies when a control system is used as part of a risk reduction measure — in other words, when the risk assessment has identified one or more safety functions required to reduce a hazard to an acceptable level. The standard outlines how these safety-related parts of control systems (SRP/CS) should be designed, structured and validated. It aligns with ISO 13849-1 and similar functional safety frameworks. :contentReference[oaicite:2]{index=2}

Key Concepts & Principles

• Safety Function: A function whose failure would increase the risk of harm. B11.26 requires identification and specification of safety functions. :contentReference[oaicite:3]{index=3}
• Control Reliability: The machine must remain safe even if a fault or failure occurs in the SRP/CS. B11.26 defines design strategies including redundancy, monitoring, diagnostics, and failure-tolerant architectures. :contentReference[oaicite:4]{index=4}
• Architecture & Performance Levels: Although B11.26 doesn’t prescribe a specific architecture, it references the use of ISO 13849-1 (and thus performance levels PL) as a technical basis for SRP/CS. :contentReference[oaicite:5]{index=5}
• Lifecyle Responsibilities: The standard clarifies responsibilities across suppliers, integrators/modifiers and users for safe design, installation, commissioning, operation, maintenance, modification and decommissioning of SRP/CS. :contentReference[oaicite:6]{index=6}
• Verification & Validation: After implementation, safety functions must be verified and validated so that they meet the specified performance requirements and maintain integrity over the machine lifecycle. :contentReference[oaicite:7]{index=7}

Why It Matters

In modern machinery, many hazards are controlled via safety-related control systems — for example, presence-sensing devices, safe speed monitoring, door interlocks, light-curtains, and machine motion control systems. Simply installing a guard is often insufficient for complex machines. \
B11.26 ensures that such control systems are designed correctly, with sufficient reliability and integrity, so that they work when needed and maintain protection during faults or unusual conditions. This translates to reduced risk of injury and better alignment with recognized good engineering practice.

Practical Implementation Tips

• Start your machine risk assessment and identify any required safety functions earlier in the lifecycle (design phase) and decide which will be fulfilled by SRP/CS.
• When implementing SRP/CS, reference ISO 13849-1 to determine required performance level (PL) based on risk estimation, then design your control architecture accordingly.
• Verify diagnostic coverage, response time, fault-detection mechanisms and avoid single-point failures in the SRP/CS.
• Document architecture, failure mode analysis, validation testing and periodic re-validation of the safety function’s performance.
• Ensure any modifications to the machine’s control system initiate a new risk assessment and re-validation of the safety functions as per B11.26’s lifecycle requirements.

FAQ

B11.TR3 — Risk Assessment & Risk Reduction: A Guide to Estimate, Evaluate and Reduce Risks Associated with Machine Tools

The B11.TR3 technical report (ANSI B11.TR3-2000 (R2015)) offers machine tool manufacturers, integrators and users a detailed approach to risk assessment and risk reduction, especially in contexts where machine-specific “type C” standards may not cover all hazards. :contentReference[oaicite:0]{index=0}
This document is informative rather than a normative “standard,” but it is widely referenced as good practice for machine safety.

Scope & Purpose

B11.TR3 is intended for use on new or modified machines and equipment designs and processes. The report guides users through the lifecycle of machine tools—design, installation, operation, maintenance, modification and dismantling—with a focus on tasks and hazards. :contentReference[oaicite:1]{index=1}

Key Methodology Components

• Task-based hazard identification: Identify tasks performed on or by the machine (operation, setup, maintenance, cleaning, modification), then identify hazards and hazardous situations associated with those tasks. :contentReference[oaicite:2]{index=2}
• Risk estimation and evaluation: Estimate the severity of potential harm, exposure frequency, probability of avoidance, and evaluate the risk level to determine if risk is acceptable or if risk reduction is required. :contentReference[oaicite:3]{index=3}
• Risk reduction hierarchy and implementation: After identifying unacceptable risks, apply measures in a prioritized sequence — eliminate hazard, apply inherently safe design, provide safeguarding or protective devices, implement information for use and training. Then verify that the residual risk is tolerable. :contentReference[oaicite:4]{index=4}
• Documentation and verification: Maintain records of the risk assessment process, risk reduction measures taken, verification of effectiveness, and re-evaluation when machines are modified. :contentReference[oaicite:5]{index=5}
• Shared responsibilities: Clarifies that machine tool suppliers, integrators/modifiers and users each have obligations — for hazard information, safe design, risk reduction, commissioning, training, maintenance, and modification. :contentReference[oaicite:6]{index=6}

Why It Matters

Many machine tool hazards—such as entanglement, ejection of workpieces, unexpected motion, energy release—are not fully addressed by generic machine guarding rules alone. B11.TR3 provides a structured way to address those hazards by focusing on tasks, hazards and risk reduction rather than relying only on specifications. According to studies, using this guideline improved machine safety understanding and helped reduce exposure in pilot studies. :contentReference[oaicite:7]{index=7}

Practical Implementation Tips

• Begin with a lifecycle review of the machine tool: design, install, operate, maintain, modify, decommission—and identify all relevant tasks in each phase.
• For each task, list the hazard(s), estimate risk (severity × exposure × avoidance probability), compare to tolerability criteria and decide whether risk is acceptable or needs reduction.
• Apply the hierarchy of risk reduction: eliminate hazard where possible, implement inherently safe design, apply guarding/interlocks, then administrative controls/training. Verify with measurement or testing where feasible.
• Document the assessment: task list, hazard list, risk estimates, risk reduction actions, verification results, residual risk statement. Re-assess after any modification or installation change.
• Ensure communication across roles: suppliers provide hazard information, integrators verify safe installation, users maintain safe operation/maintenance and monitor modifications. Training must reflect changes and residual risk knowledge.

ISO 13849-1 — Safety of Machinery: Safety-Related Parts of Control Systems – General Principles for Design

The ISO 13849-1:2015 standard establishes safety requirements and guidance on the design and integration of safety-related parts of control systems (SRP/CS) in machinery — regardless of whether the technology is electrical, hydraulic, pneumatic, mechanical, or a combination thereof. :contentReference[oaicite:0]{index=0}

Scope & Purpose

ISO 13849-1 applies to SRP/CS for high-demand or continuous mode of operation of machinery. It does not itself specify which safety functions must be implemented for particular machines, but rather gives the principles to determine required performance and to design the control system accordingly. :contentReference[oaicite:1]{index=1}

Key Concepts & Requirements

• Safety functions & SRP/CS: A safety-related control function is one whose failure could lead to a hazardous situation. The SRP/CS covers the parts of the control system that contribute to that safety function. :contentReference[oaicite:2]{index=2}
• Performance Level (PL): The standard uses performance levels (PL a through PL e) to express the reliability of a safety function (higher PL = lower probability of dangerous failure). :contentReference[oaicite:3]{index=3}
• Architecture Categories: Based on earlier EN 954-1 categories, ISO 13849-1 defines architecture categories (B, 1, 2, 3, 4) which influence achievable PLs depending on diagnostics, redundancy, and fault tolerance. :contentReference[oaicite:4]{index=4}
• Reliability metrics: The standard addresses mean time to dangerous failure (MTTF_D), diagnostic coverage (DC_avg) and common-cause failure (CCF) factors as part of determining PL. :contentReference[oaicite:5]{index=5}
• Control system design & software: The standard includes guidance for safety-related software and programmable electronic systems as part of the SRP/CS. :contentReference[oaicite:6]{index=6}

Why It Matters

Machinery control systems often integrate multiple technologies and modes of operation. When a machine’s guarding, interlocks or control functions rely on electronic logic or software to reduce risk, ISO 13849-1 gives a recognized engineering framework to ensure that the control part is reliable enough for its role. This helps manufacturers, integrators and users demonstrate that control systems meet generally accepted good engineering practice (RAGAGEP) in functional safety. :contentReference[oaicite:7]{index=7}

Practical Implementation Tips

• Start with a full risk assessment (per ISO 12100) to identify hazards, determine required safety functions and decide the required PL (PL_r) for each function.
• For each safety function, select an appropriate architecture category, check component reliability (MTTF_D), diagnostics (DC_avg) and design for protection against common-cause failures (CCF).
• Document the safety-function specification, the architecture block diagrams, verification of diagnostics and validation testing of the SRP/CS. Treat programmable systems (software/firmware) according to the standard’s guidance for SRP/CS design. :contentReference[oaicite:9]{index=9}
• When modifying or retrofitting a machine’s control system, review whether the existing SRP/CS still meets the PL_r and properly re-assess, re-validate and document the changes.

ISO 13849-2 — Safety of Machinery: Validation of Safety-Related Parts of Control Systems

The ISO 13849-2:2012 (E) standard specifies the procedures and conditions to be followed for the validation (by analysis and testing) of the specified safety functions, the category achieved, and the performance level achieved by the safety-related parts of a control system (SRP/CS) designed in accordance with ISO 13849‑1. :contentReference[oaicite:1]{index=1}

Scope & Purpose

ISO 13849-2 applies when you have designed safety-related parts of control systems per ISO 13849-1 and now need to validate that the system actually meets the required performance level (PL) and categorical architecture (B, 1, 2, 3, 4) under actual or simulated conditions. :contentReference[oaicite:2]{index=2}
The goal is to demonstrate, via analysis and/or testing, that the implemented SRP/CS fulfils its safety functions under foreseeable conditions, as specified in the design rationale. :contentReference[oaicite:3]{index=3}

Key Validation Principles

• Validation Plan: A documented plan must outline what will be validated, under what conditions, what analysis and tests will be conducted, referencing design specifications and required PL/category. :contentReference[oaicite:4]{index=4}
• Analysis & Testing: Validation typically involves both analytical methods (e.g., failure-mode analysis, fault simulation) and testing of the SRP/CS under fault and normal conditions to verify correct performance. :contentReference[oaicite:5]{index=5}
• Independence: The standard specifies that validation should be performed by someone independent of the design of the SRP/CS (or at least at a sufficient level of independence) to avoid bias. :contentReference[oaicite:6]{index=6}
• Documentation & Records: The validation process must be documented—showing that the SRP/CS meets the design criteria, category considerations, PL achieved, and that residual risk has been evaluated. :contentReference[oaicite:7]{index=7}
• Residual Risk & Lifecycle Consideration: Validation isn’t only about control logic correctness but also ensuring the safety function works under actual operating conditions, over its lifecycle, and that residual risk is tolerable. :contentReference[oaicite:8]{index=8}

Why It Matters

Control systems increasingly rely on electronic, software-based, programmable logic controllers (PLCs) and complex architectures. Designing per ISO 13849-1 alone doesn’t guarantee the machine’s SRP/CS will perform as intended in real-world conditions. ISO 13849-2 closes that gap by requiring validation. Without validation, uncontrolled or untested changes can leave hidden faults, leading to increased risk of failure. :contentReference[oaicite:9]{index=9}

Practical Implementation Tips

• Start by gathering all documentation from the design phase: safety-function specification, block diagrams, category selection, PLr calculation, diagnostics logic. Use this as the basis of the validation plan. :contentReference[oaicite:10]{index=10}
• Define the test matrix: include normal operation, fault injection (hardware/software failure), environmental stresses, cycle-variations, power interruptions, common-cause failure conditions. :contentReference[oaicite:11]{index=11}
• Ensure the test environment reflects likely operating conditions: machines at production loads, relevant tooling, environment parameters, and realistic human-machine interactions. :contentReference[oaicite:12]{index=12}
• Maintain independence: either have a separate validation team or third-party review to avoid designer bias in acceptance of results. :contentReference[oaicite:13]{index=13}
• Record results clearly: document actual PL/architecture achieved, any deviations, residual risk justifications, changes required, and sign-off by responsible parties. Maintain these records as part of machine safety documentation. :contentReference[oaicite:14]{index=14}
• Implement periodic re-validation or after modifications: if SRP/CS is altered, tooling changed, software updated, or machine mode modified, the validation should be repeated to ensure compliance remains valid. :contentReference[oaicite:15]{index=15}

R15.06 — Safety Requirements for Industrial Robots & Robot Systems

The ANSI/RIA R15.06-2012 standard (Industrial Robots & Robot Systems – Safety Requirements) establishes consensus requirements for the design, manufacture, installation, integration, use and servicing of industrial robot systems in order to enhance safety for personnel associated with those systems. :contentReference[oaicite:0]{index=0}

Scope & Purpose

R15.06 applies to robot systems where a robot is defined as “an automatically controlled, reprogrammable multipurpose manipulator, programmable in three or more axes, which can be either fixed in place or mobile for use in industrial automation applications.” :contentReference[oaicite:1]{index=1}
It covers both Part 1 (robot manufacture/remanufacture/rebuild) and Part 2 (system integration/installation) of the standard. :contentReference[oaicite:2]{index=2}

Key Safety Topics Addressed

• Risk assessment: The standard mandates performing a risk assessment as part of design and integration of robot systems. :contentReference[oaicite:3]{index=3}
• Safeguarding & protective measures: Requirements for guarding, control systems, safe access, speed and space limiting (including “safety-related soft limits”). :contentReference[oaicite:4]{index=4}
• Integration of robot systems: Specifies safe integration of robot, end-effector, workpiece and related equipment (robot system) including installation, commissioning, mode-selection, interface with other machines. :contentReference[oaicite:5]{index=5}
• Life-cycle responsibilities: Clarifies obligations of manufacturers, integrators, users, maintainers for safe use, modification, maintenance, rebuild and retirement of robot systems. :contentReference[oaicite:6]{index=6}
• Information for use & documentation: Robot manufacturers must provide documentation, training, maintenance instructions, hazard identification information and system integrators must verify safe operation in the user’s environment. :contentReference[oaicite:7]{index=7}

Why It Matters

Industrial robot systems are widely used across manufacturing sectors and involve hazards such as impact/collision with moving robot arms, crushing/trapping between robot and equipment, ejection of parts, unintended motion, and hazards during maintenance or modification.
By applying R15.06, organizations adopt recognized engineering practices for robot safety, reduce risk of injury or fatality, and support compliance with regulatory expectations (e.g., Occupational Safety and Health Administration (OSHA) acknowledges R15.06 in its guidance). :contentReference[oaicite:9]{index=9}

Practical Implementation Tips

• Include robot-system risk assessment early (design phase), identifying hazards including robot motion, end-effector interaction, human access, system malfunction and unexpected modes.
• When integrating robot systems, ensure guarding (physical or via safe-limits), interlocks, emergency stop, safe mode selection (automatic, manual, maintenance) and verification of control functions.
• Document modifications or rebuilds as if new installations: re-validate risk assessment, safeguards and system performance per R15.06 requirements. :contentReference[oaicite:10]{index=10}
• Provide training for operators, integrators and maintenance personnel covering system hazards, control logic, safe access, and emergency procedures.
• Perform commissioning/site-acceptance testing, and periodic verification of system safety functions and conditions of use. :contentReference[oaicite:11]{index=11}
