Toolroom mill guards for Bridgeport-style mills, including Flexbar flexible shields, interlocked guards and chip and coolant shields.
Showing all 4 products
Bridgeport-style toolroom mills are often run by hand: the operator stands at the table, turns the handwheels and works close to the spindle while setting tools and measuring parts. A guard has to keep the cutter covered and chips and coolant contained, yet clear the vise, handwheels and table travel, and move out of the way quickly for setups. Chips also leave the back and sides of the table, toward people working near the machine.
OSHA 1910.212(a)(1) requires guarding against rotating parts and flying chips, and 1910.212(a)(3)(iv)(e) lists milling machines among machines that usually require point of operation guarding. Use the risk assessment process in ANSI B11.0 to decide where a shield is enough and where an interlocked guard is needed. When a toolroom mill runs automatic programs under numerical control, ANSI B11.23 is the related machine standard. For drawbar guarding and anti-restart mill guards, see vertical milling machines.

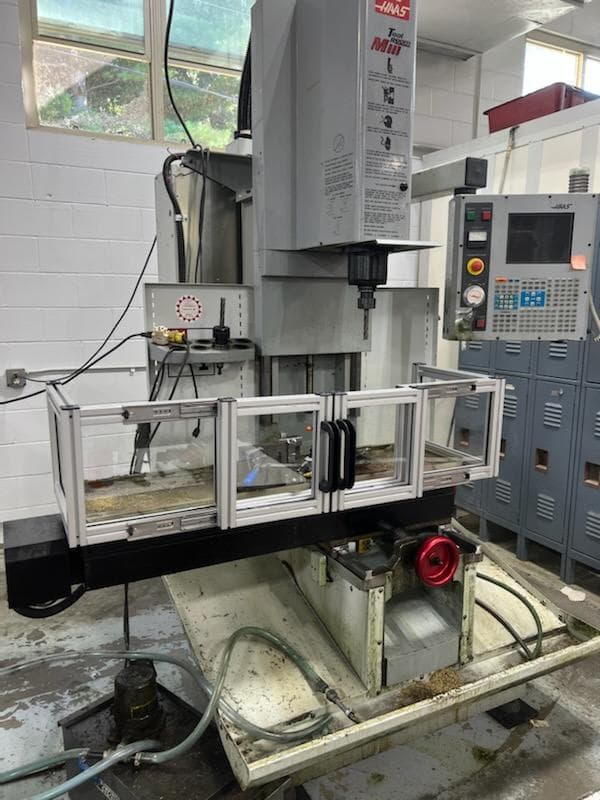

The Flexbar Visorguard is a flexible 16 x 8 in. shield placed between the cutting tool and the operator's eyes. The Odiz Bridgeport toolroom mill guard is custom built to your mill table with clear polycarbonate shields, and it can add interlock switches or be built as a safety enclosure.
It uses a magnetic breakaway design with dual handles, so it can be placed at the back corners of the table, lifted off for setups and put back in position. It is designed to contain the splash, overspray and flying chips that leave the rear of the mill.
Yes. The Odiz Bridgeport toolroom mill guard is available with an optional low-voltage interlock system, so opening the guard can be tied into the mill's controls. A risk assessment to ANSI B11.0 shows whether a task such as frequent tool changes calls for an interlock or whether a fixed shield is enough.
