Guarding for conveyors, palletizers, robot cells and laser marking machines, including barrier guards, belt guards and body bars.
Showing all 6 products
Conveyors, palletizers, robot cells and laser markers do not cut chips, but they often run automatically, cover large areas and can be reached from many sides. Their hazards shift from a single point of operation to nip points where belts meet pulleys and rollers, crush and impact zones around turntables, carriages and robot arms, and non-mechanical hazards such as laser radiation and marking fumes. Guarding this equipment is mostly about access: fixed panels where no one needs to reach, interlocked gates where people must enter, and stop devices within reach of anyone near the motion.

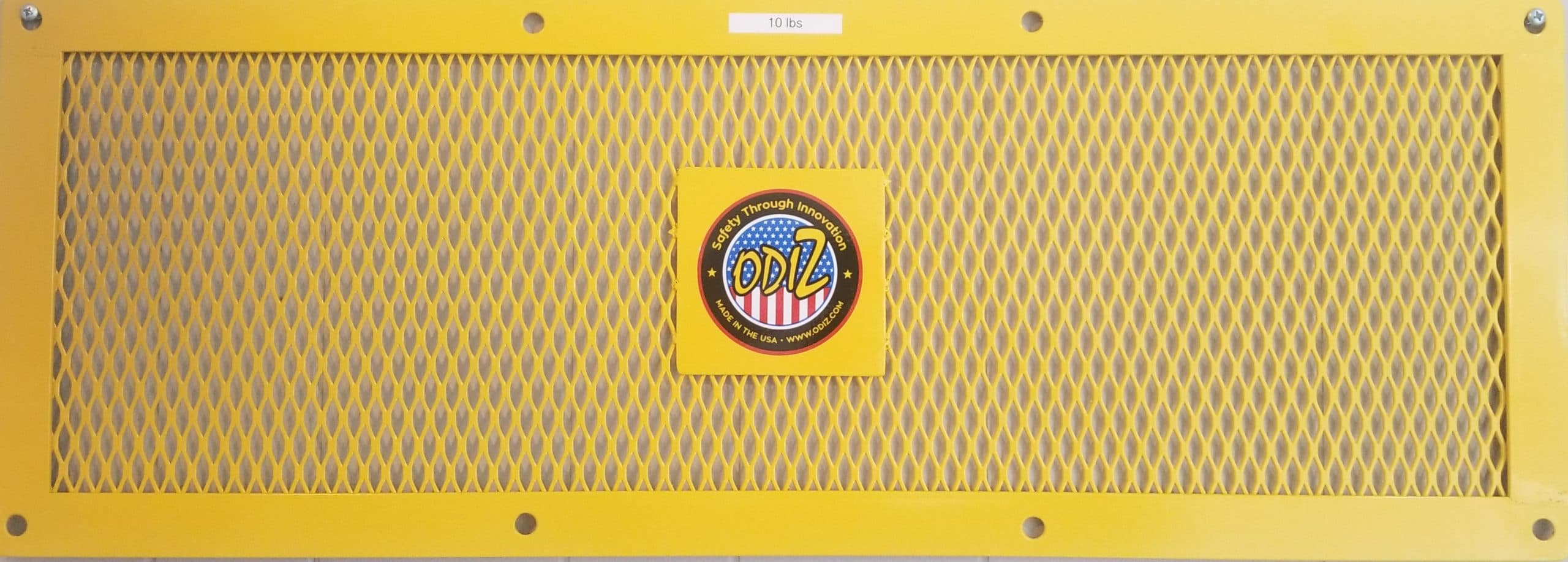

Conveyor guarding covers drives and openings along the line. Flat conveyor guards work on conveyors or as general machine guards; their mounting holes are on 1 foot increments, so panels bolt together to match the run.

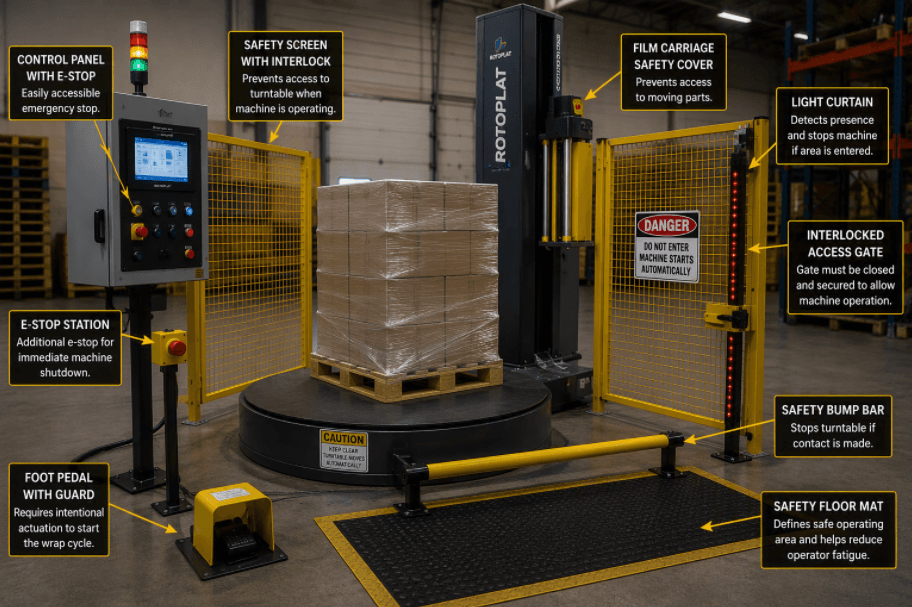

For palletizers, the pallet wrapper safety guarding and interlock system surrounds the wrapper with tall welded-wire fencing and optional safety-interlocked gates, and the pressure-sensitive push body bar works as both a barrier guard and an emergency stop.
Robot cell guarding keeps people out of the robot’s working area. Odiz custom barrier guards are built to your machines and floor layout, with custom heights, widths and screen patterns, swing or sliding doors with optional interlocks, and sections a fork truck can remove for maintenance. As a distributor of AGS barrier guard solutions, Odiz can combine standard and custom components.
For laser marking machines, the custom laser marker machine service covers the machine design and its FDA laser product requirements, and guides your EHS team on the OSHA requirements. Fume capture is under laser fume extraction.
OSHA 1910.212(a)(1) requires one or more methods of guarding to protect operators and other employees in the machine area, and names barrier guards, two-hand tripping devices and electronic safety devices as examples. 1910.212(a)(2) requires guards to be affixed to the machine where possible, or secured elsewhere, without creating a hazard of their own. 1910.212(a)(3)(i) defines the point of operation as the area where work is performed on the material, 1910.212(a)(3)(ii) requires it to be guarded, and 1910.212(a)(3)(iii) allows special hand tools only as a supplement to that guarding. ANSI B11.0 provides the risk assessment method for single machines and machinery systems, and the B11 series adds machine-specific standards.
Yes. Odiz custom barrier guards are designed to be removable by fork truck for maintenance access, and they can include swing or sliding doors with optional interlocks for routine entry. Installation options include self-leveling poles and two-screw installation brackets, and assembly drawings come with the design.
Yes. Odiz flat guards have mounting holes on 1 foot increments, so panels bolt together to cover a longer run or an irregular layout. They also work as general machine guards, and custom sizes can be requested through the Odiz design assistant or by contacting Odiz directly.
A body bar is an emergency trip device mounted along a hazard zone. When an operator's body presses against the bar, it trips the machine's stop circuit. The Odiz push body bar serves as both a barrier guard and an E-stop on palletizers and other machines.
No. OSHA 1910.212(a)(3)(iii) allows special hand tools for placing and removing material so the operator's hand stays out of the danger zone, but they can only supplement the guarding the standard requires, never replace it.
