Bandsaw guards for vertical and horizontal metal-cutting band saws: adjustable blade guards that cover the blade down to the work, interlocked horizontal bandsaw guards, polycarbonate shields and anti-restart controls.
Showing all 5 products
A band saw blade should be exposed only where it cuts, so a bandsaw guard has two jobs: enclose the blade and wheels everywhere else, and cover the cutting zone as closely as the work allows. On woodworking band saws, OSHA 29 CFR 1910.213(i) requires the blade to be enclosed except for the working portion between the bottom of the guide rolls and the table, with the wheels fully encased. Metal-cutting band saws fall under OSHA 29 CFR 1910.212, and ANSI B11.10 covers metal sawing machines.

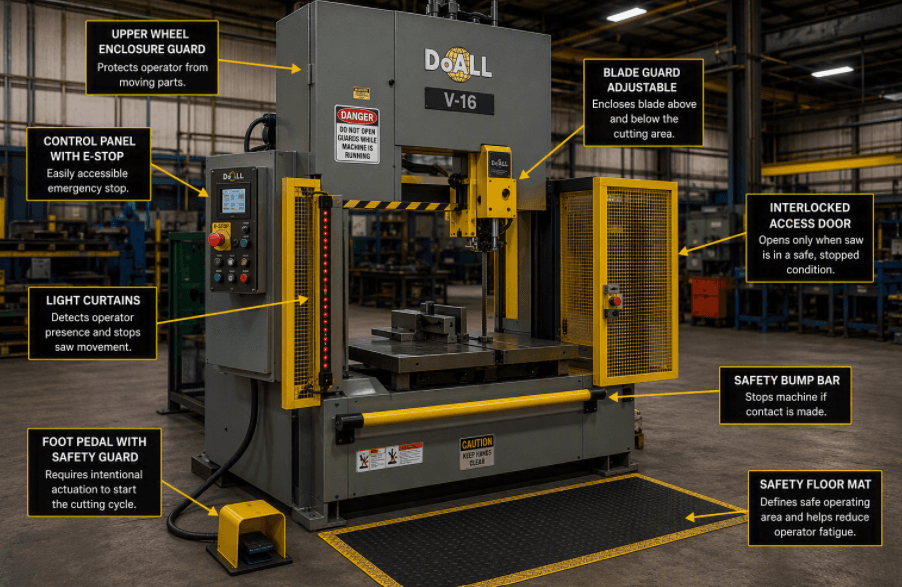

On a vertical band saw, the operator feeds work toward the blade by hand, so the guard must cover the blade from the upper guide down to the top of the workpiece. The vertical bandsaw guard for saws with 15-inch and larger wheels adjusts to minimize exposed blade and keeps the cut line visible through a clear Lexan panel. Browse all vertical band saw guards.
On a horizontal band saw, the hazards are the blade at the cutting zone, the descending saw head and the vise. The interlocked adjustable horizontal bandsaw guards adjust in and out to close the gap to the saw, swing outward for loading and can be interlocked with start, stop and E-stop controls. Browse horizontal band saw guards.
Clear polycarbonate Lexan shields and magnetic Lexan shields stop chips and blade fragments, and No GoT power loss drop-out keeps the saw from restarting after a power interruption. To find every saw hazard in your shop, book a machine guarding risk assessment.
For woodworking band saws, 29 CFR 1910.213(i) requires the blade to be enclosed except for the working portion between the guide rolls and the table, and the wheels to be fully encased. Metal-cutting band saws fall under the general machine guarding rule, 29 CFR 1910.212, and ANSI B11.10 covers metal sawing machines.
Set the upper guide and its guard as close to the top of the workpiece as the cut allows, so only the blade needed for the cut is exposed.
Yes. Guard the blade outside the cut, the wheels and the drive, and protect against the descending head and the vise. Interlocked guards stop the saw if someone opens them during a cut.
