OSHA 1910.212 — General Requirements for All Machines

OSHA 29 CFR 1910.212 is the core machine guarding standard that applies to nearly all machinery in general industry.
It requires employers to provide guards and protective devices to shield workers from points of operation, rotating parts, in-running nip points, flying chips, sparks, and other hazards.
As a “catch-all” standard, OSHA 1910.212 is often cited when no specific machine regulation exists, making it one of the most frequently enforced provisions in Subpart O.

Key Guarding Requirements

• Point of Operation: Machines must be guarded so operators are not exposed to the point where the work is performed.
• Rotating & Moving Parts: Guards must cover exposed belts, pulleys, gears, shafts, and flywheels to prevent accidental contact.
• In-Running Nip Points: Hazards created where two parts rotate toward each other or where one part moves past a stationary object must be guarded.
• Flying Chips & Sparks: Guards or shields must contain debris, sparks, and fragments generated during machine operation.
• Anchoring: Machines designed for fixed location use must be securely anchored to prevent movement or tipping.

Examples of Machines Covered

Because OSHA 1910.212 is a broad standard, it applies to a wide range of equipment including drill presses, lathes, milling machines, conveyors, punch presses, saws, and grinders.
If a machine has moving parts that could injure a worker, 1910.212 requires guarding.

Common Violations

• Missing point-of-operation guards on presses or saws.
• Exposed belts, pulleys, or rotating shafts without guarding.
• Improperly adjusted or removed guards during production.
• Lack of anchoring on floor-mounted equipment.
• Failure to contain sparks or flying material in grinding, cutting, or drilling operations.

Why OSHA 1910.212 Matters

Machine guarding violations are consistently among OSHA’s top cited standards.
Without proper guards, workers face severe risks of crushed fingers, amputations, lacerations, and eye injuries.
Compliance with OSHA 1910.212 helps facilities protect employees, avoid costly citations, and establish safer production environments.

Relation to Other Standards

OSHA 1910.212 is a general requirement that works in tandem with OSHA 1910.215 (Abrasive Wheel Machinery)
and machine-specific rules under Subpart O. It also aligns with ANSI B11 machine safety standards,
which provide technical safeguarding criteria.

Compliance Checklist

• Install guards at the point of operation on all applicable machines.
• Cover all rotating parts, belts, pulleys, gears, and shafts.
• Guard in-running nip points created by rollers, belts, or chains.
• Provide shields for flying chips, sparks, or debris.
• Anchor floor-mounted machines to prevent shifting.
• Train employees to use machines only with guards in place.

Internal Linking Opportunities

• Cross-link to Lockout/Tagout (OSHA 1910.147) for energy control.
• Link to Abrasive Wheel Machinery (OSHA 1910.215) for grinder rules.
• Connect to ANSI B11 for machine safeguarding performance standards.
• Promote relevant machine guarding products, light curtains, and safety devices.

FAQ

OSHA 1910.212(a) — General Machine Guarding Requirements

OSHA 29 CFR 1910.212(a) defines the core safety principles for machine guarding in general industry.
It requires employers to protect workers from mechanical hazards created by points of operation, rotating components, in-running nip points, and flying chips or sparks.
This paragraph serves as the primary enforcement reference for machinery that does not have its own specific OSHA standard.

Scope and Purpose

The goal of 1910.212(a) is to prevent contact injuries, entanglement, crushing, and amputation by ensuring all hazardous machine motions are either guarded or controlled.
It applies to virtually all machinery used in manufacturing, maintenance, fabrication, and processing operations.

Key Guarding Principles

• Comprehensive Protection: Guards must cover any moving part or area that could cause injury through contact or ejection of material.
• Design Flexibility: Employers may choose fixed, adjustable, or interlocked guards, provided they effectively prevent worker exposure.
• Performance Standard: The rule is performance-based rather than prescriptive—meaning the employer must demonstrate that the guarding method eliminates or controls the hazard.
• Continuity of Protection: Guards must remain in place and secure during operation and be adjusted only when the machine is off and locked out.
• Applicability: This paragraph acts as a “catch-all” requirement whenever a machine presents a hazard not addressed by another OSHA provision.

Examples of Covered Hazards

Machines governed by 1910.212(a) include drill presses, milling machines, conveyors, polishing lathes, grinders, and mechanical cutters.
Hazards may include rotating shafts, reciprocating arms, cutting surfaces, or points where material is inserted or removed.

Compliance Practices

• Install guards that physically prevent access to moving parts.
• Inspect guards routinely for secure attachment and effectiveness.
• Ensure that guard openings prevent any part of the body from reaching the danger zone.
• Prohibit operation when guards are missing or removed.
• Train employees on safe operation, inspection, and maintenance of guarded machines.

Why OSHA 1910.212(a) Is Important

Most serious machinery accidents occur because guards are missing, removed, or inadequate.
Section (a) establishes the baseline requirements that form the foundation of all machine safeguarding programs.
Compliance not only prevents injuries and amputations but also ensures alignment with national consensus standards such as ANSI B11 and ISO 12100.

FAQ

OSHA 1910.212(a)(1) — General Duty to Guard Machines

OSHA 29 CFR 1910.212(a)(1) establishes the primary obligation to guard machinery in general industry.
It requires employers to implement one or more methods of guarding that protect both the operator and nearby employees from hazards created by points of operation, rotating parts, flying chips, sparks, or any other dangerous mechanical motions.

Scope and Intent

This paragraph serves as the foundation of all machine guarding enforcement.
It mandates that every machine presenting a mechanical hazard must be safeguarded through a combination of physical barriers or engineered safety devices.
The employer may choose the guarding method, but it must completely prevent employee exposure to the moving part or hazard zone during normal operation.

Acceptable Guarding Methods

• Fixed guards: Rigid barriers that prevent access to hazardous areas.
• Interlocked guards: Guards that automatically shut off or disengage the machine when opened or removed.
• Adjustable guards: Barriers that can be positioned for different operations but remain securely in place during use.
• Self-adjusting guards: Guards that move automatically into position as the operator works, covering the danger area as material is fed.
• Electronic safeguarding devices: Light curtains, pressure-sensitive mats, and presence sensors that prevent access to moving parts.

Key Compliance Requirements

• Guarding must protect both operators and nearby personnel.
• Guards must be securely attached and durable enough to resist normal operation and vibration.
• Openings in guards must be small enough to prevent accidental contact with moving parts.
• Guards must not introduce new hazards such as sharp edges, pinch points, or visibility obstruction.
• All guards must be kept in place and functional when machines are operating.

Common Violations

• Machines operating without guards over exposed belts, pulleys, gears, or shafts.
• Removed or bypassed barrier guards during production or maintenance.
• Improper guard materials or openings that allow hand or finger access to moving parts.
• Lack of guarding for nearby employees who may be struck by flying material or sparks.

Practical Compliance Tips

• Conduct a full hazard assessment for all equipment to identify points of operation and motion hazards.
• Install fixed guards wherever possible; use interlocked or adjustable guards only when process requirements demand it.
• Include guarding checks in your preventive maintenance program.
• Train operators to recognize unsafe conditions and never remove or modify guards.

Why OSHA 1910.212(a)(1) Is Important

This paragraph represents OSHA’s general duty clause for machinery safety.
Most machine-related injuries occur when guards are removed or missing, and OSHA 1910.212(a)(1) gives inspectors the authority to cite any unguarded moving part that poses a risk.
Compliance ensures that workers remain protected from crushing, entanglement, amputation, and impact injuries.

FAQ

OSHA 1910.212(a)(2) — General Requirements for Machine Guards

OSHA 29 CFR 1910.212(a)(2) establishes the design and construction standards for machine guards.
This provision requires that guards be securely fastened to the machine and designed to protect operators and nearby employees from injury caused by moving parts, flying debris, or accidental contact.
The intent is to ensure that guarding not only provides protection but also does not create new hazards in the process.

Key Guard Design Requirements

• Secure Attachment: Guards must be firmly attached to the machine. If fastening directly to the machine is not possible, guards must be securely mounted elsewhere to provide equal protection.
• Structural Integrity: Guards must be made of materials strong enough to resist impact, vibration, and normal wear during operation.
• No New Hazards: Guards must not introduce additional risks such as pinch points, sharp edges, or visibility obstruction.
• Durability: Guard materials must withstand operational stresses and environmental factors like heat, coolant, or debris.
• Accessibility: Guards should allow safe maintenance, lubrication, and adjustments without requiring complete removal when possible.

Performance Intent

The focus of 1910.212(a)(2) is performance-based guarding design.
OSHA does not prescribe specific guard materials or thicknesses; instead, the guard must perform effectively under real-world conditions.
Employers have the flexibility to design guards suited to their machines—as long as the guarding prevents contact and remains in place during operation.

Examples of Guard Types Covered

• Fixed guards enclosing belts, pulleys, gears, and rotating shafts.
• Interlocked guards that shut off power when opened or removed.
• Adjustable guards for variable-sized stock or cutting operations.
• Self-adjusting guards that move automatically with the workpiece.

Best Practices for Compliance

• Inspect guards regularly for looseness, cracks, or corrosion.
• Use guard materials that match the operational environment (e.g., metal for high-impact areas, polycarbonate for visibility).
• Train employees to recognize damaged or missing guards and to report deficiencies immediately.
• Ensure all guards are reinstalled and secured after maintenance or adjustments.

Common Violations

• Guards loosely attached or easily removable during operation.
• Improvised guards made from inadequate materials such as thin sheet metal or plastic covers.
• Guards with sharp edges or openings large enough to allow finger or hand access.
• Removed or bypassed guards not replaced before restarting the machine.

Why OSHA 1910.212(a)(2) Is Important

Even when a guard is present, poor design or weak construction can fail to protect workers.
OSHA 1910.212(a)(2) ensures that guards are engineered and maintained to perform effectively throughout a machine’s life cycle.
Properly designed guards prevent crushing, amputation, and laceration injuries while maintaining usability and productivity.

FAQ

OSHA 1910.212(a)(3) — Point of Operation Guarding

OSHA 29 CFR 1910.212(a)(3) sets forth the point of operation guarding requirements for machinery used in general industry.
The “point of operation” is the area on a machine where work is performed—such as cutting, shaping, boring, forming, or assembling a part.
This section requires that each machine have a guard or safeguarding device that prevents the operator from having any part of the body in the danger zone during operation.

Purpose and Scope

The purpose of 1910.212(a)(3) is to eliminate exposure to moving tools or dies that can cause crushing, amputation, laceration, or puncture injuries.
It applies to all machines with a point of operation hazard, regardless of size or industry.
Typical examples include presses, saws, milling machines, lathes, shears, and drills.

Key Requirements

• Every machine must be equipped with a guard that prevents the operator from reaching into the danger zone.
• Guards must be designed and constructed to provide maximum protection while allowing the machine to be operated safely and efficiently.
• Special hand tools may be used to handle materials when guarding at the point of operation is not practical.
• Guards must be securely fastened, maintained in place, and not easily removed or bypassed during operation.
• Safeguarding devices such as light curtains, presence-sensing devices, or two-hand controls may be used if they provide equivalent protection.

Examples of Point of Operation Hazards

• Cutting blades or rotating cutters that can amputate or lacerate fingers.
• Press dies or molds that can crush hands or fingers during operation.
• Drill bits, boring tools, or milling heads that can pierce or entangle body parts.
• Shearing or punching points that can sever material—and body parts—with the same force.

Acceptable Guarding Methods

• Fixed barrier guards enclosing the point of operation.
• Interlocked guards that stop machine motion when opened or removed.
• Adjustable or self-adjusting guards that move automatically to block access as material is fed.
• Two-hand controls requiring both hands to activate the cycle, keeping them out of danger.
• Electronic presence-sensing devices such as light curtains or safety mats that halt motion when triggered.

Common Violations

• Operating a machine with missing or disabled point of operation guards.
• Using hand-feeding where fixed or adjustable guards should be installed.
• Removing guards to increase production speed.
• Failure to provide safeguarding when machine design allows operator access to hazardous movement.

Compliance Tips

• Identify all machine points of operation and assess potential contact hazards.
• Install fixed guards where feasible; use engineered safety devices when full enclosure is not possible.
• Inspect all guards before each shift and re-secure after adjustments or maintenance.
• Train operators to recognize guarding deficiencies and to report missing or damaged safety devices immediately.

Why OSHA 1910.212(a)(3) Is Important

Point of operation injuries are among the most severe and preventable workplace incidents.
By enforcing 1910.212(a)(3), OSHA ensures that all machines have reliable guarding or safety devices that keep operators’ hands, fingers, and bodies outside the danger zone during work.
This rule remains one of the most frequently cited machine safety violations nationwide.

FAQ

OSHA 1910.213(i) — Bandsaws and Band Resaws (Guarding and Safety Requirements)

OSHA 29 CFR 1910.213(i) provides specific safety standards for the design, guarding, and operation of bandsaws and band resaws used in woodworking operations.
This section requires that all moving parts—including wheels, blades, and drive mechanisms—be completely enclosed and that exposed blade sections be guarded to the maximum extent possible.
The goal of this regulation is to prevent accidental blade contact, lacerations, entanglement, and kickback injuries during use.

Purpose and Intent

Bandsaws and resaws are among the most versatile and widely used woodworking machines, but their continuous blade motion and exposed cutting edges present significant hazards.
OSHA 1910.213(i) ensures that these machines are equipped with comprehensive guarding systems that minimize operator exposure while maintaining visibility and control of the workpiece.
The rule applies to both horizontal and vertical bandsaws used in wood cutting and shaping.

Key Requirements

• Wheel guards: Both upper and lower wheels must be fully enclosed with metal housings or equivalent guards strong enough to contain a blade in the event of breakage.
• Blade guards: The portion of the blade between the saw table and the upper wheel guard must be guarded except at the point of operation.
• Adjustable guard design: The upper guide and guard must be adjustable to cover the unused portion of the blade above the stock being cut.
• Drive mechanisms: Belts, pulleys, and gears driving the saw must be enclosed in compliance with OSHA 1910.219 (Mechanical Power-Transmission Apparatus).
• Blade maintenance: Blades must be properly tensioned, tracked, and kept sharp to reduce breakage and vibration hazards.

Specific Guarding Provisions

• The upper wheel must be enclosed by a metal cover or guard that completely surrounds the wheel except for the slot necessary for the blade.
• The lower wheel must be enclosed by a guard that covers the wheel and all blade return paths.
• Where stock is fed manually, the front and sides of the blade must be guarded to prevent accidental contact.
• All band resaws must include a feed roll or blade guard on the infeed side to prevent reach-in hazards.
• Any portion of the blade beneath the table must be enclosed or guarded by the machine frame or a fixed cover.

Common Hazards Controlled

• Blade contact: Operators’ hands or fingers coming into contact with the cutting edge during operation or cleaning.
• Blade breakage: Fragments or snapped blades striking the operator.
• Entanglement: Loose clothing, gloves, or jewelry caught in exposed moving parts.
• Kickback or pull-in: Improper feeding techniques causing stock to be drawn into the blade unexpectedly.
• Dust exposure: Wood dust generated by cutting can contribute to respiratory or fire hazards.

Design and Construction Recommendations

• Use steel or cast-aluminum wheel guards capable of withstanding blade failure forces.
• Equip bandsaws with automatic tension-release mechanisms to extend blade life and prevent overloading.
• Include adjustable blade guides (both upper and lower) to minimize blade deflection.
• Provide dust collection ports integrated into lower wheel housings for safe debris removal.
• Install emergency stop buttons within reach of the operator’s position.

Operation and Maintenance Practices

• Adjust the upper blade guard to cover the blade as close as possible to the top of the workpiece before cutting.
• Inspect blade tracking and tension before each shift or material change.
• Replace cracked, dull, or damaged blades immediately to avoid breakage during operation.
• Clean accumulated sawdust from guards, housings, and wheels regularly to prevent overheating or ignition.
• Train operators on proper hand positioning and feeding techniques to minimize exposure near the blade.

Best Practices for Compliance

• Ensure all wheel housings and drive guards are secured and closed before operating the saw.
• Maintain a machine-specific inspection checklist covering guard condition, blade tension, and alignment.
• Install foot brakes or electronic braking systems to stop the blade quickly after power shutdown.
• Incorporate lockout/tagout procedures for blade changes and maintenance per OSHA 1910.147.
• Post clear signage reminding operators to adjust the guard before each cut.

Why OSHA 1910.213(i) Is Important

OSHA 1910.213(i) provides a comprehensive framework for reducing serious injuries associated with bandsaws and resaws.
These machines present high-speed cutting and continuous blade hazards that demand reliable guarding and operational discipline.
By enforcing full enclosure of wheels, guards over exposed blades, and safe control access, this rule prevents lacerations, amputations, and struck-by incidents—among the most common injuries in woodworking.

Related Standards

• 1910.213(a)(9) — Guarding of belts, pulleys, gears, shafts, and moving parts.
• 1910.219 — Mechanical Power-Transmission Apparatus.
• ANSI O1.1 — Woodworking Machinery Safety Standard.
• NFPA 664 — Standard for the Prevention of Fires and Explosions in Wood Processing Facilities.

FAQ

OSHA 1910.213(i)(1) — Guarding Requirements for Bandsaw Blades and Wheels

OSHA 29 CFR 1910.213(i)(1) establishes detailed guarding and enclosure requirements for bandsaw blades and wheels to protect workers from direct contact, broken blades, and flying debris.
The standard specifies the construction, materials, and positioning of guards to ensure maximum protection while allowing safe and effective cutting operations.

Regulatory Text

“All portions of the saw blade shall be enclosed or guarded, except for the working portion of the blade between the bottom of the guide rolls and the table. Bandsaw wheels shall be fully encased. The outside periphery of the enclosure shall be solid. The front and back of the band wheels shall be either enclosed by solid material or by wire mesh or perforated metal. Such mesh or perforated metal shall be not less than 0.037 inch (U.S. Gage No. 20), and the openings shall be not greater than three-eighths inch. Solid material used for this purpose shall be of an equivalent strength and firmness. The guard for the portion of the blade between the sliding guide and the upper-saw-wheel guard shall protect the saw blade at the front and outer side. This portion of the guard shall be self-adjusting to raise and lower with the guide. The upper-wheel guard shall be made to conform to the travel of the saw on the wheel.”

Purpose and Intent

The goal of OSHA 1910.213(i)(1) is to ensure that all moving parts of a bandsaw’s cutting system are enclosed to prevent accidental contact and protect the operator in the event of a blade failure.
Because bandsaw blades operate at high speeds and can snap or derail, properly designed guards and enclosures are critical for both safety and machine integrity.
This rule defines how the upper and lower wheels, blade sections, and guides must be protected and how those guards should move with the blade during operation.

Key Requirements

• Blade guarding: All portions of the blade must be enclosed or guarded, except the working section between the lower guide rolls and the table.
• Wheel enclosures: Both the upper and lower bandsaw wheels must be completely encased in a solid or reinforced guard.
• Material specifications: Guards made of perforated metal or wire mesh must be at least 0.037 inch thick (U.S. Gauge No. 20) with openings no greater than 3/8 inch.
• Solid equivalent material: Solid guards must provide strength and rigidity equal to or greater than metal mesh construction.
• Self-adjusting upper guard: The guard covering the section of the blade between the sliding guide and upper wheel guard must automatically raise and lower with the guide to minimize exposed blade length.
• Upper wheel guard movement: The upper-wheel guard must conform to the travel of the saw as it moves along the wheel during operation.

Common Hazards Controlled

• Blade contact: Prevents accidental hand or body contact with moving blades.
• Blade breakage: Protects operators from fragments or whipping blades in the event of failure.
• Flying debris: Solid or mesh guards contain wood chips, splinters, and broken metal fragments.
• Entanglement: Prevents clothing, gloves, or hair from being caught in exposed blade sections.
• Kickback or rebound: Proper guarding minimizes material ejection and rebound hazards during cutting.

Guard Construction and Design Recommendations

• Use heavy-gauge steel or cast aluminum guards for wheel enclosures to withstand blade impact forces.
• When using mesh or perforated metal, ensure uniform opening size and thickness to meet OSHA’s strength requirement.
• Ensure guards are securely fastened and cannot be removed or displaced during vibration.
• Install self-adjusting guards that automatically move with the upper guide post for ease of use and consistent safety coverage.
• Position guards so that the blade is exposed only at the cutting point and not along its return path beneath the table.

Inspection and Maintenance Practices

• Inspect all guards and enclosures before each use to verify integrity, attachment, and clearance.
• Replace cracked or bent metal guards immediately.
• Test the self-adjusting guard mechanism to ensure smooth, automatic movement with the guide assembly.
• Check mesh guards for rust, deformation, or hole enlargement beyond the 3/8-inch maximum.
• Verify that the upper-wheel guard fully encloses the blade path through the entire range of motion.

Best Practices for Compliance

• Provide operator training emphasizing adjustment of the upper guide and guard before each cut.
• Implement a machine guarding inspection checklist referencing OSHA 1910.213(i)(1) requirements.

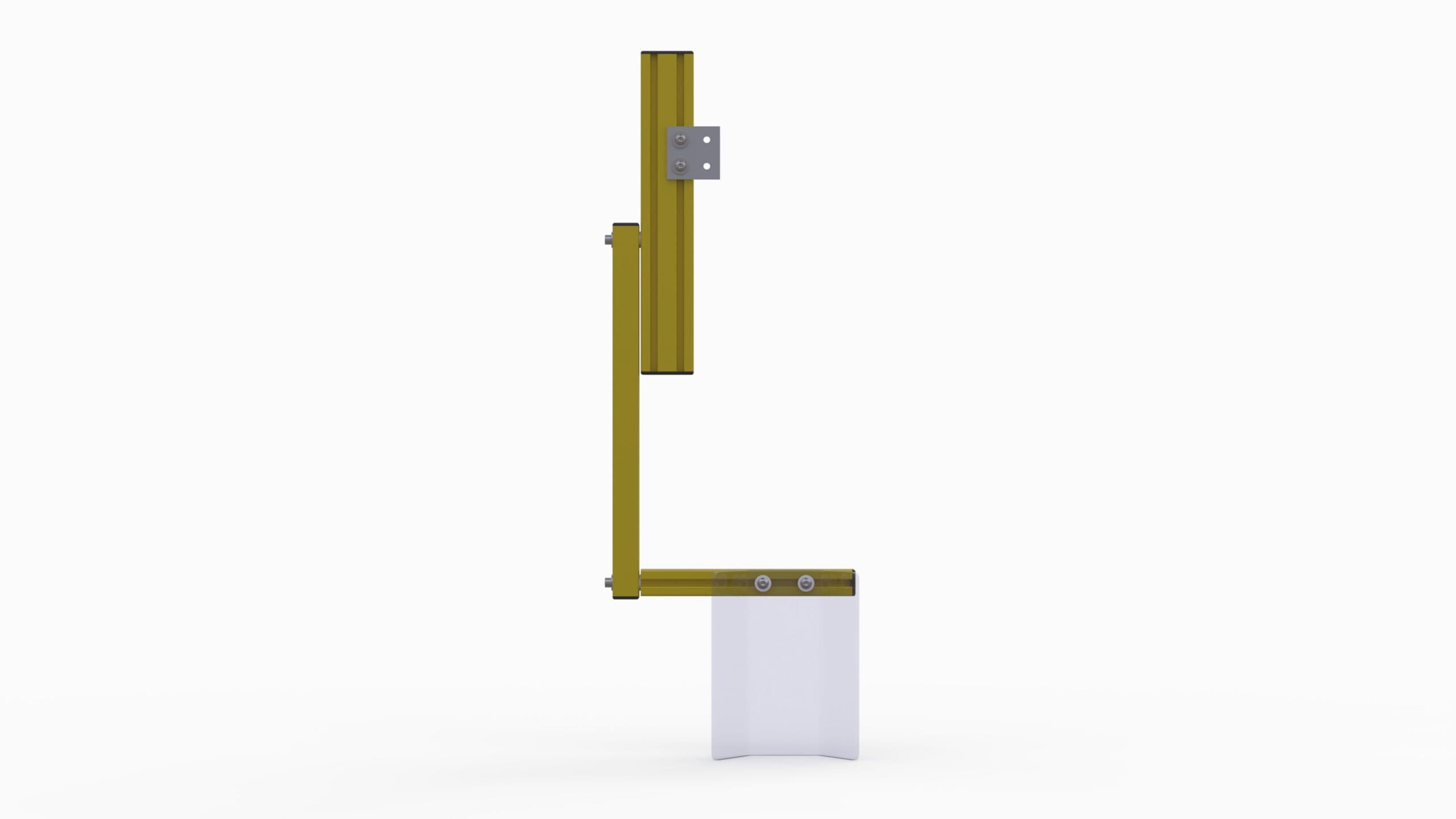

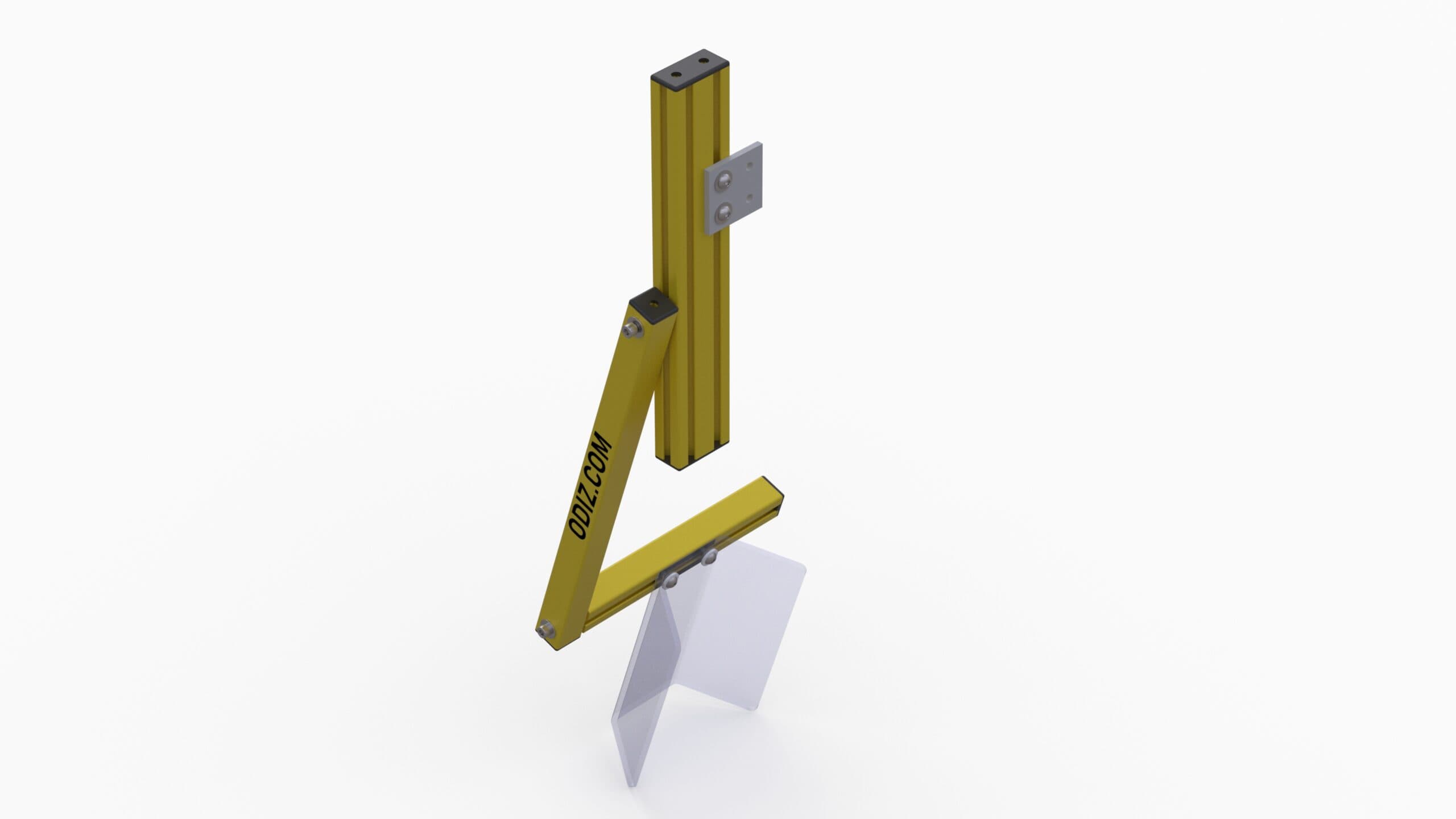

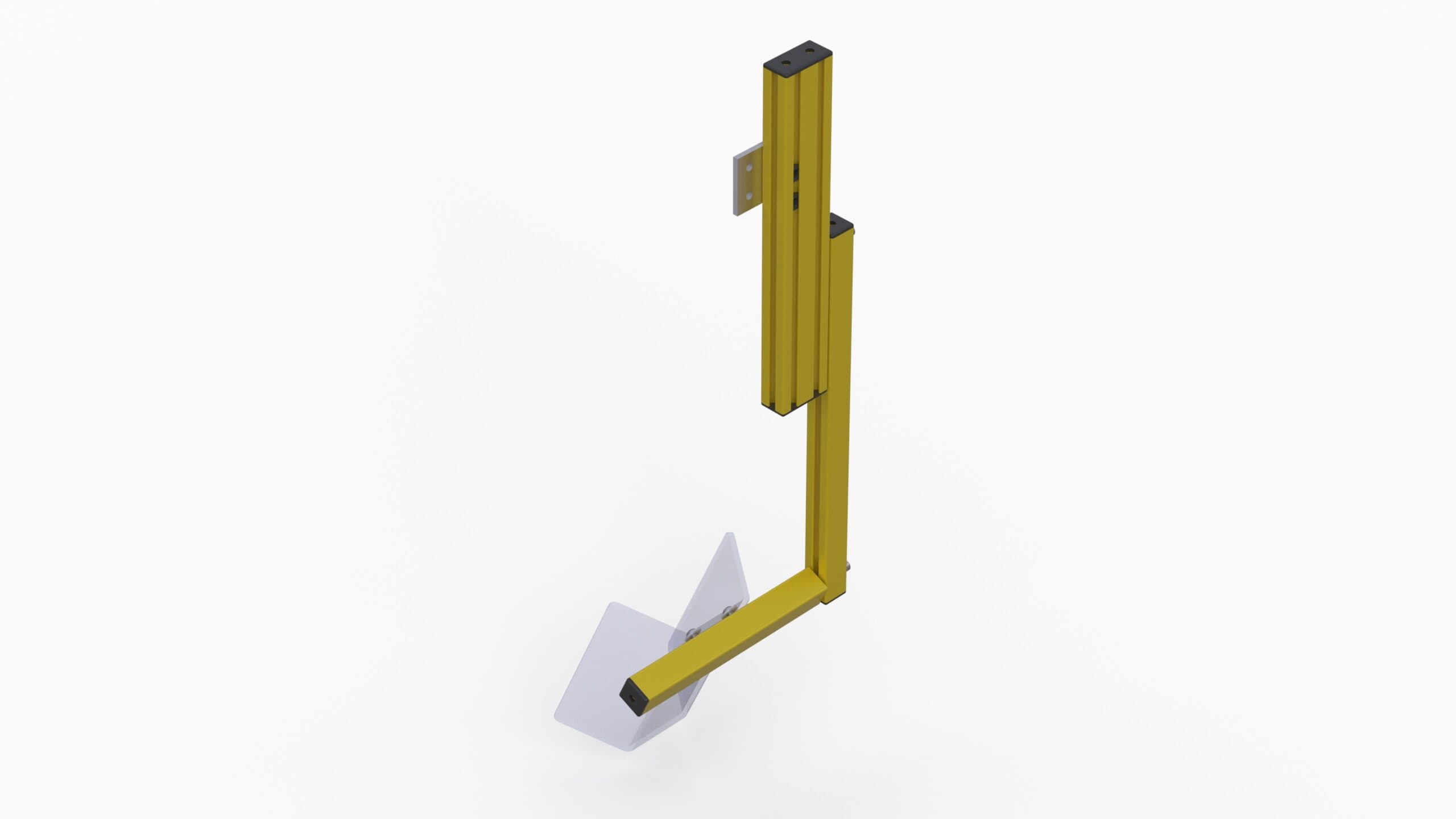

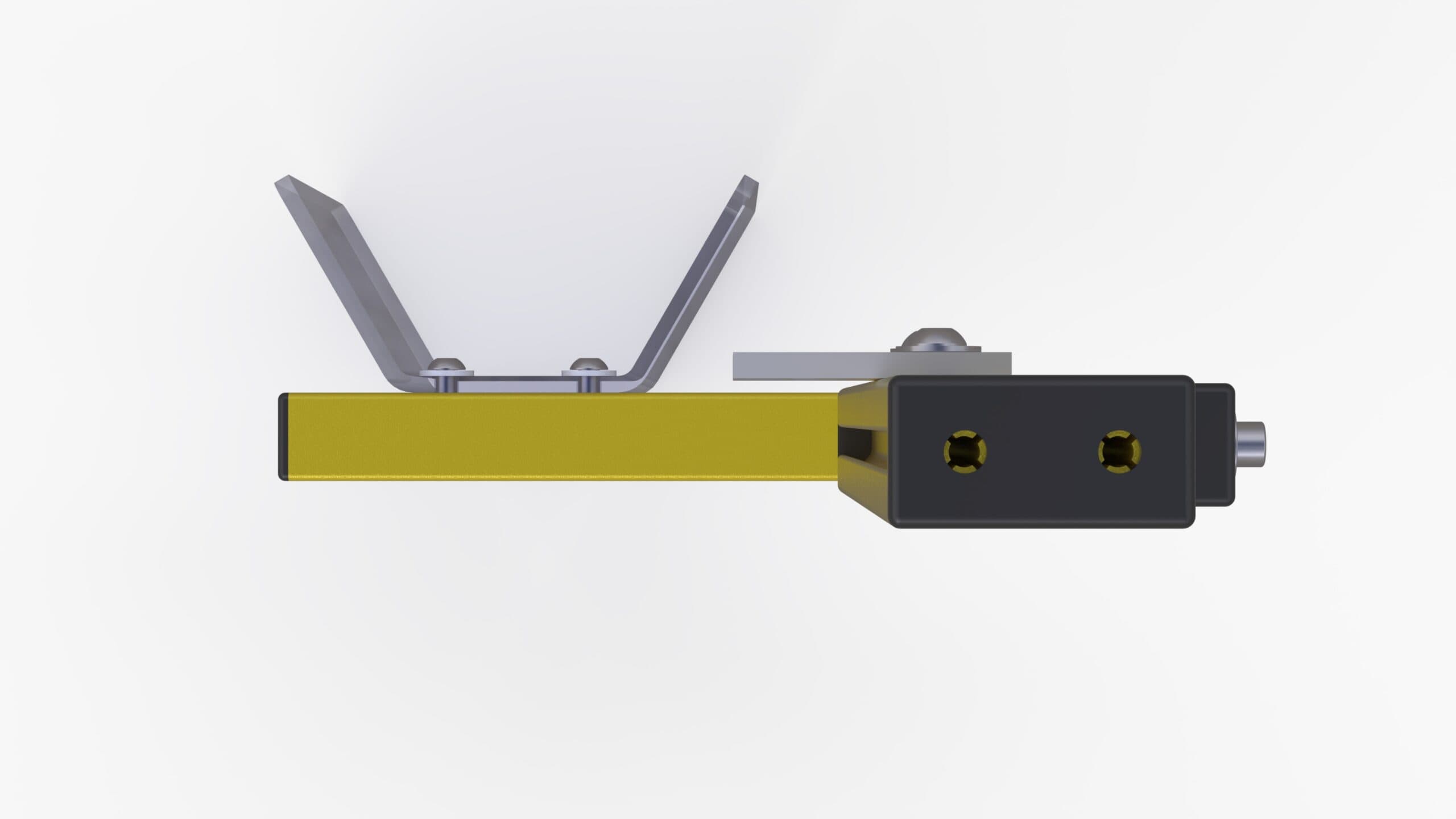

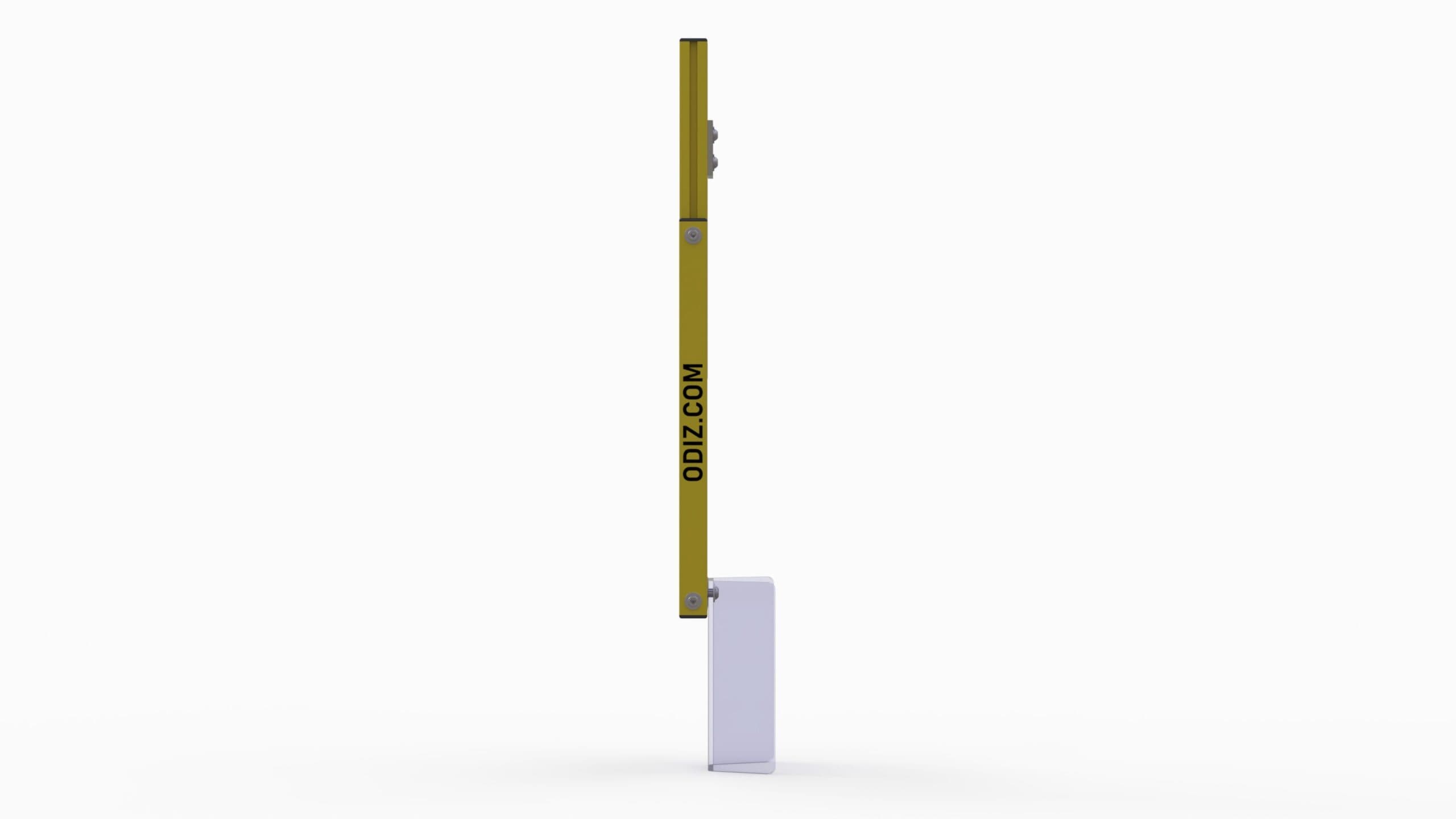

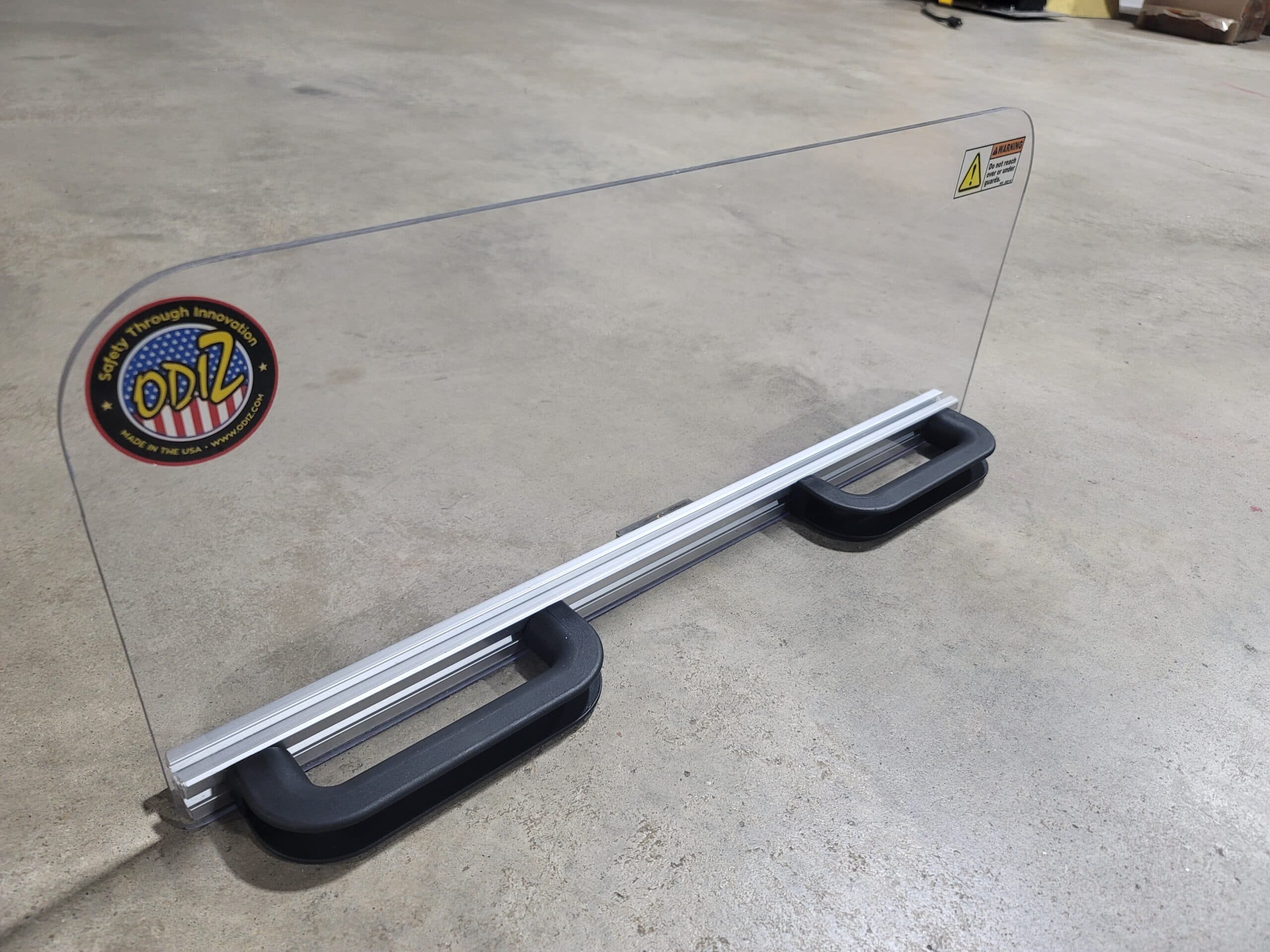

• Use transparent polycarbonate panels (if impact-rated) to improve visibility while maintaining compliance strength.
• Integrate interlock switches that prevent operation if wheel covers are open or removed.
• Include guard condition checks in your preventive maintenance program.

Why OSHA 1910.213(i)(1) Is Important

OSHA 1910.213(i)(1) addresses one of the most severe hazards in woodworking—exposure to high-speed band saw blades.
By requiring complete enclosure of the blade and wheel assemblies with properly rated materials, this regulation ensures that both operators and nearby personnel are protected from contact injuries, blade ejection, and debris impact.
The requirement for self-adjusting guards ensures safety remains consistent during variable cutting operations, making this rule central to the safe operation of any bandsaw or band resaw.

FAQ

OSHA 1910.213(i)(2) — Bandsaw Tension Control Devices

OSHA 29 CFR 1910.213(i)(2) mandates that every bandsaw machine be equipped with a tension control device that accurately indicates proper blade tension for the saws used on that machine.
This requirement is designed to minimize blade breakage, vibration, and misalignment—all of which can lead to serious safety hazards and poor cutting performance.

Regulatory Text

“Each bandsaw machine shall be provided with a tension control device to indicate a proper tension for the standard saws used on the machine, in order to assist in the elimination of saw breakage due to improper tension.”

Purpose and Intent

The purpose of OSHA 1910.213(i)(2) is to ensure that operators can easily verify and maintain the correct blade tension during setup and operation.
Improper tension—whether too loose or too tight—can lead to premature blade failure, misalignment, and dangerous ejection of the blade from the wheels.
By requiring an integrated tension indicator, OSHA provides a simple yet effective safeguard against one of the most common mechanical hazards in bandsaw operation.

Key Requirements

• Mandatory tension device: Every bandsaw must include a built-in or attached mechanism that shows blade tension in measurable units (e.g., pounds per square inch or tension scale).
• Standardized calibration: The device must be calibrated for the specific blade sizes and materials recommended by the machine manufacturer.
• Operator visibility: The tension indicator must be clearly visible from the operator’s position to ensure proper adjustment before and during use.
• Maintenance requirement: The device must remain functional and accurate throughout the life of the machine.

Why Proper Tension Matters

• Too little tension: Allows the blade to wander or slip off the wheels, increasing the risk of contact or ejection.
• Too much tension: Causes excessive stress on the blade, wheels, and bearings, leading to premature breakage and vibration.
• Correct tension: Ensures accurate cuts, reduces fatigue stress on the blade, and enhances operator control and machine life.

Types of Tension Control Devices

• Mechanical gauges: Spring or dial mechanisms that display blade tension through calibrated indicators.
• Hydraulic systems: Pressure-based devices that measure and maintain consistent blade force across varying loads.
• Electronic sensors: Digital monitoring systems with readouts or alarms for tension deviations, common on modern bandsaws.

Inspection and Maintenance Practices

• Check the tension indicator before every use to verify functionality and calibration accuracy.
• Inspect the blade for signs of cracking, stretching, or uneven wear—common symptoms of tension problems.
• Follow manufacturer guidelines for proper blade tension based on blade width, thickness, and material.
• Lubricate tension mechanisms periodically to ensure smooth operation.
• Replace damaged or non-functioning gauges immediately to maintain compliance.

Common Hazards Controlled

• Blade breakage: Reduces risk of sudden failure due to excessive or uneven stress.
• Blade ejection: Prevents detachment from wheels caused by slack tension.
• Vibration and drift: Minimizes movement of the blade that could lead to inaccurate cuts and potential injury.
• Machine damage: Prevents bearing overload and wheel misalignment caused by over-tensioning.

Best Practices for Compliance

• Train operators on proper blade tensioning procedures and how to read the device accurately.
• Use only manufacturer-approved replacement blades and tension components.
• Document blade changes, tension settings, and inspection results in a maintenance log.
• Include tension control checks in your daily pre-operation inspection checklist.
• Calibrate tension indicators annually or per manufacturer’s specification.

Why OSHA 1910.213(i)(2) Is Important

OSHA 1910.213(i)(2) focuses on one of the most overlooked yet critical aspects of bandsaw safety—blade tension control.
Proper tension directly affects the machine’s stability, cutting precision, and overall safety.
A functional tension control device not only extends blade life but also protects operators from high-speed blade failures that could result in severe injuries or fatalities.
Compliance with this regulation ensures consistent safety standards across all bandsaw operations, from small shops to industrial production lines.

FAQ

OSHA 1910.213(i)(3) — Guarding Requirements for Band Resaw Feed Rolls

OSHA 29 CFR 1910.213(i)(3) establishes mandatory guarding standards for feed rolls on band resaws used in woodworking operations.
This rule is designed to prevent operator hands and fingers from entering the hazardous in-running nip point where the feed rolls pull material into the blade.
The guard must be constructed from heavy-duty materials—preferably metal—and positioned precisely to provide full protection without interfering with feeding operations.

Regulatory Text

“Feed rolls of band resaws shall be protected with a suitable guard to prevent the hands of the operator from coming in contact with the in-running rolls at any point. The guard shall be constructed of heavy material, preferably metal, and the edge of the guard shall come to within three-eighths inch of the plane formed by the inside face of the feed roll in contact with the stock being cut.”

Purpose and Intent

Band resaws are used to cut lumber into thinner pieces or veneers by feeding material continuously through rotating rolls toward the moving saw blade.
The in-running nip point between these rolls presents a severe hazard, capable of pulling in hands, fingers, or loose clothing in a fraction of a second.
OSHA 1910.213(i)(3) ensures this danger is mitigated through the use of robust, close-fitting guards that physically prevent operator access to the in-running feed rolls.

Key Requirements

• Guarding of feed rolls: A fixed or adjustable guard must cover the in-running area of the resaw’s feed rolls.
• Material construction: The guard must be made from heavy material, preferably metal, strong enough to resist impact and wear.
• Clearance distance: The edge of the guard must be positioned within three-eighths (3/8) inch of the plane formed by the inside face of the roll that contacts the stock.
• Full coverage: Guards must prevent hand access from above, below, and the sides of the in-running point.
• Non-interference: The guard must allow for continuous feeding of material without obstructing normal operation or visibility.

Common Hazards Controlled

• In-running nip point injuries: Prevents hands and clothing from being drawn into the rollers.
• Amputation risks: Protects against severe finger and hand injuries caused by roller entrapment.
• Kickback: Properly designed guards stabilize feed motion and help prevent sudden ejection of stock.
• Contact with moving parts: Reduces risk of accidental touch during setup or operation.

Design and Construction Guidelines

• Use steel plate or cast metal guards to ensure long-term durability and impact resistance.
• Ensure guard edges are smooth and rounded to prevent snagging of clothing or materials.
• Position guards so the clearance from the roll face does not exceed 3/8 inch at any point along the length of the roll.
• For adjustable guards, include secure locking mechanisms to prevent drift or misalignment.
• Install fixed barrier extensions where operator reach zones may allow indirect contact with rolls.

Inspection and Maintenance Practices

• Inspect feed roll guards daily for tightness, alignment, and structural integrity.
• Measure guard clearance periodically to ensure it remains within the OSHA-specified 3/8-inch limit.
• Replace or repair any bent, cracked, or missing guard sections immediately.
• Check for proper clearance after any maintenance or feed roll replacement.
• Ensure guards remain free from resin buildup, sawdust, or obstructions that may compromise visibility or clearance.

Best Practices for Compliance

• Incorporate visual indicators or fixed stops to verify the guard’s position relative to the feed roll plane.
• Train operators to never reach near in-running feed rolls while the machine is powered.
• Include feed roll guarding checks in your daily machine inspection checklist.
• Apply lockout/tagout procedures under OSHA 1910.147 when cleaning, adjusting, or changing feed rolls.
• Document guard maintenance and inspections as part of your OSHA compliance records.

Why OSHA 1910.213(i)(3) Is Important

OSHA 1910.213(i)(3) addresses one of the most dangerous pinch points in woodworking machinery—the feed rolls of band resaws.
Without proper guarding, these rollers can pull an operator’s hands or clothing into the cutting path almost instantly.
By requiring heavy-duty, close-fitting guards positioned within three-eighths of an inch of the feed roll plane, this regulation provides critical physical protection that prevents severe entanglement, crushing, and amputation injuries.
Compliance with this standard ensures safer operation, longer machine life, and a lower risk of catastrophic accidents.

FAQ

ANSI B11 — Machine Safety & Machine Tool Standards

The ANSI B11 standards series comprises a robust framework for machinery and machine tool safety. It addresses risk assessment, design, guarding, control systems, risk reduction measures, and installation and maintenance of machines. Although not regulatory law, B11 standards are widely referenced by industry and used to interpret OSHA’s machine guarding rules (e.g. 29 CFR 1910.212). :contentReference[oaicite:2]{index=2}

Structure of the B11 Family

The B11 family is organized into three types of standards:

• Type A (Basic Safety Standards): e.g. ANSI B11.0 defines general concepts, terminology, risk assessment, and safety principles. :contentReference[oaicite:3]{index=3}
• Type B (Generic Safety Standards): These address safeguarding methods, performance, or safety aspects used across machines (for example, B11.19—Performance Criteria for Safeguarding). :contentReference[oaicite:4]{index=4}
• Type C (Machine-Specific Standards): Focused on individual machines or categories (e.g. B11.1 for power presses, B11.9 for grinding machines, B11.10 for sawing machines). :contentReference[oaicite:5]{index=5}

Core Themes & Provisions

• Risk Assessment / Reduction: B11 emphasizes identifying hazards, assessing risk, selecting and validating protective measures, and verifying that risk is reduced to acceptable levels. :contentReference[oaicite:6]{index=6}
• Safeguarding Methods: Fixed guards, interlocked guards, presence sensors, two-hand controls, light curtains, etc., are all covered with performance criteria. :contentReference[oaicite:7]{index=7}
• Performance Criteria: Guards and safety devices must meet minimum response times, strength, durability, fail-safe behavior, and integration with control systems. :contentReference[oaicite:8]{index=8}
• Safety in Existing (“Legacy”) Equipment: B11 encourages adaptation of older machines via retrofitting or supplementary safeguarding where feasible. :contentReference[oaicite:9]{index=9}
• Design, Modification & Integration: Covers requirements for design, safe modifications, wiring, control logic, maintenance access, risk during changeover, and system integration. :contentReference[oaicite:10]{index=10}

Relation to OSHA & Enforcement Context

OSHA itself does not mandate ANSI B11 by law, but OSHA’s machine guarding standards allow referencing consensus standards like B11 for technical interpretation. For example, OSHA’s eTool on machine guarding lists ANSI B11 standards as guidance resources. :contentReference[oaicite:11]{index=11}
Many safety professionals use B11 standards to design compliant machine guards and safety systems that satisfy both OSHA rules and best practices.

Common Substandards in the Series

• ANSI B11.0 — Safety of Machinery (baseline, risk methodology) :contentReference[oaicite:12]{index=12}
• ANSI B11.19 — Performance Criteria for Safeguarding (applies across many machines) :contentReference[oaicite:13]{index=13}
• ANSI B11.1 / B11.2 / B11.3 — Press, hydraulic, brake machines :contentReference[oaicite:14]{index=14}
• ANSI B11.10 — Metal sawing machines :contentReference[oaicite:15]{index=15}
• ANSI B11.9 — Grinding machines (ties into OSHA 1910.215 & 1910.213) :contentReference[oaicite:16]{index=16}

Internal Linking & Application Ideas

• Link to child categories like ANSI B11.0, ANSI B11.19, ANSI B11.9 (Grinding), etc.
• Cross-link to your OSHA machine guarding pages, e.g. OSHA 1910.212 General Machine Guarding.
• Link to safety device and guarding product pages: light curtains, interlocked guards, protective covers, control systems.

FAQ

ANSI B11.0 — Safety of Machinery

The ANSI B11.0 standard (Safety of Machinery) is the foundational “Type A” standard of the B11 series of American National Standards for machine safety.
It is intended to apply broadly to power-driven machines (new, existing, modified or rebuilt) and to machinery systems, not portable tools held in the hand. :contentReference[oaicite:0]{index=0}
ANSI B11.0 provides the essential framework: definitions, lifecycle responsibilities, risk assessment methodology, acceptable risk criteria, and guidance for using Type-C standards in conjunction with this general standard. :contentReference[oaicite:1]{index=1}

Scope & Purpose

ANSI B11.0-2020 covers machines and machinery systems used for material processing, moving or treating when at least one component moves and is actuated, controlled and powered. :contentReference[oaicite:2]{index=2}
The standard’s purpose is to help suppliers, integrators, and users of machinery identify hazards, estimate and evaluate risks, and implement sufficient risk reduction to achieve an “acceptable risk” level. :contentReference[oaicite:3]{index=3}
It also clarifies responsibilities across the machine lifecycle (supplier, user, modifier) and addresses legacy equipment, prevention through design (PtD) and use of alternative methods for energy control. :contentReference[oaicite:4]{index=4}

Key Concepts & Requirements

• Terminology & Definitions: Establishes key machine-safety terms (e.g., machine, hazard zone, safeguarding, risk, risk reduction). :contentReference[oaicite:5]{index=5}
• Risk Assessment Methodology: Describes how to identify hazards, estimate risk severity and probability, evaluate risk, and decide on corrective safeguards. :contentReference[oaicite:6]{index=6}
• Risk Reduction Principles: Focuses on designing out hazards, applying engineered controls, administrative controls and PPE only when higher-level measures aren’t feasible. :contentReference[oaicite:7]{index=7}
• Lifecycle Approach: Applies to design, construction, installation, commissioning, operation, maintenance, modification and dismantling of machines. :contentReference[oaicite:8]{index=8}
• Use of Type-C Standards: ANSI B11.0 explains how to use machine-specific Type-C standards (e.g., B11.9 for grinding machines) together with this standard for full compliance. :contentReference[oaicite:9]{index=9}

Why It Matters

ANSI B11.0 sets the groundwork for safe machine design and use. Without a consistent foundational standard, machine-specific standards may lack coherence or completeness in hazard control.
By following B11.0, manufacturers and users can build robust safety programs, ensure they cover all phases of machine use (including legacy equipment), and demonstrate that hazard identification, risk assessment and risk reduction are performed systematically.
Because the standard is widely referenced by regulatory authorities and industry best practices, compliance strengthens both safety performance and regulatory defensibility.

Relationship to OSHA & Other Standards

Although ANSI B11.0 is a voluntary consensus standard and not a regulation, it is widely acknowledged as “recognized and generally accepted good engineering practice (RAGAGEP)”.
Regulatory bodies like the Occupational Safety and Health Administration (OSHA) reference the B11 series for technical guidance in areas like machine guarding (e.g., 29 CFR 1910.212) and risk assessment. :contentReference[oaicite:11]{index=11}
Furthermore, ANSI B11.0 aligns with the international standard ISO 12100 (Safety of Machinery — General Principles for Design — Risk Assessment and Risk Reduction) but adds U.S.-specific supplier/user responsibilities and lifecycle responsibilities. :contentReference[oaicite:13]{index=13}

FAQ

B11.10 — Metal Sawing Machines

The B11.10 standard (titled “Safety Requirements for Metal Sawing Machines”) is part of the ANSI B11 machine‐safety series and applies to a general class of stationary metal-sawing machine tools—including ones using circular blades, band saws, hacksaws and related feed mechanisms. :contentReference[oaicite:0]{index=0}
It covers the full machine lifecycle: design, construction, installation, operation, maintenance, modification, dismantling, transport, and ancillary systems such as part-handling and chip removal. :contentReference[oaicite:1]{index=1}

Scope & Exclusions

The standard’s scope includes stationary machines in which a saw blade is used to cut off or otherwise shape a workpiece. Machines covered include circular saws, band saws, hacksaw machines, and machines with automated feed or handling systems. :contentReference[oaicite:2]{index=2}
However, B11.10 explicitly *excludes*: woodworking sawing machines; stone‐cutting sawing machines; food-processing sawing machines; abrasive-sawing machines; and portable hand-held saws. :contentReference[oaicite:3]{index=3}

Key Safety Topics Addressed

• Risk assessment & machine lifecycle responsibilities: The standard emphasizes supplier, integrator and user roles when assessing hazards, specifying controls and maintaining machines. :contentReference[oaicite:4]{index=4}
• Guarding of saw blades: Requirements for proper enclosure of the cutting zone, feed mechanisms, and saw blade peripheries to protect operators from contact, kickback, and flying debris.
• Machine modification and retrofitting: Specifies that any modifications or conversions must not worsen safety performance, and proper safeguarding must be in place post-modification.
• Ancillary systems inclusion: The standard covers part-handling, chip removal, stock feed, and other integrated systems to ensure the entire machine setup meets the safety principles. :contentReference[oaicite:5]{index=5}
• Installation, commissioning, operation & maintenance: From initial installation through dismantling and transport, safety requirements apply throughout the equipment’s lifecycle.

Why It Matters

Metal-sawing machines present significant hazards—blade contact, kickback, entanglement, flying chips or fragments, and machine component failures.
B11.10 offers a structured framework for safeguarding these machines through design and operational controls, helping manufacturers, employers and safety professionals reduce risk and align with recognized good engineering practice.
The standard also supports regulatory compliance, as authorities such as Occupational Safety and Health Administration (OSHA) reference the B11 series for technical guidance. :contentReference[oaicite:7]{index=7}

Practical Implementation Tips

• When purchasing or retrofitting a metal sawing machine, ensure that blade guarding, feed‐mechanism covers, and stock-infeed/outfeed areas comply with B11.10 criteria.
• Use the machine’s documentation to confirm that any part-handling, chip removal or automation systems are included under the B11.10 “ancillary devices” provisions.
• Train operators and maintenance staff on the machine lifecycle obligations: from installation and commissioning through maintenance, modification and, eventually, dismantling.
• Conduct a task‐based risk assessment for the machine, referencing B11.10 in conjunction with your organization’s risk-reduction program and the broader B11.0/B11.19 standards.
• Maintain documentation proving that any modifications or conversions did not degrade safety performance and that safeguards remain effective as per B11.10 criteria.

FAQ
