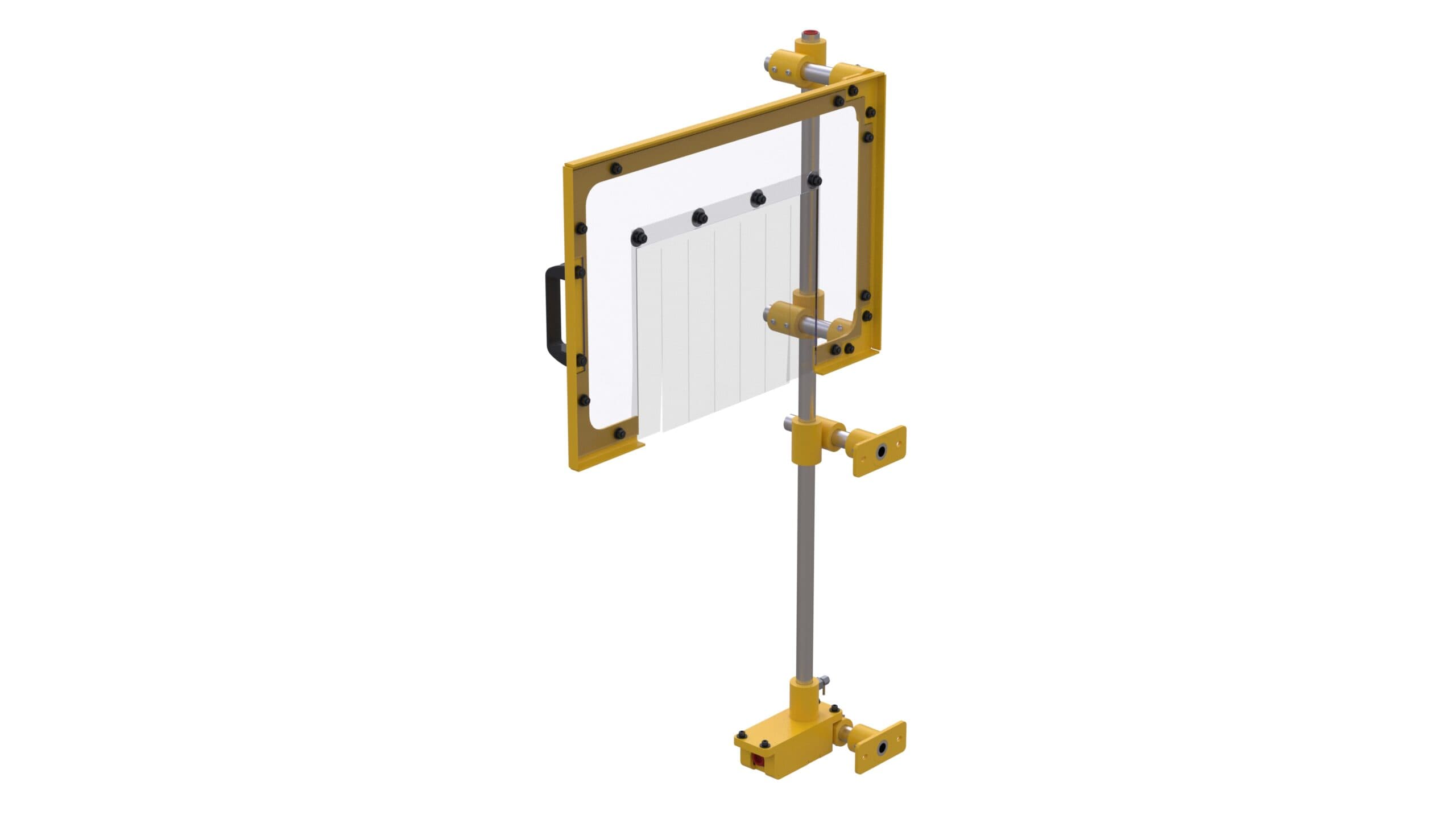

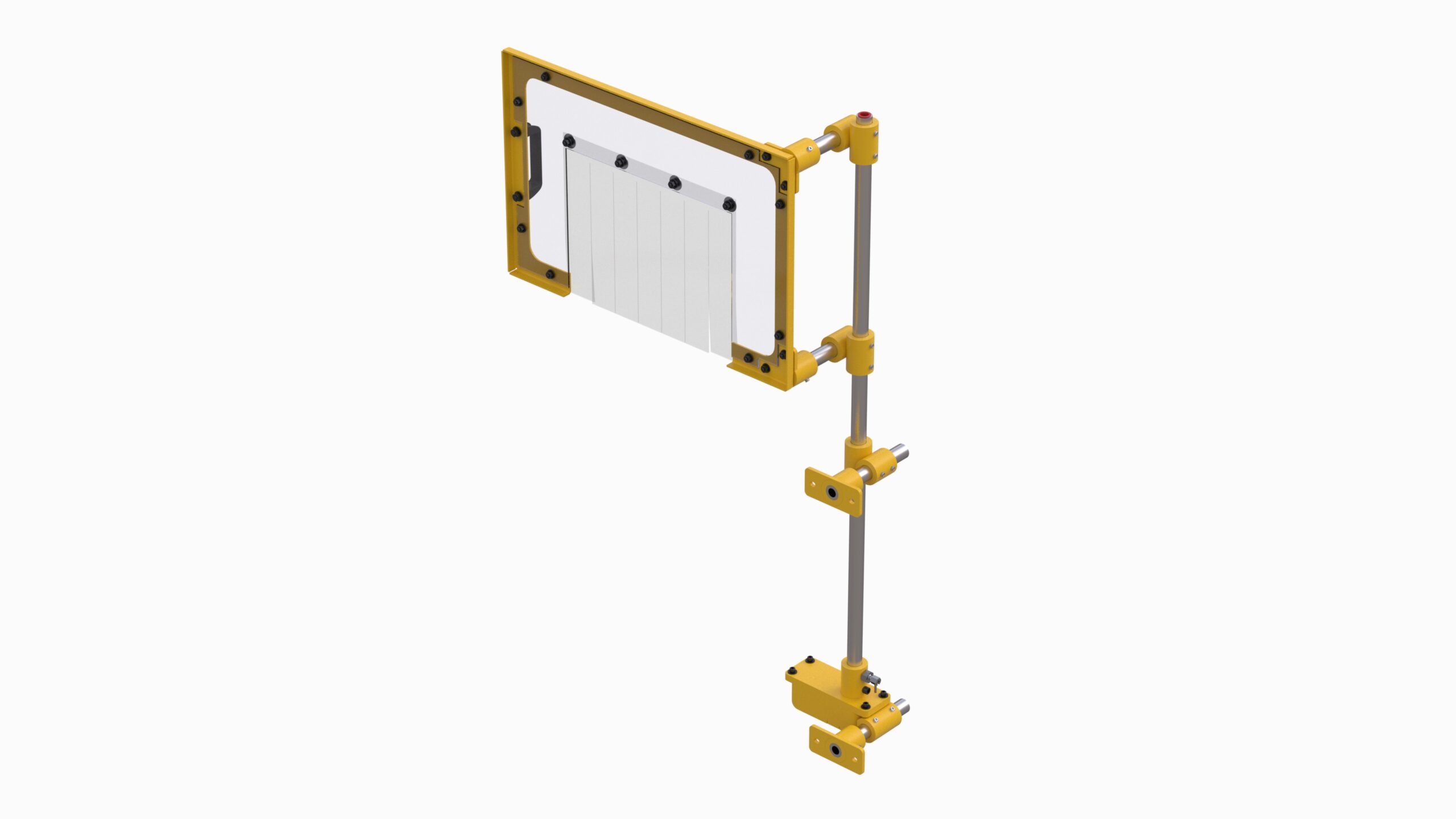

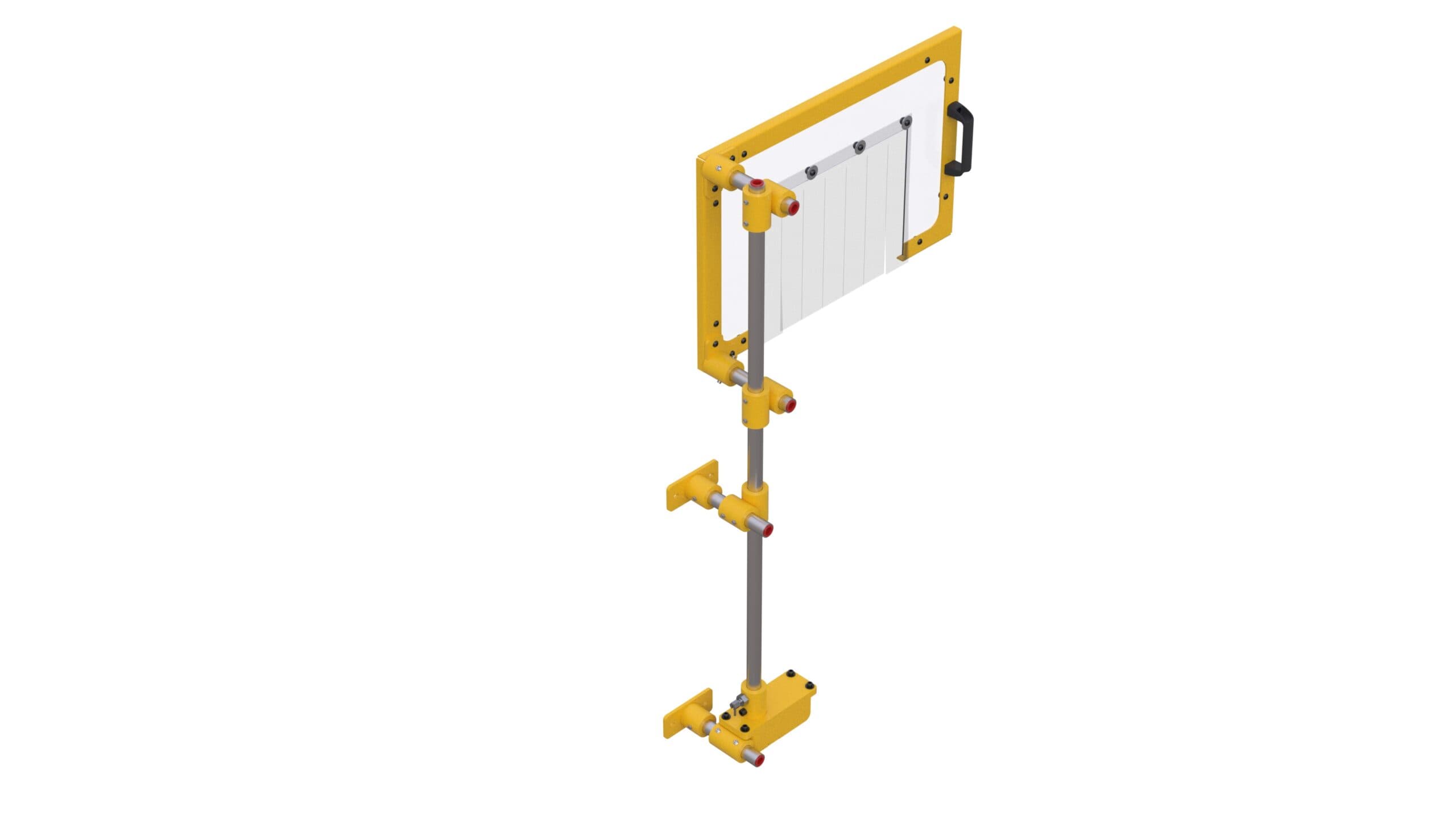

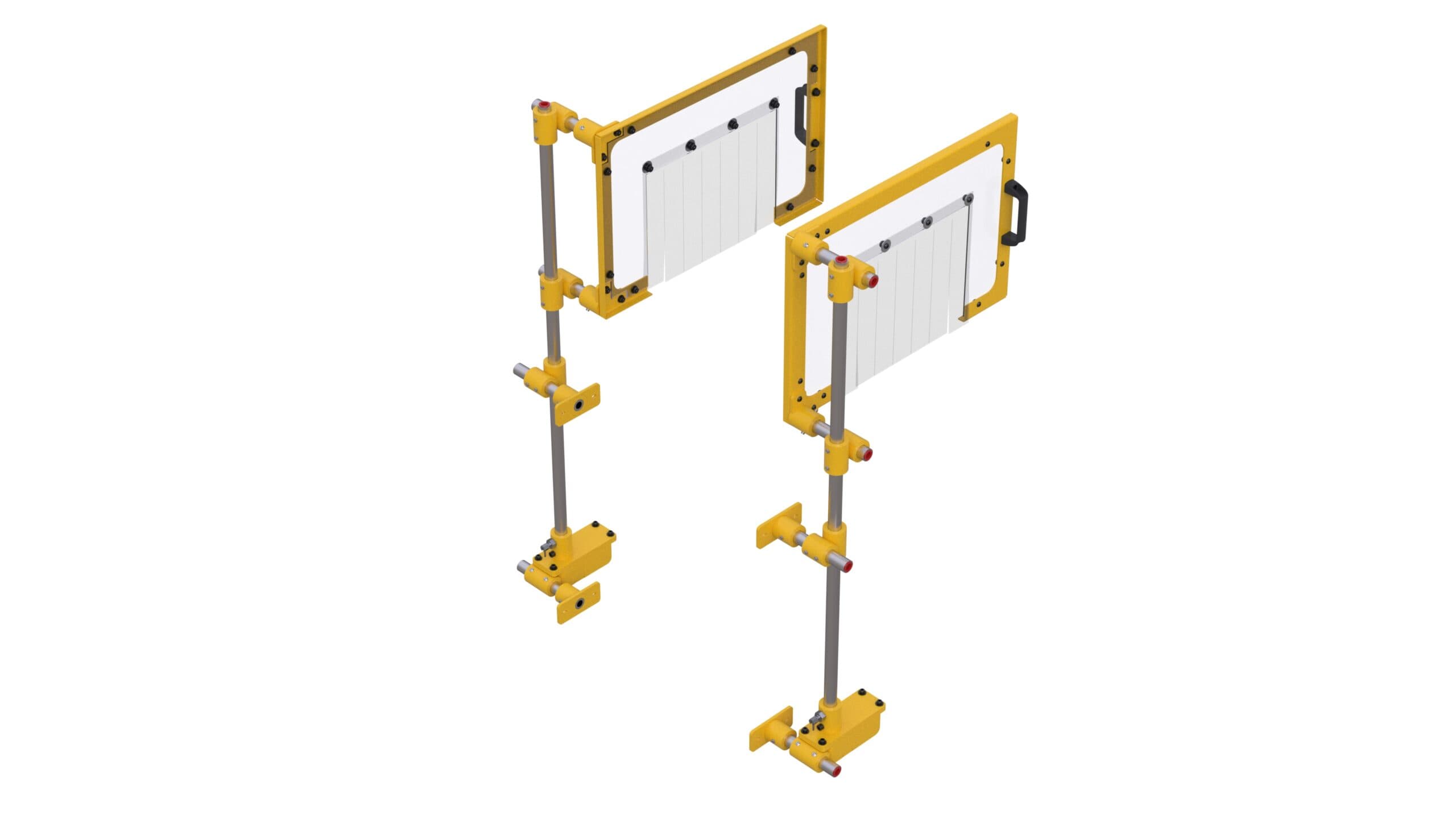

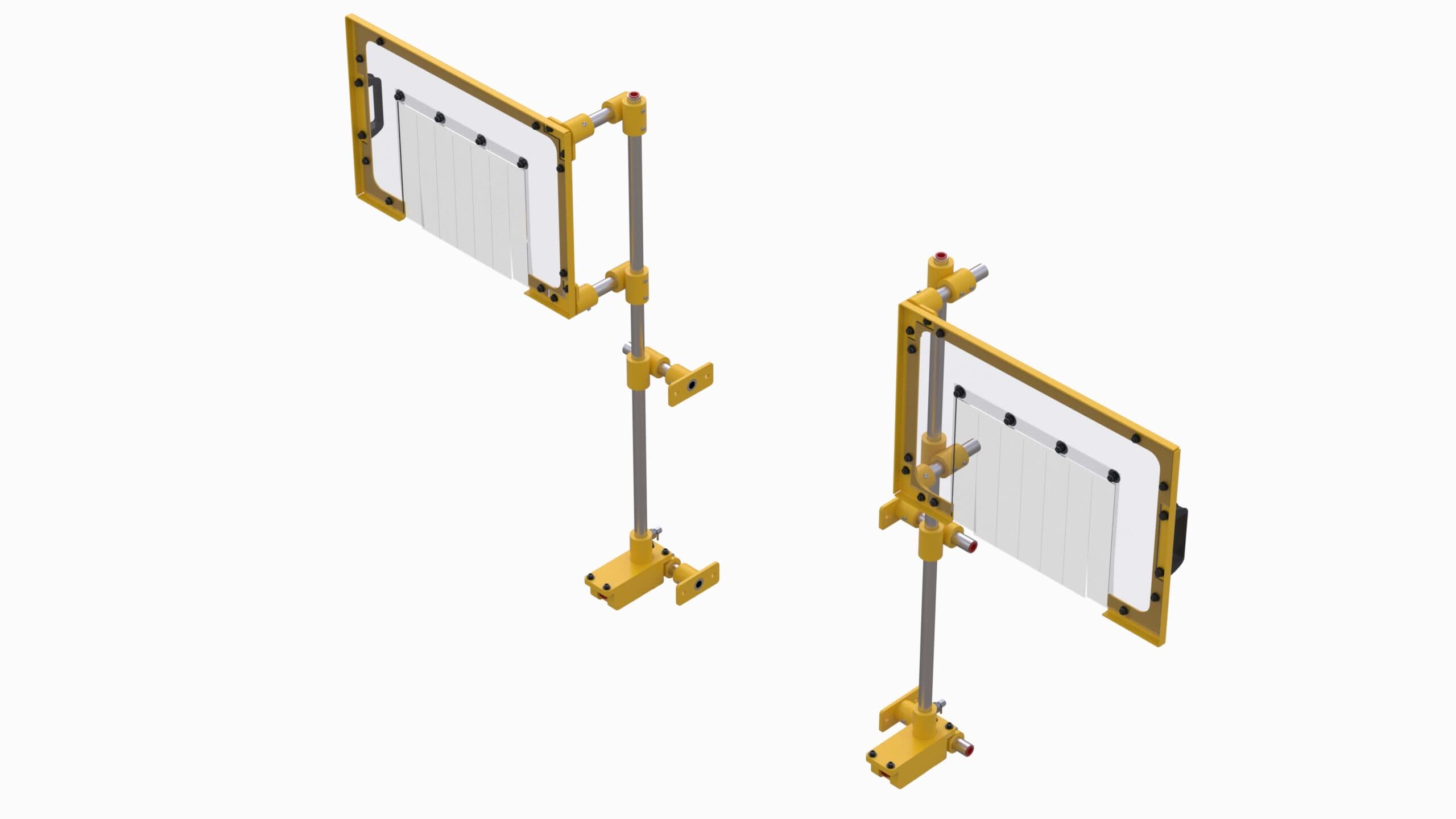

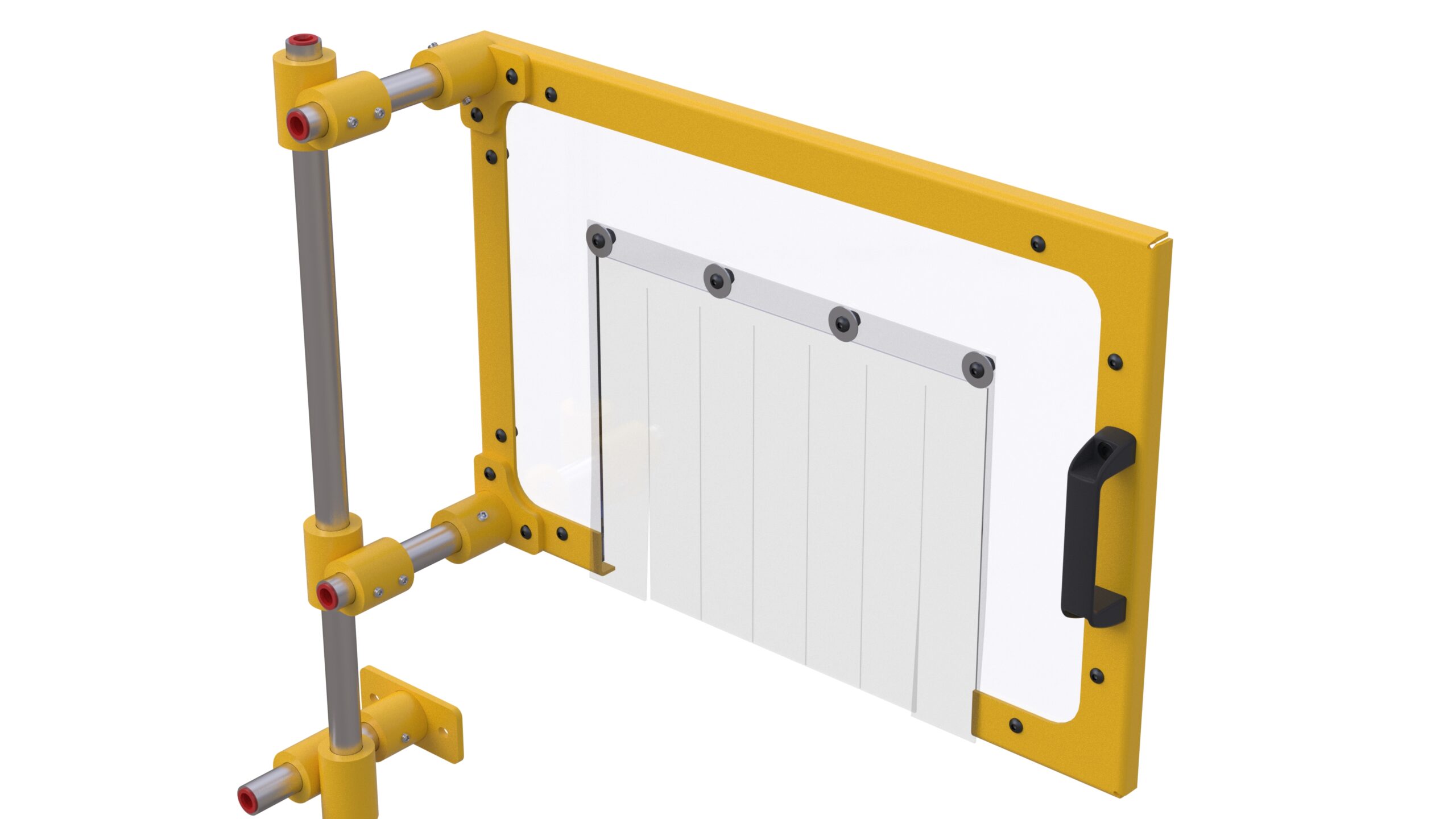

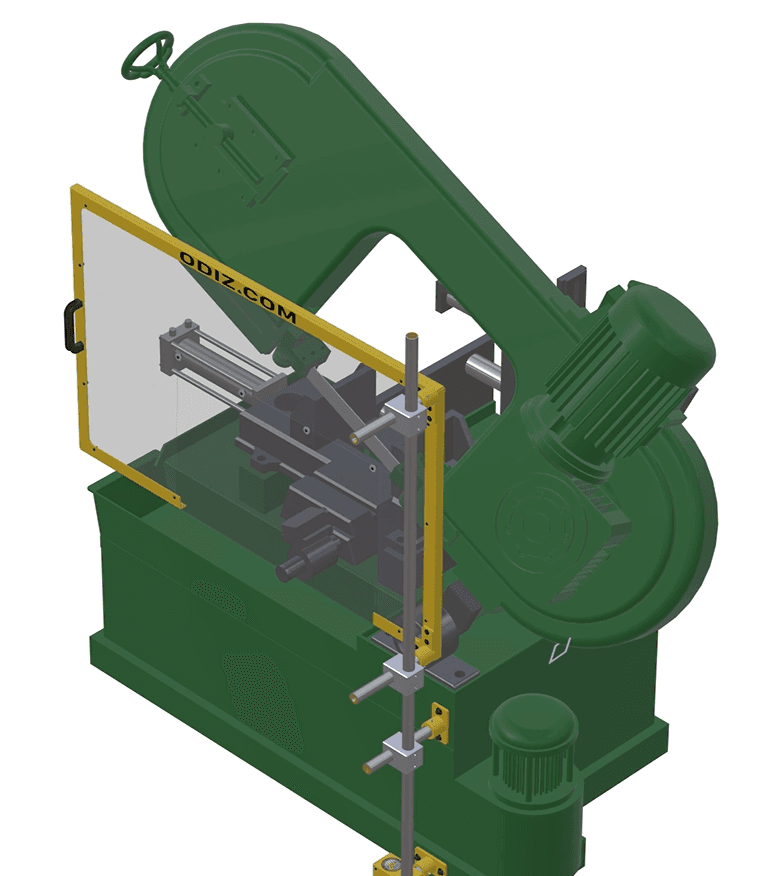

Interlocked Adjustable Horizontal Bandsaw Guards

OSHA 1910.213(i) — Bandsaws and Band Resaws (Guarding and Safety Requirements)

OSHA 29 CFR 1910.213(i) provides specific safety standards for the design, guarding, and operation of bandsaws and band resaws used in woodworking operations.
This section requires that all moving parts—including wheels, blades, and drive mechanisms—be completely enclosed and that exposed blade sections be guarded to the maximum extent possible.
The goal of this regulation is to prevent accidental blade contact, lacerations, entanglement, and kickback injuries during use.

Purpose and Intent

Bandsaws and resaws are among the most versatile and widely used woodworking machines, but their continuous blade motion and exposed cutting edges present significant hazards.
OSHA 1910.213(i) ensures that these machines are equipped with comprehensive guarding systems that minimize operator exposure while maintaining visibility and control of the workpiece.
The rule applies to both horizontal and vertical bandsaws used in wood cutting and shaping.

Key Requirements

• Wheel guards: Both upper and lower wheels must be fully enclosed with metal housings or equivalent guards strong enough to contain a blade in the event of breakage.
• Blade guards: The portion of the blade between the saw table and the upper wheel guard must be guarded except at the point of operation.

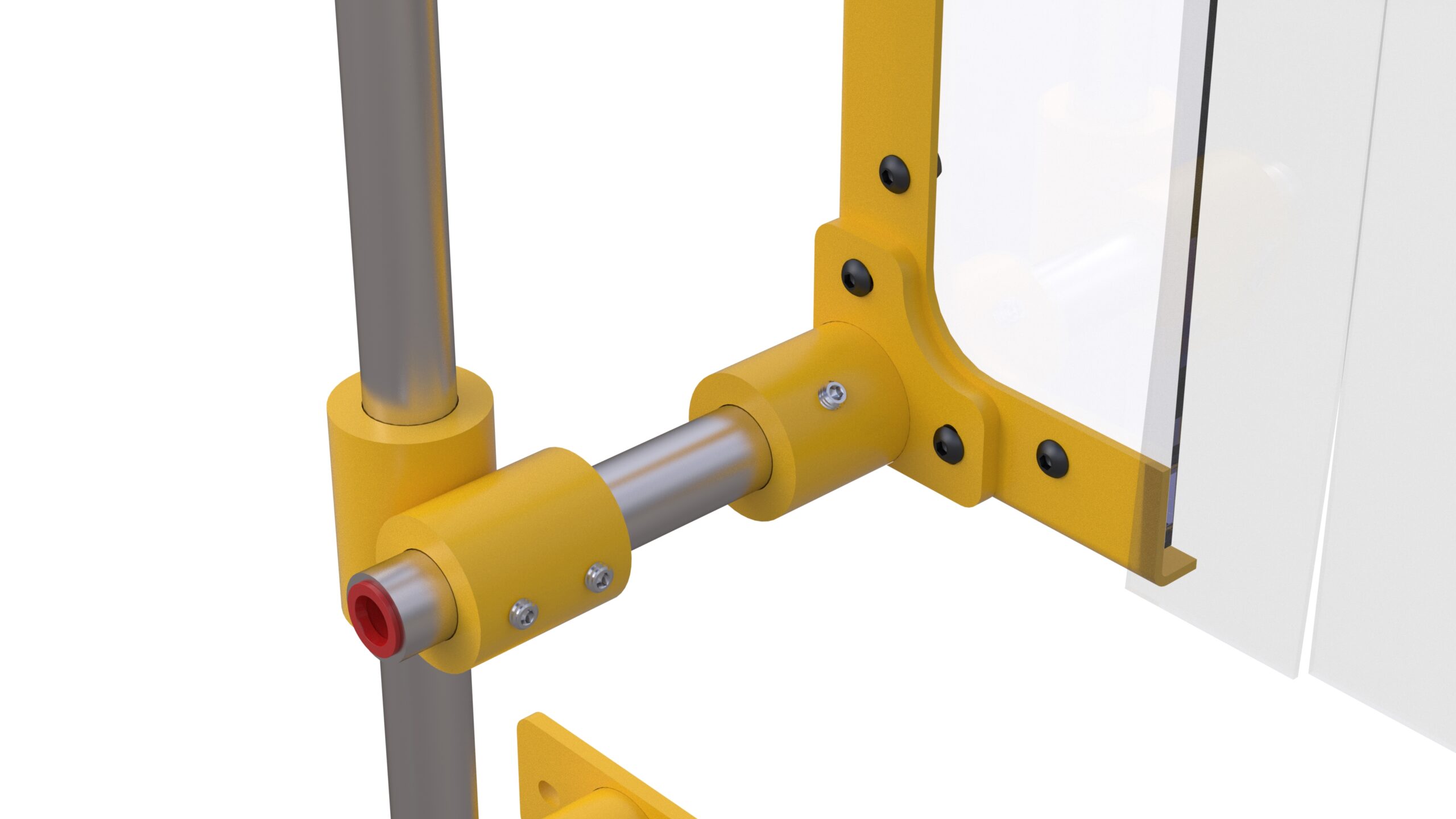

• Adjustable guard design: The upper guide and guard must be adjustable to cover the unused portion of the blade above the stock being cut.
• Drive mechanisms: Belts, pulleys, and gears driving the saw must be enclosed in compliance with OSHA 1910.219 (Mechanical Power-Transmission Apparatus).
• Blade maintenance: Blades must be properly tensioned, tracked, and kept sharp to reduce breakage and vibration hazards.

Specific Guarding Provisions

• The upper wheel must be enclosed by a metal cover or guard that completely surrounds the wheel except for the slot necessary for the blade.
• The lower wheel must be enclosed by a guard that covers the wheel and all blade return paths.
• Where stock is fed manually, the front and sides of the blade must be guarded to prevent accidental contact.
• All band resaws must include a feed roll or blade guard on the infeed side to prevent reach-in hazards.
• Any portion of the blade beneath the table must be enclosed or guarded by the machine frame or a fixed cover.

Common Hazards Controlled

• Blade contact: Operators’ hands or fingers coming into contact with the cutting edge during operation or cleaning.
• Blade breakage: Fragments or snapped blades striking the operator.
• Entanglement: Loose clothing, gloves, or jewelry caught in exposed moving parts.
• Kickback or pull-in: Improper feeding techniques causing stock to be drawn into the blade unexpectedly.
• Dust exposure: Wood dust generated by cutting can contribute to respiratory or fire hazards.

Design and Construction Recommendations

• Use steel or cast-aluminum wheel guards capable of withstanding blade failure forces.
• Equip bandsaws with automatic tension-release mechanisms to extend blade life and prevent overloading.
• Include adjustable blade guides (both upper and lower) to minimize blade deflection.
• Provide dust collection ports integrated into lower wheel housings for safe debris removal.
• Install emergency stop buttons within reach of the operator’s position.

Operation and Maintenance Practices

• Adjust the upper blade guard to cover the blade as close as possible to the top of the workpiece before cutting.
• Inspect blade tracking and tension before each shift or material change.
• Replace cracked, dull, or damaged blades immediately to avoid breakage during operation.
• Clean accumulated sawdust from guards, housings, and wheels regularly to prevent overheating or ignition.
• Train operators on proper hand positioning and feeding techniques to minimize exposure near the blade.

Best Practices for Compliance

• Ensure all wheel housings and drive guards are secured and closed before operating the saw.
• Maintain a machine-specific inspection checklist covering guard condition, blade tension, and alignment.
• Install foot brakes or electronic braking systems to stop the blade quickly after power shutdown.
• Incorporate lockout/tagout procedures for blade changes and maintenance per OSHA 1910.147.
• Post clear signage reminding operators to adjust the guard before each cut.

Why OSHA 1910.213(i) Is Important

OSHA 1910.213(i) provides a comprehensive framework for reducing serious injuries associated with bandsaws and resaws.
These machines present high-speed cutting and continuous blade hazards that demand reliable guarding and operational discipline.
By enforcing full enclosure of wheels, guards over exposed blades, and safe control access, this rule prevents lacerations, amputations, and struck-by incidents—among the most common injuries in woodworking.

Related Standards

• 1910.213(a)(9) — Guarding of belts, pulleys, gears, shafts, and moving parts.
• 1910.219 — Mechanical Power-Transmission Apparatus.
• ANSI O1.1 — Woodworking Machinery Safety Standard.
• NFPA 664 — Standard for the Prevention of Fires and Explosions in Wood Processing Facilities.

FAQ

OSHA 1910.213(i)(1) — Guarding Requirements for Bandsaw Blades and Wheels

OSHA 29 CFR 1910.213(i)(1) establishes detailed guarding and enclosure requirements for bandsaw blades and wheels to protect workers from direct contact, broken blades, and flying debris.
The standard specifies the construction, materials, and positioning of guards to ensure maximum protection while allowing safe and effective cutting operations.

Regulatory Text

“All portions of the saw blade shall be enclosed or guarded, except for the working portion of the blade between the bottom of the guide rolls and the table. Bandsaw wheels shall be fully encased. The outside periphery of the enclosure shall be solid. The front and back of the band wheels shall be either enclosed by solid material or by wire mesh or perforated metal. Such mesh or perforated metal shall be not less than 0.037 inch (U.S. Gage No. 20), and the openings shall be not greater than three-eighths inch. Solid material used for this purpose shall be of an equivalent strength and firmness. The guard for the portion of the blade between the sliding guide and the upper-saw-wheel guard shall protect the saw blade at the front and outer side. This portion of the guard shall be self-adjusting to raise and lower with the guide. The upper-wheel guard shall be made to conform to the travel of the saw on the wheel.”

Purpose and Intent

The goal of OSHA 1910.213(i)(1) is to ensure that all moving parts of a bandsaw’s cutting system are enclosed to prevent accidental contact and protect the operator in the event of a blade failure.
Because bandsaw blades operate at high speeds and can snap or derail, properly designed guards and enclosures are critical for both safety and machine integrity.
This rule defines how the upper and lower wheels, blade sections, and guides must be protected and how those guards should move with the blade during operation.

Key Requirements

• Blade guarding: All portions of the blade must be enclosed or guarded, except the working section between the lower guide rolls and the table.
• Wheel enclosures: Both the upper and lower bandsaw wheels must be completely encased in a solid or reinforced guard.
• Material specifications: Guards made of perforated metal or wire mesh must be at least 0.037 inch thick (U.S. Gauge No. 20) with openings no greater than 3/8 inch.
• Solid equivalent material: Solid guards must provide strength and rigidity equal to or greater than metal mesh construction.
• Self-adjusting upper guard: The guard covering the section of the blade between the sliding guide and upper wheel guard must automatically raise and lower with the guide to minimize exposed blade length.
• Upper wheel guard movement: The upper-wheel guard must conform to the travel of the saw as it moves along the wheel during operation.

Common Hazards Controlled

• Blade contact: Prevents accidental hand or body contact with moving blades.
• Blade breakage: Protects operators from fragments or whipping blades in the event of failure.
• Flying debris: Solid or mesh guards contain wood chips, splinters, and broken metal fragments.
• Entanglement: Prevents clothing, gloves, or hair from being caught in exposed blade sections.
• Kickback or rebound: Proper guarding minimizes material ejection and rebound hazards during cutting.

Guard Construction and Design Recommendations

• Use heavy-gauge steel or cast aluminum guards for wheel enclosures to withstand blade impact forces.
• When using mesh or perforated metal, ensure uniform opening size and thickness to meet OSHA’s strength requirement.
• Ensure guards are securely fastened and cannot be removed or displaced during vibration.
• Install self-adjusting guards that automatically move with the upper guide post for ease of use and consistent safety coverage.
• Position guards so that the blade is exposed only at the cutting point and not along its return path beneath the table.

Inspection and Maintenance Practices

• Inspect all guards and enclosures before each use to verify integrity, attachment, and clearance.
• Replace cracked or bent metal guards immediately.
• Test the self-adjusting guard mechanism to ensure smooth, automatic movement with the guide assembly.
• Check mesh guards for rust, deformation, or hole enlargement beyond the 3/8-inch maximum.
• Verify that the upper-wheel guard fully encloses the blade path through the entire range of motion.

Best Practices for Compliance

• Provide operator training emphasizing adjustment of the upper guide and guard before each cut.
• Implement a machine guarding inspection checklist referencing OSHA 1910.213(i)(1) requirements.
• Use transparent polycarbonate panels (if impact-rated) to improve visibility while maintaining compliance strength.
• Integrate interlock switches that prevent operation if wheel covers are open or removed.
• Include guard condition checks in your preventive maintenance program.

Why OSHA 1910.213(i)(1) Is Important

OSHA 1910.213(i)(1) addresses one of the most severe hazards in woodworking—exposure to high-speed band saw blades.
By requiring complete enclosure of the blade and wheel assemblies with properly rated materials, this regulation ensures that both operators and nearby personnel are protected from contact injuries, blade ejection, and debris impact.
The requirement for self-adjusting guards ensures safety remains consistent during variable cutting operations, making this rule central to the safe operation of any bandsaw or band resaw.

FAQ

B11.10 — Metal Sawing Machines

The B11.10 standard (titled “Safety Requirements for Metal Sawing Machines”) is part of the ANSI B11 machine‐safety series and applies to a general class of stationary metal-sawing machine tools—including ones using circular blades, band saws, hacksaws and related feed mechanisms. :contentReference[oaicite:0]{index=0}
It covers the full machine lifecycle: design, construction, installation, operation, maintenance, modification, dismantling, transport, and ancillary systems such as part-handling and chip removal. :contentReference[oaicite:1]{index=1}

Scope & Exclusions

The standard’s scope includes stationary machines in which a saw blade is used to cut off or otherwise shape a workpiece. Machines covered include circular saws, band saws, hacksaw machines, and machines with automated feed or handling systems. :contentReference[oaicite:2]{index=2}
However, B11.10 explicitly *excludes*: woodworking sawing machines; stone‐cutting sawing machines; food-processing sawing machines; abrasive-sawing machines; and portable hand-held saws. :contentReference[oaicite:3]{index=3}

Key Safety Topics Addressed

• Risk assessment & machine lifecycle responsibilities: The standard emphasizes supplier, integrator and user roles when assessing hazards, specifying controls and maintaining machines. :contentReference[oaicite:4]{index=4}
• Guarding of saw blades: Requirements for proper enclosure of the cutting zone, feed mechanisms, and saw blade peripheries to protect operators from contact, kickback, and flying debris.
• Machine modification and retrofitting: Specifies that any modifications or conversions must not worsen safety performance, and proper safeguarding must be in place post-modification.
• Ancillary systems inclusion: The standard covers part-handling, chip removal, stock feed, and other integrated systems to ensure the entire machine setup meets the safety principles. :contentReference[oaicite:5]{index=5}
• Installation, commissioning, operation & maintenance: From initial installation through dismantling and transport, safety requirements apply throughout the equipment’s lifecycle.

Why It Matters

Metal-sawing machines present significant hazards—blade contact, kickback, entanglement, flying chips or fragments, and machine component failures.
B11.10 offers a structured framework for safeguarding these machines through design and operational controls, helping manufacturers, employers and safety professionals reduce risk and align with recognized good engineering practice.
The standard also supports regulatory compliance, as authorities such as Occupational Safety and Health Administration (OSHA) reference the B11 series for technical guidance. :contentReference[oaicite:7]{index=7}

Practical Implementation Tips

• When purchasing or retrofitting a metal sawing machine, ensure that blade guarding, feed‐mechanism covers, and stock-infeed/outfeed areas comply with B11.10 criteria.
• Use the machine’s documentation to confirm that any part-handling, chip removal or automation systems are included under the B11.10 “ancillary devices” provisions.
• Train operators and maintenance staff on the machine lifecycle obligations: from installation and commissioning through maintenance, modification and, eventually, dismantling.
• Conduct a task‐based risk assessment for the machine, referencing B11.10 in conjunction with your organization’s risk-reduction program and the broader B11.0/B11.19 standards.
• Maintain documentation proving that any modifications or conversions did not degrade safety performance and that safeguards remain effective as per B11.10 criteria.
