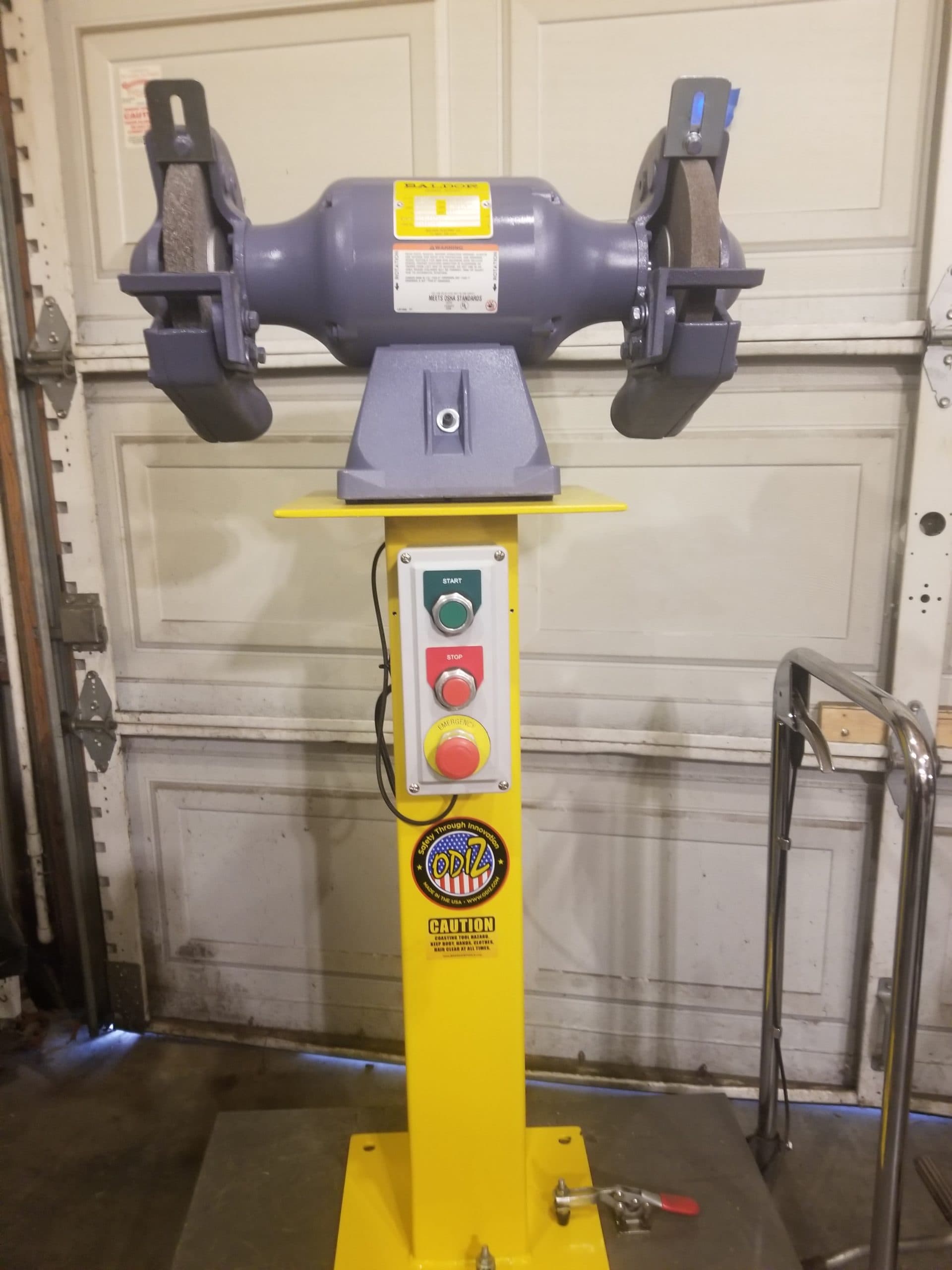

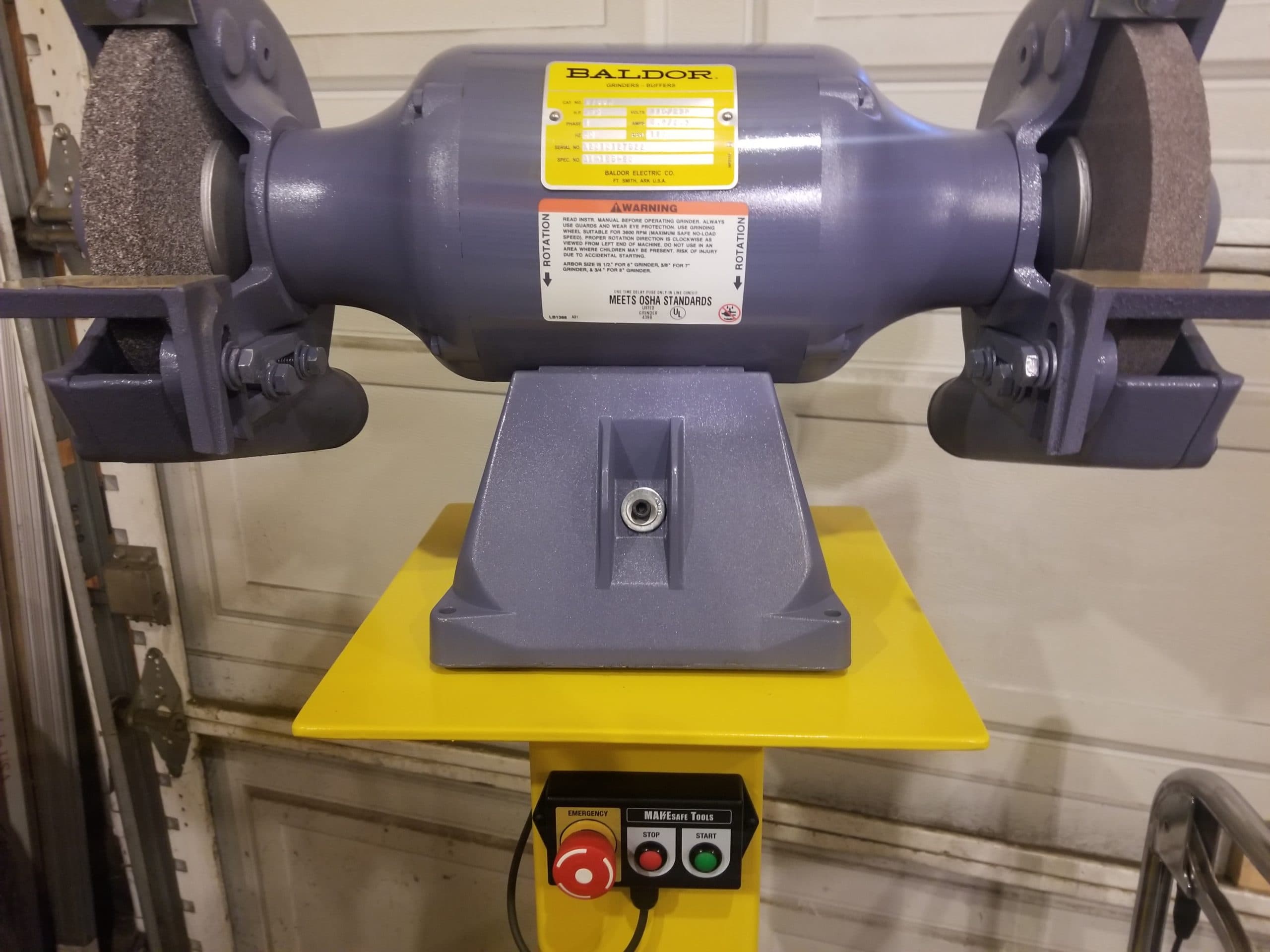

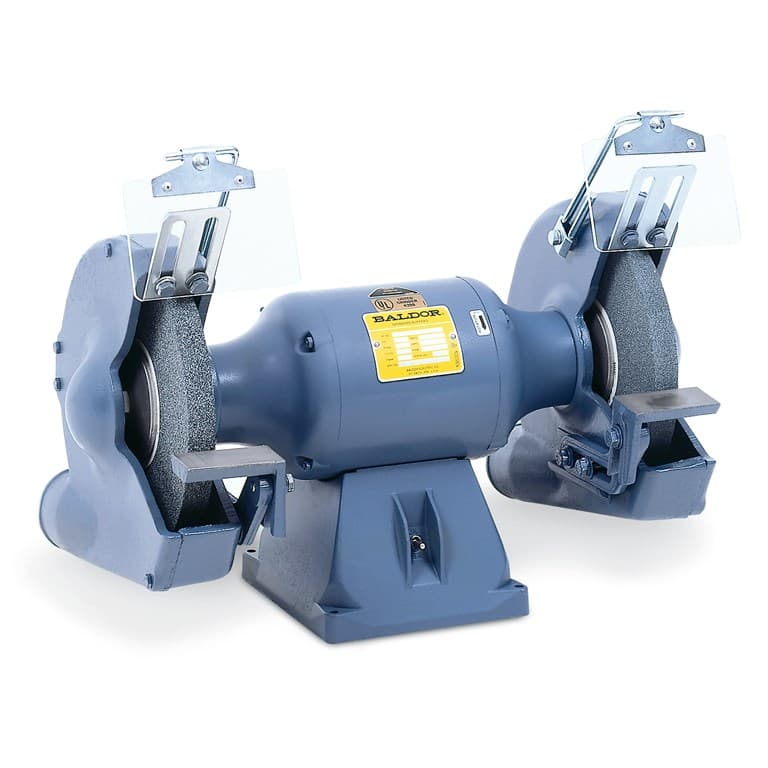

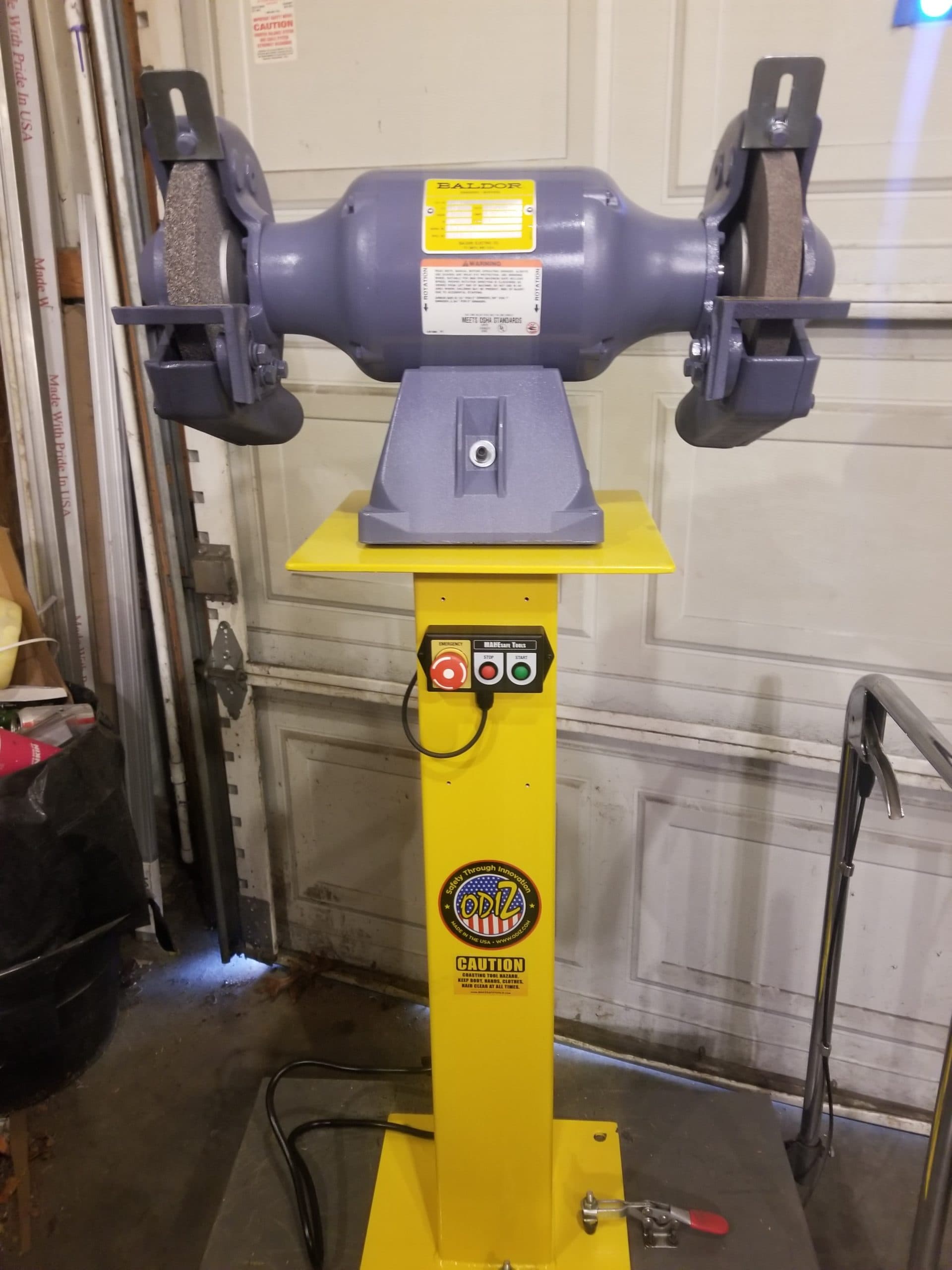

This turnkey system is a fully integrated and ready-to-go bench grinder with OSHA-required guards, an industrial tool pedestal, and the MAKESafe Power Tool Brake already installed. Just uncrate it and it’s ready to go with motor braking, accidental restart protection, and emergency stop.
Options
Not sure where to start? Reach out to our team to learn more.
Product Details:

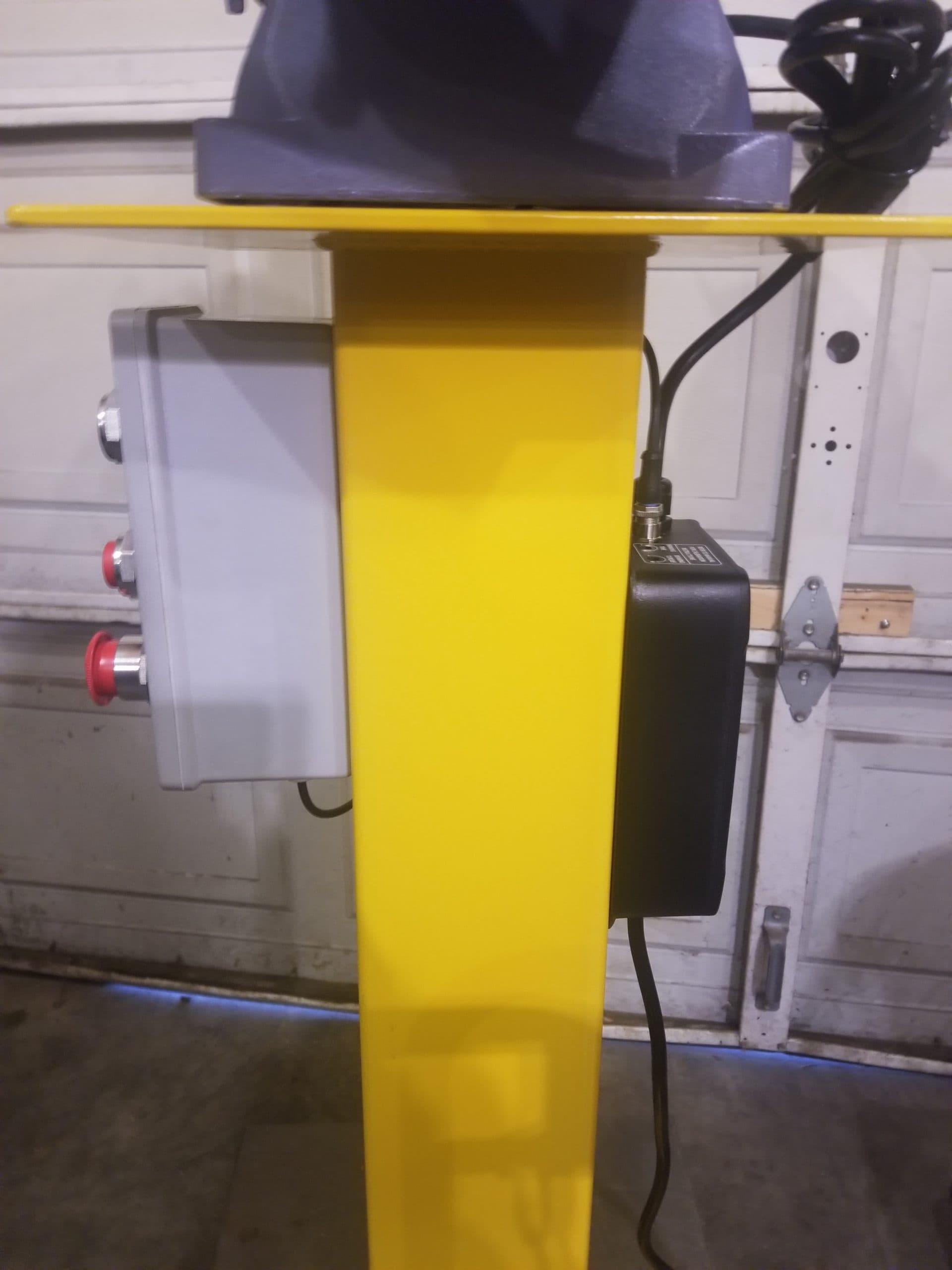

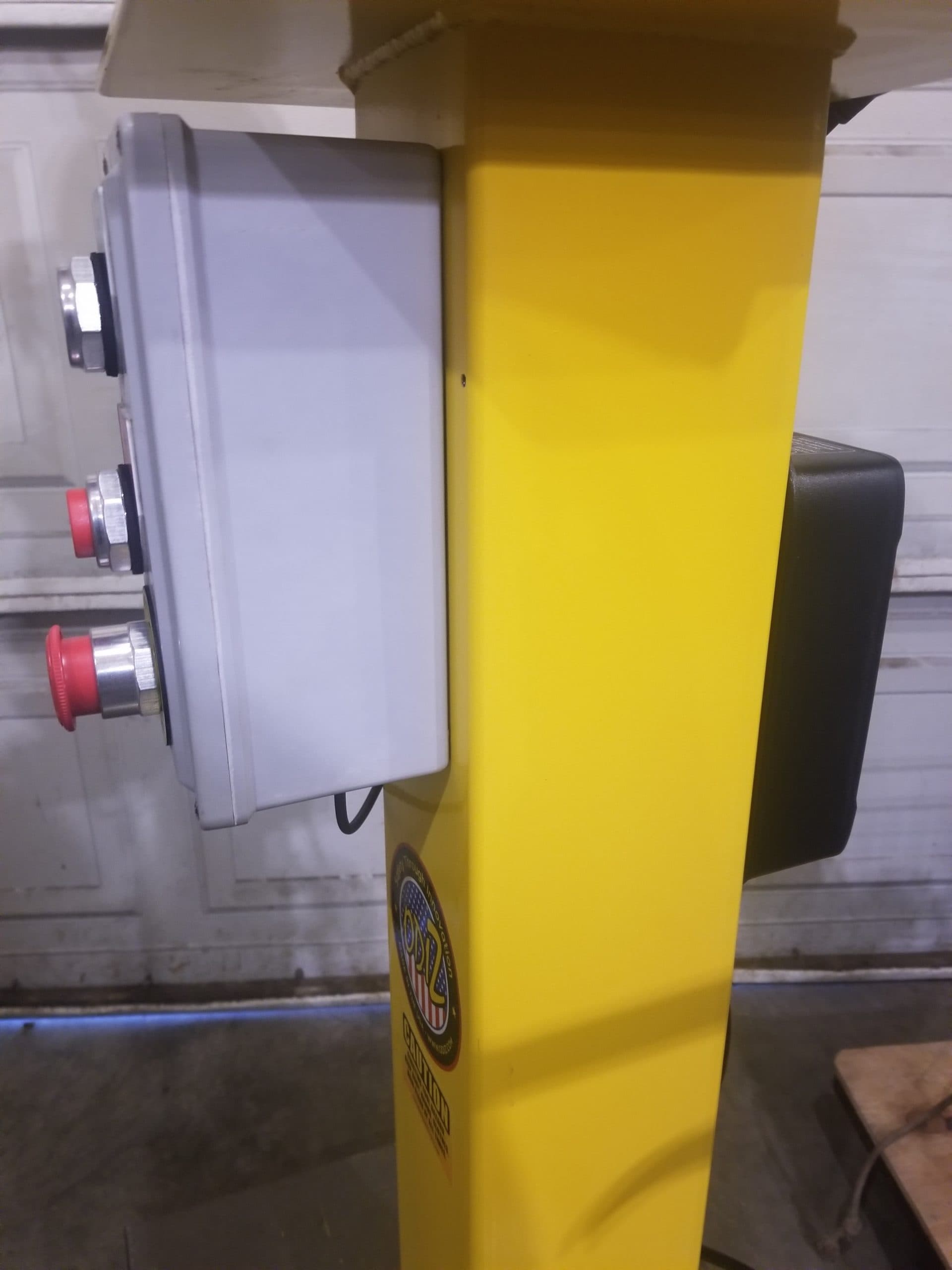

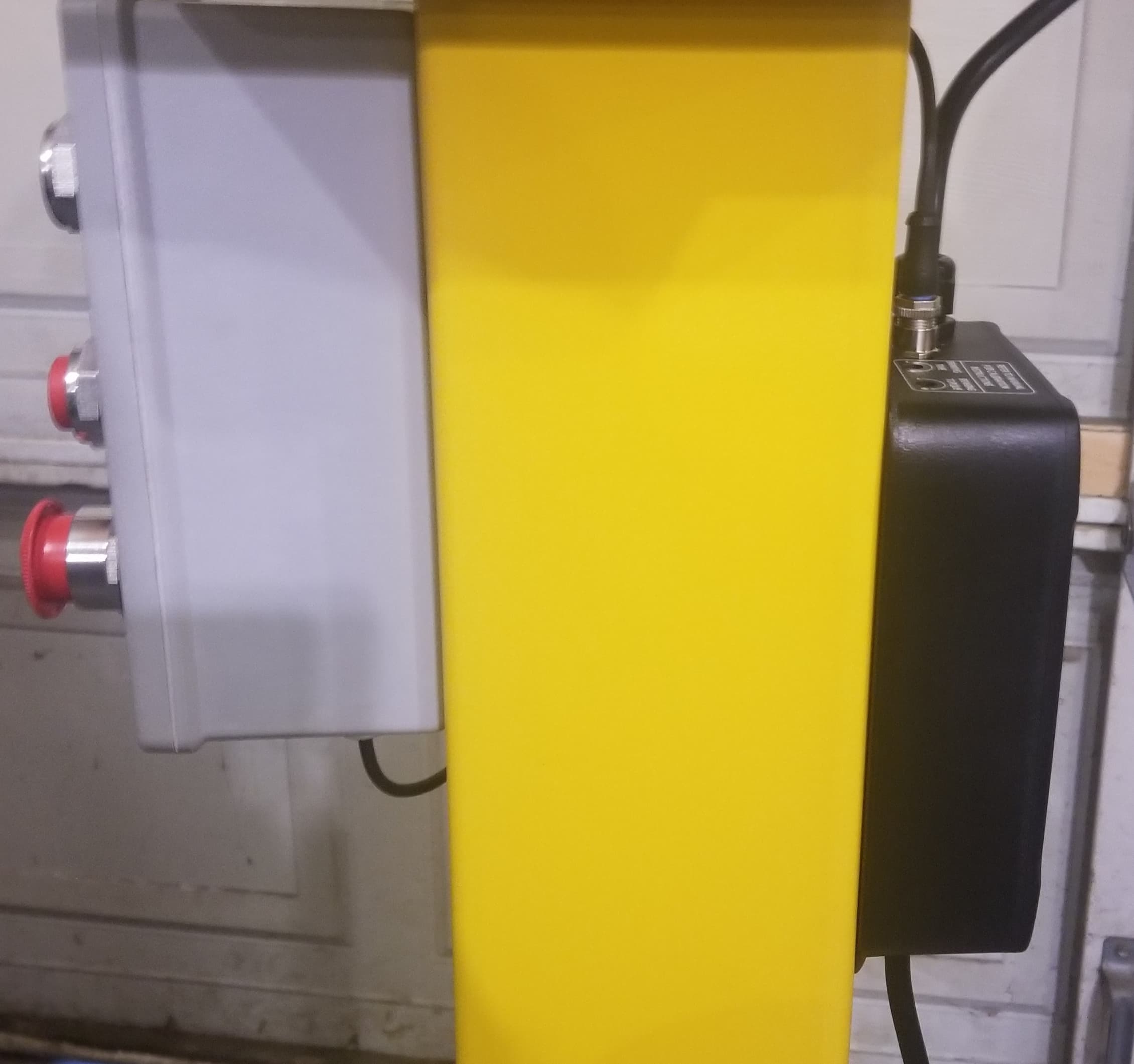

Stand:
Stand is powdercoated Yellow
12"x12"x 1/4" top and bottom plates; bottom plates are drilled for floor anchoring
support is 11 gauge 5"x5" steel tubing.
This one device provides three distinct safety features that help to prevent injuries and avoid OSHA citations. These features are:
This standard product configuration includes everything you need to protect industrial machines like bench grinders, band saws, disc sanders, surface grinders, lathes, and other industrial equipment. If you questions about compatibility, please review the compatibility guide in the specifications section or contact us. If you need an alternate configuration, please check out our custom configuration page or contact us directly.
Each standard package includes:

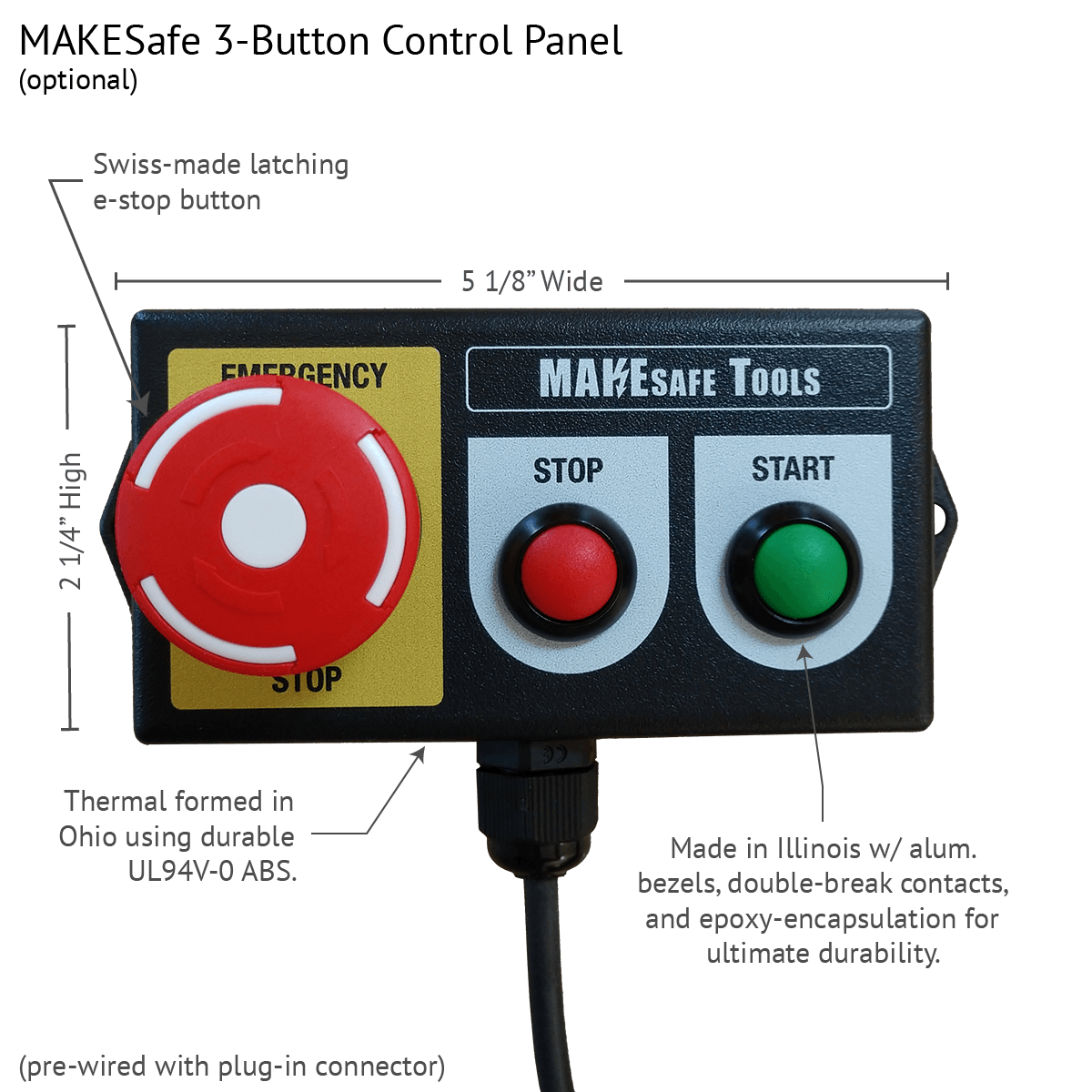

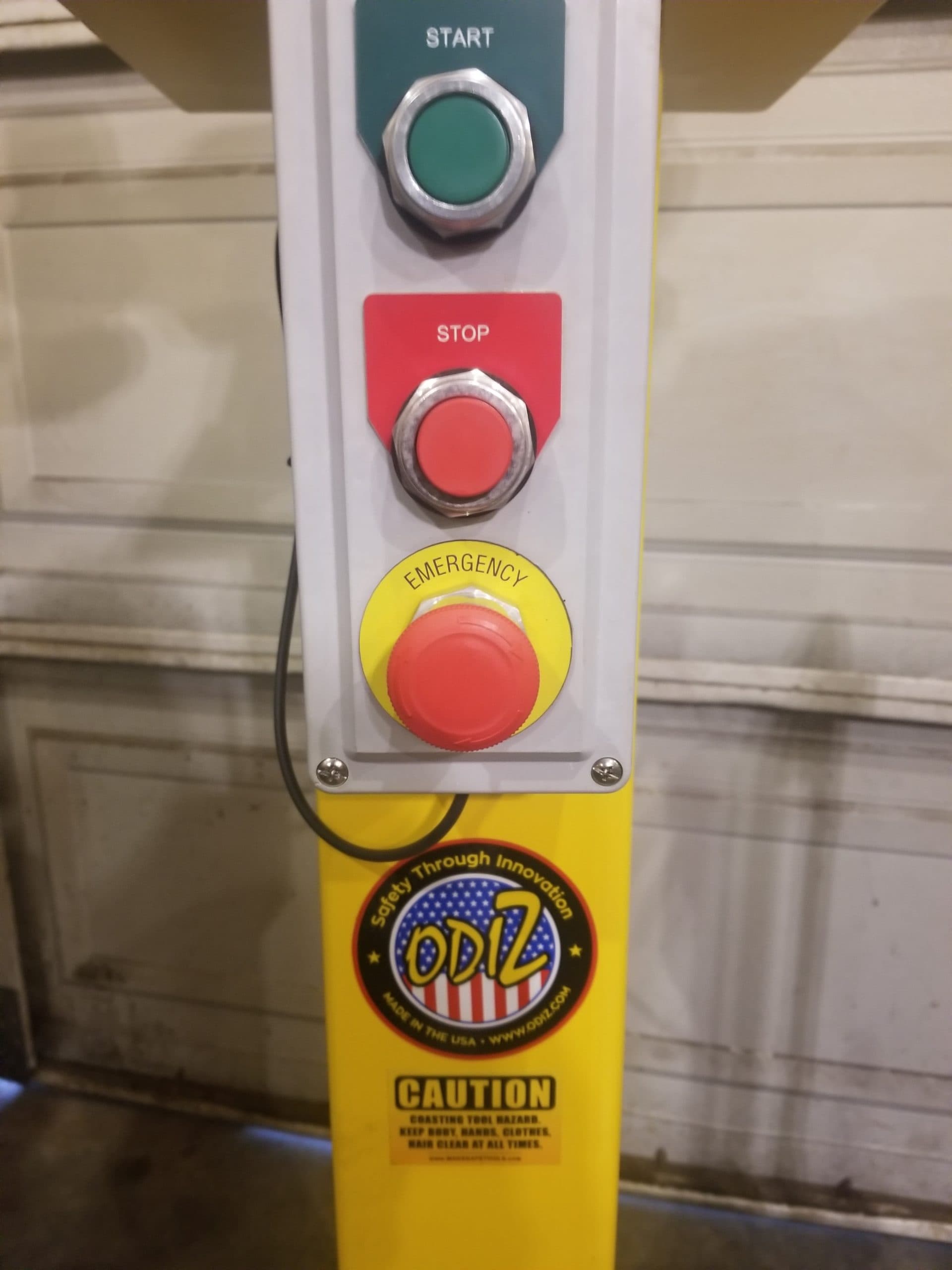

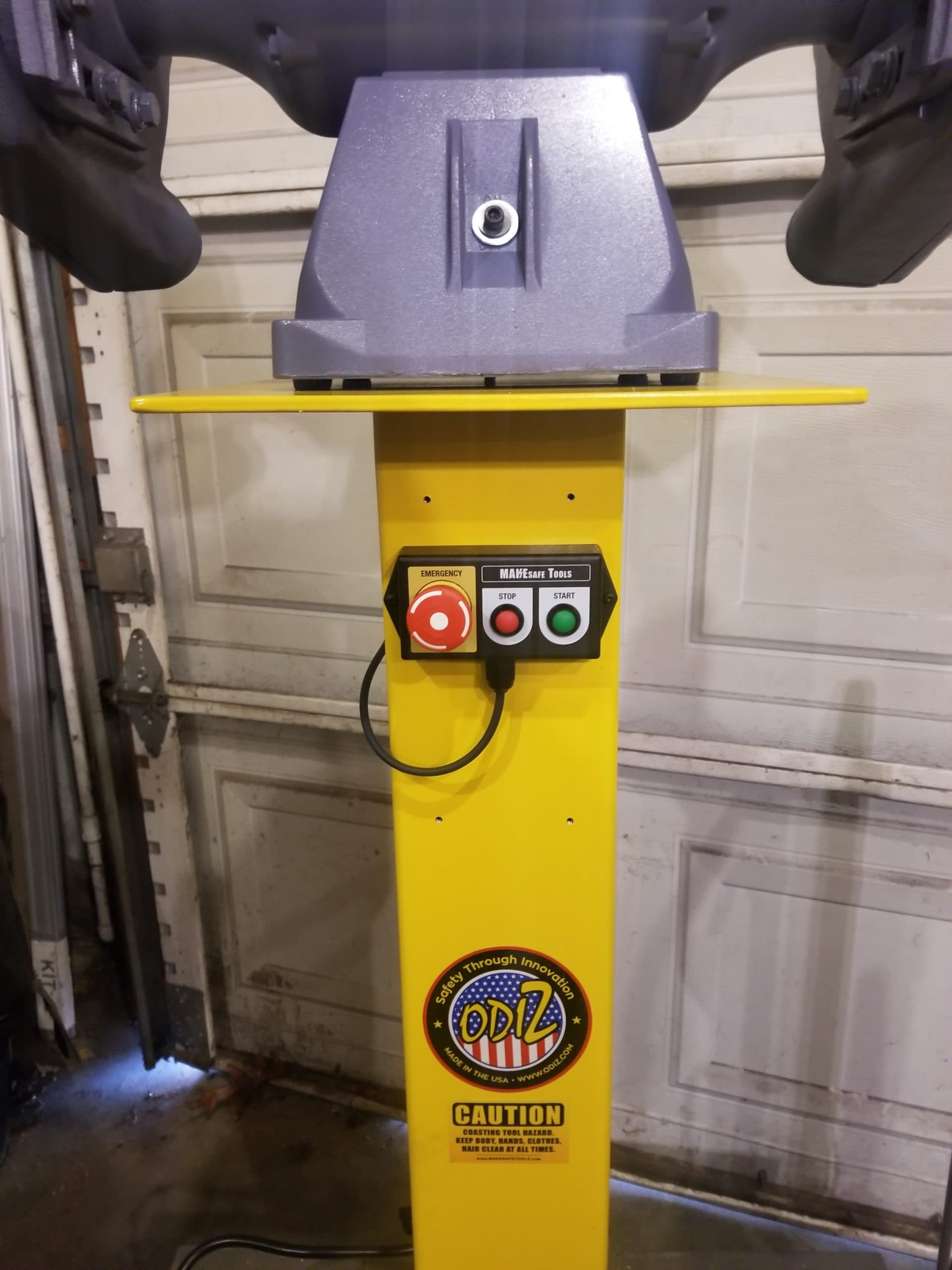

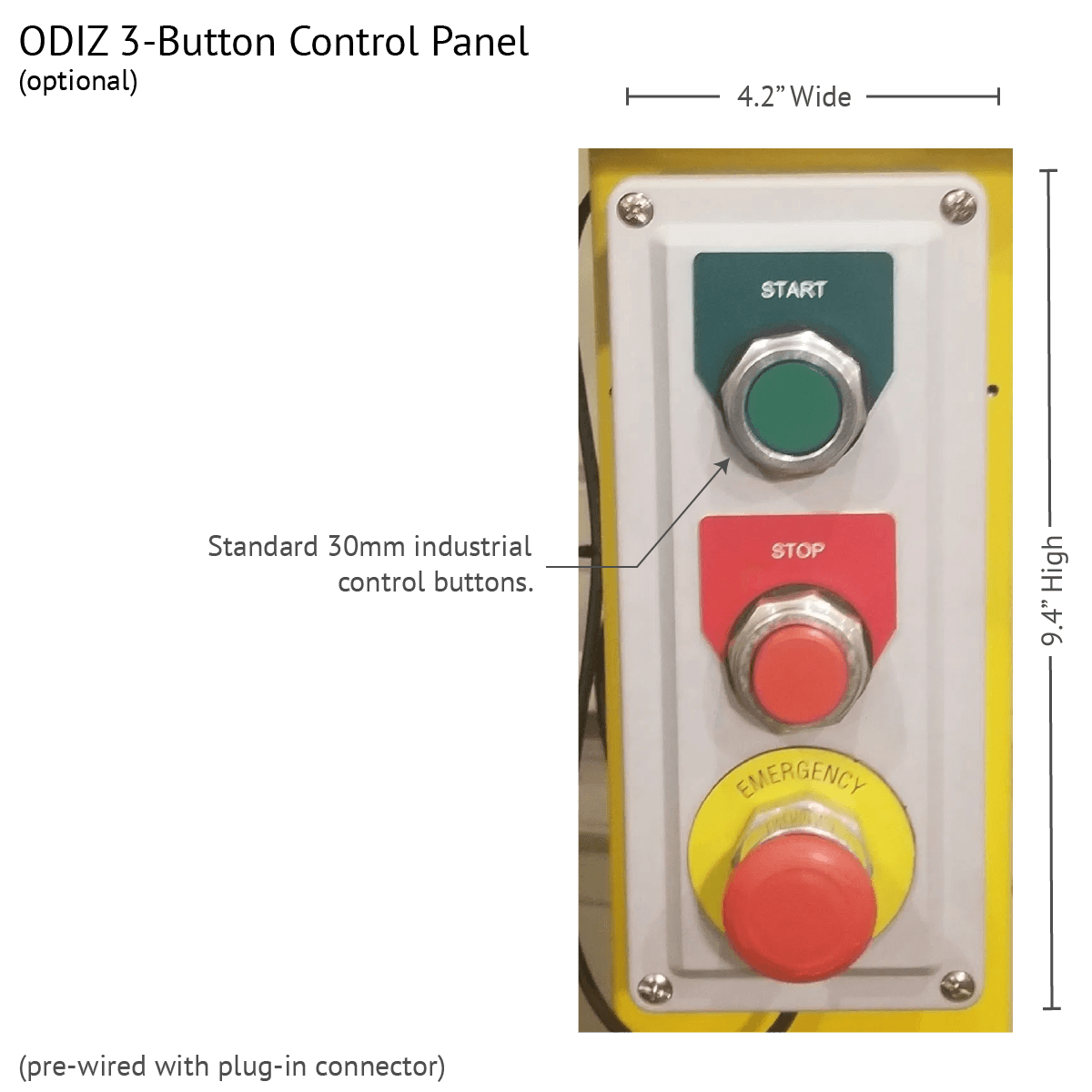

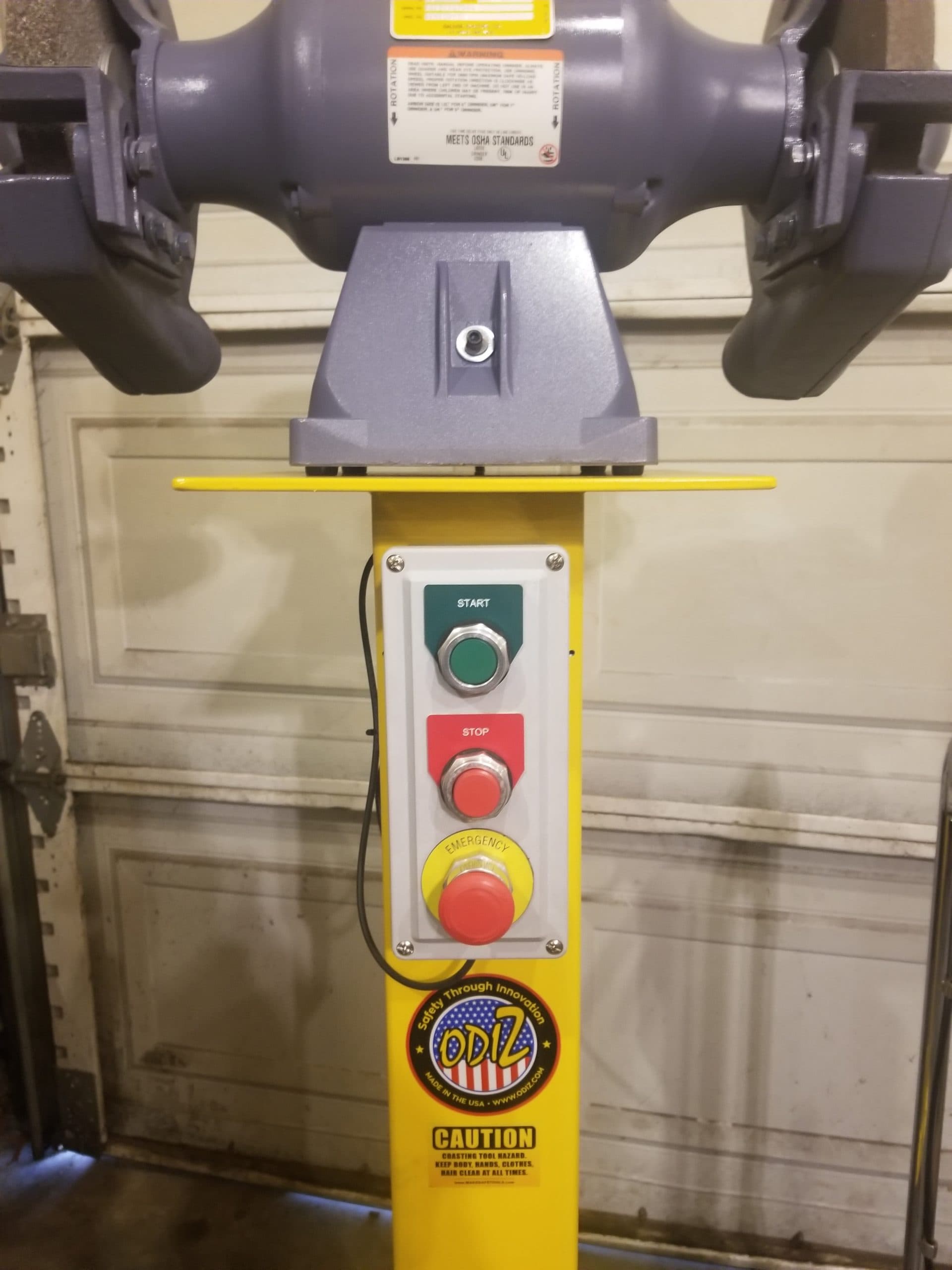

The compact control panels are made of durable ABS plastic and maintains a UL94 V-0 rating. The start and stop buttons are custom manufactured by OTTO Controls in Illinois and are designed for long-term durability with solid aluminum bezels, a no-slip surface finish, and a strong tactile response. The latching emergency-stop button is Swiss-manufactured by EAO. The entire control panel is water, dust, and oil resistant and rated for millions of on/off cycles.
The control panel connects easily to the power tool brake via an industrial M12 twist connector. The 5 ft (1.5m) cable extension and dual mounting flanges allows the control panel to be mounted easily in a convenient location.

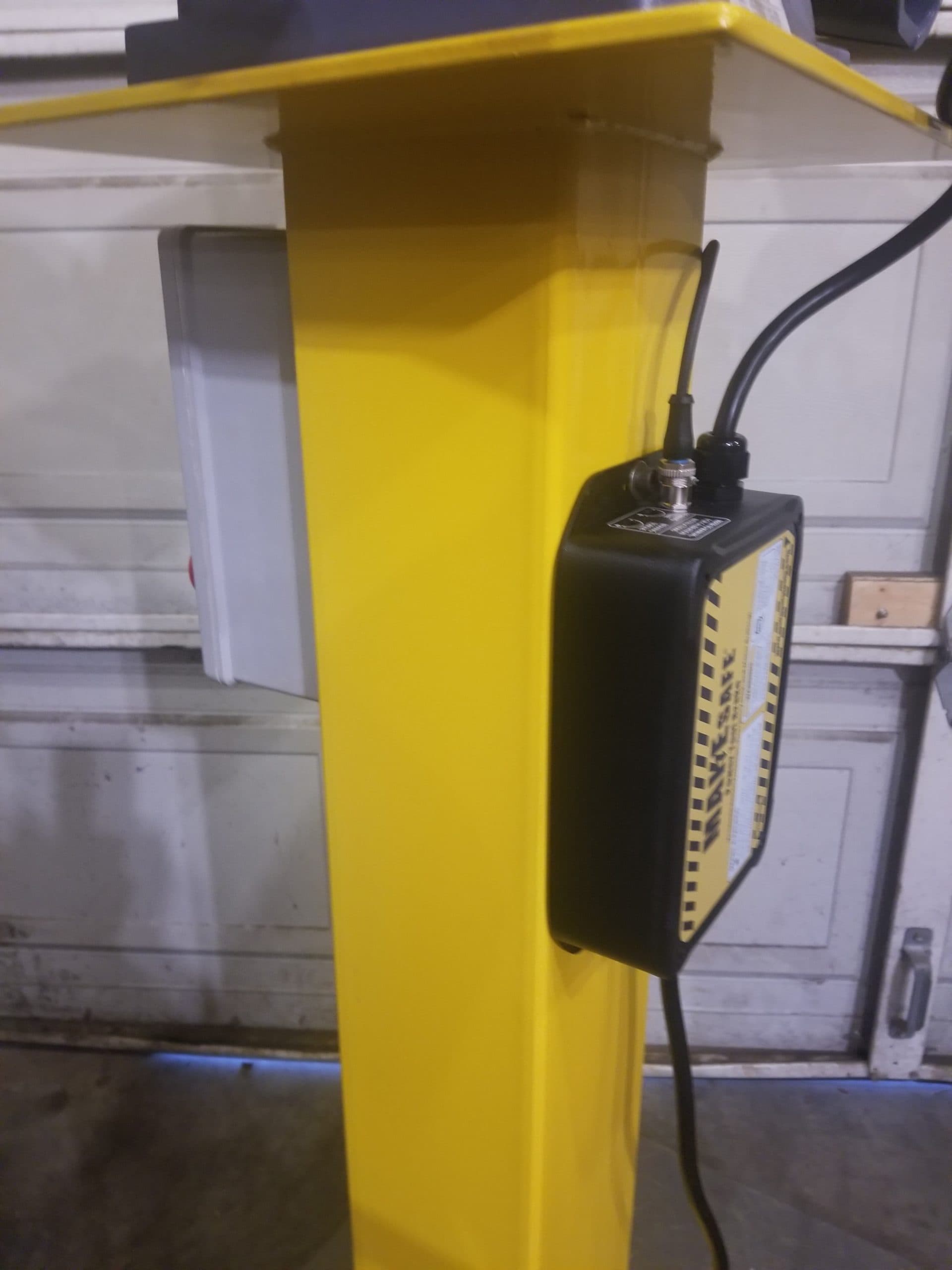

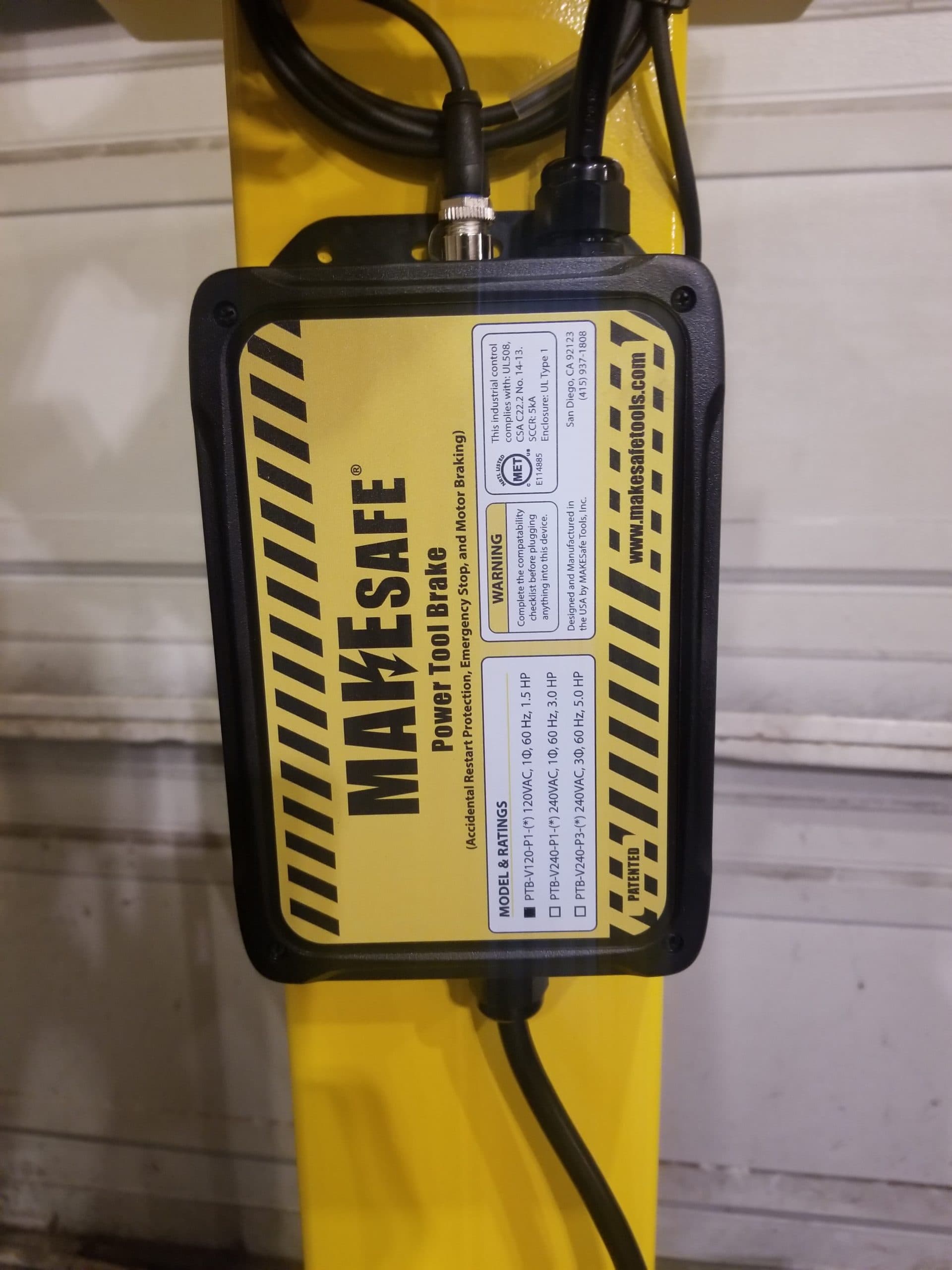

The Power Tool Brake is constructed of durable ABS plastic and maintains a UL94 V-0 rating. With a 5′ (1.5m) power extension and dual mounting flanges, it is designed to be easily mounted in an out-of-the-way location. Basic calibration can be achieved via two access holes in the side of the enclosure and rubber plugs are included to seal these holes once installation is complete.
Installation takes less than five minutes for most customers and includes the following steps:
Detailed instructions are available in the product manual.
Our products are also offered with multiple configuration options and accessories, including:

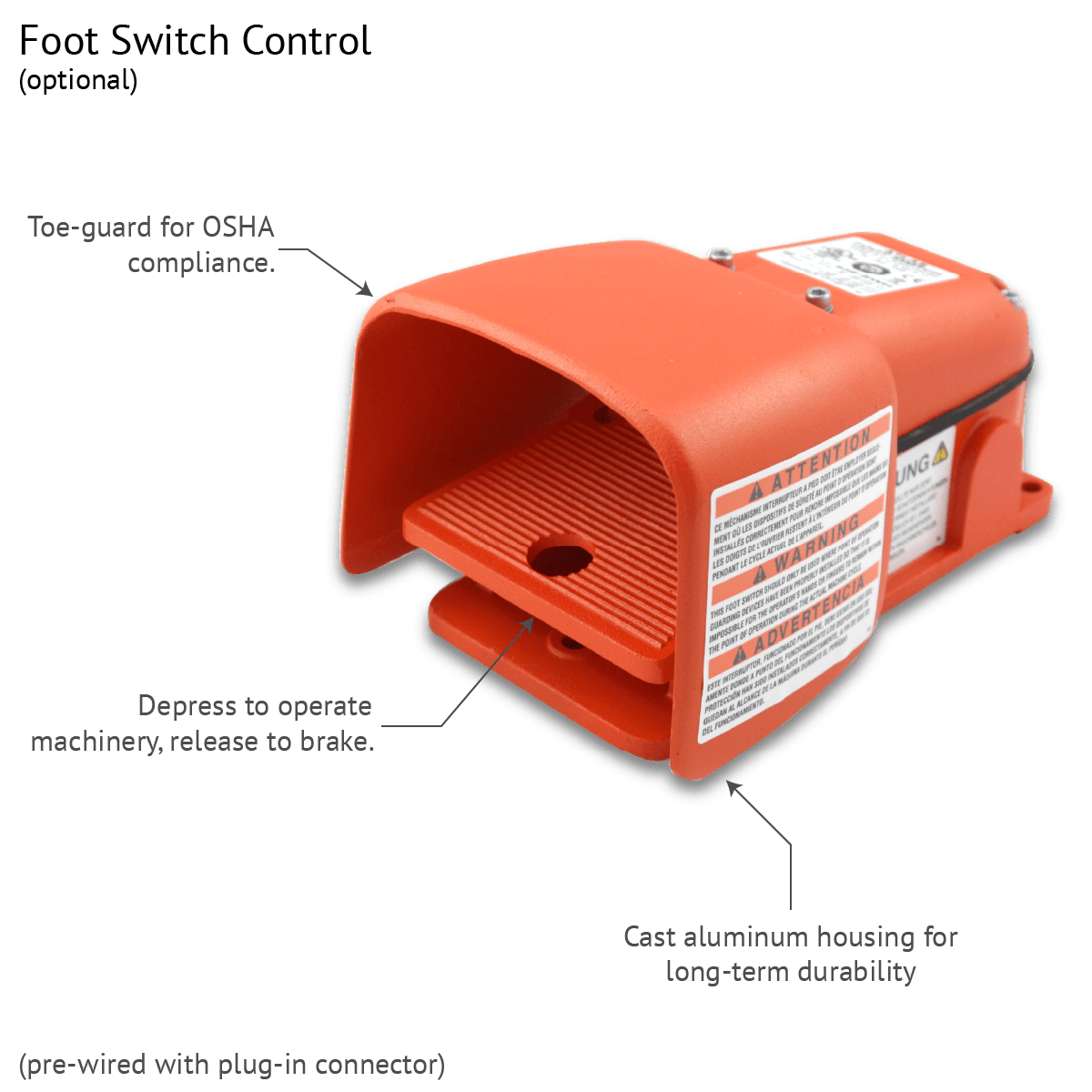

Control Accessories: foot switches, additional e-stop buttons, guard interlocks, attachments for automation
Frequency: products can also be configured for 50hz operation
Plugs: products can be fitted at the factory with any plug type you require
OSHA 1910.212 sets the general requirements for machine guarding, covering moving parts, points of operation, in-running nip points, and flying debris. It applies to all machines to protect workers from injury caused by hazardous motion and contact.
OSHA 1910.212(a) establishes the general machine guarding requirements that protect employees from points of operation, moving parts, in-running nip points, and flying debris. It forms the foundation for all other machine guarding rules.
OSHA 1910.212(a)(1) requires that one or more methods of machine guarding be provided to protect operators and nearby employees from rotating parts, flying chips, sparks, and other mechanical hazards. It defines the core duty to guard all dangerous machine motions.
OSHA 1910.212(a)(2) defines the construction and design requirements for machine guards, ensuring they are strong, secure, and effective in protecting workers from mechanical hazards without introducing new risks.
OSHA 1910.215 sets forth comprehensive safety requirements for abrasive wheel machinery, including grinders, buffers, and cutoff machines. It mandates proper wheel guarding, tool rest adjustment, ring testing, and maintenance to prevent wheel breakage and operator injury.
OSHA 1910.215(a)(1) mandates that abrasive wheels be used only on machines equipped with properly designed safety guards. These guards must meet the requirements of this section, with limited exceptions for specific tools such as certain mounted or internal wheels.
OSHA 1910.215(a)(1)(i) provides an exception to the machine guarding rule for abrasive wheels used for internal grinding operations performed within the workpiece, where standard external wheel guards are not feasible or necessary.
OSHA 1910.215(a)(1)(ii) provides an exception to the abrasive wheel guarding requirement for mounted wheels 2 inches or smaller in diameter when used in portable operations, recognizing their low mass and limited hazard potential compared to larger wheels.
OSHA 1910.215(a)(1)(iii) provides a guarding exception for specific abrasive wheel types—cones, plugs, and threaded hole pot balls (Types 16, 17, 18, 18R, and 19)—when the workpiece itself provides adequate protection against wheel contact and debris.
ANSI B11 is a suite of machine safety standards governing the design, guarding, risk assessment, and safeguarding of industrial machinery. It supports detailed safety criteria for compliance with OSHA’s machine guarding rules.
ANSI B11.0 outlines the foundational requirements for machinery safety, including terminology, risk assessment, and risk reduction principles. It serves as the broad “Type A” standard that supports machine-specific standards in the B11 series such as B11.19 and B11.C-type documents.
B11.9 defines safety requirements for stationary grinding machines—covering machine design, guarding, control functions, operator access, and lifecycle responsibilities to reduce risk of injury from grinding operations.
