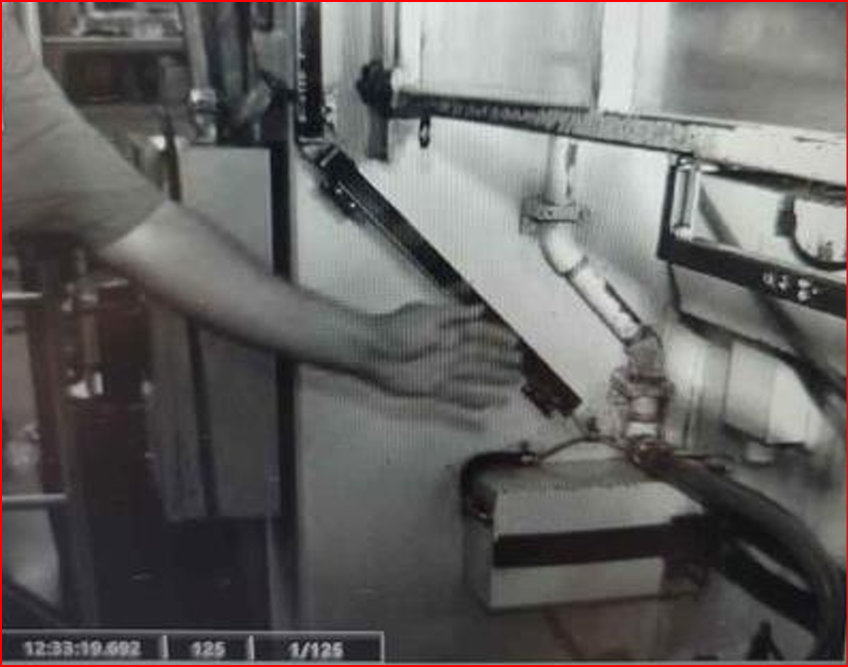

Machine Stop Measurement and Safety Device Validation

OSHA 1910.212(a)(3) — Point of Operation Guarding

OSHA 29 CFR 1910.212(a)(3) sets forth the point of operation guarding requirements for machinery used in general industry.
The “point of operation” is the area on a machine where work is performed—such as cutting, shaping, boring, forming, or assembling a part.
This section requires that each machine have a guard or safeguarding device that prevents the operator from having any part of the body in the danger zone during operation.

Purpose and Scope

The purpose of 1910.212(a)(3) is to eliminate exposure to moving tools or dies that can cause crushing, amputation, laceration, or puncture injuries.
It applies to all machines with a point of operation hazard, regardless of size or industry.
Typical examples include presses, saws, milling machines, lathes, shears, and drills.

Key Requirements

• Every machine must be equipped with a guard that prevents the operator from reaching into the danger zone.
• Guards must be designed and constructed to provide maximum protection while allowing the machine to be operated safely and efficiently.
• Special hand tools may be used to handle materials when guarding at the point of operation is not practical.
• Guards must be securely fastened, maintained in place, and not easily removed or bypassed during operation.
• Safeguarding devices such as light curtains, presence-sensing devices, or two-hand controls may be used if they provide equivalent protection.

Examples of Point of Operation Hazards

• Cutting blades or rotating cutters that can amputate or lacerate fingers.
• Press dies or molds that can crush hands or fingers during operation.
• Drill bits, boring tools, or milling heads that can pierce or entangle body parts.
• Shearing or punching points that can sever material—and body parts—with the same force.

Acceptable Guarding Methods

• Fixed barrier guards enclosing the point of operation.
• Interlocked guards that stop machine motion when opened or removed.
• Adjustable or self-adjusting guards that move automatically to block access as material is fed.
• Two-hand controls requiring both hands to activate the cycle, keeping them out of danger.
• Electronic presence-sensing devices such as light curtains or safety mats that halt motion when triggered.

Common Violations

• Operating a machine with missing or disabled point of operation guards.
• Using hand-feeding where fixed or adjustable guards should be installed.
• Removing guards to increase production speed.
• Failure to provide safeguarding when machine design allows operator access to hazardous movement.

Compliance Tips

• Identify all machine points of operation and assess potential contact hazards.
• Install fixed guards where feasible; use engineered safety devices when full enclosure is not possible.
• Inspect all guards before each shift and re-secure after adjustments or maintenance.
• Train operators to recognize guarding deficiencies and to report missing or damaged safety devices immediately.

Why OSHA 1910.212(a)(3) Is Important

Point of operation injuries are among the most severe and preventable workplace incidents.
By enforcing 1910.212(a)(3), OSHA ensures that all machines have reliable guarding or safety devices that keep operators’ hands, fingers, and bodies outside the danger zone during work.
This rule remains one of the most frequently cited machine safety violations nationwide.

FAQ

OSHA 1910.212(a)(3)(iii) — Guard Design for Operator Safety

OSHA 29 CFR 1910.212(a)(3)(iii) establishes the performance criteria for guard design and construction.
It requires that every machine guard be designed, built, and installed so that it effectively protects the operator from injury during machine operation.
This provision emphasizes that guard design must be functional, durable, and capable of providing full protection throughout the equipment’s use.

Purpose and Intent

The intent of 1910.212(a)(3)(iii) is to ensure that guarding effectiveness is not compromised by poor design or materials.
Even when a machine has guards, operators can still be injured if those guards fail under stress, vibration, or improper installation.
OSHA requires that guards maintain their protective function under all normal operating conditions.

Key Design Requirements

• Strength and Durability: Guards must resist impact, vibration, and deformation caused by routine use and environmental conditions.
• Secure Mounting: Guards must be firmly attached and cannot be easily removed, bypassed, or displaced during normal operation.
• Ergonomic Function: Guards should be designed to allow normal operation and maintenance without creating awkward or unsafe postures.
• Visibility: When feasible, guards should permit observation of the operation to ensure quality and alignment without removal.
• No New Hazards: Guard edges and surfaces must be smooth, free from sharp corners, and designed not to introduce new pinch points or catch hazards.

Acceptable Guarding Examples

• Fixed metal guards enclosing belts, pulleys, and gears.
• Transparent guards made of high-strength polycarbonate for visibility and impact resistance.
• Interlocked access doors that automatically shut off the machine when opened.
• Barrier guards preventing reach into moving parts while allowing visual monitoring.

Common Compliance Issues

• Guards that loosen or vibrate during machine operation, reducing protection.
• Materials that crack, warp, or deteriorate under heat or chemical exposure.
• Improperly designed openings that allow finger or hand access to moving parts.
• Guards that must be removed to complete normal adjustments or feeding.

Best Practices for Compliance

• Select guard materials suitable for the specific machine environment (e.g., metal for impact resistance, polycarbonate for visibility).
• Incorporate secure mounting brackets and fasteners that prevent accidental removal.
• Follow design guidelines for minimum safe distances between guard openings and hazard zones.
• Inspect and test guards periodically for wear, looseness, and stability under normal vibration and operation.
• Document guard designs, materials, and inspections as part of your facility’s machine safety program.

Why OSHA 1910.212(a)(3)(iii) Is Important

Even the best guarding concepts fail if the physical construction is inadequate.
OSHA 1910.212(a)(3)(iii) ensures that all guards are engineered for real-world performance, protecting operators and maintenance personnel from the severe hazards of rotating, cutting, or crushing machinery.
By emphasizing design integrity, this section reinforces the need for reliable, tested, and properly installed guarding systems that remain effective throughout the life of the equipment.

FAQ

OSHA 1910.212(a)(3)(iv) — Machines That Usually Require Point-of-Operation Guarding

OSHA 29 CFR 1910.212(a)(3)(iv) provides a representative list of machines that usually require point-of-operation guarding because their normal operation exposes employees to cutting, crushing, shearing, or amputation hazards at the point where work is performed on the material. This list helps employers quickly identify equipment where a guard or safeguarding device is typically necessary to prevent hand, finger, or body entry into danger zones.

Machines Typically Requiring Point-of-Operation Guards

• Guillotine cutters
• Shears
• Alligator shears
• Power presses
• Milling machines
• Power saws
• Jointers
• Portable power tools
• Forming rolls and calenders

These examples are drawn directly from OSHA’s regulatory text and are not exhaustive; any machine that exposes an employee to injury at the point of operation must be guarded. :contentReference[oaicite:0]{index=0}

What “Usually Requires” Means

The phrase “usually require” signals that, in typical use, these machines present recognized hazards at the point of operation. Employers must evaluate the actual setup and task. If exposure exists, the machine must have effective guarding or safeguarding devices that prevent entry into the danger zone during operation.

Guarding Outcomes to Achieve

• Physical separation: A fixed, adjustable, or interlocked guard prevents hand or finger access to the tool or die during the cycle.
• Maintained protection: Guarding remains secure and effective during vibration, normal wear, and routine adjustments.
• No new hazards: The guard’s construction does not introduce sharp edges, additional pinch points, or visibility issues that compromise safety.

Implementation Tips

• Perform a documented hazard assessment for each machine and task to confirm point-of-operation exposure.
• Use fixed guards where feasible; supplement with interlocks, two-hand controls, presence-sensing devices, or special hand tools only as appropriate.
• Verify guard opening sizes and safety distances so that fingers or hands cannot reach the hazard during operation.
• Inspect guards at startup and after any adjustment or maintenance; remove machines from service if guards are missing or ineffective.
• Train operators to recognize point-of-operation hazards and to never bypass or remove guarding.

FAQ

OSHA 1910.212(a)(3)(iv)(d) — Power Presses

OSHA 29 CFR 1910.212(a)(3)(iv)(d) lists power presses among the machines that usually require point-of-operation guarding.
Power presses—whether mechanical, hydraulic, or pneumatic—use high force and rapid motion to punch, form, or shape metal and other materials.
Because the operator often works close to the die area, these machines present one of the highest risks of amputation, crushing, and pinch-point injuries in manufacturing.

Understanding the Hazard

The point of operation on a power press is where the upper die or ram descends to meet the lower die or workpiece.
Any body part entering this zone during cycling can be instantly crushed or severed.
OSHA requires employers to use physical guards or safeguarding devices that eliminate the possibility of hand or finger entry while the press is in motion.

Primary Safeguarding Methods for Power Presses

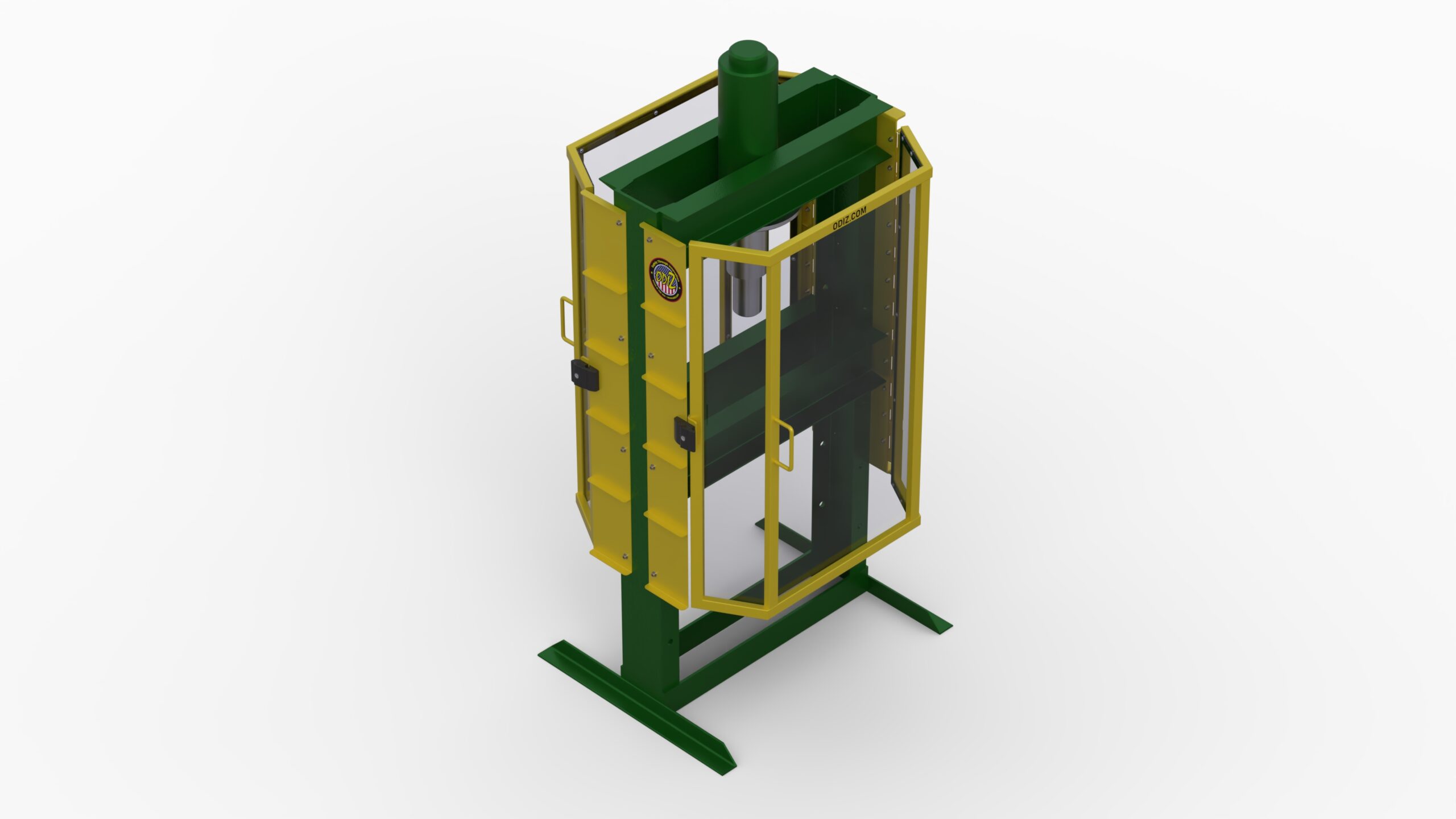

• Fixed barrier guards: Enclose the die area with openings too small for hand or finger access.
• Adjustable barrier guards: Allow different stock sizes while maintaining full coverage of the hazard zone.
• Interlocked barrier guards: Prevent press cycling unless the guard is closed; opening it stops motion immediately.

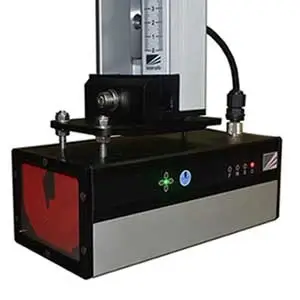

• Presence-sensing devices (light curtains): Stop the press stroke if the sensing field is interrupted before the die closes.

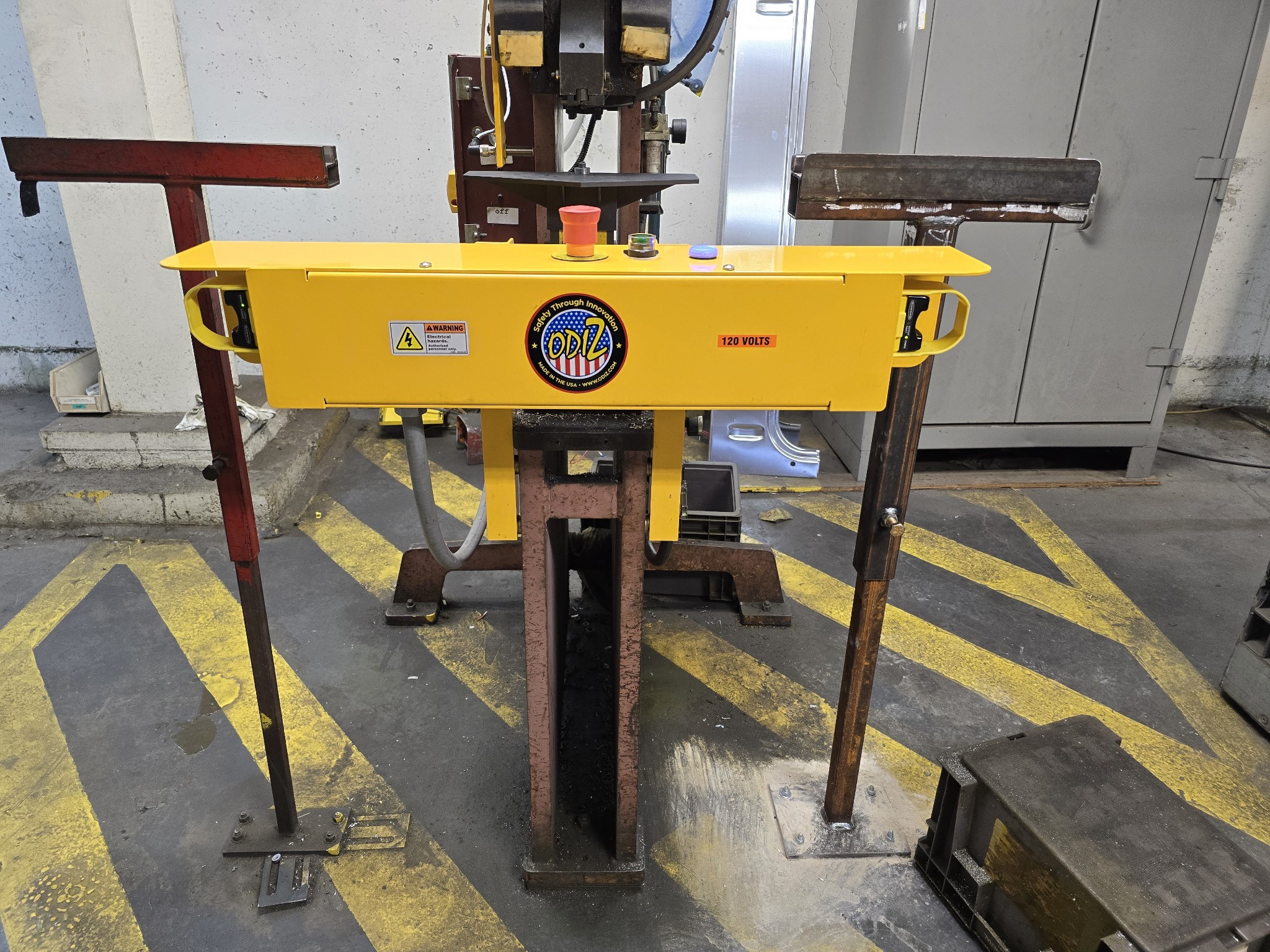

• Two-hand controls: Require the operator to press two buttons simultaneously to cycle the press, ensuring both hands are outside the danger zone.
• Pull-backs or restraint devices: Physically remove or restrict the operator’s hands from entering the die space during the stroke.

Design and Performance Requirements

• Safeguards must prevent any part of the body from entering the point of operation during the downstroke.
• Guards must be durable, securely attached, and tamper-resistant.
• Safeguarding devices must be fail-safe—a failure should stop the machine, not allow cycling.
• Controls must include anti-tie-down and anti-repeat features so operators cannot bypass protection.
• Emergency stop controls must be accessible and tested regularly.

Types of Power Presses Covered

• Mechanical stamping presses
• Hydraulic forming presses
• Pneumatic or air-powered presses
• Flywheel-driven punch presses
• Brake presses used for bending and forming

Common Violations

• Operating presses without point-of-operation guards or safety devices installed.
• Disabled or bypassed interlocks and light curtains.
• Failure to perform required safety device inspections and die-setting checks.
• Inadequate control reliability or anti-repeat functions.
• Improper use of hand tools instead of engineering controls for feeding or removing material.

Best Practices for Compliance

• Install and maintain engineered safeguarding—avoid relying solely on work rules or procedures.
• Conduct daily safety checks of guards, light curtains, and two-hand controls before production begins.
• Train die setters and operators on control system function, safe distances, and response testing.
• Inspect and document safety system function after every die change or maintenance event.
• Lockout and tag out power sources before clearing jams or making adjustments.

Related Considerations

In addition to 1910.212(a)(3)(iv)(d), OSHA maintains a specific standard—1910.217, Mechanical Power Presses—that details inspection, maintenance, and control reliability requirements for these machines.
Section 1910.212 remains applicable to all press types, including hydraulic and pneumatic models not covered by 1910.217, reinforcing the need for comprehensive point-of-operation safeguarding.

Why OSHA 1910.212(a)(3)(iv)(d) Is Important

Power presses are among the leading sources of workplace amputations in metal fabrication and stamping.

B11.12 — Safety Requirements for Roll Forming & Roll Bending Machines

B11.12 (Safety Requirements for Roll Forming and Roll Bending Machines) addresses the specific safety needs of machines used to form or bend metal by means of rolls or rotary tooling. :contentReference[oaicite:0]{index=0}
The standard applies to machines that reshape material by progressive forming or bending—such as roll-formers and roll-benders—and covers their full lifecycle: from design and installation through operation, maintenance, modification and dismantling. :contentReference[oaicite:1]{index=1}

Scope & Machine Types

This standard applies to powered machines that change the shape or direction of material by use of rolls, rotary forming dies and associated tooling. :contentReference[oaicite:2]{index=2}
Examples include roll-formers: continuous lineal forming machines where strip material passes through sets of rotating rolls; and roll-benders: machines producing bends across widths of flat or preformed material by one or more rotating rolls. :contentReference[oaicite:3]{index=3}
The standard also lists many exclusions—machinery types not covered under its scope—such as bar mills, power presses, shears, portable hand tools, etc. :contentReference[oaicite:4]{index=4}

Key Safety Topics Addressed

• Responsibility assignment: The standard outlines distinct responsibilities for suppliers (manufacturers, modifiers, integrators) and users (owners, operators) for hazard identification and risk reduction. :contentReference[oaicite:5]{index=5}
• Hazard identification & risk assessment: Users and suppliers must identify machine tasks and hazard scenarios, assess risk and apply appropriate safeguards. :contentReference[oaicite:6]{index=6}
• Design & construction: Machines must be designed and built to minimize exposure to hazards—including appropriate guarding, feed/exit systems, emergency stops, control integration. :contentReference[oaicite:7]{index=7}
• Installation, testing & start-up: Machines must be installed, tested and commissioned under safe conditions before full operation. :contentReference[oaicite:8]{index=8}
• Safeguarding of the production system: The standard emphasizes that in roll-forming/bending operations, safeguards must consider the full system: the machine, feeding/out-feed, tooling, roll sets and worker interaction. :contentReference[oaicite:9]{index=9}
• Operation & maintenance: Procedures must be established for safe operation, maintenance, change-over, inspection and training of personnel. :contentReference[oaicite:10]{index=10}

Why It Matters

Roll-forming and roll-bending machines involve high speeds, heavy tooling, upstream feeding mechanisms and large pieces of moving material. Without proper safeguarding these machines can cause crushing, entanglement, contact injuries, ejection of stock or tooling, severe lacerations or amputations.
B11.12 provides a comprehensive framework to help manufacturers and users apply recognized engineering practices to reduce these risks—and support regulatory compliance and best-practice machine safety programs.

Practical Implementation Tips

• During machine design or procurement, reference B11.12 for required safeguarding of roll sets, feed/in-feed/out-feed, emergency stops, guarding of points where material enters or exits.
• Perform a task-based risk assessment per B11.12 before start-up, especially for change-over or maintenance tasks where tooling is changed or material thickness varies.
• Ensure feeding and exit systems are integrated with machine safeguards so that operators cannot reach into hazard zones during operation or maintenance.
• Train operators and maintenance personnel in hazards specific to roll-forming/bending machines—feeding, bending, roll changes, material ejection and emergency response.
• Maintain documentation of modifications, maintenance, inspections and risk assessments to demonstrate alignment with recognized good practice (RAGAGEP).

FAQ

B11.19 — Performance Requirements for Risk Reduction Measures: Safeguarding & Other Means of Reducing Risk

The B11.19-2019 standard (ANSI B11.19: Performance Requirements for Risk Reduction Measures) is a “Type B” machinery safety standard that covers the performance requirements for risk-reduction measures used with industrial machinery. :contentReference[oaicite:0]{index=0}
It complements the broader foundational standard B11.0 – Safety of Machinery and applies across many machine types rather than being machine-specific.

Scope & Purpose

B11.19 addresses how to apply and maintain risk-reduction measures such as fixed guards, interlocked guards, presence-sensing devices, protective devices, control functions (e.g., two-hand controls, enabling devices), administrative controls, and inherently safe design methods. :contentReference[oaicite:1]{index=1}
The standard does not prescribe which measure to use in each case—that remains the result of a risk assessment—but it defines how those measures must perform in terms of design, installation, operation and maintenance. :contentReference[oaicite:2]{index=2}

Key Themes & Requirements

• Hierarchy of Risk Reduction Measures: The standard organises measures in a hierarchy (inherently safe design, engineering controls, administrative controls, PPE) and emphasizes starting at the highest feasible level. :contentReference[oaicite:3]{index=3}
• Responsibilities: Clarifies responsibilities for machine suppliers, integrators/modifiers/rebuilders, users, and operators in managing risk throughout the machine lifecycle. :contentReference[oaicite:4]{index=4}
• Performance Requirements: Specifies that risk reduction measures must meet defined performance criteria across phases: design, construction, installation, operation, maintenance. :contentReference[oaicite:5]{index=5}
• Expanded Content in 2019 Edition: The 2019 revision included new content for partial guards, whole-body access, safety distance calculations, reaching distances, control functions such as safe speeds and safe conditions, and harmonization with ISO standards. :contentReference[oaicite:6]{index=6}
• Application Across Machines: Being a generic “B” standard, it is meant to be used in conjunction with a machine-specific (Type C) or general (Type A) standard. :contentReference[oaicite:7]{index=7}

Why It Matters

Industrial machinery presents many hazards—rotating parts, high forces, automatic feed systems, ejection of material, entanglement, and access to hazardous zones.
B11.19 helps manufacturers, machine builders, integrators and users to establish a consistently high level of risk-reduction engineering and good practice across these hazards.
Moreover, by meeting the performance criteria in B11.19, organisations can demonstrate alignment with “recognized and generally accepted good engineering practice” (RAGAGEP) in machine-safety programmes.

Practical Implementation Tips

• Use your machine’s risk assessment (per B11.0) to identify hazard scenarios, then apply B11.19’s framework to select and validate risk-reduction measures.
• When choosing between fixed guards, interlocked guards, presence-sensing devices or other devices, ensure each is tested, maintained, and verified to comply with B11.19 performance requirements.
• Document responsibilities: suppliers must supply capability for safeguarding; integrators must ensure proper installation; users must operate and maintain the machine and keep records.
• For older (“legacy”) machines being modified or repurposed, use B11.19 to evaluate whether the existing risk-reduction measures remain adequate or need retrofit/redesign.
• Keep informed of key metrics such as safety distances, control system response times, device category (per ISO 13849), and verification intervals as defined in the standard’s informative annexes. :contentReference[oaicite:8]{index=8}

Relationship to Other Standards

B11.19 is a core part of the B11 series:

• Type A – B11.0: general machine safety (risk assessment) :contentReference[oaicite:9]{index=9}
• Type B – B11.19: performance requirements for risk-reduction measures
• Type C – Machine-specific standards (e.g., B11.10, B11.12) defining detailed safeguards for certain machine types

Using B11.19 together with a machine-specific standard provides a more complete safety posture. :contentReference[oaicite:10]{index=10}

FAQ

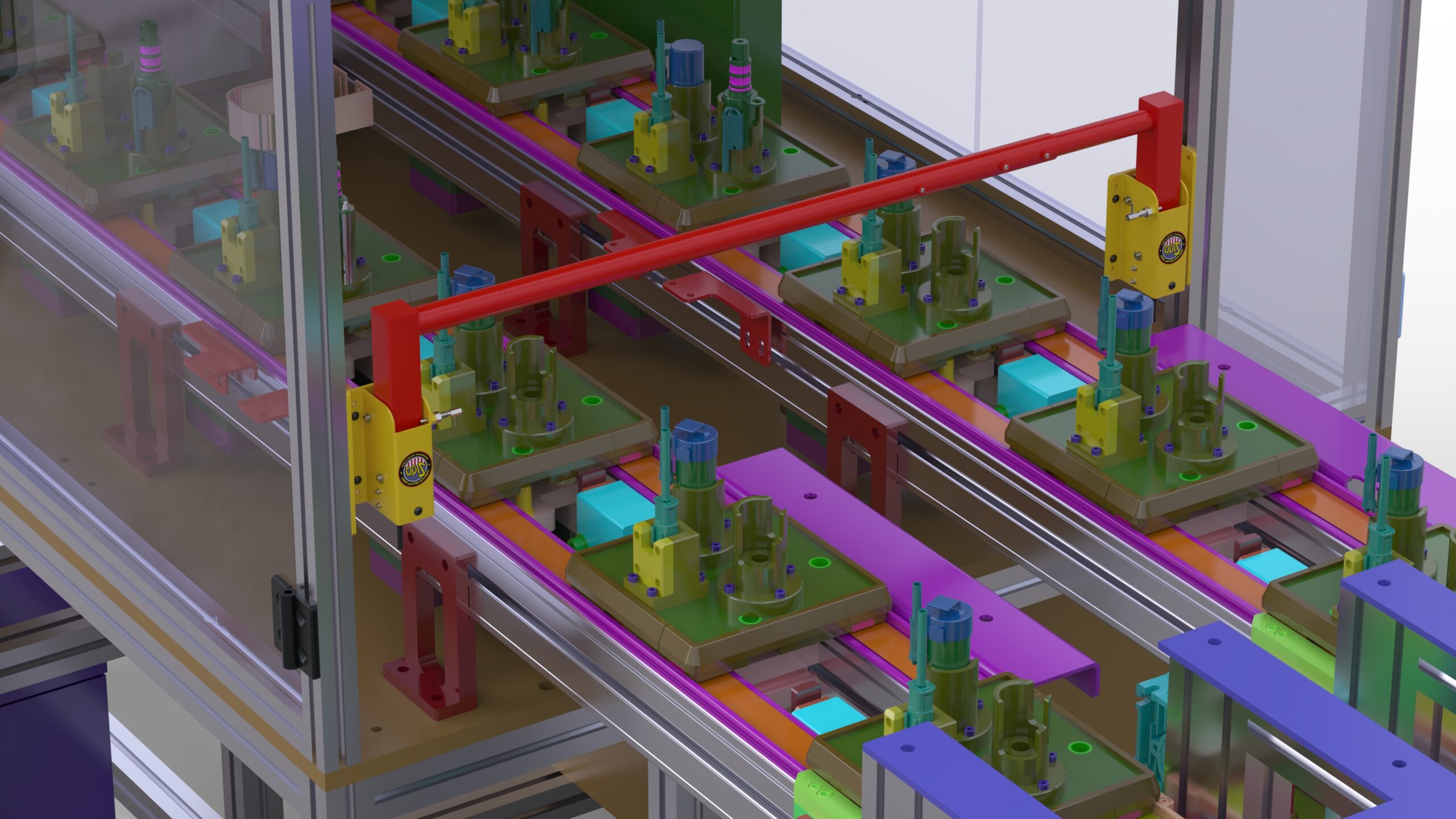

B11.20 — Safety Requirements for Integrated Manufacturing Systems

The B11.20 standard (Safety Requirements for Integrated Manufacturing Systems – ANSI B11.20-2017) applies to systems of two or more machines that are linked by material handling and jointly controlled to manufacture, treat, move or package discrete parts or assemblies. :contentReference[oaicite:0]{index=0}
The standard recognizes that when individual machines are integrated into a system, new hazards and risks arise that may not be addressed by machine-specific (Type C) standards. :contentReference[oaicite:1]{index=1}

Scope & Key Concepts

This standard covers the safety requirements for the design, construction, installation, set-up, operation, maintenance, modification and decommissioning of Integrated Manufacturing Systems (IMS). :contentReference[oaicite:2]{index=2}
An IMS is defined by the standard as a system that:

• Incorporates two or more industrial machines that can operate independently, and are intended for manufacturing, treatment, movement or packaging of discrete parts or assemblies. :contentReference[oaicite:3]{index=3}
• Is linked by a material handling system. :contentReference[oaicite:4]{index=4}
• Is interconnected by one or more control systems for coordinated operation. :contentReference[oaicite:5]{index=5}

Risk & Hazards Introduced by Integration

While each machine may have its individual safeguards, when combined into an IMS, the system can have new hazards such as:

• Shared zones where operator interaction or maintenance occurs across machine boundaries. :contentReference[oaicite:6]{index=6}
• Synchronized or inter-dependent machine motions creating unexpected exposure. :contentReference[oaicite:7]{index=7}
• Complex control logic and “special modes” of operation (e.g., setup, maintenance, override) that require distinct safety validation. :contentReference[oaicite:8]{index=8}
• Material handling or transfer systems that may bypass the standard guarding of individual machines. :contentReference[oaicite:9]{index=9}

Key Safety Topics & Requirements

• Layout and zone analysis: The 2017 edition of B11.20 introduces new definitions such as “control zone”, “task zone”, and refines “hazard zone” and “span of control” to align with ISO 11161. :contentReference[oaicite:10]{index=10}
• Special Modes: The standard defines “special mode” as any additional mode of operation introduced by integration (e.g., remote set-up, robotic access) and requires that these modes be included in the system’s risk assessment. :contentReference[oaicite:11]{index=11}
• Risk assessment & lifecycle responsibility: Suppliers, integrators and users must each fulfil defined responsibilities over the lifecycle of the IMS—from design through decommissioning. :contentReference[oaicite:12]{index=12}
• Use of other B11 standards: The standard emphasises that IMS safety must be implemented in conformity with foundational standards like B11.0 (risk assessment) and B11.19 (performance criteria for risk-reduction measures). :contentReference[oaicite:13]{index=13}

Why It Matters

As manufacturing becomes increasingly automated and integrated, arbitrary linking of machines, conveyors, robots, feeders and control systems can create hazard scenarios that are not covered by traditional single-machine safety standards.
B11.20 helps ensure that the system is treated as a *new machine* with its own hazards and that the safety design reflects the complexity of integration. :contentReference[oaicite:14]{index=14}
Implementing B11.20 facilitates better coordination between machine builders, integrators and end-users, reduces risk of injuries from complex automation, and aids in demonstrating recognized good engineering practice.

Best Practice Implementation Tips

• When designing or retrofitting an IMS, include layout/zone analysis early to identify control zones, task zones and hazard zones per B11.20. :contentReference[oaicite:15]{index=15}
• Ensure that the risk assessment covers all modes of operation—including automatic production, manual setup, maintenance, override or robot intervention. :contentReference[oaicite:16]{index=16}
• Coordinate safety-related control systems across machines, feeders, conveyors and robots so that an integrated safety circuit or architecture is verified as per B11.19 and B11.20. :contentReference[oaicite:17]{index=17}
• Document tasks, human access zones, and shared space between machines—particularly for maintenance or operator intervention zones. Incorporate access control or presence sensing as needed. :contentReference[oaicite:18]{index=18}
• Use the standard’s annexes (e.g., Annex D for layout analysis) and align your documentation with lifecycle phases: design, installation, commissioning, operation, maintenance, modification, decommissioning. :contentReference[oaicite:19]{index=19}

FAQ

B11.26 — Functional Safety for Equipment: General Principles for the Design of Safety-Related Parts of Control Systems for Machinery

The B11.26 standard (ANSI B11.26-2018, reaffirmed and with newer editions issued) provides both the requirements and guidance for implementation of safety-related control functions (also referred to as “functional safety”) in machines. These control systems may involve electrical, electronic, pneumatic, hydraulic or mechanical components and are used as risk-reduction measures when identified hazards are mitigated through a safety function. :contentReference[oaicite:1]{index=1}

Scope & Purpose

B11.26 applies when a control system is used as part of a risk reduction measure — in other words, when the risk assessment has identified one or more safety functions required to reduce a hazard to an acceptable level. The standard outlines how these safety-related parts of control systems (SRP/CS) should be designed, structured and validated. It aligns with ISO 13849-1 and similar functional safety frameworks. :contentReference[oaicite:2]{index=2}

Key Concepts & Principles

• Safety Function: A function whose failure would increase the risk of harm. B11.26 requires identification and specification of safety functions. :contentReference[oaicite:3]{index=3}
• Control Reliability: The machine must remain safe even if a fault or failure occurs in the SRP/CS. B11.26 defines design strategies including redundancy, monitoring, diagnostics, and failure-tolerant architectures. :contentReference[oaicite:4]{index=4}
• Architecture & Performance Levels: Although B11.26 doesn’t prescribe a specific architecture, it references the use of ISO 13849-1 (and thus performance levels PL) as a technical basis for SRP/CS. :contentReference[oaicite:5]{index=5}
• Lifecyle Responsibilities: The standard clarifies responsibilities across suppliers, integrators/modifiers and users for safe design, installation, commissioning, operation, maintenance, modification and decommissioning of SRP/CS. :contentReference[oaicite:6]{index=6}
• Verification & Validation: After implementation, safety functions must be verified and validated so that they meet the specified performance requirements and maintain integrity over the machine lifecycle. :contentReference[oaicite:7]{index=7}

Why It Matters

In modern machinery, many hazards are controlled via safety-related control systems — for example, presence-sensing devices, safe speed monitoring, door interlocks, light-curtains, and machine motion control systems. Simply installing a guard is often insufficient for complex machines. \
B11.26 ensures that such control systems are designed correctly, with sufficient reliability and integrity, so that they work when needed and maintain protection during faults or unusual conditions. This translates to reduced risk of injury and better alignment with recognized good engineering practice.

Practical Implementation Tips

• Start your machine risk assessment and identify any required safety functions earlier in the lifecycle (design phase) and decide which will be fulfilled by SRP/CS.
• When implementing SRP/CS, reference ISO 13849-1 to determine required performance level (PL) based on risk estimation, then design your control architecture accordingly.
• Verify diagnostic coverage, response time, fault-detection mechanisms and avoid single-point failures in the SRP/CS.
• Document architecture, failure mode analysis, validation testing and periodic re-validation of the safety function’s performance.
• Ensure any modifications to the machine’s control system initiate a new risk assessment and re-validation of the safety functions as per B11.26’s lifecycle requirements.

FAQ

B11.TR7 — Designing for Safety & Lean Manufacturing

The B11.TR7-2007 (R2017) technical report provides practical guidance for machine tool suppliers, integrators and end-users to apply both safety and lean manufacturing concepts concurrently. :contentReference[oaicite:0]{index=0}
It emphasises that pursuing lean (faster changeovers, minimal waiting, reduced inventories) without considering machine-safety can create unexpected hazards; likewise implementing safety alone without lean thinking may add waste and reduce productivity. :contentReference[oaicite:1]{index=1}

Scope & Purpose

B11.TR7 is directed at guiding the integration of safety and lean within machine tools and manufacturing systems. It supports both retrofit improvement and new-design processes where safety and waste-reduction are addressed upfront. :contentReference[oaicite:2]{index=2}

Key Themes Addressed

• Lean manufacturing overview: Concepts like 5S, Kanban, Kaizen, pull systems and their relation to machine workflow and waste reduction. :contentReference[oaicite:3]{index=3}
• Safety-lean conflicts and resolutions: Examples where lean efforts removed guards, increased exposure, or shortened changeovers but increased hazard; the report highlights these pitfalls. :contentReference[oaicite:4]{index=4}
• Risk assessment aligned with waste-reduction: The report presents a framework to identify tasks, hazards *and* wastes, then assess both risk and waste together to arrive at solutions that minimise both. :contentReference[oaicite:5]{index=5}
• Design-guidelines for safety-lean synergy: Guidance for machine/cell layout, tooling change design, access, flow of parts, guard design, control integration – all with lean and safety in mind. :contentReference[oaicite:6]{index=6}
• Leadership & culture: Emphasises that successful implementation requires top-management commitment, cross-functional teams (engineering, safety, production) and continuous improvement mindset. :contentReference[oaicite:7]{index=7}

Why It Matters

In modern manufacturing, the drive for lean means machines and cells are redesigned for faster throughput, less setup time, higher flexibility. However, ignoring safety during that redesign can lead to increased risk of injury, downtime, regulatory non-compliance and hidden cost.
B11.TR7 provides a framework to make safety an integral part of lean initiatives rather than an afterthought. By doing so, companies can achieve “better, faster, safer” rather than “faster but riskier.”

Implementation Tips

• Map machine tasks and flows: For each machine or cell, list tasks (production, changeover, maintenance), identify wastes (waiting, motion, excess inventory) and hazards (pinch, entanglement, ejection). Use the dual-assessment approach. :contentReference[oaicite:8]{index=8}
• During design or retrofit, involve safety, production, maintenance and engineering teams early—so guard design, tooling change methods, material flow are all considered with lean & safety in mind. :contentReference[oaicite:9]{index=9}
• When changing machines/cells for lean improvements (e.g., faster changeovers, modular tooling, fewer handlings), always revisit risk assessment: ensure that faster access or fewer constraints haven’t removed essential safety features. :contentReference[oaicite:10]{index=10}
• Document “dual” objectives: For each improvement, capture both the waste-reduction metric (e.g., changeover time) and the safety-metric (e.g., guarding integrity, reduced access risk). Use that to verify that neither objective is compromised. :contentReference[oaicite:11]{index=11}
• Train personnel in the integrated view of lean and safety: emphasise that “lean isn’t just speed” and “safety isn’t just add guard”—they must work together. Include changeover teams, maintenance, operators. :contentReference[oaicite:12]{index=12}

ANSI Z244.1 — Control of Hazardous Energy: Lockout, Tagout & Alternative Methods

The ANSI Z244.1 standard (sometimes referenced as ANSI/ASSP Z244.1) provides a detailed framework for the safe control of hazardous energy sources—electrical, mechanical, hydraulic, pneumatic, chemical, thermal, gravitational or stored energy—when servicing or maintaining machines, equipment or processes. :contentReference[oaicite:0]{index=0}
While it is a voluntary consensus standard (not a regulation), it is widely used by safety professionals and referenced in relation to 29 CFR 1910.147 and other machine safety/energy control programs. :contentReference[oaicite:2]{index=2}

Scope & Purpose

ANSI Z244.1 applies to tasks such as construction, installation, adjustment, inspection, unjamming, testing, cleaning, dismantling, servicing or maintaining machines, equipment or processes when the unexpected energization or release of stored energy has the potential to cause harm. :contentReference[oaicite:3]{index=3}
The standard emphasizes the employer’s or machine owner’s responsibility to establish a hazardous energy control program, including procedures, training, audits and alternative methods when traditional lockout/tagout may not be practicable. :contentReference[oaicite:4]{index=4}

Key Elements & Themes

• Energy control program: Program elements include hazard identification, energy-isolation methods, verification of isolation, training, periodic audits, and maintaining a safe work environment. :contentReference[oaicite:5]{index=5}
• Lockout, Tagout, or Alternative Methods: The standard recognizes traditional lockout as the preferred method but allows tagout or other validated alternative methods when risk assessment justifies them. :contentReference[oaicite:6]{index=6}
• Risk assessment & justification: When using alternative methods, a documented risk assessment must demonstrate equivalent protection to traditional LOTO. :contentReference[oaicite:7]{index=7}
• Design and integration: The Z244.1 standard highlights the need for properly designed isolation devices, clear identification of energy sources, controlled transfer of isolation between shifts, and integration with existing safety control systems. :contentReference[oaicite:8]{index=8}
• Training and audits: Authorized employees must be trained, affected employees must be notified, and periodic inspections/audits must verify the program’s effectiveness over time. :contentReference[oaicite:9]{index=9}

Relation to OSHA

Although the standard is not enforceable by itself, Occupational Safety and Health Administration (OSHA) recognizes ANSI Z244.1 as a valuable consensus standard for guidance on energy control programs. :contentReference[oaicite:11]{index=11}
Compliance with 29 CFR 1910.147 remains mandatory, and using ANSI Z244.1 can help demonstrate a program meets recognized good practice or “RAGAGEP” (recognized and generally accepted good engineering practice).

Why It Matters

Unexpected machine startup or release of stored energy is a significant cause of serious injuries—including electrocutions, amputations, crushing, burns and fatalities. :contentReference[oaicite:12]{index=12}
Implementing ANSI Z244.1-based programs helps reduce these risks by ensuring controlled isolation of energy sources, validated procedures, trained personnel and audits to ensure ongoing safety.

FAQ
