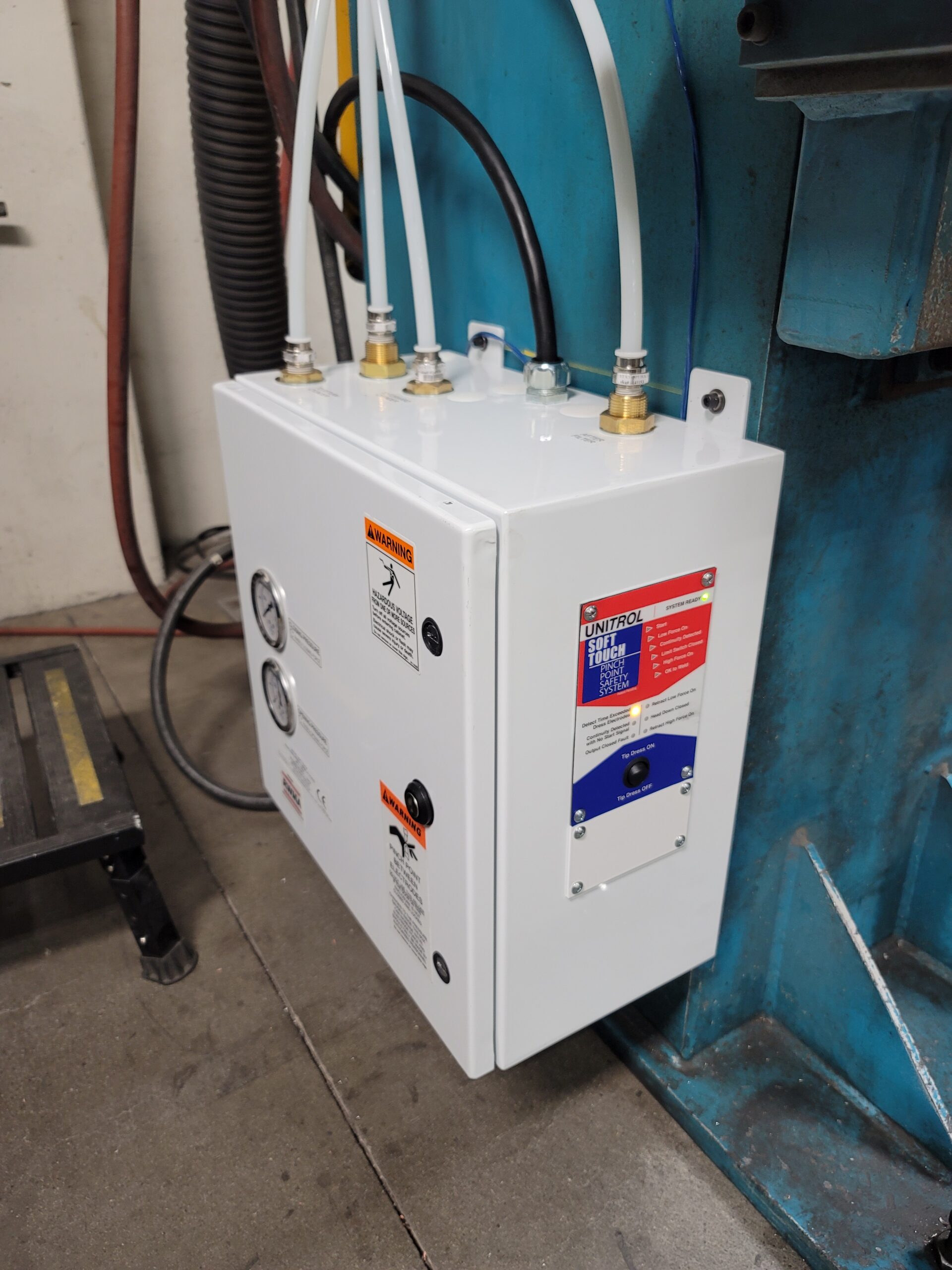

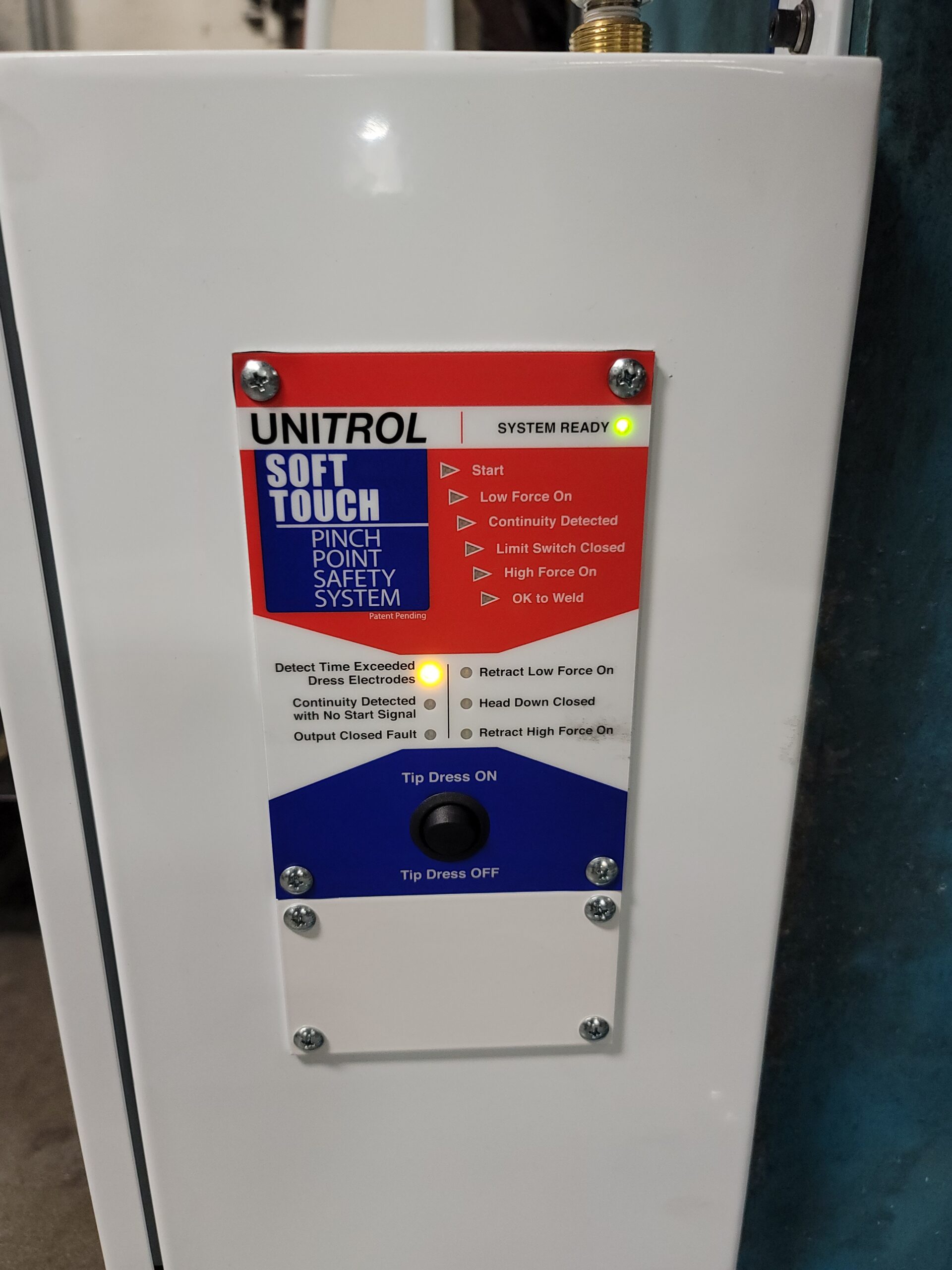

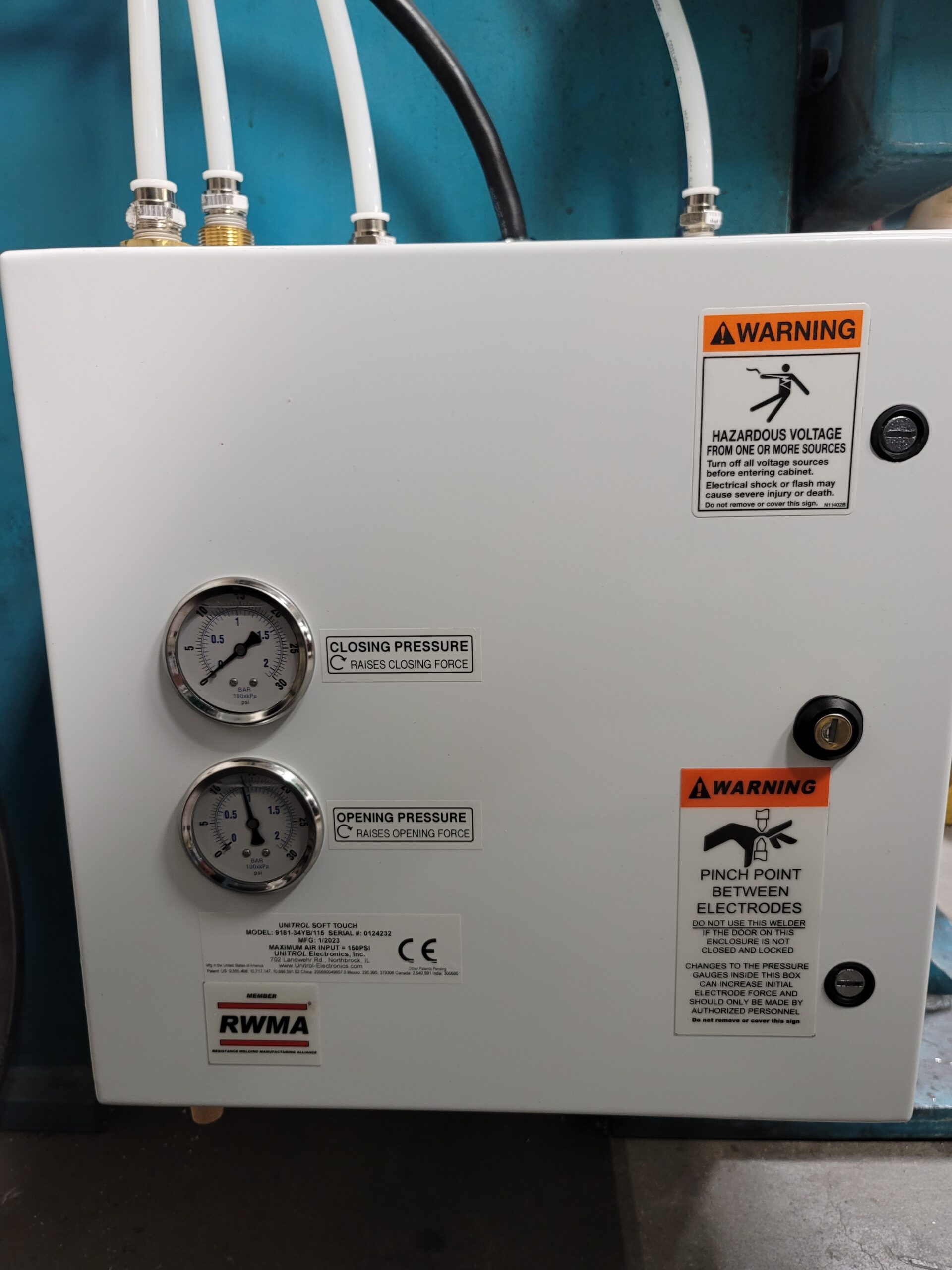

Unitrol Soft Touch Safety System

OSHA 1910.212(a)(3)(iv)(d) — Power Presses

OSHA 29 CFR 1910.212(a)(3)(iv)(d) lists power presses among the machines that usually require point-of-operation guarding.
Power presses—whether mechanical, hydraulic, or pneumatic—use high force and rapid motion to punch, form, or shape metal and other materials.
Because the operator often works close to the die area, these machines present one of the highest risks of amputation, crushing, and pinch-point injuries in manufacturing.

Understanding the Hazard

The point of operation on a power press is where the upper die or ram descends to meet the lower die or workpiece.
Any body part entering this zone during cycling can be instantly crushed or severed.
OSHA requires employers to use physical guards or safeguarding devices that eliminate the possibility of hand or finger entry while the press is in motion.

Primary Safeguarding Methods for Power Presses

• Fixed barrier guards: Enclose the die area with openings too small for hand or finger access.
• Adjustable barrier guards: Allow different stock sizes while maintaining full coverage of the hazard zone.
• Interlocked barrier guards: Prevent press cycling unless the guard is closed; opening it stops motion immediately.
• Presence-sensing devices (light curtains): Stop the press stroke if the sensing field is interrupted before the die closes.
• Two-hand controls: Require the operator to press two buttons simultaneously to cycle the press, ensuring both hands are outside the danger zone.
• Pull-backs or restraint devices: Physically remove or restrict the operator’s hands from entering the die space during the stroke.

Design and Performance Requirements

• Safeguards must prevent any part of the body from entering the point of operation during the downstroke.
• Guards must be durable, securely attached, and tamper-resistant.
• Safeguarding devices must be fail-safe—a failure should stop the machine, not allow cycling.
• Controls must include anti-tie-down and anti-repeat features so operators cannot bypass protection.
• Emergency stop controls must be accessible and tested regularly.

Types of Power Presses Covered

• Mechanical stamping presses
• Hydraulic forming presses
• Pneumatic or air-powered presses
• Flywheel-driven punch presses
• Brake presses used for bending and forming

Common Violations

• Operating presses without point-of-operation guards or safety devices installed.
• Disabled or bypassed interlocks and light curtains.
• Failure to perform required safety device inspections and die-setting checks.
• Inadequate control reliability or anti-repeat functions.
• Improper use of hand tools instead of engineering controls for feeding or removing material.

Best Practices for Compliance

• Install and maintain engineered safeguarding—avoid relying solely on work rules or procedures.
• Conduct daily safety checks of guards, light curtains, and two-hand controls before production begins.
• Train die setters and operators on control system function, safe distances, and response testing.
• Inspect and document safety system function after every die change or maintenance event.
• Lockout and tag out power sources before clearing jams or making adjustments.

Related Considerations

In addition to 1910.212(a)(3)(iv)(d), OSHA maintains a specific standard—1910.217, Mechanical Power Presses—that details inspection, maintenance, and control reliability requirements for these machines.
Section 1910.212 remains applicable to all press types, including hydraulic and pneumatic models not covered by 1910.217, reinforcing the need for comprehensive point-of-operation safeguarding.

Why OSHA 1910.212(a)(3)(iv)(d) Is Important

Power presses are among the leading sources of workplace amputations in metal fabrication and stamping.

B11.TR3 — Risk Assessment & Risk Reduction: A Guide to Estimate, Evaluate and Reduce Risks Associated with Machine Tools

The B11.TR3 technical report (ANSI B11.TR3-2000 (R2015)) offers machine tool manufacturers, integrators and users a detailed approach to risk assessment and risk reduction, especially in contexts where machine-specific “type C” standards may not cover all hazards. :contentReference[oaicite:0]{index=0}
This document is informative rather than a normative “standard,” but it is widely referenced as good practice for machine safety.

Scope & Purpose

B11.TR3 is intended for use on new or modified machines and equipment designs and processes. The report guides users through the lifecycle of machine tools—design, installation, operation, maintenance, modification and dismantling—with a focus on tasks and hazards. :contentReference[oaicite:1]{index=1}

Key Methodology Components

• Task-based hazard identification: Identify tasks performed on or by the machine (operation, setup, maintenance, cleaning, modification), then identify hazards and hazardous situations associated with those tasks. :contentReference[oaicite:2]{index=2}
• Risk estimation and evaluation: Estimate the severity of potential harm, exposure frequency, probability of avoidance, and evaluate the risk level to determine if risk is acceptable or if risk reduction is required. :contentReference[oaicite:3]{index=3}
• Risk reduction hierarchy and implementation: After identifying unacceptable risks, apply measures in a prioritized sequence — eliminate hazard, apply inherently safe design, provide safeguarding or protective devices, implement information for use and training. Then verify that the residual risk is tolerable. :contentReference[oaicite:4]{index=4}
• Documentation and verification: Maintain records of the risk assessment process, risk reduction measures taken, verification of effectiveness, and re-evaluation when machines are modified. :contentReference[oaicite:5]{index=5}
• Shared responsibilities: Clarifies that machine tool suppliers, integrators/modifiers and users each have obligations — for hazard information, safe design, risk reduction, commissioning, training, maintenance, and modification. :contentReference[oaicite:6]{index=6}

Why It Matters

Many machine tool hazards—such as entanglement, ejection of workpieces, unexpected motion, energy release—are not fully addressed by generic machine guarding rules alone. B11.TR3 provides a structured way to address those hazards by focusing on tasks, hazards and risk reduction rather than relying only on specifications. According to studies, using this guideline improved machine safety understanding and helped reduce exposure in pilot studies. :contentReference[oaicite:7]{index=7}

Practical Implementation Tips

• Begin with a lifecycle review of the machine tool: design, install, operate, maintain, modify, decommission—and identify all relevant tasks in each phase.
• For each task, list the hazard(s), estimate risk (severity × exposure × avoidance probability), compare to tolerability criteria and decide whether risk is acceptable or needs reduction.
• Apply the hierarchy of risk reduction: eliminate hazard where possible, implement inherently safe design, apply guarding/interlocks, then administrative controls/training. Verify with measurement or testing where feasible.
• Document the assessment: task list, hazard list, risk estimates, risk reduction actions, verification results, residual risk statement. Re-assess after any modification or installation change.
• Ensure communication across roles: suppliers provide hazard information, integrators verify safe installation, users maintain safe operation/maintenance and monitor modifications. Training must reflect changes and residual risk knowledge.

B11.TR4 — Selection of Programmable Electronic Systems (PES/PLC) for Machine Tools

The B11.TR4-2004 technical report provides industry guidance on the design, selection, integration and validation of programmable electronic systems (PES) or programmable logic controllers (PLC) used for safety-related functions on machine tools covered by the B11 series. :contentReference[oaicite:0]{index=0}

Scope & Purpose

This report applies to safety-related parts of control systems on machine tools: supporting users, integrators and OEMs to select appropriate PES/PLC configurations, analyse failure modes, apply validation and documentation of the system. :contentReference[oaicite:1]{index=1}

Key Topics Addressed

• Selection of configuration: Choosing architectures (redundancy, diagnostics) for PES/PLC suitable for safety functions on machine tools. :contentReference[oaicite:2]{index=2}
• Failure modes and safety-related performance: Analysis of failures in hardware/software and how they impact safety-related functions; includes annexes on performance levels. :contentReference[oaicite:3]{index=3}
• Validation and verification: Guidelines for testing and documentation of PES/PLC safety functions, including software, hardware, and maintenance. :contentReference[oaicite:4]{index=4}
• Responsibilities and lifecycle approach: Clarifies roles for machine builder, integrator/modifier, and user in the lifecycle of the machine’s safety control system. :contentReference[oaicite:5]{index=5}

Why It Matters

As machine tools increasingly utilize programmable control systems for safety-related functions (e.g., interlocks, e-stops, light curtains, safe speed monitoring), proper selection and validation of the PES/PLC becomes critical to reducing risk. B11.TR4 helps ensure the control architecture meets safety expectations and supports recognized good engineering practice.

Practical Implementation Tips

• Map out each safety-related function (e.g., guard door open stop, two-hand control, safe speed) and select a PES/PLC architecture with appropriate redundancy, diagnostics and response time.
• Perform a failure-mode analysis of the control system: examine hardware failure, software fault, network fault, human-error possibilities and verify that the PES mitigates these.
• Validate the system: conduct tests for each safety function, document responses, ensure software version control, maintain records of validation and periodic re-validation after modification.
• Ensure machine builder, integrator and user align on responsibilities: builder for safe design, integrator for correct installation and software, user for maintenance and change-control.
• When retrofitting or modifying a machine’s control system, treat the work as “new” for safety control: re-evaluate hazards, update the PES/PLC safety architecture and re-document per B11.TR4 guidance.
