  1. Products
  2. /Metal Forming
  3. /Presses
  4. /H Frame Press
  5. /Machine Guarding Gotcha Stick - OSHA 1910.217
OSHA 1910.217
H Frame Press

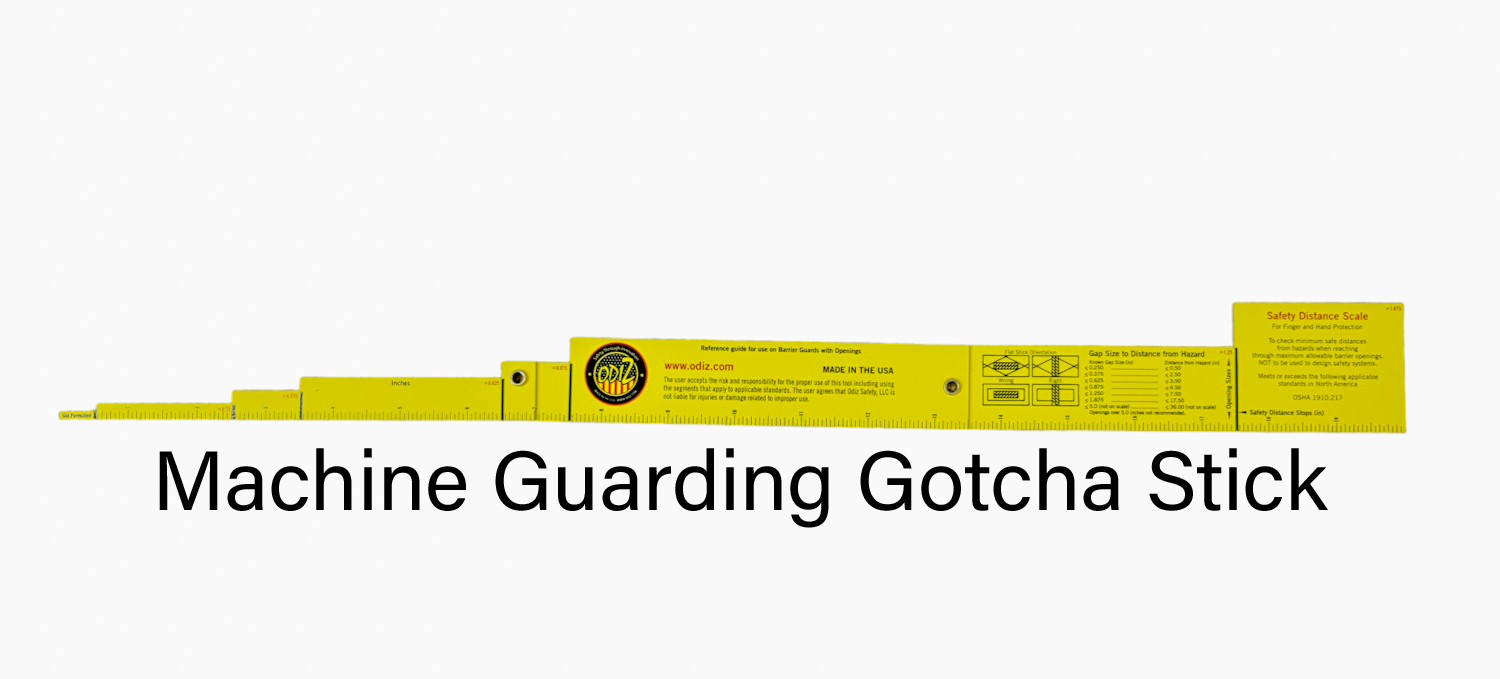

Machine Guarding Gotcha Stick - OSHA 1910.217

SKU ODIZ-6953

This machine guarding Gotcha Stick is an inspection gauge that checks whether guard openings are small enough to keep hands and fingers from reaching a hazard. If the gauge can touch the equipment through any gap, the guard does not meet the requirement. Made in the USA for OSHA 1910.217 guard inspections.

$69.99In stock
1

Not sure where to start? Reach out to our team to learn more.

H Frame PressHorizontal PressIron WorkersPipe BendersPress BrakePress Safety ToolsRollersShearsVertical Press
TagsBarrier Guard Distance ScaleGotcha StickMachine Guarding CheckMachine Guarding ScaleOSHA 1910.217Safety Distance Scale

The Odiz Machine Guarding Gotcha Stick verifies that machine guard openings are sized to prevent hands and fingers from reaching hazards. Use it during machine guarding inspections to check guards against OSHA requirements: insert the gauge into each gap, and if it can touch the equipment through any gap, the guard does not meet the requirement. The gauge has segments that apply to the applicable standards, so use the segment that matches the requirement for the opening you are checking.

Key features

  • Quick pass/fail check: if the gauge reaches the equipment through a gap, the opening is too large.
  • Inspection tool: for machine guarding audits on presses and other machines.
  • Made in the USA.

Specifications

  • Type: machine guard opening gauge (Gotcha Stick)
  • Reference standard: OSHA 1910.217, mechanical power presses
  • Made in the USA

Standards

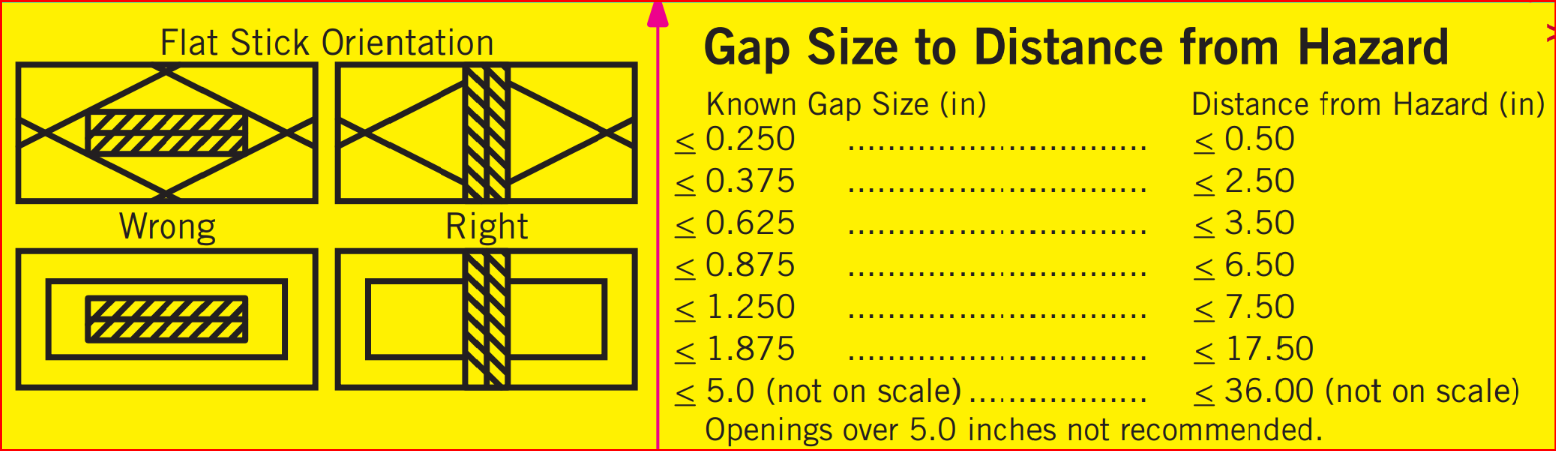

The Gotcha Stick is used to check guards against OSHA 1910.217, mechanical power presses, which requires point of operation guards to conform to the maximum permissible openings of Table O-10; in that table, the allowed width of an opening depends on its distance from the point of operation hazard. A gauge check supports, but does not replace, a machine guarding risk assessment.

Applications

Use the gauge on H-frame, horizontal and vertical presses, press brakes, ironworkers, pipe benders, rollers and shears during guarding inspections, after a guard is installed or modified, and in EH&S audits. For help determining machine guarding risks, see the Odiz machine guarding risk assessment page or contact the Odiz EH&S Machine Guarding services group.

The user accepts the risk and responsibility for the proper use of this tool, including the segments that apply to the applicable standards, and agrees that Odiz Safety LLC is not liable for injuries or damage related to improper use.

1910.217 - Mechanical Power Presses

OSHA’s safety requirements for mechanical power presses, covering press construction and brakes, point-of-operation guards and safeguarding devices, safety distances, inspection and maintenance, operator training and injury reporting.

All products for this standard

Write a review

Related products

Dake press guard
H Frame Press

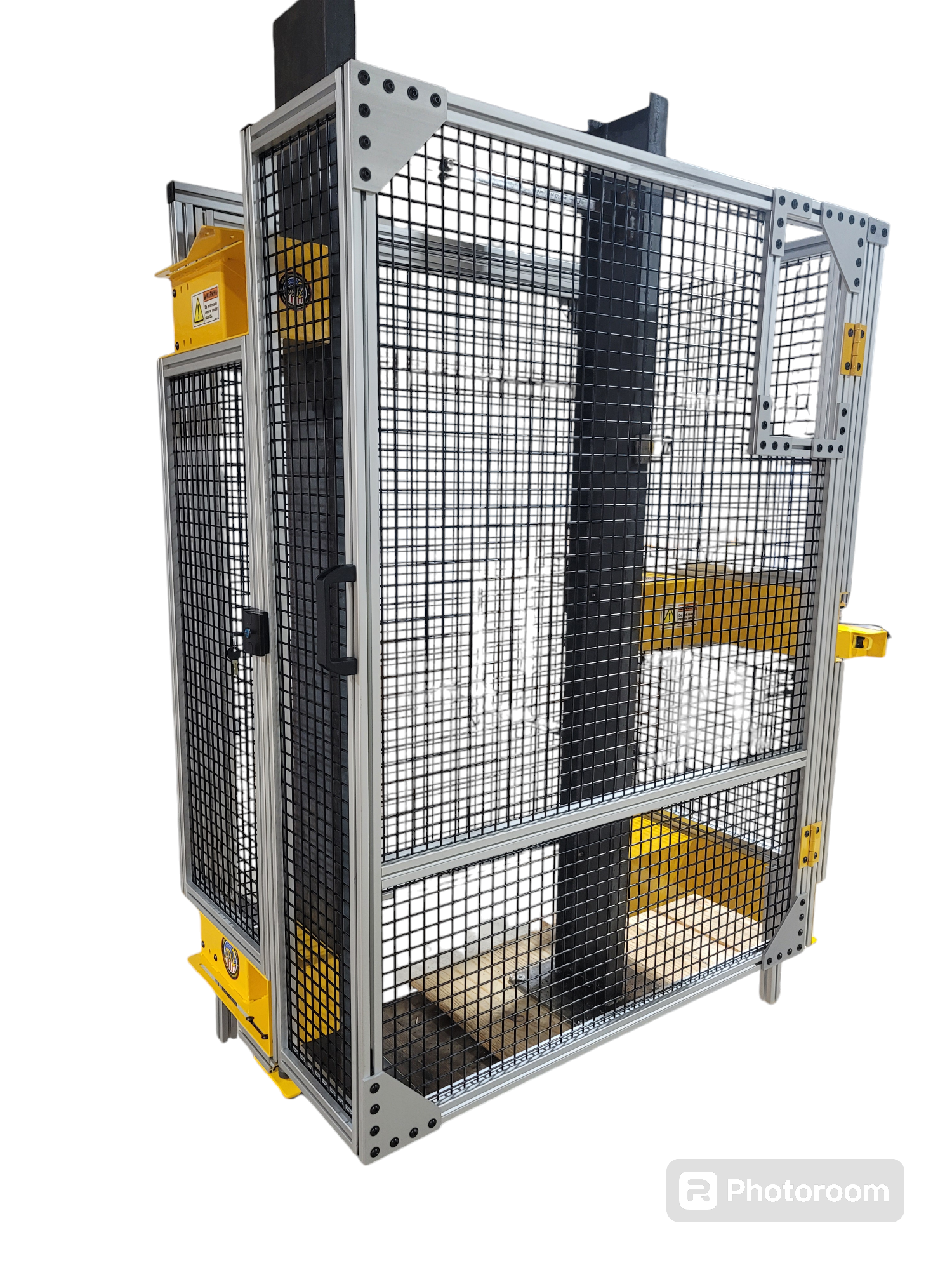

Custom Hydraulic Press Guard
