VTL Vertical Turning Lathe Chuck Guard
Vertical Sliding Guard
Made in USA
Options
This will not be the guard diameter, we will confirm that during the approval drawing process.

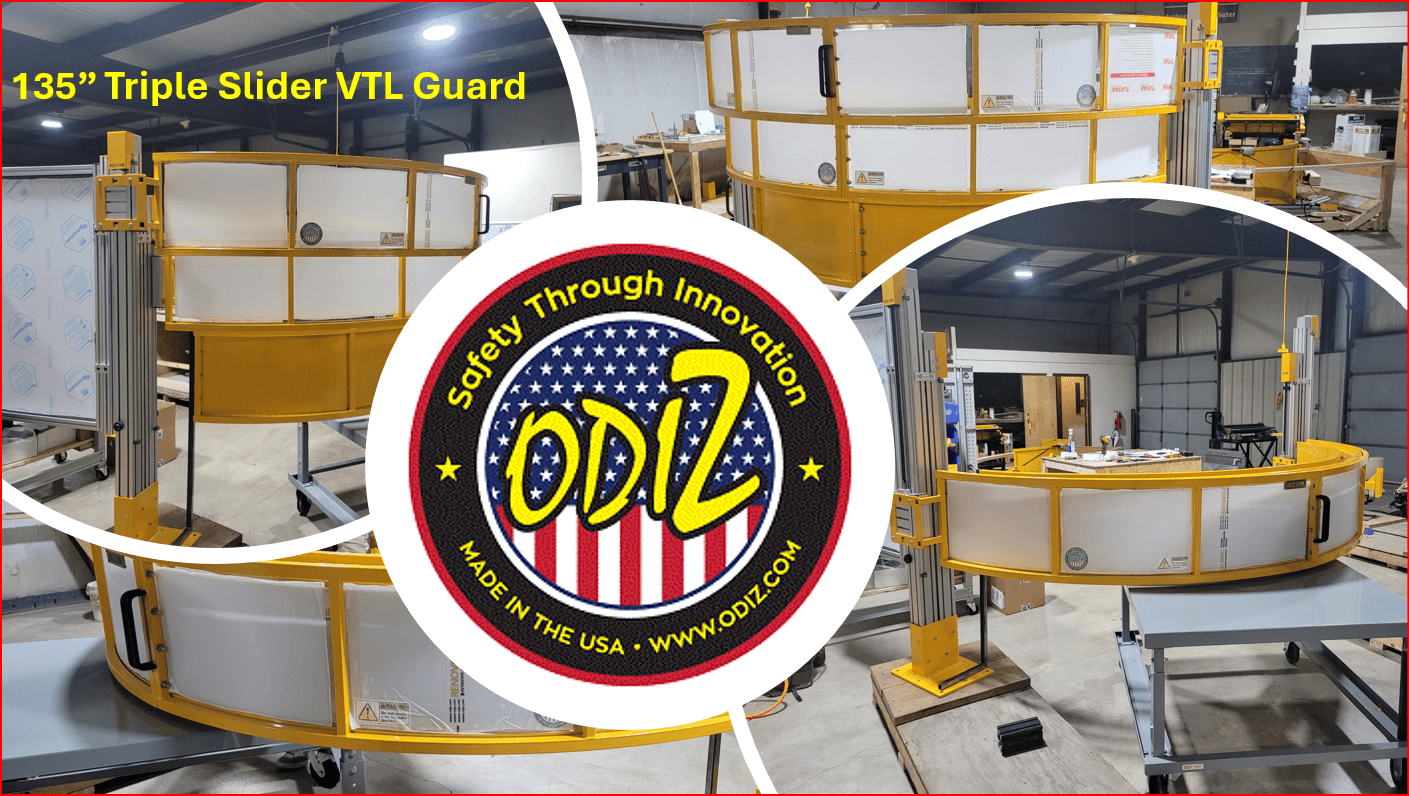

Based on the distance from the table to the floor & guard height desires; you may need a single, double, or triple slider.
Many configurations of metal & lexan; reach out to us if you don't see what you desire.
May Extend Leadtime as Scratch Resistant Lexan is special order
NOTE: don't forget to add table height to overall guard height. For the Double Door Slider, this dimension will be for EACH door.

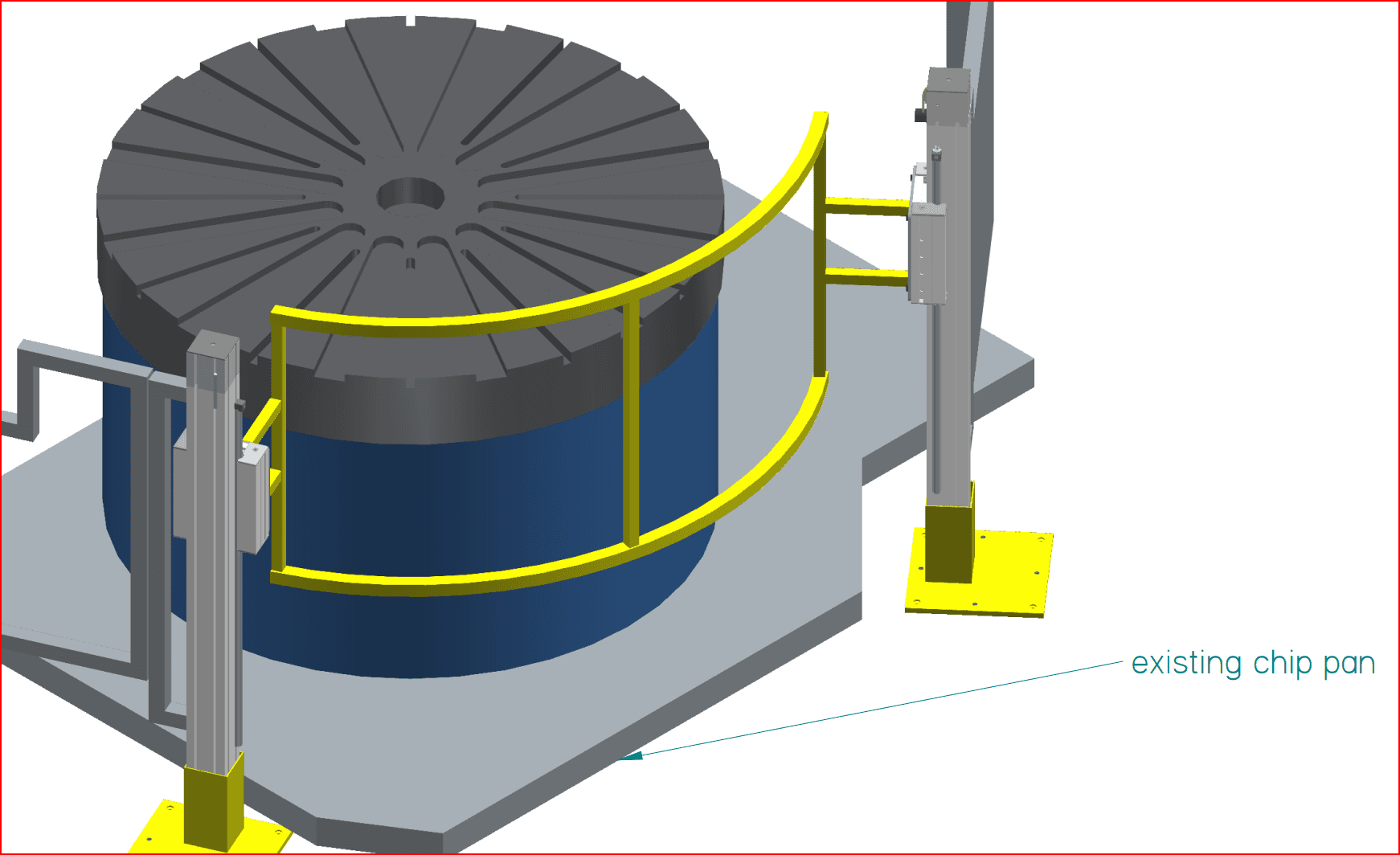

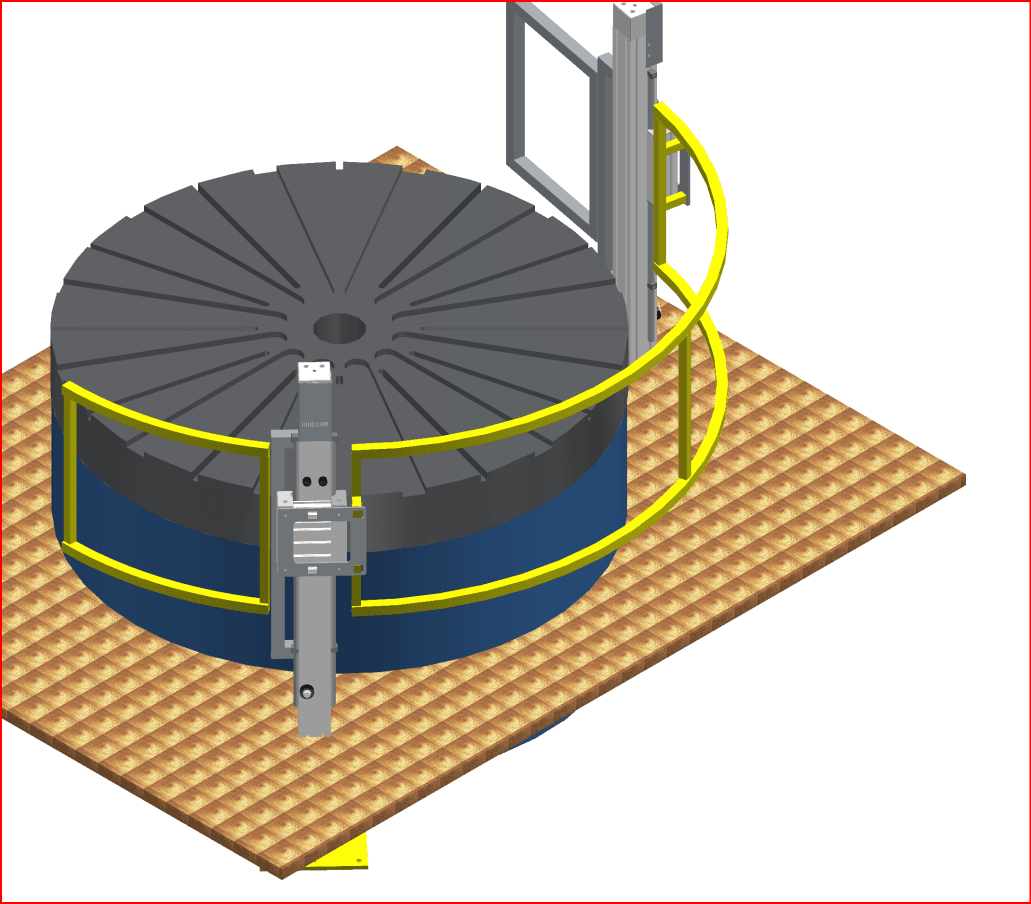

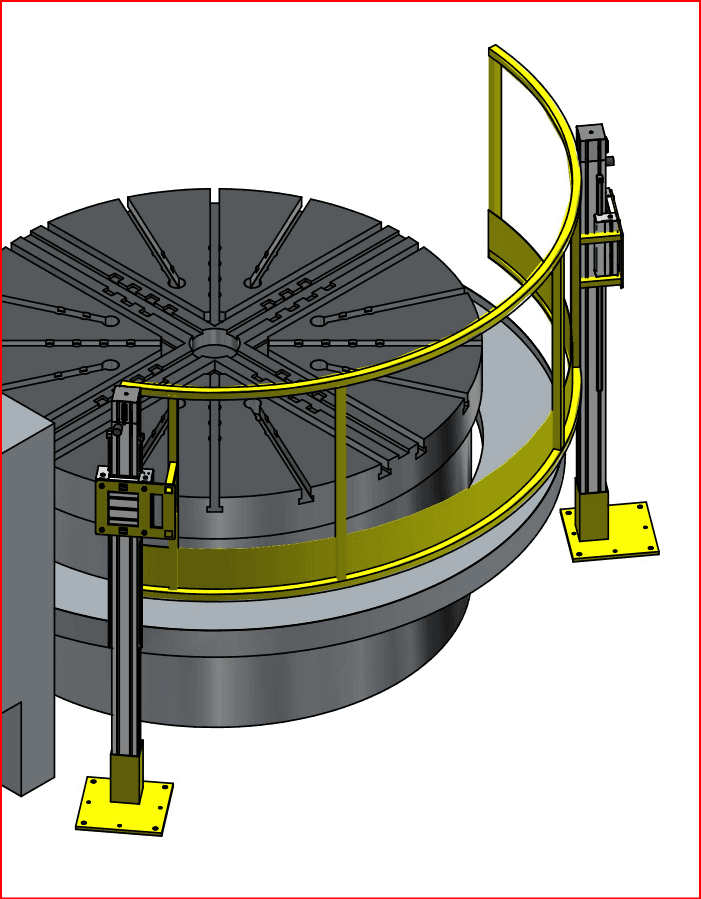

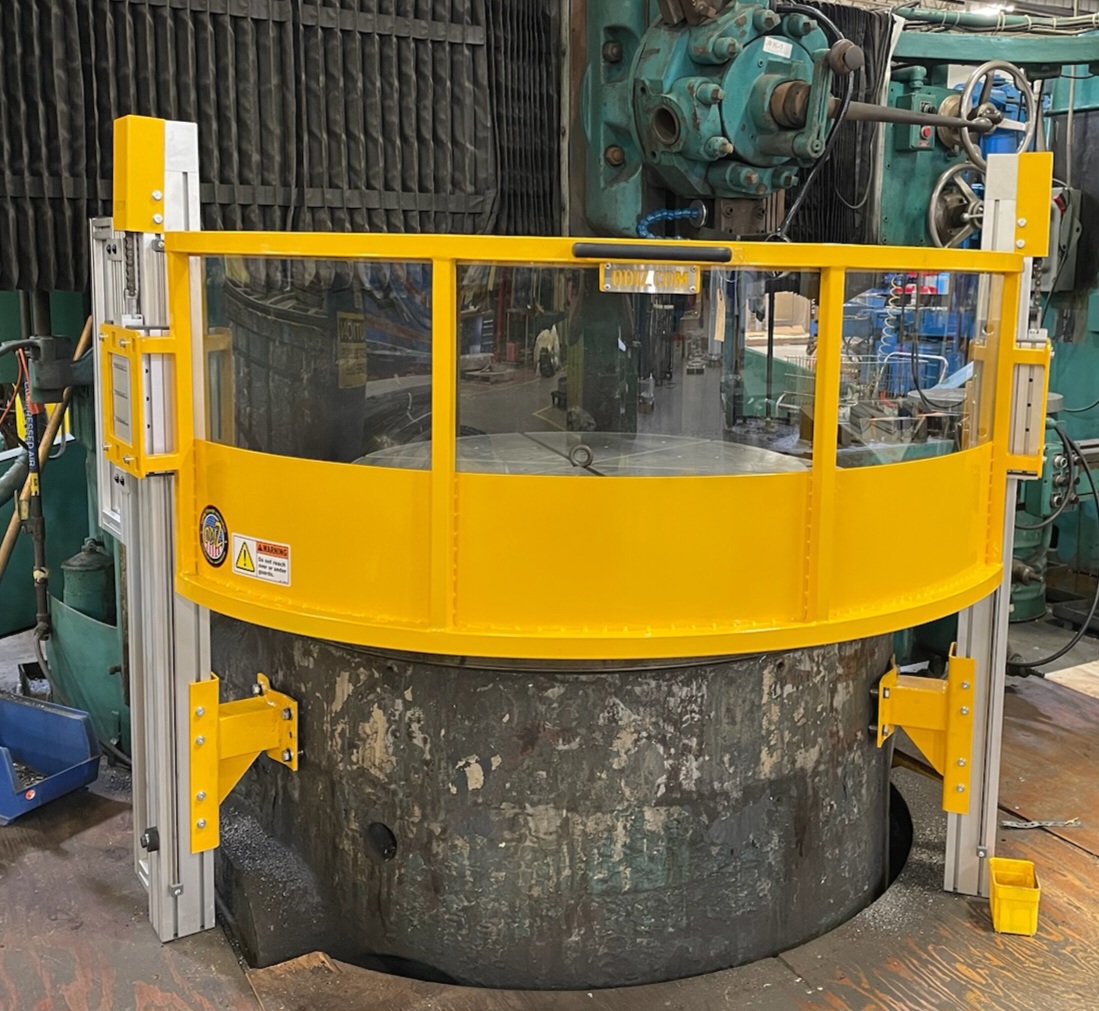

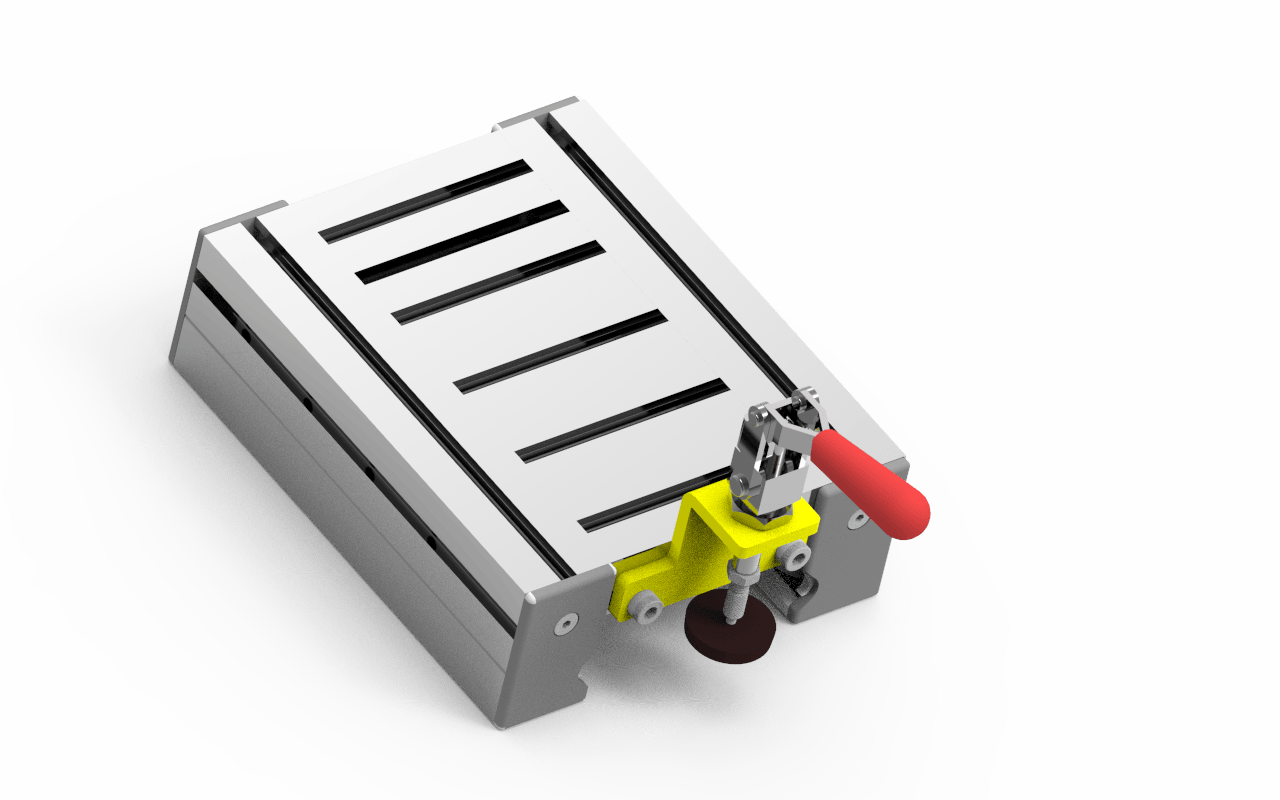

We have custom brackets for floor mounted and machine mounted configurations
Built to Specification - optional interlock (Switch only)
You have the option to pick just a switch or a complete control enclosure. This enclosure is designed for integration into the machines START/STOP circuitry.
If you select an RPM detection interlock system, you may required extended length wiring based on your desired enclosure location.
Not sure where to start? Use our Virtual Design Assistant to assess your machine, or reach out to our team to learn more.

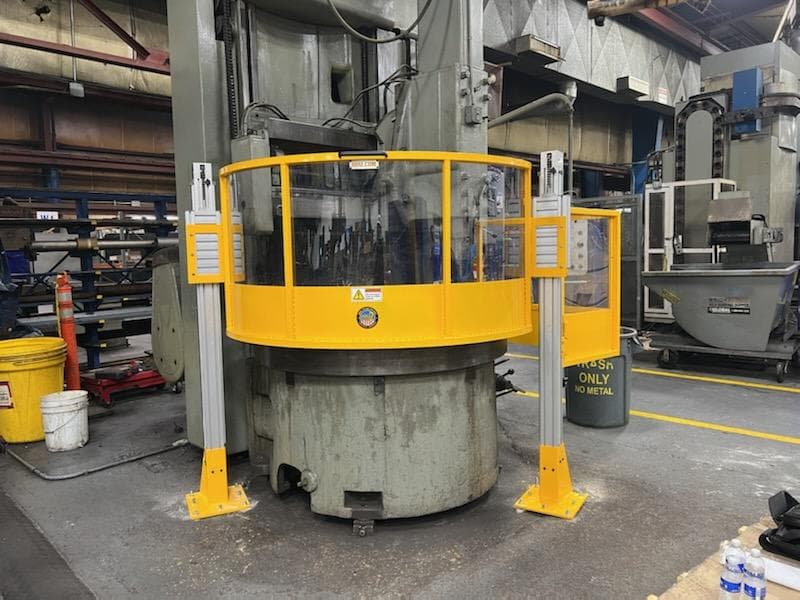

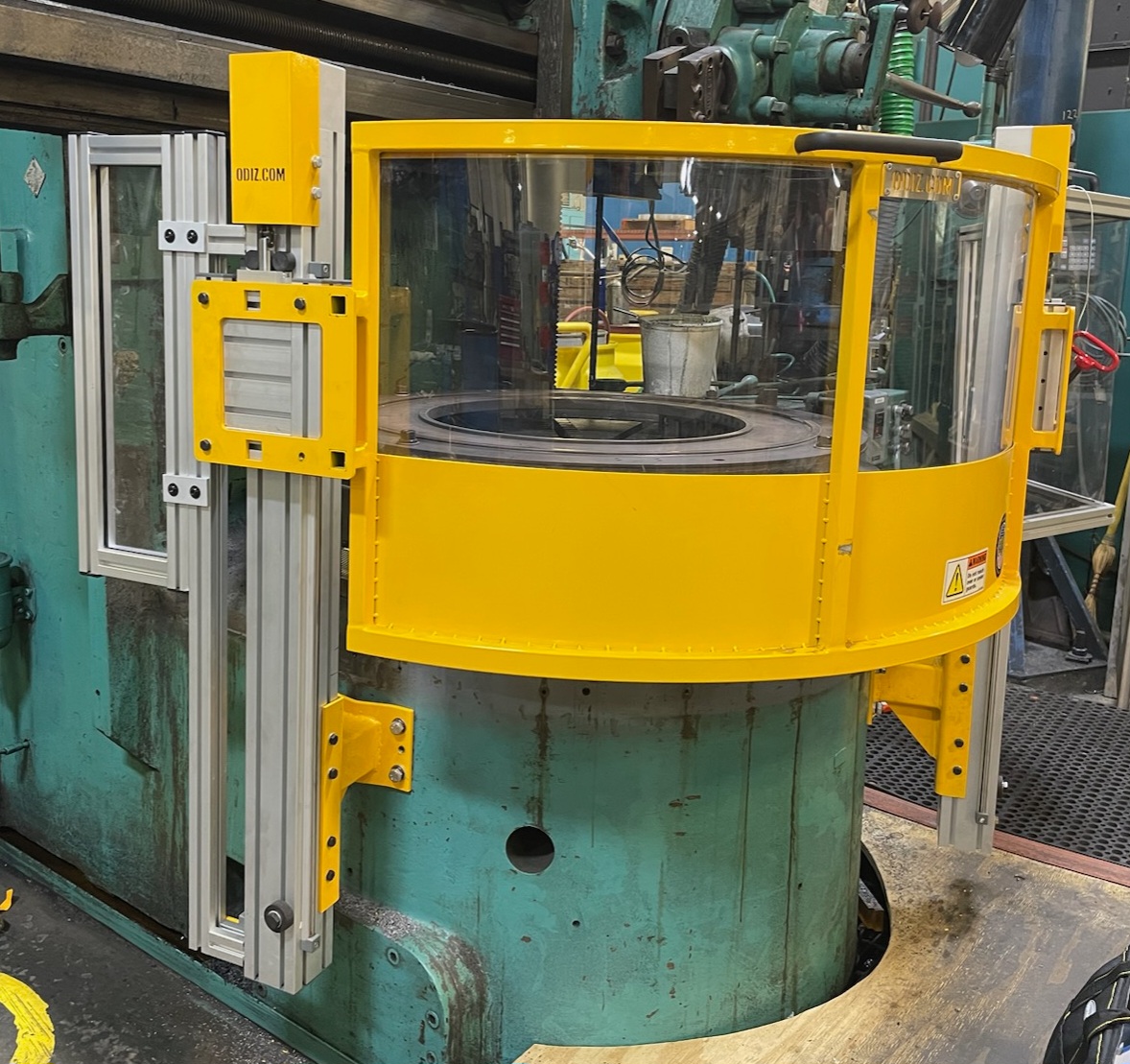

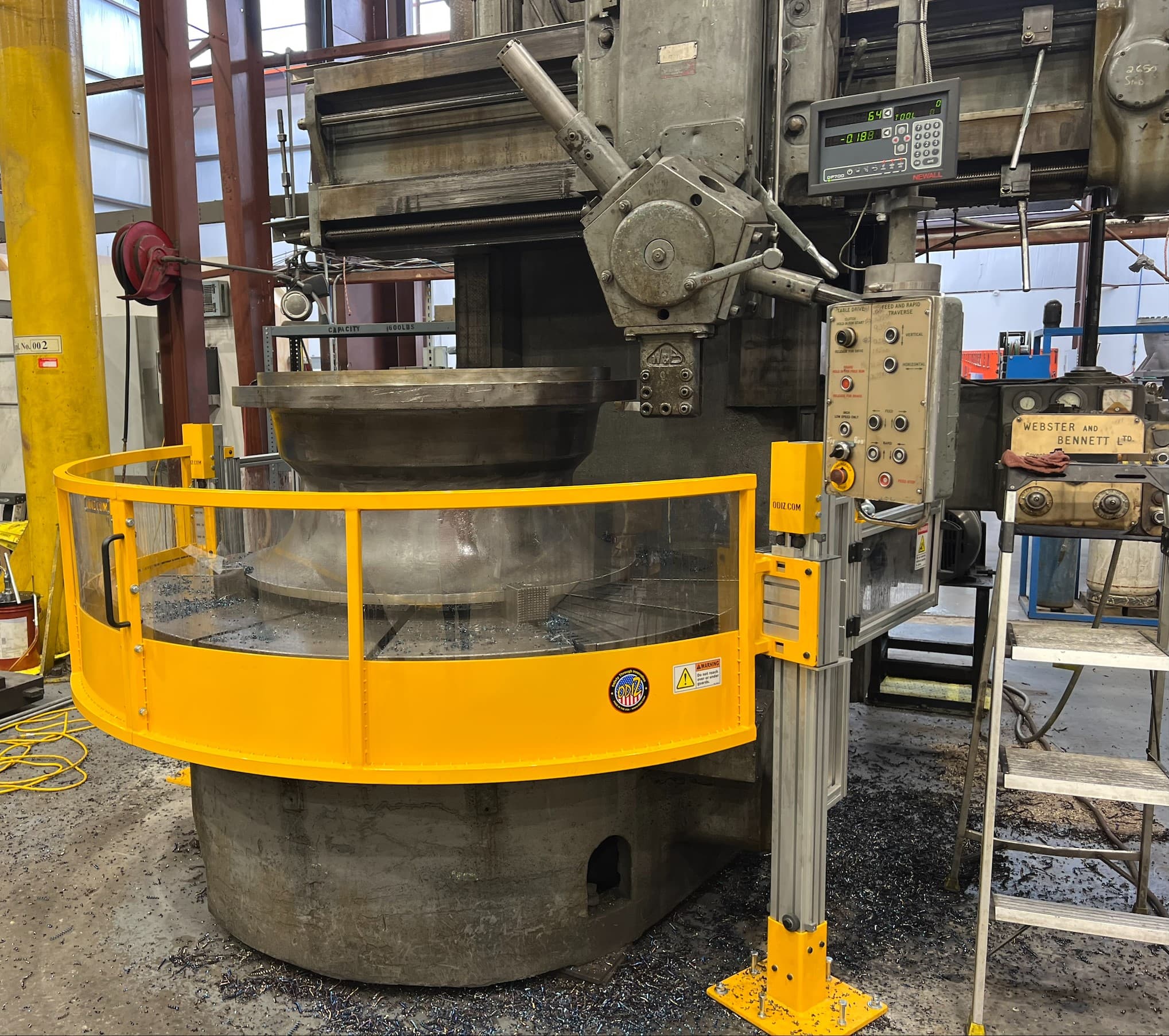

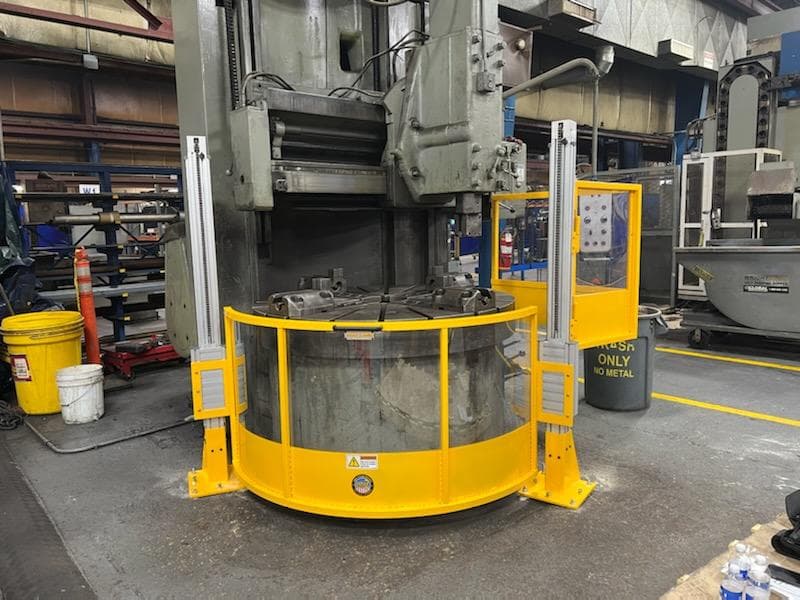

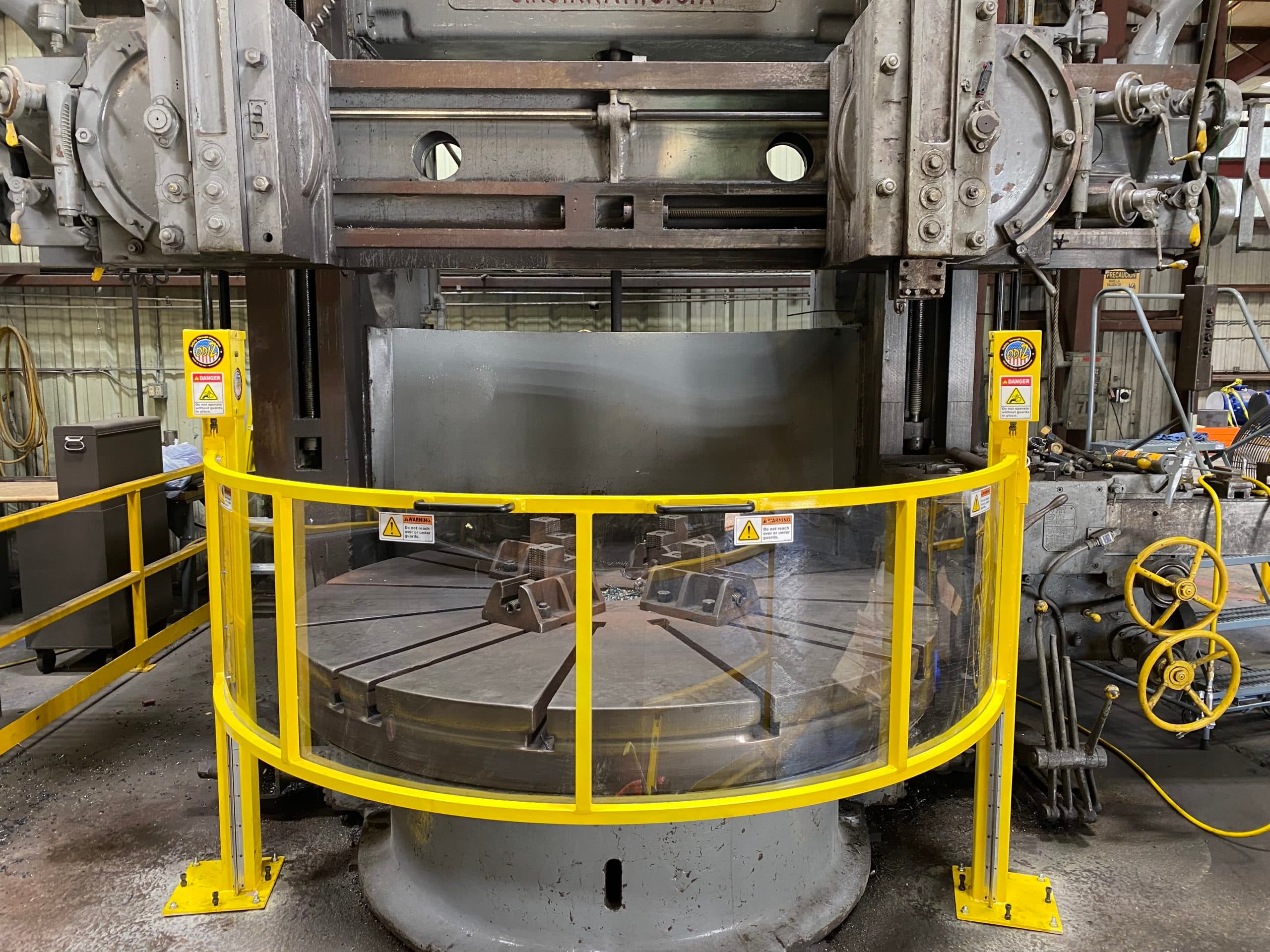

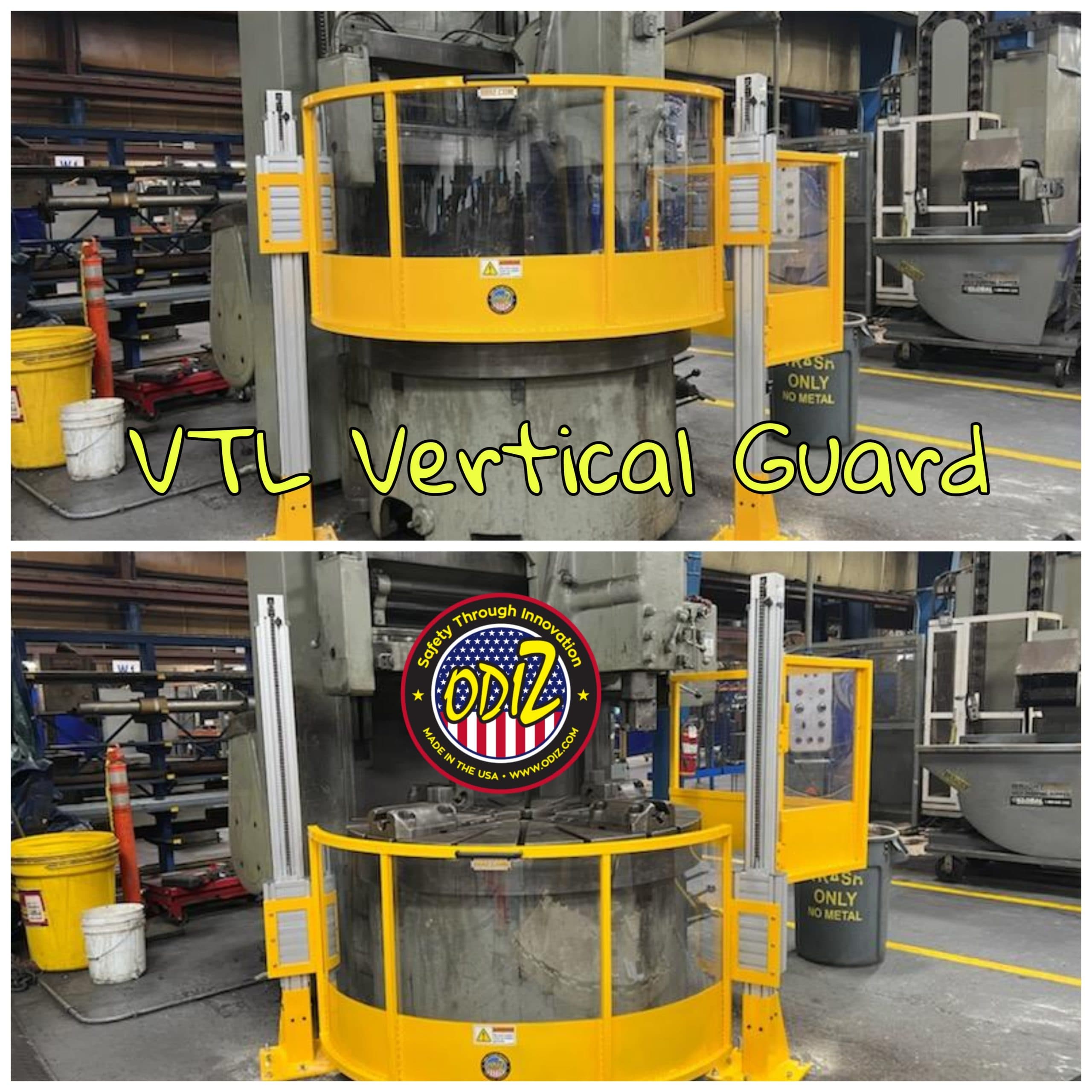

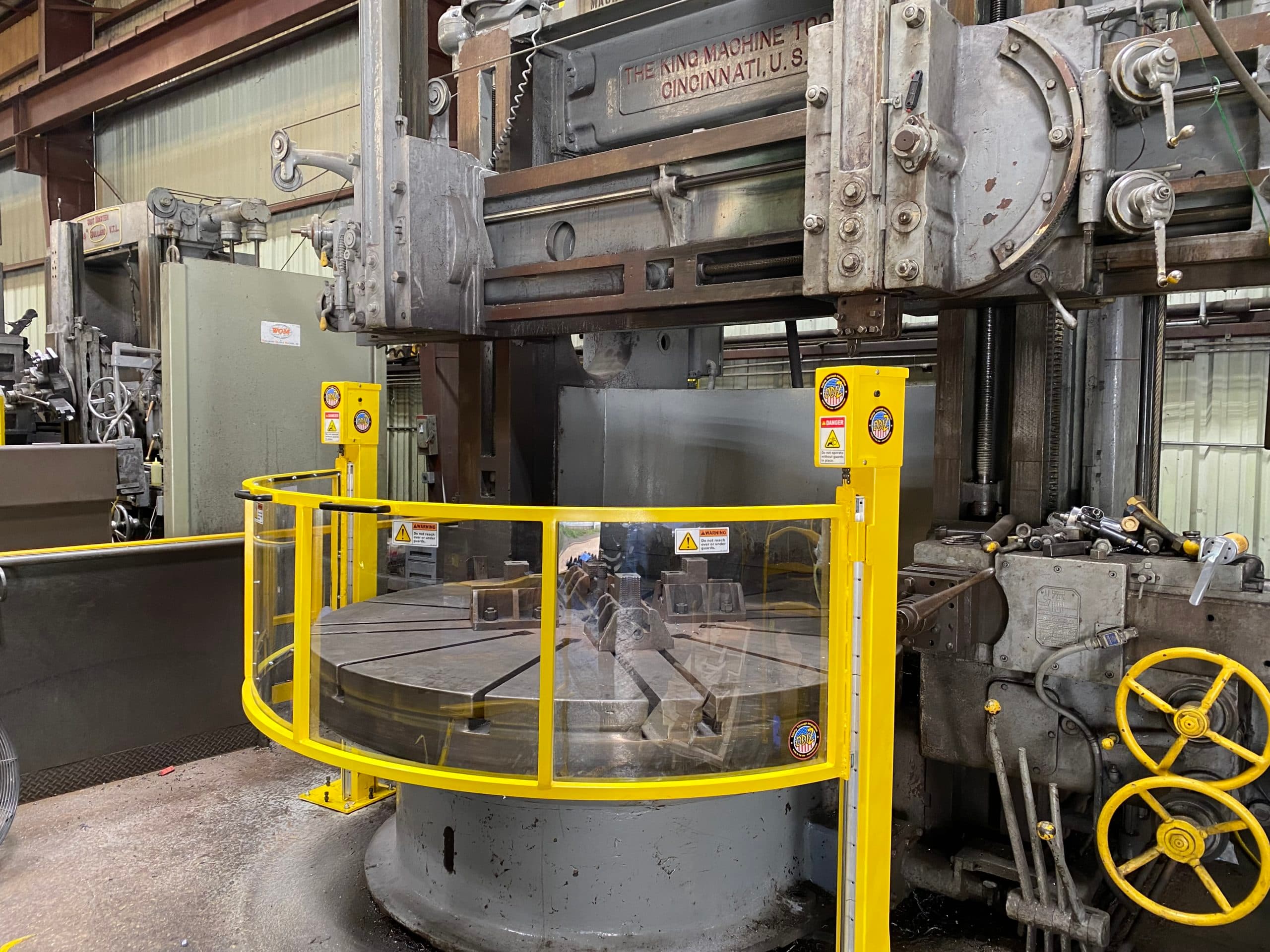

The ODIZ Safety VTL Vertical Turning Lathe Guard – Vertical Lift is a custom-engineered safeguarding solution designed to protect operators working on vertical turning lathes by fully enclosing the rotating workpiece and chuck area. Built to help support OSHA and ANSI guarding expectations, this system helps prevent access to hazardous rotating components and reduces the risk of entanglement, pinch point, and struck-by hazards.

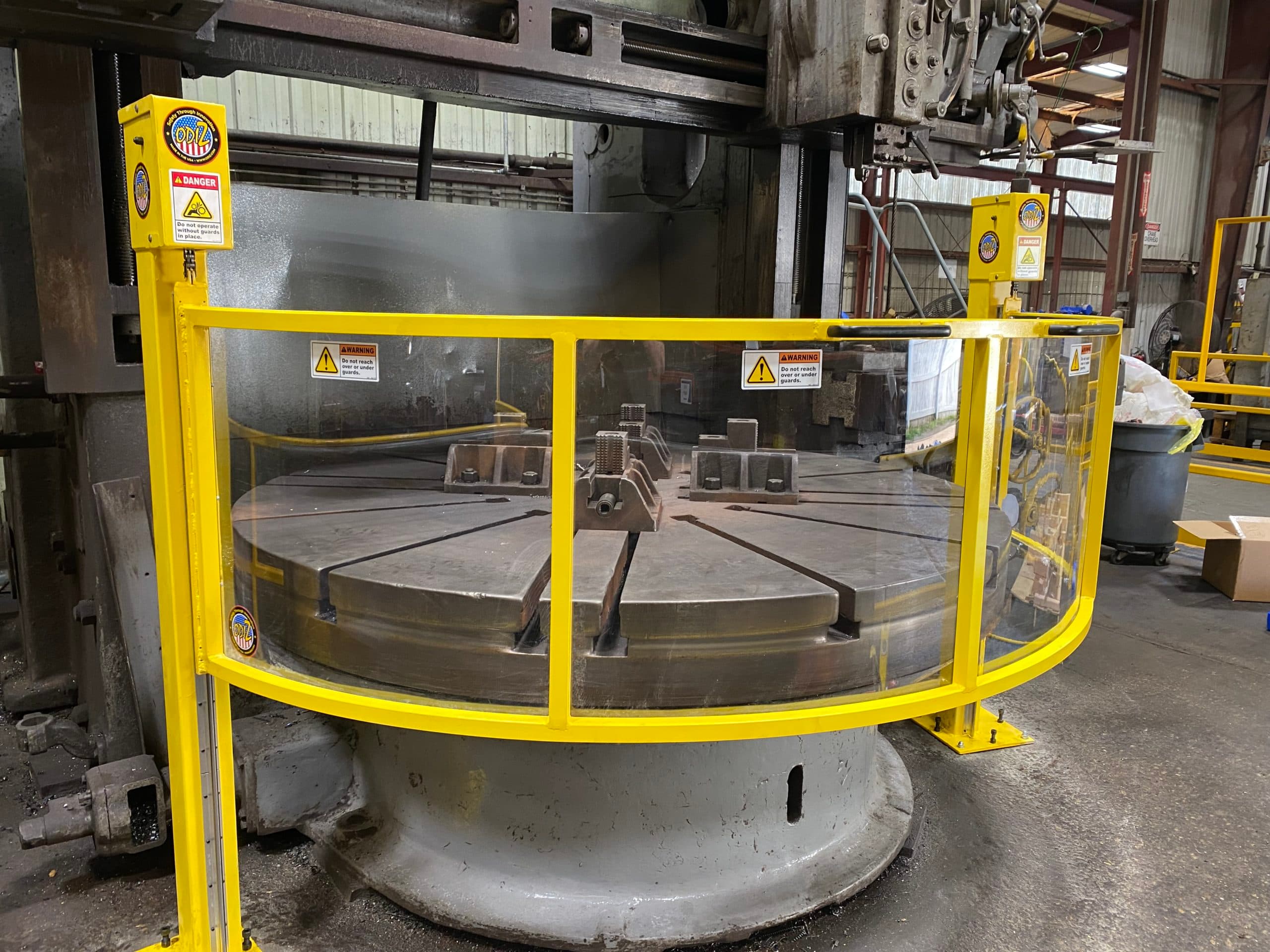

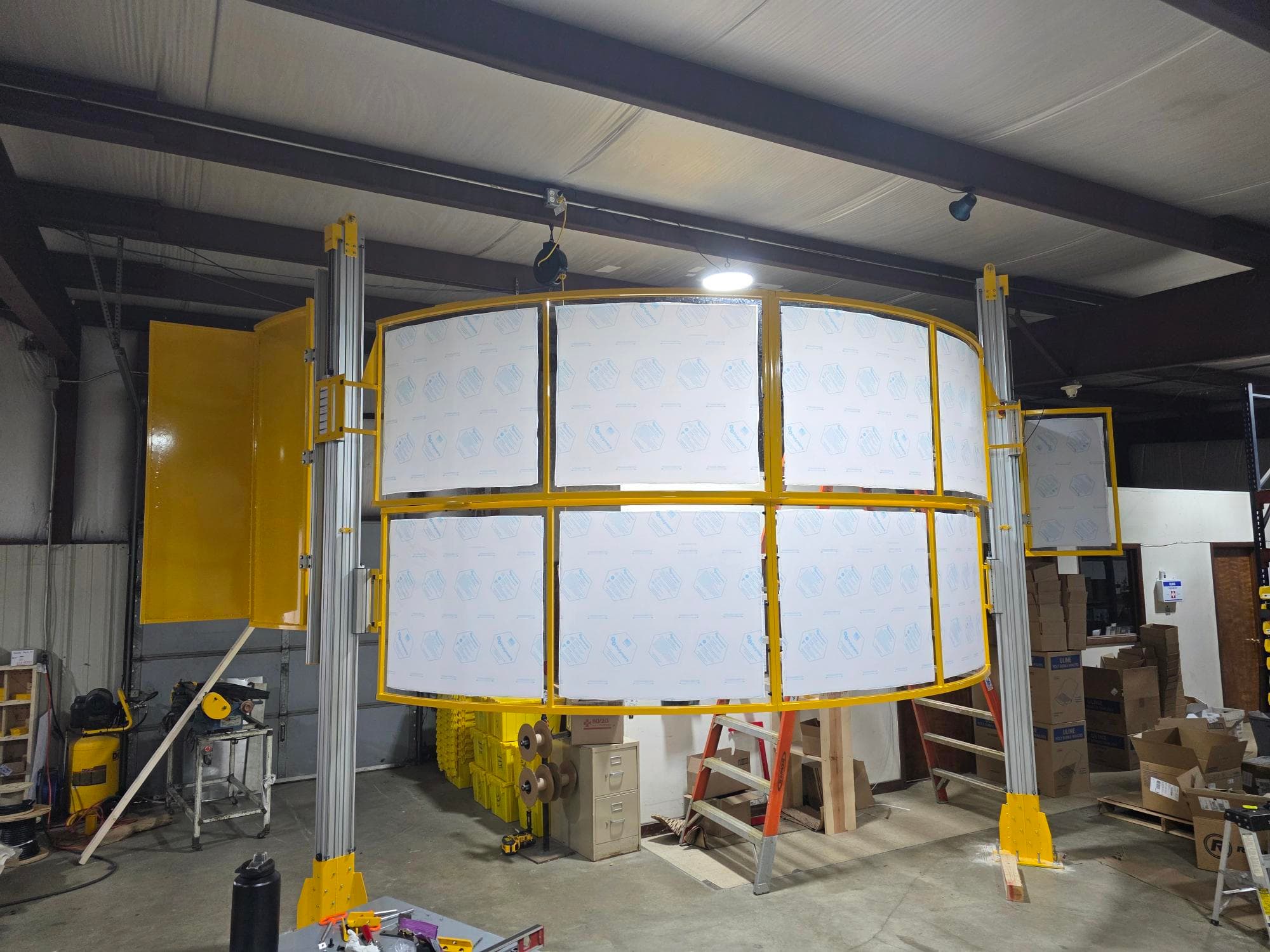

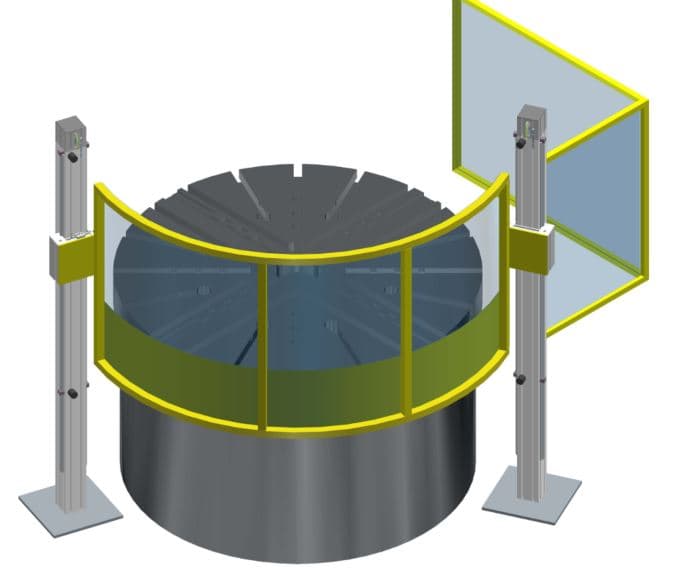

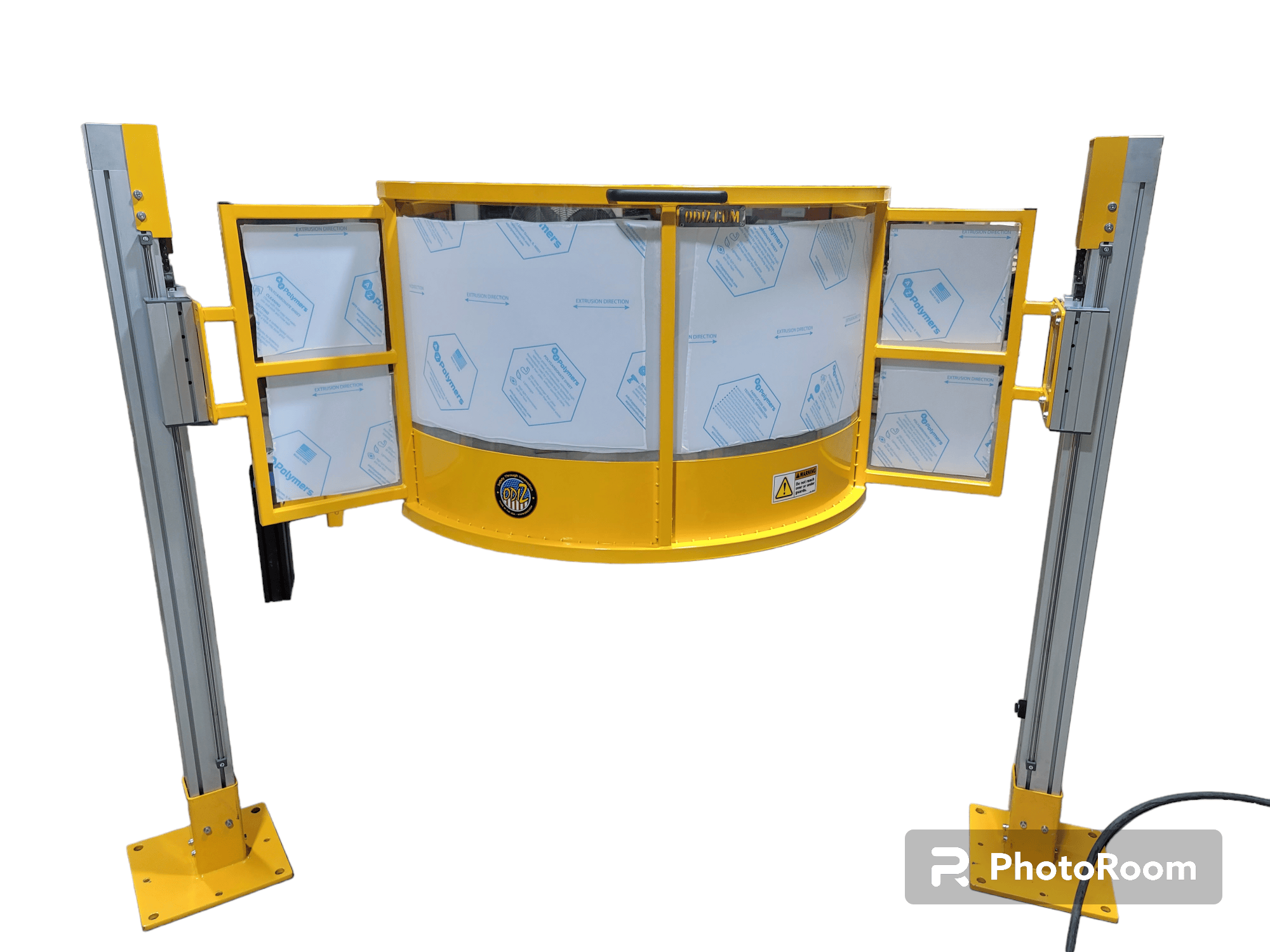

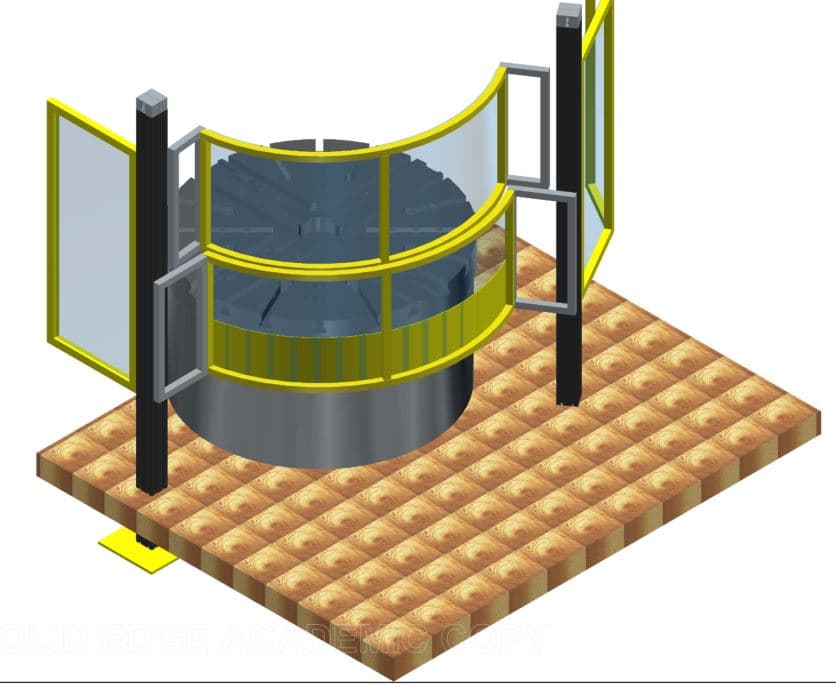

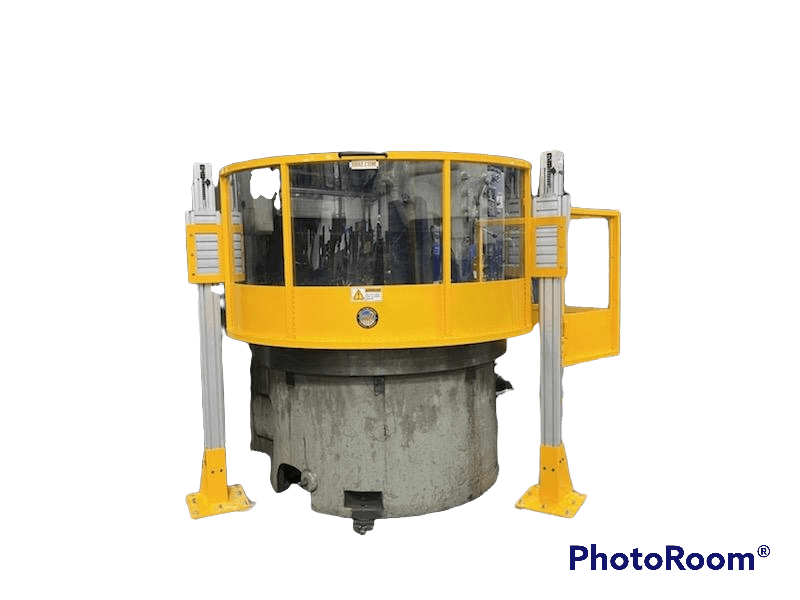

Each guard is manufactured in the USA and configured to match the specific dimensions of your machine. The vertical lift design is available in single, double, or triple sliding-door configurations and can be constructed from ANSI-approved Lexan®, steel, or a combination of both materials. Counterbalanced lifting mechanisms, ergonomic handles, heavy-duty support components, and safety-yellow powder coating provide ease of use while maintaining durability in demanding industrial environments.
For enhanced machine safety, the system can be equipped with optional RFID or hard-switch interlocks, side access doors, lockable solenoid systems, and ODIZ Safety's RPM Detection Interlock Package. This integrated safety system monitors table rotation and prevents guard access until hazardous motion has stopped, helping facilities achieve a higher level of machine safeguarding. Additional options such as task lighting, remote camera monitoring, adjustable guard heights, and custom extensions allow the guard to be tailored to virtually any VTL application.
Key Features
Ideal Applications
ODIZ SAFETY RPM Interlock System:
Odiz Safety RPM Interlock system will have redundant safety sensors that monitor the table RPMs. There will be a Safety Controller and Relay to integrate into the existing machine circuitry. There will be a safety E-stop integrated into the interlock system. There will also be a Safety Door switch with interlocked locking solenoid.
If you want a custom application, feature, or different design contact us at sales@odiz.com and we'll get you a custom quote.
Lead time is typically 3-4 weeks but could vary based on backlog &/or material availability.
Pricing is based on shipping on your organizations Freight account.
OSHA 1910.212 sets the general requirements for machine guarding, covering moving parts, points of operation, in-running nip points, and flying debris. It applies to all machines to protect workers from injury caused by hazardous motion and contact.
OSHA 1910.212(a) establishes the general machine guarding requirements that protect employees from points of operation, moving parts, in-running nip points, and flying debris. It forms the foundation for all other machine guarding rules.
OSHA 1910.212(a)(1) requires that one or more methods of machine guarding be provided to protect operators and nearby employees from rotating parts, flying chips, sparks, and other mechanical hazards. It defines the core duty to guard all dangerous machine motions.
OSHA 1910.212(a)(2) defines the construction and design requirements for machine guards, ensuring they are strong, secure, and effective in protecting workers from mechanical hazards without introducing new risks.
OSHA 1910.212(a)(3) requires that machines have point of operation guards to protect operators from contact with cutting, shaping, or forming actions. This rule ensures workers are shielded wherever material is fed into or removed from a machine.
OSHA 1910.212(a)(3)(ii) requires that the design and construction of machine guards prevent the operator from being exposed to injury during operation, setting a performance-based standard for guard effectiveness and safety.
OSHA 1910.212(a)(3)(iv) lists machine types that typically require point-of-operation guarding, including guillotine cutters, shears, alligator shears, power presses, milling machines, power saws, jointers, portable power tools, and forming rolls and calenders.
OSHA 1910.212(a)(3)(iv)(e) lists milling machines as equipment that usually requires point-of-operation guarding. These machines expose operators to rotating cutters, flying chips, and entanglement hazards that must be controlled with fixed or adjustable guards and safe operating practices.
OSHA 1910.212(b) requires that machines designed for fixed location use be securely anchored to prevent movement or tipping. Anchoring is critical for stable operation and worker safety.
ANSI B11 is a suite of machine safety standards governing the design, guarding, risk assessment, and safeguarding of industrial machinery. It supports detailed safety criteria for compliance with OSHA’s machine guarding rules.
ANSI B11.0 outlines the foundational requirements for machinery safety, including terminology, risk assessment, and risk reduction principles. It serves as the broad “Type A” standard that supports machine-specific standards in the B11 series such as B11.19 and B11.C-type documents.
B11.13 specifies safety requirements for the use, care, guarding, and lifecycle management of automatic bar-feeding and chucking machines (single-spindle or multi-spindle) used in metalcutting operations.
B11.22 sets consensus safety requirements for turning centers and automatic, numerically controlled (NC/CNC) turning machines—covering design, construction, operation, maintenance, guarding, and life-cycle responsibilities.
B11.23 sets industry safety requirements for machining centers and automatic numerically controlled (NC/CNC) milling, drilling and boring machines—addressing design, construction, operation and maintenance.
B11.26 provides industry consensus guidance and requirements for designing safety-related parts of control systems (functional safety) in machinery, aligning with ISO 13849‑1 and addressing electrical, electronic, pneumatic, hydraulic and mechanical safety functions.
B11.6 provides safety requirements for manual turning machines (lathes) with or without automatic control — addressing design, guarding, operation, maintenance and lifecycle responsibilities to reduce risk in turning operations.
B11.8 provides safety requirements for manual milling, drilling and boring machines — covering design, construction, operation, maintenance and safe use whether automatic control is present or not.
