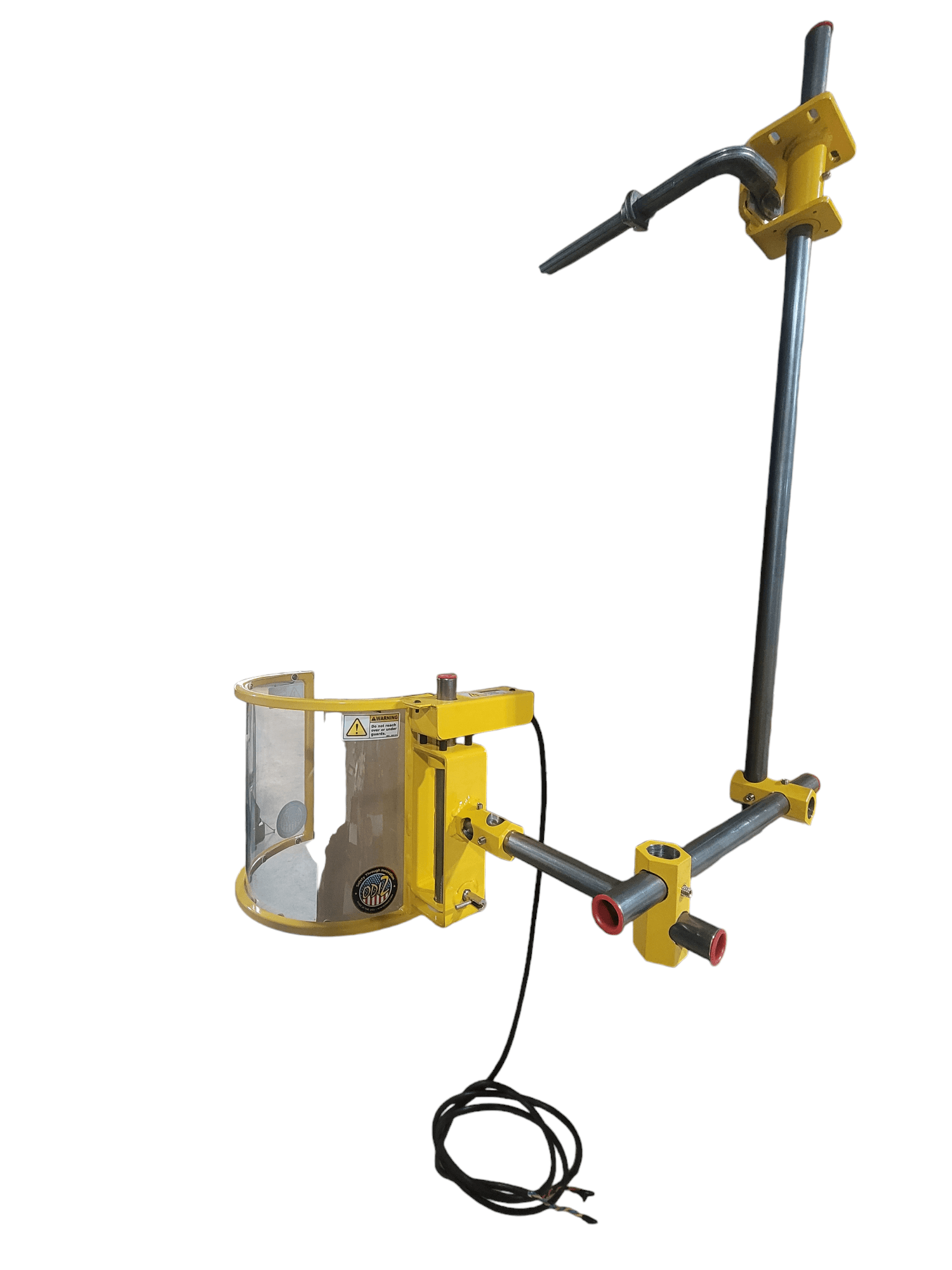

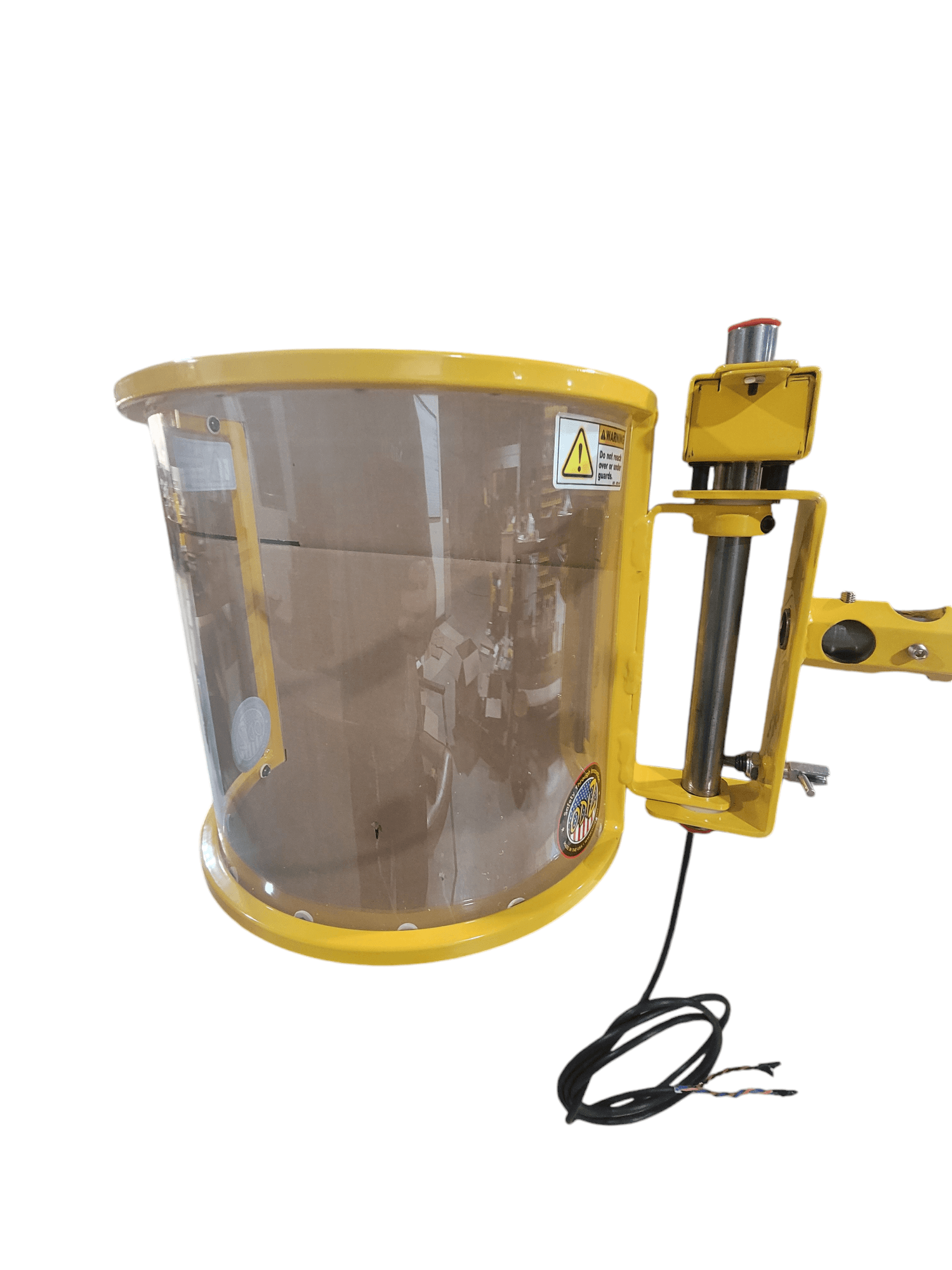

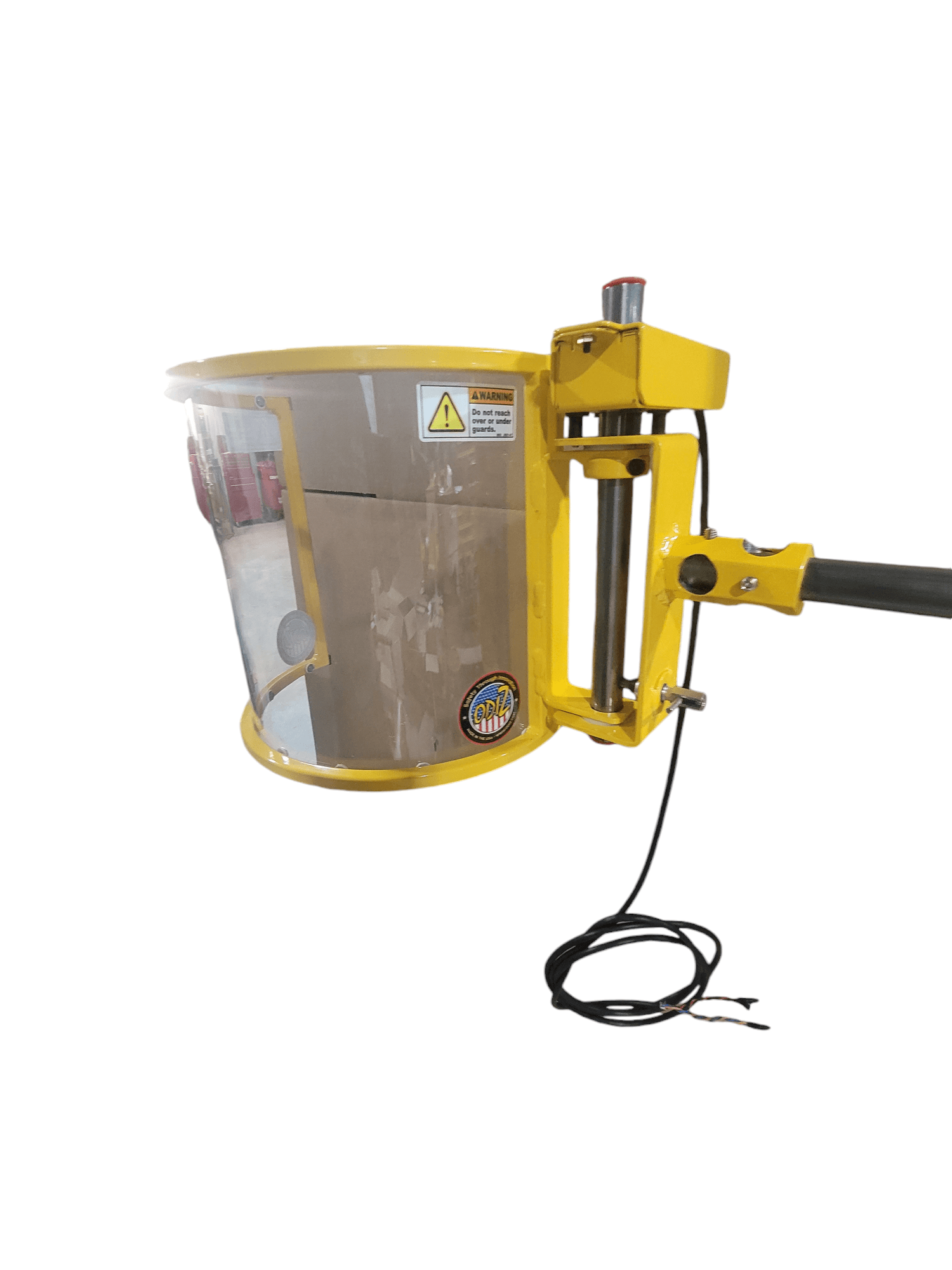

Adjustable Radial Arm Drill Guard

OSHA 1910.212(a)(3)(iv)(e) — Milling Machines

OSHA 29 CFR 1910.212(a)(3)(iv)(e) identifies milling machines as equipment that usually requires point-of-operation guarding.
Milling machines use rotating multi-edge cutters to remove material from workpieces, producing high-speed motion, sharp tool exposure, and ejected metal chips.
Without proper guarding, operators are at risk of lacerations, entanglement, impact, and eye injuries.

Primary Hazards of Milling Machines

• Contact with rotating cutters: Exposed cutting tools can easily catch hands, gloves, or clothing.
• Flying chips and debris: High-speed cutting generates chips that can injure eyes or skin.
• Entanglement: Long hair, gloves, or sleeves can be drawn into the rotating spindle or workpiece.
• Crushing and pinch points: Created between the moving table, vise, and workpiece.
• Unexpected startup: Occurs if power is applied during maintenance or setup without lockout/tagout procedures.

Required Guarding Methods

• Point-of-operation guards: Fixed or adjustable guards must prevent hand or finger access to the cutting zone.
• Chip and splash guards: Transparent shields or enclosures protect operators from flying metal fragments and coolant spray.
• Rotating spindle guards: Shields or covers must enclose exposed spindle and arbor ends.
• Feed mechanism protection: Power feeds, lead screws, and drive belts must be covered to prevent entanglement.
• Interlocked doors or covers: Automatic shutoffs when the enclosure is opened during operation are strongly recommended.

Safe Work Practices

• Never reach near the cutter or remove chips by hand while the machine is running.
• Use brushes or hooks to clear chips and debris—never compressed air directed at the operator or unguarded surfaces.
• Wear eye and face protection rated for high-velocity impact and coolant resistance.
• Ensure guards remain in place during setup and production; only remove them under full lockout/tagout.
• Secure long hair, jewelry, and loose clothing before machine operation.
• Perform routine inspections of guards, interlocks, and emergency stop buttons before each shift.

Types of Guards Commonly Used

• Adjustable transparent guards mounted over the spindle and cutter to provide visibility while preventing access.
• Enclosing guards for CNC or automated milling centers to protect operators during unattended cycles.
• Telescoping way covers that shield moving tables and leadscrews from accidental contact.
• Barrier guards or fencing systems for larger production mills to keep personnel out of hazardous zones.

Common Violations

• Operating a milling machine with the cutter exposed and no protective shield installed.
• Removed or bypassed chip guards to improve visibility.
• Failure to guard moving lead screws, gears, or belt drives.
• Lack of PPE or missing splash shields causing eye injuries.
• Failure to follow lockout/tagout during tool changes or maintenance.

Engineering and Administrative Controls

• Install automatic door interlocks on CNC machines to prevent motion when open.
• Use remote controls or pendant stations to keep operators clear during testing and setup.
• Implement written safe-operating procedures specific to manual and CNC milling operations.
• Include machine guarding checks in preventive maintenance and supervisor inspections.

Why OSHA 1910.212(a)(3)(iv)(e) Is Important

Milling machines are among the most common and versatile metal-cutting tools in manufacturing—and among the most hazardous if unguarded.
OSHA 1910.212(a)(3)(iv)(e) ensures that all milling operations include effective physical guards, shields, and safe work procedures to protect operators from contact with rotating cutters, flying debris, and moving components.
Compliance with this standard significantly reduces the risk of serious injury and ensures a safer machining environment.

FAQ

B11.8 — Safety Requirements for Manual Milling, Drilling & Boring Machines (With or Without Automatic Control)

The B11.8 standard (ANSI B11.8-2021) specifies safety requirements for machines that perform milling, drilling or boring operations under manual control or partial automation — machines where the operator controls initiation of tasks, even if the machine has automatic features. :contentReference[oaicite:0]{index=0}
It applies to design, construction, installation, operation, maintenance, modification, dismantling and transport of such machines. :contentReference[oaicite:1]{index=1}

Scope & Application

B11.8 covers manual milling machines, drilling machines and boring machines where the operator uses manually-initiated steps to remove material via rotating cutters. Machines may include automatic controls but exclude full automatic part-handling systems or automatic tool changers. :contentReference[oaicite:2]{index=2}
The standard addresses both horizontal and vertical spindle machines and covers hazards from cutting tools, work-holding, chip ejection, coolant systems and operator access. :contentReference[oaicite:3]{index=3}

Key Safety Topics Addressed

• Guarding & Enclosure of Rotating Elements: Protecting against contact with spindles, cutters, chucks, feed mechanisms and moving parts.
• Point of Operation & Material Removal Hazards: Mitigating hazards such as chip/projectile ejection, coolant spray, entanglement, and reaching into tool/work zones. :contentReference[oaicite:4]{index=4}
• Feed & Hold-down Systems: Ensuring secure work-holding, guarding over feed paths, and safe adjustment/maintenance of hold-down devices.
• Control Modes & Safe Operation: Safe selection of manual vs automatic modes, preventing unintended motion, providing emergency stop, safe start/restart logic.
• Lifecycle Responsibilities: Defining obligations of machine suppliers, modifiers/integrators and users through design, installation, commissioning, maintenance, modification and decommissioning. :contentReference[oaicite:5]{index=5}

Why It Matters

Milling, drilling and boring machines are ubiquitous in metalworking and fabrication shops. They involve high-speed rotating cutters, moving tables/feed systems, potential for flying chips, coolant spray and operator exposure to rotating parts or tooling during setup or maintenance. Without robust safeguarding and control procedures, these machines can lead to serious injuries.
By following B11.8, organizations apply recognized engineering practice for safe machine design, operation and lifecycle management of these machines.

Practical Implementation Tips

• Conduct a task-based risk assessment: consider manual production operation, setup/tool change mode, maintenance mode and any automatic feature present.
• Ensure guarding covers spindle heads, rotating cutters, feed systems and chip ejection zones; check coolant spray containment and secondary hazards (chip buildup, slip/trip).
• For machines with automatic control features (but still manual-initiated), validate that operator access is restricted during automatic cycles and that mode selection safeguards are in place.
• Document machine modifications or rebuilds (e.g., adding automatic feed or control features) and treat them as new installations: re-validate risk assessment, revise guarding and controls.
• Train operators and maintenance staff on hazards: tool changes, coolant hazards, chip ejection, reaching into hazards, safe use of automatic/manual features and emergency procedures.
