UFIT Flip-Up Adjustable Lathe Chuck Guard

$495.00

Weight 15 lbs
Dimensions 20 × 20 × 20 in

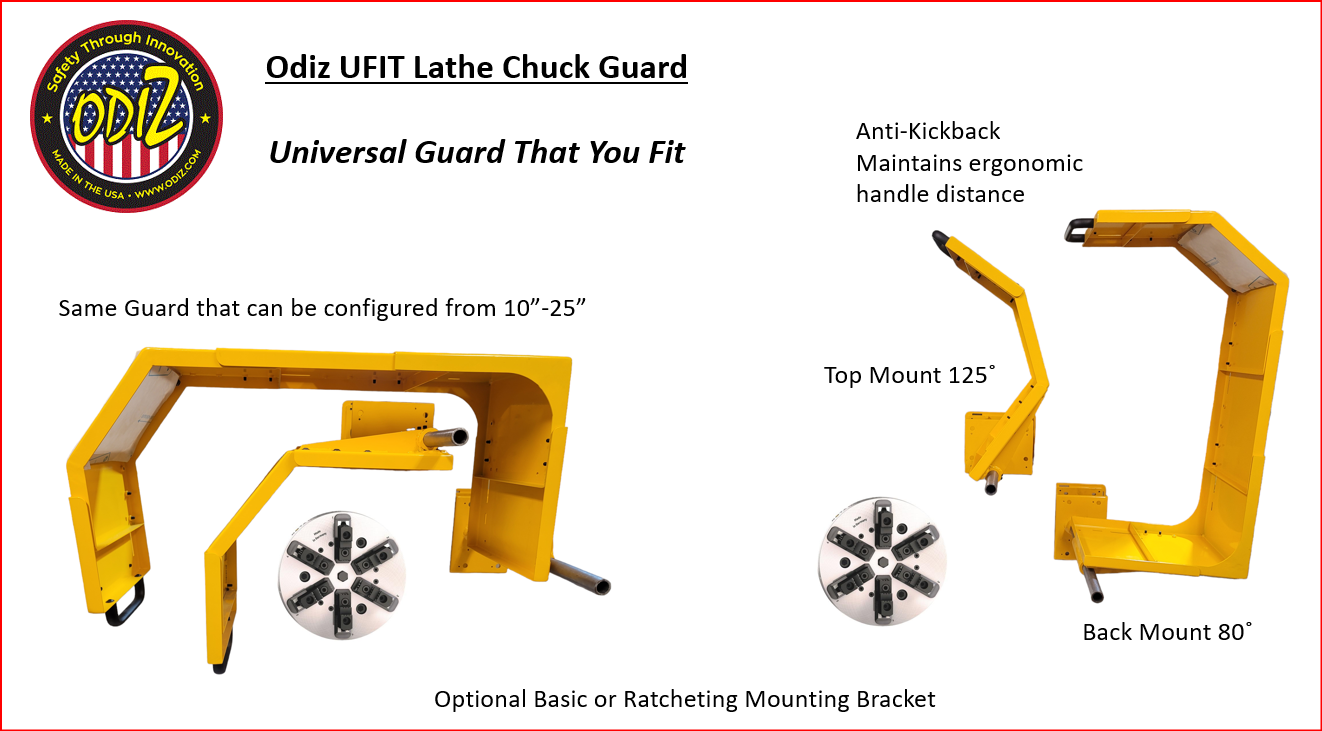

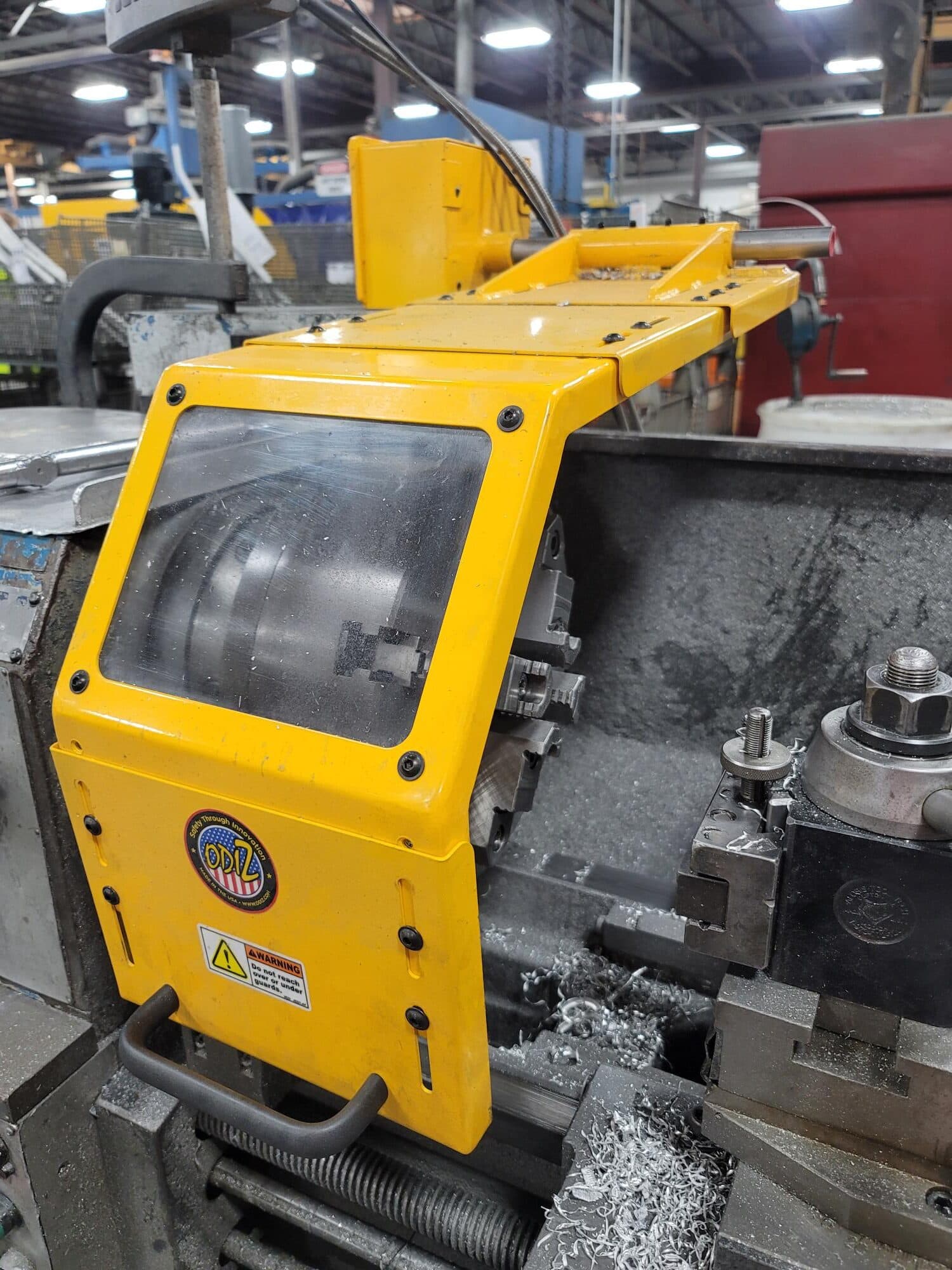

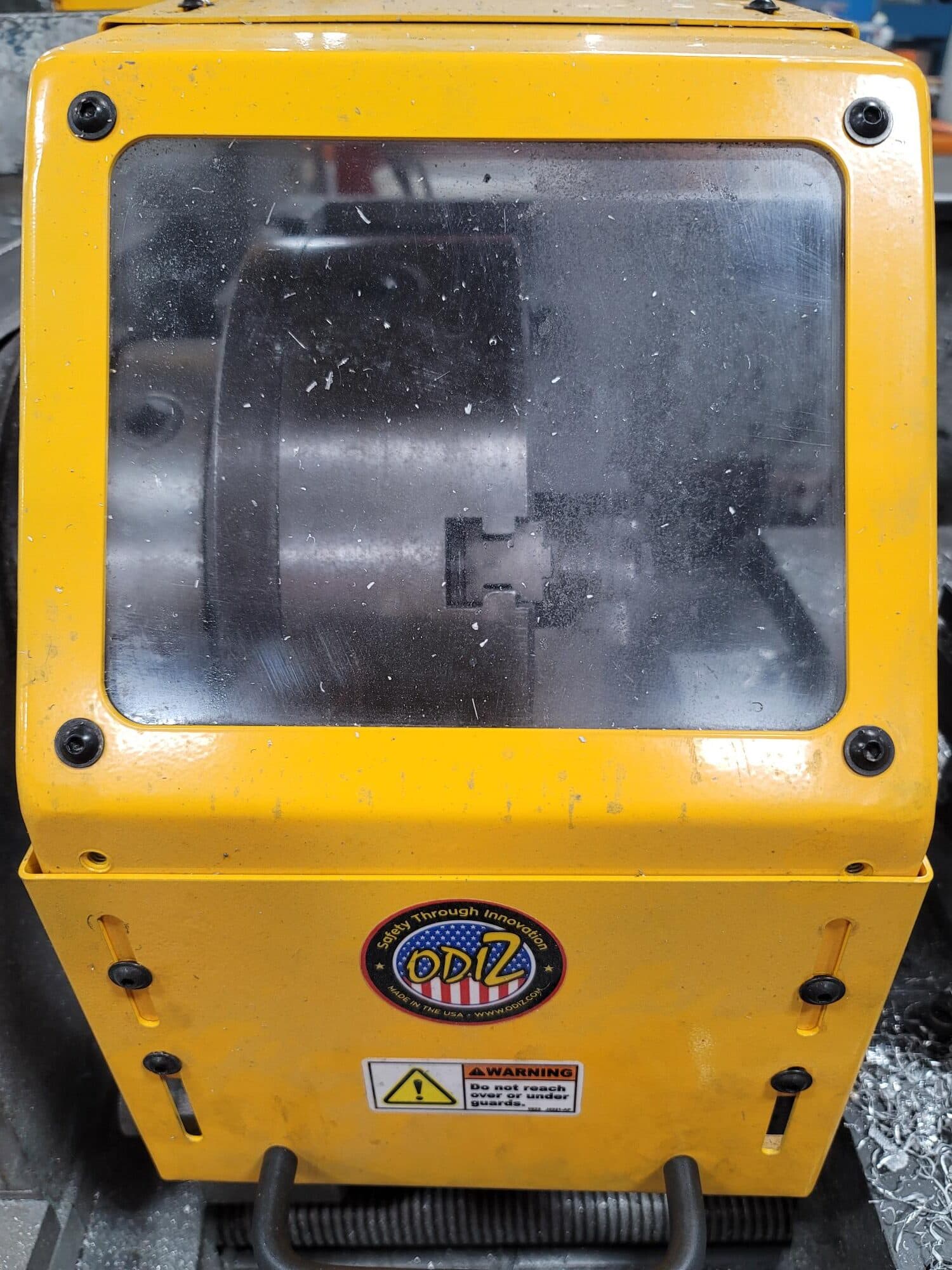

Odiz UFIT Flip-up Adjustable Lathe Chuck Guard (Patent Pending)

Fits Lathe chucks from 10″-25″, that YOU adjust to your machine & application

Hundreds of configurations to fit to your operational needs from one product!

Video – UFIT Presentation

Video – UFIT on machine demonstration

Video – UFIT Guard adjustments

Video – UFIT Anti-Kickback Ratcheting System

Video – UFIT Simple Flip up with Interlock System

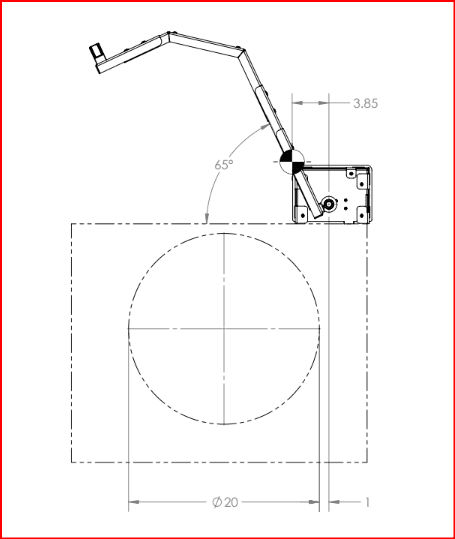

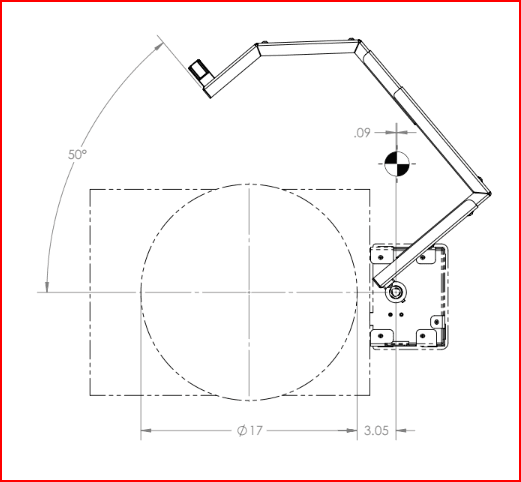

Guard Mounting Style

All of the Odiz Guards are 10″ wide based on a dimensional study of chuck sizes
Basic mounting is a standard flip up and down for simple solutions
Top & Back Mount is for those looking for anti-kickback features
The Top mount does NOT have the back 90 degree portion of the guard
All mounting brackets are made to be universally mounted to the top, back, or face of the machine

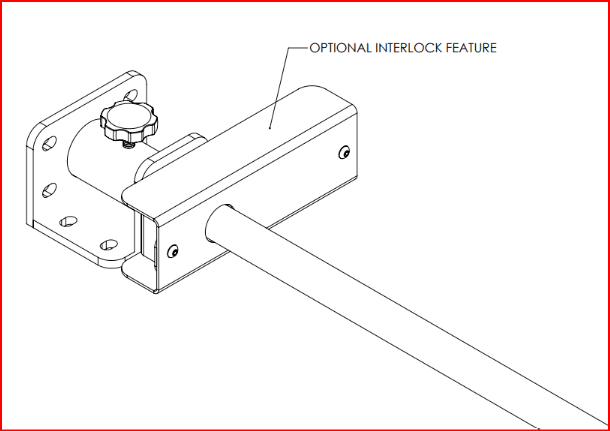

The Odiz UFIT is designed to accept an interlock switch at any given time, upgradable!

Not sure where to start? Reach out to our team to learn more.

To request more information about this product or service, please complete the form below. You can also chat live with one of our specialists via the widget in the bottom-right corner of your screen or call us at (574) 318-4333.

This field is for validation purposes and should be left unchanged.
Name(Required)

Odiz UFIT Lathe Adjustable Chuck Guard

Odiz Safety UFIT Adjustable Lathe Chuck Guard (Patent Pending)

Fits Lathe chucks from 10″-25″, that YOU adjust to your machine & application

Hundreds of configurations to fit to your operational needs from one product!

Video – UFIT Presentation

Video – UFIT on machine demonstration

Video – UFIT Guard adjustments

Video – UFIT Anti-Kickback Ratcheting System

Video – UFIT Simple Flip up with Interlock System

The mounting system is designed for all in one mounting options; Back mount, flush mount, top mount.

You can get the interlock switch now, or add it later with no modifications required.

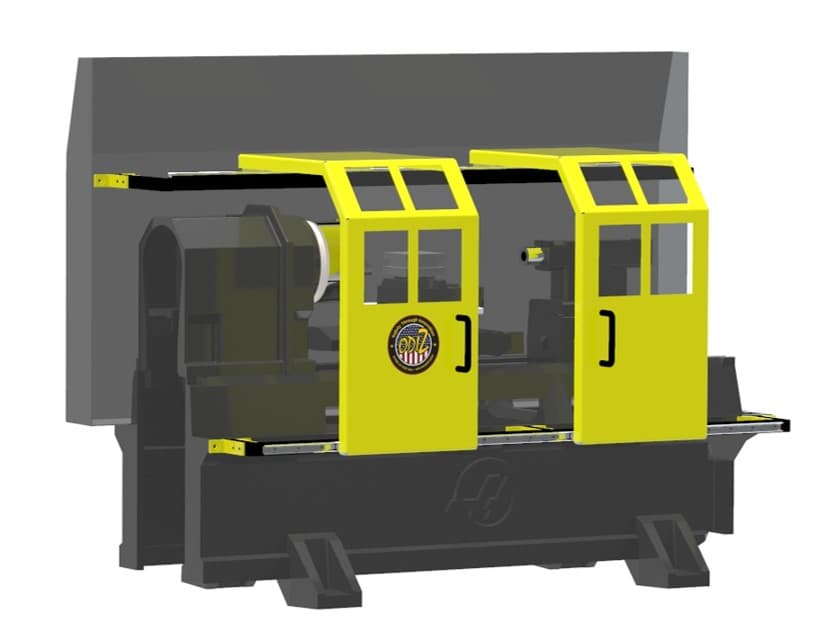

Select you guard, if you need something custom, visit our custom lathe guards

Odiz UFIT Benefits:

  • Per our Ergonomic study, no lathe flip-up guard should be greater than 25”
  • Has universal basic OR ratcheting mounting for back, face, and top of lathe
  • Can be mounted from the back, top, and front of the machine

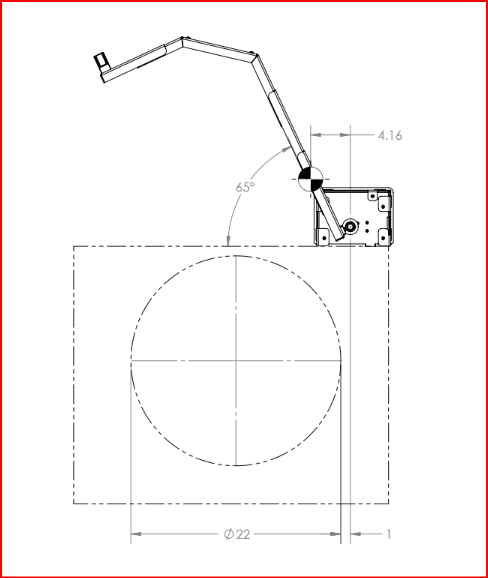

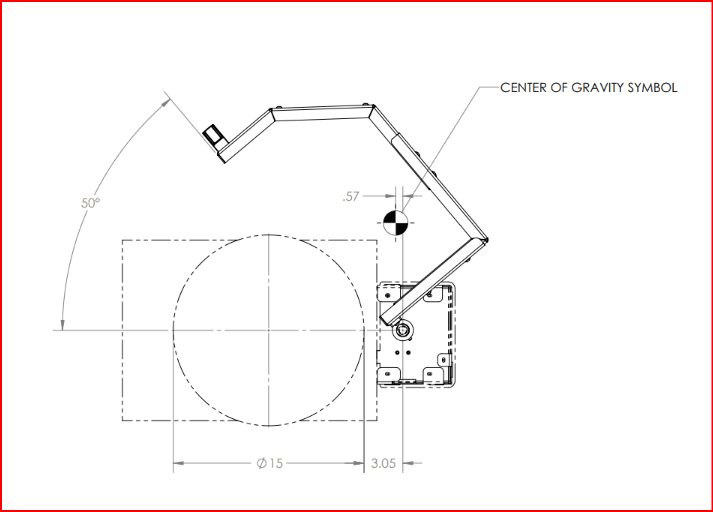

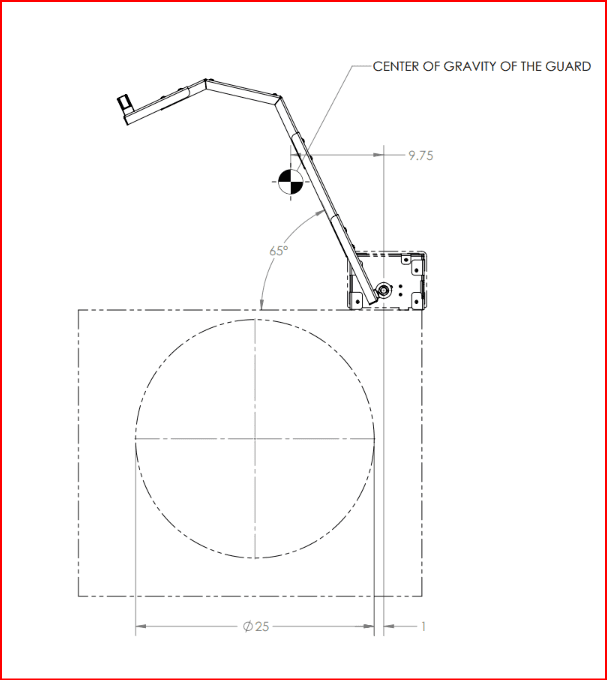

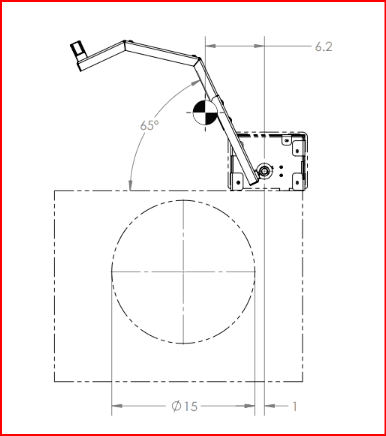

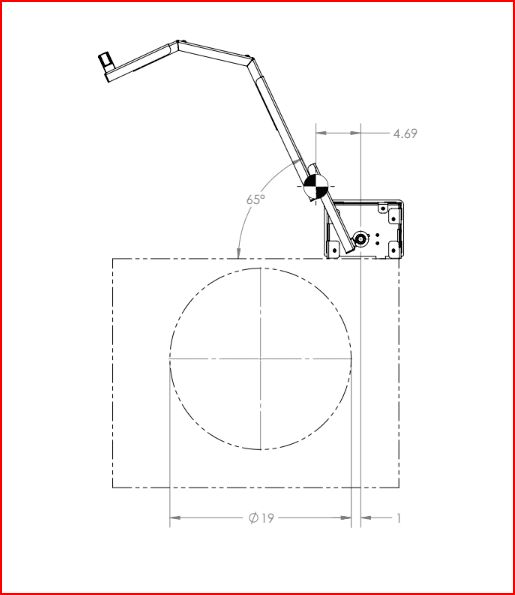

  • Will sustain center of gravity
  • Prevents from falling back on operator with ratcheting anti-kickback mechanism
  • Optional interlock without any serious bracketry upgrades or costs
  • Shipped as a complete kit to cover all sizes and variations

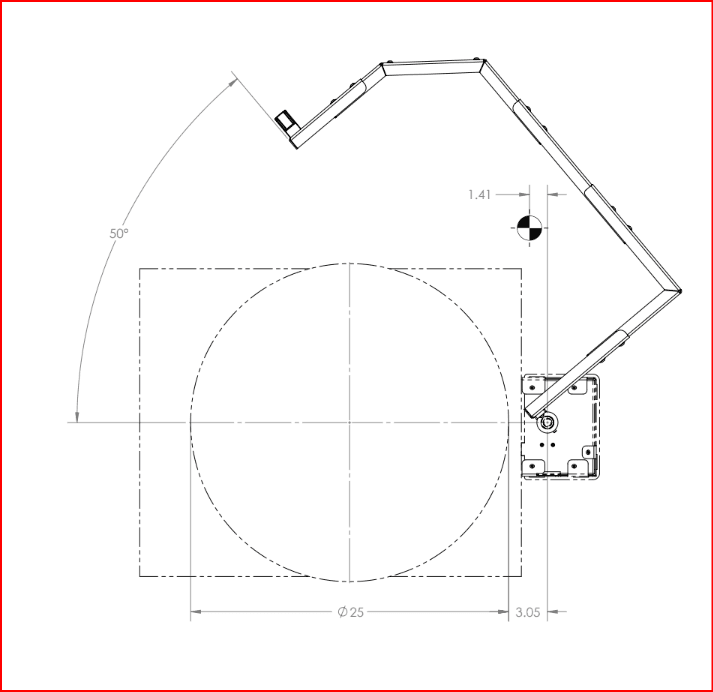

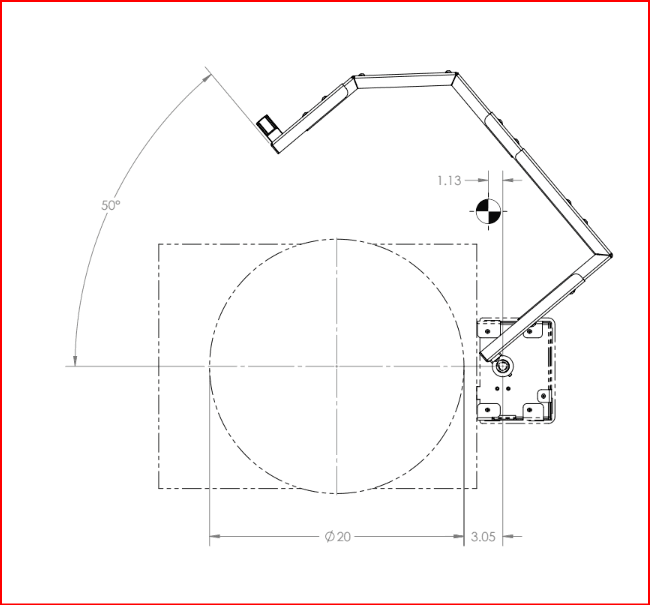

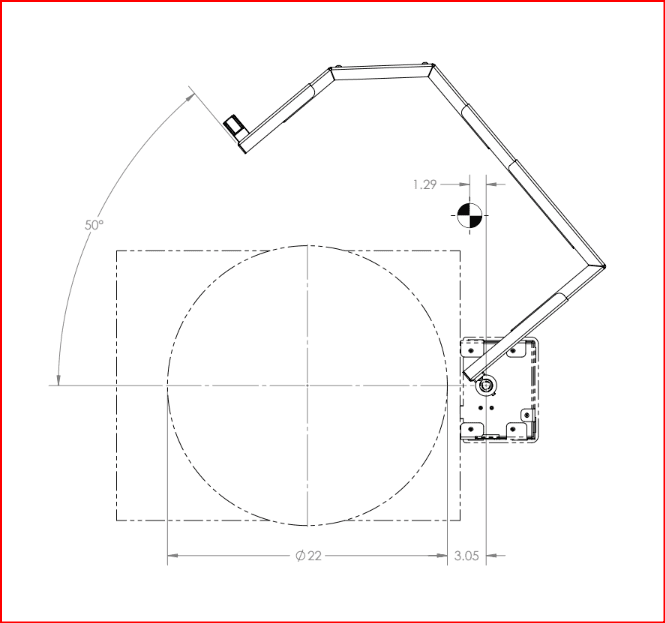

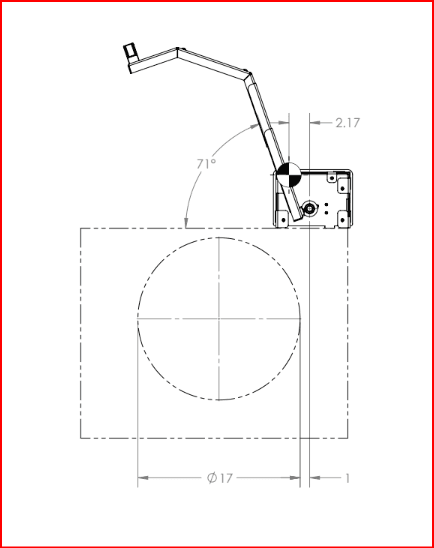

  • 1 Universal lathe guard kit that you adjust for guards 12-25” (Flip-Up)

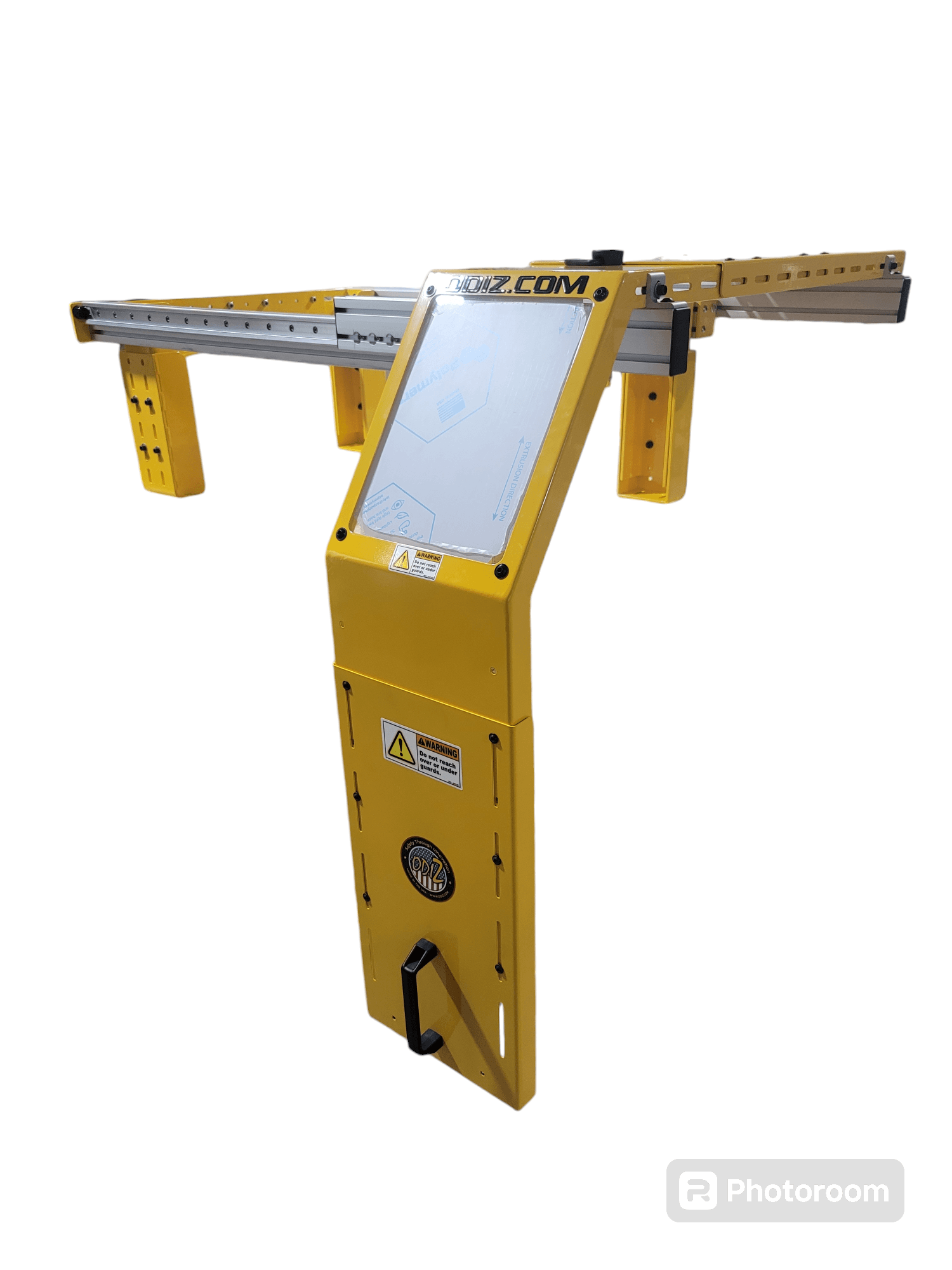

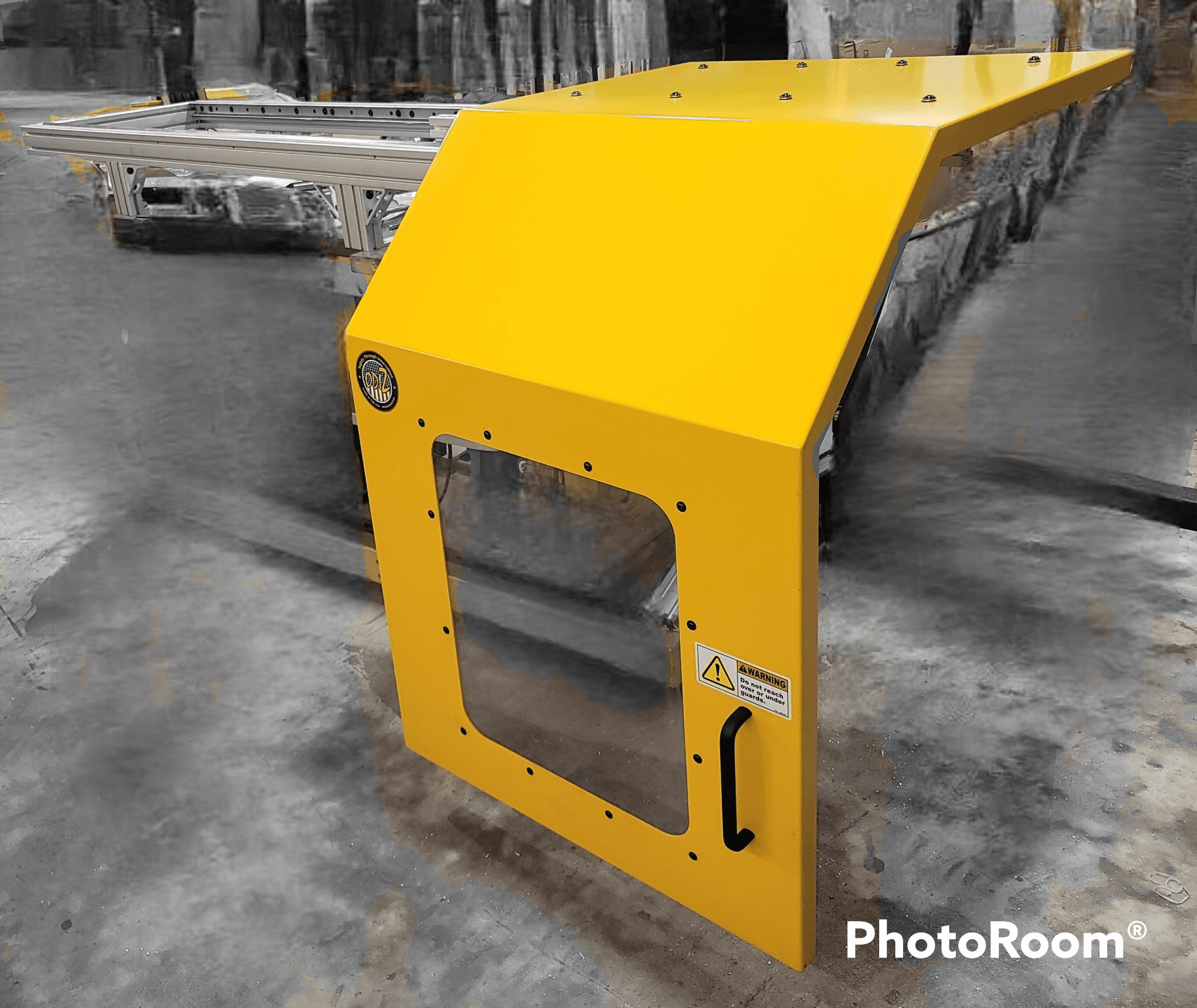

  • 1 Universal Sliding Lathe Guard Kit that you adjust for guards >25” (Slider)
  • Elimination of EH&S and purchasing confusion of sourcing lathe guards that fit the machine

1910.212 - General requirements for all machines.

OSHA 1910.212 — General Requirements for All Machines

OSHA 29 CFR 1910.212 is the core machine guarding standard that applies to nearly all machinery in general industry.
It requires employers to provide guards and protective devices to shield workers from points of operation, rotating parts, in-running nip points, flying chips, sparks, and other hazards.
As a “catch-all” standard, OSHA 1910.212 is often cited when no specific machine regulation exists, making it one of the most frequently enforced provisions in Subpart O.

Key Guarding Requirements

  • Point of Operation: Machines must be guarded so operators are not exposed to the point where the work is performed.
  • Rotating & Moving Parts: Guards must cover exposed belts, pulleys, gears, shafts, and flywheels to prevent accidental contact.
  • In-Running Nip Points: Hazards created where two parts rotate toward each other or where one part moves past a stationary object must be guarded.
  • Flying Chips & Sparks: Guards or shields must contain debris, sparks, and fragments generated during machine operation.
  • Anchoring: Machines designed for fixed location use must be securely anchored to prevent movement or tipping.

Examples of Machines Covered

Because OSHA 1910.212 is a broad standard, it applies to a wide range of equipment including drill presses, lathes, milling machines, conveyors, punch presses, saws, and grinders.
If a machine has moving parts that could injure a worker, 1910.212 requires guarding.

Common Violations

  • Missing point-of-operation guards on presses or saws.
  • Exposed belts, pulleys, or rotating shafts without guarding.
  • Improperly adjusted or removed guards during production.
  • Lack of anchoring on floor-mounted equipment.
  • Failure to contain sparks or flying material in grinding, cutting, or drilling operations.

Why OSHA 1910.212 Matters

Machine guarding violations are consistently among OSHA’s top cited standards.
Without proper guards, workers face severe risks of crushed fingers, amputations, lacerations, and eye injuries.
Compliance with OSHA 1910.212 helps facilities protect employees, avoid costly citations, and establish safer production environments.

Relation to Other Standards

OSHA 1910.212 is a general requirement that works in tandem with OSHA 1910.215 (Abrasive Wheel Machinery)
and machine-specific rules under Subpart O. It also aligns with ANSI B11 machine safety standards,
which provide technical safeguarding criteria.

Compliance Checklist

  • Install guards at the point of operation on all applicable machines.
  • Cover all rotating parts, belts, pulleys, gears, and shafts.
  • Guard in-running nip points created by rollers, belts, or chains.
  • Provide shields for flying chips, sparks, or debris.
  • Anchor floor-mounted machines to prevent shifting.
  • Train employees to use machines only with guards in place.

Internal Linking Opportunities

FAQ

What machines does OSHA 1910.212 apply to?

It applies to virtually all machines in general industry that expose workers to hazards such as moving parts, points of operation, nip points, or flying debris.

Is OSHA 1910.212 machine-specific?

No. It is a general machine guarding standard. When a machine does not have its own specific OSHA rule, 1910.212 is applied.

What are in-running nip points?

They are pinch points created when two rotating parts move toward each other or when one rotating part moves against a fixed surface. These must be guarded to prevent entrapment injuries.


1910.212(a) - Machine guarding

OSHA 1910.212(a) — General Machine Guarding Requirements

OSHA 29 CFR 1910.212(a) defines the core safety principles for machine guarding in general industry.
It requires employers to protect workers from mechanical hazards created by points of operation, rotating components, in-running nip points, and flying chips or sparks.
This paragraph serves as the primary enforcement reference for machinery that does not have its own specific OSHA standard.

Scope and Purpose

The goal of 1910.212(a) is to prevent contact injuries, entanglement, crushing, and amputation by ensuring all hazardous machine motions are either guarded or controlled.
It applies to virtually all machinery used in manufacturing, maintenance, fabrication, and processing operations.

Key Guarding Principles

  • Comprehensive Protection: Guards must cover any moving part or area that could cause injury through contact or ejection of material.
  • Design Flexibility: Employers may choose fixed, adjustable, or interlocked guards, provided they effectively prevent worker exposure.
  • Performance Standard: The rule is performance-based rather than prescriptive—meaning the employer must demonstrate that the guarding method eliminates or controls the hazard.
  • Continuity of Protection: Guards must remain in place and secure during operation and be adjusted only when the machine is off and locked out.
  • Applicability: This paragraph acts as a “catch-all” requirement whenever a machine presents a hazard not addressed by another OSHA provision.

Examples of Covered Hazards

Machines governed by 1910.212(a) include drill presses, milling machines, conveyors, polishing lathes, grinders, and mechanical cutters.
Hazards may include rotating shafts, reciprocating arms, cutting surfaces, or points where material is inserted or removed.

Compliance Practices

  • Install guards that physically prevent access to moving parts.
  • Inspect guards routinely for secure attachment and effectiveness.
  • Ensure that guard openings prevent any part of the body from reaching the danger zone.
  • Prohibit operation when guards are missing or removed.
  • Train employees on safe operation, inspection, and maintenance of guarded machines.

Why OSHA 1910.212(a) Is Important

Most serious machinery accidents occur because guards are missing, removed, or inadequate.
Section (a) establishes the baseline requirements that form the foundation of all machine safeguarding programs.
Compliance not only prevents injuries and amputations but also ensures alignment with national consensus standards such as ANSI B11 and ISO 12100.

FAQ

What types of machines are covered under 1910.212(a)?

Virtually all machines in general industry that expose workers to moving parts, points of operation, or flying debris fall under this paragraph.

Can electronic or presence-sensing devices satisfy 1910.212(a)?

Yes. Electronic safety devices may be used if they prevent employee exposure to hazardous motion as effectively as a physical guard.

Is 1910.212(a) enforceable even if a specific machine standard exists?

It applies whenever a machine hazard is not completely addressed by a more specific OSHA regulation. Inspectors often cite both when gaps exist.


1910.212(a)(1) - Types of guarding

OSHA 1910.212(a)(1) — General Duty to Guard Machines

OSHA 29 CFR 1910.212(a)(1) establishes the primary obligation to guard machinery in general industry.
It requires employers to implement one or more methods of guarding that protect both the operator and nearby employees from hazards created by points of operation, rotating parts, flying chips, sparks, or any other dangerous mechanical motions.

Scope and Intent

This paragraph serves as the foundation of all machine guarding enforcement.
It mandates that every machine presenting a mechanical hazard must be safeguarded through a combination of physical barriers or engineered safety devices.
The employer may choose the guarding method, but it must completely prevent employee exposure to the moving part or hazard zone during normal operation.

Acceptable Guarding Methods

  • Fixed guards: Rigid barriers that prevent access to hazardous areas.
  • Interlocked guards: Guards that automatically shut off or disengage the machine when opened or removed.
  • Adjustable guards: Barriers that can be positioned for different operations but remain securely in place during use.
  • Self-adjusting guards: Guards that move automatically into position as the operator works, covering the danger area as material is fed.
  • Electronic safeguarding devices: Light curtains, pressure-sensitive mats, and presence sensors that prevent access to moving parts.

Key Compliance Requirements

  • Guarding must protect both operators and nearby personnel.
  • Guards must be securely attached and durable enough to resist normal operation and vibration.
  • Openings in guards must be small enough to prevent accidental contact with moving parts.
  • Guards must not introduce new hazards such as sharp edges, pinch points, or visibility obstruction.
  • All guards must be kept in place and functional when machines are operating.

Common Violations

  • Machines operating without guards over exposed belts, pulleys, gears, or shafts.
  • Removed or bypassed barrier guards during production or maintenance.
  • Improper guard materials or openings that allow hand or finger access to moving parts.
  • Lack of guarding for nearby employees who may be struck by flying material or sparks.

Practical Compliance Tips

  • Conduct a full hazard assessment for all equipment to identify points of operation and motion hazards.
  • Install fixed guards wherever possible; use interlocked or adjustable guards only when process requirements demand it.
  • Include guarding checks in your preventive maintenance program.
  • Train operators to recognize unsafe conditions and never remove or modify guards.

Why OSHA 1910.212(a)(1) Is Important

This paragraph represents OSHA’s general duty clause for machinery safety.
Most machine-related injuries occur when guards are removed or missing, and OSHA 1910.212(a)(1) gives inspectors the authority to cite any unguarded moving part that poses a risk.
Compliance ensures that workers remain protected from crushing, entanglement, amputation, and impact injuries.

FAQ

What types of hazards must be guarded under 1910.212(a)(1)?

All hazards created by points of operation, rotating parts, nip points, or ejected materials must be guarded or otherwise controlled.

Can presence-sensing devices replace physical guards?

Yes, when properly installed and tested, electronic devices such as light curtains can serve as equivalent safeguards if they prevent operator exposure to motion hazards.

Is 1910.212(a)(1) only for operators?

No. Guards must protect both operators and nearby employees who could be injured by machine movement or flying debris.


1910.212(a)(2) – General Requirements for Machine Guards

OSHA 1910.212(a)(2) — General Requirements for Machine Guards

OSHA 29 CFR 1910.212(a)(2) establishes the design and construction standards for machine guards.
This provision requires that guards be securely fastened to the machine and designed to protect operators and nearby employees from injury caused by moving parts, flying debris, or accidental contact.
The intent is to ensure that guarding not only provides protection but also does not create new hazards in the process.

Key Guard Design Requirements

  • Secure Attachment: Guards must be firmly attached to the machine. If fastening directly to the machine is not possible, guards must be securely mounted elsewhere to provide equal protection.
  • Structural Integrity: Guards must be made of materials strong enough to resist impact, vibration, and normal wear during operation.
  • No New Hazards: Guards must not introduce additional risks such as pinch points, sharp edges, or visibility obstruction.
  • Durability: Guard materials must withstand operational stresses and environmental factors like heat, coolant, or debris.
  • Accessibility: Guards should allow safe maintenance, lubrication, and adjustments without requiring complete removal when possible.

Performance Intent

The focus of 1910.212(a)(2) is performance-based guarding design.
OSHA does not prescribe specific guard materials or thicknesses; instead, the guard must perform effectively under real-world conditions.
Employers have the flexibility to design guards suited to their machines—as long as the guarding prevents contact and remains in place during operation.

Examples of Guard Types Covered

  • Fixed guards enclosing belts, pulleys, gears, and rotating shafts.
  • Interlocked guards that shut off power when opened or removed.
  • Adjustable guards for variable-sized stock or cutting operations.
  • Self-adjusting guards that move automatically with the workpiece.

Best Practices for Compliance

  • Inspect guards regularly for looseness, cracks, or corrosion.
  • Use guard materials that match the operational environment (e.g., metal for high-impact areas, polycarbonate for visibility).
  • Train employees to recognize damaged or missing guards and to report deficiencies immediately.
  • Ensure all guards are reinstalled and secured after maintenance or adjustments.

Common Violations

  • Guards loosely attached or easily removable during operation.
  • Improvised guards made from inadequate materials such as thin sheet metal or plastic covers.
  • Guards with sharp edges or openings large enough to allow finger or hand access.
  • Removed or bypassed guards not replaced before restarting the machine.

Why OSHA 1910.212(a)(2) Is Important

Even when a guard is present, poor design or weak construction can fail to protect workers.
OSHA 1910.212(a)(2) ensures that guards are engineered and maintained to perform effectively throughout a machine’s life cycle.
Properly designed guards prevent crushing, amputation, and laceration injuries while maintaining usability and productivity.

FAQ

What materials are acceptable for guards under 1910.212(a)(2)?

OSHA allows any material—metal, mesh, polycarbonate, or composite—provided it withstands normal use and impact and prevents access to danger zones.

Can a guard be removable?

Yes, guards may be removable for maintenance, but they must be securely fastened during operation and replaced immediately after servicing.

Does OSHA specify guard thickness or type?

No. OSHA 1910.212(a)(2) is performance-based. The employer must ensure that the guard effectively prevents exposure and remains securely attached.


1910.212(a)(3) – Point of Operation Guarding

OSHA 1910.212(a)(3) — Point of Operation Guarding

OSHA 29 CFR 1910.212(a)(3) sets forth the point of operation guarding requirements for machinery used in general industry.
The “point of operation” is the area on a machine where work is performed—such as cutting, shaping, boring, forming, or assembling a part.
This section requires that each machine have a guard or safeguarding device that prevents the operator from having any part of the body in the danger zone during operation.

Purpose and Scope

The purpose of 1910.212(a)(3) is to eliminate exposure to moving tools or dies that can cause crushing, amputation, laceration, or puncture injuries.
It applies to all machines with a point of operation hazard, regardless of size or industry.
Typical examples include presses, saws, milling machines, lathes, shears, and drills.

Key Requirements

  • Every machine must be equipped with a guard that prevents the operator from reaching into the danger zone.
  • Guards must be designed and constructed to provide maximum protection while allowing the machine to be operated safely and efficiently.
  • Special hand tools may be used to handle materials when guarding at the point of operation is not practical.
  • Guards must be securely fastened, maintained in place, and not easily removed or bypassed during operation.
  • Safeguarding devices such as light curtains, presence-sensing devices, or two-hand controls may be used if they provide equivalent protection.

Examples of Point of Operation Hazards

  • Cutting blades or rotating cutters that can amputate or lacerate fingers.
  • Press dies or molds that can crush hands or fingers during operation.
  • Drill bits, boring tools, or milling heads that can pierce or entangle body parts.
  • Shearing or punching points that can sever material—and body parts—with the same force.

Acceptable Guarding Methods

  • Fixed barrier guards enclosing the point of operation.
  • Interlocked guards that stop machine motion when opened or removed.
  • Adjustable or self-adjusting guards that move automatically to block access as material is fed.
  • Two-hand controls requiring both hands to activate the cycle, keeping them out of danger.
  • Electronic presence-sensing devices such as light curtains or safety mats that halt motion when triggered.

Common Violations

  • Operating a machine with missing or disabled point of operation guards.
  • Using hand-feeding where fixed or adjustable guards should be installed.
  • Removing guards to increase production speed.
  • Failure to provide safeguarding when machine design allows operator access to hazardous movement.

Compliance Tips

  • Identify all machine points of operation and assess potential contact hazards.
  • Install fixed guards where feasible; use engineered safety devices when full enclosure is not possible.
  • Inspect all guards before each shift and re-secure after adjustments or maintenance.
  • Train operators to recognize guarding deficiencies and to report missing or damaged safety devices immediately.

Why OSHA 1910.212(a)(3) Is Important

Point of operation injuries are among the most severe and preventable workplace incidents.
By enforcing 1910.212(a)(3), OSHA ensures that all machines have reliable guarding or safety devices that keep operators’ hands, fingers, and bodies outside the danger zone during work.
This rule remains one of the most frequently cited machine safety violations nationwide.

FAQ

What is considered the “point of operation” under 1910.212(a)(3)?

It is the location on a machine where work is actually performed on the material—such as cutting, shaping, forming, or drilling.

Can a hand tool substitute for a guard?

Only when physical guarding is not practical. Even then, special hand tools must be designed to keep hands a safe distance from the danger zone.

Do presence-sensing devices meet OSHA’s requirements?

Yes, if they provide equal or greater protection than a physical barrier and prevent any part of the body from entering the hazard zone during operation.

B11.13 – Single-Spindle or Multiple-Spindle Automatic Bar & Chucking Machines

B11.13 — Safety Requirements for Single-Spindle or Multiple-Spindle Automatic Bar & Chucking Machines

The B11.13 standard (Safety Requirements for Single-Spindle or Multiple-Spindle Automatic Bar and Chucking Machines) addresses machines that automatically feed bar stock, chucked workpieces or blanks into high-speed turning, drilling, or milling operations.
These machines often integrate bar feed mechanisms, automatic loaders, multiple spindles, and complex tooling systems, which create multiple potential hazards such as high-speed rotating components, automatic work-transfer systems, chip ejection, and access to moving parts.

Scope & Exclusions

B11.13 covers automatic bar-feeding machines (single or multi-spindle) and chucking machines used to machine bar stock or blanks in automatic or semi-automatic machining centers.
It excludes machines not designed for automatic bar loading, non-chucking manual machines, portable tools, and machines outside the defined automation/classification.

Key Safety Topics Addressed

  • Machine design & construction: Ensuring structural stability, guarding of high-speed spindles and feed mechanisms, containment of ejected parts or bar stock.
  • Automatic feeding systems & work transfer: Safeguards for bar-feed units, transfer mechanisms, and automatic loaders to prevent entrapment, pinch points or unintended release of workpieces.
  • Guarding & safeguarding: Covering hazard zones created by rotating spindles, live tooling, bar feed drives, chip ejection paths, and material handling.
  • Operation, maintenance & change-over: Safe procedures for tooling changes, bar stock loading/unloading, maintenance, retrofits and machine modifications.
  • Lifecycle responsibilities: Addressing supplier, integrator and user roles in machine installation, commissioning, modification, maintenance and dismantling phases.

Why It Matters

Automatic bar and chucking machines operate at high speed with numerous moving parts, automated feeding systems, and multiple spindle operations—this increases risk of severe injuries including entanglement, amputation, ejection of tooling or workpieces, and high-energy collisions.
Compliance with B11.13 helps manufacturers and users establish recognized best practices in safeguarding and aligns them with a standard widely referenced in machine-safety programs.

Relation to Other Standards

Although B11.13 is a voluntary consensus standard, it is part of the broader B11 series of machine-safety standards and supports interpretation of general requirements such as B11.0 – Safety of Machinery and B11.19 – Performance Criteria for Safeguarding.
Regulatory bodies such as Occupational Safety and Health Administration (OSHA) refer to the B11 series as authoritative guidance on machine guarding and safe machine tool practices. :contentReference[oaicite:1]{index=1}

FAQ

Is B11.13 legally required?

No — B11.13 is voluntary. However, using it demonstrates alignment with recognized good engineering practice and supports compliance with machine-safety obligations.

Which machines does B11.13 apply to?

Machines that automatically load bar stock or blanks and machine them via single or multiple spindles (bar feeding & chucking machines) are covered. Manual, non-automatic machines are excluded.


B11.22 – Turning Centers & Automatic Numerically Controlled Turning Machines

B11.22 — Safety Requirements for Turning Centers & Automatic Numerically Controlled Turning Machines

The B11.22 standard applies to machine tools classified as automatic or numerically controlled turning machines—including modern turning centers—that machine bar stock or blanks on single or multiple spindles with automatic or semi-automatic loading, tool changes, and work-handling operations. It addresses safety across the full lifecycle: design, construction, installation, operation, maintenance, modification, dismantling, and transport.

Scope & Application

B11.22 covers hazards associated with rotating workpieces and spindles, chucking devices, live tooling, automatic loading and bar-feed systems, and part ejection. It focuses on safeguarding the point of operation and hazardous motion during production, setup/changeover, maintenance, and other special modes. Integrated manufacturing systems are outside the scope of this document and are addressed by separate system-level standards.

Key Safety Topics

  • Guarding and enclosures: Interlocked or fixed guards for the cutting zone, rotating spindles, live tools, and chip/ejecta containment.
  • Automatic loading and bar-feed: Protection against stock whip, pinch points, unintended access, and ejection hazards during automatic cycles.
  • Control systems and modes: Clear mode selection (automatic, setup, maintenance), safe start/restart logic, emergency stop functions, and interlock integrity.
  • Risk assessment and responsibilities: Defined roles for suppliers, integrators, and users to identify hazards, implement risk-reduction measures, verify performance, and maintain documentation.
  • Modification and retrofit: Rebuilds or conversions must not degrade safety performance; safeguarding must be reviewed and validated after changes.

Why It Matters

Turning centers combine high rotational speeds, automatic handling, and multi-axis motions that can create severe risks such as entanglement, contact, ejection, and unintended motion. Applying B11.22 helps organizations engineer effective safeguards, validate safety-related controls, and maintain safe procedures for production and maintenance tasks.

Practical Implementation Tips

  • Use a task-based risk assessment to identify exposure during production, setup, tool change, and maintenance.
  • Verify enclosure integrity and interlock function; confirm chip and fragment containment at maximum spindle speed and material conditions.
  • Evaluate bar-feed and parts-handling interfaces for access control, guarding, and emergency stop coverage across the machine boundary.
  • Document mode selection logic and ensure reduced-speed/hold-to-run features where necessary during setup or teaching.
  • Train operators and maintenance personnel on hazards unique to rotating stock, chuck changes, live-tool operations, and automated cycles.

B11.6 – Manual Turning Machines (Lathes) With or Without Automatic Control

B11.6 — Safety Requirements for Manual Turning Machines (Lathes) With or Without Automatic Control

The B11.6 standard (ANSI B11.6-2022) specifies safety requirements for the design, construction, installation, operation, maintenance, modification, transport and dismantling of horizontally or vertically oriented spindle turning machines (commonly called lathes) that are manually controlled or may include automatic control capabilities. :contentReference[oaicite:0]{index=0}

Scope & Application

This standard applies to manual turning machines in which the workpiece is clamped and rotated while the cutting tool is rather stationary (i.e., the cutting force is from the workpiece). These machines may include automatic features (such as feed drives or tool turret indexing) but do *not* include fully automatic part-handling or bar-feed mechanisms or automatic tool changers — those machines fall under separate standards. :contentReference[oaicite:1]{index=1}

Key Safety Topics Addressed

  • Point of operation & rotating parts guarding: Guarding or protective devices for rotating spindles, chucks, work-holding, live tooling, and removal of chips or swarf to prevent contact, entanglement or ejection hazards. :contentReference[oaicite:2]{index=2}
  • Machine control modes & automatic control interface: Safe transitions between manual operation, automatic feed, tool change or manual set-up modes; ensuring that automatic or semi-automatic features do not expose operators to hazards. :contentReference[oaicite:3]{index=3}
  • Feed, back-gauge and tool systems: Safe design of workpiece feeding, tool turret or system, and back-gauge motions to prevent contact during automatic or manual operations. :contentReference[oaicite:4]{index=4}
  • Lifecycle responsibilities: The standard assigns defined roles for machine builders/suppliers, integrators/modifiers and users/owners for all phases of the machine life cycle — design, installation, commissioning, operation, maintenance, modification and decommissioning. :contentReference[oaicite:5]{index=5}
  • Risk assessment & modification/retrofit: The standard emphasizes that machines modified, rebuilt or converted must be treated as essentially new with respect to risk assessment, safeguarding and verification. :contentReference[oaicite:6]{index=6}

Why It Matters

Turning machines (lathes) remain ubiquitous in manufacturing and metalworking. They involve hazards from rotating workpieces, chucks, live tools, swarf and chips, feed/back-gauge motion, automatic features and manual operator interaction. Adhering to B11.6 helps ensure these machines are designed, installed and maintained in accordance with recognized engineering safety practices, supports risk reduction and strengthens a machine-safety program. :contentReference[oaicite:7]{index=7}

Implementation Tips

  • Perform a task-based risk assessment considering manual turning, automatic feed modes, tool change settings, maintenance, set-up and clean-up operations.
  • Ensure aftermarket or retrofit features (e.g., tool turrets, automatic feed) do not compromise guard integrity or operator protective distance.
  • Verify that guards around the spindle, chuck and rotating workpiece prevent access during operation and that swarf/chip ejection zones are managed.
  • Audit control mode logic to ensure safe state transitions — for example, automatic feed should not occur with operator hazard exposure; manual mode should have proper safeguards for setup/maintenance.
  • Include records of maintenance, modification, training of operators and documentation of risk assessments and safeguarding changes — treating any machine changes as a redesign from safety perspective.
×

Request a Quote

To request a formal quote, add all the products you’re interested in to your cart. Then go to your cart page and click the “Request a Quote” button to fill out a short form and receive your detailed quote via email.

Example:

Cart Preview
