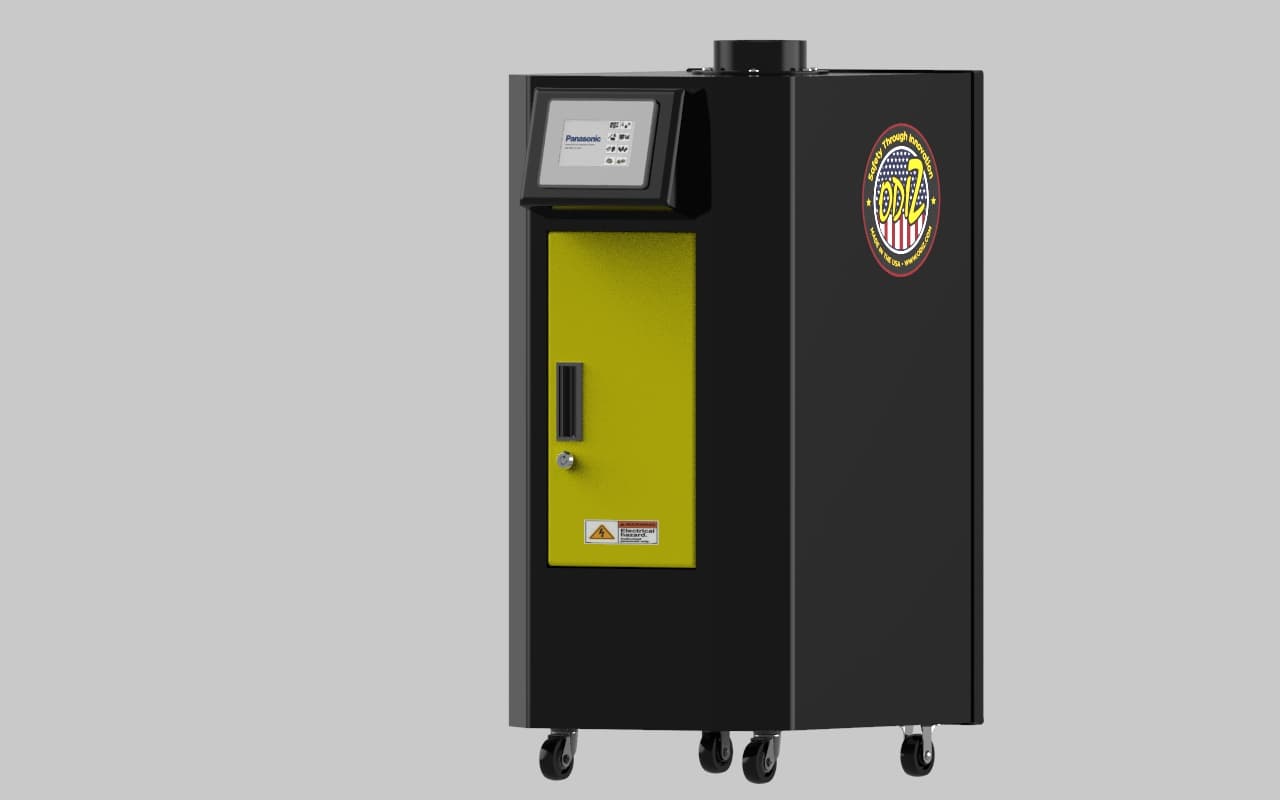

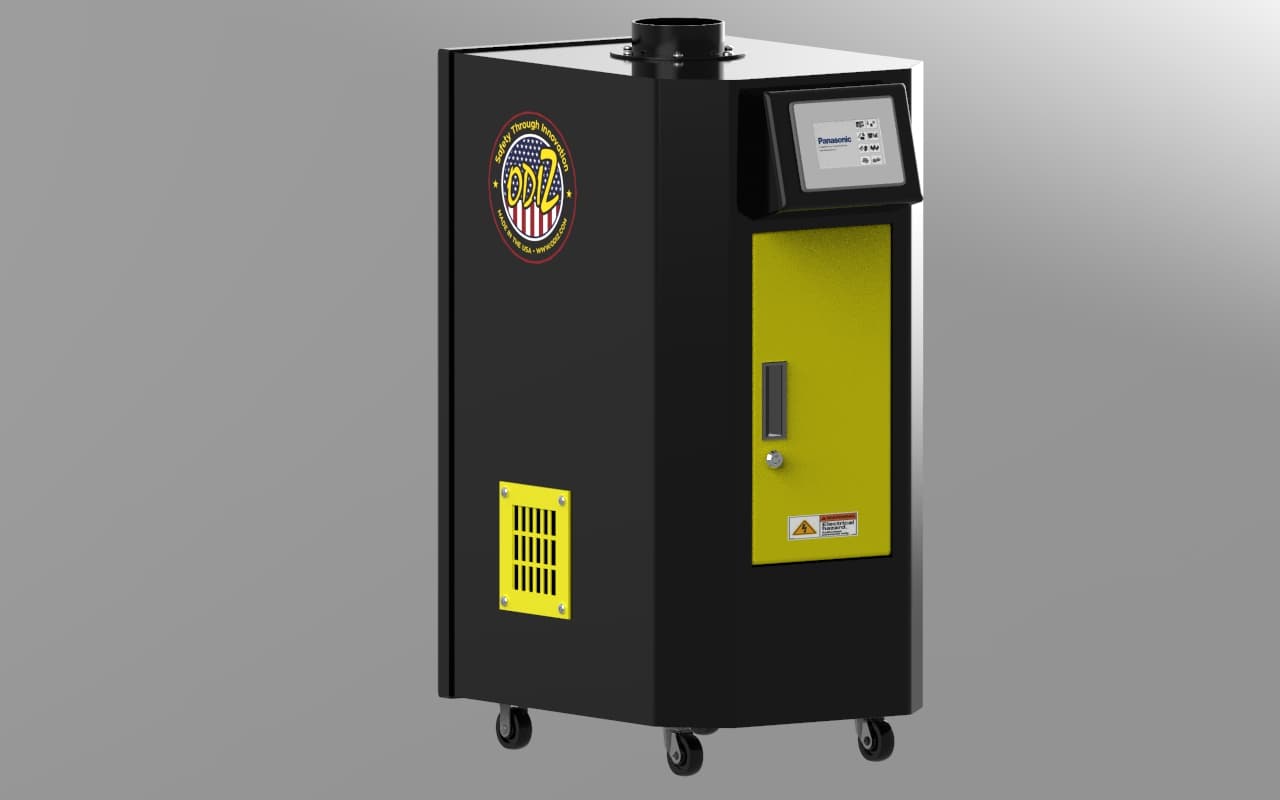

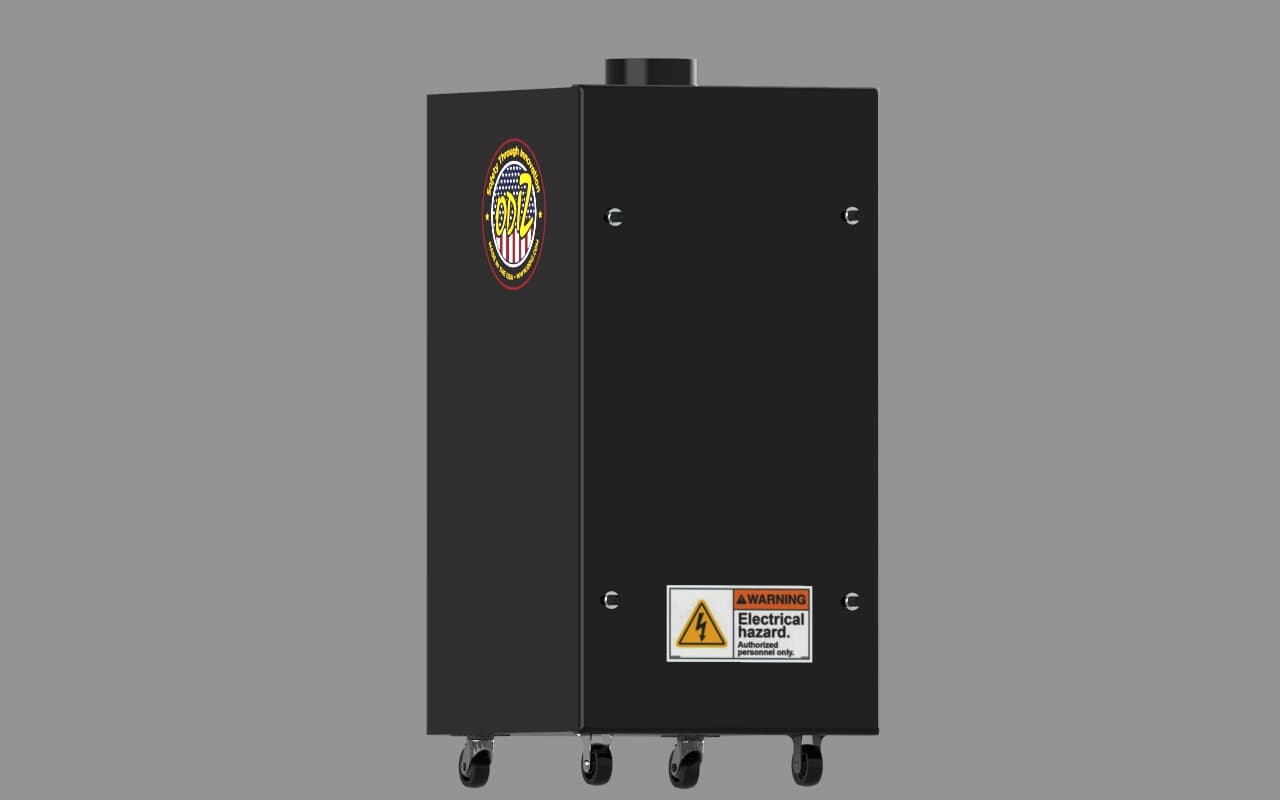

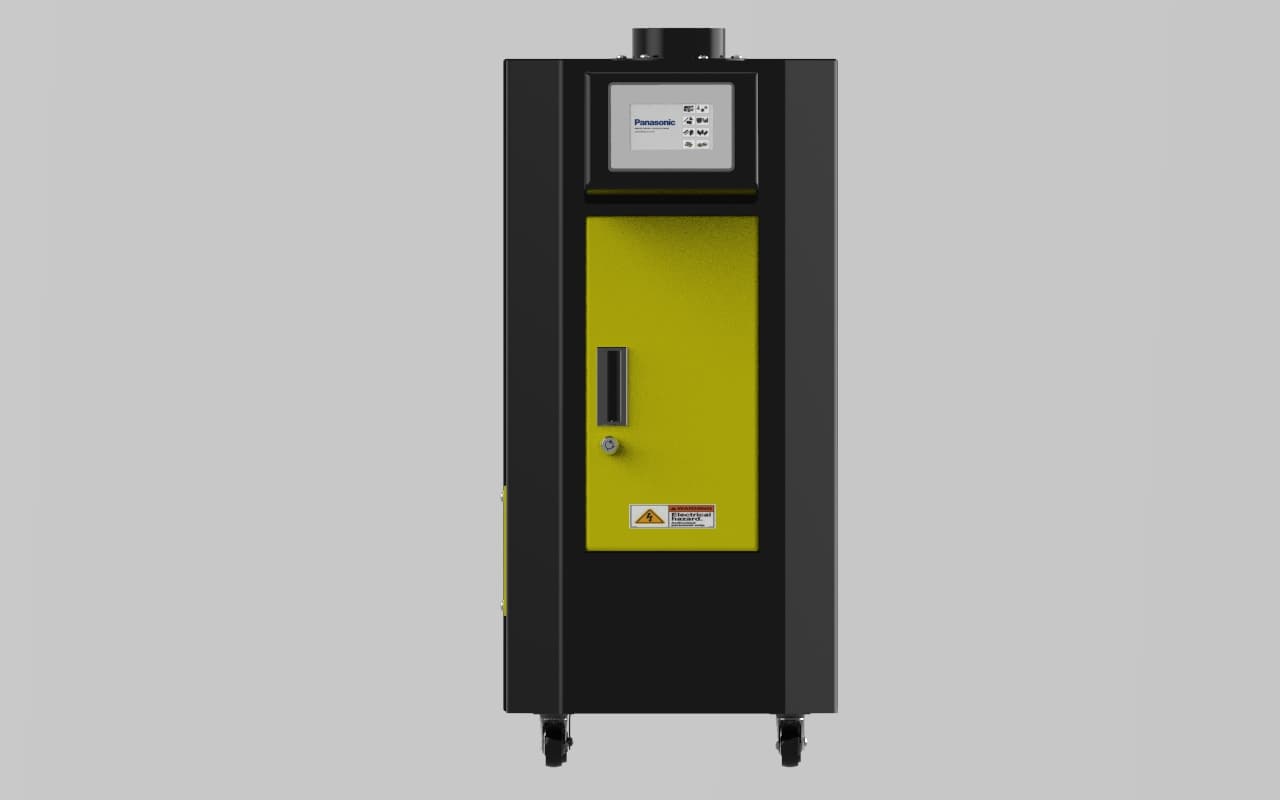

Odiz Laser Marker Fume Extractor 265CFM


Weight 100 lbs
Dimensions 24 × 24 × 36 in

Fume Extractors for Laser Markers

Odiz Safety manufactures laser fume extractors specifically designed for laser markers.

Laser marking creates unhealthy fumes, smoke & pollutants.


Contact us OR request for quote below for custom designs and applications

Replacement Filters


Options for Fume Extractor Upgrade

More Information

Standard Specifications
Cabinet Construction 11-Gauge CR Steel laser cut, and CNC bent, Powder Coated Black and Yellow
Dimensions 15” W x 19” D x 30” Tall
SPL < 80db
Weight 100 lbs.
Air Inlet 2”-3” or 4”
Blower Centrifugal Direct Drive 115 VAC

265 CFM

Controls Panasonic HMI and PLC with Individual filter monitoring.
Filters 1 – 2” Spark Arrest Pre-Filter

1 – 2” MERV 13 Filter

1 –  5.5“ HEPA Filter  99.97% efficient @ 0.3 micron

1 – 6” Activated Gas / Odor filter:
Provides broad spectrum gas/odor control

Standard 4 casters for easy movement with 2 locking and swivel, appropriate warning labels.



Replacement Filters

Odiz Safety has developed a filter sensing system to individually monitor the filters. This reduces cost on filter changes as you will only need to change the necessary filter.

Couple with the control & filter door safety interlocks we strive to develop the safest most cost effective solution to market.

If you are new to laser marking and the OSHA/ANSI requirement of implementing this technology into your facility.

Odiz Safety can help with this initiative. Brochure on Laser Marking implementation

Contact us for custom designs and applications
