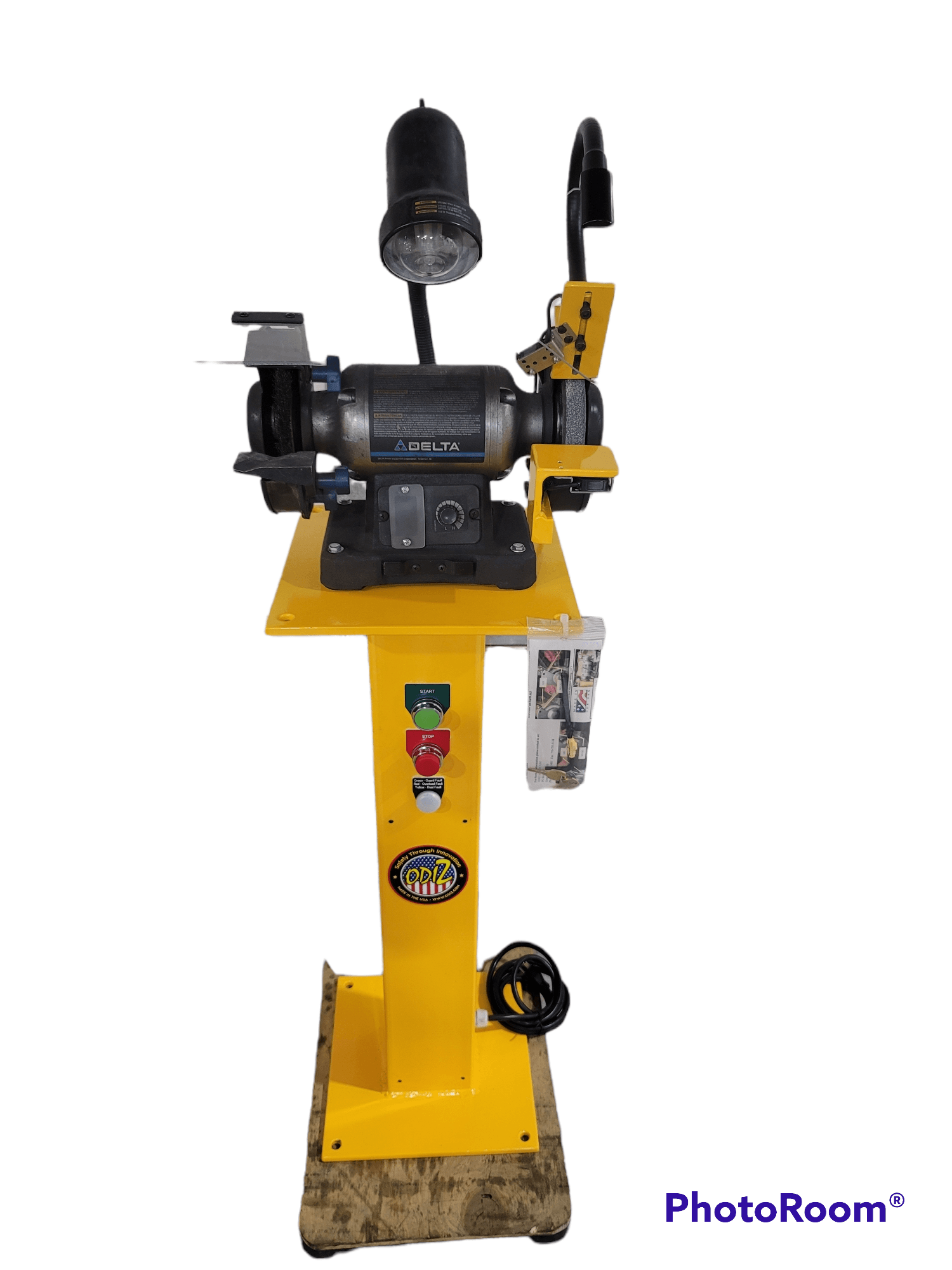

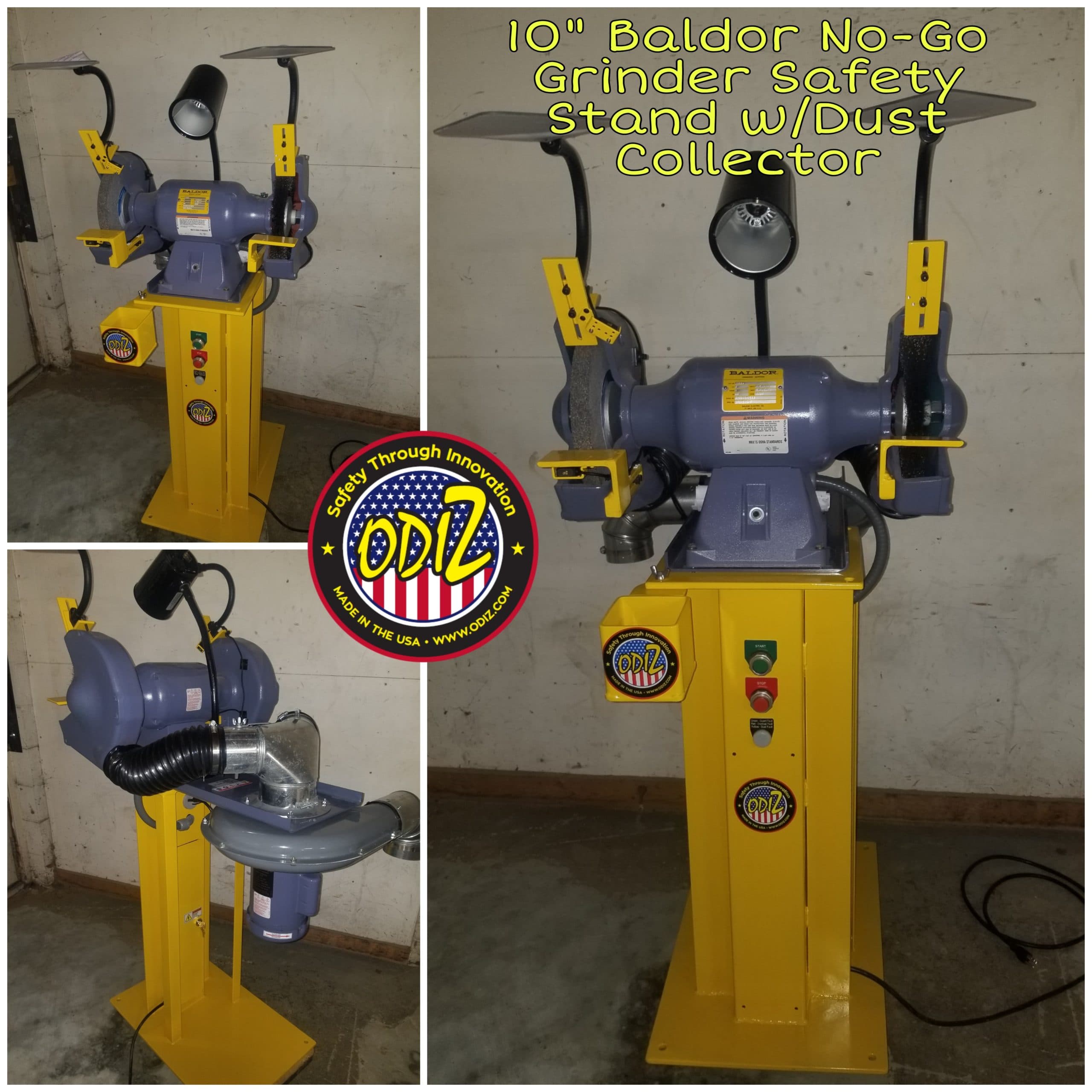

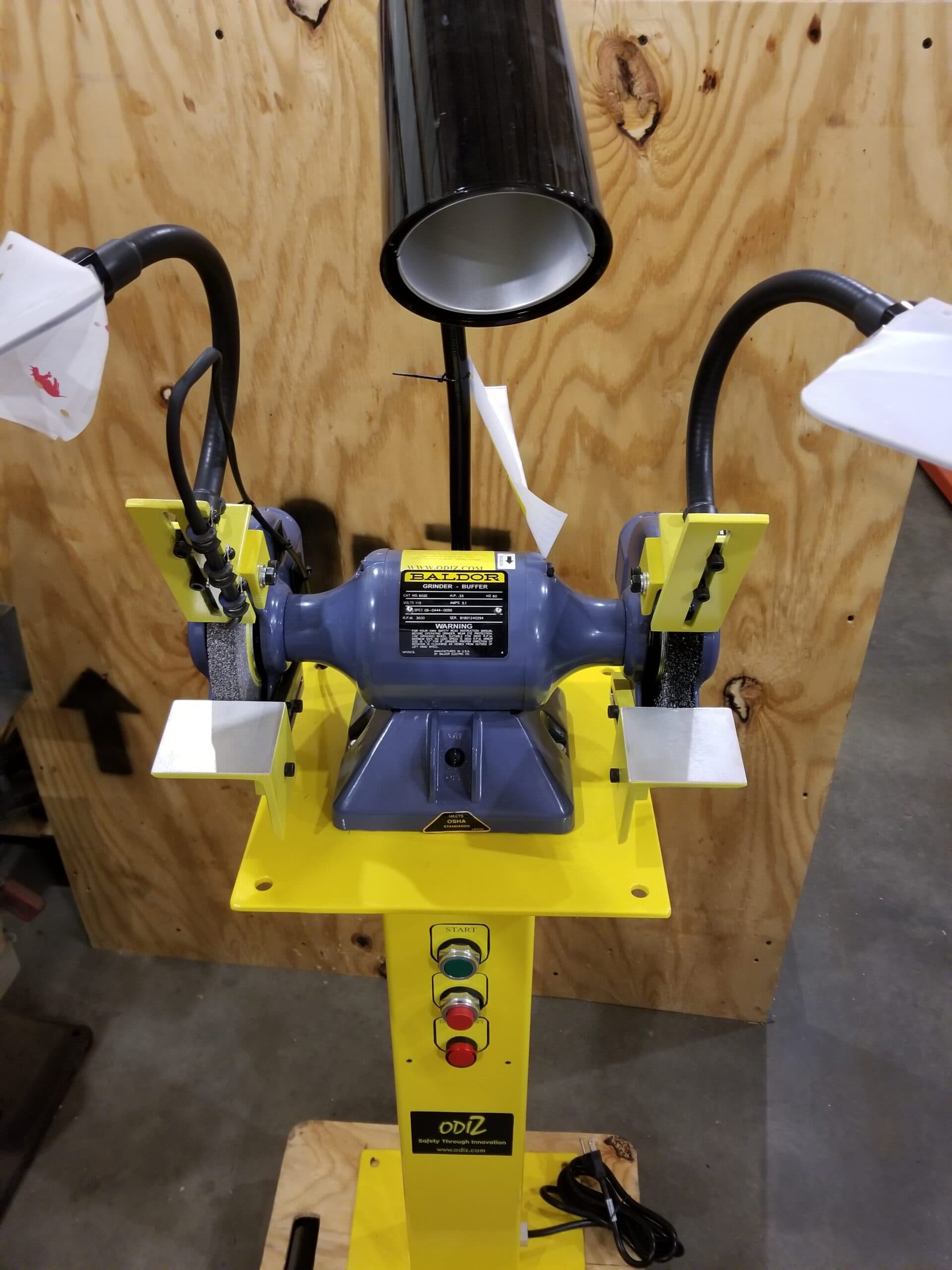

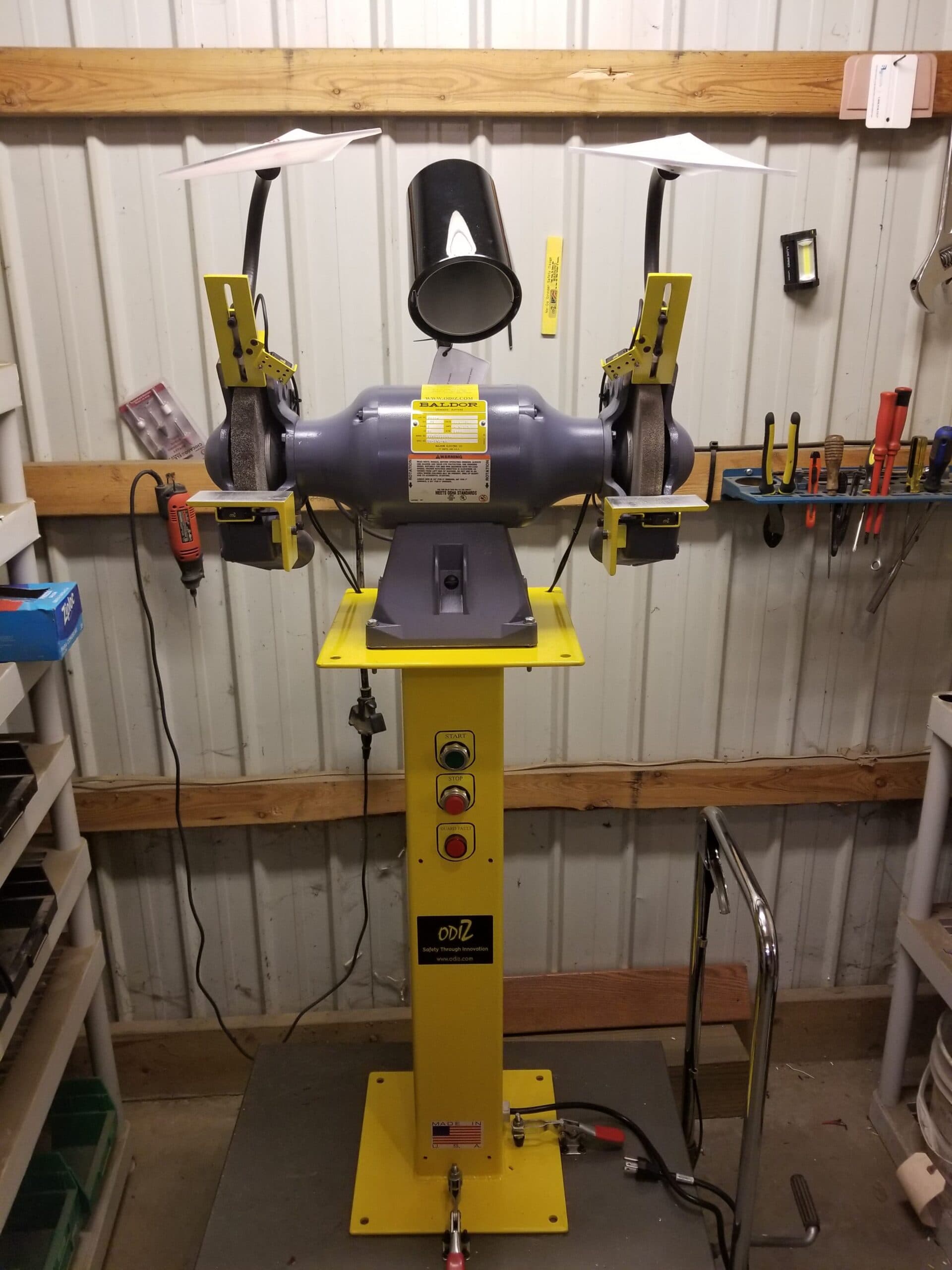

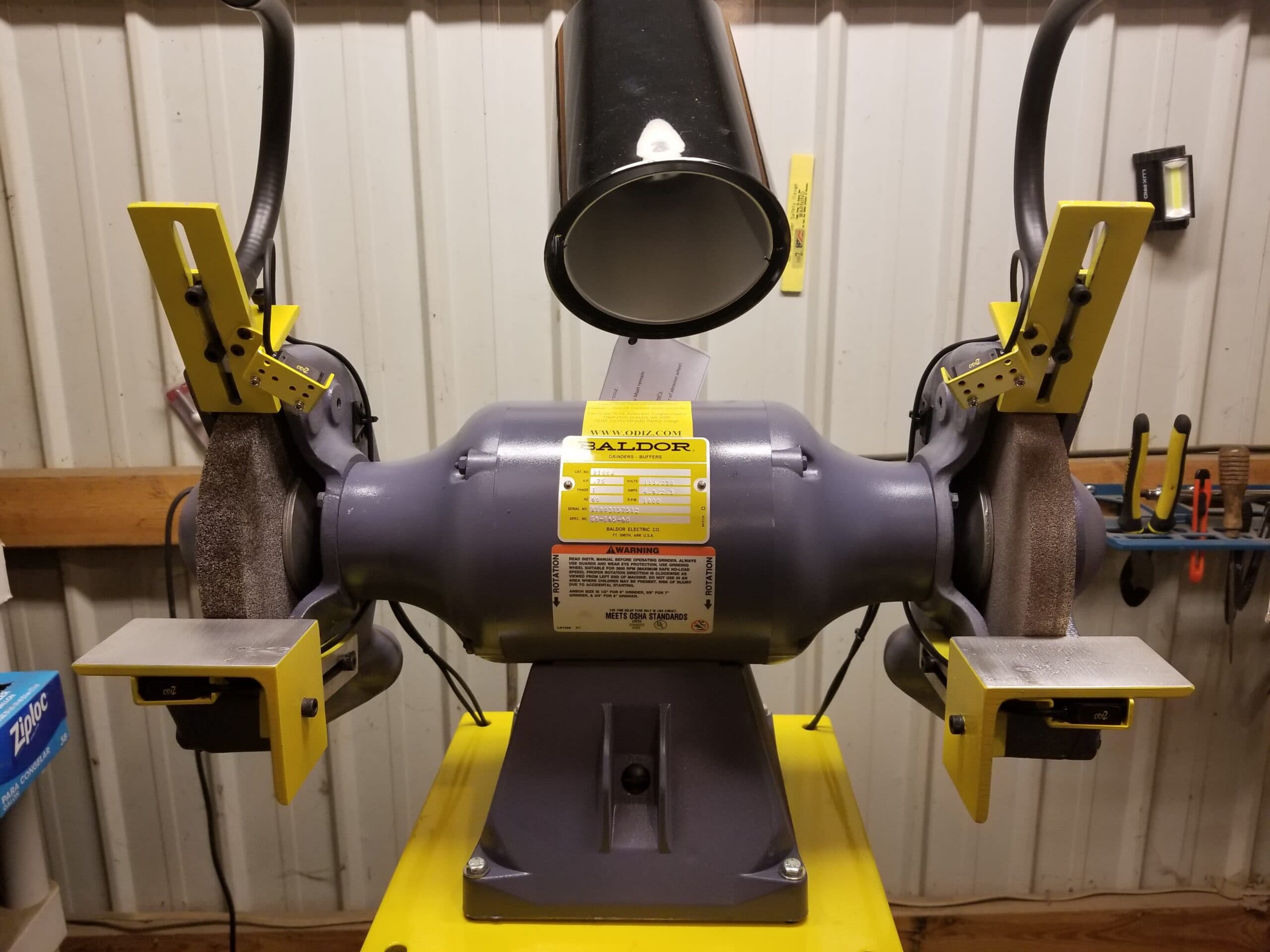

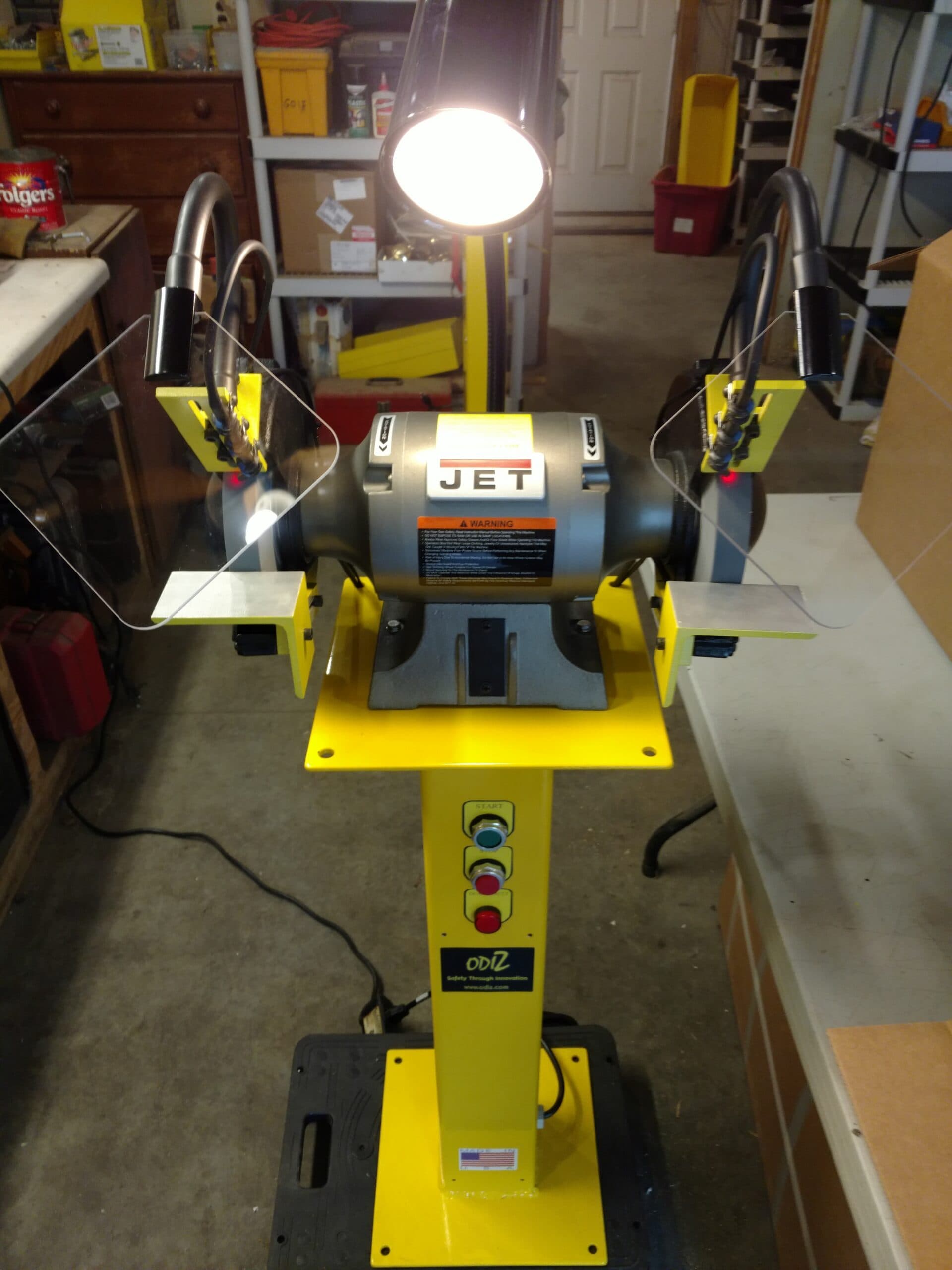

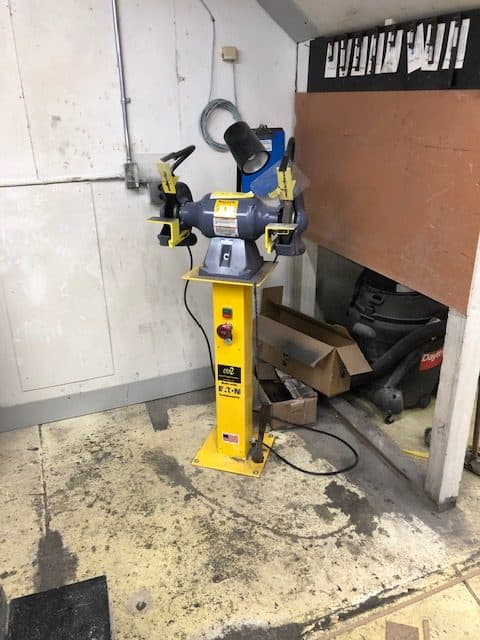

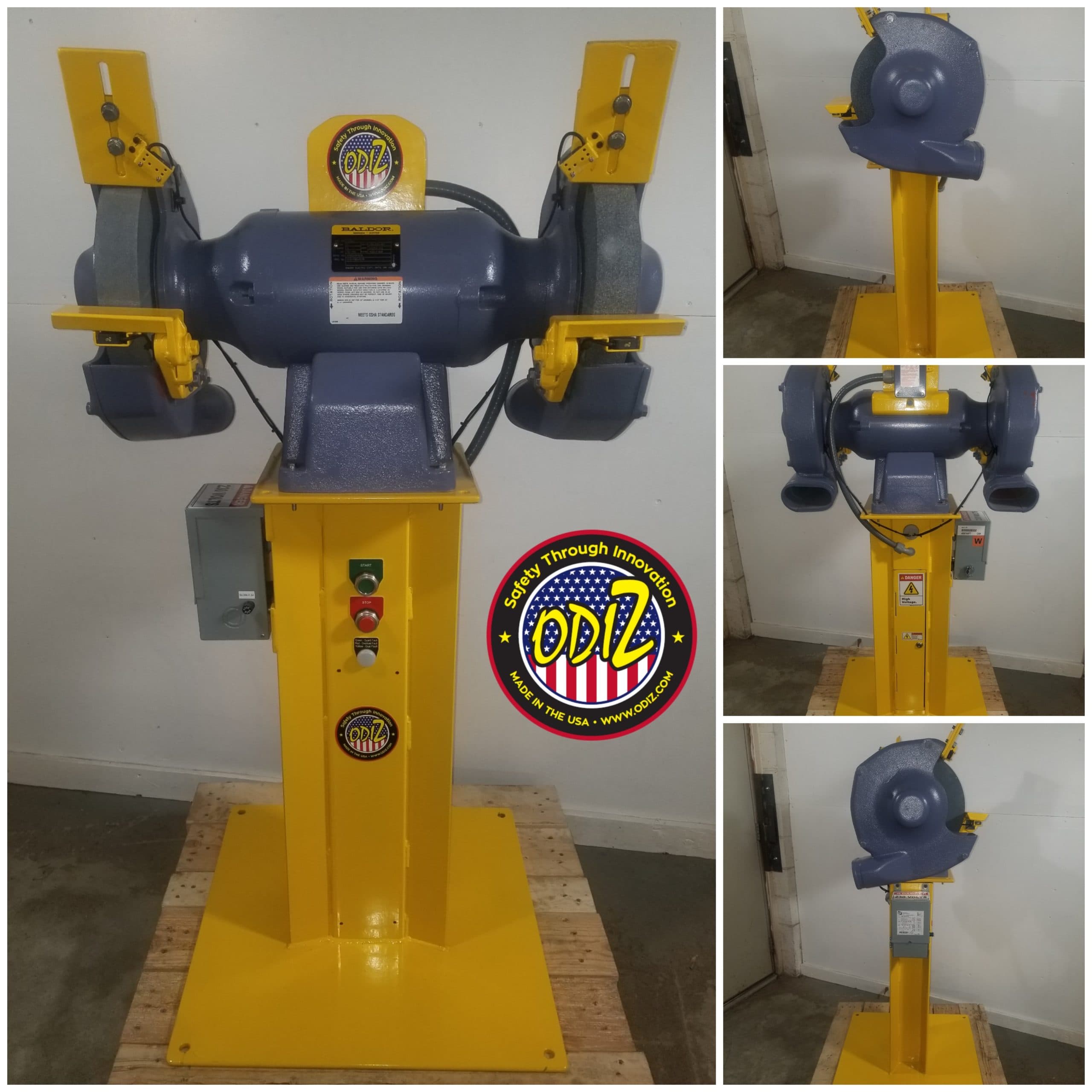

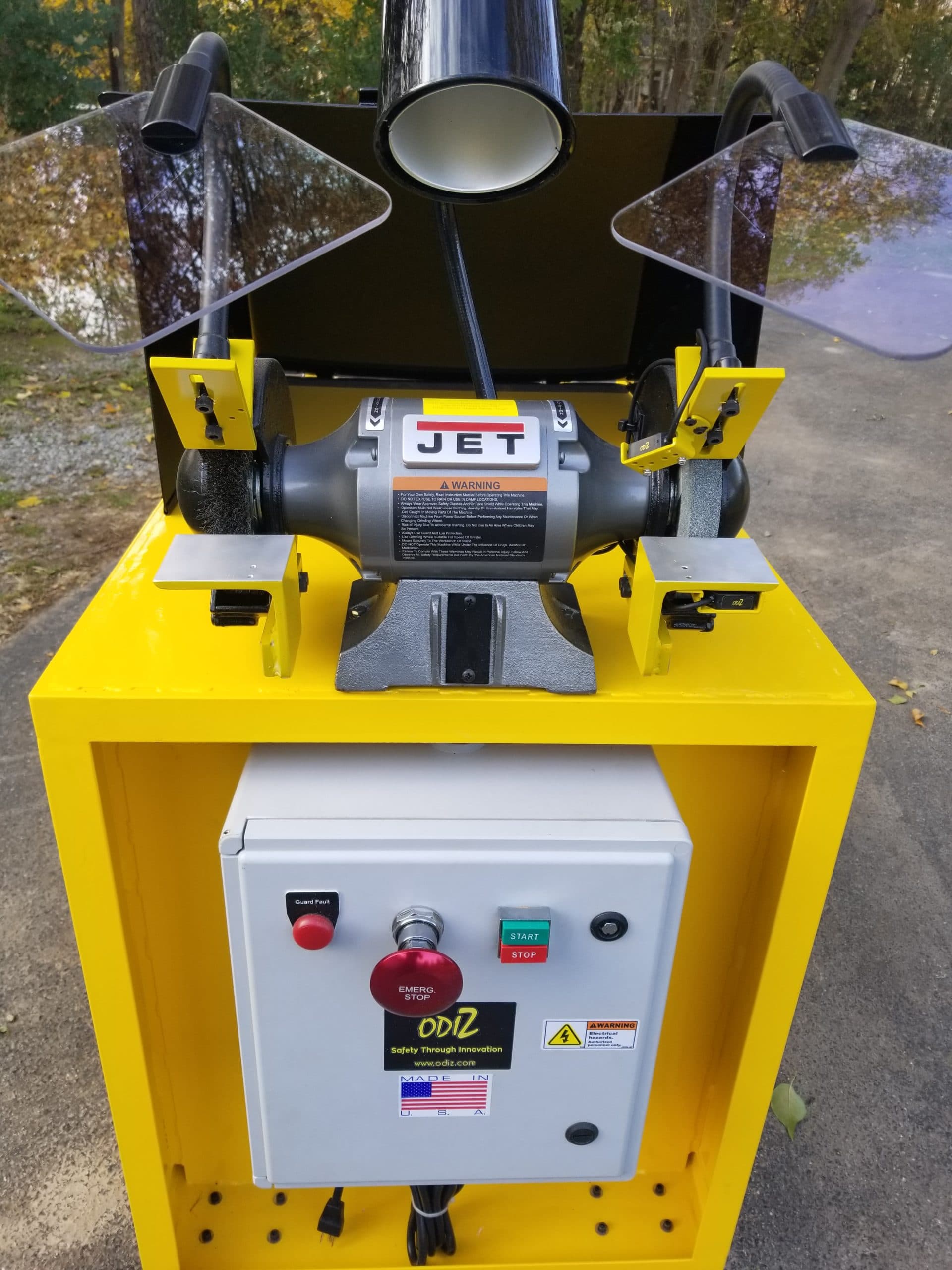

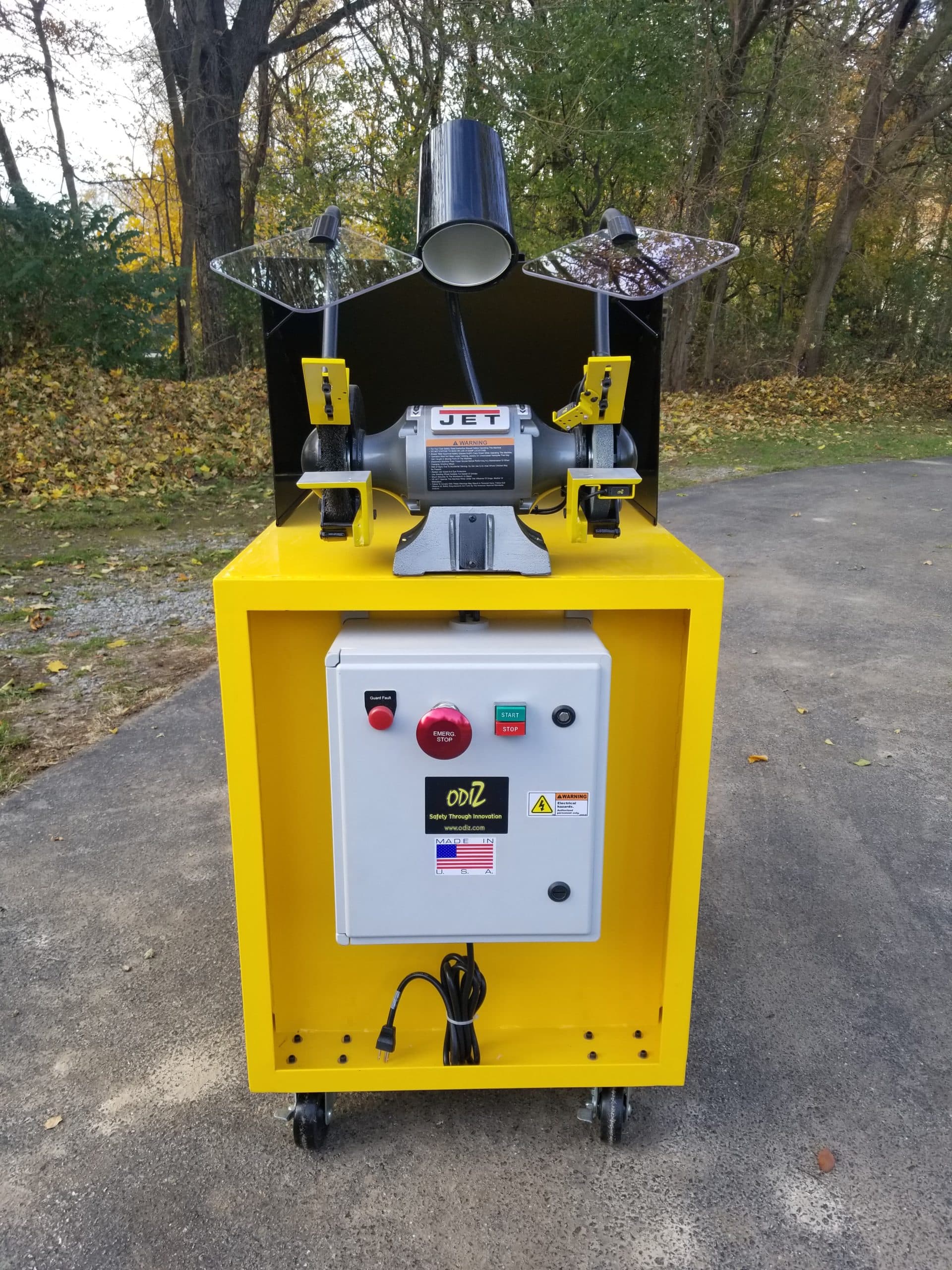

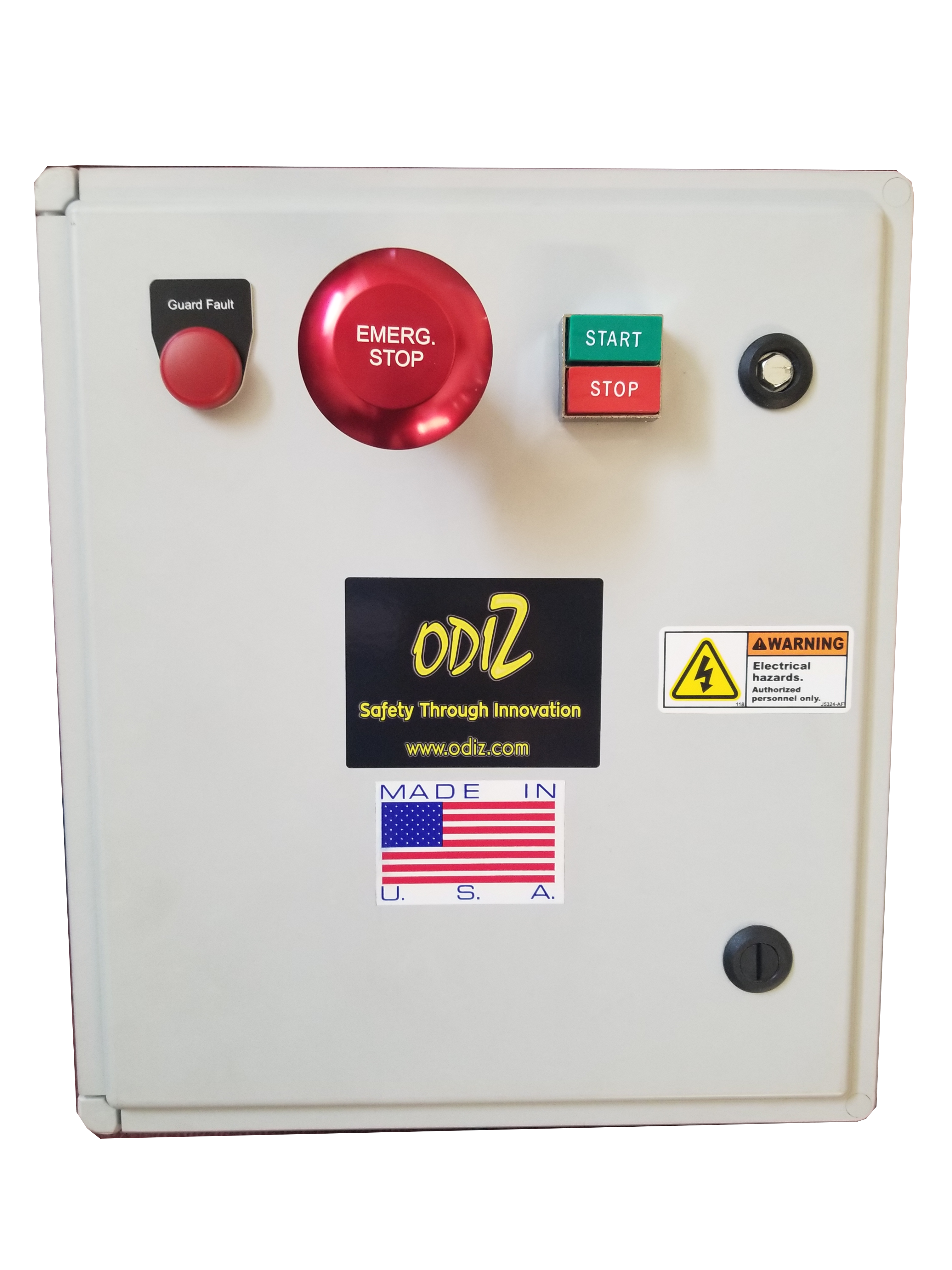

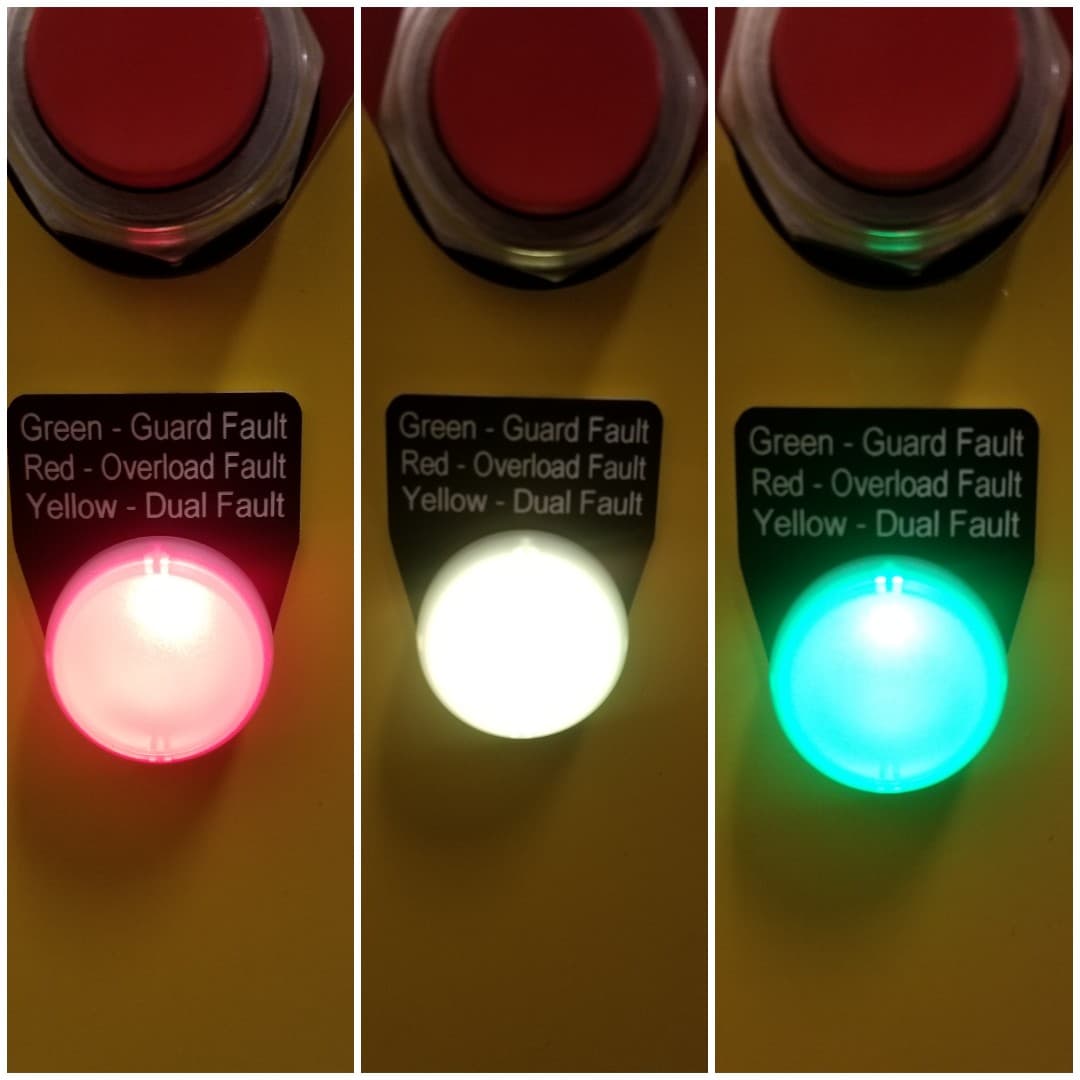

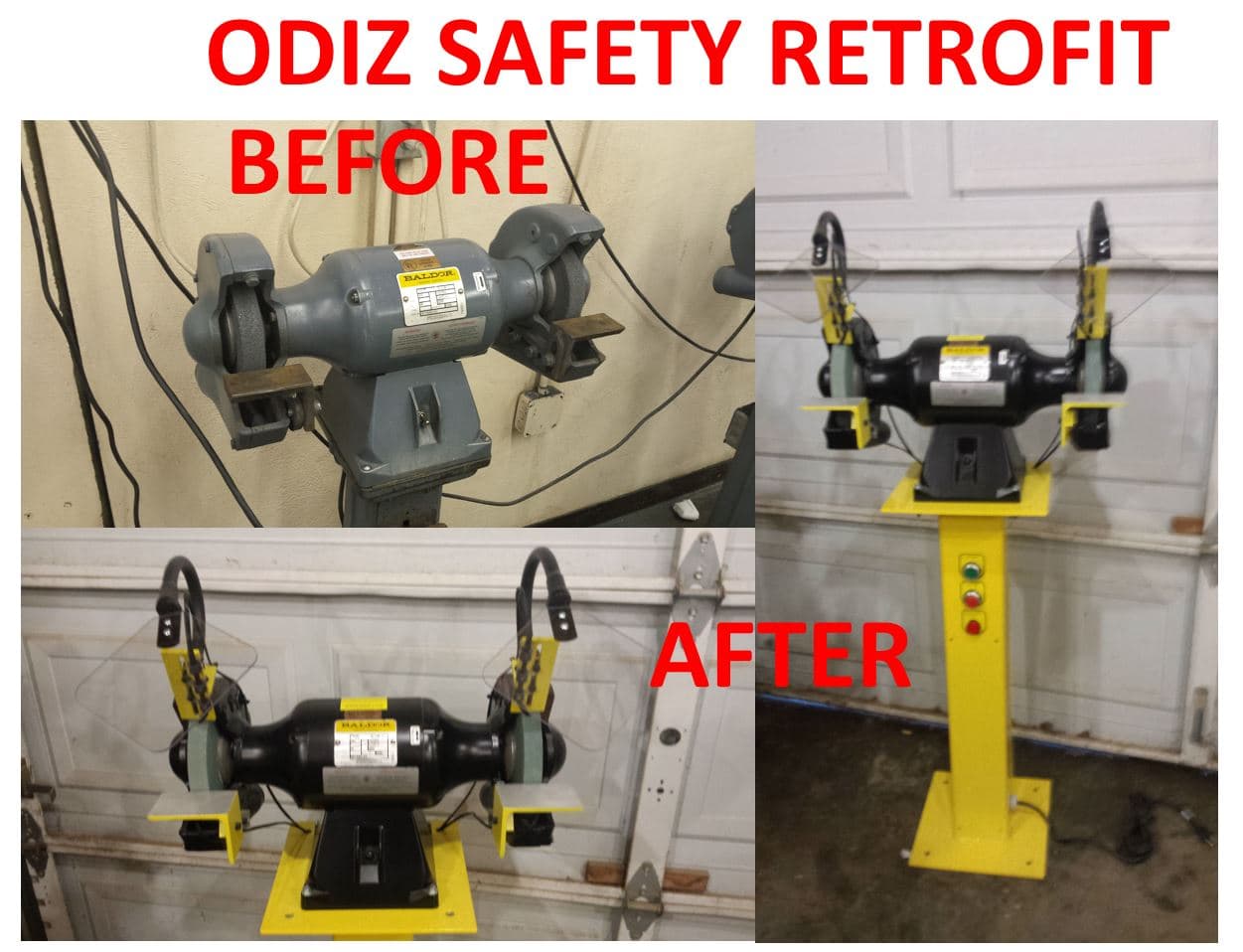

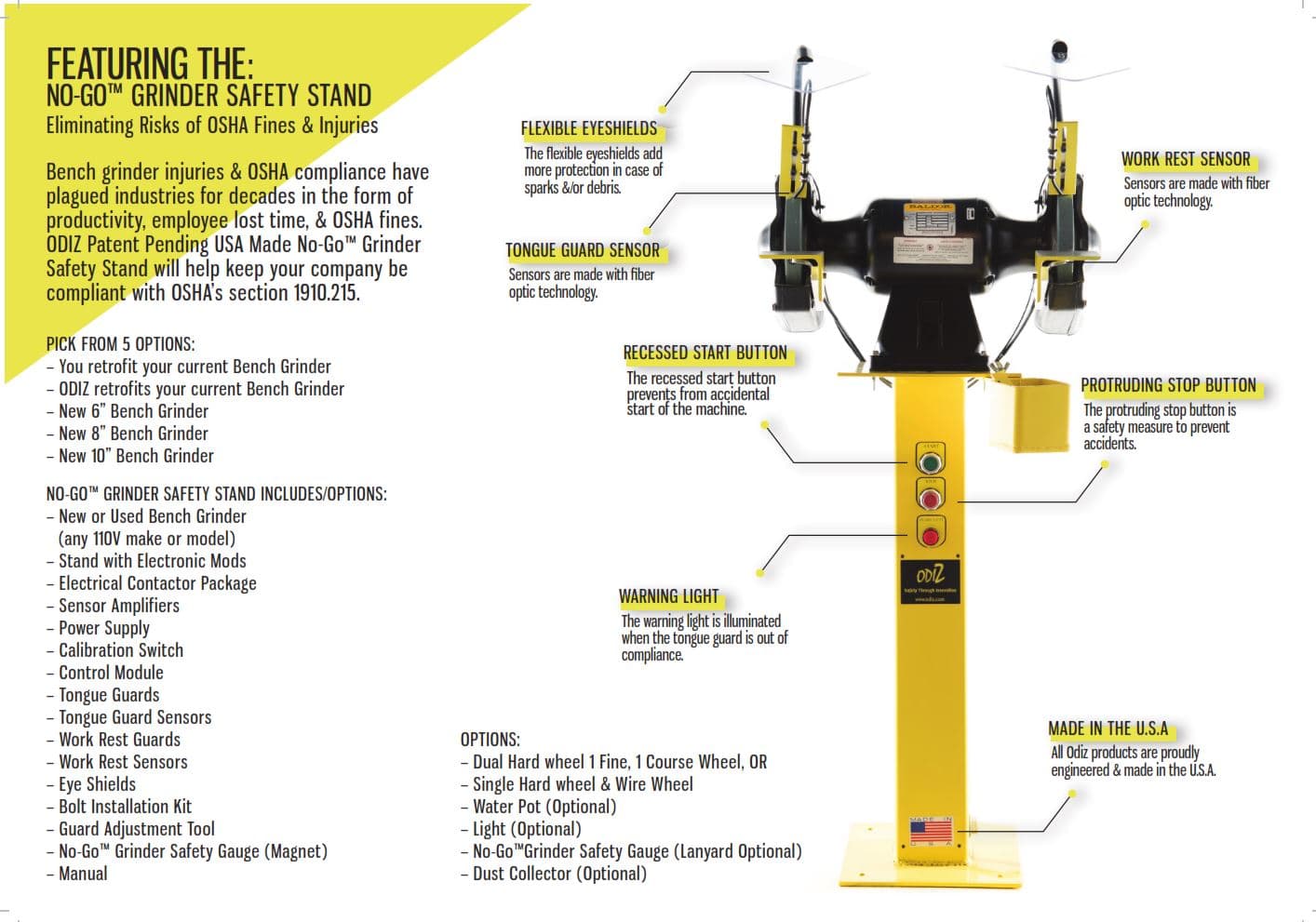

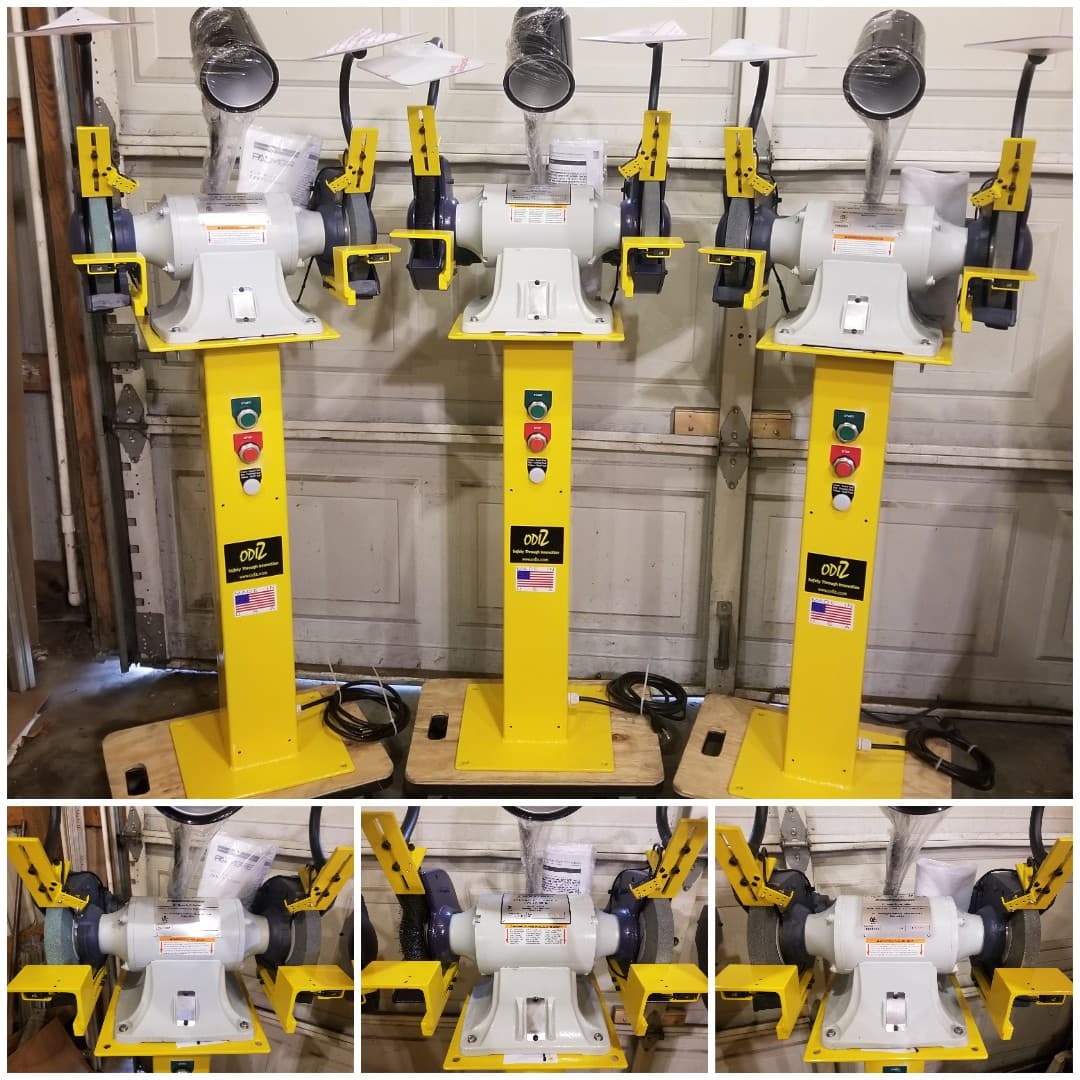

No Go™ Grinder Safety Stand

OSHA 1910.212 — General Requirements for All Machines

OSHA 29 CFR 1910.212 is the core machine guarding standard that applies to nearly all machinery in general industry.
It requires employers to provide guards and protective devices to shield workers from points of operation, rotating parts, in-running nip points, flying chips, sparks, and other hazards.
As a “catch-all” standard, OSHA 1910.212 is often cited when no specific machine regulation exists, making it one of the most frequently enforced provisions in Subpart O.

Key Guarding Requirements

• Point of Operation: Machines must be guarded so operators are not exposed to the point where the work is performed.
• Rotating & Moving Parts: Guards must cover exposed belts, pulleys, gears, shafts, and flywheels to prevent accidental contact.
• In-Running Nip Points: Hazards created where two parts rotate toward each other or where one part moves past a stationary object must be guarded.
• Flying Chips & Sparks: Guards or shields must contain debris, sparks, and fragments generated during machine operation.
• Anchoring: Machines designed for fixed location use must be securely anchored to prevent movement or tipping.

Examples of Machines Covered

Because OSHA 1910.212 is a broad standard, it applies to a wide range of equipment including drill presses, lathes, milling machines, conveyors, punch presses, saws, and grinders.
If a machine has moving parts that could injure a worker, 1910.212 requires guarding.

Common Violations

• Missing point-of-operation guards on presses or saws.
• Exposed belts, pulleys, or rotating shafts without guarding.
• Improperly adjusted or removed guards during production.
• Lack of anchoring on floor-mounted equipment.
• Failure to contain sparks or flying material in grinding, cutting, or drilling operations.

Why OSHA 1910.212 Matters

Machine guarding violations are consistently among OSHA’s top cited standards.
Without proper guards, workers face severe risks of crushed fingers, amputations, lacerations, and eye injuries.
Compliance with OSHA 1910.212 helps facilities protect employees, avoid costly citations, and establish safer production environments.

Relation to Other Standards

OSHA 1910.212 is a general requirement that works in tandem with OSHA 1910.215 (Abrasive Wheel Machinery)
and machine-specific rules under Subpart O. It also aligns with ANSI B11 machine safety standards,
which provide technical safeguarding criteria.

Compliance Checklist

• Install guards at the point of operation on all applicable machines.
• Cover all rotating parts, belts, pulleys, gears, and shafts.
• Guard in-running nip points created by rollers, belts, or chains.
• Provide shields for flying chips, sparks, or debris.
• Anchor floor-mounted machines to prevent shifting.
• Train employees to use machines only with guards in place.

Internal Linking Opportunities

• Cross-link to Lockout/Tagout (OSHA 1910.147) for energy control.
• Link to Abrasive Wheel Machinery (OSHA 1910.215) for grinder rules.
• Connect to ANSI B11 for machine safeguarding performance standards.
• Promote relevant machine guarding products, light curtains, and safety devices.

FAQ

OSHA 1910.212(a) — General Machine Guarding Requirements

OSHA 29 CFR 1910.212(a) defines the core safety principles for machine guarding in general industry.
It requires employers to protect workers from mechanical hazards created by points of operation, rotating components, in-running nip points, and flying chips or sparks.
This paragraph serves as the primary enforcement reference for machinery that does not have its own specific OSHA standard.

Scope and Purpose

The goal of 1910.212(a) is to prevent contact injuries, entanglement, crushing, and amputation by ensuring all hazardous machine motions are either guarded or controlled.
It applies to virtually all machinery used in manufacturing, maintenance, fabrication, and processing operations.

Key Guarding Principles

• Comprehensive Protection: Guards must cover any moving part or area that could cause injury through contact or ejection of material.
• Design Flexibility: Employers may choose fixed, adjustable, or interlocked guards, provided they effectively prevent worker exposure.
• Performance Standard: The rule is performance-based rather than prescriptive—meaning the employer must demonstrate that the guarding method eliminates or controls the hazard.
• Continuity of Protection: Guards must remain in place and secure during operation and be adjusted only when the machine is off and locked out.
• Applicability: This paragraph acts as a “catch-all” requirement whenever a machine presents a hazard not addressed by another OSHA provision.

Examples of Covered Hazards

Machines governed by 1910.212(a) include drill presses, milling machines, conveyors, polishing lathes, grinders, and mechanical cutters.
Hazards may include rotating shafts, reciprocating arms, cutting surfaces, or points where material is inserted or removed.

Compliance Practices

• Install guards that physically prevent access to moving parts.
• Inspect guards routinely for secure attachment and effectiveness.
• Ensure that guard openings prevent any part of the body from reaching the danger zone.
• Prohibit operation when guards are missing or removed.
• Train employees on safe operation, inspection, and maintenance of guarded machines.

Why OSHA 1910.212(a) Is Important

Most serious machinery accidents occur because guards are missing, removed, or inadequate.
Section (a) establishes the baseline requirements that form the foundation of all machine safeguarding programs.
Compliance not only prevents injuries and amputations but also ensures alignment with national consensus standards such as ANSI B11 and ISO 12100.

FAQ

OSHA 1910.212(a)(1) — General Duty to Guard Machines

OSHA 29 CFR 1910.212(a)(1) establishes the primary obligation to guard machinery in general industry.
It requires employers to implement one or more methods of guarding that protect both the operator and nearby employees from hazards created by points of operation, rotating parts, flying chips, sparks, or any other dangerous mechanical motions.

Scope and Intent

This paragraph serves as the foundation of all machine guarding enforcement.
It mandates that every machine presenting a mechanical hazard must be safeguarded through a combination of physical barriers or engineered safety devices.
The employer may choose the guarding method, but it must completely prevent employee exposure to the moving part or hazard zone during normal operation.

Acceptable Guarding Methods

• Fixed guards: Rigid barriers that prevent access to hazardous areas.
• Interlocked guards: Guards that automatically shut off or disengage the machine when opened or removed.
• Adjustable guards: Barriers that can be positioned for different operations but remain securely in place during use.
• Self-adjusting guards: Guards that move automatically into position as the operator works, covering the danger area as material is fed.
• Electronic safeguarding devices: Light curtains, pressure-sensitive mats, and presence sensors that prevent access to moving parts.

Key Compliance Requirements

• Guarding must protect both operators and nearby personnel.
• Guards must be securely attached and durable enough to resist normal operation and vibration.
• Openings in guards must be small enough to prevent accidental contact with moving parts.
• Guards must not introduce new hazards such as sharp edges, pinch points, or visibility obstruction.
• All guards must be kept in place and functional when machines are operating.

Common Violations

• Machines operating without guards over exposed belts, pulleys, gears, or shafts.
• Removed or bypassed barrier guards during production or maintenance.
• Improper guard materials or openings that allow hand or finger access to moving parts.
• Lack of guarding for nearby employees who may be struck by flying material or sparks.

Practical Compliance Tips

• Conduct a full hazard assessment for all equipment to identify points of operation and motion hazards.
• Install fixed guards wherever possible; use interlocked or adjustable guards only when process requirements demand it.
• Include guarding checks in your preventive maintenance program.
• Train operators to recognize unsafe conditions and never remove or modify guards.

Why OSHA 1910.212(a)(1) Is Important

This paragraph represents OSHA’s general duty clause for machinery safety.
Most machine-related injuries occur when guards are removed or missing, and OSHA 1910.212(a)(1) gives inspectors the authority to cite any unguarded moving part that poses a risk.
Compliance ensures that workers remain protected from crushing, entanglement, amputation, and impact injuries.

FAQ

OSHA 1910.212(a)(2) — General Requirements for Machine Guards

OSHA 29 CFR 1910.212(a)(2) establishes the design and construction standards for machine guards.
This provision requires that guards be securely fastened to the machine and designed to protect operators and nearby employees from injury caused by moving parts, flying debris, or accidental contact.
The intent is to ensure that guarding not only provides protection but also does not create new hazards in the process.

Key Guard Design Requirements

• Secure Attachment: Guards must be firmly attached to the machine. If fastening directly to the machine is not possible, guards must be securely mounted elsewhere to provide equal protection.
• Structural Integrity: Guards must be made of materials strong enough to resist impact, vibration, and normal wear during operation.
• No New Hazards: Guards must not introduce additional risks such as pinch points, sharp edges, or visibility obstruction.
• Durability: Guard materials must withstand operational stresses and environmental factors like heat, coolant, or debris.
• Accessibility: Guards should allow safe maintenance, lubrication, and adjustments without requiring complete removal when possible.

Performance Intent

The focus of 1910.212(a)(2) is performance-based guarding design.
OSHA does not prescribe specific guard materials or thicknesses; instead, the guard must perform effectively under real-world conditions.
Employers have the flexibility to design guards suited to their machines—as long as the guarding prevents contact and remains in place during operation.

Examples of Guard Types Covered

• Fixed guards enclosing belts, pulleys, gears, and rotating shafts.
• Interlocked guards that shut off power when opened or removed.
• Adjustable guards for variable-sized stock or cutting operations.
• Self-adjusting guards that move automatically with the workpiece.

Best Practices for Compliance

• Inspect guards regularly for looseness, cracks, or corrosion.
• Use guard materials that match the operational environment (e.g., metal for high-impact areas, polycarbonate for visibility).
• Train employees to recognize damaged or missing guards and to report deficiencies immediately.
• Ensure all guards are reinstalled and secured after maintenance or adjustments.

Common Violations

• Guards loosely attached or easily removable during operation.
• Improvised guards made from inadequate materials such as thin sheet metal or plastic covers.
• Guards with sharp edges or openings large enough to allow finger or hand access.
• Removed or bypassed guards not replaced before restarting the machine.

Why OSHA 1910.212(a)(2) Is Important

Even when a guard is present, poor design or weak construction can fail to protect workers.
OSHA 1910.212(a)(2) ensures that guards are engineered and maintained to perform effectively throughout a machine’s life cycle.
Properly designed guards prevent crushing, amputation, and laceration injuries while maintaining usability and productivity.

FAQ

OSHA 1910.212(a)(3) — Point of Operation Guarding

OSHA 29 CFR 1910.212(a)(3) sets forth the point of operation guarding requirements for machinery used in general industry.
The “point of operation” is the area on a machine where work is performed—such as cutting, shaping, boring, forming, or assembling a part.
This section requires that each machine have a guard or safeguarding device that prevents the operator from having any part of the body in the danger zone during operation.

Purpose and Scope

The purpose of 1910.212(a)(3) is to eliminate exposure to moving tools or dies that can cause crushing, amputation, laceration, or puncture injuries.
It applies to all machines with a point of operation hazard, regardless of size or industry.
Typical examples include presses, saws, milling machines, lathes, shears, and drills.

Key Requirements

• Every machine must be equipped with a guard that prevents the operator from reaching into the danger zone.
• Guards must be designed and constructed to provide maximum protection while allowing the machine to be operated safely and efficiently.
• Special hand tools may be used to handle materials when guarding at the point of operation is not practical.
• Guards must be securely fastened, maintained in place, and not easily removed or bypassed during operation.
• Safeguarding devices such as light curtains, presence-sensing devices, or two-hand controls may be used if they provide equivalent protection.

Examples of Point of Operation Hazards

• Cutting blades or rotating cutters that can amputate or lacerate fingers.
• Press dies or molds that can crush hands or fingers during operation.
• Drill bits, boring tools, or milling heads that can pierce or entangle body parts.
• Shearing or punching points that can sever material—and body parts—with the same force.

Acceptable Guarding Methods

• Fixed barrier guards enclosing the point of operation.
• Interlocked guards that stop machine motion when opened or removed.
• Adjustable or self-adjusting guards that move automatically to block access as material is fed.
• Two-hand controls requiring both hands to activate the cycle, keeping them out of danger.
• Electronic presence-sensing devices such as light curtains or safety mats that halt motion when triggered.

Common Violations

• Operating a machine with missing or disabled point of operation guards.
• Using hand-feeding where fixed or adjustable guards should be installed.
• Removing guards to increase production speed.
• Failure to provide safeguarding when machine design allows operator access to hazardous movement.

Compliance Tips

• Identify all machine points of operation and assess potential contact hazards.
• Install fixed guards where feasible; use engineered safety devices when full enclosure is not possible.
• Inspect all guards before each shift and re-secure after adjustments or maintenance.
• Train operators to recognize guarding deficiencies and to report missing or damaged safety devices immediately.

Why OSHA 1910.212(a)(3) Is Important

Point of operation injuries are among the most severe and preventable workplace incidents.
By enforcing 1910.212(a)(3), OSHA ensures that all machines have reliable guarding or safety devices that keep operators’ hands, fingers, and bodies outside the danger zone during work.
This rule remains one of the most frequently cited machine safety violations nationwide.

FAQ

OSHA 1910.212(a)(3)(i) — Guard Construction and Safety Design

OSHA 29 CFR 1910.212(a)(3)(i) outlines the design and performance requirements for point of operation guards.
This provision mandates that guards be designed and constructed so that no part of the operator’s body can enter the danger zone while the machine is in use.
It ensures guards are not merely present, but effective in eliminating exposure to mechanical hazards.

Purpose and Intent

The purpose of this section is to establish functional performance criteria for machine guards, rather than prescribing specific materials or configurations.
The employer has flexibility in choosing a guarding method, but the chosen system must physically prevent entry into the danger zone during operation and must withstand normal working conditions.

Key Guard Design Requirements

• Complete Coverage: The guard must fully enclose or block access to the hazard area where the operation takes place.
• Strength and Rigidity: Guards must be strong enough to resist mechanical stress, vibration, and accidental impact without failure or displacement.
• Visibility: Guards should allow clear observation of the work area when necessary, using materials such as mesh or transparent panels.
• Secure Installation: Guards must be firmly attached so they cannot be easily removed, loosened, or bypassed during operation.
• Usability: The guard must allow normal machine operation, feeding, and maintenance without creating additional hazards.

Examples of Guard Types Meeting 1910.212(a)(3)(i)

• Fixed steel enclosures surrounding the cutting or forming area.
• Interlocked access doors that stop the machine when opened.
• Transparent polycarbonate guards providing visibility and protection.
• Barrier guards with restricted openings preventing hand or arm entry.

Common Compliance Errors

• Using lightweight or flexible materials that can deform and allow contact.
• Guards not secured tightly to the machine or easily removed without tools.
• Guard openings large enough to allow finger or hand access to the danger zone.
• Guards that obstruct visibility or require removal for normal operation.

Best Practices

• Design guards that exceed minimum strength requirements and resist bending or vibration.
• Test guard designs under real operating conditions to ensure reliability and protection.
• Use standardized opening-size tables to determine acceptable distances between guards and hazards based on reach limitations.
• Document guard inspection results and repair or replace any that show wear, damage, or looseness.
• Train operators and maintenance staff on safe use and adjustment procedures for all guarding systems.

Why OSHA 1910.212(a)(3)(i) Is Important

Many guarding failures occur not because guards are absent, but because they are poorly designed or improperly installed.
OSHA 1910.212(a)(3)(i) ensures that guarding methods perform their intended function—keeping the operator’s body completely outside the danger zone while allowing safe, productive operation.
Proper guard design is the first line of defense against amputations, lacerations, and entanglement injuries.

FAQ

OSHA 1910.212(a)(3)(ii) — Guard Requirements for Special Hand Tools

OSHA 29 CFR 1910.212(a)(3)(ii) addresses the limited use of special hand tools in machine operations where fixed guarding cannot be used effectively.
This provision allows tools such as tongs, holders, or push sticks to assist in feeding or removing materials from the point of operation.
However, these tools must be designed and used in a way that ensures the operator’s hands remain completely outside the danger zone at all times.

Purpose and Intent

This section acknowledges that some machine operations—particularly stamping, bending, or forming—require close access to the point of operation that cannot be guarded with a fixed barrier.
In these situations, OSHA allows specially designed tools that provide functional reach and control while maintaining operator safety.

Key Requirements

• Special hand tools may be used only when physical guards are impractical or interfere with machine function.
• Tools must be designed so the operator’s hands remain outside the danger zone during all stages of operation.
• Use of tools does not eliminate the requirement for other forms of safeguarding such as two-hand controls, interlocks, or presence-sensing devices.
• Tools must be maintained in good condition and replaced if damaged, worn, or unable to provide adequate reach and control.

Examples of Acceptable Hand Tools

• Holding tongs or pliers for feeding or removing parts from presses.
• Push sticks or push blocks for guiding materials through saws or shapers.
• Hook tools for retrieving small components or debris from guarded areas.
• Custom-designed fixtures that keep hands clear of the operating zone while positioning material.

Limitations and Restrictions

• Hand tools must not substitute for required guards when fixed or adjustable guards are feasible.
• Operators must never use bare hands to feed or remove materials from hazardous areas.
• Tools must be used as designed; makeshift extensions or altered devices are prohibited.
• Employers must ensure that workers are trained in the safe use, inspection, and replacement of these tools.

Common Violations

• Using standard pliers or hand-held items not intended for guarding purposes.
• Failing to provide special tools when physical guards are impractical.
• Allowing operators to use damaged or shortened tools that reduce reach and control.
• Assuming hand tools alone provide compliance when other safeguarding measures are required.

Best Practices

• Provide each operator with properly sized and designed hand tools for specific machines.
• Inspect and replace tools regularly to ensure safety and performance.
• Combine tool use with engineering controls such as two-hand trips or light curtains whenever possible.
• Establish written procedures and training programs outlining when and how special hand tools may be used.

Why OSHA 1910.212(a)(3)(ii) Is Important

This paragraph recognizes that total enclosure of some machine points of operation is not always feasible.
By regulating the use of special hand tools, OSHA provid

OSHA 1910.212(a)(3)(iii) — Guard Design for Operator Safety

OSHA 29 CFR 1910.212(a)(3)(iii) establishes the performance criteria for guard design and construction.
It requires that every machine guard be designed, built, and installed so that it effectively protects the operator from injury during machine operation.
This provision emphasizes that guard design must be functional, durable, and capable of providing full protection throughout the equipment’s use.

Purpose and Intent

The intent of 1910.212(a)(3)(iii) is to ensure that guarding effectiveness is not compromised by poor design or materials.
Even when a machine has guards, operators can still be injured if those guards fail under stress, vibration, or improper installation.
OSHA requires that guards maintain their protective function under all normal operating conditions.

Key Design Requirements

• Strength and Durability: Guards must resist impact, vibration, and deformation caused by routine use and environmental conditions.
• Secure Mounting: Guards must be firmly attached and cannot be easily removed, bypassed, or displaced during normal operation.
• Ergonomic Function: Guards should be designed to allow normal operation and maintenance without creating awkward or unsafe postures.
• Visibility: When feasible, guards should permit observation of the operation to ensure quality and alignment without removal.
• No New Hazards: Guard edges and surfaces must be smooth, free from sharp corners, and designed not to introduce new pinch points or catch hazards.

Acceptable Guarding Examples

• Fixed metal guards enclosing belts, pulleys, and gears.
• Transparent guards made of high-strength polycarbonate for visibility and impact resistance.
• Interlocked access doors that automatically shut off the machine when opened.
• Barrier guards preventing reach into moving parts while allowing visual monitoring.

Common Compliance Issues

• Guards that loosen or vibrate during machine operation, reducing protection.
• Materials that crack, warp, or deteriorate under heat or chemical exposure.
• Improperly designed openings that allow finger or hand access to moving parts.
• Guards that must be removed to complete normal adjustments or feeding.

Best Practices for Compliance

• Select guard materials suitable for the specific machine environment (e.g., metal for impact resistance, polycarbonate for visibility).
• Incorporate secure mounting brackets and fasteners that prevent accidental removal.
• Follow design guidelines for minimum safe distances between guard openings and hazard zones.
• Inspect and test guards periodically for wear, looseness, and stability under normal vibration and operation.
• Document guard designs, materials, and inspections as part of your facility’s machine safety program.

Why OSHA 1910.212(a)(3)(iii) Is Important

Even the best guarding concepts fail if the physical construction is inadequate.
OSHA 1910.212(a)(3)(iii) ensures that all guards are engineered for real-world performance, protecting operators and maintenance personnel from the severe hazards of rotating, cutting, or crushing machinery.
By emphasizing design integrity, this section reinforces the need for reliable, tested, and properly installed guarding systems that remain effective throughout the life of the equipment.

FAQ

OSHA 1910.212(a)(3)(iv) — Machines That Usually Require Point-of-Operation Guarding

OSHA 29 CFR 1910.212(a)(3)(iv) provides a representative list of machines that usually require point-of-operation guarding because their normal operation exposes employees to cutting, crushing, shearing, or amputation hazards at the point where work is performed on the material. This list helps employers quickly identify equipment where a guard or safeguarding device is typically necessary to prevent hand, finger, or body entry into danger zones.

Machines Typically Requiring Point-of-Operation Guards

• Guillotine cutters
• Shears
• Alligator shears
• Power presses
• Milling machines
• Power saws
• Jointers
• Portable power tools
• Forming rolls and calenders

These examples are drawn directly from OSHA’s regulatory text and are not exhaustive; any machine that exposes an employee to injury at the point of operation must be guarded. :contentReference[oaicite:0]{index=0}

What “Usually Requires” Means

The phrase “usually require” signals that, in typical use, these machines present recognized hazards at the point of operation. Employers must evaluate the actual setup and task. If exposure exists, the machine must have effective guarding or safeguarding devices that prevent entry into the danger zone during operation.

Guarding Outcomes to Achieve

• Physical separation: A fixed, adjustable, or interlocked guard prevents hand or finger access to the tool or die during the cycle.
• Maintained protection: Guarding remains secure and effective during vibration, normal wear, and routine adjustments.
• No new hazards: The guard’s construction does not introduce sharp edges, additional pinch points, or visibility issues that compromise safety.

Implementation Tips

• Perform a documented hazard assessment for each machine and task to confirm point-of-operation exposure.
• Use fixed guards where feasible; supplement with interlocks, two-hand controls, presence-sensing devices, or special hand tools only as appropriate.
• Verify guard opening sizes and safety distances so that fingers or hands cannot reach the hazard during operation.
• Inspect guards at startup and after any adjustment or maintenance; remove machines from service if guards are missing or ineffective.
• Train operators to recognize point-of-operation hazards and to never bypass or remove guarding.

FAQ

OSHA 1910.212(b) — Anchoring of Fixed Machinery

OSHA 29 CFR 1910.212(b) establishes the requirement that machines designed for fixed location use must be securely anchored to prevent walking, shifting, or tipping during operation.
This rule ensures that heavy machinery and equipment remain stable, reducing the risk of vibration-related hazards, misalignment, or sudden movement that could injure workers.

Why Anchoring Matters

Unanchored machines may shift due to vibration, torque, or accidental impact. This can lead to:

• Entanglement hazards from belts, pulleys, or shafts shifting out of guard alignment.
• Pinch points created when moving machinery drifts into work areas.
• Tip-over risks for tall or top-heavy equipment.
• Equipment damage caused by instability, leading to costly downtime.

Examples of Machines Requiring Anchoring

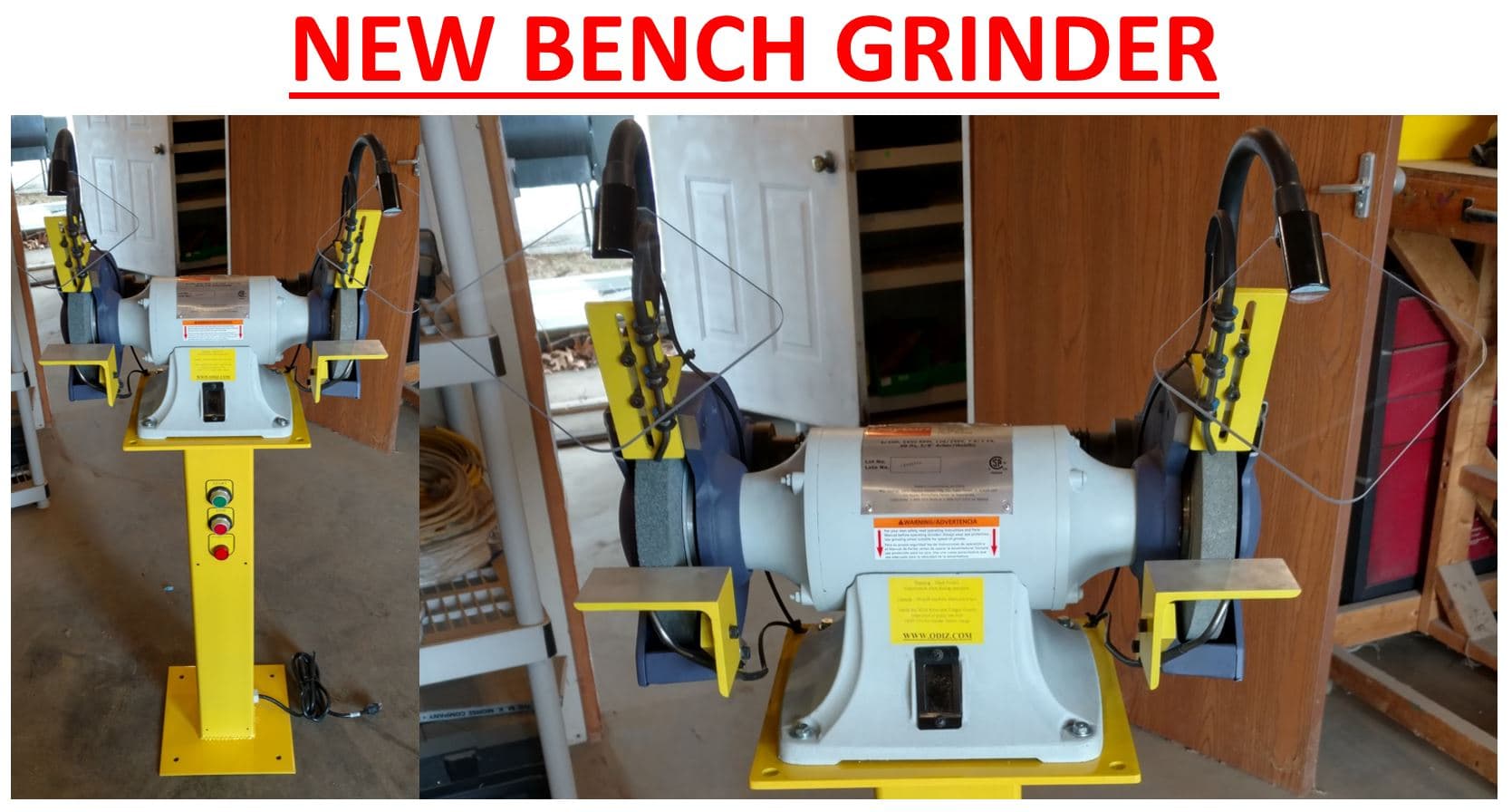

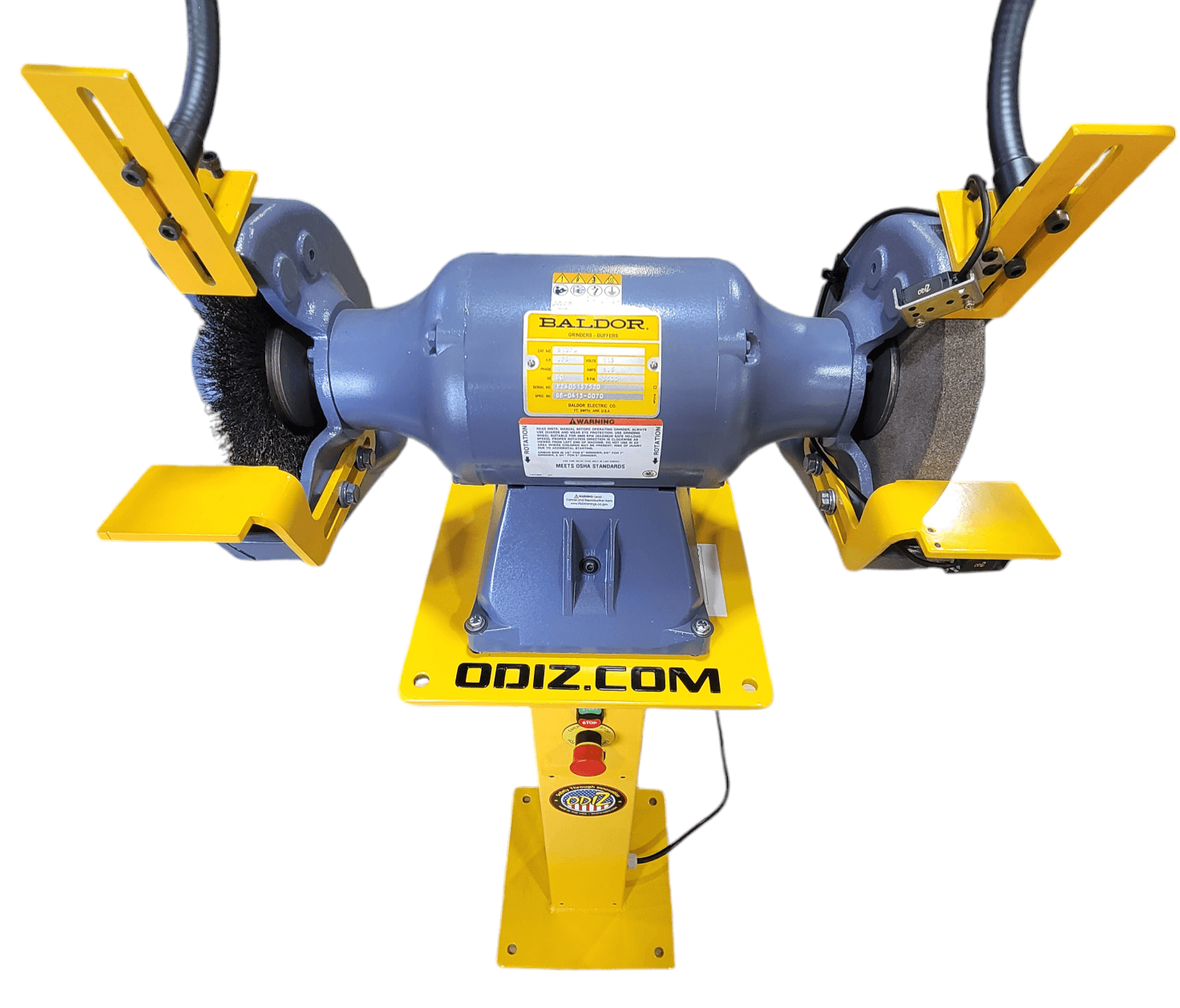

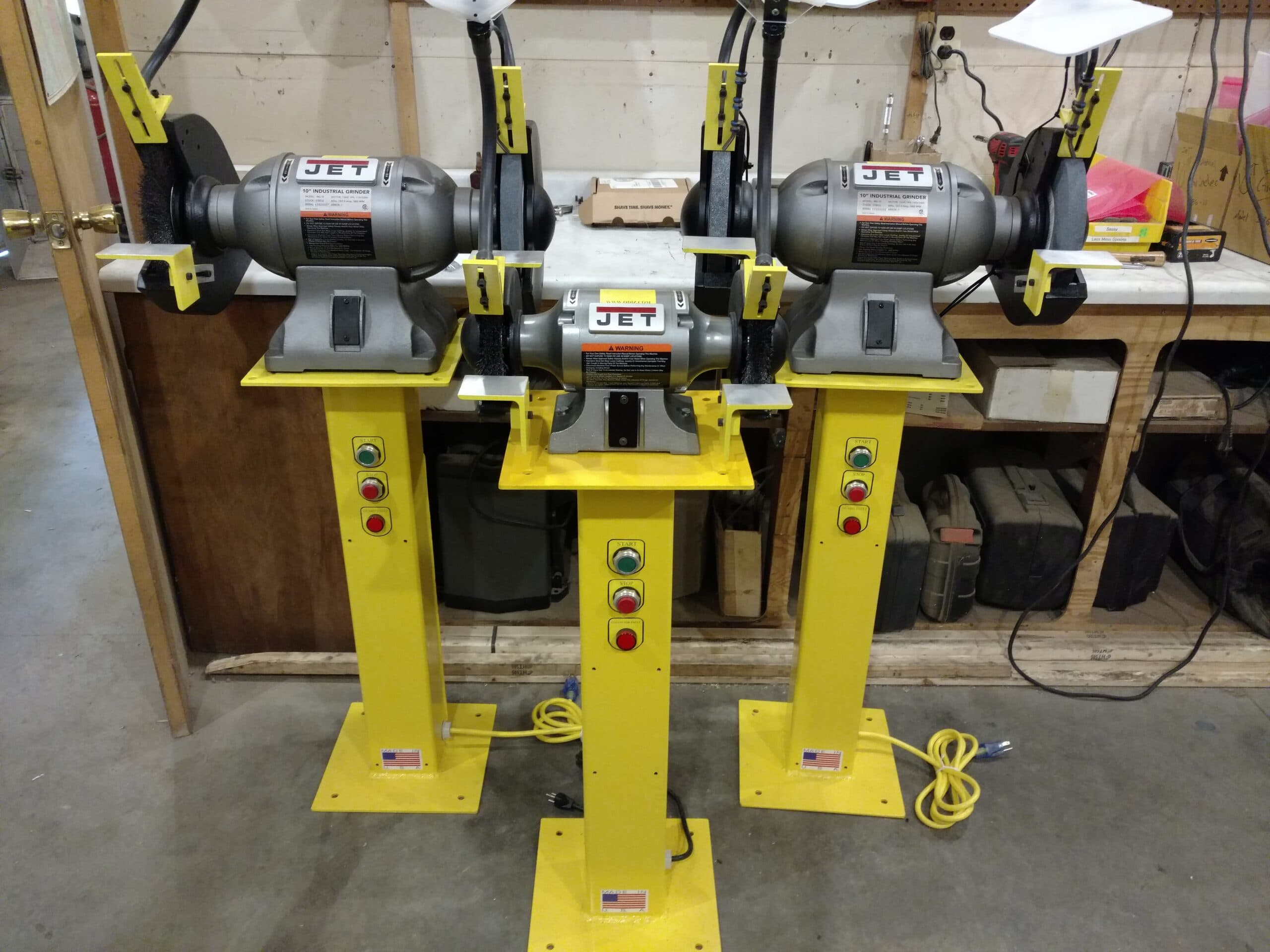

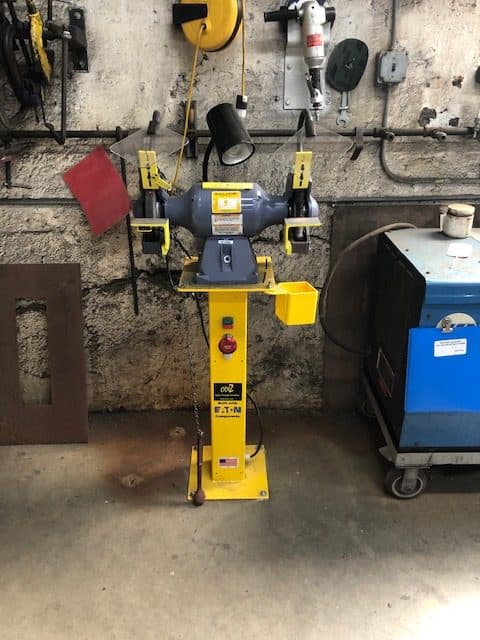

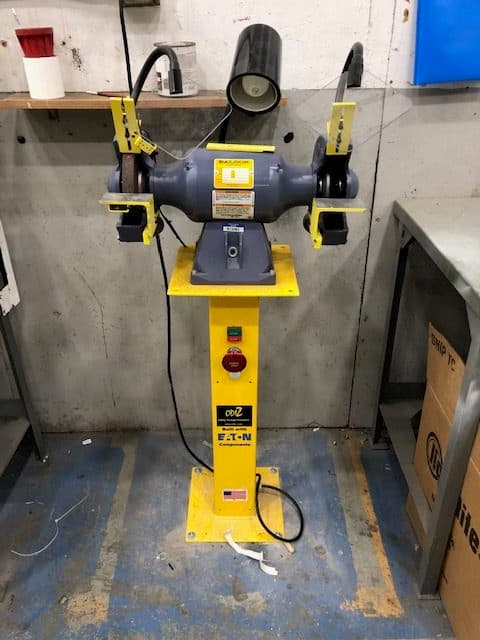

• Bench and pedestal grinders
• Drill presses and milling machines
• Industrial lathes
• Power presses and punch presses
• Floor-mounted saws or shears

Best Practices for Compliance

• Use bolts, lag screws, or anchor systems to secure equipment to floors, bases, or foundations.
• Verify anchoring integrity during routine inspections and after machine relocation.
• Install on a level, vibration-dampening surface to prevent loosening over time.
• Follow manufacturer’s anchoring recommendations for each machine type.
• Document anchoring checks as part of your machine guarding and safety audits.

Relation to Other OSHA Standards

OSHA 1910.212(b) works hand-in-hand with OSHA 1910.212(a) (general machine guarding)

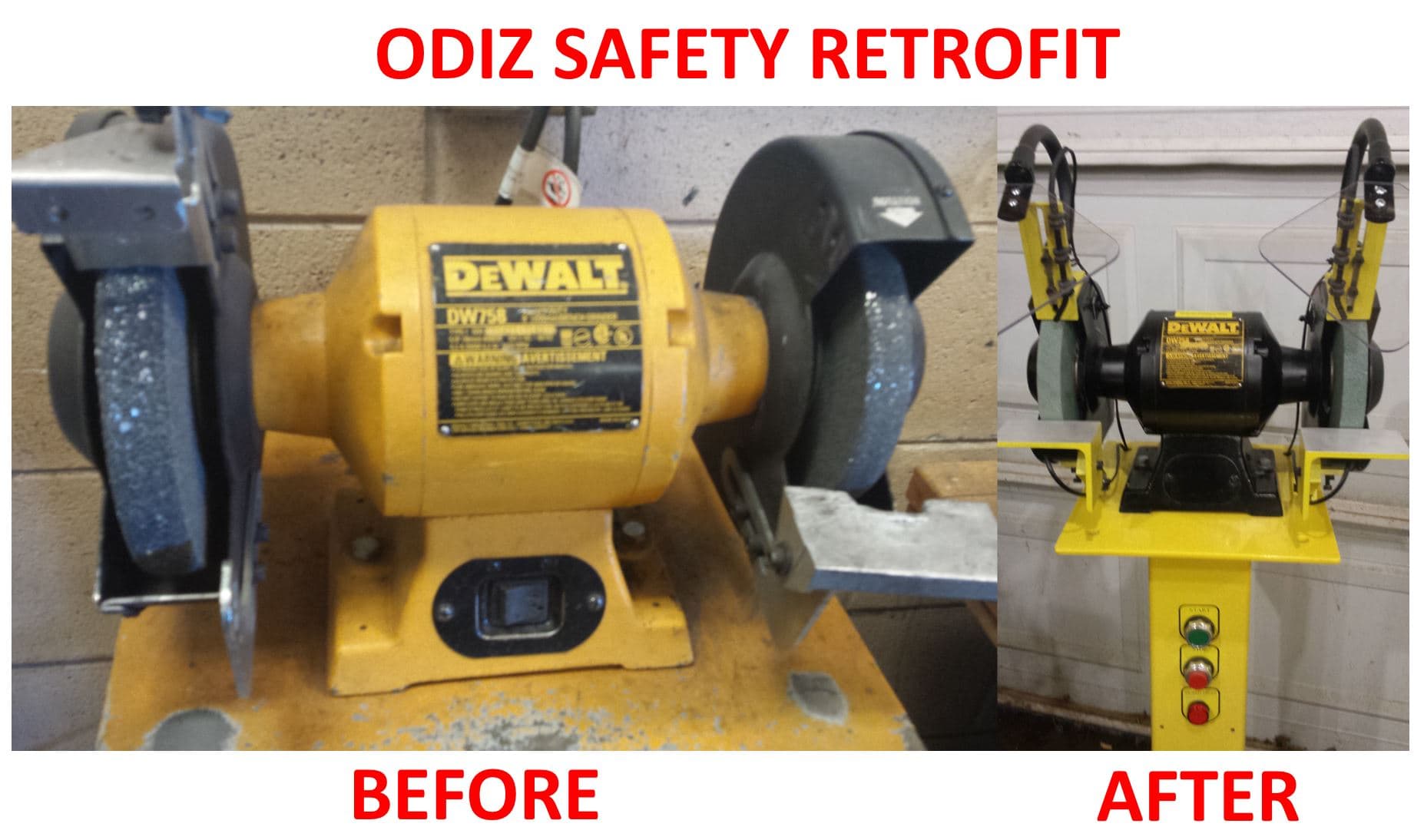

and OSHA 1910.215 (abrasive wheel machinery). For example, pedestal grinders must be both guarded and anchored to fully comply with OSHA requirements.

Compliance Checklist

• Confirm machines designed for fixed use are bolted or otherwise secured to the floor or base.
• Inspect anchors for wear, looseness, or corrosion.
• Re-secure machines after relocation, vibration, or maintenance.
• Train employees not to operate machinery that is unstable or improperly anchored.

FAQ

OSHA 1910.213(a)(1) — Machine Vibration Control and Stability

OSHA 29 CFR 1910.213(a)(1) mandates that every woodworking machine be designed, constructed, and maintained to operate without sensible vibration when fitted with its largest tool and running idle at full speed.
This requirement ensures that machines operate smoothly and safely, reducing the risk of tool ejection, mechanical fatigue, and operator loss of control.

Regulatory Text

“Each machine shall be so constructed as to be free from sensible vibration when the largest size tool is mounted and run idle at full speed.”

Purpose and Intent

Excessive vibration in woodworking machinery can result from poor construction, unbalanced tools, worn bearings, or inadequate mounting.
Such vibration not only shortens equipment life but also creates serious safety hazards including tool breakage, flying parts, inaccurate cuts, and operator fatigue.
Section 1910.213(a)(1) establishes a performance requirement for machine stability and balance to prevent these dangers.

Key Requirements

• Machine design: All woodworking machines must be engineered to maintain stability and balance at full operating speed.
• Largest tool capacity: Machines must be capable of running smoothly even with the manufacturer’s largest rated tool attached (e.g., the largest saw blade, cutter head, or sanding drum).
• Operational test: Machines should be tested at full speed without load to verify that no excessive vibration, chatter, or mechanical oscillation occurs.
• Mounting and anchoring: Equipment must be properly secured to floors or foundations to prevent movement or shifting during operation.
• Maintenance: Bearings, arbors, and spindles must be maintained in proper alignment and condition to minimize imbalance.

Common Sources of Vibration

• Unbalanced or warped saw blades and cutter heads.
• Worn bearings or misaligned shafts.
• Improperly mounted motors or pulleys.
• Loose machine foundations or mounting bolts.
• Accumulated resin, dust, or pitch causing tool imbalance.

Inspection and Maintenance Practices

• Conduct a no-load spin test after each blade or cutter head change to confirm smooth operation.
• Inspect bearings and drive assemblies for wear or looseness on a regular schedule.
• Use precision balancing tools when installing large cutting heads or sanding drums.
• Tighten all fasteners, set screws, and motor mounts to prevent vibration over time.
• Replace worn or damaged blades immediately; never attempt to compensate for imbalance by adding weight.

Safety Implications of Excessive Vibration

• Tool failure: Cracked or unbalanced blades can fracture at high speed, creating projectile hazards.
• Loss of control: Vibrating tools or tables reduce operator precision and increase the chance of accidental contact.
• Fatigue and strain: Continuous vibration can cause muscle strain, numbness, and operator discomfort over time.
• Noise exposure: Vibration often contributes to elevated noise levels, which can exceed permissible exposure limits.

Testing and Compliance Tips

• Perform baseline vibration tests during commissioning and record acceptable levels per manufacturer specifications.
• Document vibration inspections in your preventive maintenance program.
• Anchor heavy woodworking machines (e.g., planers, moulders, sanders) to rigid foundations or vibration-dampening pads.
• Verify that rotating tools conform to the machine’s rated RPM—never exceed the manufacturer’s maximum speed rating.
• Ensure tool arbors and mounting surfaces are clean, true, and free from burrs or debris.

Why OSHA 1910.213(a)(1) Is Important

Vibration control is a fundamental element of machine safety.
OSHA 1910.213(a)(1) ensures that woodworking machines are structurally sound, well-balanced, and free from excessive oscillation when operating under normal conditions.
Compliance prevents mechanical failure, protects workers from struck-by and amputation hazards, and enhances product quality by ensuring consistent and accurate cuts.

FAQ

OSHA 1910.213(a)(11) — Grounding Requirements for Portable Electric Woodworking Machinery

OSHA 29 CFR 1910.213(a)(11) establishes electrical safety requirements for portable electric woodworking tools and machinery.
This provision mandates that any such equipment operating at more than 90 volts to ground must be properly grounded through a separate grounding wire and a polarized plug and receptacle.
The rule applies to both portable woodworking machinery and hand-held electric tools used in woodworking operations.

Regulatory Text

“The frames and all exposed, noncurrent-carrying metal parts of portable electric woodworking machinery operated at more than 90 volts to ground shall be grounded and other portable motors driving electric tools which are held in the hand while being operated shall be grounded if they operate at more than 90 volts to ground. The ground shall be provided through use of a separate ground wire and polarized plug and receptacle.”

Purpose and Intent

The intent of this rule is to protect operators from electric shock and electrocution caused by insulation failure, internal short circuits, or contact with energized metal parts.
By requiring all exposed metal components of portable electric woodworking machinery to be grounded, OSHA ensures that fault current has a safe path to ground instead of passing through the operator’s body.

Key Requirements

• Grounding threshold: All portable electric woodworking machinery and hand-held power tools operating at more than 90 volts must be grounded.
• Grounding method: Grounding must be achieved using a separate grounding conductor integrated into the power cord.
• Plug configuration: Machines must be equipped with a polarized plug and receptacle designed to maintain correct polarity and ensure proper grounding.
• Exposed metal parts: All noncurrent-carrying metallic components (such as frames, housings, and handles) must be connected to the equipment grounding conductor.
• Applies to portable and hand-held tools: Includes circular saws, routers, planers, sanders, jointers, and other electrically powered woodworking tools.

Hazards Controlled

• Electric shock: Grounding provides a low-resistance path to safely dissipate fault current.
• Electrocution: Prevents energized tool frames from carrying dangerous voltage if insulation fails.
• Fire risk: Reduces potential for short-circuit heating and ignition of wood dust or flammable vapors.
• Tool malfunction: Protects electrical components and circuits from overload damage.

Grounding Design and Installation Requirements

• Grounding conductors must be continuous and securely attached to the equipment frame.
• Polarized plugs must be designed so they can only be inserted one way, ensuring correct connection of hot, neutral, and ground conductors.
• Three-prong plugs are required on tools with grounding conductors; removal or alteration of the ground prong is prohibited.
• Extension cords used with grounded tools must also include a grounding conductor and matching polarized connectors.
• Tools must be inspected regularly for damaged cords, missing ground pins, or reversed polarity.

Inspection and Maintenance Practices

• Inspect cords and plugs before each use for exposed wiring, cuts, or missing grounding pins.
• Use an electrical continuity tester to verify grounding integrity of each tool.
• Replace damaged power cords immediately—never repair with tape or makeshift connectors.
• Ensure portable machines used outdoors or in damp conditions are connected through GFCI-protected outlets.
• Tag defective tools as “Out of Service” until repairs are completed by a qualified technician.

Examples of Covered Equipment

• Portable circular saws and miter saws
• Electric jointers and planers
• Routers, trimmers, and laminate cutters
• Electric drills and sanders used in woodworking operations
• Portable lathes and edge finishing tools

Best Practices for Compliance

• Use UL-listed or CSA-approved tools with built-in grounding conductors.
• Label each machine indicating grounding requirements and voltage ratings.
• Integrate grounding checks into your electrical safety inspection program.
• Train workers to recognize damaged cords and the importance of grounding.
• Never use three-to-two prong adapters (“cheater plugs”) that defeat the ground connection.

Why OSHA 1910.213(a)(11) Is Important

Woodworking environments combine electric power tools, conductive metal frames, and airborne dust—a combination that makes electrical safety critical.
OSHA 1910.213(a)(11) ensures all portable electric woodworking machinery above 90 volts is properly grounded using a separate wire and polarized plug.
Compliance prevents electrocution, protects equipment, and aligns with the fundamental principles of OSHA’s electrical standards in 1910 Subpart S.

FAQ

OSHA 1910.215 — Abrasive Wheel Machinery: Guarding and Safety Requirements

OSHA 29 CFR 1910.215 establishes critical safety standards for abrasive wheel machinery—equipment such as bench grinders, pedestal grinders, surface grinders, and cutoff wheels.
This section is designed to protect operators from hazards associated with wheel breakage, contact injuries, and flying fragments by requiring appropriate wheel guards, tool rest spacing, ring testing, and maintenance practices.
Abrasive wheel machinery operates at extremely high speeds, and failure to meet these safety requirements can result in catastrophic injuries or fatalities.

Purpose and Intent

The intent of OSHA 1910.215 is to ensure that all abrasive wheel machines are equipped with properly designed guards and safety devices to contain fragments if a wheel breaks and to minimize the risk of operator contact with rotating parts.
This regulation also standardizes wheel mounting procedures, speed limits, and inspection routines to ensure that each wheel operates within its rated capabilities.

Key Requirements

• Wheel guards: All abrasive wheels must be enclosed by guards that cover the spindle end, nut, and flange projections to protect against wheel fragments.
• Tool rests: Tool rests must be adjusted closely to the wheel (no more than 1/8 inch away) to prevent workpieces from being pulled between the wheel and the rest.
• Work rests: Must be secure, adjustable, and maintained in good condition to support material during grinding.
• Flanges: Each wheel must be properly mounted with flanges of equal diameter and strength to distribute clamping force evenly.
• Ring testing: All vitrified wheels must undergo a “ring test” before mounting to detect cracks or defects.
• Speed control: Machines must not operate at speeds exceeding the maximum safe operating speed (MSOS) marked on the wheel.
• Guard openings: The guard’s exposure angle must not exceed limits based on wheel type and mounting (bench, floor stand, cylindrical, etc.).

Types of Abrasive Wheel Machinery Covered

• Bench and pedestal grinders: Must have upper wheel guards enclosing at least 75% of the wheel periphery.
• Surface grinders: Require guarding of the periphery and sides not used for grinding.
• Cylindrical and centerless grinders: Must have fixed and adjustable guards enclosing the wheel and regulating rollers.
• Portable grinders: Require wheel guards covering at least 180° of the wheel.
• Cutoff machines: Must include a fixed hood-type guard covering the wheel and spindle.

Common Hazards Controlled

• Wheel explosion: Containment of high-speed fragments from cracked or overspeed wheels.
• Contact injuries: Prevents accidental hand or body contact with rotating abrasive surfaces.
• Kickback: Reduces rebound of material due to poor work rest positioning or improper guarding.
• Flying debris: Contains sparks, dust, and fragments during grinding operations.
• Vibration and imbalance: Ensures safe wheel mounting and alignment to prevent shaft or bearing damage.

Guarding and Spacing Requirements

• Tool rests must be within 1/8 inch of the wheel surface.
• Adjustable tongue guards (spark deflectors) must be set no more than 1/4 inch from the wheel periphery.
• Bench and floor grinders must have wheel exposure limited to 90° or less of the periphery.
• All guards must be constructed of steel or equivalent material to contain wheel fragments at maximum operating speed.

Wheel Mounting and Inspection Procedures

• Perform a ring test on vitrified wheels before mounting to detect internal cracks.
• Ensure wheel flanges are of equal diameter, flat, and free from burrs or distortion.
• Use blotters (compressible paper washers) between the wheel and flange where specified by the manufacturer.
• Never force a wheel onto a spindle or use excessive pressure during mounting.
• Run the wheel at operating speed in a protected area for at least one minute before use to confirm stability.

Maintenance and Operation

• Inspect wheels and guards before each shift for cracks, wear, and secure attachment.
• Maintain speed governors and motor controls to prevent overspeeding.
• Clean guards and housings regularly to prevent buildup of grinding dust.
• Replace worn or damaged guards immediately—do not weld or patch wheel guards.
• Ensure work rests are properly adjusted after each wheel dressing or replacement.

Best Practices for Compliance

• Install clear signage showing wheel speed limits and mounting instructions near each machine.
• Train operators in safe grinding practices, including ring testing, guard adjustment, and PPE use.
• Provide eye and face protection such as safety glasses and face shields for all operators.
• Incorporate lockout/tagout procedures for wheel changes and maintenance (per OSHA 1910.147).
• Use ANSI B7.1-compliant abrasive wheels that meet manufacturing and performance standards.

Why OSHA 1910.215 Is Important

OSHA 1910.215 is one of the most critical standards in machine guarding because it addresses the hazards of high-speed rotating abrasive wheels.
Improperly guarded or mounted wheels can explode with tremendous force, causing severe lacerations, blindness, or death.
By enforcing uniform requirements for guards, tool rests, and inspection procedures, this regulation ensures that abrasive wheel machinery operates safely within its design limits, protecting both operators and nearby workers.

Related Standards

• OSHA 1910.212: General requirements for all machine guarding.
• ANSI B7.1: Safety requirements for the use, care, and protection of abrasive wheels.
• OSHA 1910.243(c): Portable powered tool safety standards.
• OSHA 1910.219: Mechanical power-transmission apparatus standards.

FAQ

OSHA 1910.215(a) — General Requirements for Abrasive Wheel Machinery

Paragraph (a) sets the baseline rules for using abrasive wheels: machines must have safety guards,
guards must be designed and fastened correctly, proper work rests are required on offhand grinders,
and some items are excluded from this section. Use this as the top-level guidance before drilling into
the subsection-specific requirements.

(a)(1) Machine guarding — When guards are required (and the limited exceptions)

Abrasive wheels may be used only on machines equipped with safety guards. Limited exceptions apply for:

• Internal work while the wheel is within the workpiece.
• Mounted wheels ≤ 2 in. diameter used in portable operations.
• Types 16, 17, 18, 18R, and 19 (cones, plugs, threaded-hole “pot balls”) when the work itself provides protection.

(a)(2) Guard design — What the guard must cover and how it’s secured

The guard must cover the spindle end, nut, and flange projections, stay aligned with the wheel, and be
secured so that the fastenings are stronger than the guard itself. Two narrow exceptions allow exposure of
the spindle end, nut, and outer flange where the work provides protection, and for portable saws.

(a)(3) Flanges — Cross-reference

Grinding machines must be equipped with flanges per §1910.215(c) (minimum diameters, types/exceptions, and mounting rules).
See your site’s child category for 1910.215(c) for the detailed tables and figures.

(a)(4) Work rests — Required on offhand grinders

• Use a rigid, adjustable rest to support the work.
• Keep the opening to the wheel at ≤ 1/8 in (3.2 mm) to prevent jamming and wheel breakage.
• Clamp after each adjustment; never adjust with the wheel in motion.

(a)(5) Excluded items

Natural sandstone wheels and metal/wooden/cloth/paper discs with abrasive layered on the surface are excluded from §1910.215.

Practical inspection cues (use for audits & training)

• Verify a guard is present unless one of the (a)(1) exceptions applies; document the exception if used.
• Confirm guard coverage encloses spindle end, nut, and flange projections and remains aligned during operation.
• Check that fasteners exceed guard strength (no loose, mismatched, or under-sized hardware).
• On bench/pedestal grinders, measure and record work-rest clearance ≤ 1/8″; re-adjust for wheel wear.
• Cross-check machine/wheel type against exclusions before applying §1910.215 requirements.

Link this category to:

• Your grinder guards, tongue guards, eye shields, and gap-gauge product pages.
• Child categories for 1910.215(b) (guarding specifics), 1910.215(c) (flanges), and 1910.215(d) (mounting/operation).
• Related categories: 1910.212 (general machine guarding), 1910 Subpart I (PPE).

FAQ

OSHA 1910.215(a)(1) — Machine Guarding Requirements for Abrasive Wheel Machinery

OSHA 29 CFR 1910.215(a)(1) establishes the fundamental rule for machine guarding on abrasive wheel machinery.
It requires that abrasive wheels be operated only on machines equipped with safety guards designed to contain wheel fragments and protect operators from contact, sparks, and debris.
These guards are mandatory unless the wheel type falls under a specific exemption defined elsewhere in the standard.

Regulatory Text

“Machine guarding. Abrasive wheels shall be used only on machines provided with safety guards as defined in the following paragraphs of this section, except:”

Purpose and Intent

The purpose of OSHA 1910.215(a)(1) is to ensure that all abrasive wheel machines are operated with guards capable of protecting workers from the violent failure of grinding wheels.
Abrasive wheels rotate at extremely high speeds—often exceeding 6,000 RPM—and a wheel failure can eject fragments at speeds approaching that of a bullet.
Proper machine guarding prevents these fragments from striking operators and reduces the risk of lacerations, amputations, and fatal injuries.

Key Requirements

• Mandatory guards: All abrasive wheels must be used only on machines that have safety guards conforming to 1910.215 design specifications.
• Guard design: Guards must fully enclose the wheel periphery and sides, except for the necessary exposure required for the work process.
• Exceptions: Certain wheel types—such as mounted wheels (two inches or smaller in diameter) and internal wheels used within workpieces—are exempt from the full guard requirement.
• Containment strength: Guards must be strong enough to withstand the force of wheel fragments if the wheel bursts at maximum operating speed.
• Secure installation: Guards must be rigidly mounted to the machine frame and positioned so that they do not interfere with work operations.

Common Hazards Controlled

• Wheel explosion: Guards contain high-velocity fragments from cracked or defective wheels.
• Operator contact: Prevents accidental hand or finger contact with the abrasive surface.
• Flying debris and sparks: Reduces risk of eye and face injuries caused by airborne particles.
• Kickback: Limits rebound of workpieces or fragments during grinding operations.

Guard Construction Guidelines

• Guards should be made of steel or equivalent material capable of containing wheel fragments under centrifugal force.
• Exposure openings must not exceed 90° for bench or floor grinders and 125° for cylindrical grinders, unless otherwise specified.
• Guards must include adjustable tongue deflectors set close to the wheel surface to deflect sparks and debris.
• Portable grinders must have guards enclosing at least 180° of the wheel periphery.
• Guards must be securely fastened to prevent shifting during vibration or wheel replacement.

Inspection and Maintenance Practices

• Verify that all abrasive wheels are properly guarded before operation.
• Check guard fasteners and mounting brackets regularly for tightness and damage.
• Inspect guards for cracks, corrosion, or metal fatigue caused by continuous vibration.
• Ensure that guard openings conform to OSHA’s exposure limits for the specific grinder type.
• Document inspection results as part of the facility’s machine safety program.

Best Practices for Compliance

• Use only guards provided or approved by the machine manufacturer to ensure proper fit and protection.
• Train all operators on guarding requirements and safe grinding techniques.
• Implement lockout/tagout procedures (per OSHA 1910.147) before adjusting or replacing guards.
• Ensure guards are replaced immediately after wheel dressing or maintenance activities.
• Post visible signage reminding workers to check wheel guards before operation.

Why OSHA 1910.215(a)(1) Is Important

OSHA 1910.215(a)(1) forms the cornerstone of abrasive wheel safety by requiring that no unguarded grinding wheels are ever used.
Wheel explosions, contact injuries, and flying debris incidents are among the most severe hazards in metalworking and manufacturing environments.
Proper machine guarding—using strong, securely mounted guards—provides essential protection for operators, dramatically reducing the likelihood of catastrophic injuries.

Related Standards

• OSHA 1910.212: General requirements for all machine guarding.
• OSHA 1910.215(b): Specific design and exposure requirements for abrasive wheel guards.
• ANSI B7.1: Safety code for the use, care, and protection of abrasive wheels.
• OSHA 1910.243(c): Portable powered tool safety requirements.

FAQ

OSHA 1910.215(a)(1)(i) — Exception: Internal Wheels Used Within the Workpiece

OSHA 29 CFR 1910.215(a)(1)(i) identifies a specific exception to the general machine guarding requirement for abrasive wheels.
This exception applies to wheels used for internal grinding—operations in which the abrasive wheel functions inside the workpiece itself, such as in precision bore or cavity finishing.
Because the workpiece naturally encloses the rotating wheel during operation, an external guard would serve no practical purpose and could interfere with the process.

Regulatory Text

“Wheels used for internal work while within the work being ground;”

Purpose and Intent

The intent of OSHA 1910.215(a)(1)(i) is to recognize that in internal grinding applications, the workpiece itself acts as a functional guard.
Internal grinding wheels are often small, high-speed tools that operate inside a confined bore or cavity, where additional external guarding is neither practical nor effective.
This exemption ensures flexibility for precision machining operations while maintaining overall worker safety.

Key Points

• Applicable operations: Applies only to internal grinding wheels used inside the workpiece being ground.
• Guard exemption: A standard external wheel guard is not required while the wheel is operating within the workpiece.
• Machine design: The grinding machine must still include appropriate housings, shields, or covers for the spindle and drive components.
• Operator protection: Additional enclosures or barriers may be needed when the wheel is retracted from the workpiece or during setup.
• Wheel integrity: All internal wheels must meet the same manufacturing and mounting requirements as standard abrasive wheels, including rated speed compliance.

Common Applications

• Internal cylindrical grinders: Used to finish the inside diameter of hollow components such as bushings, bearings, and sleeves.
• Bore polishing machines: Precision tools for fine finishing in aerospace or automotive components.
• Die and mold finishing: Used in shaping cavities and internal geometries.

Safety Considerations

• Ensure the wheel is entirely within the workpiece before rotation begins.
• Maintain proper machine enclosures to protect against debris when retracting the wheel.
• Inspect internal wheels for cracks and perform a ring test where applicable before mounting.
• Use a spindle guard or housing to cover drive components outside the workpiece.
• Provide eye and face protection for all operators, even with the exemption in place.

Hazards Controlled

• Wheel breakage containment: The workpiece acts as a barrier during internal grinding operations.
• Debris projection: Enclosures and housings protect operators from small fragments and dust when retracting tools.
• Contact injury prevention: The confined geometry of internal grinding eliminates direct operator exposure to the abrasive surface.

Best Practices for Compliance

• Confirm that this exemption applies only when the wheel is operating entirely within the workpiece cavity.
• Use machine-mounted shields or sliding covers when setting up or removing parts.
• Train operators on safe mounting, alignment, and dressing procedures for internal wheels.
• Monitor spindle speed to ensure it does not exceed the wheel’s maximum safe operating speed (MSOS).
• Follow ANSI B7.1 for wheel selection, speed control, and safety labeling of internal grinding tools.

Why OSHA 1910.215(a)(1)(i) Is Important

OSHA 1910.215(a)(1)(i) provides a practical and necessary exception for internal grinding operations, balancing safety with functional design.
Because the wheel operates within the workpiece cavity, conventional guards cannot be applied without obstructing the process.
The rule ensures that manufacturers can perform precision internal grinding safely while maintaining compliance through proper inspection, setup, and operator protection measures.

Related Standards

• OSHA 1910.215(a)(1): General machine guarding requirements for abrasive wheel machinery.
• ANSI B7.1: Safety code for the use, care, and protection of abrasive wheels.
• OSHA 1910.212: General machine guarding standards for all rotating machinery.

FAQ

OSHA 1910.215(a)(1)(ii) — Exception: Mounted Wheels Used in Portable Operations (2 Inches and Smaller)

OSHA 29 CFR 1910.215(a)(1)(ii) identifies an important exception within the abrasive wheel machinery guarding standard.
It applies to mounted wheels used in portable grinding, polishing, or finishing operations that are 2 inches or smaller in diameter.
Due to their compact size, low mass, and unique design, these small wheels present significantly less risk of fragmentation or operator injury compared to larger abrasive wheels.
As such, OSHA does not require them to be equipped with conventional machine guards.

Regulatory Text

“Mounted wheels, used in portable operations, 2 inches and smaller in diameter; and”

Purpose and Intent

The intent of OSHA 1910.215(a)(1)(ii) is to acknowledge that miniature mounted wheels—commonly used in hand-held or portable tools such as die grinders, Dremel-type tools, and precision polishers—operate under different mechanical conditions than full-size abrasive wheels.
The small diameter and lightweight design minimize centrifugal force and fragment energy in the rare event of wheel failure, making a full wheel guard unnecessary and impractical for these operations.

Key Points

• Wheel size limit: Applies only to abrasive wheels 2 inches or smaller in diameter.
• Mounted wheel definition: A wheel bonded or pressed onto a mandrel, spindle, or shaft designed for handheld or portable grinding tools.
• Portable operation requirement: The exemption applies exclusively to portable tools—not stationary machines or bench-mounted grinders.
• Guard exemption: These small wheels are exempt from the full guarding requirement of OSHA 1910.215 but must still be used safely in accordance with manufacturer recommendations.
• Operator protection: Eye and face protection remain mandatory under OSHA 1910.133.

Common Applications

• Die grinding: Removing burrs, flash, or weld seams in confined areas.
• Tool and die work: Precision finishing and polishing of molds or cavities.
• Deburring and chamfering: Cleaning edges or surfaces on small metal components.
• Portable maintenance grinding: Light-duty cleaning, smoothing, or finishing work in field applications.

Safety Considerations

• Even though guards are not required, operators must wear ANSI Z87.1–compliant eye protection and face shields.
• Inspect mounted wheels for cracks, looseness, or mandrel defects before each use.
• Verify the tool’s rotational speed (RPM) does not exceed the wheel’s maximum safe operating speed (MSOS).
• Maintain a firm grip on portable tools and ensure stable positioning during use.
• Store mounted wheels properly to prevent chipping, contamination, or bond degradation.

Hazards Controlled

• Fragmentation injuries: Reduced by small wheel size and low mass.
• Contact hazards: Controlled through careful handling and safe operating techniques.
• Flying particles: Mitigated by proper PPE and secure work positioning.
• Kickback and loss of control: Minimized through proper tool maintenance and operator training.

Best Practices for Compliance

• Use only mounted wheels labeled and rated for the specific tool and speed.
• Ensure mandrels and collets are free from wear and securely hold the wheel in place.
• Train operators to avoid side-loading or excessive pressure that could fracture small wheels.
• Keep work areas clear of flammable materials to avoid ignition from grinding sparks.
• Replace mounted wheels at the first sign of cracking, imbalance, or vibration.

Why OSHA 1910.215(a)(1)(ii) Is Important

OSHA 1910.215(a)(1)(ii) balances operator safety and tool functionality by recognizing that small mounted wheels used in portable tools present a lower risk than larger abrasive wheels.
While traditional guards are impractical for such miniature wheels, OSHA still emphasizes inspection, speed control, and PPE use as essential safety measures.
This exception ensures flexibility for maintenance, finishing, and precision work while maintaining overall compliance with abrasive wheel safety principles.

Related Standards

• OSHA 1910.215(a)(1): General machine guarding requirement for abrasive wheels.
• OSHA 1910.215(a)(1)(i): Exception for internal grinding wheels within workpieces.
• OSHA 1910.243(c): Portable powered tool safety requirements.
• ANSI B7.1: Safety code for the use, care, and protection of abrasive wheels.

FAQ

OSHA 1910.215(a)(1)(iii) — Exception: Cones, Plugs, and Threaded Hole Pot Balls Where the Work Offers Protection

OSHA 29 CFR 1910.215(a)(1)(iii) establishes an exception to the standard machine guarding requirement for certain small abrasive wheel types—specifically Types 16, 17, 18, 18R, and 19 cones, plugs, and threaded hole pot balls—used in operations where the workpiece itself provides effective protection.
These wheel types are typically small, compact shapes designed for internal or recessed grinding, finishing, and smoothing surfaces in tight or confined areas.

Regulatory Text

“Types 16, 17, 18, 18R, and 19 cones, plugs, and threaded hole pot balls where the work offers protection.”

Purpose and Intent

The intent of OSHA 1910.215(a)(1)(iii) is to acknowledge that certain abrasive wheel shapes and applications naturally provide protection through the workpiece’s geometry.
When these specialized wheels are used within recesses, cavities, or internal spaces, the surrounding material acts as a natural guard, effectively containing the wheel and preventing operator contact or fragment ejection.

Applicable Wheel Types

• Type 16: Straight-sided cones used for heavy-duty snagging and rough grinding in confined areas.
• Type 17: Tapered cones designed for grinding fillets, corners, and curved surfaces.
• Type 18 and 18R: Plug wheels with a round or oval face, often used for smoothing foundry castings or deburring holes.
• Type 19: Threaded hole pot balls with a spherical or cup-like shape used for inside radius or concave surface grinding.

Conditions for the Exception

• The wheel must be one of the specified types (16, 17, 18, 18R, or 19).
• The operation must occur within or against a workpiece that surrounds the wheel sufficiently to act as a barrier.
• The workpiece must fully or partially enclose the wheel, preventing the operator from direct contact.
• If the workpiece does not offer full protection, a supplementary guard or shield must still be used.
• The wheel must be properly mounted on a threaded mandrel or arbor and secured per manufacturer instructions.

Common Applications

• Foundry finishing: Removing risers, burrs, and rough edges from castings.
• Weld dressing: Smoothing and blending weld beads in confined areas.
• Maintenance grinding: Cleaning and polishing internal surfaces of equipment housings or pipes.
• Die and mold repair: Finishing cavities or internal contours.

Safety Considerations

• Ensure the workpiece provides complete coverage of the wheel during operation.
• Use tools that are rated for the wheel’s maximum safe operating speed (MSOS).
• Inspect each wheel for cracks, looseness, or improper thread engagement before use.
• Wear appropriate eye and face protection (OSHA 1910.133) and hand protection to guard against debris.
• Maintain a firm grip and control of the tool to prevent kickback or misalignment in tight areas.

Hazards Controlled

• Fragment ejection: The workpiece confines debris and fragments if the wheel fails.
• Contact injury: The geometry of the task and the workpiece acts as a barrier against operator contact.
• Overexposure to rotating parts: Only a minimal portion of the wheel is exposed during use.
• Loss of control: Reduced risk due to the small size and low mass of these wheel types.

Best Practices for Compliance

• Verify that the workpiece truly provides protection before applying this exemption.
• Use tools equipped with side handles or vibration-dampening grips for better control.
• Follow ANSI B7.1 guidelines for cone and plug wheel installation and use.
• Train operators to recognize when an additional guard or shield is required.
• Inspect the threaded hole and mandrel for wear or cross-threading before installation.

Why OSHA 1910.215(a)(1)(iii) Is Important

OSHA 1910.215(a)(1)(iii) allows flexibility for operations using specialty cone, plug, and pot ball wheels by recognizing situations where traditional guards are redundant.
These wheel types are designed for use in recessed areas where the workpiece inherently restricts exposure to moving parts.
However, the exemption places responsibility on the employer to ensure that the work truly offers protection and that operators maintain proper PPE, inspection, and mounting practices.

Related Standards

• OSHA 1910.215(a)(1): General machine guarding requirements for abrasive wheels.
• OSHA 1910.215(b): Detailed guard design and exposure limitations.
• ANSI B7.1: Safety code for the use, care, and protection of abrasive wheels (includes specifications for cone and plug types).
• OSHA 1910.243(c): Portable powered tool safety requirements.

FAQ

OSHA 1910.215(a)(2) — Guard Design Requirements for Abrasive Wheel Machinery

OSHA 29 CFR 1910.215(a)(2) establishes the engineering and construction requirements for abrasive wheel machine guards.
These guards serve as the primary line of defense against the dangers of wheel breakage and high-speed fragment ejection.
The regulation specifies that guards must fully enclose the spindle end, nut, and flange projections—areas that are often exposed to operators during grinding—and that they must be securely mounted and properly aligned with the wheel to maintain consistent protection throughout operation.

Regulatory Text

“Guard design. The safety guard shall cover the spindle end, nut, and flange projections. The safety guard shall be mounted so as to maintain proper alignment with the wheel, and the strength of the fastenings shall exceed the strength of the guard, except:”

Purpose and Intent

The purpose of OSHA 1910.215(a)(2) is to ensure that abrasive wheel guards are designed and attached in a way that maximizes operator safety and prevents catastrophic failure in the event of wheel breakage.
Because abrasive wheels rotate at high speeds—often exceeding 6,000 RPM—the guard must be strong enough to contain fragments and resist vibration while remaining securely aligned with the wheel’s rotational plane.

Key Requirements

• Comprehensive coverage: Guards must enclose the spindle end, nut, and flange projections to prevent exposure to rotating components.
• Alignment: The guard must maintain constant alignment with the wheel during all phases of operation, even under vibration or load.
• Fastening strength: The bolts, screws, or clamps securing the guard must have greater strength than the guard itself to prevent detachment during wheel failure.
• Durability: Guards must be constructed from metal or equivalent high-strength material capable of withstanding the impact of fragments.
• Exceptions: Limited exceptions apply for specific wheel types where guarding would interfere with safe operation (detailed in subsections that follow).

Guard Construction Guidelines

• Use heavy-gauge steel, ductile iron, or approved composite materials designed to contain high-energy wheel fragments.
• Ensure guard seams and joints are reinforced or welded to prevent rupture under impact stress.
• Design guards to enclose at least 75% of the wheel periphery for bench and floor grinders, or 180° for portable grinders.
• Use fasteners rated above the guard’s tensile strength, such as high-grade steel bolts or locking clamps.
• Provide access panels or removable sections for wheel replacement that cannot loosen during operation.

Hazards Controlled

• Fragment ejection: Guards contain high-speed fragments from wheel breakage.
• Contact with rotating parts: Prevents hands, clothing, or tools from contacting the spindle, flanges, or nuts.
• Kickback or rebound: Reduces injury risk from material deflection during grinding.
• Structural failure: Ensures guards remain intact and properly secured even under impact or vibration.

Inspection and Maintenance Practices

• Inspect guards daily for cracks, distortion, or loosened fasteners.
• Verify that guards remain in alignment with the wheel after wheel changes or dressing operations.
• Replace or repair guards that show signs of corrosion, fatigue, or deformation.
• Ensure all guard fasteners are torqued to manufacturer specifications and use lock nuts or thread-locking compounds to prevent vibration loosening.
• Perform documented inspections per facility machine guarding safety programs.

Best Practices for Compliance

• Use guards supplied or certified by the original equipment manufacturer (OEM).
• Train operators to check guard alignment before every grinding operation.
• Install anti-vibration mounts to reduce stress on guard fastenings.
• Follow ANSI B7.1 design recommendations for guard materials, thickness, and containment standards.
• Document all modifications or guard replacements for traceability and compliance.

Why OSHA 1910.215(a)(2) Is Important

OSHA 1910.215(a)(2) provides the foundation for how abrasive wheel guards must be constructed and secured.
Proper guard design prevents the most severe outcomes of wheel failure—high-velocity fragment ejection and contact injuries.
The requirement that fastenings exceed the strength of the guard ensures that the guard itself remains attached during a failure event, providing full containment and protecting the operator from fatal injuries.
In short, this subsection transforms guarding from a passive shield into a robust, structural safety barrier.

Related Standards

• OSHA 1910.215(a)(1): General machine guarding requirements for abrasive wheels.
• OSHA 1910.215(b): Specific exposure and design limits for guards on different wheel types.
• ANSI B7.1: Safety code for the use, care, and protection of abrasive wheels (guarding design specifications).
• OSHA 1910.212: General machine guarding requirements for rotating equipment.

FAQ

OSHA 1926.304(f) — Radial Saws

OSHA 29 CFR 1926.304(f) establishes safety requirements for radial saws used in construction.
Radial arm saws are versatile but present serious hazards including kickbacks, blade contact, and flying debris.
To reduce these risks, OSHA mandates specific guarding, alignment, and automatic return features that ensure the blade is shielded and the saw arm resets to a safe position after each cut.

Key Requirements

• Upper Hood Guard: A hood must completely enclose the upper portion of the blade down to the spindle.
• Lower Guard: The saw must include a guard that adjusts automatically to cover the part of the blade not in use.
• Non-Kickback Device: Radial saws used for ripping must have a non-kickback device installed to prevent material from being thrown back toward the operator.
• Anti-Kickback Spreaders: Spreaders or riving knives must be used when ripping to keep kerf from closing and pinching the blade.
• Automatic Return: The saw’s carriage must return to the starting position automatically when released by the operator.
• Alignment: Saws must be aligned so that they do not pull the material into the blade or push the blade off track.

Why OSHA 1926.304(f) Matters

Radial saw accidents often involve kickback and blade contact injuries.
By requiring guards, anti-kickback devices, and automatic return features, OSHA 1926.304(f) minimizes these risks and enforces engineering controls to make saw use safer on construction sites.
Compliance prevents amputations, deep lacerations, and struck-by incidents.

Best Practices for Compliance

• Inspect guards daily to ensure upper and lower blade coverage is intact.
• Verify that non-kickback devices and spreaders are in place during ripping operations.
• Test the automatic return function before each shift to confirm the carriage resets properly.
• Train operators to never disable or bypass guarding and safety devices.
• Maintain proper alignment and lubrication to reduce hazards from saw drift or pull.

Relation to Other Standards

OSHA 1926.304(f) works alongside 1926.304(g) (Table Saws) and 1926.304(h) (Band Saws),
as well as OSHA 1910.213 which governs woodworking machinery in general industry.
Together, these standards form a comprehensive framework for saw safety in both construction and general industry.

Compliance Checklist

• Upper hood guard fully encloses top portion of the blade.
• Lower guard automatically adjusts to cover unused blade areas.
• Non-kickback device installed and functional for ripping operations.
• Automatic return mechanism tested and operational.
• Saw carriage aligned and stable to prevent material pull-in.

FAQ

ANSI B11 — Machine Safety & Machine Tool Standards

The ANSI B11 standards series comprises a robust framework for machinery and machine tool safety. It addresses risk assessment, design, guarding, control systems, risk reduction measures, and installation and maintenance of machines. Although not regulatory law, B11 standards are widely referenced by industry and used to interpret OSHA’s machine guarding rules (e.g. 29 CFR 1910.212). :contentReference[oaicite:2]{index=2}

Structure of the B11 Family

The B11 family is organized into three types of standards:

• Type A (Basic Safety Standards): e.g. ANSI B11.0 defines general concepts, terminology, risk assessment, and safety principles. :contentReference[oaicite:3]{index=3}
• Type B (Generic Safety Standards): These address safeguarding methods, performance, or safety aspects used across machines (for example, B11.19—Performance Criteria for Safeguarding). :contentReference[oaicite:4]{index=4}
• Type C (Machine-Specific Standards): Focused on individual machines or categories (e.g. B11.1 for power presses, B11.9 for grinding machines, B11.10 for sawing machines). :contentReference[oaicite:5]{index=5}

Core Themes & Provisions

• Risk Assessment / Reduction: B11 emphasizes identifying hazards, assessing risk, selecting and validating protective measures, and verifying that risk is reduced to acceptable levels. :contentReference[oaicite:6]{index=6}
• Safeguarding Methods: Fixed guards, interlocked guards, presence sensors, two-hand controls, light curtains, etc., are all covered with performance criteria. :contentReference[oaicite:7]{index=7}
• Performance Criteria: Guards and safety devices must meet minimum response times, strength, durability, fail-safe behavior, and integration with control systems. :contentReference[oaicite:8]{index=8}
• Safety in Existing (“Legacy”) Equipment: B11 encourages adaptation of older machines via retrofitting or supplementary safeguarding where feasible. :contentReference[oaicite:9]{index=9}
• Design, Modification & Integration: Covers requirements for design, safe modifications, wiring, control logic, maintenance access, risk during changeover, and system integration. :contentReference[oaicite:10]{index=10}

Relation to OSHA & Enforcement Context

OSHA itself does not mandate ANSI B11 by law, but OSHA’s machine guarding standards allow referencing consensus standards like B11 for technical interpretation. For example, OSHA’s eTool on machine guarding lists ANSI B11 standards as guidance resources. :contentReference[oaicite:11]{index=11}
Many safety professionals use B11 standards to design compliant machine guards and safety systems that satisfy both OSHA rules and best practices.

Common Substandards in the Series

• ANSI B11.0 — Safety of Machinery (baseline, risk methodology) :contentReference[oaicite:12]{index=12}
• ANSI B11.19 — Performance Criteria for Safeguarding (applies across many machines) :contentReference[oaicite:13]{index=13}
• ANSI B11.1 / B11.2 / B11.3 — Press, hydraulic, brake machines :contentReference[oaicite:14]{index=14}
• ANSI B11.10 — Metal sawing machines :contentReference[oaicite:15]{index=15}
• ANSI B11.9 — Grinding machines (ties into OSHA 1910.215 & 1910.213) :contentReference[oaicite:16]{index=16}

Internal Linking & Application Ideas

• Link to child categories like ANSI B11.0, ANSI B11.19, ANSI B11.9 (Grinding), etc.
• Cross-link to your OSHA machine guarding pages, e.g. OSHA 1910.212 General Machine Guarding.
• Link to safety device and guarding product pages: light curtains, interlocked guards, protective covers, control systems.

FAQ

ANSI B11.0 — Safety of Machinery

The ANSI B11.0 standard (Safety of Machinery) is the foundational “Type A” standard of the B11 series of American National Standards for machine safety.
It is intended to apply broadly to power-driven machines (new, existing, modified or rebuilt) and to machinery systems, not portable tools held in the hand. :contentReference[oaicite:0]{index=0}
ANSI B11.0 provides the essential framework: definitions, lifecycle responsibilities, risk assessment methodology, acceptable risk criteria, and guidance for using Type-C standards in conjunction with this general standard. :contentReference[oaicite:1]{index=1}

Scope & Purpose

ANSI B11.0-2020 covers machines and machinery systems used for material processing, moving or treating when at least one component moves and is actuated, controlled and powered. :contentReference[oaicite:2]{index=2}
The standard’s purpose is to help suppliers, integrators, and users of machinery identify hazards, estimate and evaluate risks, and implement sufficient risk reduction to achieve an “acceptable risk” level. :contentReference[oaicite:3]{index=3}
It also clarifies responsibilities across the machine lifecycle (supplier, user, modifier) and addresses legacy equipment, prevention through design (PtD) and use of alternative methods for energy control. :contentReference[oaicite:4]{index=4}

Key Concepts & Requirements

• Terminology & Definitions: Establishes key machine-safety terms (e.g., machine, hazard zone, safeguarding, risk, risk reduction). :contentReference[oaicite:5]{index=5}
• Risk Assessment Methodology: Describes how to identify hazards, estimate risk severity and probability, evaluate risk, and decide on corrective safeguards. :contentReference[oaicite:6]{index=6}
• Risk Reduction Principles: Focuses on designing out hazards, applying engineered controls, administrative controls and PPE only when higher-level measures aren’t feasible. :contentReference[oaicite:7]{index=7}
• Lifecycle Approach: Applies to design, construction, installation, commissioning, operation, maintenance, modification and dismantling of machines. :contentReference[oaicite:8]{index=8}
• Use of Type-C Standards: ANSI B11.0 explains how to use machine-specific Type-C standards (e.g., B11.9 for grinding machines) together with this standard for full compliance. :contentReference[oaicite:9]{index=9}

Why It Matters

ANSI B11.0 sets the groundwork for safe machine design and use. Without a consistent foundational standard, machine-specific standards may lack coherence or completeness in hazard control.
By following B11.0, manufacturers and users can build robust safety programs, ensure they cover all phases of machine use (including legacy equipment), and demonstrate that hazard identification, risk assessment and risk reduction are performed systematically.
Because the standard is widely referenced by regulatory authorities and industry best practices, compliance strengthens both safety performance and regulatory defensibility.

Relationship to OSHA & Other Standards

Although ANSI B11.0 is a voluntary consensus standard and not a regulation, it is widely acknowledged as “recognized and generally accepted good engineering practice (RAGAGEP)”.
Regulatory bodies like the Occupational Safety and Health Administration (OSHA) reference the B11 series for technical guidance in areas like machine guarding (e.g., 29 CFR 1910.212) and risk assessment. :contentReference[oaicite:11]{index=11}
Furthermore, ANSI B11.0 aligns with the international standard ISO 12100 (Safety of Machinery — General Principles for Design — Risk Assessment and Risk Reduction) but adds U.S.-specific supplier/user responsibilities and lifecycle responsibilities. :contentReference[oaicite:13]{index=13}

FAQ

B11.9 — Safety Requirements for Grinding Machines

The B11.9 standard (ANSI B11.9-2010 (R2020)) applies to all stationary grinding machines used in industrial or commercial applications that utilize abrasive products to change the shape, size or surface finish of any material (including glass, ceramics, plastics, rubber). :contentReference[oaicite:0]{index=0}
It excludes portable hand-held grinding machines, machines using loose abrasives, woodworking applications, concrete cutting operations, honing, lapping or polishing machines, and belt grinding machines. :contentReference[oaicite:1]{index=1}

Scope & Application

This standard covers stationary grinding machines—those that are fixed in position during operation and use abrasive products. :contentReference[oaicite:2]{index=2}
It encompasses peripheral, cylindrical, surface, tool-grinding, cutoff and similar machines where abrasive wheels or segments perform material removal by abrasive action.

Key Safety Topics Addressed

• Abrasive product guarding and work-zone enclosures: The standard sets requirements for guards around abrasive wheels and enclosures around work zones to prevent ejection of fragments. :contentReference[oaicite:3]{index=3}
• Design and construction of grinding machines: Ensures machines are built with structural integrity, appropriate guarding, safe access for maintenance, and safe arrangement of feed, coolant, and exhaust systems.
• Control functions and operator access: Addresses machine start-up/shutdown, safe modes, automatic cycles, operator access during loading/unloading, and ensuring motions stop when guards are opened or safety devices activated.
• Material removal, wheel mounting and speed considerations: Emphasizes that machines must be used only with wheels rated for the speed, must be mounted correctly and operated in safe conditions to avoid wheel failure or ejection. :contentReference[oaicite:4]{index=4}
• Lifecycle responsibilities: Assigns roles for machine builders/suppliers, integrators/modifiers and users across design, installation, commissioning, operation, maintenance, modification and decommissioning phases of grinding machines. :contentReference[oaicite:5]{index=5}
• Risk assessment and combination with other standards: The standard refers to general risk-assessment requirements (such as those in B11.0) and performance criteria for safeguarding (such as B11.19). :contentReference[oaicite:6]{index=6}

Why It Matters

Grinding machines operate at high speeds, often with abrasive wheels that can fail catastrophically, producing high-velocity fragments and ejected material. There are also hazards from rotating parts, coolant, dust, vibration, operator access to moving parts, setup/maintenance exposure and unexpected motion.
By applying the framework of B11.9, manufacturers, users and safety professionals can adopt recognized engineering practices for protecting personnel, maintaining safe machine conditions, and fulfilling an obligation to apply good engineering practice in machine safety programs.

Practical Implementation Tips

• Ensure that every abrasive wheel is correctly rated for speed, mounted properly, and that guards fully cover wheel mounting flanges and expose minimal openings required for the operation.
• Perform a detailed risk assessment considering loading/unloading, tool setup, wheel dressing/truing, automatic vs manual cycles, coolant spray, dust generation, ejection zones and maintenance access.
• Inspect and verify guards or enclosures around the grinding wheel, work-zone containment for chip/projectile ejection, and ensure interlocks or presence-sensing devices prevent operator exposure during motion.
• Train operators and maintenance personnel on hazards unique to grinding: wheel failure, kick-back, flashpoint of coolant/oils, dust inhalation, reaching into guarded zones, and safe changeover procedures.
• When machines are rebuilt, modified or retrofitted (for example new automation or loading/unloading device added), treat them as new from a safety standpoint: re-validate safeguards, perform fresh risk assessment, update documentation and ensure compliance with B11.9 requirements.
