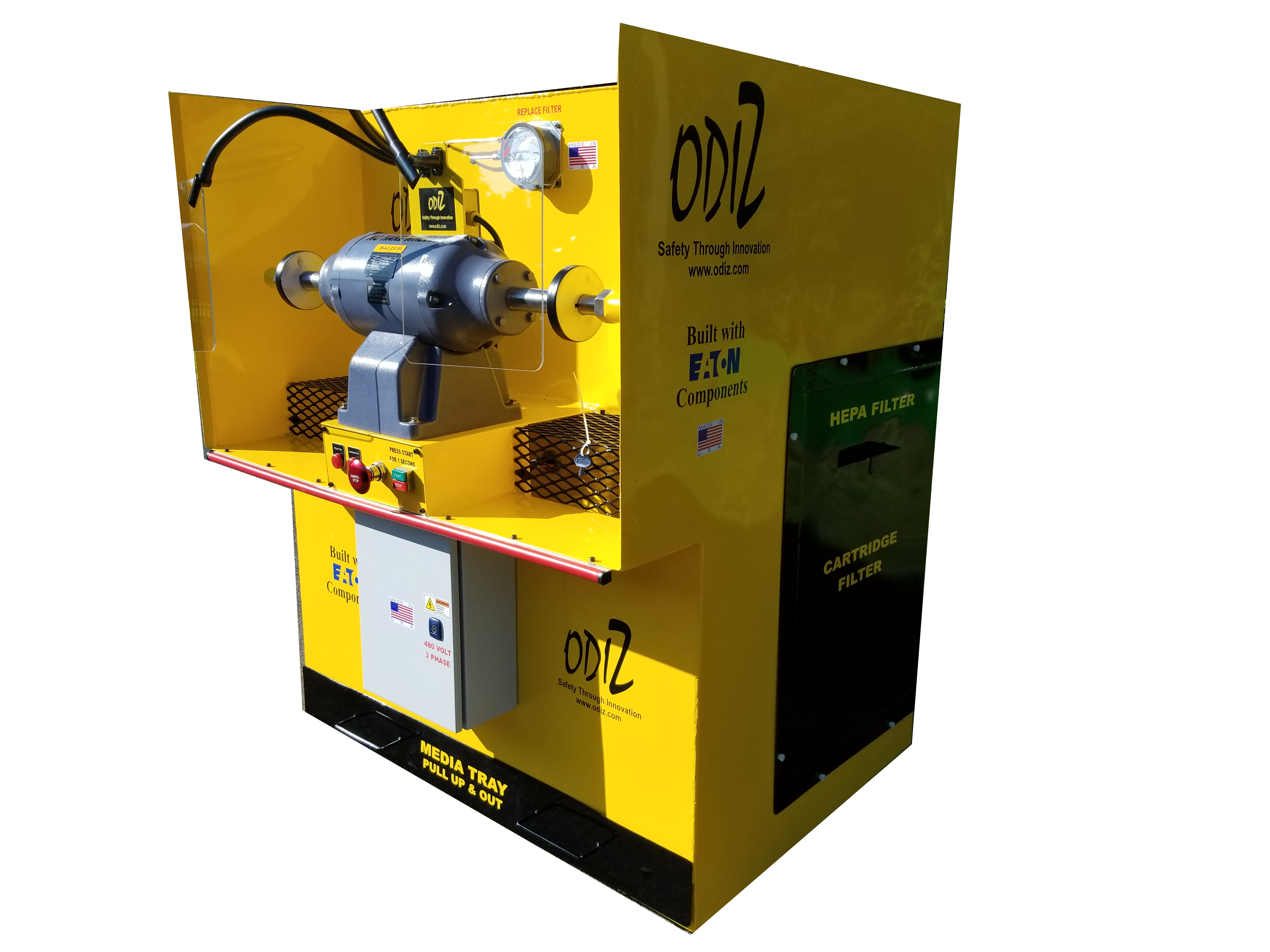

No Go™ Bench Grinder Downdraft Table

OSHA 1910.212(a) — General Machine Guarding Requirements

OSHA 29 CFR 1910.212(a) defines the core safety principles for machine guarding in general industry.
It requires employers to protect workers from mechanical hazards created by points of operation, rotating components, in-running nip points, and flying chips or sparks.
This paragraph serves as the primary enforcement reference for machinery that does not have its own specific OSHA standard.

Scope and Purpose

The goal of 1910.212(a) is to prevent contact injuries, entanglement, crushing, and amputation by ensuring all hazardous machine motions are either guarded or controlled.
It applies to virtually all machinery used in manufacturing, maintenance, fabrication, and processing operations.

Key Guarding Principles

• Comprehensive Protection: Guards must cover any moving part or area that could cause injury through contact or ejection of material.
• Design Flexibility: Employers may choose fixed, adjustable, or interlocked guards, provided they effectively prevent worker exposure.
• Performance Standard: The rule is performance-based rather than prescriptive—meaning the employer must demonstrate that the guarding method eliminates or controls the hazard.
• Continuity of Protection: Guards must remain in place and secure during operation and be adjusted only when the machine is off and locked out.
• Applicability: This paragraph acts as a “catch-all” requirement whenever a machine presents a hazard not addressed by another OSHA provision.

Examples of Covered Hazards

Machines governed by 1910.212(a) include drill presses, milling machines, conveyors, polishing lathes, grinders, and mechanical cutters.
Hazards may include rotating shafts, reciprocating arms, cutting surfaces, or points where material is inserted or removed.

Compliance Practices

• Install guards that physically prevent access to moving parts.
• Inspect guards routinely for secure attachment and effectiveness.
• Ensure that guard openings prevent any part of the body from reaching the danger zone.
• Prohibit operation when guards are missing or removed.
• Train employees on safe operation, inspection, and maintenance of guarded machines.

Why OSHA 1910.212(a) Is Important

Most serious machinery accidents occur because guards are missing, removed, or inadequate.
Section (a) establishes the baseline requirements that form the foundation of all machine safeguarding programs.
Compliance not only prevents injuries and amputations but also ensures alignment with national consensus standards such as ANSI B11 and ISO 12100.

FAQ

OSHA 1910.213(p) — Sanding Machines: Guarding and Safety Requirements

OSHA 29 CFR 1910.213(p) outlines mandatory safety standards for sanding machines used in woodworking, including disc sanders, belt sanders, drum sanders, and spindle sanders.
The purpose of this section is to prevent contact injuries, entanglement, and dust exposure by requiring guarding of moving parts, proper spacing between components, and effective dust control systems.
Sanding machines pose unique risks due to their continuous surface motion and abrasive nature, which can easily catch fingers, clothing, or hair if not properly guarded.

Purpose and Intent

OSHA 1910.213(p) ensures that all types of sanding machinery are designed and operated with adequate guarding, spacing, and exhaust systems to reduce the risk of injury and fire.
The rule applies to all woodworking sanding operations where abrasives are used to smooth, shape, or finish materials.
Key safety goals include preventing contact with moving belts or discs, avoiding nip point hazards between sanding surfaces and work supports, and minimizing airborne dust.

Key Requirements

• Guarding of contact points: All contact areas between sanding surfaces and work supports must be guarded to prevent operator contact with rotating or moving parts.
• Enclosure of unused portions: The unused run of sanding belts must be enclosed to eliminate exposure to the moving belt.
• Disc and drum guards: Sanding discs and drums must be enclosed or guarded to protect against accidental contact and to contain fragments in case of abrasive failure.
• Dust collection: All sanding machines must be equipped with an effective exhaust system to remove wood dust at its source.
• Spacing requirements: Tables and guards must be adjusted so openings between the abrasive surface and the table edge do not exceed OSHA-specified clearances (typically 1/4 inch for belt sanders).
• Power transmission guarding: Belts, pulleys, and shafts driving the sanding mechanism must be enclosed in compliance with OSHA 1910.219.

Types of Sanding Machines Covered

• Belt sanders: Require guards enclosing the unused run of the belt and nip points where the belt contacts pulleys or tables.
• Disc sanders: Must have guards enclosing the portion of the disc above the table unless the work is performed on both sides of the disc.
• Drum sanders: Require enclosures for all moving parts and exhaust systems to control dust and prevent accidental contact.
• Spindle sanders: Must have guards and table openings designed to prevent finger access to the spindle at the point of operation.

Common Hazards Controlled

• Contact with moving abrasives: Prevents lacerations, burns, and crushed fingers from accidental touch.
• Entanglement: Reduces risk of clothing, gloves, or jewelry being caught in moving belts or drums.
• Inhalation hazards: Dust collection minimizes exposure to fine particulate matter linked to respiratory issues and explosions.
• Flying debris: Guards contain loose material or failed abrasives.
• Kickback and binding: Proper work support and clearance prevent sudden material ejection.

Guard Design and Construction Guidelines

• Construct guards from heavy-gauge metal or equivalent materials that withstand impact and vibration.
• Provide clear visibility at the point of operation through open or transparent sections if necessary.
• Ensure all belt and disc enclosures allow easy access for adjustment and maintenance without removal of safety features.
• For horizontal belt sanders, guard both upper and lower runs of the belt wherever possible.
• Install emergency stop switches within reach of the operator’s normal working position.

Inspection and Maintenance Practices

• Inspect guards and exhaust hoods before each shift for proper placement and secure attachment.
• Clean dust collection ducts and filters regularly to prevent fire and maintain suction efficiency.
• Check belt and disc tracking, tension, and surface wear to prevent breakage or imbalance.
• Replace damaged abrasive belts or discs immediately; never operate with torn or frayed abrasives.
• Verify that openings between the abrasive and worktable do not exceed the OSHA clearance limit.

Best Practices for Compliance

• Use automatic dust extraction systems designed specifically for wood sanding applications.
• Train operators to adjust guards and tables before each operation to maintain proper clearance.
• Implement lockout/tagout procedures when changing belts, discs, or performing maintenance (per OSHA 1910.147).
• Provide hearing protection and dust masks to reduce exposure to noise and particulates.
• Post machine-specific operating instructions near each sanding station.

Why OSHA 1910.213(p) Is Important

OSHA 1910.213(p) plays a vital role in preventing the most common and severe injuries associated with sanding operations—such as finger amputations, entanglement, and respiratory illness.
Sanding machines operate at high speed and generate both mechanical and airborne hazards.
By requiring comprehensive guarding, dust collection, and controlled clearances, this standard ensures that operators can work safely without exposure to moving abrasives or hazardous dust.

Related Standards

• OSHA 1910.94(b): Ventilation requirements for abrasive blasting and sanding operations.
• OSHA 1910.215: Abrasive wheel machinery guarding.
• ANSI B11.8: Safety requirements for woodworking machinery, including sanding and finishing machines.

Share this:

• Facebook
• LinkedIn
• X
• Email
• Print

Related

OSHA 1910.213(p)(1) — Guarding Requirements for Feed Rolls on Self-Feed Sanding Machines

OSHA 29 CFR 1910.213(p)(1) sets strict safety requirements for self-feed sanding machines—machines that automatically feed stock through sanding rolls or belts.
This standard specifically addresses the feed rolls, requiring a semicylindrical guard to prevent an operator’s hands from coming into contact with the in-running nip points, where the stock enters the machine.
The regulation ensures consistent protection regardless of stock thickness or operator position.

Regulatory Text

“Feed rolls of self-feed sanding machines shall be protected with a semicylindrical guard to prevent the hands of the operator from coming in contact with the in-running rolls at any point. The guard shall be constructed of heavy material, preferably metal, and firmly secured to the frame carrying the rolls so as to remain in adjustment for any thickness of stock. The bottom of the guard should come down to within three-eighths inch of a plane formed by the bottom or contact face of the feed roll where it touches the stock.”

Purpose and Intent

Self-feed sanding machines use powered feed rolls to pull material into contact with abrasive drums or belts.
The in-running nip point between these rolls is a major hazard zone that can draw in hands, fingers, or clothing in less than a second.
OSHA 1910.213(p)(1) requires a semicylindrical guard—curved to follow the contour of the feed rolls—to block operator access while allowing smooth material feed.
The rule’s precision clearance requirement ensures maximum protection without interference in production.

Key Requirements

• Semicylindrical guard: Feed rolls must be covered by a guard that matches the contour of the rolls, enclosing the in-running nip area.
• Material construction: Guards must be made of heavy material, preferably metal, providing durability and impact resistance.
• Fixed positioning: Guards must be firmly secured to the machine frame and remain properly adjusted regardless of stock thickness.
• Clearance requirement: The lower edge of the guard must extend to within three-eighths (3/8) inch of the plane formed by the bottom face of the feed roll.
• Full coverage: The guard must protect the operator from contact at any point along the roll’s in-running surface.

Common Hazards Controlled

• In-running nip point injuries: Prevents operator hands and fingers from being drawn into feed rolls.
• Amputation and crush injuries: Eliminates direct access to the most dangerous portion of the sanding machine.
• Clothing entanglement: Protects against sleeves or gloves being caught in the roll entry zone.
• Unexpected stock movement: Reduces the risk of stock kickback or ejection during feeding.

Guard Design and Construction Guidelines

• Guards should be constructed from steel plate or equivalent heavy-duty metal capable of withstanding impact and vibration.
• The semicylindrical shape should closely follow the contour of the feed rolls to minimize gaps.
• Ensure the guard is mounted to the frame of the feed roll assembly and not attached to adjustable components that could shift during use.
• For multi-roll machines, each set of feed rolls should have individual guards adjusted for the specific nip point.
• Guards should be easy to remove or swing open only when the machine is locked out for maintenance.

Inspection and Maintenance Practices

• Verify guard clearance daily to ensure the bottom edge remains within the required 3/8-inch distance from the feed roll plane.
• Inspect for cracks, loose bolts, or deformation caused by vibration or impact.
• Clean the guard regularly to prevent buildup of dust, resin, or debris that could restrict stock feeding.
• After roll replacement or adjustment, recheck guard positioning and secure mounting hardware.
• Include feed roll guards in your machine guarding inspection checklist.

Best Practices for Compliance

• Train operators on hazard awareness and the function of the semicylindrical guard.
• Incorporate lockout/tagout procedures (per OSHA 1910.147) before cleaning or adjusting feed rolls.
• Use visual indicators or fixed spacers to maintain the required 3/8-inch clearance automatically.
• Do not bypass or loosen guards to feed irregularly shaped stock; use jigs or auxiliary guides instead.
• Maintain documentation of inspections, adjustments, and maintenance related to feed roll guarding.

Why OSHA 1910.213(p)(1) Is Important

OSHA 1910.213(p)(1) directly addresses one of the most hazardous components of self-feed sanding machines—the in-running feed rolls.
These rolls exert continuous pulling force capable of trapping and crushing hands in an instant.
By mandating a semicylindrical, heavy-duty guard positioned within 3/8 inch of the feed roll’s contact plane, the regulation prevents physical access to this high-risk area while allowing efficient stock feeding.
Compliance with this rule significantly reduces amputations, entanglements, and crush injuries in sanding machine operations.

FAQ

OSHA 1910.213(p)(2) — Guarding and Exhaust Requirements for Drum Sanding Machines

OSHA 29 CFR 1910.213(p)(2) sets forth safety and guarding requirements for drum sanding machines, ensuring that rotating sanding drums are enclosed to prevent contact injuries and control wood dust emissions.
The regulation mandates the use of an exhaust hood or, if no exhaust system is required, another form of protective guard that encloses the revolving drum while allowing sufficient access for normal sanding operations.

Regulatory Text

“Each drum sanding machine shall have an exhaust hood, or other guard if no exhaust system is required, so arranged as to enclose the revolving drum, except for that portion of the drum above the table, if a table is used, which may be necessary and convenient for the application of the material to be finished.”

Purpose and Intent

The purpose of OSHA 1910.213(p)(2) is to protect operators from contact with rotating sanding drums and from exposure to hazardous airborne dust.
The exhaust hood or guard serves a dual function — acting as both a mechanical barrier to prevent contact and a dust collection device to remove fine particulate matter at the source.
Because drum sanders operate at high rotational speeds and generate significant friction, effective guarding and ventilation are critical to preventing injuries, fires, and respiratory hazards.

Key Requirements

• Exhaust hood or guard required: Each drum sanding machine must have either a connected exhaust hood or a fixed guard enclosing the rotating drum.
• Extent of enclosure: The drum must be enclosed on all sides except for the portion necessary to perform sanding — typically the upper segment above the work table.
• Table clearance: If the machine uses a work table, only the section of the drum directly above it may remain open to allow safe application of material to the abrasive surface.
• Material construction: Guards or hoods should be constructed of heavy-gauge metal or equivalent material capable of withstanding abrasion and vibration.
• Dust collection: When an exhaust system is installed, it must provide adequate airflow to capture fine dust and prevent accumulation within the guard housing.

Common Hazards Controlled

• Contact with rotating drum: Prevents fingers, hands, or clothing from touching the moving abrasive surface.
• Entanglement: Eliminates access to in-running nip points between the drum and workpiece.
• Dust inhalation: Exhaust hoods remove airborne particles to reduce respiratory exposure.
• Fire and explosion hazards: Prevents accumulation of combustible wood dust in the machine housing or work area.
• Flying debris: Enclosures contain fragments in the event of abrasive failure or material ejection.

Guard and Exhaust Design Guidelines

• Design guards to enclose at least 180° of the drum circumference, leaving only the functional section above the table exposed.
• Position exhaust hoods to capture dust at the point of generation — typically at the rear or underside of the drum.
• Ensure the hood opening does not exceed necessary clearance for safe feeding of workpieces.
• Construct hoods and guards from smooth, abrasion-resistant metal for long service life and easy cleaning.
• Use quick-access panels or hinged guards for inspection and maintenance under lockout/tagout conditions.

Inspection and Maintenance Practices

• Check guards and hoods daily for proper fit, damage, or loose mounting hardware.
• Inspect dust collection ducts and filters for blockages or leaks that could reduce airflow efficiency.
• Clean the inside of guards regularly to prevent buildup of dust or resin that could create friction or fire hazards.
• Ensure guards remain securely in position after adjustments or drum replacements.
• Document inspections as part of your machine safety and preventive maintenance program.

Best Practices for Compliance

• Install high-efficiency dust extraction systems specifically rated for fine wood dust collection.
• Train operators to adjust work tables and guards properly before operation.
• Integrate emergency stop controls near the operator’s normal working position.
• Provide respiratory protection and ensure adequate ventilation throughout the work area.
• Follow NFPA 664 recommendations for dust collection and explosion prevention in sanding environments.

Why OSHA 1910.213(p)(2) Is Important

OSHA 1910.213(p)(2) addresses two critical hazards of drum sanding operations — physical contact with rotating abrasives and inhalation of fine dust.
By requiring an exhaust hood or guard that encloses the revolving drum, the standard ensures operators are protected from both mechanical injury and long-term health risks.
Proper implementation of this regulation also enhances air quality, reduces cleanup demands, and helps prevent dust-related fires in woodworking facilities.

FAQ

OSHA 1910.213(p)(3) — Guarding and Exhaust Requirements for Disc Sanding Machines

OSHA 29 CFR 1910.213(p)(3) establishes specific safety requirements for disc sanding machines, focusing on the proper enclosure and exhaust ventilation of the revolving sanding disc.
The regulation mandates that each machine be equipped with an exhaust hood, or if no dust collection system is used, an equivalent guard, arranged to fully enclose the disc except for the portion above the table needed for sanding operations.

Regulatory Text

“Each disk sanding machine shall have the exhaust hood, or other guard if no exhaust system is required, so arranged as to enclose the revolving disk, except for that portion of the disk above the table, if a table is used, which may be necessary for the application of the material to be finished.”

Purpose and Intent

OSHA 1910.213(p)(3) aims to protect operators from accidental contact with rotating sanding discs and from the health hazards associated with airborne dust generated during sanding.
The exhaust hood or guard serves as both a physical barrier to prevent injury and a ventilation system component to remove fine dust and debris from the operator’s breathing zone.
These safety measures reduce risks of lacerations, abrasions, entanglement, and respiratory illness.

Key Requirements

• Mandatory hood or guard: Each disc sanding machine must have an exhaust hood or, if not connected to an exhaust system, a fixed guard enclosing the disc.
• Extent of enclosure: The guard or hood must cover all areas of the revolving disc except the upper section above the worktable used for sanding.
• Material construction: Guards and hoods must be made from heavy-duty metal or equivalent materials capable of withstanding vibration and abrasion.
• Exposed area limitation: Only the minimal area required for material application should remain open to reduce operator exposure.
• Dust control: When an exhaust system is in place, the hood must effectively capture dust at its point of generation and prevent accumulation within the enclosure.

Common Hazards Controlled

• Blade and disc contact: Prevents accidental hand or finger contact with the high-speed abrasive surface.
• Entanglement: Guards eliminate access to the rotating disc and prevent clothing or hair from being caught.
• Dust inhalation: Exhaust systems capture fine sanding dust to protect operator respiratory health.
• Fire and explosion risks: Dust removal prevents combustible dust buildup in the work area.
• Flying debris: Enclosures contain abrasive fragments or loose stock pieces thrown by the disc.

Design and Construction Guidelines

• Design exhaust hoods to enclose at least 180° of the disc, leaving only the operational section accessible to the operator.
• Mount guards securely to the machine frame to prevent movement or vibration during use.
• Position the exhaust port near the point where dust is generated — typically at the rear or side of the disc.
• Ensure the hood or guard allows for easy removal or hinged access during maintenance under lockout/tagout conditions.
• Maintain smooth interior surfaces to improve airflow and prevent dust accumulation inside the enclosure.

Inspection and Maintenance Practices

• Inspect the hood or guard daily for cracks, looseness, or deformation.
• Check the exhaust duct connection to ensure airtight seals and proper airflow.
• Clean dust and debris buildup from inside guards and hoods regularly to maintain visibility and air movement.
• Verify that only the required area of the disc is exposed during each sanding operation.
• Document inspection results and corrective actions in the machine safety log.

Best Practices for Compliance

• Integrate high-efficiency dust extraction systems designed for fine wood particulate collection.
• Train operators to adjust guards and tables properly before beginning work.
• Use abrasion-resistant steel or aluminum hoods for heavy-duty applications.
• Equip machines with emergency stop buttons within arm’s reach of the operator.
• In multi-disc sanders, ensure each disc has an individual exhaust hood or equivalent guarding system.

Why OSHA 1910.213(p)(3) Is Important

OSHA 1910.213(p)(3) is essential for preventing the most common injuries associated with disc sanding machines—namely, contact with moving discs and inhalation of fine wood dust.
These machines operate at high rotational speeds, and even a brief loss of concentration can result in serious lacerations or amputations if guards are missing or poorly designed.
The exhaust hood also plays a vital role in controlling airborne particulates, improving both air quality and fire safety within woodworking environments.

Related Standards

• OSHA 1910.213(p)(2): Guarding requirements for drum sanding machines.
• OSHA 1910.94(b): Ventilation for abrasive and sanding operations.
• ANSI B11.8: Safety requirements for woodworking and finishing machinery.
• NFPA 664: Fire and explosion prevention in wood processing facilities.

FAQ

OSHA 1910.213(p)(4) — Guarding Requirements for Belt Sanding Machines

OSHA 29 CFR 1910.213(p)(4) establishes mandatory safety requirements for belt sanding machines, focusing on the guarding of nip points and unused belt runs.
Because sanding belts travel at high speeds and wrap tightly around pulleys, the in-running points where the belt meets the pulley create severe pinch and entanglement hazards.
This standard requires guards that physically block operator access to these danger zones and prevent accidental contact with moving belts.

Regulatory Text

“Belt sanding machines shall be provided with guards at each nip point where the sanding belt runs on to a pulley. These guards shall effectively prevent the hands or fingers of the operator from coming in contact with the nip points. The unused run of the sanding belt shall be guarded against accidental contact.”

Purpose and Intent

The intent of OSHA 1910.213(p)(4) is to eliminate the risk of operator injury from in-running nip points and accidental contact with exposed sanding belts.
These hazards can cause crushing, lacerations, and amputations if an operator’s hands or clothing are drawn into the moving belt.
By requiring fixed or adjustable guards at all pulley contact points and along the unused portion of the belt, the regulation ensures operators remain fully protected during sanding operations.

Key Requirements

• Nip point guards: Install guards wherever the sanding belt meets a pulley to prevent access to in-running pinch points.
• Full coverage: Guards must extend across the entire width of the belt and pulley system.
• Effective prevention: Guards must completely block operator hands or fingers from contacting moving belts or pulleys.
• Unused belt guarding: The portion of the sanding belt not in use must be enclosed to prevent accidental contact.
• Durable construction: Guards must be made of heavy-gauge metal or equivalent rigid material capable of withstanding vibration and impact.

Common Hazards Controlled

• In-running nip points: Prevents fingers or clothing from being pulled between the belt and pulley.
• Entanglement: Protects against hair, sleeves, or jewelry becoming caught in moving belts.
• Accidental contact: Encloses unused belt sections that could strike or abrade skin.
• Flying debris: Guards contain fragments if the sanding belt tears or fails under tension.

Guard Design and Construction Guidelines

• Use solid metal guards or equivalent rigid materials that resist bending or vibration.
• Ensure guards are securely anchored to the machine frame and cover all accessible sides of the pulley nip point.
• For adjustable sanding arms, guards should move with the arm to maintain consistent coverage.
• Install transparent polycarbonate panels (where visibility is required) that meet impact resistance standards.
• Enclose the entire unused run of the belt on both the return and upper sections using covers or tunnels.

Inspection and Maintenance Practices

• Inspect guards daily to confirm they are properly mounted and undamaged.
• Verify that belt tracking and tensioning mechanisms are functioning without requiring guard removal.
• Clean dust and debris from inside guard housings to prevent buildup that may obstruct operation.
• After any belt change or pulley adjustment, ensure all guards are re-secured before restarting the machine.
• Include guard inspection as part of the lockout/tagout maintenance checklist.

Best Practices for Compliance

• Use interlocked guards that disable power when opened for maintenance or adjustment.
• Train operators to recognize nip point hazards and never bypass or remove guards during use.
• Mark the safe operating zones around the belt sander with visible floor tape or signage.
• Maintain a minimum 1/2-inch clearance between guards and moving parts to prevent interference while still blocking hand access.
• Provide additional protection for portable or horizontal belt sanders with fixed covers over the unused belt section.

Why OSHA 1910.213(p)(4) Is Important

OSHA 1910.213(p)(4) addresses one of the most frequent and severe hazards in woodworking operations: contact with moving sanding belts.
The in-running nip points on belt sanders can trap hands in an instant, causing serious injury.
By requiring durable guards at every pulley and enclosing unused belt runs, the standard ensures that operators are fully shielded from contact hazards while maintaining efficient, uninterrupted operation.

Related Standards

• OSHA 1910.213(a)(9): Guarding of belts, pulleys, gears, and shafts.
• OSHA 1910.219: Mechanical power-transmission apparatus requirements.
• ANSI B11.8: Safety requirements for sanding and finishing machinery.
• NFPA 664: Prevention of fires and explosions in wood processing operations.

FAQ

OSHA 1910.215 — Abrasive Wheel Machinery: Guarding and Safety Requirements

OSHA 29 CFR 1910.215 establishes critical safety standards for abrasive wheel machinery—equipment such as bench grinders, pedestal grinders, surface grinders, and cutoff wheels.
This section is designed to protect operators from hazards associated with wheel breakage, contact injuries, and flying fragments by requiring appropriate wheel guards, tool rest spacing, ring testing, and maintenance practices.
Abrasive wheel machinery operates at extremely high speeds, and failure to meet these safety requirements can result in catastrophic injuries or fatalities.

Purpose and Intent

The intent of OSHA 1910.215 is to ensure that all abrasive wheel machines are equipped with properly designed guards and safety devices to contain fragments if a wheel breaks and to minimize the risk of operator contact with rotating parts.
This regulation also standardizes wheel mounting procedures, speed limits, and inspection routines to ensure that each wheel operates within its rated capabilities.

Key Requirements

• Wheel guards: All abrasive wheels must be enclosed by guards that cover the spindle end, nut, and flange projections to protect against wheel fragments.
• Tool rests: Tool rests must be adjusted closely to the wheel (no more than 1/8 inch away) to prevent workpieces from being pulled between the wheel and the rest.
• Work rests: Must be secure, adjustable, and maintained in good condition to support material during grinding.
• Flanges: Each wheel must be properly mounted with flanges of equal diameter and strength to distribute clamping force evenly.
• Ring testing: All vitrified wheels must undergo a “ring test” before mounting to detect cracks or defects.
• Speed control: Machines must not operate at speeds exceeding the maximum safe operating speed (MSOS) marked on the wheel.
• Guard openings: The guard’s exposure angle must not exceed limits based on wheel type and mounting (bench, floor stand, cylindrical, etc.).

Types of Abrasive Wheel Machinery Covered

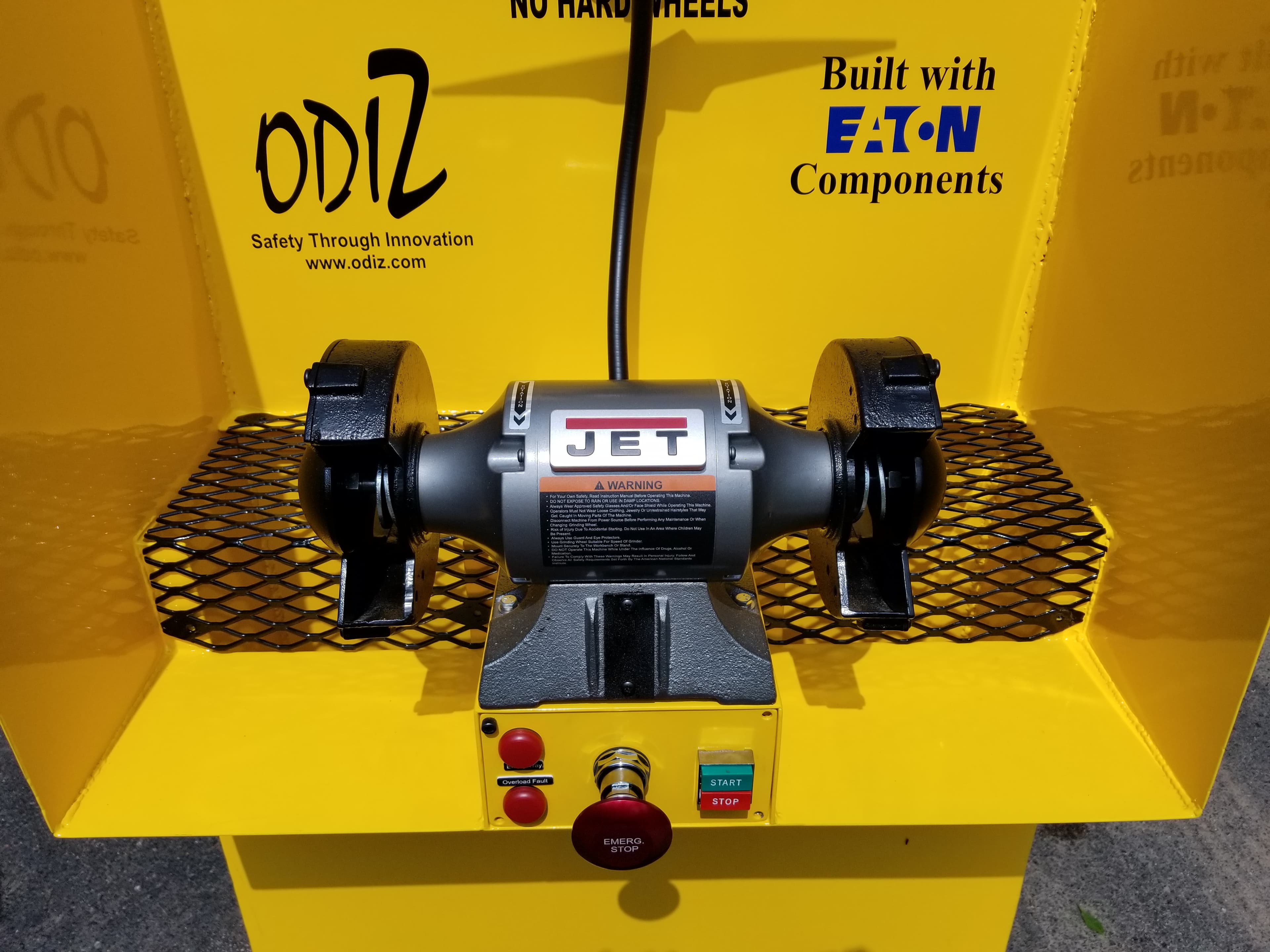

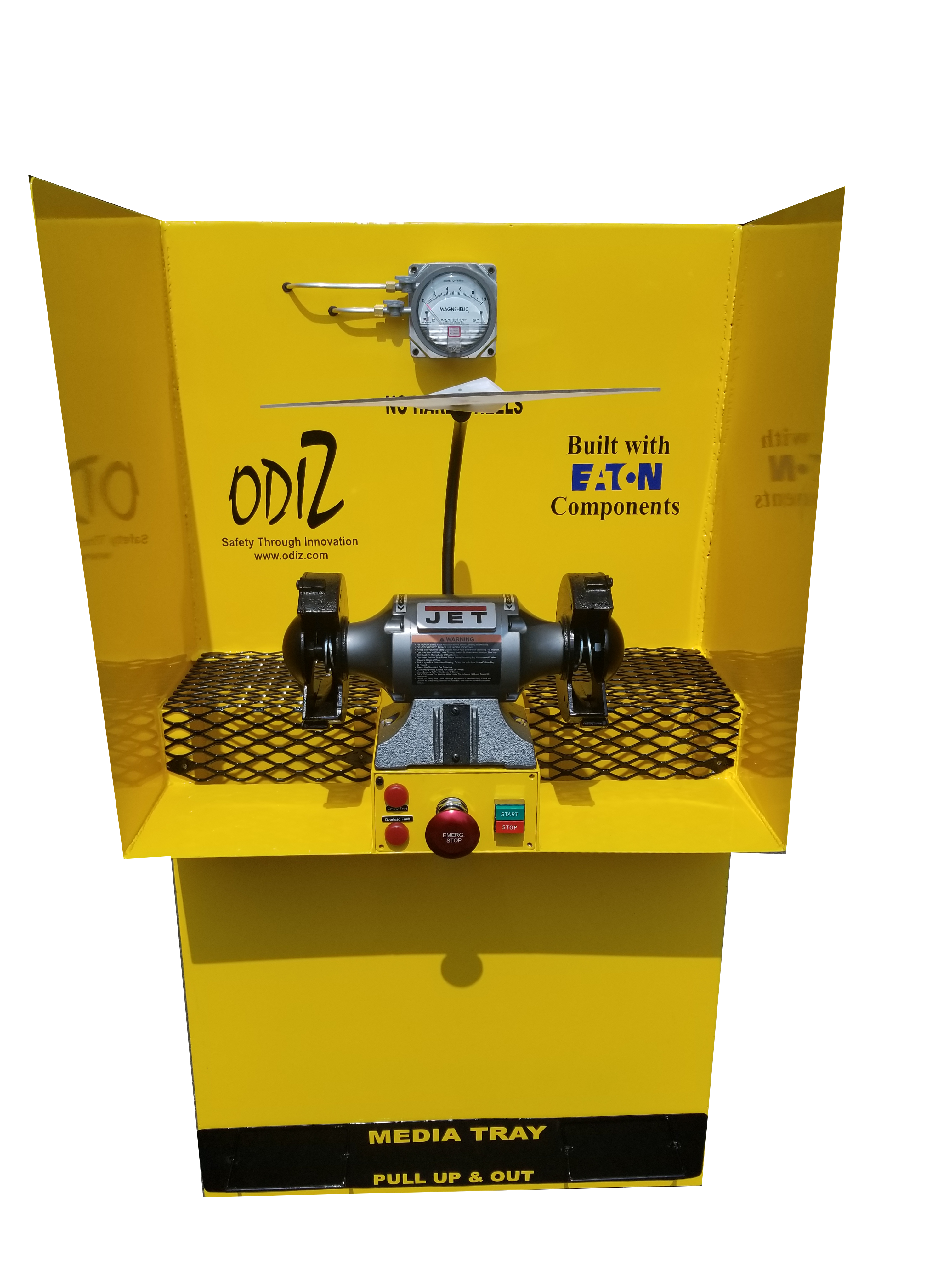

• Bench and pedestal grinders: Must have upper wheel guards enclosing at least 75% of the wheel periphery.
• Surface grinders: Require guarding of the periphery and sides not used for grinding.
• Cylindrical and centerless grinders: Must have fixed and adjustable guards enclosing the wheel and regulating rollers.
• Portable grinders: Require wheel guards covering at least 180° of the wheel.
• Cutoff machines: Must include a fixed hood-type guard covering the wheel and spindle.

Common Hazards Controlled

• Wheel explosion: Containment of high-speed fragments from cracked or overspeed wheels.
• Contact injuries: Prevents accidental hand or body contact with rotating abrasive surfaces.
• Kickback: Reduces rebound of material due to poor work rest positioning or improper guarding.
• Flying debris: Contains sparks, dust, and fragments during grinding operations.
• Vibration and imbalance: Ensures safe wheel mounting and alignment to prevent shaft or bearing damage.

Guarding and Spacing Requirements

• Tool rests must be within 1/8 inch of the wheel surface.
• Adjustable tongue guards (spark deflectors) must be set no more than 1/4 inch from the wheel periphery.
• Bench and floor grinders must have wheel exposure limited to 90° or less of the periphery.
• All guards must be constructed of steel or equivalent material to contain wheel fragments at maximum operating speed.

Wheel Mounting and Inspection Procedures

• Perform a ring test on vitrified wheels before mounting to detect internal cracks.
• Ensure wheel flanges are of equal diameter, flat, and free from burrs or distortion.
• Use blotters (compressible paper washers) between the wheel and flange where specified by the manufacturer.
• Never force a wheel onto a spindle or use excessive pressure during mounting.
• Run the wheel at operating speed in a protected area for at least one minute before use to confirm stability.

Maintenance and Operation

• Inspect wheels and guards before each shift for cracks, wear, and secure attachment.
• Maintain speed governors and motor controls to prevent overspeeding.
• Clean guards and housings regularly to prevent buildup of grinding dust.
• Replace worn or damaged guards immediately—do not weld or patch wheel guards.
• Ensure work rests are properly adjusted after each wheel dressing or replacement.

Best Practices for Compliance

• Install clear signage showing wheel speed limits and mounting instructions near each machine.
• Train operators in safe grinding practices, including ring testing, guard adjustment, and PPE use.
• Provide eye and face protection such as safety glasses and face shields for all operators.
• Incorporate lockout/tagout procedures for wheel changes and maintenance (per OSHA 1910.147).
• Use ANSI B7.1-compliant abrasive wheels that meet manufacturing and performance standards.

Why OSHA 1910.215 Is Important

OSHA 1910.215 is one of the most critical standards in machine guarding because it addresses the hazards of high-speed rotating abrasive wheels.
Improperly guarded or mounted wheels can explode with tremendous force, causing severe lacerations, blindness, or death.
By enforcing uniform requirements for guards, tool rests, and inspection procedures, this regulation ensures that abrasive wheel machinery operates safely within its design limits, protecting both operators and nearby workers.

Related Standards

• OSHA 1910.212: General requirements for all machine guarding.
• ANSI B7.1: Safety requirements for the use, care, and protection of abrasive wheels.
• OSHA 1910.243(c): Portable powered tool safety standards.
• OSHA 1910.219: Mechanical power-transmission apparatus standards.

FAQ

OSHA 1910.215(a) — General Requirements for Abrasive Wheel Machinery

Paragraph (a) sets the baseline rules for using abrasive wheels: machines must have safety guards,
guards must be designed and fastened correctly, proper work rests are required on offhand grinders,
and some items are excluded from this section. Use this as the top-level guidance before drilling into
the subsection-specific requirements.

(a)(1) Machine guarding — When guards are required (and the limited exceptions)

Abrasive wheels may be used only on machines equipped with safety guards. Limited exceptions apply for:

• Internal work while the wheel is within the workpiece.
• Mounted wheels ≤ 2 in. diameter used in portable operations.
• Types 16, 17, 18, 18R, and 19 (cones, plugs, threaded-hole “pot balls”) when the work itself provides protection.

(a)(2) Guard design — What the guard must cover and how it’s secured

The guard must cover the spindle end, nut, and flange projections, stay aligned with the wheel, and be
secured so that the fastenings are stronger than the guard itself. Two narrow exceptions allow exposure of
the spindle end, nut, and outer flange where the work provides protection, and for portable saws.

(a)(3) Flanges — Cross-reference

Grinding machines must be equipped with flanges per §1910.215(c) (minimum diameters, types/exceptions, and mounting rules).
See your site’s child category for 1910.215(c) for the detailed tables and figures.

(a)(4) Work rests — Required on offhand grinders

• Use a rigid, adjustable rest to support the work.
• Keep the opening to the wheel at ≤ 1/8 in (3.2 mm) to prevent jamming and wheel breakage.
• Clamp after each adjustment; never adjust with the wheel in motion.

(a)(5) Excluded items

Natural sandstone wheels and metal/wooden/cloth/paper discs with abrasive layered on the surface are excluded from §1910.215.

Practical inspection cues (use for audits & training)

• Verify a guard is present unless one of the (a)(1) exceptions applies; document the exception if used.
• Confirm guard coverage encloses spindle end, nut, and flange projections and remains aligned during operation.
• Check that fasteners exceed guard strength (no loose, mismatched, or under-sized hardware).
• On bench/pedestal grinders, measure and record work-rest clearance ≤ 1/8″; re-adjust for wheel wear.
• Cross-check machine/wheel type against exclusions before applying §1910.215 requirements.

Link this category to:

• Your grinder guards, tongue guards, eye shields, and gap-gauge product pages.
• Child categories for 1910.215(b) (guarding specifics), 1910.215(c) (flanges), and 1910.215(d) (mounting/operation).
• Related categories: 1910.212 (general machine guarding), 1910 Subpart I (PPE).

FAQ

OSHA 1910.215(a)(1) — Machine Guarding Requirements for Abrasive Wheel Machinery

OSHA 29 CFR 1910.215(a)(1) establishes the fundamental rule for machine guarding on abrasive wheel machinery.
It requires that abrasive wheels be operated only on machines equipped with safety guards designed to contain wheel fragments and protect operators from contact, sparks, and debris.
These guards are mandatory unless the wheel type falls under a specific exemption defined elsewhere in the standard.

Regulatory Text

“Machine guarding. Abrasive wheels shall be used only on machines provided with safety guards as defined in the following paragraphs of this section, except:”

Purpose and Intent

The purpose of OSHA 1910.215(a)(1) is to ensure that all abrasive wheel machines are operated with guards capable of protecting workers from the violent failure of grinding wheels.
Abrasive wheels rotate at extremely high speeds—often exceeding 6,000 RPM—and a wheel failure can eject fragments at speeds approaching that of a bullet.
Proper machine guarding prevents these fragments from striking operators and reduces the risk of lacerations, amputations, and fatal injuries.

Key Requirements

• Mandatory guards: All abrasive wheels must be used only on machines that have safety guards conforming to 1910.215 design specifications.
• Guard design: Guards must fully enclose the wheel periphery and sides, except for the necessary exposure required for the work process.
• Exceptions: Certain wheel types—such as mounted wheels (two inches or smaller in diameter) and internal wheels used within workpieces—are exempt from the full guard requirement.
• Containment strength: Guards must be strong enough to withstand the force of wheel fragments if the wheel bursts at maximum operating speed.
• Secure installation: Guards must be rigidly mounted to the machine frame and positioned so that they do not interfere with work operations.

Common Hazards Controlled

• Wheel explosion: Guards contain high-velocity fragments from cracked or defective wheels.
• Operator contact: Prevents accidental hand or finger contact with the abrasive surface.
• Flying debris and sparks: Reduces risk of eye and face injuries caused by airborne particles.
• Kickback: Limits rebound of workpieces or fragments during grinding operations.

Guard Construction Guidelines

• Guards should be made of steel or equivalent material capable of containing wheel fragments under centrifugal force.
• Exposure openings must not exceed 90° for bench or floor grinders and 125° for cylindrical grinders, unless otherwise specified.
• Guards must include adjustable tongue deflectors set close to the wheel surface to deflect sparks and debris.
• Portable grinders must have guards enclosing at least 180° of the wheel periphery.
• Guards must be securely fastened to prevent shifting during vibration or wheel replacement.

Inspection and Maintenance Practices

• Verify that all abrasive wheels are properly guarded before operation.
• Check guard fasteners and mounting brackets regularly for tightness and damage.
• Inspect guards for cracks, corrosion, or metal fatigue caused by continuous vibration.
• Ensure that guard openings conform to OSHA’s exposure limits for the specific grinder type.
• Document inspection results as part of the facility’s machine safety program.

Best Practices for Compliance

• Use only guards provided or approved by the machine manufacturer to ensure proper fit and protection.
• Train all operators on guarding requirements and safe grinding techniques.
• Implement lockout/tagout procedures (per OSHA 1910.147) before adjusting or replacing guards.
• Ensure guards are replaced immediately after wheel dressing or maintenance activities.
• Post visible signage reminding workers to check wheel guards before operation.

Why OSHA 1910.215(a)(1) Is Important

OSHA 1910.215(a)(1) forms the cornerstone of abrasive wheel safety by requiring that no unguarded grinding wheels are ever used.
Wheel explosions, contact injuries, and flying debris incidents are among the most severe hazards in metalworking and manufacturing environments.
Proper machine guarding—using strong, securely mounted guards—provides essential protection for operators, dramatically reducing the likelihood of catastrophic injuries.

Related Standards

• OSHA 1910.212: General requirements for all machine guarding.
• OSHA 1910.215(b): Specific design and exposure requirements for abrasive wheel guards.
• ANSI B7.1: Safety code for the use, care, and protection of abrasive wheels.
• OSHA 1910.243(c): Portable powered tool safety requirements.

FAQ

OSHA 1910.215(a)(1)(i) — Exception: Internal Wheels Used Within the Workpiece

OSHA 29 CFR 1910.215(a)(1)(i) identifies a specific exception to the general machine guarding requirement for abrasive wheels.
This exception applies to wheels used for internal grinding—operations in which the abrasive wheel functions inside the workpiece itself, such as in precision bore or cavity finishing.
Because the workpiece naturally encloses the rotating wheel during operation, an external guard would serve no practical purpose and could interfere with the process.

Regulatory Text

“Wheels used for internal work while within the work being ground;”

Purpose and Intent

The intent of OSHA 1910.215(a)(1)(i) is to recognize that in internal grinding applications, the workpiece itself acts as a functional guard.
Internal grinding wheels are often small, high-speed tools that operate inside a confined bore or cavity, where additional external guarding is neither practical nor effective.
This exemption ensures flexibility for precision machining operations while maintaining overall worker safety.

Key Points

• Applicable operations: Applies only to internal grinding wheels used inside the workpiece being ground.
• Guard exemption: A standard external wheel guard is not required while the wheel is operating within the workpiece.
• Machine design: The grinding machine must still include appropriate housings, shields, or covers for the spindle and drive components.
• Operator protection: Additional enclosures or barriers may be needed when the wheel is retracted from the workpiece or during setup.
• Wheel integrity: All internal wheels must meet the same manufacturing and mounting requirements as standard abrasive wheels, including rated speed compliance.

Common Applications

• Internal cylindrical grinders: Used to finish the inside diameter of hollow components such as bushings, bearings, and sleeves.
• Bore polishing machines: Precision tools for fine finishing in aerospace or automotive components.
• Die and mold finishing: Used in shaping cavities and internal geometries.

Safety Considerations

• Ensure the wheel is entirely within the workpiece before rotation begins.
• Maintain proper machine enclosures to protect against debris when retracting the wheel.
• Inspect internal wheels for cracks and perform a ring test where applicable before mounting.
• Use a spindle guard or housing to cover drive components outside the workpiece.
• Provide eye and face protection for all operators, even with the exemption in place.

Hazards Controlled

• Wheel breakage containment: The workpiece acts as a barrier during internal grinding operations.
• Debris projection: Enclosures and housings protect operators from small fragments and dust when retracting tools.
• Contact injury prevention: The confined geometry of internal grinding eliminates direct operator exposure to the abrasive surface.

Best Practices for Compliance

• Confirm that this exemption applies only when the wheel is operating entirely within the workpiece cavity.
• Use machine-mounted shields or sliding covers when setting up or removing parts.
• Train operators on safe mounting, alignment, and dressing procedures for internal wheels.
• Monitor spindle speed to ensure it does not exceed the wheel’s maximum safe operating speed (MSOS).
• Follow ANSI B7.1 for wheel selection, speed control, and safety labeling of internal grinding tools.

Why OSHA 1910.215(a)(1)(i) Is Important

OSHA 1910.215(a)(1)(i) provides a practical and necessary exception for internal grinding operations, balancing safety with functional design.
Because the wheel operates within the workpiece cavity, conventional guards cannot be applied without obstructing the process.
The rule ensures that manufacturers can perform precision internal grinding safely while maintaining compliance through proper inspection, setup, and operator protection measures.

Related Standards

• OSHA 1910.215(a)(1): General machine guarding requirements for abrasive wheel machinery.
• ANSI B7.1: Safety code for the use, care, and protection of abrasive wheels.
• OSHA 1910.212: General machine guarding standards for all rotating machinery.

FAQ

OSHA 1910.215(a)(1)(ii) — Exception: Mounted Wheels Used in Portable Operations (2 Inches and Smaller)

OSHA 29 CFR 1910.215(a)(1)(ii) identifies an important exception within the abrasive wheel machinery guarding standard.
It applies to mounted wheels used in portable grinding, polishing, or finishing operations that are 2 inches or smaller in diameter.
Due to their compact size, low mass, and unique design, these small wheels present significantly less risk of fragmentation or operator injury compared to larger abrasive wheels.
As such, OSHA does not require them to be equipped with conventional machine guards.

Regulatory Text

“Mounted wheels, used in portable operations, 2 inches and smaller in diameter; and”

Purpose and Intent

The intent of OSHA 1910.215(a)(1)(ii) is to acknowledge that miniature mounted wheels—commonly used in hand-held or portable tools such as die grinders, Dremel-type tools, and precision polishers—operate under different mechanical conditions than full-size abrasive wheels.
The small diameter and lightweight design minimize centrifugal force and fragment energy in the rare event of wheel failure, making a full wheel guard unnecessary and impractical for these operations.

Key Points

• Wheel size limit: Applies only to abrasive wheels 2 inches or smaller in diameter.
• Mounted wheel definition: A wheel bonded or pressed onto a mandrel, spindle, or shaft designed for handheld or portable grinding tools.
• Portable operation requirement: The exemption applies exclusively to portable tools—not stationary machines or bench-mounted grinders.
• Guard exemption: These small wheels are exempt from the full guarding requirement of OSHA 1910.215 but must still be used safely in accordance with manufacturer recommendations.
• Operator protection: Eye and face protection remain mandatory under OSHA 1910.133.

Common Applications

• Die grinding: Removing burrs, flash, or weld seams in confined areas.
• Tool and die work: Precision finishing and polishing of molds or cavities.
• Deburring and chamfering: Cleaning edges or surfaces on small metal components.
• Portable maintenance grinding: Light-duty cleaning, smoothing, or finishing work in field applications.

Safety Considerations

• Even though guards are not required, operators must wear ANSI Z87.1–compliant eye protection and face shields.
• Inspect mounted wheels for cracks, looseness, or mandrel defects before each use.
• Verify the tool’s rotational speed (RPM) does not exceed the wheel’s maximum safe operating speed (MSOS).
• Maintain a firm grip on portable tools and ensure stable positioning during use.
• Store mounted wheels properly to prevent chipping, contamination, or bond degradation.

Hazards Controlled

• Fragmentation injuries: Reduced by small wheel size and low mass.
• Contact hazards: Controlled through careful handling and safe operating techniques.
• Flying particles: Mitigated by proper PPE and secure work positioning.
• Kickback and loss of control: Minimized through proper tool maintenance and operator training.

Best Practices for Compliance

• Use only mounted wheels labeled and rated for the specific tool and speed.
• Ensure mandrels and collets are free from wear and securely hold the wheel in place.
• Train operators to avoid side-loading or excessive pressure that could fracture small wheels.
• Keep work areas clear of flammable materials to avoid ignition from grinding sparks.
• Replace mounted wheels at the first sign of cracking, imbalance, or vibration.

Why OSHA 1910.215(a)(1)(ii) Is Important

OSHA 1910.215(a)(1)(ii) balances operator safety and tool functionality by recognizing that small mounted wheels used in portable tools present a lower risk than larger abrasive wheels.
While traditional guards are impractical for such miniature wheels, OSHA still emphasizes inspection, speed control, and PPE use as essential safety measures.
This exception ensures flexibility for maintenance, finishing, and precision work while maintaining overall compliance with abrasive wheel safety principles.

Related Standards

• OSHA 1910.215(a)(1): General machine guarding requirement for abrasive wheels.
• OSHA 1910.215(a)(1)(i): Exception for internal grinding wheels within workpieces.
• OSHA 1910.243(c): Portable powered tool safety requirements.
• ANSI B7.1: Safety code for the use, care, and protection of abrasive wheels.

FAQ

OSHA 1910.215(a)(1)(iii) — Exception: Cones, Plugs, and Threaded Hole Pot Balls Where the Work Offers Protection

OSHA 29 CFR 1910.215(a)(1)(iii) establishes an exception to the standard machine guarding requirement for certain small abrasive wheel types—specifically Types 16, 17, 18, 18R, and 19 cones, plugs, and threaded hole pot balls—used in operations where the workpiece itself provides effective protection.
These wheel types are typically small, compact shapes designed for internal or recessed grinding, finishing, and smoothing surfaces in tight or confined areas.

Regulatory Text

“Types 16, 17, 18, 18R, and 19 cones, plugs, and threaded hole pot balls where the work offers protection.”

Purpose and Intent

The intent of OSHA 1910.215(a)(1)(iii) is to acknowledge that certain abrasive wheel shapes and applications naturally provide protection through the workpiece’s geometry.
When these specialized wheels are used within recesses, cavities, or internal spaces, the surrounding material acts as a natural guard, effectively containing the wheel and preventing operator contact or fragment ejection.

Applicable Wheel Types

• Type 16: Straight-sided cones used for heavy-duty snagging and rough grinding in confined areas.
• Type 17: Tapered cones designed for grinding fillets, corners, and curved surfaces.
• Type 18 and 18R: Plug wheels with a round or oval face, often used for smoothing foundry castings or deburring holes.
• Type 19: Threaded hole pot balls with a spherical or cup-like shape used for inside radius or concave surface grinding.

Conditions for the Exception

• The wheel must be one of the specified types (16, 17, 18, 18R, or 19).
• The operation must occur within or against a workpiece that surrounds the wheel sufficiently to act as a barrier.
• The workpiece must fully or partially enclose the wheel, preventing the operator from direct contact.
• If the workpiece does not offer full protection, a supplementary guard or shield must still be used.
• The wheel must be properly mounted on a threaded mandrel or arbor and secured per manufacturer instructions.

Common Applications

• Foundry finishing: Removing risers, burrs, and rough edges from castings.
• Weld dressing: Smoothing and blending weld beads in confined areas.
• Maintenance grinding: Cleaning and polishing internal surfaces of equipment housings or pipes.
• Die and mold repair: Finishing cavities or internal contours.

Safety Considerations

• Ensure the workpiece provides complete coverage of the wheel during operation.
• Use tools that are rated for the wheel’s maximum safe operating speed (MSOS).
• Inspect each wheel for cracks, looseness, or improper thread engagement before use.
• Wear appropriate eye and face protection (OSHA 1910.133) and hand protection to guard against debris.
• Maintain a firm grip and control of the tool to prevent kickback or misalignment in tight areas.

Hazards Controlled

• Fragment ejection: The workpiece confines debris and fragments if the wheel fails.
• Contact injury: The geometry of the task and the workpiece acts as a barrier against operator contact.
• Overexposure to rotating parts: Only a minimal portion of the wheel is exposed during use.
• Loss of control: Reduced risk due to the small size and low mass of these wheel types.

Best Practices for Compliance

• Verify that the workpiece truly provides protection before applying this exemption.
• Use tools equipped with side handles or vibration-dampening grips for better control.
• Follow ANSI B7.1 guidelines for cone and plug wheel installation and use.
• Train operators to recognize when an additional guard or shield is required.
• Inspect the threaded hole and mandrel for wear or cross-threading before installation.

Why OSHA 1910.215(a)(1)(iii) Is Important

OSHA 1910.215(a)(1)(iii) allows flexibility for operations using specialty cone, plug, and pot ball wheels by recognizing situations where traditional guards are redundant.
These wheel types are designed for use in recessed areas where the workpiece inherently restricts exposure to moving parts.
However, the exemption places responsibility on the employer to ensure that the work truly offers protection and that operators maintain proper PPE, inspection, and mounting practices.

Related Standards

• OSHA 1910.215(a)(1): General machine guarding requirements for abrasive wheels.
• OSHA 1910.215(b): Detailed guard design and exposure limitations.
• ANSI B7.1: Safety code for the use, care, and protection of abrasive wheels (includes specifications for cone and plug types).
• OSHA 1910.243(c): Portable powered tool safety requirements.

FAQ

OSHA 1910.215(a)(2) — Guard Design Requirements for Abrasive Wheel Machinery

OSHA 29 CFR 1910.215(a)(2) establishes the engineering and construction requirements for abrasive wheel machine guards.
These guards serve as the primary line of defense against the dangers of wheel breakage and high-speed fragment ejection.
The regulation specifies that guards must fully enclose the spindle end, nut, and flange projections—areas that are often exposed to operators during grinding—and that they must be securely mounted and properly aligned with the wheel to maintain consistent protection throughout operation.

Regulatory Text

“Guard design. The safety guard shall cover the spindle end, nut, and flange projections. The safety guard shall be mounted so as to maintain proper alignment with the wheel, and the strength of the fastenings shall exceed the strength of the guard, except:”

Purpose and Intent

The purpose of OSHA 1910.215(a)(2) is to ensure that abrasive wheel guards are designed and attached in a way that maximizes operator safety and prevents catastrophic failure in the event of wheel breakage.
Because abrasive wheels rotate at high speeds—often exceeding 6,000 RPM—the guard must be strong enough to contain fragments and resist vibration while remaining securely aligned with the wheel’s rotational plane.

Key Requirements

• Comprehensive coverage: Guards must enclose the spindle end, nut, and flange projections to prevent exposure to rotating components.
• Alignment: The guard must maintain constant alignment with the wheel during all phases of operation, even under vibration or load.
• Fastening strength: The bolts, screws, or clamps securing the guard must have greater strength than the guard itself to prevent detachment during wheel failure.
• Durability: Guards must be constructed from metal or equivalent high-strength material capable of withstanding the impact of fragments.
• Exceptions: Limited exceptions apply for specific wheel types where guarding would interfere with safe operation (detailed in subsections that follow).

Guard Construction Guidelines

• Use heavy-gauge steel, ductile iron, or approved composite materials designed to contain high-energy wheel fragments.
• Ensure guard seams and joints are reinforced or welded to prevent rupture under impact stress.
• Design guards to enclose at least 75% of the wheel periphery for bench and floor grinders, or 180° for portable grinders.
• Use fasteners rated above the guard’s tensile strength, such as high-grade steel bolts or locking clamps.
• Provide access panels or removable sections for wheel replacement that cannot loosen during operation.

Hazards Controlled

• Fragment ejection: Guards contain high-speed fragments from wheel breakage.
• Contact with rotating parts: Prevents hands, clothing, or tools from contacting the spindle, flanges, or nuts.
• Kickback or rebound: Reduces injury risk from material deflection during grinding.
• Structural failure: Ensures guards remain intact and properly secured even under impact or vibration.

Inspection and Maintenance Practices

• Inspect guards daily for cracks, distortion, or loosened fasteners.
• Verify that guards remain in alignment with the wheel after wheel changes or dressing operations.
• Replace or repair guards that show signs of corrosion, fatigue, or deformation.
• Ensure all guard fasteners are torqued to manufacturer specifications and use lock nuts or thread-locking compounds to prevent vibration loosening.
• Perform documented inspections per facility machine guarding safety programs.

Best Practices for Compliance

• Use guards supplied or certified by the original equipment manufacturer (OEM).
• Train operators to check guard alignment before every grinding operation.
• Install anti-vibration mounts to reduce stress on guard fastenings.
• Follow ANSI B7.1 design recommendations for guard materials, thickness, and containment standards.
• Document all modifications or guard replacements for traceability and compliance.

Why OSHA 1910.215(a)(2) Is Important

OSHA 1910.215(a)(2) provides the foundation for how abrasive wheel guards must be constructed and secured.
Proper guard design prevents the most severe outcomes of wheel failure—high-velocity fragment ejection and contact injuries.
The requirement that fastenings exceed the strength of the guard ensures that the guard itself remains attached during a failure event, providing full containment and protecting the operator from fatal injuries.
In short, this subsection transforms guarding from a passive shield into a robust, structural safety barrier.

Related Standards

• OSHA 1910.215(a)(1): General machine guarding requirements for abrasive wheels.
• OSHA 1910.215(b): Specific exposure and design limits for guards on different wheel types.
• ANSI B7.1: Safety code for the use, care, and protection of abrasive wheels (guarding design specifications).
• OSHA 1910.212: General machine guarding requirements for rotating equipment.

FAQ

B11.9 — Safety Requirements for Grinding Machines

The B11.9 standard (ANSI B11.9-2010 (R2020)) applies to all stationary grinding machines used in industrial or commercial applications that utilize abrasive products to change the shape, size or surface finish of any material (including glass, ceramics, plastics, rubber). :contentReference[oaicite:0]{index=0}
It excludes portable hand-held grinding machines, machines using loose abrasives, woodworking applications, concrete cutting operations, honing, lapping or polishing machines, and belt grinding machines. :contentReference[oaicite:1]{index=1}

Scope & Application

This standard covers stationary grinding machines—those that are fixed in position during operation and use abrasive products. :contentReference[oaicite:2]{index=2}
It encompasses peripheral, cylindrical, surface, tool-grinding, cutoff and similar machines where abrasive wheels or segments perform material removal by abrasive action.

Key Safety Topics Addressed

• Abrasive product guarding and work-zone enclosures: The standard sets requirements for guards around abrasive wheels and enclosures around work zones to prevent ejection of fragments. :contentReference[oaicite:3]{index=3}
• Design and construction of grinding machines: Ensures machines are built with structural integrity, appropriate guarding, safe access for maintenance, and safe arrangement of feed, coolant, and exhaust systems.
• Control functions and operator access: Addresses machine start-up/shutdown, safe modes, automatic cycles, operator access during loading/unloading, and ensuring motions stop when guards are opened or safety devices activated.
• Material removal, wheel mounting and speed considerations: Emphasizes that machines must be used only with wheels rated for the speed, must be mounted correctly and operated in safe conditions to avoid wheel failure or ejection. :contentReference[oaicite:4]{index=4}
• Lifecycle responsibilities: Assigns roles for machine builders/suppliers, integrators/modifiers and users across design, installation, commissioning, operation, maintenance, modification and decommissioning phases of grinding machines. :contentReference[oaicite:5]{index=5}
• Risk assessment and combination with other standards: The standard refers to general risk-assessment requirements (such as those in B11.0) and performance criteria for safeguarding (such as B11.19). :contentReference[oaicite:6]{index=6}

Why It Matters

Grinding machines operate at high speeds, often with abrasive wheels that can fail catastrophically, producing high-velocity fragments and ejected material. There are also hazards from rotating parts, coolant, dust, vibration, operator access to moving parts, setup/maintenance exposure and unexpected motion.
By applying the framework of B11.9, manufacturers, users and safety professionals can adopt recognized engineering practices for protecting personnel, maintaining safe machine conditions, and fulfilling an obligation to apply good engineering practice in machine safety programs.

Practical Implementation Tips

• Ensure that every abrasive wheel is correctly rated for speed, mounted properly, and that guards fully cover wheel mounting flanges and expose minimal openings required for the operation.
• Perform a detailed risk assessment considering loading/unloading, tool setup, wheel dressing/truing, automatic vs manual cycles, coolant spray, dust generation, ejection zones and maintenance access.
• Inspect and verify guards or enclosures around the grinding wheel, work-zone containment for chip/projectile ejection, and ensure interlocks or presence-sensing devices prevent operator exposure during motion.
• Train operators and maintenance personnel on hazards unique to grinding: wheel failure, kick-back, flashpoint of coolant/oils, dust inhalation, reaching into guarded zones, and safe changeover procedures.
• When machines are rebuilt, modified or retrofitted (for example new automation or loading/unloading device added), treat them as new from a safety standpoint: re-validate safeguards, perform fresh risk assessment, update documentation and ensure compliance with B11.9 requirements.
