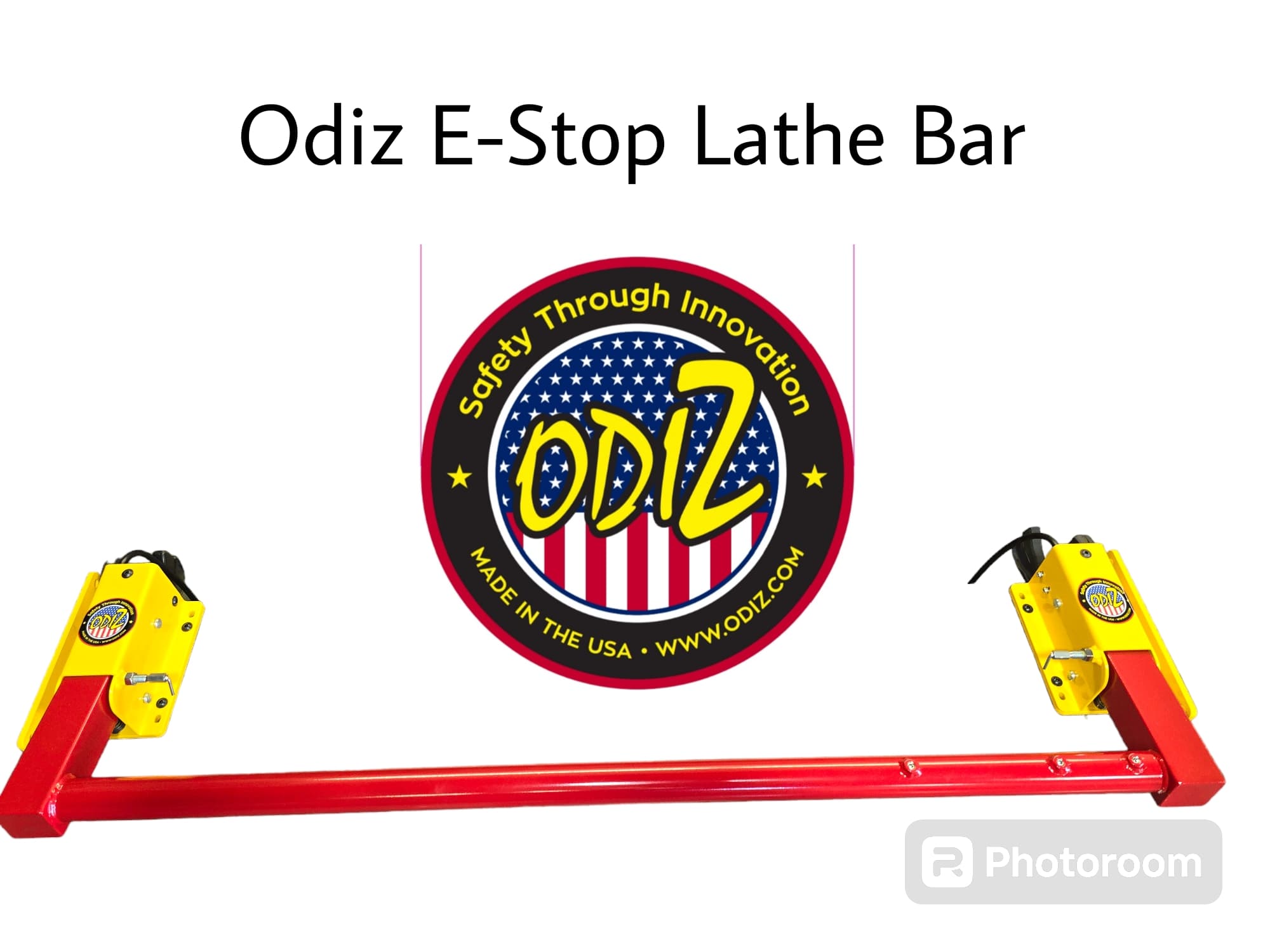

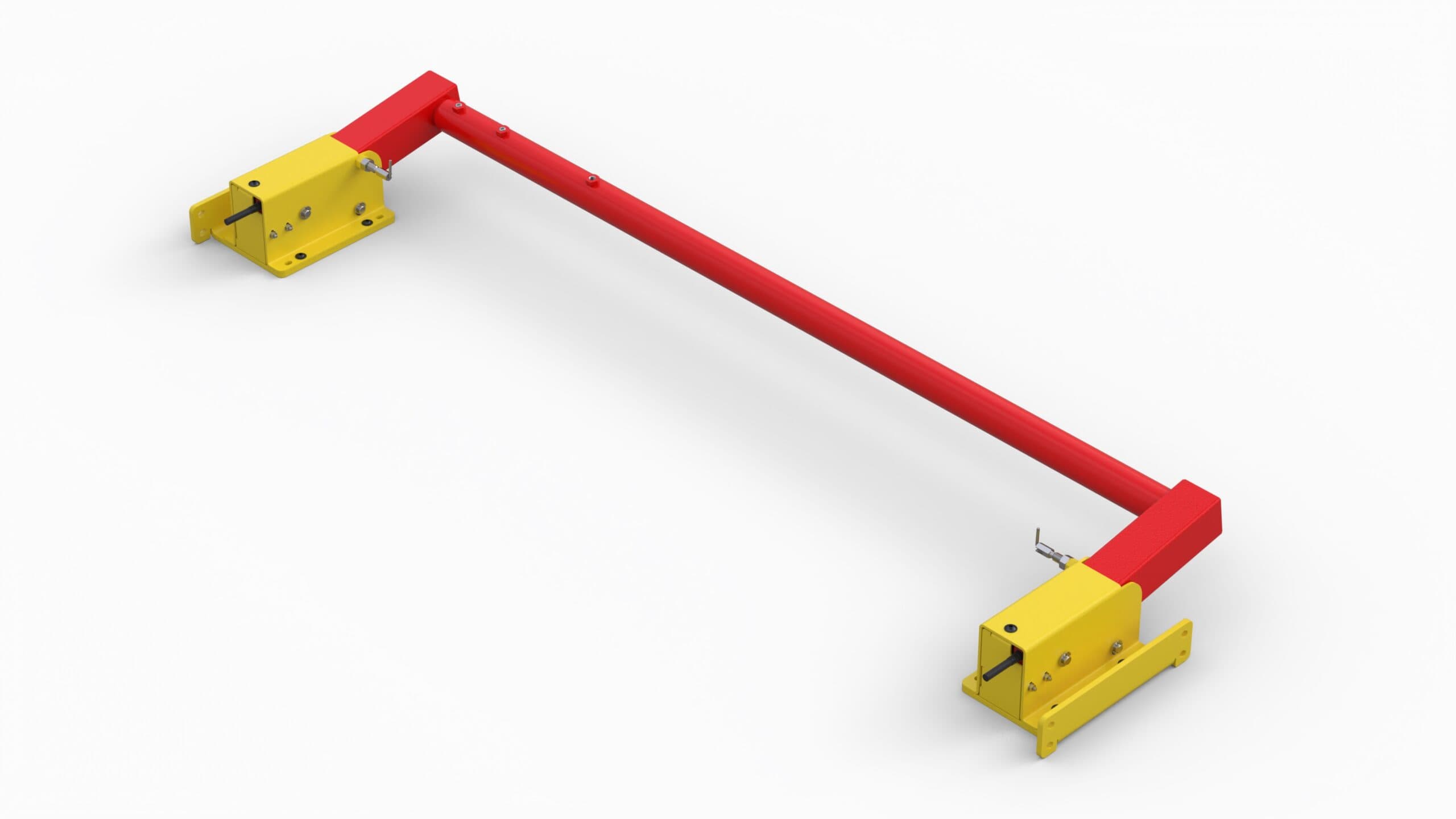

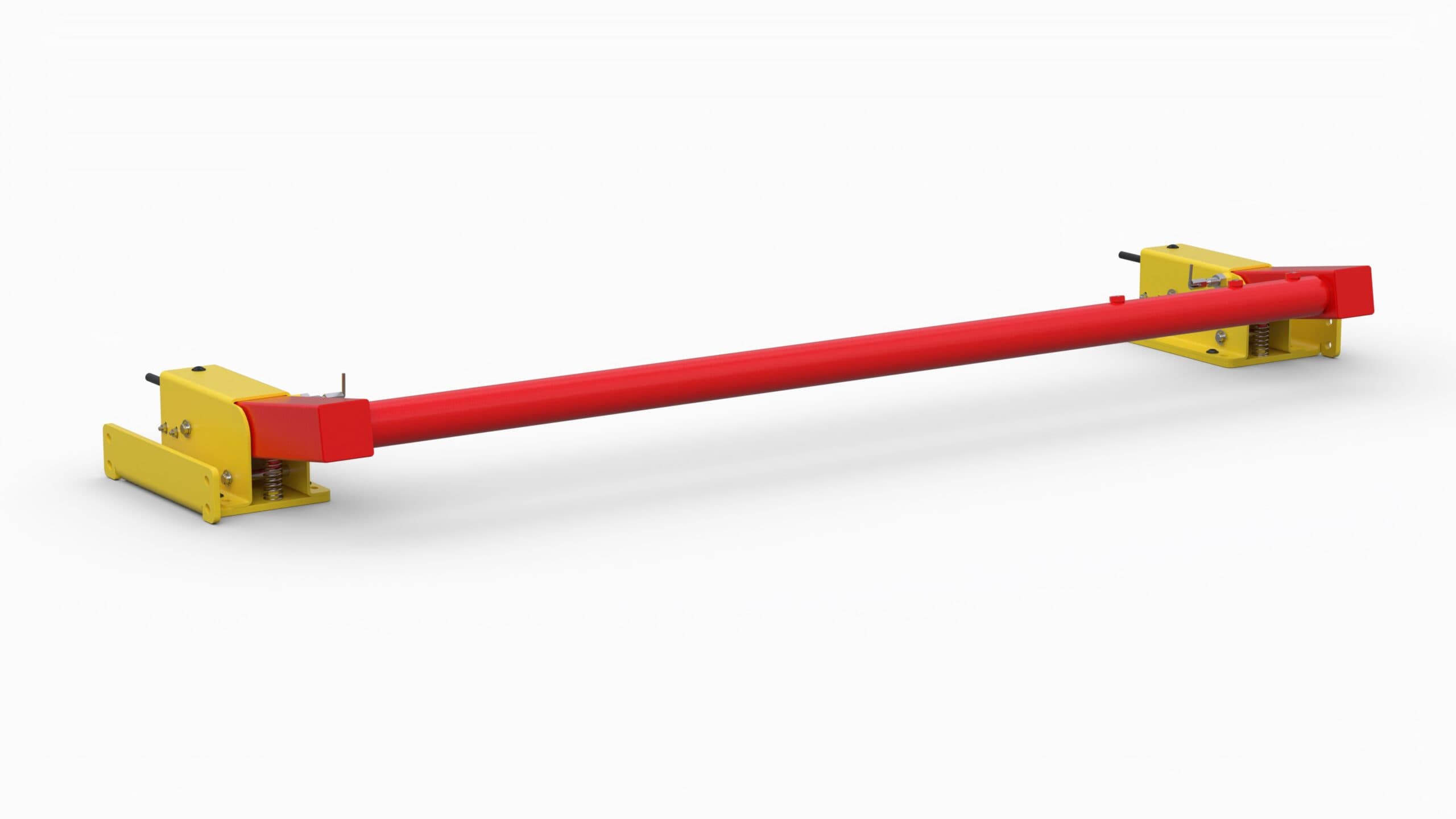

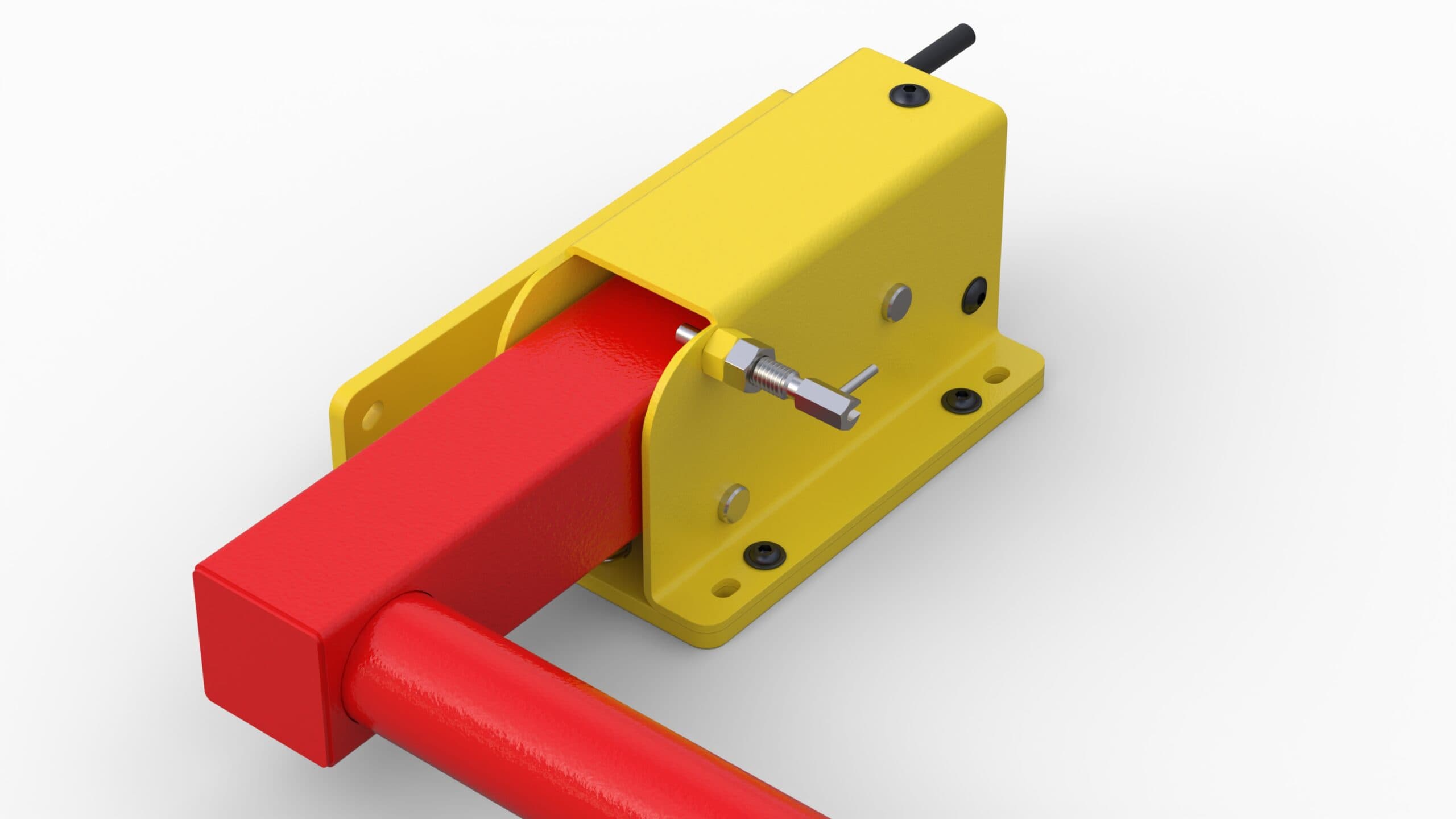

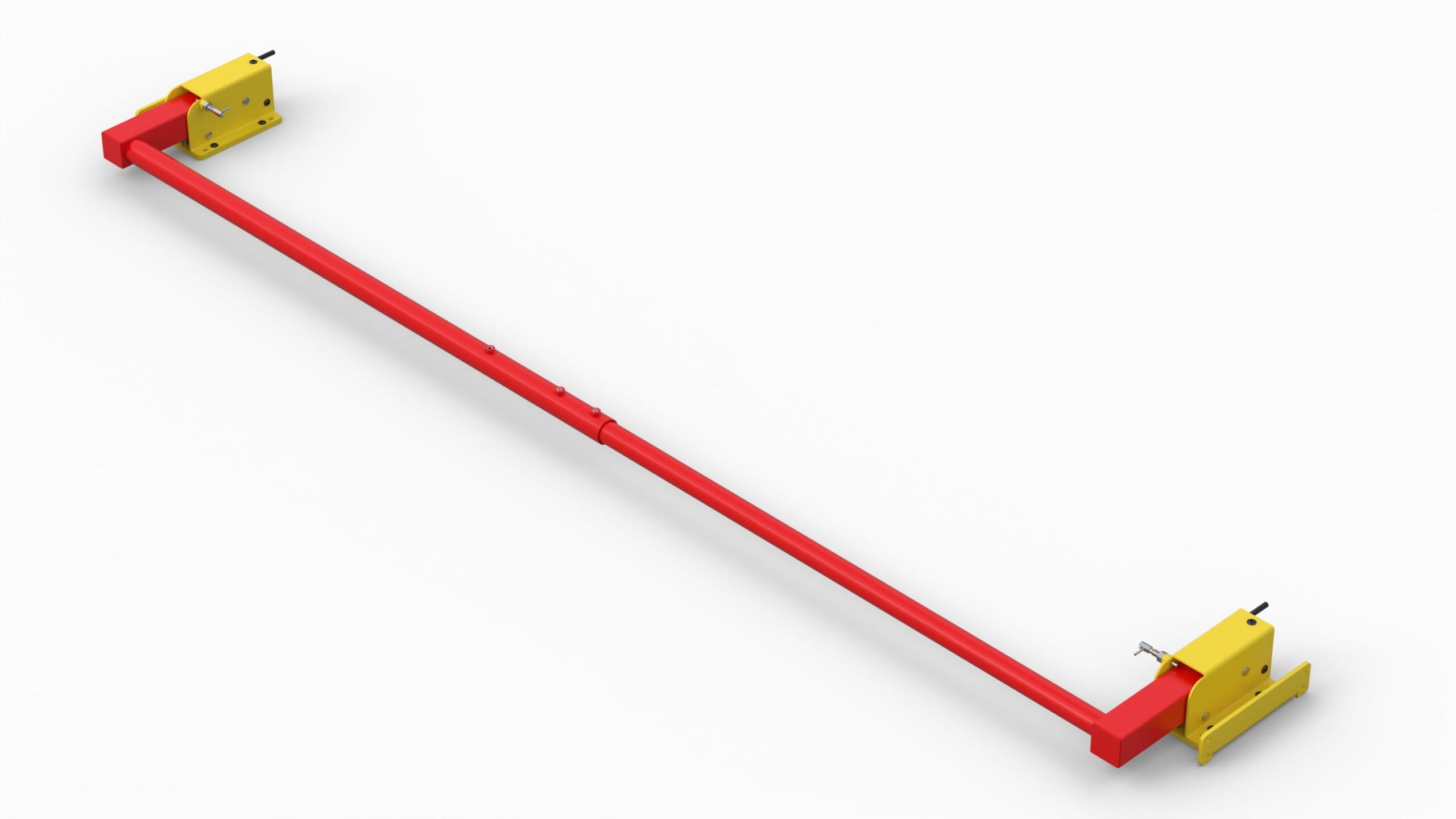

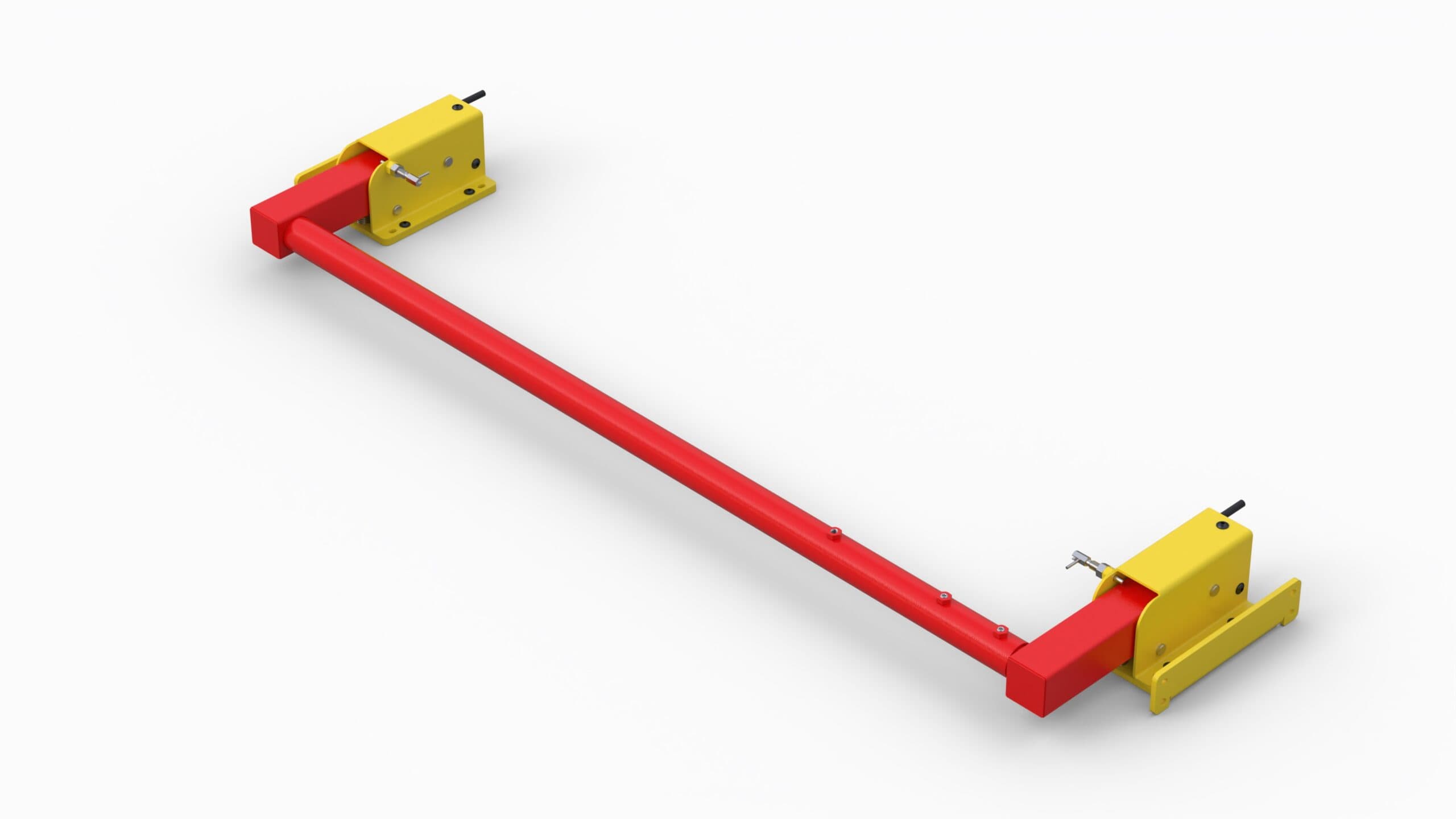

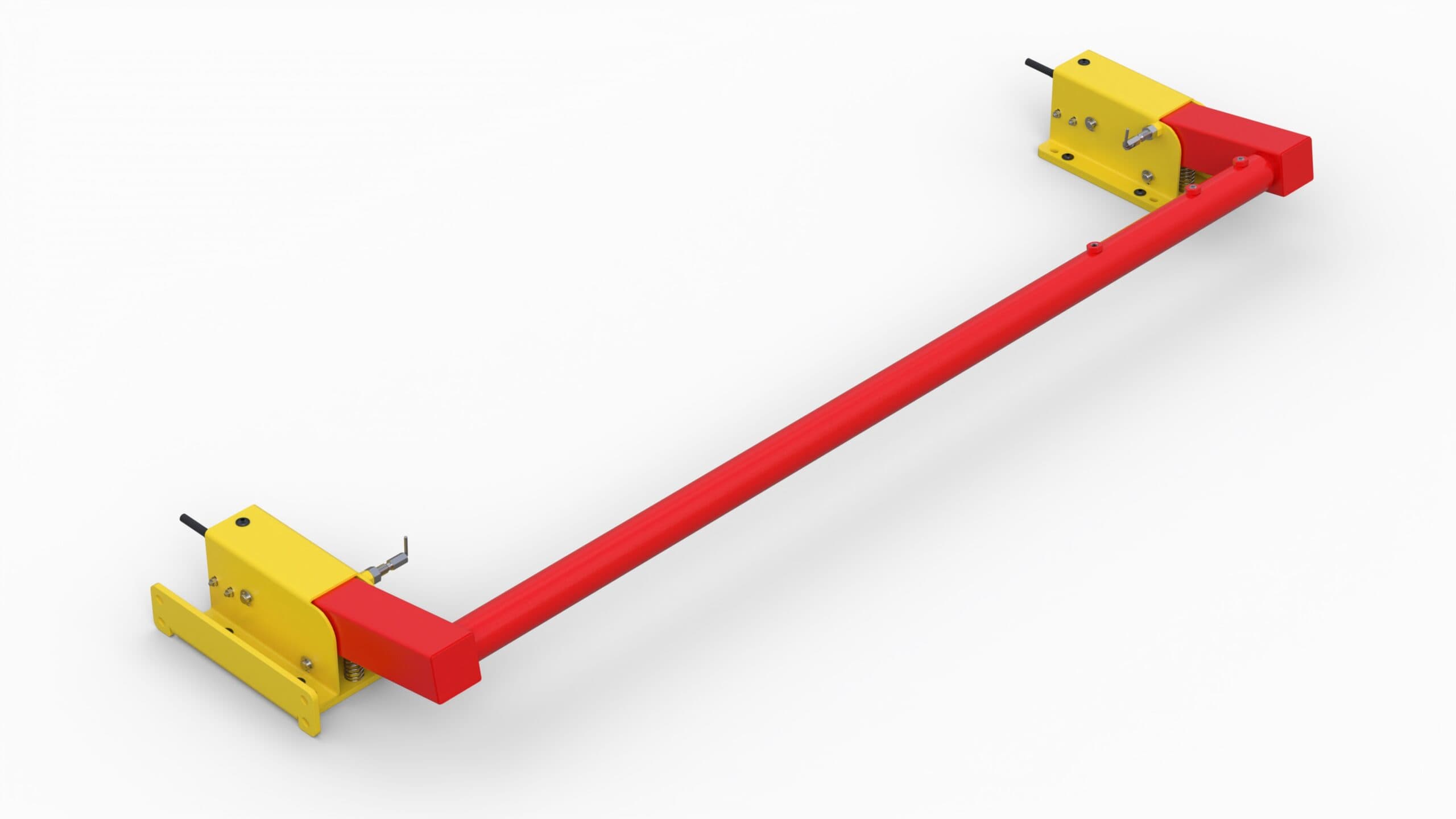

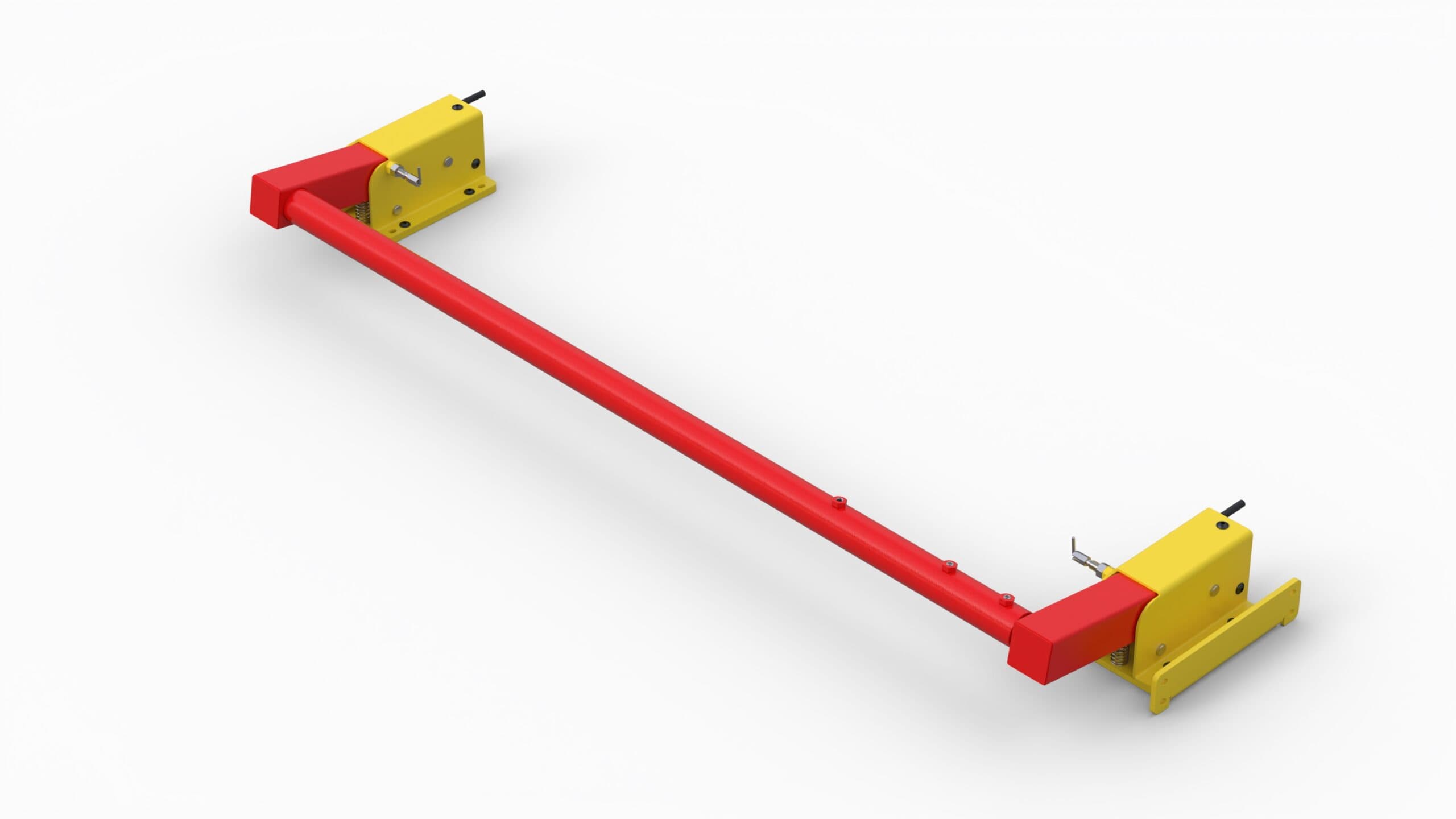

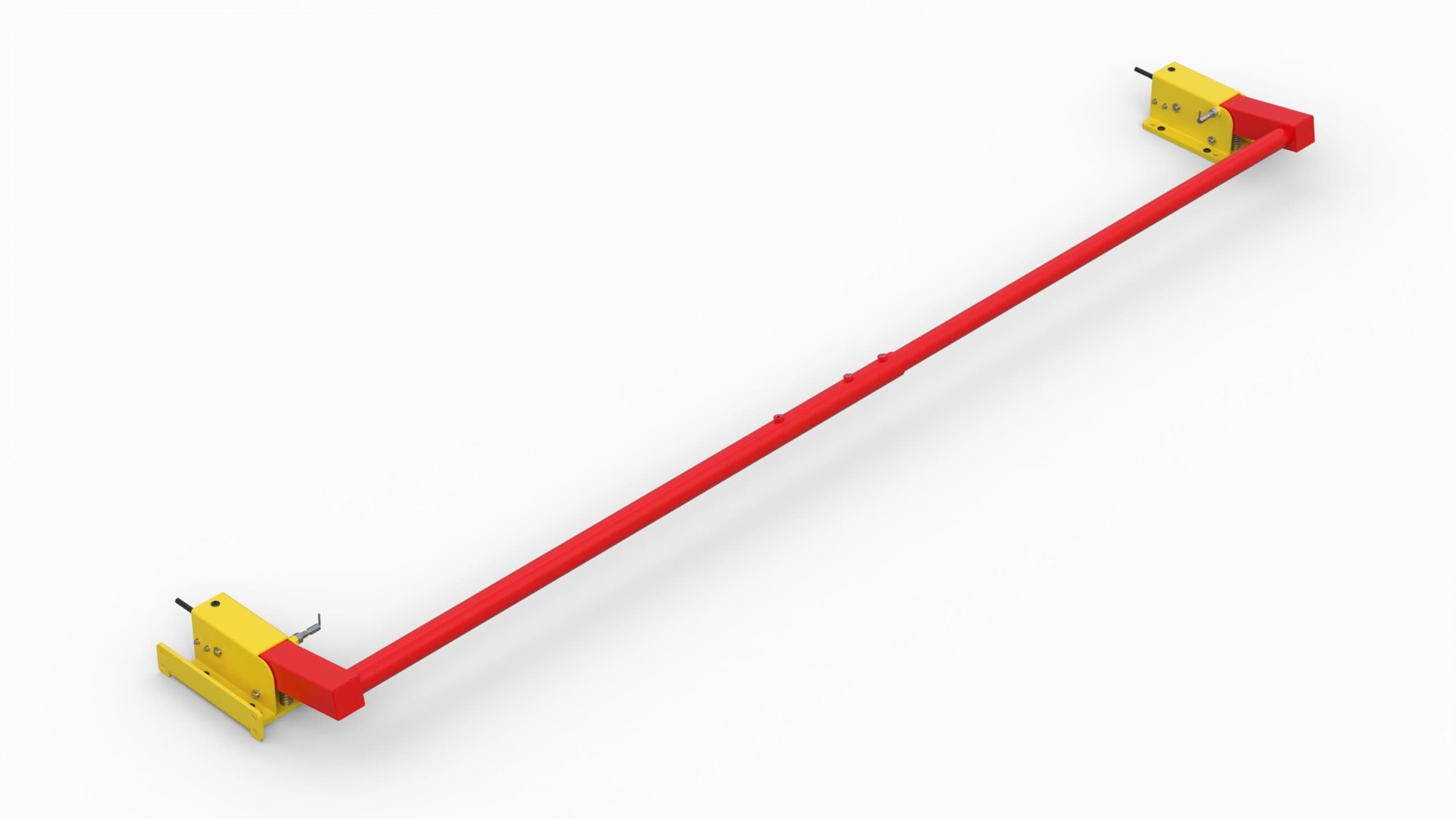

Stop/Estop Foot Pedal Bar – (Lathes – Mills – Other Machines)

OSHA 1910.212 — General Requirements for All Machines

OSHA 29 CFR 1910.212 is the core machine guarding standard that applies to nearly all machinery in general industry.
It requires employers to provide guards and protective devices to shield workers from points of operation, rotating parts, in-running nip points, flying chips, sparks, and other hazards.
As a “catch-all” standard, OSHA 1910.212 is often cited when no specific machine regulation exists, making it one of the most frequently enforced provisions in Subpart O.

Key Guarding Requirements

• Point of Operation: Machines must be guarded so operators are not exposed to the point where the work is performed.
• Rotating & Moving Parts: Guards must cover exposed belts, pulleys, gears, shafts, and flywheels to prevent accidental contact.
• In-Running Nip Points: Hazards created where two parts rotate toward each other or where one part moves past a stationary object must be guarded.
• Flying Chips & Sparks: Guards or shields must contain debris, sparks, and fragments generated during machine operation.
• Anchoring: Machines designed for fixed location use must be securely anchored to prevent movement or tipping.

Examples of Machines Covered

Because OSHA 1910.212 is a broad standard, it applies to a wide range of equipment including drill presses, lathes, milling machines, conveyors, punch presses, saws, and grinders.
If a machine has moving parts that could injure a worker, 1910.212 requires guarding.

Common Violations

• Missing point-of-operation guards on presses or saws.
• Exposed belts, pulleys, or rotating shafts without guarding.
• Improperly adjusted or removed guards during production.
• Lack of anchoring on floor-mounted equipment.
• Failure to contain sparks or flying material in grinding, cutting, or drilling operations.

Why OSHA 1910.212 Matters

Machine guarding violations are consistently among OSHA’s top cited standards.
Without proper guards, workers face severe risks of crushed fingers, amputations, lacerations, and eye injuries.
Compliance with OSHA 1910.212 helps facilities protect employees, avoid costly citations, and establish safer production environments.

Relation to Other Standards

OSHA 1910.212 is a general requirement that works in tandem with OSHA 1910.215 (Abrasive Wheel Machinery)
and machine-specific rules under Subpart O. It also aligns with ANSI B11 machine safety standards,
which provide technical safeguarding criteria.

Compliance Checklist

• Install guards at the point of operation on all applicable machines.
• Cover all rotating parts, belts, pulleys, gears, and shafts.
• Guard in-running nip points created by rollers, belts, or chains.
• Provide shields for flying chips, sparks, or debris.
• Anchor floor-mounted machines to prevent shifting.
• Train employees to use machines only with guards in place.

Internal Linking Opportunities

• Cross-link to Lockout/Tagout (OSHA 1910.147) for energy control.
• Link to Abrasive Wheel Machinery (OSHA 1910.215) for grinder rules.
• Connect to ANSI B11 for machine safeguarding performance standards.
• Promote relevant machine guarding products, light curtains, and safety devices.

FAQ

OSHA 1910.212(a) — General Machine Guarding Requirements

OSHA 29 CFR 1910.212(a) defines the core safety principles for machine guarding in general industry.
It requires employers to protect workers from mechanical hazards created by points of operation, rotating components, in-running nip points, and flying chips or sparks.
This paragraph serves as the primary enforcement reference for machinery that does not have its own specific OSHA standard.

Scope and Purpose

The goal of 1910.212(a) is to prevent contact injuries, entanglement, crushing, and amputation by ensuring all hazardous machine motions are either guarded or controlled.
It applies to virtually all machinery used in manufacturing, maintenance, fabrication, and processing operations.

Key Guarding Principles

• Comprehensive Protection: Guards must cover any moving part or area that could cause injury through contact or ejection of material.
• Design Flexibility: Employers may choose fixed, adjustable, or interlocked guards, provided they effectively prevent worker exposure.
• Performance Standard: The rule is performance-based rather than prescriptive—meaning the employer must demonstrate that the guarding method eliminates or controls the hazard.
• Continuity of Protection: Guards must remain in place and secure during operation and be adjusted only when the machine is off and locked out.
• Applicability: This paragraph acts as a “catch-all” requirement whenever a machine presents a hazard not addressed by another OSHA provision.

Examples of Covered Hazards

Machines governed by 1910.212(a) include drill presses, milling machines, conveyors, polishing lathes, grinders, and mechanical cutters.
Hazards may include rotating shafts, reciprocating arms, cutting surfaces, or points where material is inserted or removed.

Compliance Practices

• Install guards that physically prevent access to moving parts.
• Inspect guards routinely for secure attachment and effectiveness.
• Ensure that guard openings prevent any part of the body from reaching the danger zone.
• Prohibit operation when guards are missing or removed.
• Train employees on safe operation, inspection, and maintenance of guarded machines.

Why OSHA 1910.212(a) Is Important

Most serious machinery accidents occur because guards are missing, removed, or inadequate.
Section (a) establishes the baseline requirements that form the foundation of all machine safeguarding programs.
Compliance not only prevents injuries and amputations but also ensures alignment with national consensus standards such as ANSI B11 and ISO 12100.

FAQ

OSHA 1910.212(a)(1) — General Duty to Guard Machines

OSHA 29 CFR 1910.212(a)(1) establishes the primary obligation to guard machinery in general industry.
It requires employers to implement one or more methods of guarding that protect both the operator and nearby employees from hazards created by points of operation, rotating parts, flying chips, sparks, or any other dangerous mechanical motions.

Scope and Intent

This paragraph serves as the foundation of all machine guarding enforcement.
It mandates that every machine presenting a mechanical hazard must be safeguarded through a combination of physical barriers or engineered safety devices.
The employer may choose the guarding method, but it must completely prevent employee exposure to the moving part or hazard zone during normal operation.

Acceptable Guarding Methods

• Fixed guards: Rigid barriers that prevent access to hazardous areas.
• Interlocked guards: Guards that automatically shut off or disengage the machine when opened or removed.
• Adjustable guards: Barriers that can be positioned for different operations but remain securely in place during use.
• Self-adjusting guards: Guards that move automatically into position as the operator works, covering the danger area as material is fed.
• Electronic safeguarding devices: Light curtains, pressure-sensitive mats, and presence sensors that prevent access to moving parts.

Key Compliance Requirements

• Guarding must protect both operators and nearby personnel.
• Guards must be securely attached and durable enough to resist normal operation and vibration.
• Openings in guards must be small enough to prevent accidental contact with moving parts.
• Guards must not introduce new hazards such as sharp edges, pinch points, or visibility obstruction.
• All guards must be kept in place and functional when machines are operating.

Common Violations

• Machines operating without guards over exposed belts, pulleys, gears, or shafts.
• Removed or bypassed barrier guards during production or maintenance.
• Improper guard materials or openings that allow hand or finger access to moving parts.
• Lack of guarding for nearby employees who may be struck by flying material or sparks.

Practical Compliance Tips

• Conduct a full hazard assessment for all equipment to identify points of operation and motion hazards.
• Install fixed guards wherever possible; use interlocked or adjustable guards only when process requirements demand it.
• Include guarding checks in your preventive maintenance program.
• Train operators to recognize unsafe conditions and never remove or modify guards.

Why OSHA 1910.212(a)(1) Is Important

This paragraph represents OSHA’s general duty clause for machinery safety.
Most machine-related injuries occur when guards are removed or missing, and OSHA 1910.212(a)(1) gives inspectors the authority to cite any unguarded moving part that poses a risk.
Compliance ensures that workers remain protected from crushing, entanglement, amputation, and impact injuries.

FAQ

OSHA 1910.212(a)(2) — General Requirements for Machine Guards

OSHA 29 CFR 1910.212(a)(2) establishes the design and construction standards for machine guards.
This provision requires that guards be securely fastened to the machine and designed to protect operators and nearby employees from injury caused by moving parts, flying debris, or accidental contact.
The intent is to ensure that guarding not only provides protection but also does not create new hazards in the process.

Key Guard Design Requirements

• Secure Attachment: Guards must be firmly attached to the machine. If fastening directly to the machine is not possible, guards must be securely mounted elsewhere to provide equal protection.
• Structural Integrity: Guards must be made of materials strong enough to resist impact, vibration, and normal wear during operation.
• No New Hazards: Guards must not introduce additional risks such as pinch points, sharp edges, or visibility obstruction.
• Durability: Guard materials must withstand operational stresses and environmental factors like heat, coolant, or debris.
• Accessibility: Guards should allow safe maintenance, lubrication, and adjustments without requiring complete removal when possible.

Performance Intent

The focus of 1910.212(a)(2) is performance-based guarding design.
OSHA does not prescribe specific guard materials or thicknesses; instead, the guard must perform effectively under real-world conditions.
Employers have the flexibility to design guards suited to their machines—as long as the guarding prevents contact and remains in place during operation.

Examples of Guard Types Covered

• Fixed guards enclosing belts, pulleys, gears, and rotating shafts.
• Interlocked guards that shut off power when opened or removed.
• Adjustable guards for variable-sized stock or cutting operations.
• Self-adjusting guards that move automatically with the workpiece.

Best Practices for Compliance

• Inspect guards regularly for looseness, cracks, or corrosion.
• Use guard materials that match the operational environment (e.g., metal for high-impact areas, polycarbonate for visibility).
• Train employees to recognize damaged or missing guards and to report deficiencies immediately.
• Ensure all guards are reinstalled and secured after maintenance or adjustments.

Common Violations

• Guards loosely attached or easily removable during operation.
• Improvised guards made from inadequate materials such as thin sheet metal or plastic covers.
• Guards with sharp edges or openings large enough to allow finger or hand access.
• Removed or bypassed guards not replaced before restarting the machine.

Why OSHA 1910.212(a)(2) Is Important

Even when a guard is present, poor design or weak construction can fail to protect workers.
OSHA 1910.212(a)(2) ensures that guards are engineered and maintained to perform effectively throughout a machine’s life cycle.
Properly designed guards prevent crushing, amputation, and laceration injuries while maintaining usability and productivity.

FAQ

OSHA 1910.212(a)(3) — Point of Operation Guarding

OSHA 29 CFR 1910.212(a)(3) sets forth the point of operation guarding requirements for machinery used in general industry.
The “point of operation” is the area on a machine where work is performed—such as cutting, shaping, boring, forming, or assembling a part.
This section requires that each machine have a guard or safeguarding device that prevents the operator from having any part of the body in the danger zone during operation.

Purpose and Scope

The purpose of 1910.212(a)(3) is to eliminate exposure to moving tools or dies that can cause crushing, amputation, laceration, or puncture injuries.
It applies to all machines with a point of operation hazard, regardless of size or industry.
Typical examples include presses, saws, milling machines, lathes, shears, and drills.

Key Requirements

• Every machine must be equipped with a guard that prevents the operator from reaching into the danger zone.
• Guards must be designed and constructed to provide maximum protection while allowing the machine to be operated safely and efficiently.
• Special hand tools may be used to handle materials when guarding at the point of operation is not practical.
• Guards must be securely fastened, maintained in place, and not easily removed or bypassed during operation.
• Safeguarding devices such as light curtains, presence-sensing devices, or two-hand controls may be used if they provide equivalent protection.

Examples of Point of Operation Hazards

• Cutting blades or rotating cutters that can amputate or lacerate fingers.
• Press dies or molds that can crush hands or fingers during operation.
• Drill bits, boring tools, or milling heads that can pierce or entangle body parts.
• Shearing or punching points that can sever material—and body parts—with the same force.

Acceptable Guarding Methods

• Fixed barrier guards enclosing the point of operation.
• Interlocked guards that stop machine motion when opened or removed.
• Adjustable or self-adjusting guards that move automatically to block access as material is fed.
• Two-hand controls requiring both hands to activate the cycle, keeping them out of danger.
• Electronic presence-sensing devices such as light curtains or safety mats that halt motion when triggered.

Common Violations

• Operating a machine with missing or disabled point of operation guards.
• Using hand-feeding where fixed or adjustable guards should be installed.
• Removing guards to increase production speed.
• Failure to provide safeguarding when machine design allows operator access to hazardous movement.

Compliance Tips

• Identify all machine points of operation and assess potential contact hazards.
• Install fixed guards where feasible; use engineered safety devices when full enclosure is not possible.
• Inspect all guards before each shift and re-secure after adjustments or maintenance.
• Train operators to recognize guarding deficiencies and to report missing or damaged safety devices immediately.

Why OSHA 1910.212(a)(3) Is Important

Point of operation injuries are among the most severe and preventable workplace incidents.
By enforcing 1910.212(a)(3), OSHA ensures that all machines have reliable guarding or safety devices that keep operators’ hands, fingers, and bodies outside the danger zone during work.
This rule remains one of the most frequently cited machine safety violations nationwide.

FAQ

OSHA 1910.212(a)(3)(iii) — Guard Design for Operator Safety

OSHA 29 CFR 1910.212(a)(3)(iii) establishes the performance criteria for guard design and construction.
It requires that every machine guard be designed, built, and installed so that it effectively protects the operator from injury during machine operation.
This provision emphasizes that guard design must be functional, durable, and capable of providing full protection throughout the equipment’s use.

Purpose and Intent

The intent of 1910.212(a)(3)(iii) is to ensure that guarding effectiveness is not compromised by poor design or materials.
Even when a machine has guards, operators can still be injured if those guards fail under stress, vibration, or improper installation.
OSHA requires that guards maintain their protective function under all normal operating conditions.

Key Design Requirements

• Strength and Durability: Guards must resist impact, vibration, and deformation caused by routine use and environmental conditions.
• Secure Mounting: Guards must be firmly attached and cannot be easily removed, bypassed, or displaced during normal operation.
• Ergonomic Function: Guards should be designed to allow normal operation and maintenance without creating awkward or unsafe postures.
• Visibility: When feasible, guards should permit observation of the operation to ensure quality and alignment without removal.
• No New Hazards: Guard edges and surfaces must be smooth, free from sharp corners, and designed not to introduce new pinch points or catch hazards.

Acceptable Guarding Examples

• Fixed metal guards enclosing belts, pulleys, and gears.
• Transparent guards made of high-strength polycarbonate for visibility and impact resistance.
• Interlocked access doors that automatically shut off the machine when opened.
• Barrier guards preventing reach into moving parts while allowing visual monitoring.

Common Compliance Issues

• Guards that loosen or vibrate during machine operation, reducing protection.
• Materials that crack, warp, or deteriorate under heat or chemical exposure.
• Improperly designed openings that allow finger or hand access to moving parts.
• Guards that must be removed to complete normal adjustments or feeding.

Best Practices for Compliance

• Select guard materials suitable for the specific machine environment (e.g., metal for impact resistance, polycarbonate for visibility).
• Incorporate secure mounting brackets and fasteners that prevent accidental removal.
• Follow design guidelines for minimum safe distances between guard openings and hazard zones.
• Inspect and test guards periodically for wear, looseness, and stability under normal vibration and operation.
• Document guard designs, materials, and inspections as part of your facility’s machine safety program.

Why OSHA 1910.212(a)(3)(iii) Is Important

Even the best guarding concepts fail if the physical construction is inadequate.
OSHA 1910.212(a)(3)(iii) ensures that all guards are engineered for real-world performance, protecting operators and maintenance personnel from the severe hazards of rotating, cutting, or crushing machinery.
By emphasizing design integrity, this section reinforces the need for reliable, tested, and properly installed guarding systems that remain effective throughout the life of the equipment.

FAQ

ANSI B11 — Machine Safety & Machine Tool Standards

The ANSI B11 standards series comprises a robust framework for machinery and machine tool safety. It addresses risk assessment, design, guarding, control systems, risk reduction measures, and installation and maintenance of machines. Although not regulatory law, B11 standards are widely referenced by industry and used to interpret OSHA’s machine guarding rules (e.g. 29 CFR 1910.212). :contentReference[oaicite:2]{index=2}

Structure of the B11 Family

The B11 family is organized into three types of standards:

• Type A (Basic Safety Standards): e.g. ANSI B11.0 defines general concepts, terminology, risk assessment, and safety principles. :contentReference[oaicite:3]{index=3}
• Type B (Generic Safety Standards): These address safeguarding methods, performance, or safety aspects used across machines (for example, B11.19—Performance Criteria for Safeguarding). :contentReference[oaicite:4]{index=4}
• Type C (Machine-Specific Standards): Focused on individual machines or categories (e.g. B11.1 for power presses, B11.9 for grinding machines, B11.10 for sawing machines). :contentReference[oaicite:5]{index=5}

Core Themes & Provisions

• Risk Assessment / Reduction: B11 emphasizes identifying hazards, assessing risk, selecting and validating protective measures, and verifying that risk is reduced to acceptable levels. :contentReference[oaicite:6]{index=6}
• Safeguarding Methods: Fixed guards, interlocked guards, presence sensors, two-hand controls, light curtains, etc., are all covered with performance criteria. :contentReference[oaicite:7]{index=7}
• Performance Criteria: Guards and safety devices must meet minimum response times, strength, durability, fail-safe behavior, and integration with control systems. :contentReference[oaicite:8]{index=8}
• Safety in Existing (“Legacy”) Equipment: B11 encourages adaptation of older machines via retrofitting or supplementary safeguarding where feasible. :contentReference[oaicite:9]{index=9}
• Design, Modification & Integration: Covers requirements for design, safe modifications, wiring, control logic, maintenance access, risk during changeover, and system integration. :contentReference[oaicite:10]{index=10}

Relation to OSHA & Enforcement Context

OSHA itself does not mandate ANSI B11 by law, but OSHA’s machine guarding standards allow referencing consensus standards like B11 for technical interpretation. For example, OSHA’s eTool on machine guarding lists ANSI B11 standards as guidance resources. :contentReference[oaicite:11]{index=11}
Many safety professionals use B11 standards to design compliant machine guards and safety systems that satisfy both OSHA rules and best practices.

Common Substandards in the Series

• ANSI B11.0 — Safety of Machinery (baseline, risk methodology) :contentReference[oaicite:12]{index=12}
• ANSI B11.19 — Performance Criteria for Safeguarding (applies across many machines) :contentReference[oaicite:13]{index=13}
• ANSI B11.1 / B11.2 / B11.3 — Press, hydraulic, brake machines :contentReference[oaicite:14]{index=14}
• ANSI B11.10 — Metal sawing machines :contentReference[oaicite:15]{index=15}
• ANSI B11.9 — Grinding machines (ties into OSHA 1910.215 & 1910.213) :contentReference[oaicite:16]{index=16}

Internal Linking & Application Ideas

• Link to child categories like ANSI B11.0, ANSI B11.19, ANSI B11.9 (Grinding), etc.
• Cross-link to your OSHA machine guarding pages, e.g. OSHA 1910.212 General Machine Guarding.
• Link to safety device and guarding product pages: light curtains, interlocked guards, protective covers, control systems.

FAQ

ANSI B11.0 — Safety of Machinery

The ANSI B11.0 standard (Safety of Machinery) is the foundational “Type A” standard of the B11 series of American National Standards for machine safety.
It is intended to apply broadly to power-driven machines (new, existing, modified or rebuilt) and to machinery systems, not portable tools held in the hand. :contentReference[oaicite:0]{index=0}
ANSI B11.0 provides the essential framework: definitions, lifecycle responsibilities, risk assessment methodology, acceptable risk criteria, and guidance for using Type-C standards in conjunction with this general standard. :contentReference[oaicite:1]{index=1}

Scope & Purpose

ANSI B11.0-2020 covers machines and machinery systems used for material processing, moving or treating when at least one component moves and is actuated, controlled and powered. :contentReference[oaicite:2]{index=2}
The standard’s purpose is to help suppliers, integrators, and users of machinery identify hazards, estimate and evaluate risks, and implement sufficient risk reduction to achieve an “acceptable risk” level. :contentReference[oaicite:3]{index=3}
It also clarifies responsibilities across the machine lifecycle (supplier, user, modifier) and addresses legacy equipment, prevention through design (PtD) and use of alternative methods for energy control. :contentReference[oaicite:4]{index=4}

Key Concepts & Requirements

• Terminology & Definitions: Establishes key machine-safety terms (e.g., machine, hazard zone, safeguarding, risk, risk reduction). :contentReference[oaicite:5]{index=5}
• Risk Assessment Methodology: Describes how to identify hazards, estimate risk severity and probability, evaluate risk, and decide on corrective safeguards. :contentReference[oaicite:6]{index=6}
• Risk Reduction Principles: Focuses on designing out hazards, applying engineered controls, administrative controls and PPE only when higher-level measures aren’t feasible. :contentReference[oaicite:7]{index=7}
• Lifecycle Approach: Applies to design, construction, installation, commissioning, operation, maintenance, modification and dismantling of machines. :contentReference[oaicite:8]{index=8}
• Use of Type-C Standards: ANSI B11.0 explains how to use machine-specific Type-C standards (e.g., B11.9 for grinding machines) together with this standard for full compliance. :contentReference[oaicite:9]{index=9}

Why It Matters

ANSI B11.0 sets the groundwork for safe machine design and use. Without a consistent foundational standard, machine-specific standards may lack coherence or completeness in hazard control.
By following B11.0, manufacturers and users can build robust safety programs, ensure they cover all phases of machine use (including legacy equipment), and demonstrate that hazard identification, risk assessment and risk reduction are performed systematically.
Because the standard is widely referenced by regulatory authorities and industry best practices, compliance strengthens both safety performance and regulatory defensibility.

Relationship to OSHA & Other Standards

Although ANSI B11.0 is a voluntary consensus standard and not a regulation, it is widely acknowledged as “recognized and generally accepted good engineering practice (RAGAGEP)”.
Regulatory bodies like the Occupational Safety and Health Administration (OSHA) reference the B11 series for technical guidance in areas like machine guarding (e.g., 29 CFR 1910.212) and risk assessment. :contentReference[oaicite:11]{index=11}
Furthermore, ANSI B11.0 aligns with the international standard ISO 12100 (Safety of Machinery — General Principles for Design — Risk Assessment and Risk Reduction) but adds U.S.-specific supplier/user responsibilities and lifecycle responsibilities. :contentReference[oaicite:13]{index=13}

FAQ

B11.12 — Safety Requirements for Roll Forming & Roll Bending Machines

B11.12 (Safety Requirements for Roll Forming and Roll Bending Machines) addresses the specific safety needs of machines used to form or bend metal by means of rolls or rotary tooling. :contentReference[oaicite:0]{index=0}
The standard applies to machines that reshape material by progressive forming or bending—such as roll-formers and roll-benders—and covers their full lifecycle: from design and installation through operation, maintenance, modification and dismantling. :contentReference[oaicite:1]{index=1}

Scope & Machine Types

This standard applies to powered machines that change the shape or direction of material by use of rolls, rotary forming dies and associated tooling. :contentReference[oaicite:2]{index=2}
Examples include roll-formers: continuous lineal forming machines where strip material passes through sets of rotating rolls; and roll-benders: machines producing bends across widths of flat or preformed material by one or more rotating rolls. :contentReference[oaicite:3]{index=3}
The standard also lists many exclusions—machinery types not covered under its scope—such as bar mills, power presses, shears, portable hand tools, etc. :contentReference[oaicite:4]{index=4}

Key Safety Topics Addressed

• Responsibility assignment: The standard outlines distinct responsibilities for suppliers (manufacturers, modifiers, integrators) and users (owners, operators) for hazard identification and risk reduction. :contentReference[oaicite:5]{index=5}
• Hazard identification & risk assessment: Users and suppliers must identify machine tasks and hazard scenarios, assess risk and apply appropriate safeguards. :contentReference[oaicite:6]{index=6}
• Design & construction: Machines must be designed and built to minimize exposure to hazards—including appropriate guarding, feed/exit systems, emergency stops, control integration. :contentReference[oaicite:7]{index=7}
• Installation, testing & start-up: Machines must be installed, tested and commissioned under safe conditions before full operation. :contentReference[oaicite:8]{index=8}
• Safeguarding of the production system: The standard emphasizes that in roll-forming/bending operations, safeguards must consider the full system: the machine, feeding/out-feed, tooling, roll sets and worker interaction. :contentReference[oaicite:9]{index=9}
• Operation & maintenance: Procedures must be established for safe operation, maintenance, change-over, inspection and training of personnel. :contentReference[oaicite:10]{index=10}

Why It Matters

Roll-forming and roll-bending machines involve high speeds, heavy tooling, upstream feeding mechanisms and large pieces of moving material. Without proper safeguarding these machines can cause crushing, entanglement, contact injuries, ejection of stock or tooling, severe lacerations or amputations.
B11.12 provides a comprehensive framework to help manufacturers and users apply recognized engineering practices to reduce these risks—and support regulatory compliance and best-practice machine safety programs.

Practical Implementation Tips

• During machine design or procurement, reference B11.12 for required safeguarding of roll sets, feed/in-feed/out-feed, emergency stops, guarding of points where material enters or exits.
• Perform a task-based risk assessment per B11.12 before start-up, especially for change-over or maintenance tasks where tooling is changed or material thickness varies.
• Ensure feeding and exit systems are integrated with machine safeguards so that operators cannot reach into hazard zones during operation or maintenance.
• Train operators and maintenance personnel in hazards specific to roll-forming/bending machines—feeding, bending, roll changes, material ejection and emergency response.
• Maintain documentation of modifications, maintenance, inspections and risk assessments to demonstrate alignment with recognized good practice (RAGAGEP).

FAQ

B11.13 — Safety Requirements for Single-Spindle or Multiple-Spindle Automatic Bar & Chucking Machines

The B11.13 standard (Safety Requirements for Single-Spindle or Multiple-Spindle Automatic Bar and Chucking Machines) addresses machines that automatically feed bar stock, chucked workpieces or blanks into high-speed turning, drilling, or milling operations.
These machines often integrate bar feed mechanisms, automatic loaders, multiple spindles, and complex tooling systems, which create multiple potential hazards such as high-speed rotating components, automatic work-transfer systems, chip ejection, and access to moving parts.

Scope & Exclusions

B11.13 covers automatic bar-feeding machines (single or multi-spindle) and chucking machines used to machine bar stock or blanks in automatic or semi-automatic machining centers.
It excludes machines not designed for automatic bar loading, non-chucking manual machines, portable tools, and machines outside the defined automation/classification.

Key Safety Topics Addressed

• Machine design & construction: Ensuring structural stability, guarding of high-speed spindles and feed mechanisms, containment of ejected parts or bar stock.
• Automatic feeding systems & work transfer: Safeguards for bar-feed units, transfer mechanisms, and automatic loaders to prevent entrapment, pinch points or unintended release of workpieces.
• Guarding & safeguarding: Covering hazard zones created by rotating spindles, live tooling, bar feed drives, chip ejection paths, and material handling.
• Operation, maintenance & change-over: Safe procedures for tooling changes, bar stock loading/unloading, maintenance, retrofits and machine modifications.
• Lifecycle responsibilities: Addressing supplier, integrator and user roles in machine installation, commissioning, modification, maintenance and dismantling phases.

Why It Matters

Automatic bar and chucking machines operate at high speed with numerous moving parts, automated feeding systems, and multiple spindle operations—this increases risk of severe injuries including entanglement, amputation, ejection of tooling or workpieces, and high-energy collisions.
Compliance with B11.13 helps manufacturers and users establish recognized best practices in safeguarding and aligns them with a standard widely referenced in machine-safety programs.

Relation to Other Standards

Although B11.13 is a voluntary consensus standard, it is part of the broader B11 series of machine-safety standards and supports interpretation of general requirements such as B11.0 – Safety of Machinery and B11.19 – Performance Criteria for Safeguarding.
Regulatory bodies such as Occupational Safety and Health Administration (OSHA) refer to the B11 series as authoritative guidance on machine guarding and safe machine tool practices. :contentReference[oaicite:1]{index=1}

FAQ

B11.15 — Safety Requirements for Bar, Pipe, Tube & Shape Bending Machines

The B11.15 standard (Safety Requirements for Bar, Pipe, Tube and Shape Bending Machines) applies to power-driven machines that bend bar, pipe, tube or other shaped material by means of bending dies, clamp or pressure dies, mandrels, wiper dies, vertical or horizontal bending punches, radius dies, wing dies, and associated tooling. :contentReference[oaicite:0]{index=0}

Scope & Exclusions

The most recent version, B11.15-2022, extends the standard’s coverage to machines designed for bending bar, pipe, tube, and shapes. :contentReference[oaicite:1]{index=1}
Excluded from the standard are machines such as bench presses, hydroforming machines, forging presses, four-slide machines, mechanical presses, roll benders and roll formers, and assembly machines. :contentReference[oaicite:2]{index=2}

Key Safety Topics Addressed

• Machine design & construction: Emphasizing structural stability, appropriate guarding of hazard zones, and control of high-force bending operations.
• Guarding & safeguarding: Requirements for guarding bending dies, clamp systems, pinch points, feed and exit systems, and material ejection paths.
• Installation, commissioning & maintenance: Safe installation practices, pre-start-up testing, tool change and maintenance procedures, and lifecycle responsibilities for suppliers and users.
• Operation & safe use: Procedures for setup, adjustment, changeover, and safe operation of both manual and automated bending machines to minimize exposure to hazards.
• Feeding, forming & auxiliary systems: Safeguards for feed mechanisms, material handling, automation, and integration of the bending machine into the production line context.

Why It Matters

Machines used to bend bar, pipe, tube and shapes operate under high force and involve moving feed mechanisms, rotating tooling, material transfer, and potential ejection or entrapment hazards.
Complying with B11.15 supports the use of recognized engineering practices to reduce risks of crush injuries, amputations, entanglement, and thrown material.
It also aligns safety design with broader machinery safety requirements such as those in B11.0 – Safety of Machinery.

Relation to Other Standards

While B11.15 is a voluntary consensus standard, it is part of the broader B11 family of machine safety standards and serves as technical guidance for machine-specific safeguarding. Regulatory bodies such as Occupational Safety and Health Administration (OSHA) recognize the B11 series as authoritative references for machine guarding practice. :contentReference[oaicite:4]{index=4}

FAQ

B11.18 — Safety Requirements for Machines Processing or Slitting Coiled or Non-coiled Metal

The B11.18 standard (Safety Requirements for Machines Processing or Slitting Coiled or Non-coiled Metal — ANSI B11.18-2006, reaffirmed R2020) applies to machines, or groups of machines arranged in production systems, that process strip, sheet or plate metal—whether from coiled rolls or non-coiled stock—through operations such as cut-to-length lines, press-feed systems, and slitting lines. :contentReference[oaicite:0]{index=0}

Scope & Key Areas

The standard’s scope includes machines used to size or otherwise convert metal stock (strip, sheet, plate) into desired configurations via processing or slitting. Typical systems are slitting lines, cut-to-length lines, and metal feed/press systems. :contentReference[oaicite:1]{index=1}
The standard excludes machines and devices used solely for thermal, coating, chemical or electrolytic processes, or equipment whose principal function lies outside material sizing or conversion. :contentReference[oaicite:2]{index=2}

Key Safety Topics Addressed

• Risk assessment & lifecycle responsibility: Suppliers (machine builders), integrators, and users must each fulfil roles in hazard identification, design, installation, operation, maintenance, modification and dismantling of the equipment.
• Guarding & hazard-zone protection: Covers roll-uncoilers, feed-in mechanisms, slitting/bracing units, cut-to-length cutters, exit systems, coil handling, recoilers, and ensures safeguarding of moving parts, pinch points, ejected blanks and flying fragments.
• Feed, handling & material flow systems: Emphasis on safe infeed/outfeed, coil handling, material transfer, loop pits, and automation—ensuring operators don’t access hazardous zones during automatic operation or change-over.
• Installation, start-up, maintenance & modification: Requirements for safe commissioning, validation of safeguarding, procedures for tooling or roll changes, maintenance lockout/tagout integration, and safe retrofit of older systems.
• Integration with production lines: Machines covered often form part of larger line systems; B11.18 addresses system-interfaces, control logic, operator access, emergency stop and interlock systems for the whole production line context.

Why It Matters

Slitting and metal processing lines operate with high forces, heavy rolls, high-speed slitting knives, coil rotations, large feed drives and automatic handling systems. Without proper safeguarding and safety management, these machines pose severe risks: entanglement, crush, cut, ejection of stock or tooling, coil reel collapse, and major injuries or fatalities.
B11.18 provides a recognized engineering framework for safeguarding these specific machine types and supports machine-builders, integrators and users in meeting best practices, reducing risk and aligning with broader machinery safety standards such as B11.0 – Safety of Machinery.

Relation to Other Standards

Although B11.18 is a voluntary ANSI standard, it is part of the B11-series machine-safety standards and is used in conjunction with general standards like B11.0 (risk assessment) and B11.19 (performance criteria for safeguarding). :contentReference[oaicite:3]{index=3}
The standard also links to machine guarding regulatory expectations from Occupational Safety and Health Administration (OSHA) and other industrial safety frameworks.

FAQ

B11.20 — Safety Requirements for Integrated Manufacturing Systems

The B11.20 standard (Safety Requirements for Integrated Manufacturing Systems – ANSI B11.20-2017) applies to systems of two or more machines that are linked by material handling and jointly controlled to manufacture, treat, move or package discrete parts or assemblies. :contentReference[oaicite:0]{index=0}
The standard recognizes that when individual machines are integrated into a system, new hazards and risks arise that may not be addressed by machine-specific (Type C) standards. :contentReference[oaicite:1]{index=1}

Scope & Key Concepts

This standard covers the safety requirements for the design, construction, installation, set-up, operation, maintenance, modification and decommissioning of Integrated Manufacturing Systems (IMS). :contentReference[oaicite:2]{index=2}
An IMS is defined by the standard as a system that:

• Incorporates two or more industrial machines that can operate independently, and are intended for manufacturing, treatment, movement or packaging of discrete parts or assemblies. :contentReference[oaicite:3]{index=3}
• Is linked by a material handling system. :contentReference[oaicite:4]{index=4}
• Is interconnected by one or more control systems for coordinated operation. :contentReference[oaicite:5]{index=5}

Risk & Hazards Introduced by Integration

While each machine may have its individual safeguards, when combined into an IMS, the system can have new hazards such as:

• Shared zones where operator interaction or maintenance occurs across machine boundaries. :contentReference[oaicite:6]{index=6}
• Synchronized or inter-dependent machine motions creating unexpected exposure. :contentReference[oaicite:7]{index=7}
• Complex control logic and “special modes” of operation (e.g., setup, maintenance, override) that require distinct safety validation. :contentReference[oaicite:8]{index=8}
• Material handling or transfer systems that may bypass the standard guarding of individual machines. :contentReference[oaicite:9]{index=9}

Key Safety Topics & Requirements

• Layout and zone analysis: The 2017 edition of B11.20 introduces new definitions such as “control zone”, “task zone”, and refines “hazard zone” and “span of control” to align with ISO 11161. :contentReference[oaicite:10]{index=10}
• Special Modes: The standard defines “special mode” as any additional mode of operation introduced by integration (e.g., remote set-up, robotic access) and requires that these modes be included in the system’s risk assessment. :contentReference[oaicite:11]{index=11}
• Risk assessment & lifecycle responsibility: Suppliers, integrators and users must each fulfil defined responsibilities over the lifecycle of the IMS—from design through decommissioning. :contentReference[oaicite:12]{index=12}
• Use of other B11 standards: The standard emphasises that IMS safety must be implemented in conformity with foundational standards like B11.0 (risk assessment) and B11.19 (performance criteria for risk-reduction measures). :contentReference[oaicite:13]{index=13}

Why It Matters

As manufacturing becomes increasingly automated and integrated, arbitrary linking of machines, conveyors, robots, feeders and control systems can create hazard scenarios that are not covered by traditional single-machine safety standards.
B11.20 helps ensure that the system is treated as a *new machine* with its own hazards and that the safety design reflects the complexity of integration. :contentReference[oaicite:14]{index=14}
Implementing B11.20 facilitates better coordination between machine builders, integrators and end-users, reduces risk of injuries from complex automation, and aids in demonstrating recognized good engineering practice.

Best Practice Implementation Tips

• When designing or retrofitting an IMS, include layout/zone analysis early to identify control zones, task zones and hazard zones per B11.20. :contentReference[oaicite:15]{index=15}
• Ensure that the risk assessment covers all modes of operation—including automatic production, manual setup, maintenance, override or robot intervention. :contentReference[oaicite:16]{index=16}
• Coordinate safety-related control systems across machines, feeders, conveyors and robots so that an integrated safety circuit or architecture is verified as per B11.19 and B11.20. :contentReference[oaicite:17]{index=17}
• Document tasks, human access zones, and shared space between machines—particularly for maintenance or operator intervention zones. Incorporate access control or presence sensing as needed. :contentReference[oaicite:18]{index=18}
• Use the standard’s annexes (e.g., Annex D for layout analysis) and align your documentation with lifecycle phases: design, installation, commissioning, operation, maintenance, modification, decommissioning. :contentReference[oaicite:19]{index=19}

FAQ

B11.22 — Safety Requirements for Turning Centers & Automatic Numerically Controlled Turning Machines

The B11.22 standard applies to machine tools classified as automatic or numerically controlled turning machines—including modern turning centers—that machine bar stock or blanks on single or multiple spindles with automatic or semi-automatic loading, tool changes, and work-handling operations. It addresses safety across the full lifecycle: design, construction, installation, operation, maintenance, modification, dismantling, and transport.

Scope & Application

B11.22 covers hazards associated with rotating workpieces and spindles, chucking devices, live tooling, automatic loading and bar-feed systems, and part ejection. It focuses on safeguarding the point of operation and hazardous motion during production, setup/changeover, maintenance, and other special modes. Integrated manufacturing systems are outside the scope of this document and are addressed by separate system-level standards.

Key Safety Topics

• Guarding and enclosures: Interlocked or fixed guards for the cutting zone, rotating spindles, live tools, and chip/ejecta containment.
• Automatic loading and bar-feed: Protection against stock whip, pinch points, unintended access, and ejection hazards during automatic cycles.
• Control systems and modes: Clear mode selection (automatic, setup, maintenance), safe start/restart logic, emergency stop functions, and interlock integrity.
• Risk assessment and responsibilities: Defined roles for suppliers, integrators, and users to identify hazards, implement risk-reduction measures, verify performance, and maintain documentation.
• Modification and retrofit: Rebuilds or conversions must not degrade safety performance; safeguarding must be reviewed and validated after changes.

Why It Matters

Turning centers combine high rotational speeds, automatic handling, and multi-axis motions that can create severe risks such as entanglement, contact, ejection, and unintended motion. Applying B11.22 helps organizations engineer effective safeguards, validate safety-related controls, and maintain safe procedures for production and maintenance tasks.

Practical Implementation Tips

• Use a task-based risk assessment to identify exposure during production, setup, tool change, and maintenance.
• Verify enclosure integrity and interlock function; confirm chip and fragment containment at maximum spindle speed and material conditions.
• Evaluate bar-feed and parts-handling interfaces for access control, guarding, and emergency stop coverage across the machine boundary.
• Document mode selection logic and ensure reduced-speed/hold-to-run features where necessary during setup or teaching.
• Train operators and maintenance personnel on hazards unique to rotating stock, chuck changes, live-tool operations, and automated cycles.

B11.23 — Safety Requirements for Machining Centers & Automatic Numerically Controlled Milling, Drilling & Boring Machines

The B11.23 standard (ANSI B11.23-2002 (R2020)) provides consensus safety requirements for machining centers and automatic NC/CNC machines used for milling, drilling and boring operations. It applies to machines where the axes of travel are not greater than 1 m × 1 m × 1 m (39 in × 39 in × 39 in). :contentReference[oaicite:0]{index=0}

Scope & Purpose

This standard covers the design, construction, installation, operation, maintenance, dismantling and transport of machining centers and automatic NC milling, drilling and boring machines. :contentReference[oaicite:1]{index=1}
It is intended to help manufacturers, integrators and users control hazards such as rotating cutters, automatic tool changes, work-piece handling, ejection of parts, access to moving axes, and machine modification. :contentReference[oaicite:2]{index=2}

Key Safety Topics Addressed

• Supplier/User Responsibilities: Defines roles of the machine builder, integrator/modifier and end-user in hazard identification, risk assessment, design, installation, maintenance and modification. :contentReference[oaicite:3]{index=3}
• Risk Assessment & Life Cycle: The standard emphasizes identifying hazards during all phases of machine life (design, installation, operation, maintenance, dismantling) and applying risk reduction measures. :contentReference[oaicite:4]{index=4}
• Guarding & Safeguarding: Covers protection for moving tool spindles, automatic tool changers, work-handling systems, rotating workpieces, and prevents access during automatic cycles. :contentReference[oaicite:5]{index=5}
• Machine Size Limitation: Specifies that the standard applies to machines with travel axes not exceeding 1 m × 1 m × 1 m (approximately 39 in ×39 in ×39 in). :contentReference[oaicite:6]{index=6}

Why It Matters

Machining centers and automatic NC drilling/boreding machines combine high-speed tool rotation, automatic tool changers, multi-axis motion and often automatic workpiece feeding. These features create multiple hazard pathways: contact with cutters or spindles, ejection of tools or workpieces, inadvertent access during motion or changeover, and hazards during maintenance or modification.
Following B11.23 helps machine builders and users adopt recognized good engineering practice for safeguarding these complex machines, reducing injuries and supporting safety-compliance programs.

Practical Implementation Tips

• Perform a full task-based risk assessment covering automatic production, manual loading/unloading, tool changeover, maintenance and mode switching.
• Ensure guards or interlocks are applied around the spindle area, automatic tool changer, and work-handling sections; verify that access is prevented during motion and that ejection is mitigated.
• Confirm that documentation defines responsibilities for machine build, installation, user training, maintenance and modification; maintain records of risk assessments and modifications.
• Review machine modifications or rebuilds as if they were new machines—risk assessment must be re-validated and safeguarding may need upgrade.\li>

B11.3 — Safety Requirements for Power Press Brakes

The B11.3 standard (ANSI B11.3-2012 (R2020)) applies to machines classified as power press brakes — machines designed specifically to bend material by use of a ram, dies, tooling and associated feed/back-gauge systems. :contentReference[oaicite:0]{index=0}
Its primary objective is to eliminate, control or reduce hazards to individuals associated with power press brake use throughout the machine lifecycle. :contentReference[oaicite:1]{index=1}

Scope & Exclusions

B11.3 applies exclusively to press brakes—machines furnished for bending material (sheet, plate, etc.) by means of fixed or moving dies. :contentReference[oaicite:2]{index=2}
The standard specifically excludes mechanical power presses, hydraulic or pneumatic power presses (for other press types), powered folding machines, hand brakes, tangent benders, apron brakes and similar machines. :contentReference[oaicite:3]{index=3}

Key Safety Topics Addressed

• Point of operation safeguarding: Protecting the operator and helper from the die-closing area, material feed zones, back gauges and other pinch/crush hazards. :contentReference[oaicite:4]{index=4}
• Control modes & actuation systems: The standard distinguishes machine types (general-purpose vs special-purpose) and specifies required controls such as interlocks, two-hand controls, safe-speed, anti-repeat, single-stroke capability for certain machines. :contentReference[oaicite:5]{index=5}
• Safe distance & alternative safeguarding methods: Where fixed guards are not feasible, the standard allows “safe distance” methods under specific conditions—but as guidance requires methods to be substantiated. :contentReference[oaicite:6]{index=6}
• Die changeover, setup, maintenance & mode transitions: Requires safe practices for tooling installation, maintenance lock-out, guarding during non-production modes, and verification after modification or retrofit. :contentReference[oaicite:7]{index=7}
• Lifecyle and responsibility allocation: The standard addresses roles and obligations of machine builders/suppliers, integrators or modifiers, and users/owners in design, installation, operation, maintenance, modification and decommissioning. :contentReference[oaicite:8]{index=8}

Why It Matters

Power press brakes are high-force machines used in bending operations; they involve ram motion, tooling change, material feed/back-gauge, and potential exposure of hands or other body parts to pinch, crush, or ejection hazards.
Because of the variety in press-brake configurations (mechanical, hydraulic, servo) and workpiece handling methods, B11.3 gives a structured framework so employers and machine builders can apply recognized engineering practices to guard them effectively. :contentReference[oaicite:9]{index=9}

Practical Implementation Tips

• Perform a risk assessment specific to the press brake: consider material size/thickness, tooling change frequency, back-gauge accessibility, operator posture during loading/unloading.
• Identify machine type (general-purpose vs special-purpose) and ensure control system meets the standard’s requirement for that category (e.g., anti-repeat, safe-speed, two-hand control etc.).
• Evaluate guarding options: fixed barriers, adjustable guards, presence-sensing devices, two-hand controls, safe-speed monitoring. If barrier is infeasible, document justification for “safe-distance” method under the conditions allowed by the standard. :contentReference[oaicite:10]{index=10}
• Calculate or validate stopping time of the ram and safe distance if presence-sensing/light curtain is used; maintain records of stop-time measurements, testing and training. :contentReference[oaicite:11]{index=11}
• Train operators and maintenance personnel: focus on load/unload hazards, die changeover, back-gauge interaction, feeding methods, reach-in hazards, and safe practices when override or maintenance mode is used. :contentReference[oaicite:12]{index=12}
• Upon machine modification, rebuild or retrofit, treat the machine as effectively new: re-validate risk assessment, safeguards, controls, training and documentation. :contentReference[oaicite:13]{index=13}

B11.6 — Safety Requirements for Manual Turning Machines (Lathes) With or Without Automatic Control

The B11.6 standard (ANSI B11.6-2022) specifies safety requirements for the design, construction, installation, operation, maintenance, modification, transport and dismantling of horizontally or vertically oriented spindle turning machines (commonly called lathes) that are manually controlled or may include automatic control capabilities. :contentReference[oaicite:0]{index=0}

Scope & Application

This standard applies to manual turning machines in which the workpiece is clamped and rotated while the cutting tool is rather stationary (i.e., the cutting force is from the workpiece). These machines may include automatic features (such as feed drives or tool turret indexing) but do *not* include fully automatic part-handling or bar-feed mechanisms or automatic tool changers — those machines fall under separate standards. :contentReference[oaicite:1]{index=1}

Key Safety Topics Addressed

• Point of operation & rotating parts guarding: Guarding or protective devices for rotating spindles, chucks, work-holding, live tooling, and removal of chips or swarf to prevent contact, entanglement or ejection hazards. :contentReference[oaicite:2]{index=2}
• Machine control modes & automatic control interface: Safe transitions between manual operation, automatic feed, tool change or manual set-up modes; ensuring that automatic or semi-automatic features do not expose operators to hazards. :contentReference[oaicite:3]{index=3}
• Feed, back-gauge and tool systems: Safe design of workpiece feeding, tool turret or system, and back-gauge motions to prevent contact during automatic or manual operations. :contentReference[oaicite:4]{index=4}
• Lifecycle responsibilities: The standard assigns defined roles for machine builders/suppliers, integrators/modifiers and users/owners for all phases of the machine life cycle — design, installation, commissioning, operation, maintenance, modification and decommissioning. :contentReference[oaicite:5]{index=5}
• Risk assessment & modification/retrofit: The standard emphasizes that machines modified, rebuilt or converted must be treated as essentially new with respect to risk assessment, safeguarding and verification. :contentReference[oaicite:6]{index=6}

Why It Matters

Turning machines (lathes) remain ubiquitous in manufacturing and metalworking. They involve hazards from rotating workpieces, chucks, live tools, swarf and chips, feed/back-gauge motion, automatic features and manual operator interaction. Adhering to B11.6 helps ensure these machines are designed, installed and maintained in accordance with recognized engineering safety practices, supports risk reduction and strengthens a machine-safety program. :contentReference[oaicite:7]{index=7}

Implementation Tips

• Perform a task-based risk assessment considering manual turning, automatic feed modes, tool change settings, maintenance, set-up and clean-up operations.
• Ensure aftermarket or retrofit features (e.g., tool turrets, automatic feed) do not compromise guard integrity or operator protective distance.
• Verify that guards around the spindle, chuck and rotating workpiece prevent access during operation and that swarf/chip ejection zones are managed.
• Audit control mode logic to ensure safe state transitions — for example, automatic feed should not occur with operator hazard exposure; manual mode should have proper safeguards for setup/maintenance.
• Include records of maintenance, modification, training of operators and documentation of risk assessments and safeguarding changes — treating any machine changes as a redesign from safety perspective.

B11.8 — Safety Requirements for Manual Milling, Drilling & Boring Machines (With or Without Automatic Control)

The B11.8 standard (ANSI B11.8-2021) specifies safety requirements for machines that perform milling, drilling or boring operations under manual control or partial automation — machines where the operator controls initiation of tasks, even if the machine has automatic features. :contentReference[oaicite:0]{index=0}
It applies to design, construction, installation, operation, maintenance, modification, dismantling and transport of such machines. :contentReference[oaicite:1]{index=1}

Scope & Application

B11.8 covers manual milling machines, drilling machines and boring machines where the operator uses manually-initiated steps to remove material via rotating cutters. Machines may include automatic controls but exclude full automatic part-handling systems or automatic tool changers. :contentReference[oaicite:2]{index=2}
The standard addresses both horizontal and vertical spindle machines and covers hazards from cutting tools, work-holding, chip ejection, coolant systems and operator access. :contentReference[oaicite:3]{index=3}

Key Safety Topics Addressed

• Guarding & Enclosure of Rotating Elements: Protecting against contact with spindles, cutters, chucks, feed mechanisms and moving parts.
• Point of Operation & Material Removal Hazards: Mitigating hazards such as chip/projectile ejection, coolant spray, entanglement, and reaching into tool/work zones. :contentReference[oaicite:4]{index=4}
• Feed & Hold-down Systems: Ensuring secure work-holding, guarding over feed paths, and safe adjustment/maintenance of hold-down devices.
• Control Modes & Safe Operation: Safe selection of manual vs automatic modes, preventing unintended motion, providing emergency stop, safe start/restart logic.
• Lifecycle Responsibilities: Defining obligations of machine suppliers, modifiers/integrators and users through design, installation, commissioning, maintenance, modification and decommissioning. :contentReference[oaicite:5]{index=5}

Why It Matters

Milling, drilling and boring machines are ubiquitous in metalworking and fabrication shops. They involve high-speed rotating cutters, moving tables/feed systems, potential for flying chips, coolant spray and operator exposure to rotating parts or tooling during setup or maintenance. Without robust safeguarding and control procedures, these machines can lead to serious injuries.
By following B11.8, organizations apply recognized engineering practice for safe machine design, operation and lifecycle management of these machines.

Practical Implementation Tips

• Conduct a task-based risk assessment: consider manual production operation, setup/tool change mode, maintenance mode and any automatic feature present.
• Ensure guarding covers spindle heads, rotating cutters, feed systems and chip ejection zones; check coolant spray containment and secondary hazards (chip buildup, slip/trip).
• For machines with automatic control features (but still manual-initiated), validate that operator access is restricted during automatic cycles and that mode selection safeguards are in place.
• Document machine modifications or rebuilds (e.g., adding automatic feed or control features) and treat them as new installations: re-validate risk assessment, revise guarding and controls.
• Train operators and maintenance staff on hazards: tool changes, coolant hazards, chip ejection, reaching into hazards, safe use of automatic/manual features and emergency procedures.

B11.TR3 — Risk Assessment & Risk Reduction: A Guide to Estimate, Evaluate and Reduce Risks Associated with Machine Tools

The B11.TR3 technical report (ANSI B11.TR3-2000 (R2015)) offers machine tool manufacturers, integrators and users a detailed approach to risk assessment and risk reduction, especially in contexts where machine-specific “type C” standards may not cover all hazards. :contentReference[oaicite:0]{index=0}
This document is informative rather than a normative “standard,” but it is widely referenced as good practice for machine safety.

Scope & Purpose

B11.TR3 is intended for use on new or modified machines and equipment designs and processes. The report guides users through the lifecycle of machine tools—design, installation, operation, maintenance, modification and dismantling—with a focus on tasks and hazards. :contentReference[oaicite:1]{index=1}

Key Methodology Components

• Task-based hazard identification: Identify tasks performed on or by the machine (operation, setup, maintenance, cleaning, modification), then identify hazards and hazardous situations associated with those tasks. :contentReference[oaicite:2]{index=2}
• Risk estimation and evaluation: Estimate the severity of potential harm, exposure frequency, probability of avoidance, and evaluate the risk level to determine if risk is acceptable or if risk reduction is required. :contentReference[oaicite:3]{index=3}
• Risk reduction hierarchy and implementation: After identifying unacceptable risks, apply measures in a prioritized sequence — eliminate hazard, apply inherently safe design, provide safeguarding or protective devices, implement information for use and training. Then verify that the residual risk is tolerable. :contentReference[oaicite:4]{index=4}
• Documentation and verification: Maintain records of the risk assessment process, risk reduction measures taken, verification of effectiveness, and re-evaluation when machines are modified. :contentReference[oaicite:5]{index=5}
• Shared responsibilities: Clarifies that machine tool suppliers, integrators/modifiers and users each have obligations — for hazard information, safe design, risk reduction, commissioning, training, maintenance, and modification. :contentReference[oaicite:6]{index=6}

Why It Matters

Many machine tool hazards—such as entanglement, ejection of workpieces, unexpected motion, energy release—are not fully addressed by generic machine guarding rules alone. B11.TR3 provides a structured way to address those hazards by focusing on tasks, hazards and risk reduction rather than relying only on specifications. According to studies, using this guideline improved machine safety understanding and helped reduce exposure in pilot studies. :contentReference[oaicite:7]{index=7}

Practical Implementation Tips

• Begin with a lifecycle review of the machine tool: design, install, operate, maintain, modify, decommission—and identify all relevant tasks in each phase.
• For each task, list the hazard(s), estimate risk (severity × exposure × avoidance probability), compare to tolerability criteria and decide whether risk is acceptable or needs reduction.
• Apply the hierarchy of risk reduction: eliminate hazard where possible, implement inherently safe design, apply guarding/interlocks, then administrative controls/training. Verify with measurement or testing where feasible.
• Document the assessment: task list, hazard list, risk estimates, risk reduction actions, verification results, residual risk statement. Re-assess after any modification or installation change.
• Ensure communication across roles: suppliers provide hazard information, integrators verify safe installation, users maintain safe operation/maintenance and monitor modifications. Training must reflect changes and residual risk knowledge.
