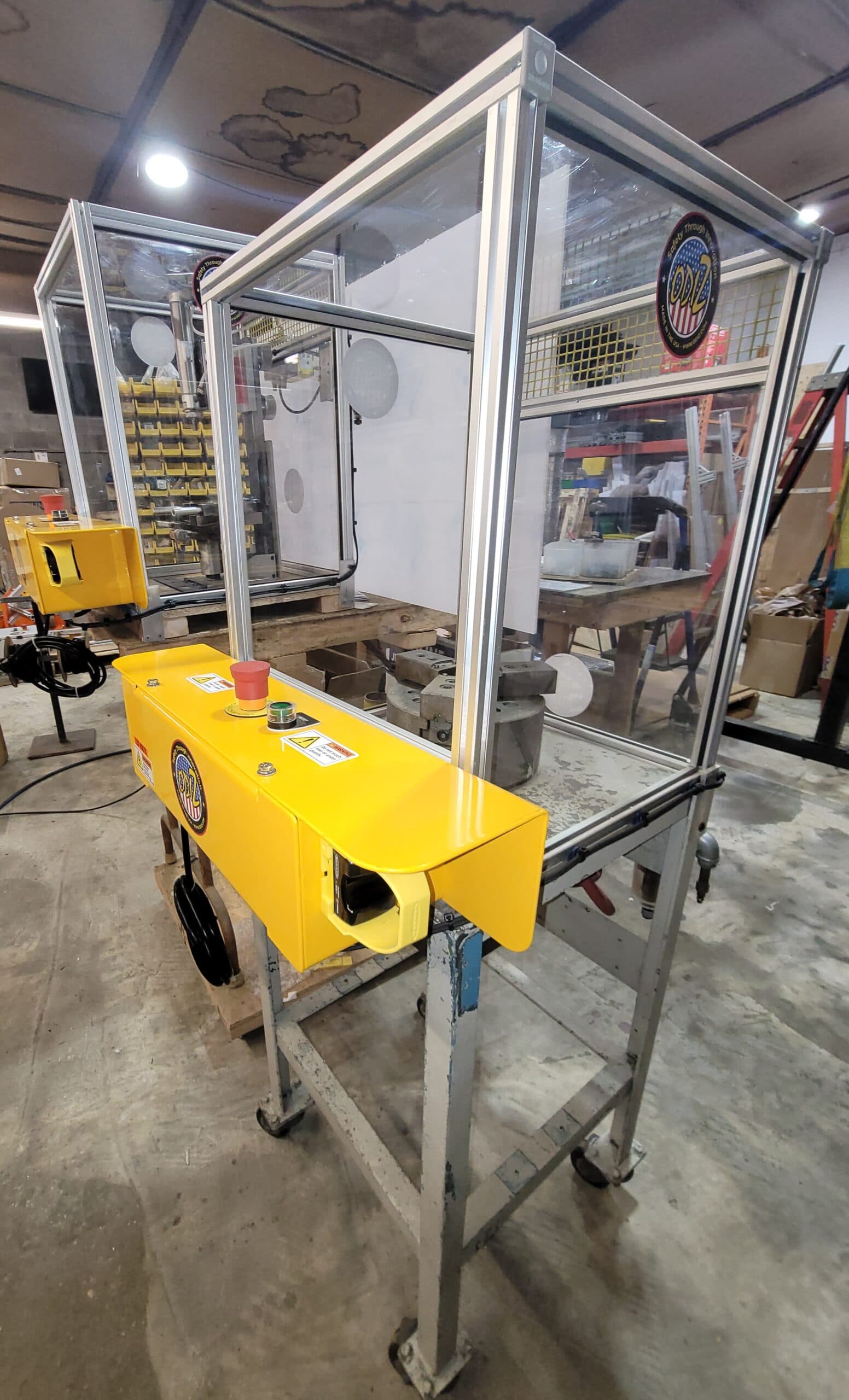

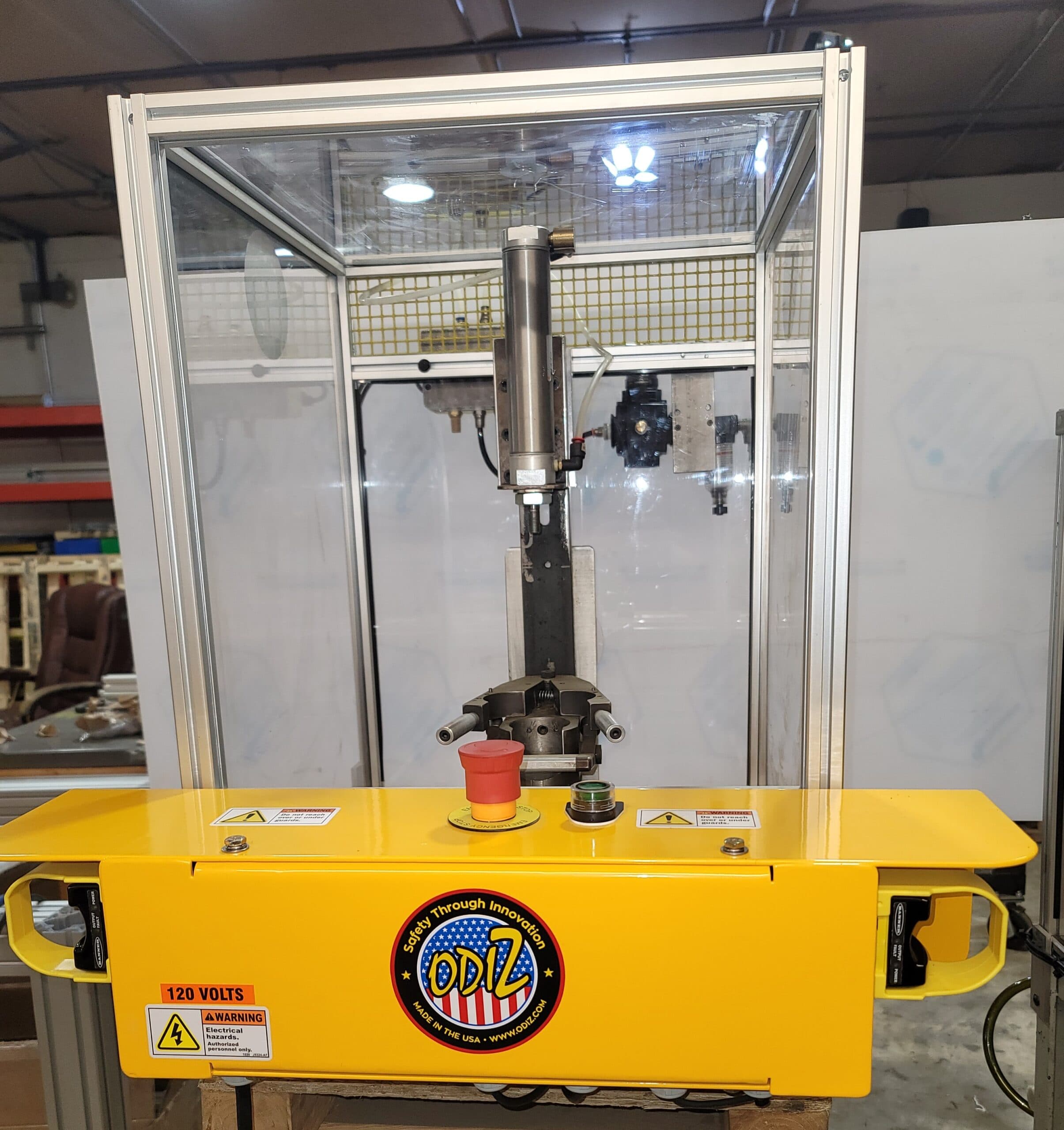

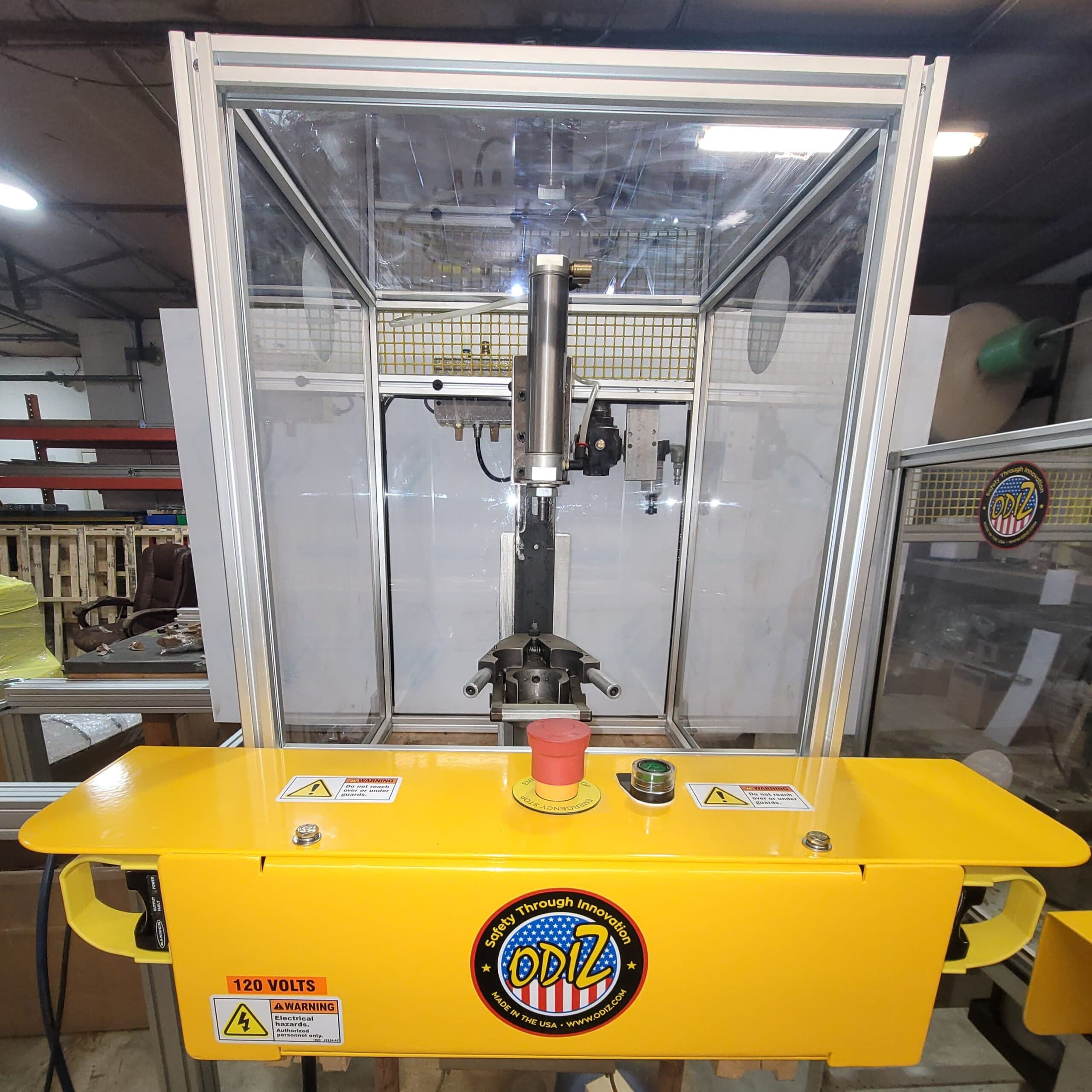

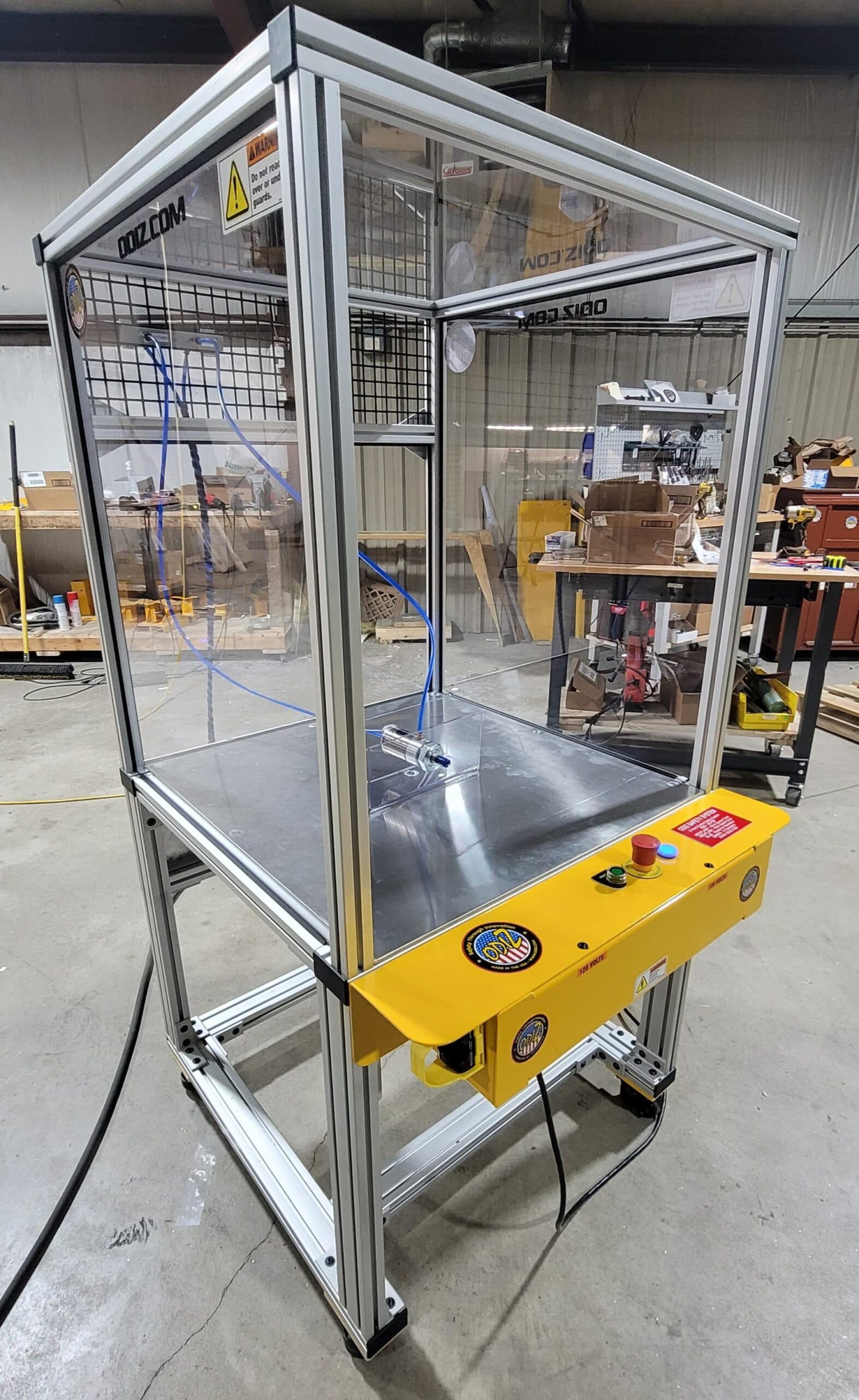

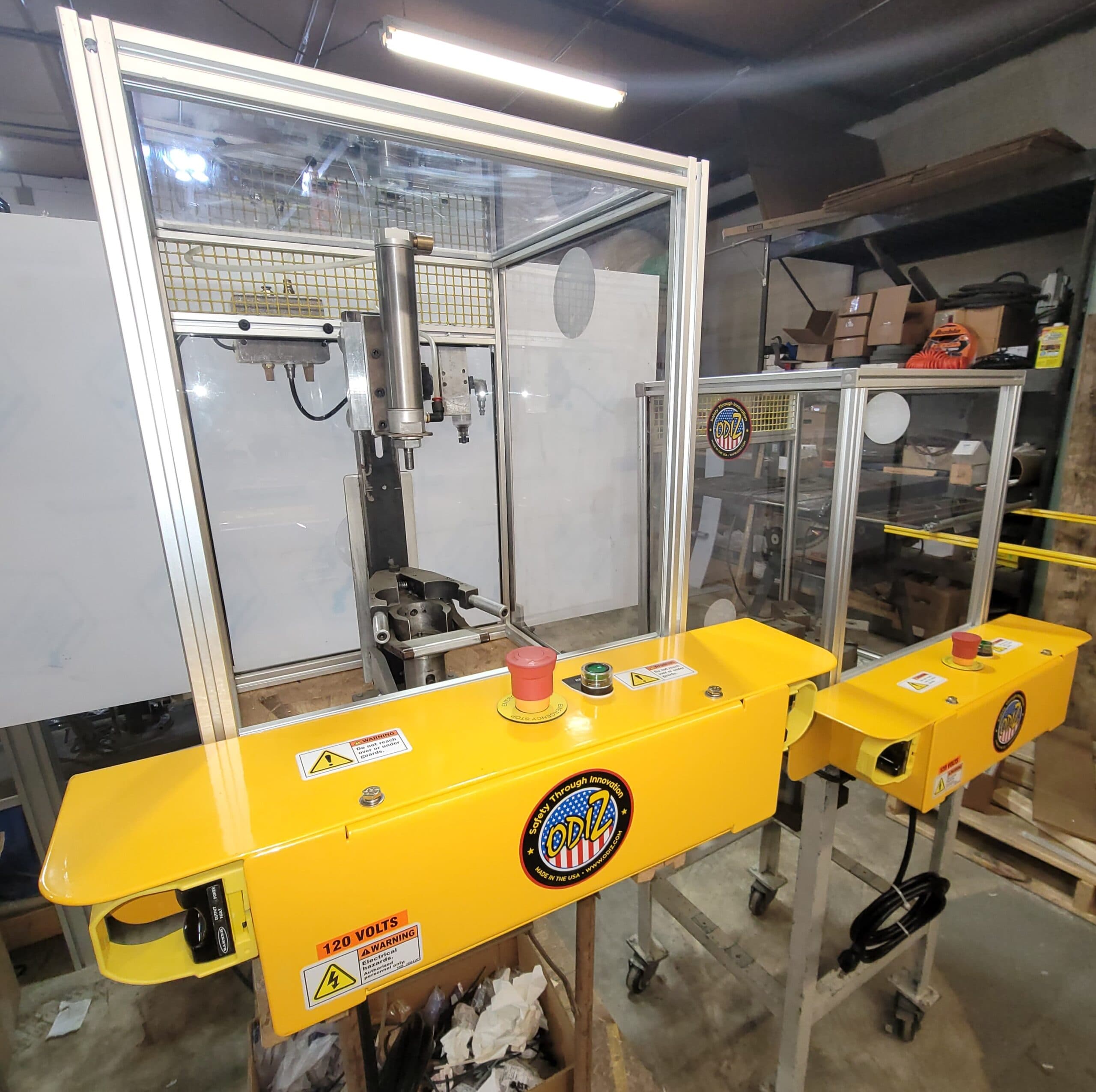

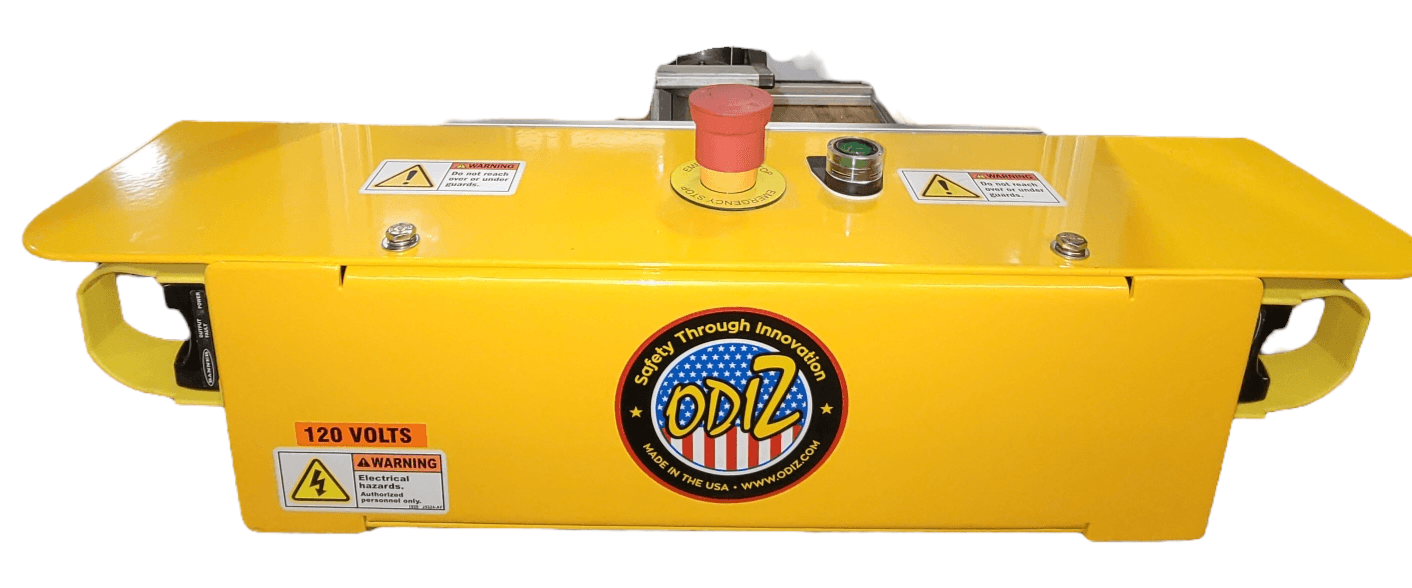

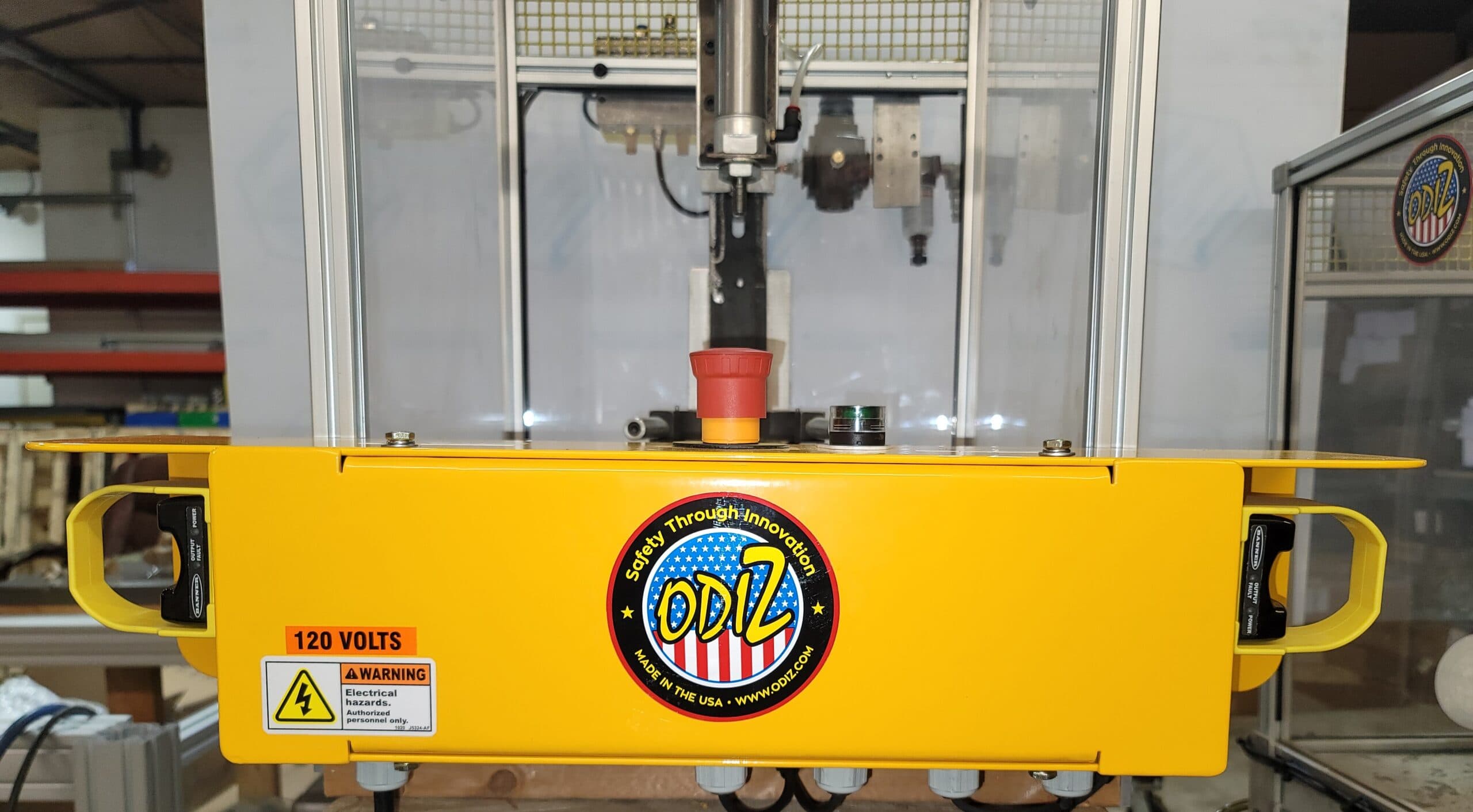

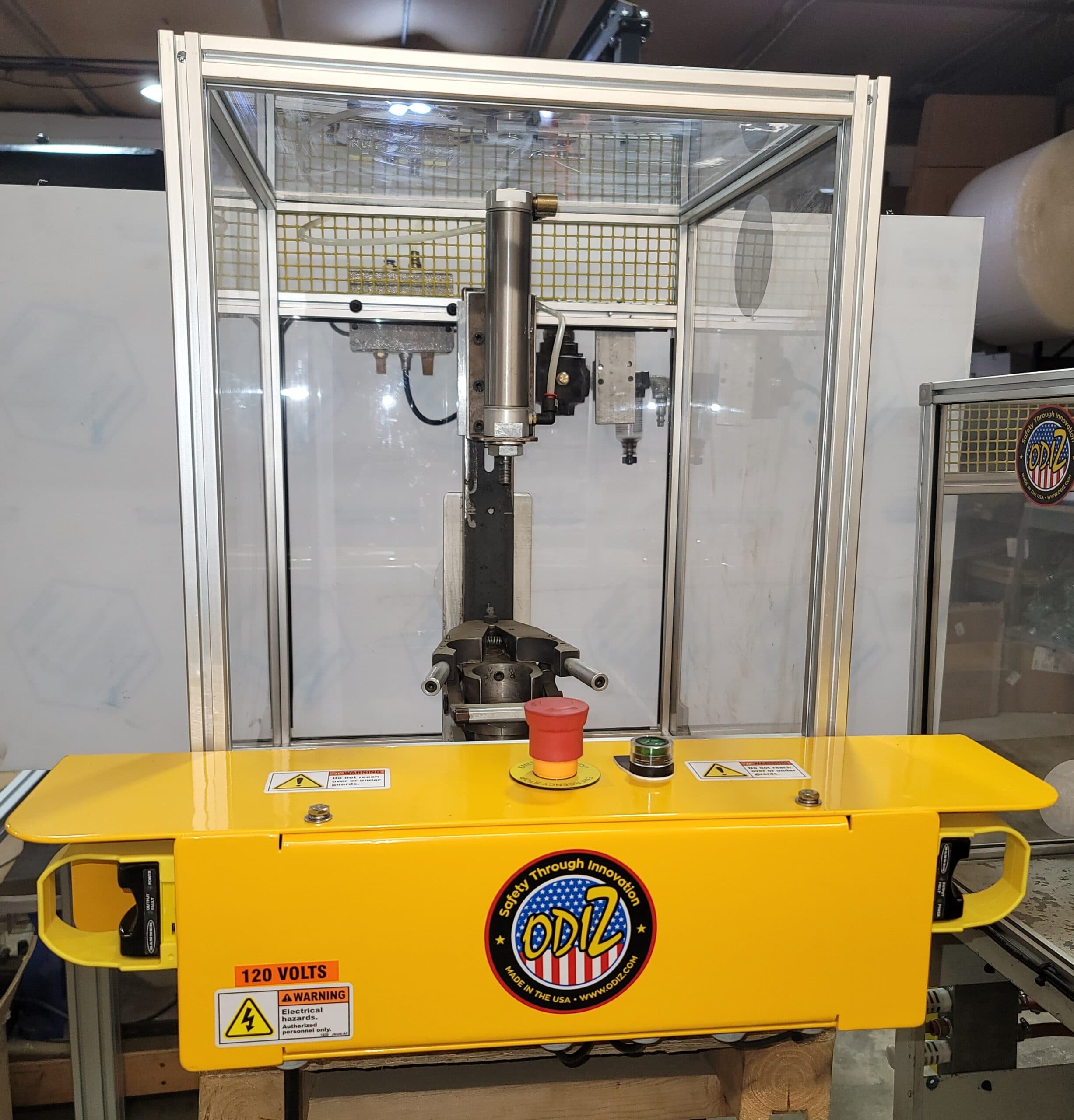

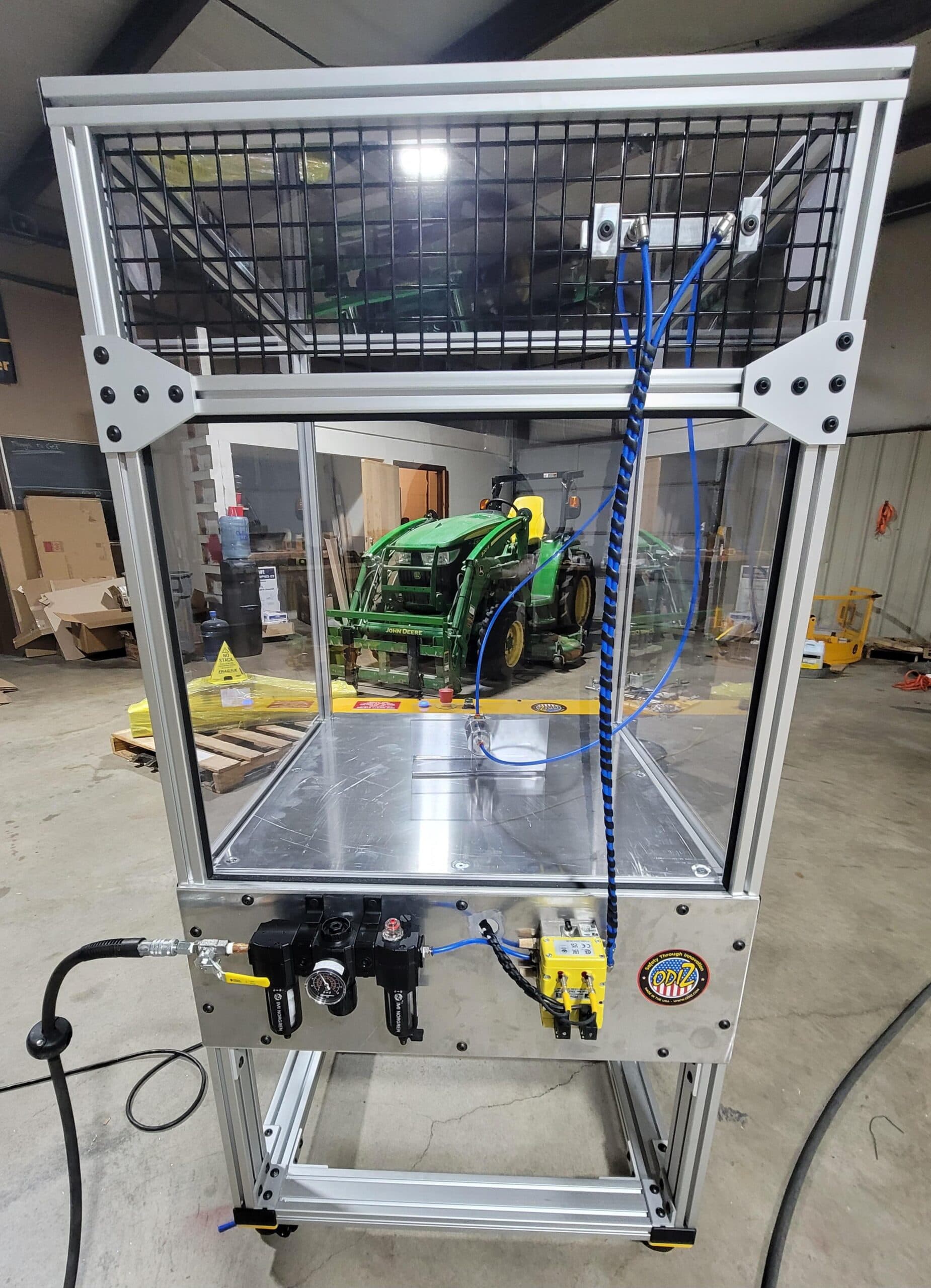

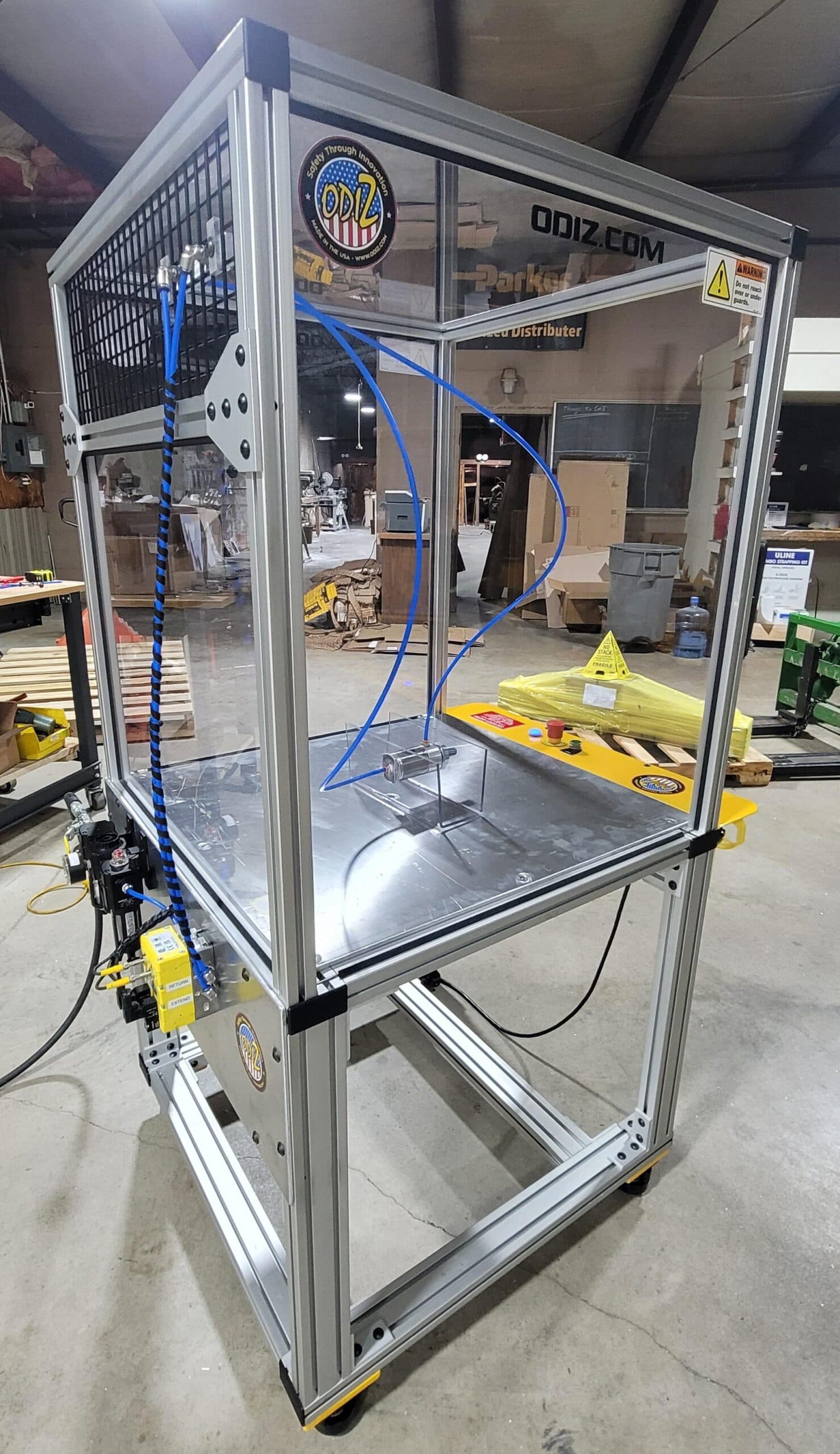

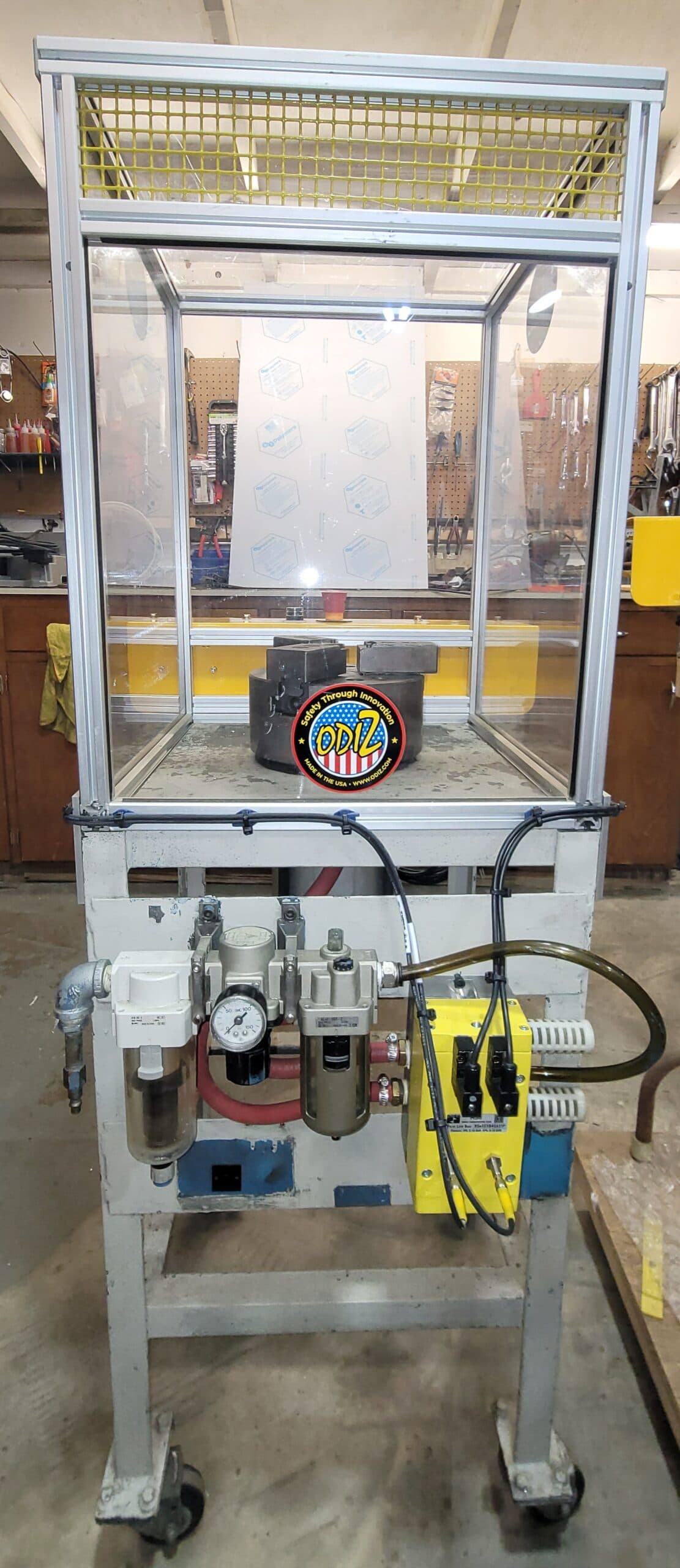

2 Hand Control Safety System

OSHA 1910.212 — General Requirements for All Machines

OSHA 29 CFR 1910.212 is the core machine guarding standard that applies to nearly all machinery in general industry.
It requires employers to provide guards and protective devices to shield workers from points of operation, rotating parts, in-running nip points, flying chips, sparks, and other hazards.
As a “catch-all” standard, OSHA 1910.212 is often cited when no specific machine regulation exists, making it one of the most frequently enforced provisions in Subpart O.

Key Guarding Requirements

• Point of Operation: Machines must be guarded so operators are not exposed to the point where the work is performed.
• Rotating & Moving Parts: Guards must cover exposed belts, pulleys, gears, shafts, and flywheels to prevent accidental contact.
• In-Running Nip Points: Hazards created where two parts rotate toward each other or where one part moves past a stationary object must be guarded.
• Flying Chips & Sparks: Guards or shields must contain debris, sparks, and fragments generated during machine operation.
• Anchoring: Machines designed for fixed location use must be securely anchored to prevent movement or tipping.

Examples of Machines Covered

Because OSHA 1910.212 is a broad standard, it applies to a wide range of equipment including drill presses, lathes, milling machines, conveyors, punch presses, saws, and grinders.
If a machine has moving parts that could injure a worker, 1910.212 requires guarding.

Common Violations

• Missing point-of-operation guards on presses or saws.
• Exposed belts, pulleys, or rotating shafts without guarding.
• Improperly adjusted or removed guards during production.
• Lack of anchoring on floor-mounted equipment.
• Failure to contain sparks or flying material in grinding, cutting, or drilling operations.

Why OSHA 1910.212 Matters

Machine guarding violations are consistently among OSHA’s top cited standards.
Without proper guards, workers face severe risks of crushed fingers, amputations, lacerations, and eye injuries.
Compliance with OSHA 1910.212 helps facilities protect employees, avoid costly citations, and establish safer production environments.

Relation to Other Standards

OSHA 1910.212 is a general requirement that works in tandem with OSHA 1910.215 (Abrasive Wheel Machinery)
and machine-specific rules under Subpart O. It also aligns with ANSI B11 machine safety standards,
which provide technical safeguarding criteria.

Compliance Checklist

• Install guards at the point of operation on all applicable machines.
• Cover all rotating parts, belts, pulleys, gears, and shafts.
• Guard in-running nip points created by rollers, belts, or chains.
• Provide shields for flying chips, sparks, or debris.
• Anchor floor-mounted machines to prevent shifting.
• Train employees to use machines only with guards in place.

Internal Linking Opportunities

• Cross-link to Lockout/Tagout (OSHA 1910.147) for energy control.
• Link to Abrasive Wheel Machinery (OSHA 1910.215) for grinder rules.
• Connect to ANSI B11 for machine safeguarding performance standards.
• Promote relevant machine guarding products, light curtains, and safety devices.

FAQ

OSHA 1910.212(a) — General Machine Guarding Requirements

OSHA 29 CFR 1910.212(a) defines the core safety principles for machine guarding in general industry.
It requires employers to protect workers from mechanical hazards created by points of operation, rotating components, in-running nip points, and flying chips or sparks.
This paragraph serves as the primary enforcement reference for machinery that does not have its own specific OSHA standard.

Scope and Purpose

The goal of 1910.212(a) is to prevent contact injuries, entanglement, crushing, and amputation by ensuring all hazardous machine motions are either guarded or controlled.
It applies to virtually all machinery used in manufacturing, maintenance, fabrication, and processing operations.

Key Guarding Principles

• Comprehensive Protection: Guards must cover any moving part or area that could cause injury through contact or ejection of material.
• Design Flexibility: Employers may choose fixed, adjustable, or interlocked guards, provided they effectively prevent worker exposure.
• Performance Standard: The rule is performance-based rather than prescriptive—meaning the employer must demonstrate that the guarding method eliminates or controls the hazard.
• Continuity of Protection: Guards must remain in place and secure during operation and be adjusted only when the machine is off and locked out.
• Applicability: This paragraph acts as a “catch-all” requirement whenever a machine presents a hazard not addressed by another OSHA provision.

Examples of Covered Hazards

Machines governed by 1910.212(a) include drill presses, milling machines, conveyors, polishing lathes, grinders, and mechanical cutters.
Hazards may include rotating shafts, reciprocating arms, cutting surfaces, or points where material is inserted or removed.

Compliance Practices

• Install guards that physically prevent access to moving parts.
• Inspect guards routinely for secure attachment and effectiveness.
• Ensure that guard openings prevent any part of the body from reaching the danger zone.
• Prohibit operation when guards are missing or removed.
• Train employees on safe operation, inspection, and maintenance of guarded machines.

Why OSHA 1910.212(a) Is Important

Most serious machinery accidents occur because guards are missing, removed, or inadequate.
Section (a) establishes the baseline requirements that form the foundation of all machine safeguarding programs.
Compliance not only prevents injuries and amputations but also ensures alignment with national consensus standards such as ANSI B11 and ISO 12100.

FAQ

OSHA 1910.212(a)(1) — General Duty to Guard Machines

OSHA 29 CFR 1910.212(a)(1) establishes the primary obligation to guard machinery in general industry.
It requires employers to implement one or more methods of guarding that protect both the operator and nearby employees from hazards created by points of operation, rotating parts, flying chips, sparks, or any other dangerous mechanical motions.

Scope and Intent

This paragraph serves as the foundation of all machine guarding enforcement.
It mandates that every machine presenting a mechanical hazard must be safeguarded through a combination of physical barriers or engineered safety devices.
The employer may choose the guarding method, but it must completely prevent employee exposure to the moving part or hazard zone during normal operation.

Acceptable Guarding Methods

• Fixed guards: Rigid barriers that prevent access to hazardous areas.
• Interlocked guards: Guards that automatically shut off or disengage the machine when opened or removed.
• Adjustable guards: Barriers that can be positioned for different operations but remain securely in place during use.
• Self-adjusting guards: Guards that move automatically into position as the operator works, covering the danger area as material is fed.
• Electronic safeguarding devices: Light curtains, pressure-sensitive mats, and presence sensors that prevent access to moving parts.

Key Compliance Requirements

• Guarding must protect both operators and nearby personnel.
• Guards must be securely attached and durable enough to resist normal operation and vibration.
• Openings in guards must be small enough to prevent accidental contact with moving parts.
• Guards must not introduce new hazards such as sharp edges, pinch points, or visibility obstruction.
• All guards must be kept in place and functional when machines are operating.

Common Violations

• Machines operating without guards over exposed belts, pulleys, gears, or shafts.
• Removed or bypassed barrier guards during production or maintenance.
• Improper guard materials or openings that allow hand or finger access to moving parts.
• Lack of guarding for nearby employees who may be struck by flying material or sparks.

Practical Compliance Tips

• Conduct a full hazard assessment for all equipment to identify points of operation and motion hazards.
• Install fixed guards wherever possible; use interlocked or adjustable guards only when process requirements demand it.
• Include guarding checks in your preventive maintenance program.
• Train operators to recognize unsafe conditions and never remove or modify guards.

Why OSHA 1910.212(a)(1) Is Important

This paragraph represents OSHA’s general duty clause for machinery safety.
Most machine-related injuries occur when guards are removed or missing, and OSHA 1910.212(a)(1) gives inspectors the authority to cite any unguarded moving part that poses a risk.
Compliance ensures that workers remain protected from crushing, entanglement, amputation, and impact injuries.

FAQ

OSHA 1910.212(a)(2) — General Requirements for Machine Guards

OSHA 29 CFR 1910.212(a)(2) establishes the design and construction standards for machine guards.
This provision requires that guards be securely fastened to the machine and designed to protect operators and nearby employees from injury caused by moving parts, flying debris, or accidental contact.
The intent is to ensure that guarding not only provides protection but also does not create new hazards in the process.

Key Guard Design Requirements

• Secure Attachment: Guards must be firmly attached to the machine. If fastening directly to the machine is not possible, guards must be securely mounted elsewhere to provide equal protection.
• Structural Integrity: Guards must be made of materials strong enough to resist impact, vibration, and normal wear during operation.
• No New Hazards: Guards must not introduce additional risks such as pinch points, sharp edges, or visibility obstruction.
• Durability: Guard materials must withstand operational stresses and environmental factors like heat, coolant, or debris.
• Accessibility: Guards should allow safe maintenance, lubrication, and adjustments without requiring complete removal when possible.

Performance Intent

The focus of 1910.212(a)(2) is performance-based guarding design.
OSHA does not prescribe specific guard materials or thicknesses; instead, the guard must perform effectively under real-world conditions.
Employers have the flexibility to design guards suited to their machines—as long as the guarding prevents contact and remains in place during operation.

Examples of Guard Types Covered

• Fixed guards enclosing belts, pulleys, gears, and rotating shafts.
• Interlocked guards that shut off power when opened or removed.
• Adjustable guards for variable-sized stock or cutting operations.
• Self-adjusting guards that move automatically with the workpiece.

Best Practices for Compliance

• Inspect guards regularly for looseness, cracks, or corrosion.
• Use guard materials that match the operational environment (e.g., metal for high-impact areas, polycarbonate for visibility).
• Train employees to recognize damaged or missing guards and to report deficiencies immediately.
• Ensure all guards are reinstalled and secured after maintenance or adjustments.

Common Violations

• Guards loosely attached or easily removable during operation.
• Improvised guards made from inadequate materials such as thin sheet metal or plastic covers.
• Guards with sharp edges or openings large enough to allow finger or hand access.
• Removed or bypassed guards not replaced before restarting the machine.

Why OSHA 1910.212(a)(2) Is Important

Even when a guard is present, poor design or weak construction can fail to protect workers.
OSHA 1910.212(a)(2) ensures that guards are engineered and maintained to perform effectively throughout a machine’s life cycle.
Properly designed guards prevent crushing, amputation, and laceration injuries while maintaining usability and productivity.

FAQ

OSHA 1910.212(a)(3) — Point of Operation Guarding

OSHA 29 CFR 1910.212(a)(3) sets forth the point of operation guarding requirements for machinery used in general industry.
The “point of operation” is the area on a machine where work is performed—such as cutting, shaping, boring, forming, or assembling a part.
This section requires that each machine have a guard or safeguarding device that prevents the operator from having any part of the body in the danger zone during operation.

Purpose and Scope

The purpose of 1910.212(a)(3) is to eliminate exposure to moving tools or dies that can cause crushing, amputation, laceration, or puncture injuries.
It applies to all machines with a point of operation hazard, regardless of size or industry.
Typical examples include presses, saws, milling machines, lathes, shears, and drills.

Key Requirements

• Every machine must be equipped with a guard that prevents the operator from reaching into the danger zone.
• Guards must be designed and constructed to provide maximum protection while allowing the machine to be operated safely and efficiently.
• Special hand tools may be used to handle materials when guarding at the point of operation is not practical.
• Guards must be securely fastened, maintained in place, and not easily removed or bypassed during operation.
• Safeguarding devices such as light curtains, presence-sensing devices, or two-hand controls may be used if they provide equivalent protection.

Examples of Point of Operation Hazards

• Cutting blades or rotating cutters that can amputate or lacerate fingers.
• Press dies or molds that can crush hands or fingers during operation.
• Drill bits, boring tools, or milling heads that can pierce or entangle body parts.
• Shearing or punching points that can sever material—and body parts—with the same force.

Acceptable Guarding Methods

• Fixed barrier guards enclosing the point of operation.
• Interlocked guards that stop machine motion when opened or removed.
• Adjustable or self-adjusting guards that move automatically to block access as material is fed.
• Two-hand controls requiring both hands to activate the cycle, keeping them out of danger.
• Electronic presence-sensing devices such as light curtains or safety mats that halt motion when triggered.

Common Violations

• Operating a machine with missing or disabled point of operation guards.
• Using hand-feeding where fixed or adjustable guards should be installed.
• Removing guards to increase production speed.
• Failure to provide safeguarding when machine design allows operator access to hazardous movement.

Compliance Tips

• Identify all machine points of operation and assess potential contact hazards.
• Install fixed guards where feasible; use engineered safety devices when full enclosure is not possible.
• Inspect all guards before each shift and re-secure after adjustments or maintenance.
• Train operators to recognize guarding deficiencies and to report missing or damaged safety devices immediately.

Why OSHA 1910.212(a)(3) Is Important

Point of operation injuries are among the most severe and preventable workplace incidents.
By enforcing 1910.212(a)(3), OSHA ensures that all machines have reliable guarding or safety devices that keep operators’ hands, fingers, and bodies outside the danger zone during work.
This rule remains one of the most frequently cited machine safety violations nationwide.

FAQ

OSHA 1910.212(a)(3)(i) — Guard Construction and Safety Design

OSHA 29 CFR 1910.212(a)(3)(i) outlines the design and performance requirements for point of operation guards.
This provision mandates that guards be designed and constructed so that no part of the operator’s body can enter the danger zone while the machine is in use.
It ensures guards are not merely present, but effective in eliminating exposure to mechanical hazards.

Purpose and Intent

The purpose of this section is to establish functional performance criteria for machine guards, rather than prescribing specific materials or configurations.
The employer has flexibility in choosing a guarding method, but the chosen system must physically prevent entry into the danger zone during operation and must withstand normal working conditions.

Key Guard Design Requirements

• Complete Coverage: The guard must fully enclose or block access to the hazard area where the operation takes place.
• Strength and Rigidity: Guards must be strong enough to resist mechanical stress, vibration, and accidental impact without failure or displacement.
• Visibility: Guards should allow clear observation of the work area when necessary, using materials such as mesh or transparent panels.
• Secure Installation: Guards must be firmly attached so they cannot be easily removed, loosened, or bypassed during operation.
• Usability: The guard must allow normal machine operation, feeding, and maintenance without creating additional hazards.

Examples of Guard Types Meeting 1910.212(a)(3)(i)

• Fixed steel enclosures surrounding the cutting or forming area.
• Interlocked access doors that stop the machine when opened.
• Transparent polycarbonate guards providing visibility and protection.
• Barrier guards with restricted openings preventing hand or arm entry.

Common Compliance Errors

• Using lightweight or flexible materials that can deform and allow contact.
• Guards not secured tightly to the machine or easily removed without tools.
• Guard openings large enough to allow finger or hand access to the danger zone.
• Guards that obstruct visibility or require removal for normal operation.

Best Practices

• Design guards that exceed minimum strength requirements and resist bending or vibration.
• Test guard designs under real operating conditions to ensure reliability and protection.
• Use standardized opening-size tables to determine acceptable distances between guards and hazards based on reach limitations.
• Document guard inspection results and repair or replace any that show wear, damage, or looseness.
• Train operators and maintenance staff on safe use and adjustment procedures for all guarding systems.

Why OSHA 1910.212(a)(3)(i) Is Important

Many guarding failures occur not because guards are absent, but because they are poorly designed or improperly installed.
OSHA 1910.212(a)(3)(i) ensures that guarding methods perform their intended function—keeping the operator’s body completely outside the danger zone while allowing safe, productive operation.
Proper guard design is the first line of defense against amputations, lacerations, and entanglement injuries.

FAQ

OSHA 1910.212(a)(3)(ii) — Guard Requirements for Special Hand Tools

OSHA 29 CFR 1910.212(a)(3)(ii) addresses the limited use of special hand tools in machine operations where fixed guarding cannot be used effectively.
This provision allows tools such as tongs, holders, or push sticks to assist in feeding or removing materials from the point of operation.
However, these tools must be designed and used in a way that ensures the operator’s hands remain completely outside the danger zone at all times.

Purpose and Intent

This section acknowledges that some machine operations—particularly stamping, bending, or forming—require close access to the point of operation that cannot be guarded with a fixed barrier.
In these situations, OSHA allows specially designed tools that provide functional reach and control while maintaining operator safety.

Key Requirements

• Special hand tools may be used only when physical guards are impractical or interfere with machine function.
• Tools must be designed so the operator’s hands remain outside the danger zone during all stages of operation.
• Use of tools does not eliminate the requirement for other forms of safeguarding such as two-hand controls, interlocks, or presence-sensing devices.
• Tools must be maintained in good condition and replaced if damaged, worn, or unable to provide adequate reach and control.

Examples of Acceptable Hand Tools

• Holding tongs or pliers for feeding or removing parts from presses.
• Push sticks or push blocks for guiding materials through saws or shapers.
• Hook tools for retrieving small components or debris from guarded areas.
• Custom-designed fixtures that keep hands clear of the operating zone while positioning material.

Limitations and Restrictions

• Hand tools must not substitute for required guards when fixed or adjustable guards are feasible.
• Operators must never use bare hands to feed or remove materials from hazardous areas.
• Tools must be used as designed; makeshift extensions or altered devices are prohibited.
• Employers must ensure that workers are trained in the safe use, inspection, and replacement of these tools.

Common Violations

• Using standard pliers or hand-held items not intended for guarding purposes.
• Failing to provide special tools when physical guards are impractical.
• Allowing operators to use damaged or shortened tools that reduce reach and control.
• Assuming hand tools alone provide compliance when other safeguarding measures are required.

Best Practices

• Provide each operator with properly sized and designed hand tools for specific machines.
• Inspect and replace tools regularly to ensure safety and performance.
• Combine tool use with engineering controls such as two-hand trips or light curtains whenever possible.
• Establish written procedures and training programs outlining when and how special hand tools may be used.

Why OSHA 1910.212(a)(3)(ii) Is Important

This paragraph recognizes that total enclosure of some machine points of operation is not always feasible.
By regulating the use of special hand tools, OSHA provid

OSHA 1910.212(a)(3)(iii) — Guard Design for Operator Safety

OSHA 29 CFR 1910.212(a)(3)(iii) establishes the performance criteria for guard design and construction.
It requires that every machine guard be designed, built, and installed so that it effectively protects the operator from injury during machine operation.
This provision emphasizes that guard design must be functional, durable, and capable of providing full protection throughout the equipment’s use.

Purpose and Intent

The intent of 1910.212(a)(3)(iii) is to ensure that guarding effectiveness is not compromised by poor design or materials.
Even when a machine has guards, operators can still be injured if those guards fail under stress, vibration, or improper installation.
OSHA requires that guards maintain their protective function under all normal operating conditions.

Key Design Requirements

• Strength and Durability: Guards must resist impact, vibration, and deformation caused by routine use and environmental conditions.
• Secure Mounting: Guards must be firmly attached and cannot be easily removed, bypassed, or displaced during normal operation.
• Ergonomic Function: Guards should be designed to allow normal operation and maintenance without creating awkward or unsafe postures.
• Visibility: When feasible, guards should permit observation of the operation to ensure quality and alignment without removal.
• No New Hazards: Guard edges and surfaces must be smooth, free from sharp corners, and designed not to introduce new pinch points or catch hazards.

Acceptable Guarding Examples

• Fixed metal guards enclosing belts, pulleys, and gears.
• Transparent guards made of high-strength polycarbonate for visibility and impact resistance.
• Interlocked access doors that automatically shut off the machine when opened.
• Barrier guards preventing reach into moving parts while allowing visual monitoring.

Common Compliance Issues

• Guards that loosen or vibrate during machine operation, reducing protection.
• Materials that crack, warp, or deteriorate under heat or chemical exposure.
• Improperly designed openings that allow finger or hand access to moving parts.
• Guards that must be removed to complete normal adjustments or feeding.

Best Practices for Compliance

• Select guard materials suitable for the specific machine environment (e.g., metal for impact resistance, polycarbonate for visibility).
• Incorporate secure mounting brackets and fasteners that prevent accidental removal.
• Follow design guidelines for minimum safe distances between guard openings and hazard zones.
• Inspect and test guards periodically for wear, looseness, and stability under normal vibration and operation.
• Document guard designs, materials, and inspections as part of your facility’s machine safety program.

Why OSHA 1910.212(a)(3)(iii) Is Important

Even the best guarding concepts fail if the physical construction is inadequate.
OSHA 1910.212(a)(3)(iii) ensures that all guards are engineered for real-world performance, protecting operators and maintenance personnel from the severe hazards of rotating, cutting, or crushing machinery.
By emphasizing design integrity, this section reinforces the need for reliable, tested, and properly installed guarding systems that remain effective throughout the life of the equipment.

FAQ

OSHA 1910.212(a)(3)(iv) — Machines That Usually Require Point-of-Operation Guarding

OSHA 29 CFR 1910.212(a)(3)(iv) provides a representative list of machines that usually require point-of-operation guarding because their normal operation exposes employees to cutting, crushing, shearing, or amputation hazards at the point where work is performed on the material. This list helps employers quickly identify equipment where a guard or safeguarding device is typically necessary to prevent hand, finger, or body entry into danger zones.

Machines Typically Requiring Point-of-Operation Guards

• Guillotine cutters
• Shears
• Alligator shears
• Power presses
• Milling machines
• Power saws
• Jointers
• Portable power tools

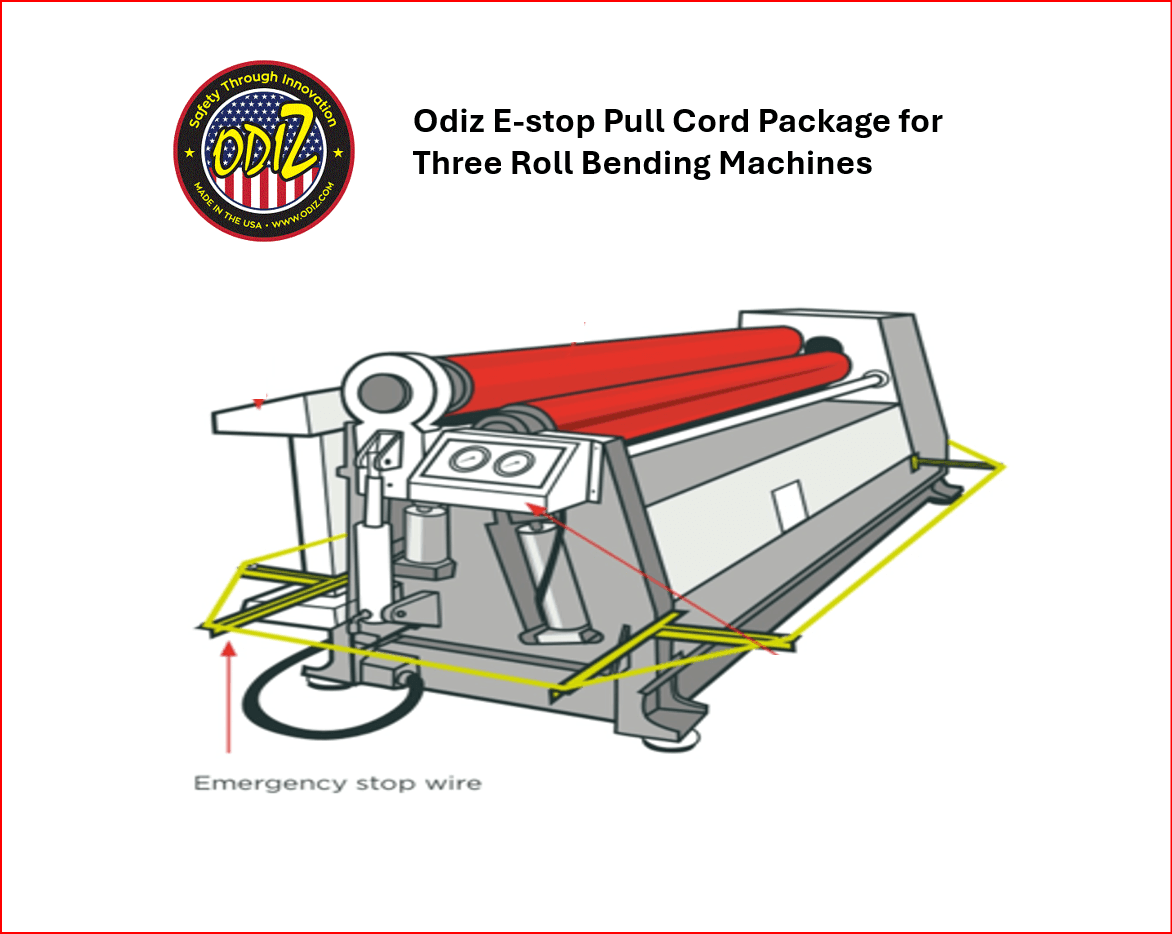

• Forming rolls and calenders

These examples are drawn directly from OSHA’s regulatory text and are not exhaustive; any machine that exposes an employee to injury at the point of operation must be guarded. :contentReference[oaicite:0]{index=0}

What “Usually Requires” Means

The phrase “usually require” signals that, in typical use, these machines present recognized hazards at the point of operation. Employers must evaluate the actual setup and task. If exposure exists, the machine must have effective guarding or safeguarding devices that prevent entry into the danger zone during operation.

Guarding Outcomes to Achieve

• Physical separation: A fixed, adjustable, or interlocked guard prevents hand or finger access to the tool or die during the cycle.
• Maintained protection: Guarding remains secure and effective during vibration, normal wear, and routine adjustments.
• No new hazards: The guard’s construction does not introduce sharp edges, additional pinch points, or visibility issues that compromise safety.

Implementation Tips

• Perform a documented hazard assessment for each machine and task to confirm point-of-operation exposure.
• Use fixed guards where feasible; supplement with interlocks, two-hand controls, presence-sensing devices, or special hand tools only as appropriate.
• Verify guard opening sizes and safety distances so that fingers or hands cannot reach the hazard during operation.
• Inspect guards at startup and after any adjustment or maintenance; remove machines from service if guards are missing or ineffective.
• Train operators to recognize point-of-operation hazards and to never bypass or remove guarding.

FAQ

OSHA 1910.212(a)(3)(iv)(b) — Shears

Under OSHA 29 CFR 1910.212(a)(3)(iv)(b), shears are among the equipment types that “usually require point-of-operation guarding” because their operation typically presents significant hazards at the cut zone.
Shears, which cut material by a downward blade motion or sliding blade action, create high risk of hand or finger entrapment, lacerations, and amputations if not properly guarded.

Why Shears Require Point-of-Operation Guarding

• Cutting motion hazard: The shearing action of the blades converging presents a direct risk of severing.
• High force application: Shears often apply substantial force to cut material, increasing potential injury severity.
• Operator feed zone: Material is typically fed manually into the shear’s point of operation, creating exposure unless guard/interlock is in place.
• Pinch & crush points: In addition to blade exposure, hold-down clamps or back-gauges may expose workers to pinch points.

Typical Safeguarding Methods for Shears

• Fixed or adjustable barrier guards: To block access to the blade area during cutting, sized to prevent hand entry.
• Interlocked guard doors or gates: Stops the machine if the guard is opened or removed before the cycle completes.
• Two-hand controls or two-hand tripping devices: Forces operator’s hands to be away from the blade when a cut is initiated.
• Presence-sensing devices and light curtains: For operations where manual feeding is necessary but still must ensure no body part enters the danger zone.
• Back-gauge or hold-down clamp guarding: Shields the operator from pinch or crush hazards behind the blades or under the clamp.

Best Practice Compliance Checklist for Shears

• Verify the blade area is fully guarded during the entire cutting cycle.
• Ensure the guard prevents hand, finger, or body entry at any point of operation motion.
• Check that any guard openings are sized to prevent access to the hazard zone and do not introduce new hazards (sharp edges, pinch points).
• Confirm that interlocks, two-hand controls, or presence-sensing devices are in place and functioning correctly.
• Inspect hold-down clamp and back-gauge mechanisms to ensure they’re guarded and do not permit reach-behind entry.
• Document and test the safeguarding system prior to operation, especially after maintenance or blade changes.

FAQ

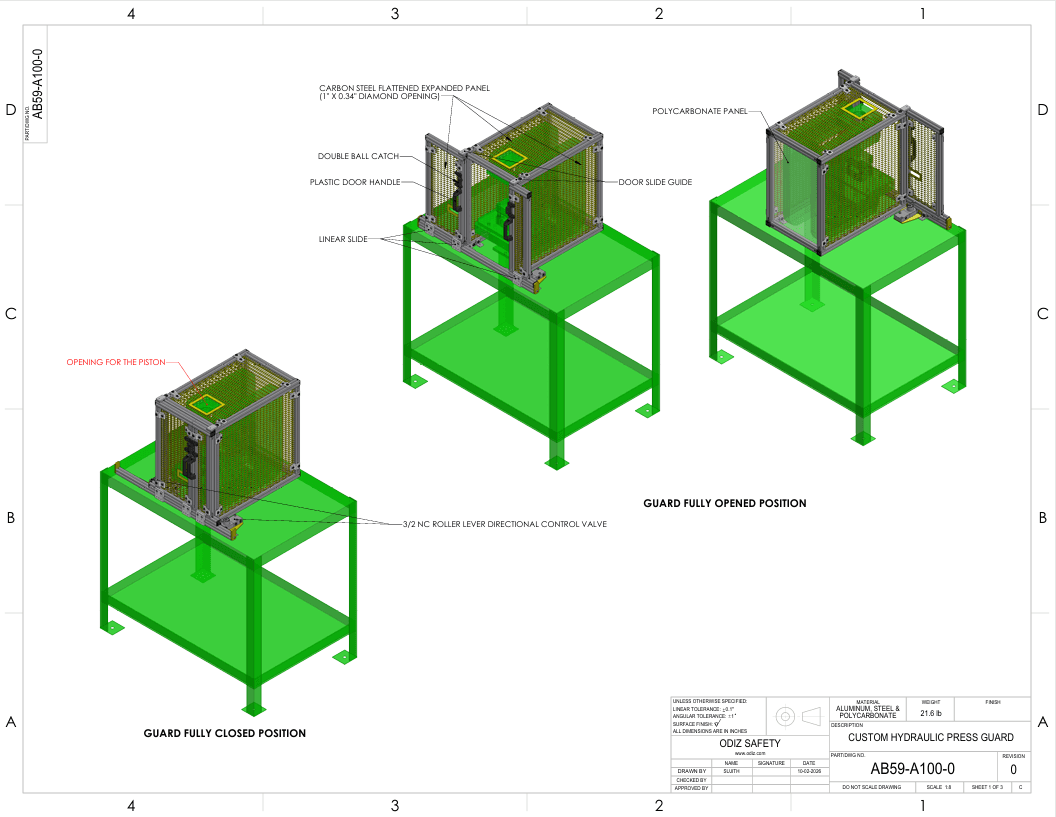

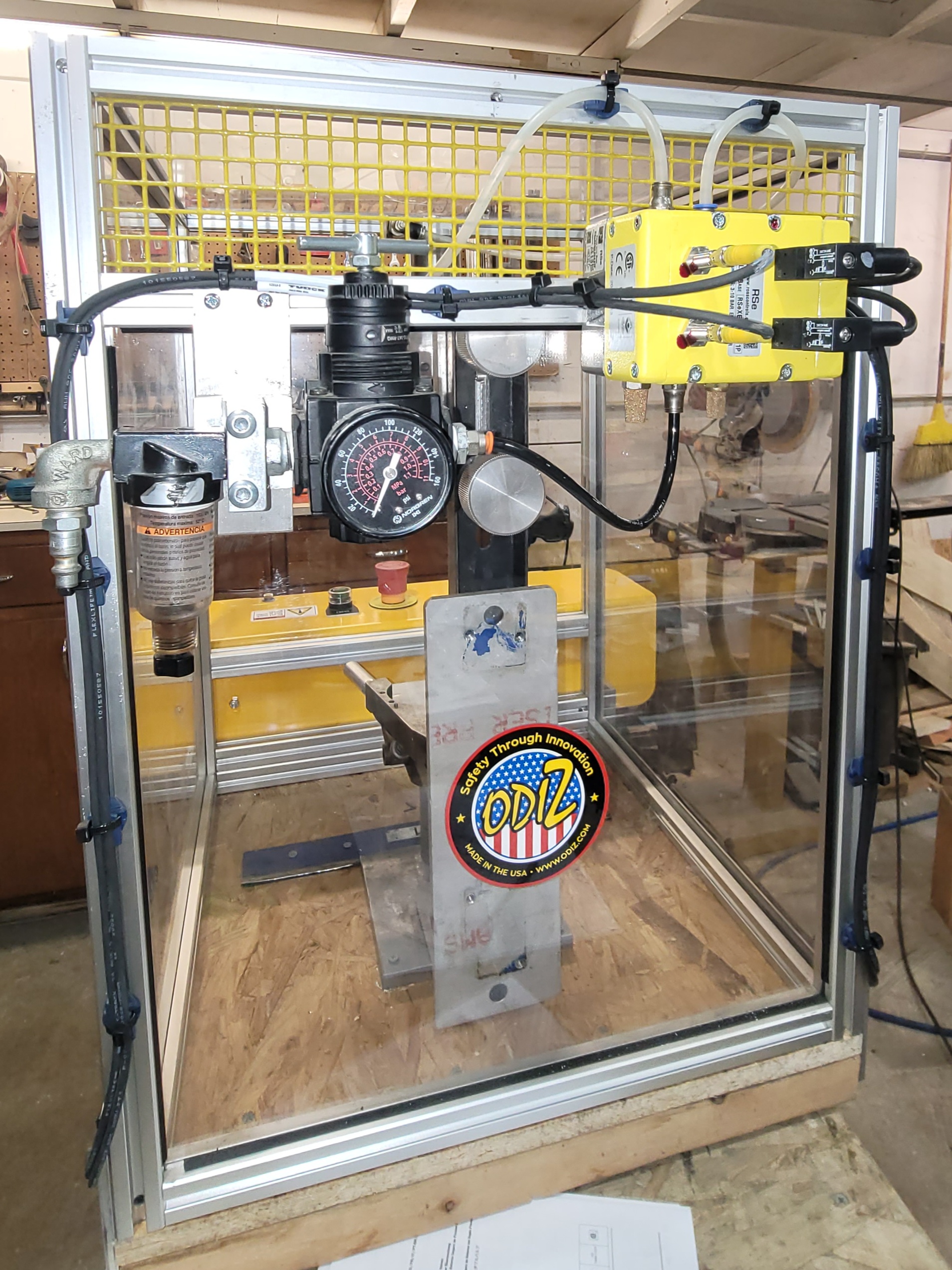

OSHA 1910.212(a)(3)(iv)(d) — Power Presses

OSHA 29 CFR 1910.212(a)(3)(iv)(d) lists power presses among the machines that usually require point-of-operation guarding.
Power presses—whether mechanical, hydraulic, or pneumatic—use high force and rapid motion to punch, form, or shape metal and other materials.
Because the operator often works close to the die area, these machines present one of the highest risks of amputation, crushing, and pinch-point injuries in manufacturing.

Understanding the Hazard

The point of operation on a power press is where the upper die or ram descends to meet the lower die or workpiece.
Any body part entering this zone during cycling can be instantly crushed or severed.
OSHA requires employers to use physical guards or safeguarding devices that eliminate the possibility of hand or finger entry while the press is in motion.

Primary Safeguarding Methods for Power Presses

• Fixed barrier guards: Enclose the die area with openings too small for hand or finger access.
• Adjustable barrier guards: Allow different stock sizes while maintaining full coverage of the hazard zone.
• Interlocked barrier guards: Prevent press cycling unless the guard is closed; opening it stops motion immediately.
• Presence-sensing devices (light curtains): Stop the press stroke if the sensing field is interrupted before the die closes.
• Two-hand controls: Require the operator to press two buttons simultaneously to cycle the press, ensuring both hands are outside the danger zone.
• Pull-backs or restraint devices: Physically remove or restrict the operator’s hands from entering the die space during the stroke.

Design and Performance Requirements

• Safeguards must prevent any part of the body from entering the point of operation during the downstroke.
• Guards must be durable, securely attached, and tamper-resistant.
• Safeguarding devices must be fail-safe—a failure should stop the machine, not allow cycling.
• Controls must include anti-tie-down and anti-repeat features so operators cannot bypass protection.
• Emergency stop controls must be accessible and tested regularly.

Types of Power Presses Covered

• Mechanical stamping presses
• Hydraulic forming presses
• Pneumatic or air-powered presses
• Flywheel-driven punch presses
• Brake presses used for bending and forming

Common Violations

• Operating presses without point-of-operation guards or safety devices installed.
• Disabled or bypassed interlocks and light curtains.
• Failure to perform required safety device inspections and die-setting checks.
• Inadequate control reliability or anti-repeat functions.
• Improper use of hand tools instead of engineering controls for feeding or removing material.

Best Practices for Compliance

• Install and maintain engineered safeguarding—avoid relying solely on work rules or procedures.
• Conduct daily safety checks of guards, light curtains, and two-hand controls before production begins.
• Train die setters and operators on control system function, safe distances, and response testing.
• Inspect and document safety system function after every die change or maintenance event.
• Lockout and tag out power sources before clearing jams or making adjustments.

Related Considerations

In addition to 1910.212(a)(3)(iv)(d), OSHA maintains a specific standard—1910.217, Mechanical Power Presses—that details inspection, maintenance, and control reliability requirements for these machines.
Section 1910.212 remains applicable to all press types, including hydraulic and pneumatic models not covered by 1910.217, reinforcing the need for comprehensive point-of-operation safeguarding.

Why OSHA 1910.212(a)(3)(iv)(d) Is Important

Power presses are among the leading sources of workplace amputations in metal fabrication and stamping.

ANSI B11 — Machine Safety & Machine Tool Standards

The ANSI B11 standards series comprises a robust framework for machinery and machine tool safety. It addresses risk assessment, design, guarding, control systems, risk reduction measures, and installation and maintenance of machines. Although not regulatory law, B11 standards are widely referenced by industry and used to interpret OSHA’s machine guarding rules (e.g. 29 CFR 1910.212). :contentReference[oaicite:2]{index=2}

Structure of the B11 Family

The B11 family is organized into three types of standards:

• Type A (Basic Safety Standards): e.g. ANSI B11.0 defines general concepts, terminology, risk assessment, and safety principles. :contentReference[oaicite:3]{index=3}
• Type B (Generic Safety Standards): These address safeguarding methods, performance, or safety aspects used across machines (for example, B11.19—Performance Criteria for Safeguarding). :contentReference[oaicite:4]{index=4}
• Type C (Machine-Specific Standards): Focused on individual machines or categories (e.g. B11.1 for power presses, B11.9 for grinding machines, B11.10 for sawing machines). :contentReference[oaicite:5]{index=5}

Core Themes & Provisions

• Risk Assessment / Reduction: B11 emphasizes identifying hazards, assessing risk, selecting and validating protective measures, and verifying that risk is reduced to acceptable levels. :contentReference[oaicite:6]{index=6}
• Safeguarding Methods: Fixed guards, interlocked guards, presence sensors, two-hand controls, light curtains, etc., are all covered with performance criteria. :contentReference[oaicite:7]{index=7}
• Performance Criteria: Guards and safety devices must meet minimum response times, strength, durability, fail-safe behavior, and integration with control systems. :contentReference[oaicite:8]{index=8}
• Safety in Existing (“Legacy”) Equipment: B11 encourages adaptation of older machines via retrofitting or supplementary safeguarding where feasible. :contentReference[oaicite:9]{index=9}
• Design, Modification & Integration: Covers requirements for design, safe modifications, wiring, control logic, maintenance access, risk during changeover, and system integration. :contentReference[oaicite:10]{index=10}

Relation to OSHA & Enforcement Context

OSHA itself does not mandate ANSI B11 by law, but OSHA’s machine guarding standards allow referencing consensus standards like B11 for technical interpretation. For example, OSHA’s eTool on machine guarding lists ANSI B11 standards as guidance resources. :contentReference[oaicite:11]{index=11}
Many safety professionals use B11 standards to design compliant machine guards and safety systems that satisfy both OSHA rules and best practices.

Common Substandards in the Series

• ANSI B11.0 — Safety of Machinery (baseline, risk methodology) :contentReference[oaicite:12]{index=12}
• ANSI B11.19 — Performance Criteria for Safeguarding (applies across many machines) :contentReference[oaicite:13]{index=13}
• ANSI B11.1 / B11.2 / B11.3 — Press, hydraulic, brake machines :contentReference[oaicite:14]{index=14}
• ANSI B11.10 — Metal sawing machines :contentReference[oaicite:15]{index=15}
• ANSI B11.9 — Grinding machines (ties into OSHA 1910.215 & 1910.213) :contentReference[oaicite:16]{index=16}

Internal Linking & Application Ideas

• Link to child categories like ANSI B11.0, ANSI B11.19, ANSI B11.9 (Grinding), etc.
• Cross-link to your OSHA machine guarding pages, e.g. OSHA 1910.212 General Machine Guarding.
• Link to safety device and guarding product pages: light curtains, interlocked guards, protective covers, control systems.

FAQ

ANSI B11.0 — Safety of Machinery

The ANSI B11.0 standard (Safety of Machinery) is the foundational “Type A” standard of the B11 series of American National Standards for machine safety.
It is intended to apply broadly to power-driven machines (new, existing, modified or rebuilt) and to machinery systems, not portable tools held in the hand. :contentReference[oaicite:0]{index=0}
ANSI B11.0 provides the essential framework: definitions, lifecycle responsibilities, risk assessment methodology, acceptable risk criteria, and guidance for using Type-C standards in conjunction with this general standard. :contentReference[oaicite:1]{index=1}

Scope & Purpose

ANSI B11.0-2020 covers machines and machinery systems used for material processing, moving or treating when at least one component moves and is actuated, controlled and powered. :contentReference[oaicite:2]{index=2}
The standard’s purpose is to help suppliers, integrators, and users of machinery identify hazards, estimate and evaluate risks, and implement sufficient risk reduction to achieve an “acceptable risk” level. :contentReference[oaicite:3]{index=3}
It also clarifies responsibilities across the machine lifecycle (supplier, user, modifier) and addresses legacy equipment, prevention through design (PtD) and use of alternative methods for energy control. :contentReference[oaicite:4]{index=4}

Key Concepts & Requirements

• Terminology & Definitions: Establishes key machine-safety terms (e.g., machine, hazard zone, safeguarding, risk, risk reduction). :contentReference[oaicite:5]{index=5}
• Risk Assessment Methodology: Describes how to identify hazards, estimate risk severity and probability, evaluate risk, and decide on corrective safeguards. :contentReference[oaicite:6]{index=6}
• Risk Reduction Principles: Focuses on designing out hazards, applying engineered controls, administrative controls and PPE only when higher-level measures aren’t feasible. :contentReference[oaicite:7]{index=7}
• Lifecycle Approach: Applies to design, construction, installation, commissioning, operation, maintenance, modification and dismantling of machines. :contentReference[oaicite:8]{index=8}
• Use of Type-C Standards: ANSI B11.0 explains how to use machine-specific Type-C standards (e.g., B11.9 for grinding machines) together with this standard for full compliance. :contentReference[oaicite:9]{index=9}

Why It Matters

ANSI B11.0 sets the groundwork for safe machine design and use. Without a consistent foundational standard, machine-specific standards may lack coherence or completeness in hazard control.
By following B11.0, manufacturers and users can build robust safety programs, ensure they cover all phases of machine use (including legacy equipment), and demonstrate that hazard identification, risk assessment and risk reduction are performed systematically.
Because the standard is widely referenced by regulatory authorities and industry best practices, compliance strengthens both safety performance and regulatory defensibility.

Relationship to OSHA & Other Standards

Although ANSI B11.0 is a voluntary consensus standard and not a regulation, it is widely acknowledged as “recognized and generally accepted good engineering practice (RAGAGEP)”.
Regulatory bodies like the Occupational Safety and Health Administration (OSHA) reference the B11 series for technical guidance in areas like machine guarding (e.g., 29 CFR 1910.212) and risk assessment. :contentReference[oaicite:11]{index=11}
Furthermore, ANSI B11.0 aligns with the international standard ISO 12100 (Safety of Machinery — General Principles for Design — Risk Assessment and Risk Reduction) but adds U.S.-specific supplier/user responsibilities and lifecycle responsibilities. :contentReference[oaicite:13]{index=13}

FAQ

B11.1 — Safety Requirements for Mechanical Power Presses

The B11.1 standard (Safety Requirements for Mechanical Power Presses) is part of the B11 machinery safety series and applies specifically to mechanically-powered machine tools commonly referred to as mechanical power presses. :contentReference[oaicite:0]{index=0}
These machines transmit force to cut, form or assemble metal or other materials using tools or dies attached to or operated by slides. :contentReference[oaicite:1]{index=1}
B11.1-2009 (R2020) is the most recent edition referenced for this machine category. :contentReference[oaicite:2]{index=2}

Scope & Exclusions

B11.1 applies to mechanical power presses but explicitly excludes many other types of presses and machines, such as hydraulic or pneumatic presses, forging presses and hammers, cold-headers, iron workers, metal shears, and portable hand tools. :contentReference[oaicite:3]{index=3}

Key Safety Topics Addressed

• Guarding of point of operation: Ensuring that the point where the press performs its work is safeguarded so operator hands or fingers cannot enter during a cycle. :contentReference[oaicite:4]{index=4}
• Control systems & safe operation: Two-hand controls, interlocks, presence-sensing devices (PSDI), and safe mode selection are part of the standard’s focus. :contentReference[oaicite:5]{index=5}
• Risk assessment, modification & lifecycle responsibilities: The standard recognizes that presses may be modified or rebuilt and requires that changes maintain or improve safety performance. :contentReference[oaicite:6]{index=6}
• Training & competency: Operators and maintenance personnel must be trained and demonstrate competence in safe operation of mechanical power presses. :contentReference[oaicite:7]{index=7}
• Auxiliary and system hazards: Modern press systems include feeding, transfers, automation, and robots; B11.1 addresses safeguarding beyond just the press itself. :contentReference[oaicite:8]{index=8}

Why It Matters

Mechanical power presses are high-energy machines with potential for serious injuries such as amputations, crush injuries, and ejection of parts or tooling. By following B11.1, manufacturers and employers adopt a recognized baseline for safe design, safeguarding and operation of these presses. It also supports compliance with regulatory frameworks (such as Occupational Safety and Health Administration (OSHA) requirements) by providing technical detail not always present in regulation. :contentReference[oaicite:10]{index=10}

Relation to Regulation & Best Practices

Although B11.1 is a voluntary standard, OSHA’s mechanical power press standard (29 CFR 1910.217) is based on earlier editions of B11.1 and acknowledges its usefulness in interpreting safe practices. :contentReference[oaicite:11]{index=11}
Many safety professionals view B11.1 as the “recognized and generally accepted good engineering practice” (RAGAGEP) for mechanical power press safety.

FAQ

B11.15 — Safety Requirements for Bar, Pipe, Tube & Shape Bending Machines

The B11.15 standard (Safety Requirements for Bar, Pipe, Tube and Shape Bending Machines) applies to power-driven machines that bend bar, pipe, tube or other shaped material by means of bending dies, clamp or pressure dies, mandrels, wiper dies, vertical or horizontal bending punches, radius dies, wing dies, and associated tooling. :contentReference[oaicite:0]{index=0}

Scope & Exclusions

The most recent version, B11.15-2022, extends the standard’s coverage to machines designed for bending bar, pipe, tube, and shapes. :contentReference[oaicite:1]{index=1}
Excluded from the standard are machines such as bench presses, hydroforming machines, forging presses, four-slide machines, mechanical presses, roll benders and roll formers, and assembly machines. :contentReference[oaicite:2]{index=2}

Key Safety Topics Addressed

• Machine design & construction: Emphasizing structural stability, appropriate guarding of hazard zones, and control of high-force bending operations.
• Guarding & safeguarding: Requirements for guarding bending dies, clamp systems, pinch points, feed and exit systems, and material ejection paths.
• Installation, commissioning & maintenance: Safe installation practices, pre-start-up testing, tool change and maintenance procedures, and lifecycle responsibilities for suppliers and users.
• Operation & safe use: Procedures for setup, adjustment, changeover, and safe operation of both manual and automated bending machines to minimize exposure to hazards.
• Feeding, forming & auxiliary systems: Safeguards for feed mechanisms, material handling, automation, and integration of the bending machine into the production line context.

Why It Matters

Machines used to bend bar, pipe, tube and shapes operate under high force and involve moving feed mechanisms, rotating tooling, material transfer, and potential ejection or entrapment hazards.
Complying with B11.15 supports the use of recognized engineering practices to reduce risks of crush injuries, amputations, entanglement, and thrown material.
It also aligns safety design with broader machinery safety requirements such as those in B11.0 – Safety of Machinery.

Relation to Other Standards

While B11.15 is a voluntary consensus standard, it is part of the broader B11 family of machine safety standards and serves as technical guidance for machine-specific safeguarding. Regulatory bodies such as Occupational Safety and Health Administration (OSHA) recognize the B11 series as authoritative references for machine guarding practice. :contentReference[oaicite:4]{index=4}

FAQ

B11.16 — Safety Requirements for Powder/Metal Compacting Presses

The B11.16 standard (Safety Requirements for Powder/Metal Compacting Presses – ANSI B11.16-2014, R2020) addresses machines designed, modified, or converted for the purpose of compressing metallic or non-metallic powders (often called PM presses). :contentReference[oaicite:0]{index=0}
These presses may be mechanical, hydraulic, or direct drive. The standard is intended to help eliminate injuries by specifying safety requirements for machine construction, safeguarding, operation and maintenance. :contentReference[oaicite:1]{index=1}

Scope & Exclusions

B11.16 applies to powder-metal compacting presses including mechanical, hydraulic or direct drive machines used to compress powders into “green” compacts, or re-size/coining operations of pre-compacted parts. :contentReference[oaicite:2]{index=2}
The standard excludes machine types such as conventional power presses, forging presses, hammer-type machines, bulldozers, compactors and other high energy rate presses not used for powder compaction. :contentReference[oaicite:3]{index=3}

Key Safety Topics Addressed

• Supplier and User Responsibilities: Defines roles of machine builders (suppliers), integrators/modifiers and end-users in design, installation, maintenance and training. :contentReference[oaicite:4]{index=4}
• Risk Assessment & Lifecycle Management: Requires a risk assessment process to evaluate hazards throughout the machine lifetime: design, installation, operation, maintenance, modification and decommissioning. :contentReference[oaicite:5]{index=5}
• Guarding & Safeguarding of the Point of Operation: The point where powder is compacted presents pinch, crush and ejection hazards; B11.16 mandates safeguarding to prevent operator exposure. :contentReference[oaicite:6]{index=6}
• Control Systems & Safe Operation: Machines must include appropriate control functions, protective devices, safe start/stop and changeover procedures specific to the compaction process. :contentReference[oaicite:7]{index=7}
• Inspection, Maintenance & Modification: Users must ensure that maintenance, setup or modification doesn’t degrade safety performance; press rebuilds must be treated as new machines with updated safeguards. :contentReference[oaicite:8]{index=8}

Why It Matters

Powder-metal compacting presses operate under high force, compressing powders into parts, and often involve feed systems, ejection mechanisms, automated operations and high-cycle production. Without proper safeguards these machines pose serious risks: operator crush or amputation, part or tooling ejection, malfunction during maintenance or setup.
By following B11.16, machine builders and users adopt a recognized engineering approach to reduce these risks, align with “recognized and generally accepted good engineering practice” (RAGAGEP) and support compliance with broader machine-safety frameworks.

Relationship to Other Standards

Although B11.16 is a voluntary consensus standard, it is part of the broader ANSI B11 machine-safety series. It complements the general standard B11.0 – Safety of Machinery and generic safeguarding standard B11.19 – Performance Criteria for Safeguarding. Regulatory bodies such as the Occupational Safety and Health Administration (OSHA) reference B11 standards for technical guidance in machine guarding compliance. :contentReference[oaicite:10]{index=10}

FAQ

B11.17 — Safety Requirements for Horizontal Hydraulic Extrusion Presses

The B11.17 standard (Safety Requirements for Horizontal Hydraulic Extrusion Presses — including the ANSI B11.17-2004 (R2009) edition) applies to horizontal hydraulic presses that extrude metals by applying sufficient pressure to a metal billet confined in a container and forcing the metal through a die. :contentReference[oaicite:0]{index=0}
The standard covers major system components including the hydraulic power system, main force application cylinder and ram, material loading mechanisms, tooling, shearing or cut-off mechanisms, and any part of the extrusion press system that is integral to the process. :contentReference[oaicite:1]{index=1}

Scope & Machine Types

B11.17 applies specifically to horizontal hydraulically powered extrusion presses—i.e., machines configured for horizontal metal extrusion processes. :contentReference[oaicite:2]{index=2}
It does *not* apply to presses used for other forming, forging, stamping, or vertical extrusion machines.

Key Safety Topics Addressed

• Machine design and construction: Ensures structural integrity of frames, containment systems for high pressure operations, and safe integration of process shears and tooling.
• Guarding and safeguarding: Covers the extrusion ram area, container loading/unloading zones, die openings, shear mechanisms, tooling change zones and automatic feed systems, reducing risks of operator contact, ejection or entrapment.
• Control systems & safe operation: Requires proper control logic, safe start-up/shutdown, interlocks, emergency stops, and procedures for tooling changeovers and maintenance in high energy systems.
• Lifecycle responsibilities: Addresses supplier, integrator and user obligations for installation, commissioning, maintenance, modification, retrofit and decommissioning of extrusion press systems.
• Maintenance, inspection & modification: Emphasizes that any modification or rebuild must maintain or improve safety performance and must follow risk assessment and verification per the standard.

Why It Matters

Horizontal hydraulic extrusion presses operate under extremely high forces and pressures, involve heavy tooling, complex feeding/handling systems and material ejection hazards. Without proper safeguards, they present severe risks of crush injuries, amputation, tooling or billet ejection, hydraulic failures or containment breaches.
Adhering to B11.17 helps manufacturers and users adopt best practice engineering and safeguarding methods to reduce such risks, support compliance with “recognized and generally accepted good engineering practice” (RAGAGEP), and align with regulatory expectations for machine safety.

Relation to Other Standards

Although B11.17 is a voluntary consensus standard, it forms part of the broader machinery safety series (B11) and supports the general safety framework found in B11.0 – Safety of Machinery and the generic safeguarding standard B11.19 – Performance Criteria for Safeguarding. Regulatory agencies such as the Occupational Safety and Health Administration (OSHA) list B11-series standards as guidance documents for machine guarding enforcement. :contentReference[oaicite:4]{index=4}

FAQ

B11.2 — Safety Requirements for Hydraulic & Pneumatic Power Presses

The B11.2 standard (ANSI B11.2-2013 (R2020)) establishes safety requirements for machines powered by hydraulic or pneumatic systems that transmit force to cut, form, or assemble metal or other materials by means of tools or dies attached to or operated by plungers or slides. :contentReference[oaicite:0]{index=0}
It defines the obligations of machine builders, modifiers, integrators, and users across the machine life-cycle—from design, installation and commissioning to operation, maintenance, modification and dismantling.

Scope & Exclusions

This standard applies only to hydraulic or pneumatic power presses—commonly referred to as “hydraulic/pneumatic power presses”. :contentReference[oaicite:1]{index=1}
It explicitly excludes other machines such as mechanical power presses, powdered-metal presses, horizontal hydraulic extrusion presses, metal shears, pipe or tube bending machines, and other equipment where the principal force transmission is not hydraulic or pneumatic. :contentReference[oaicite:2]{index=2}

Key Safety Topics Addressed

• Risk Assessment & Lifecycle Responsibility: Requires that hazards associated with hydraulic/pneumatic presses are identified and evaluated, and that risk-reduction measures are applied throughout the machine lifecycle. :contentReference[oaicite:3]{index=3}
• Design & Construction of Press Systems: Ensures structural integrity, proper platen or slide design, safe closure, appropriate tooling attachment and safe ejection or unloading of workpieces or scrap.
• Guarding & Safeguarding of Point of Operation: Defines how operators must be separated or protected from the hazardous zones (such as the closure area of the slide/platen) using guards, interlocks or presence-sensing devices. :contentReference[oaicite:4]{index=4}
• Control Systems & Safe Operation: Requires that hydraulic/pneumatic circuits controlling hazardous motion be designed to meet safety-reliability criteria (e.g., preventing a single fault from losing the safety function). :contentReference[oaicite:5]{index=5}
• Modification, Maintenance & Retrofit: If a press is modified or rebuilt, it must be treated on the same basis as a new machine—risk-assessment revalidation, safeguarding updates, and verification of performance. :contentReference[oaicite:6]{index=6}

Why It Matters

Hydraulic and pneumatic power presses operate with high forces, require reliable control of motion, and possess unique hazards associated with fluid power systems (unexpected motion, leakage, contamination, high pressure, slide/ram ejection).
By following B11.2, manufacturers and users adopt recognized good engineering practice for design and safe use of these presses—and help demonstrate alignment with industry consensus safety standards and machine-safeguarding expectations.
The standard is also cited by regulatory bodies (for example Occupational Safety and Health Administration (OSHA) mentions B11.2 in its rulemaking notice for power presses). :contentReference[oaicite:8]{index=8}

Relation to Other Standards

Although B11.2 is voluntary, it is part of the broader B11 series of machine-safety standards and should be used in conjunction with:

• B11.0 – Safety of Machinery: General risk assessment and machine-safety terminology and methodology.
• B11.19 – Performance Requirements for Risk Reduction Measures: Performance criteria for guarding and control systems.
• Machine-specific guidance or other Type C standards if relevant (though B11.2 is itself a Type C standard for hydraulic/pneumatic presses).

FAQ

B11.20 — Safety Requirements for Integrated Manufacturing Systems

The B11.20 standard (Safety Requirements for Integrated Manufacturing Systems – ANSI B11.20-2017) applies to systems of two or more machines that are linked by material handling and jointly controlled to manufacture, treat, move or package discrete parts or assemblies. :contentReference[oaicite:0]{index=0}
The standard recognizes that when individual machines are integrated into a system, new hazards and risks arise that may not be addressed by machine-specific (Type C) standards. :contentReference[oaicite:1]{index=1}

Scope & Key Concepts

This standard covers the safety requirements for the design, construction, installation, set-up, operation, maintenance, modification and decommissioning of Integrated Manufacturing Systems (IMS). :contentReference[oaicite:2]{index=2}
An IMS is defined by the standard as a system that:

• Incorporates two or more industrial machines that can operate independently, and are intended for manufacturing, treatment, movement or packaging of discrete parts or assemblies. :contentReference[oaicite:3]{index=3}
• Is linked by a material handling system. :contentReference[oaicite:4]{index=4}
• Is interconnected by one or more control systems for coordinated operation. :contentReference[oaicite:5]{index=5}

Risk & Hazards Introduced by Integration

While each machine may have its individual safeguards, when combined into an IMS, the system can have new hazards such as:

• Shared zones where operator interaction or maintenance occurs across machine boundaries. :contentReference[oaicite:6]{index=6}
• Synchronized or inter-dependent machine motions creating unexpected exposure. :contentReference[oaicite:7]{index=7}
• Complex control logic and “special modes” of operation (e.g., setup, maintenance, override) that require distinct safety validation. :contentReference[oaicite:8]{index=8}
• Material handling or transfer systems that may bypass the standard guarding of individual machines. :contentReference[oaicite:9]{index=9}

Key Safety Topics & Requirements

• Layout and zone analysis: The 2017 edition of B11.20 introduces new definitions such as “control zone”, “task zone”, and refines “hazard zone” and “span of control” to align with ISO 11161. :contentReference[oaicite:10]{index=10}
• Special Modes: The standard defines “special mode” as any additional mode of operation introduced by integration (e.g., remote set-up, robotic access) and requires that these modes be included in the system’s risk assessment. :contentReference[oaicite:11]{index=11}
• Risk assessment & lifecycle responsibility: Suppliers, integrators and users must each fulfil defined responsibilities over the lifecycle of the IMS—from design through decommissioning. :contentReference[oaicite:12]{index=12}
• Use of other B11 standards: The standard emphasises that IMS safety must be implemented in conformity with foundational standards like B11.0 (risk assessment) and B11.19 (performance criteria for risk-reduction measures). :contentReference[oaicite:13]{index=13}

Why It Matters

As manufacturing becomes increasingly automated and integrated, arbitrary linking of machines, conveyors, robots, feeders and control systems can create hazard scenarios that are not covered by traditional single-machine safety standards.
B11.20 helps ensure that the system is treated as a *new machine* with its own hazards and that the safety design reflects the complexity of integration. :contentReference[oaicite:14]{index=14}
Implementing B11.20 facilitates better coordination between machine builders, integrators and end-users, reduces risk of injuries from complex automation, and aids in demonstrating recognized good engineering practice.

Best Practice Implementation Tips

• When designing or retrofitting an IMS, include layout/zone analysis early to identify control zones, task zones and hazard zones per B11.20. :contentReference[oaicite:15]{index=15}
• Ensure that the risk assessment covers all modes of operation—including automatic production, manual setup, maintenance, override or robot intervention. :contentReference[oaicite:16]{index=16}
• Coordinate safety-related control systems across machines, feeders, conveyors and robots so that an integrated safety circuit or architecture is verified as per B11.19 and B11.20. :contentReference[oaicite:17]{index=17}
• Document tasks, human access zones, and shared space between machines—particularly for maintenance or operator intervention zones. Incorporate access control or presence sensing as needed. :contentReference[oaicite:18]{index=18}
• Use the standard’s annexes (e.g., Annex D for layout analysis) and align your documentation with lifecycle phases: design, installation, commissioning, operation, maintenance, modification, decommissioning. :contentReference[oaicite:19]{index=19}

FAQ

B11.3 — Safety Requirements for Power Press Brakes

The B11.3 standard (ANSI B11.3-2012 (R2020)) applies to machines classified as power press brakes — machines designed specifically to bend material by use of a ram, dies, tooling and associated feed/back-gauge systems. :contentReference[oaicite:0]{index=0}
Its primary objective is to eliminate, control or reduce hazards to individuals associated with power press brake use throughout the machine lifecycle. :contentReference[oaicite:1]{index=1}

Scope & Exclusions

B11.3 applies exclusively to press brakes—machines furnished for bending material (sheet, plate, etc.) by means of fixed or moving dies. :contentReference[oaicite:2]{index=2}
The standard specifically excludes mechanical power presses, hydraulic or pneumatic power presses (for other press types), powered folding machines, hand brakes, tangent benders, apron brakes and similar machines. :contentReference[oaicite:3]{index=3}

Key Safety Topics Addressed

• Point of operation safeguarding: Protecting the operator and helper from the die-closing area, material feed zones, back gauges and other pinch/crush hazards. :contentReference[oaicite:4]{index=4}
• Control modes & actuation systems: The standard distinguishes machine types (general-purpose vs special-purpose) and specifies required controls such as interlocks, two-hand controls, safe-speed, anti-repeat, single-stroke capability for certain machines. :contentReference[oaicite:5]{index=5}
• Safe distance & alternative safeguarding methods: Where fixed guards are not feasible, the standard allows “safe distance” methods under specific conditions—but as guidance requires methods to be substantiated. :contentReference[oaicite:6]{index=6}
• Die changeover, setup, maintenance & mode transitions: Requires safe practices for tooling installation, maintenance lock-out, guarding during non-production modes, and verification after modification or retrofit. :contentReference[oaicite:7]{index=7}
• Lifecyle and responsibility allocation: The standard addresses roles and obligations of machine builders/suppliers, integrators or modifiers, and users/owners in design, installation, operation, maintenance, modification and decommissioning. :contentReference[oaicite:8]{index=8}

Why It Matters

Power press brakes are high-force machines used in bending operations; they involve ram motion, tooling change, material feed/back-gauge, and potential exposure of hands or other body parts to pinch, crush, or ejection hazards.
Because of the variety in press-brake configurations (mechanical, hydraulic, servo) and workpiece handling methods, B11.3 gives a structured framework so employers and machine builders can apply recognized engineering practices to guard them effectively. :contentReference[oaicite:9]{index=9}

Practical Implementation Tips

• Perform a risk assessment specific to the press brake: consider material size/thickness, tooling change frequency, back-gauge accessibility, operator posture during loading/unloading.
• Identify machine type (general-purpose vs special-purpose) and ensure control system meets the standard’s requirement for that category (e.g., anti-repeat, safe-speed, two-hand control etc.).
• Evaluate guarding options: fixed barriers, adjustable guards, presence-sensing devices, two-hand controls, safe-speed monitoring. If barrier is infeasible, document justification for “safe-distance” method under the conditions allowed by the standard. :contentReference[oaicite:10]{index=10}
• Calculate or validate stopping time of the ram and safe distance if presence-sensing/light curtain is used; maintain records of stop-time measurements, testing and training. :contentReference[oaicite:11]{index=11}
• Train operators and maintenance personnel: focus on load/unload hazards, die changeover, back-gauge interaction, feeding methods, reach-in hazards, and safe practices when override or maintenance mode is used. :contentReference[oaicite:12]{index=12}
• Upon machine modification, rebuild or retrofit, treat the machine as effectively new: re-validate risk assessment, safeguards, controls, training and documentation. :contentReference[oaicite:13]{index=13}

B11.4 — Safety Requirements for Shears

The B11.4 standard (ANSI B11.4-2003 (R2020)) pertains to shears that are mechanically, hydraulically, hydro-mechanically or pneumatically powered, and that utilise a fixed blade(s) and a non-rotary moving blade for the shearing action. :contentReference[oaicite:0]{index=0}
It applies to machines used for metal shearing (e.g., squaring shears, crop shears, right-angle shears, non-rotary slitting shears) when the machine meets the defined configuration. :contentReference[oaicite:1]{index=1}

Scope & Exclusions

The standard covers machines used for shearing material by one fixed and one moving non-rotary blade (with a constant rake for a stroke) as used in stand-alone, automatic or process-line shears. :contentReference[oaicite:2]{index=2}
Excluded from B11.4 are: slitting-rotary shears, nibblers, coil slitters, portable hand tools, rotary-blade slitters and shears, alligator shears, angle bar/beam/channel shears, notching machines and manually powered “jump” shears. :contentReference[oaicite:3]{index=3}

Key Safety Topics Addressed

• Point of operation and hold-down guarding: The standard defines the shear’s point of operation and includes hazards associated with blade movement, workpiece ejection, and hold-down devices. :contentReference[oaicite:4]{index=4}
• Safeguarding methods: Requirements for barrier guards adjustable to stock thickness, presence sensing devices, two-hand controls or other safe-distance/protection methods. :contentReference[oaicite:5]{index=5}
• Stock handling & feed systems: Safe design of feed/infeed/outfeed zones, operator access, material ejection hazards, and ensuring the operator cannot reach into the danger zone during the cycle. :contentReference[oaicite:6]{index=6}
• Maintenance, setup & modification: Safe procedures for blade change, hold-down maintenance, guarding inspection, and when machines are modified or rebuilt they must be treated as new for risk assessment. :contentReference[oaicite:7]{index=7}
• Life-cycle responsibilities: The roles of machine builders/suppliers, integrators/modifiers, and users/owners in design, installation, commissioning, operation, maintenance, modification and decommissioning are clearly defined. :contentReference[oaicite:8]{index=8}

Why It Matters

Shears present serious hazards including crush, pinch, amputation, and ejection of workpieces — especially when stock is manually fed, hold-downs clamp with high force, and blade motion is fast and powerful. Guarding and control measures must prevent access to the danger zone and ensure safe operation during all modes. :contentReference[oaicite:9]{index=9}
By applying B11.4’s structured framework, manufacturers and users can apply recognized good engineering practice in shear design and safeguarding, support compliance with general machine guarding obligations (e.g., in OSHA 29 CFR 1910.212) and reduce risk of injury. :contentReference[oaicite:11]{index=11}

Practical Implementation Tips

• Conduct a specific task-based risk assessment: include stand-alone, automatic, and process-line shear operation; manual feed, automatic feed, maintenance and clean-up modes.
• Ensure blade guards and hold-down guards adjust for minimum stock thickness to prevent finger access — verify the guard is secured and runs with the blade. :contentReference[oaicite:12]{index=12}
• Assess operator reach distances and ensure presence-sensing, two-hand control or safe-distance systems are used when barrier guarding is impractical. :contentReference[oaicite:13]{index=13}
• Inspect ejection zones behind the shear and equivalent paths — implement fencing or barricades to prevent pedestrian access behind the drop zone. :contentReference[oaicite:14]{index=14}
• When modifying or rebuilding a shear (for example changing blade size, feeding mechanism, automation retrofits) treat the machine as new: re-validate risk assessment, update safeguarding and maintain documentation. :contentReference[oaicite:15]{index=15}

B11.5 — Safety Requirements for Ironworkers

The B11.5 standard (ANSI B11.5-1988 (R2020)) applies to combination, multipurpose powered machines commonly referred to as “ironworkers” — machines that punch, shear, notch, cope or form metal or other materials. :contentReference[oaicite:0]{index=0}

Scope & Application

This standard covers machines which perform two or more of the functions: punching, shearing, notching, coping and forming. :contentReference[oaicite:1]{index=1}
Excluded from the scope are machines such as alligator shears, bar shears, billet shears, manually powered machines, nibblers, portable hand tools and portable machines. :contentReference[oaicite:2]{index=2}

Key Safety Topics Addressed

• Construction, reconstruction & modification: Defines responsibilities for machine builders and owners when constructing or modifying ironworker machines — ensuring structural strength, safe control systems and appropriate guarding. :contentReference[oaicite:3]{index=3}
• Safeguarding the point of operation: Requires guards or devices to prevent access to punching, shearing, notching, coping stations while they are in operation. :contentReference[oaicite:4]{index=4}
• Care, installation & maintenance: Specifies installation practices, training requirements, inspection, maintenance documentation, start-up and shutdown procedures. :contentReference[oaicite:5]{index=5}
• Use requirements: Covers safe work practices for operators and employers — emphasizes training, maintaining guarding, safe feeding of material, avoiding reach-in during motion. :contentReference[oaicite:6]{index=6}

Why It Matters

Ironworker machines combine multiple high-energy operations (punching, shearing, notching, forming) and thus create significant hazards including pinch, shear, crush, entanglement, ejection of parts, and uncontrolled motion. By following B11.5, machine builders and users can adopt recognized engineering practices to guard these complex machines, thereby reducing risk of injury and supporting safe machine usage.

Practical Implementation Tips

• Identify all work stations on the machine (punch, shear, notch, form) and ensure each is safeguarded appropriately — guards, presence sensing, interlocks or other means.
• Train operators in machine-specific hazards: for example, feeding heavy plate into the shearing station or punching operations, and ensure safe material handling to avoid reaching into hazard zones.
• Maintain maintenance records, inspections, and verify that any modifications or rebuilds of the machine trigger a re-evaluation of safeguarding, just as if the machine were new.
• Ensure feeding and ejection zones are designed so operators are clear of hazard during automatic motion, and check for proper guarding or barriers behind shearing or cutting zones where material may eject or fall.
