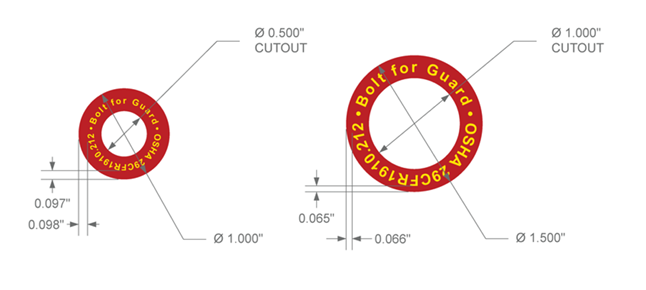

Tool Tight Guard Bolt Sticker per OSHA CFR1910.219

OSHA 1910.212 — General Requirements for All Machines

OSHA 29 CFR 1910.212 is the core machine guarding standard that applies to nearly all machinery in general industry.
It requires employers to provide guards and protective devices to shield workers from points of operation, rotating parts, in-running nip points, flying chips, sparks, and other hazards.
As a “catch-all” standard, OSHA 1910.212 is often cited when no specific machine regulation exists, making it one of the most frequently enforced provisions in Subpart O.

Key Guarding Requirements

• Point of Operation: Machines must be guarded so operators are not exposed to the point where the work is performed.
• Rotating & Moving Parts: Guards must cover exposed belts, pulleys, gears, shafts, and flywheels to prevent accidental contact.
• In-Running Nip Points: Hazards created where two parts rotate toward each other or where one part moves past a stationary object must be guarded.
• Flying Chips & Sparks: Guards or shields must contain debris, sparks, and fragments generated during machine operation.
• Anchoring: Machines designed for fixed location use must be securely anchored to prevent movement or tipping.

Examples of Machines Covered

Because OSHA 1910.212 is a broad standard, it applies to a wide range of equipment including drill presses, lathes, milling machines, conveyors, punch presses, saws, and grinders.
If a machine has moving parts that could injure a worker, 1910.212 requires guarding.

Common Violations

• Missing point-of-operation guards on presses or saws.
• Exposed belts, pulleys, or rotating shafts without guarding.
• Improperly adjusted or removed guards during production.
• Lack of anchoring on floor-mounted equipment.
• Failure to contain sparks or flying material in grinding, cutting, or drilling operations.

Why OSHA 1910.212 Matters

Machine guarding violations are consistently among OSHA’s top cited standards.
Without proper guards, workers face severe risks of crushed fingers, amputations, lacerations, and eye injuries.
Compliance with OSHA 1910.212 helps facilities protect employees, avoid costly citations, and establish safer production environments.

Relation to Other Standards

OSHA 1910.212 is a general requirement that works in tandem with OSHA 1910.215 (Abrasive Wheel Machinery)
and machine-specific rules under Subpart O. It also aligns with ANSI B11 machine safety standards,
which provide technical safeguarding criteria.

Compliance Checklist

• Install guards at the point of operation on all applicable machines.
• Cover all rotating parts, belts, pulleys, gears, and shafts.
• Guard in-running nip points created by rollers, belts, or chains.
• Provide shields for flying chips, sparks, or debris.
• Anchor floor-mounted machines to prevent shifting.
• Train employees to use machines only with guards in place.

Internal Linking Opportunities

• Cross-link to Lockout/Tagout (OSHA 1910.147) for energy control.
• Link to Abrasive Wheel Machinery (OSHA 1910.215) for grinder rules.
• Connect to ANSI B11 for machine safeguarding performance standards.
• Promote relevant machine guarding products, light curtains, and safety devices.

FAQ

OSHA 1910.212(a) — General Machine Guarding Requirements

OSHA 29 CFR 1910.212(a) defines the core safety principles for machine guarding in general industry.
It requires employers to protect workers from mechanical hazards created by points of operation, rotating components, in-running nip points, and flying chips or sparks.
This paragraph serves as the primary enforcement reference for machinery that does not have its own specific OSHA standard.

Scope and Purpose

The goal of 1910.212(a) is to prevent contact injuries, entanglement, crushing, and amputation by ensuring all hazardous machine motions are either guarded or controlled.
It applies to virtually all machinery used in manufacturing, maintenance, fabrication, and processing operations.

Key Guarding Principles

• Comprehensive Protection: Guards must cover any moving part or area that could cause injury through contact or ejection of material.
• Design Flexibility: Employers may choose fixed, adjustable, or interlocked guards, provided they effectively prevent worker exposure.
• Performance Standard: The rule is performance-based rather than prescriptive—meaning the employer must demonstrate that the guarding method eliminates or controls the hazard.
• Continuity of Protection: Guards must remain in place and secure during operation and be adjusted only when the machine is off and locked out.
• Applicability: This paragraph acts as a “catch-all” requirement whenever a machine presents a hazard not addressed by another OSHA provision.

Examples of Covered Hazards

Machines governed by 1910.212(a) include drill presses, milling machines, conveyors, polishing lathes, grinders, and mechanical cutters.
Hazards may include rotating shafts, reciprocating arms, cutting surfaces, or points where material is inserted or removed.

Compliance Practices

• Install guards that physically prevent access to moving parts.
• Inspect guards routinely for secure attachment and effectiveness.
• Ensure that guard openings prevent any part of the body from reaching the danger zone.
• Prohibit operation when guards are missing or removed.
• Train employees on safe operation, inspection, and maintenance of guarded machines.

Why OSHA 1910.212(a) Is Important

Most serious machinery accidents occur because guards are missing, removed, or inadequate.
Section (a) establishes the baseline requirements that form the foundation of all machine safeguarding programs.
Compliance not only prevents injuries and amputations but also ensures alignment with national consensus standards such as ANSI B11 and ISO 12100.

FAQ

OSHA 1910.212(a)(1) — General Duty to Guard Machines

OSHA 29 CFR 1910.212(a)(1) establishes the primary obligation to guard machinery in general industry.
It requires employers to implement one or more methods of guarding that protect both the operator and nearby employees from hazards created by points of operation, rotating parts, flying chips, sparks, or any other dangerous mechanical motions.

Scope and Intent

This paragraph serves as the foundation of all machine guarding enforcement.
It mandates that every machine presenting a mechanical hazard must be safeguarded through a combination of physical barriers or engineered safety devices.
The employer may choose the guarding method, but it must completely prevent employee exposure to the moving part or hazard zone during normal operation.

Acceptable Guarding Methods

• Fixed guards: Rigid barriers that prevent access to hazardous areas.
• Interlocked guards: Guards that automatically shut off or disengage the machine when opened or removed.
• Adjustable guards: Barriers that can be positioned for different operations but remain securely in place during use.
• Self-adjusting guards: Guards that move automatically into position as the operator works, covering the danger area as material is fed.
• Electronic safeguarding devices: Light curtains, pressure-sensitive mats, and presence sensors that prevent access to moving parts.

Key Compliance Requirements

• Guarding must protect both operators and nearby personnel.
• Guards must be securely attached and durable enough to resist normal operation and vibration.
• Openings in guards must be small enough to prevent accidental contact with moving parts.
• Guards must not introduce new hazards such as sharp edges, pinch points, or visibility obstruction.
• All guards must be kept in place and functional when machines are operating.

Common Violations

• Machines operating without guards over exposed belts, pulleys, gears, or shafts.
• Removed or bypassed barrier guards during production or maintenance.
• Improper guard materials or openings that allow hand or finger access to moving parts.
• Lack of guarding for nearby employees who may be struck by flying material or sparks.

Practical Compliance Tips

• Conduct a full hazard assessment for all equipment to identify points of operation and motion hazards.
• Install fixed guards wherever possible; use interlocked or adjustable guards only when process requirements demand it.
• Include guarding checks in your preventive maintenance program.
• Train operators to recognize unsafe conditions and never remove or modify guards.

Why OSHA 1910.212(a)(1) Is Important

This paragraph represents OSHA’s general duty clause for machinery safety.
Most machine-related injuries occur when guards are removed or missing, and OSHA 1910.212(a)(1) gives inspectors the authority to cite any unguarded moving part that poses a risk.
Compliance ensures that workers remain protected from crushing, entanglement, amputation, and impact injuries.

FAQ

OSHA 1910.212(a)(2) — General Requirements for Machine Guards

OSHA 29 CFR 1910.212(a)(2) establishes the design and construction standards for machine guards.
This provision requires that guards be securely fastened to the machine and designed to protect operators and nearby employees from injury caused by moving parts, flying debris, or accidental contact.
The intent is to ensure that guarding not only provides protection but also does not create new hazards in the process.

Key Guard Design Requirements

• Secure Attachment: Guards must be firmly attached to the machine. If fastening directly to the machine is not possible, guards must be securely mounted elsewhere to provide equal protection.
• Structural Integrity: Guards must be made of materials strong enough to resist impact, vibration, and normal wear during operation.
• No New Hazards: Guards must not introduce additional risks such as pinch points, sharp edges, or visibility obstruction.
• Durability: Guard materials must withstand operational stresses and environmental factors like heat, coolant, or debris.
• Accessibility: Guards should allow safe maintenance, lubrication, and adjustments without requiring complete removal when possible.

Performance Intent

The focus of 1910.212(a)(2) is performance-based guarding design.
OSHA does not prescribe specific guard materials or thicknesses; instead, the guard must perform effectively under real-world conditions.
Employers have the flexibility to design guards suited to their machines—as long as the guarding prevents contact and remains in place during operation.

Examples of Guard Types Covered

• Fixed guards enclosing belts, pulleys, gears, and rotating shafts.
• Interlocked guards that shut off power when opened or removed.
• Adjustable guards for variable-sized stock or cutting operations.
• Self-adjusting guards that move automatically with the workpiece.

Best Practices for Compliance

• Inspect guards regularly for looseness, cracks, or corrosion.
• Use guard materials that match the operational environment (e.g., metal for high-impact areas, polycarbonate for visibility).
• Train employees to recognize damaged or missing guards and to report deficiencies immediately.
• Ensure all guards are reinstalled and secured after maintenance or adjustments.

Common Violations

• Guards loosely attached or easily removable during operation.
• Improvised guards made from inadequate materials such as thin sheet metal or plastic covers.
• Guards with sharp edges or openings large enough to allow finger or hand access.
• Removed or bypassed guards not replaced before restarting the machine.

Why OSHA 1910.212(a)(2) Is Important

Even when a guard is present, poor design or weak construction can fail to protect workers.
OSHA 1910.212(a)(2) ensures that guards are engineered and maintained to perform effectively throughout a machine’s life cycle.
Properly designed guards prevent crushing, amputation, and laceration injuries while maintaining usability and productivity.

FAQ

OSHA 1910.212(a)(3) — Point of Operation Guarding

OSHA 29 CFR 1910.212(a)(3) sets forth the point of operation guarding requirements for machinery used in general industry.
The “point of operation” is the area on a machine where work is performed—such as cutting, shaping, boring, forming, or assembling a part.
This section requires that each machine have a guard or safeguarding device that prevents the operator from having any part of the body in the danger zone during operation.

Purpose and Scope

The purpose of 1910.212(a)(3) is to eliminate exposure to moving tools or dies that can cause crushing, amputation, laceration, or puncture injuries.
It applies to all machines with a point of operation hazard, regardless of size or industry.
Typical examples include presses, saws, milling machines, lathes, shears, and drills.

Key Requirements

• Every machine must be equipped with a guard that prevents the operator from reaching into the danger zone.
• Guards must be designed and constructed to provide maximum protection while allowing the machine to be operated safely and efficiently.
• Special hand tools may be used to handle materials when guarding at the point of operation is not practical.
• Guards must be securely fastened, maintained in place, and not easily removed or bypassed during operation.
• Safeguarding devices such as light curtains, presence-sensing devices, or two-hand controls may be used if they provide equivalent protection.

Examples of Point of Operation Hazards

• Cutting blades or rotating cutters that can amputate or lacerate fingers.
• Press dies or molds that can crush hands or fingers during operation.
• Drill bits, boring tools, or milling heads that can pierce or entangle body parts.
• Shearing or punching points that can sever material—and body parts—with the same force.

Acceptable Guarding Methods

• Fixed barrier guards enclosing the point of operation.
• Interlocked guards that stop machine motion when opened or removed.
• Adjustable or self-adjusting guards that move automatically to block access as material is fed.
• Two-hand controls requiring both hands to activate the cycle, keeping them out of danger.
• Electronic presence-sensing devices such as light curtains or safety mats that halt motion when triggered.

Common Violations

• Operating a machine with missing or disabled point of operation guards.
• Using hand-feeding where fixed or adjustable guards should be installed.
• Removing guards to increase production speed.
• Failure to provide safeguarding when machine design allows operator access to hazardous movement.

Compliance Tips

• Identify all machine points of operation and assess potential contact hazards.
• Install fixed guards where feasible; use engineered safety devices when full enclosure is not possible.
• Inspect all guards before each shift and re-secure after adjustments or maintenance.
• Train operators to recognize guarding deficiencies and to report missing or damaged safety devices immediately.

Why OSHA 1910.212(a)(3) Is Important

Point of operation injuries are among the most severe and preventable workplace incidents.
By enforcing 1910.212(a)(3), OSHA ensures that all machines have reliable guarding or safety devices that keep operators’ hands, fingers, and bodies outside the danger zone during work.
This rule remains one of the most frequently cited machine safety violations nationwide.

FAQ

OSHA 1910.212(a)(3)(i) — Guard Construction and Safety Design

OSHA 29 CFR 1910.212(a)(3)(i) outlines the design and performance requirements for point of operation guards.
This provision mandates that guards be designed and constructed so that no part of the operator’s body can enter the danger zone while the machine is in use.
It ensures guards are not merely present, but effective in eliminating exposure to mechanical hazards.

Purpose and Intent

The purpose of this section is to establish functional performance criteria for machine guards, rather than prescribing specific materials or configurations.
The employer has flexibility in choosing a guarding method, but the chosen system must physically prevent entry into the danger zone during operation and must withstand normal working conditions.

Key Guard Design Requirements

• Complete Coverage: The guard must fully enclose or block access to the hazard area where the operation takes place.
• Strength and Rigidity: Guards must be strong enough to resist mechanical stress, vibration, and accidental impact without failure or displacement.
• Visibility: Guards should allow clear observation of the work area when necessary, using materials such as mesh or transparent panels.
• Secure Installation: Guards must be firmly attached so they cannot be easily removed, loosened, or bypassed during operation.
• Usability: The guard must allow normal machine operation, feeding, and maintenance without creating additional hazards.

Examples of Guard Types Meeting 1910.212(a)(3)(i)

• Fixed steel enclosures surrounding the cutting or forming area.
• Interlocked access doors that stop the machine when opened.
• Transparent polycarbonate guards providing visibility and protection.
• Barrier guards with restricted openings preventing hand or arm entry.

Common Compliance Errors

• Using lightweight or flexible materials that can deform and allow contact.
• Guards not secured tightly to the machine or easily removed without tools.
• Guard openings large enough to allow finger or hand access to the danger zone.
• Guards that obstruct visibility or require removal for normal operation.

Best Practices

• Design guards that exceed minimum strength requirements and resist bending or vibration.
• Test guard designs under real operating conditions to ensure reliability and protection.
• Use standardized opening-size tables to determine acceptable distances between guards and hazards based on reach limitations.
• Document guard inspection results and repair or replace any that show wear, damage, or looseness.
• Train operators and maintenance staff on safe use and adjustment procedures for all guarding systems.

Why OSHA 1910.212(a)(3)(i) Is Important

Many guarding failures occur not because guards are absent, but because they are poorly designed or improperly installed.
OSHA 1910.212(a)(3)(i) ensures that guarding methods perform their intended function—keeping the operator’s body completely outside the danger zone while allowing safe, productive operation.
Proper guard design is the first line of defense against amputations, lacerations, and entanglement injuries.

FAQ

OSHA 1910.212(a)(3)(iv) — Machines That Usually Require Point-of-Operation Guarding

OSHA 29 CFR 1910.212(a)(3)(iv) provides a representative list of machines that usually require point-of-operation guarding because their normal operation exposes employees to cutting, crushing, shearing, or amputation hazards at the point where work is performed on the material. This list helps employers quickly identify equipment where a guard or safeguarding device is typically necessary to prevent hand, finger, or body entry into danger zones.

Machines Typically Requiring Point-of-Operation Guards

• Guillotine cutters
• Shears
• Alligator shears
• Power presses
• Milling machines
• Power saws
• Jointers
• Portable power tools
• Forming rolls and calenders

These examples are drawn directly from OSHA’s regulatory text and are not exhaustive; any machine that exposes an employee to injury at the point of operation must be guarded. :contentReference[oaicite:0]{index=0}

What “Usually Requires” Means

The phrase “usually require” signals that, in typical use, these machines present recognized hazards at the point of operation. Employers must evaluate the actual setup and task. If exposure exists, the machine must have effective guarding or safeguarding devices that prevent entry into the danger zone during operation.

Guarding Outcomes to Achieve

• Physical separation: A fixed, adjustable, or interlocked guard prevents hand or finger access to the tool or die during the cycle.
• Maintained protection: Guarding remains secure and effective during vibration, normal wear, and routine adjustments.
• No new hazards: The guard’s construction does not introduce sharp edges, additional pinch points, or visibility issues that compromise safety.

Implementation Tips

• Perform a documented hazard assessment for each machine and task to confirm point-of-operation exposure.
• Use fixed guards where feasible; supplement with interlocks, two-hand controls, presence-sensing devices, or special hand tools only as appropriate.
• Verify guard opening sizes and safety distances so that fingers or hands cannot reach the hazard during operation.
• Inspect guards at startup and after any adjustment or maintenance; remove machines from service if guards are missing or ineffective.
• Train operators to recognize point-of-operation hazards and to never bypass or remove guarding.

FAQ

OSHA 1910.212(a)(5) — Exposure of Fan Blades

OSHA 29 CFR 1910.212(a)(5) protects workers from contact injuries caused by exposed fan blades.
The standard applies to all powered fans—ventilation, exhaust, cooling, or circulation—used in workplaces where employees may come within reach of the rotating blades.
When the periphery of a fan’s blades is less than seven (7) feet above the floor or working level, the fan must be equipped with a guard that has openings no larger than one-half (½) inch.

Key Requirement of 1910.212(a)(5)

The regulation states:

“When the periphery of the blades of a fan is less than seven (7) feet above the floor or working level, the blades shall be guarded. The guard shall have openings no larger than one-half (½) inch.”

This ensures that fingers or objects cannot reach through the guard into the rotating blades, which could cause lacerations, fractures, or amputations.

Hazards of Exposed Fan Blades

• Laceration and amputation: Contact with rotating blades can cut or sever fingers and hands.
• Impact injuries: Blades or fan parts can detach at high speed, striking nearby personnel.
• Entanglement: Loose clothing, jewelry, or hair can be drawn into the fan assembly.
• Eye injuries: Dust, debris, or fragments propelled by unguarded fans can cause irritation or trauma.

Guarding and Design Requirements

• Height threshold: Any fan with blades located less than 7 feet above the floor or platform must be guarded.
• Guard strength: Guards must be securely attached and constructed of metal or equally durable materials capable of withstanding fan vibration.
• Opening size: Openings in the guard must be ½ inch or smaller to prevent finger entry.
• Coverage: The guard must completely enclose the blade periphery and prevent contact from all accessible directions.
• Ventilation integrity: Guards must not significantly reduce airflow or cause overheating; proper spacing and material design are essential.

Safe Installation and Maintenance Practices

• Install guards on all wall-mounted, pedestal, or portable fans below seven feet in height.
• Securely fasten guards to prevent detachment from vibration or accidental impact.
• Inspect fan guards regularly for corrosion, deformation, or broken wires.
• Immediately replace missing or damaged guards before operating the fan.
• Ensure fans are properly balanced to minimize vibration that could loosen guards.
• De-energize and lock out fans before cleaning, maintenance, or guard replacement.

Examples of Covered Equipment

• Pedestal and floor fans used in workshops or warehouses.
• Wall-mounted circulation fans positioned below ceiling height.
• Portable exhaust or ventilation fans used in confined spaces.
• Cooling fans for machinery or electrical panels located within worker reach.

Common Violations

• Fans positioned below seven feet without protective guards installed.
• Guards with large mesh openings exceeding ½ inch.
• Improvised or temporary guards made from unsuitable materials such as cardboard or fabric mesh.
• Fan guards removed for cleaning and not replaced before use.
• Unsecured guards that vibrate loose during operation.

Best Practices for Compliance

• Use manufacturer-supplied guards whenever available; retrofit older fans with OSHA-compliant models.
• Label or tag fans indicating their guard status and inspection date.
• Include fan guarding in your machine safety inspection checklist under general requirements (1910.212).
• Train employees to recognize and report missing or damaged guards immediately.
• Consider installing fans at or above 7 feet to eliminate guarding requirements where feasible.

Why OSHA 1910.212(a)(5) Is Important

Rotating fan blades can cause serious or fatal injuries even at relatively low speeds.
OSHA 1910.212(a)(5) prevents these incidents by requiring guards on fans mounted within worker reach and by limiting guard openings to one-half inch to block finger entry.
This simple, low-cost safeguard is essential in ensuring safe air circulation in industrial, construction, and warehouse environments.

FAQ

OSHA 1910.213(a)(9) — Guarding of Belts, Pulleys, Gears, Shafts, and Moving Parts

OSHA 29 CFR 1910.213(a)(9) reinforces the general machine guarding principles of OSHA 1910.219 by requiring that all belts, pulleys, gears, shafts, and other moving parts of woodworking machinery be guarded effectively.
This rule ensures that operators and maintenance personnel are protected from entanglement, contact, and struck-by injuries caused by exposed power transmission components.

Regulatory Text

“All belts, pulleys, gears, shafts, and moving parts shall be guarded in accordance with the specific requirements of § 1910.219.”

Purpose and Intent

This provision links woodworking machinery safety to the broader OSHA mechanical power-transmission apparatus standard (1910.219).
While 1910.213 focuses on woodworking-specific hazards, 1910.219 details how power transmission components—such as belts and pulleys—must be enclosed or shielded to prevent accidental contact.
The intent is to create a comprehensive guarding system that protects against entanglement, amputation, and crushing injuries during normal operation and maintenance.

Key Requirements

• Complete guarding: All exposed belts, pulleys, chains, gears, shafts, flywheels, couplings, and similar moving parts must be enclosed or guarded.
• Compliance with 1910.219: Guard design, construction, and positioning must meet the material, clearance, and height standards defined in §1910.219.
• Secure installation: Guards must be firmly attached to prevent displacement or removal during vibration or operation.
• Accessibility for maintenance: Guards must allow safe access for lubrication and adjustment, or they must be removable only with tools.
• Training: Operators must be instructed on the purpose of the guards and prohibited from removing or bypassing them.

Common Hazards Controlled

• Entanglement: Clothing, hair, or jewelry caught in rotating parts.
• Crushing and pinching: Hands or fingers drawn into nip points between belts and pulleys.
• Impact: Contact with projecting shaft ends or spinning couplings.
• Flying debris: Fractured belts or thrown parts from failed components.
• Unexpected startup: Accidental motion during cleaning or adjustment.

Design and Guarding Specifications (Per §1910.219)

• Belt and pulley guards: Must fully enclose both the upper and lower runs, with openings small enough to prevent finger entry.
• Horizontal shafting: Must be enclosed or guarded by stationary shields if located within 7 feet of the floor or working platform.
• Flywheels: Guarded to a height of at least 15 inches from the floor with solid or mesh barriers.
• Gears and sprockets: Fully enclosed with metal guards that prevent hand contact.
• Set screws and keys: Must be recessed or covered to eliminate snagging points.
• Material strength: Guards must be constructed of metal or other durable material capable of withstanding normal impact and vibration.

Inspection and Maintenance Guidelines

• Inspect all guards weekly to ensure proper placement and attachment.
• Replace damaged, bent, or missing guards immediately.
• Lubricate bearings and adjust belts only after lockout/tagout has been performed.
• Check for frayed belts, loose pulleys, or exposed couplings during preventive maintenance.
• Train operators to report missing or defective guards before machine use.

Common Violations

• Missing or removed belt guards during maintenance or production.
• Improvised guards made of inadequate materials like cardboard or plastic sheeting.
• Exposed shaft ends or rotating couplings within 7 feet of the floor.
• Failure to reinstall guards after servicing the machine.

Best Practices for Compliance

• Use interlocked or hinged guards that automatically cut power when opened for maintenance.
• Label guards clearly with “Do Not Operate Without Guard in Place.”
• Develop a written machine guarding inspection checklist referencing both 1910.213 and 1910.219.
• Include guard verification in your lockout/tagout program before re-energizing equipment.
• Maintain a spare parts inventory for guard panels, fasteners, and safety shields.

Why OSHA 1910.213(a)(9) Is Important

Exposed power transmission components are one of the most common causes of amputations and caught-in injuries in woodworking facilities.
OSHA 1910.213(a)(9) reinforces compliance with §1910.219 by requiring all belts, pulleys, gears, and shafts to be properly guarded.
This integrated approach ensures that both woodworking-specific and general mechanical hazards are controlled through durable, securely mounted guarding systems.

FAQ

ANSI B11 — Machine Safety & Machine Tool Standards

The ANSI B11 standards series comprises a robust framework for machinery and machine tool safety. It addresses risk assessment, design, guarding, control systems, risk reduction measures, and installation and maintenance of machines. Although not regulatory law, B11 standards are widely referenced by industry and used to interpret OSHA’s machine guarding rules (e.g. 29 CFR 1910.212). :contentReference[oaicite:2]{index=2}

Structure of the B11 Family

The B11 family is organized into three types of standards:

• Type A (Basic Safety Standards): e.g. ANSI B11.0 defines general concepts, terminology, risk assessment, and safety principles. :contentReference[oaicite:3]{index=3}
• Type B (Generic Safety Standards): These address safeguarding methods, performance, or safety aspects used across machines (for example, B11.19—Performance Criteria for Safeguarding). :contentReference[oaicite:4]{index=4}
• Type C (Machine-Specific Standards): Focused on individual machines or categories (e.g. B11.1 for power presses, B11.9 for grinding machines, B11.10 for sawing machines). :contentReference[oaicite:5]{index=5}

Core Themes & Provisions

• Risk Assessment / Reduction: B11 emphasizes identifying hazards, assessing risk, selecting and validating protective measures, and verifying that risk is reduced to acceptable levels. :contentReference[oaicite:6]{index=6}
• Safeguarding Methods: Fixed guards, interlocked guards, presence sensors, two-hand controls, light curtains, etc., are all covered with performance criteria. :contentReference[oaicite:7]{index=7}
• Performance Criteria: Guards and safety devices must meet minimum response times, strength, durability, fail-safe behavior, and integration with control systems. :contentReference[oaicite:8]{index=8}
• Safety in Existing (“Legacy”) Equipment: B11 encourages adaptation of older machines via retrofitting or supplementary safeguarding where feasible. :contentReference[oaicite:9]{index=9}
• Design, Modification & Integration: Covers requirements for design, safe modifications, wiring, control logic, maintenance access, risk during changeover, and system integration. :contentReference[oaicite:10]{index=10}

Relation to OSHA & Enforcement Context

OSHA itself does not mandate ANSI B11 by law, but OSHA’s machine guarding standards allow referencing consensus standards like B11 for technical interpretation. For example, OSHA’s eTool on machine guarding lists ANSI B11 standards as guidance resources. :contentReference[oaicite:11]{index=11}
Many safety professionals use B11 standards to design compliant machine guards and safety systems that satisfy both OSHA rules and best practices.

Common Substandards in the Series

• ANSI B11.0 — Safety of Machinery (baseline, risk methodology) :contentReference[oaicite:12]{index=12}
• ANSI B11.19 — Performance Criteria for Safeguarding (applies across many machines) :contentReference[oaicite:13]{index=13}
• ANSI B11.1 / B11.2 / B11.3 — Press, hydraulic, brake machines :contentReference[oaicite:14]{index=14}
• ANSI B11.10 — Metal sawing machines :contentReference[oaicite:15]{index=15}
• ANSI B11.9 — Grinding machines (ties into OSHA 1910.215 & 1910.213) :contentReference[oaicite:16]{index=16}

Internal Linking & Application Ideas

• Link to child categories like ANSI B11.0, ANSI B11.19, ANSI B11.9 (Grinding), etc.
• Cross-link to your OSHA machine guarding pages, e.g. OSHA 1910.212 General Machine Guarding.
• Link to safety device and guarding product pages: light curtains, interlocked guards, protective covers, control systems.

FAQ

ANSI B11.0 — Safety of Machinery

The ANSI B11.0 standard (Safety of Machinery) is the foundational “Type A” standard of the B11 series of American National Standards for machine safety.
It is intended to apply broadly to power-driven machines (new, existing, modified or rebuilt) and to machinery systems, not portable tools held in the hand. :contentReference[oaicite:0]{index=0}
ANSI B11.0 provides the essential framework: definitions, lifecycle responsibilities, risk assessment methodology, acceptable risk criteria, and guidance for using Type-C standards in conjunction with this general standard. :contentReference[oaicite:1]{index=1}

Scope & Purpose

ANSI B11.0-2020 covers machines and machinery systems used for material processing, moving or treating when at least one component moves and is actuated, controlled and powered. :contentReference[oaicite:2]{index=2}
The standard’s purpose is to help suppliers, integrators, and users of machinery identify hazards, estimate and evaluate risks, and implement sufficient risk reduction to achieve an “acceptable risk” level. :contentReference[oaicite:3]{index=3}
It also clarifies responsibilities across the machine lifecycle (supplier, user, modifier) and addresses legacy equipment, prevention through design (PtD) and use of alternative methods for energy control. :contentReference[oaicite:4]{index=4}

Key Concepts & Requirements

• Terminology & Definitions: Establishes key machine-safety terms (e.g., machine, hazard zone, safeguarding, risk, risk reduction). :contentReference[oaicite:5]{index=5}
• Risk Assessment Methodology: Describes how to identify hazards, estimate risk severity and probability, evaluate risk, and decide on corrective safeguards. :contentReference[oaicite:6]{index=6}
• Risk Reduction Principles: Focuses on designing out hazards, applying engineered controls, administrative controls and PPE only when higher-level measures aren’t feasible. :contentReference[oaicite:7]{index=7}
• Lifecycle Approach: Applies to design, construction, installation, commissioning, operation, maintenance, modification and dismantling of machines. :contentReference[oaicite:8]{index=8}
• Use of Type-C Standards: ANSI B11.0 explains how to use machine-specific Type-C standards (e.g., B11.9 for grinding machines) together with this standard for full compliance. :contentReference[oaicite:9]{index=9}

Why It Matters

ANSI B11.0 sets the groundwork for safe machine design and use. Without a consistent foundational standard, machine-specific standards may lack coherence or completeness in hazard control.
By following B11.0, manufacturers and users can build robust safety programs, ensure they cover all phases of machine use (including legacy equipment), and demonstrate that hazard identification, risk assessment and risk reduction are performed systematically.
Because the standard is widely referenced by regulatory authorities and industry best practices, compliance strengthens both safety performance and regulatory defensibility.

Relationship to OSHA & Other Standards

Although ANSI B11.0 is a voluntary consensus standard and not a regulation, it is widely acknowledged as “recognized and generally accepted good engineering practice (RAGAGEP)”.
Regulatory bodies like the Occupational Safety and Health Administration (OSHA) reference the B11 series for technical guidance in areas like machine guarding (e.g., 29 CFR 1910.212) and risk assessment. :contentReference[oaicite:11]{index=11}
Furthermore, ANSI B11.0 aligns with the international standard ISO 12100 (Safety of Machinery — General Principles for Design — Risk Assessment and Risk Reduction) but adds U.S.-specific supplier/user responsibilities and lifecycle responsibilities. :contentReference[oaicite:13]{index=13}

FAQ

ANSI Z244.1 — Control of Hazardous Energy: Lockout, Tagout & Alternative Methods

The ANSI Z244.1 standard (sometimes referenced as ANSI/ASSP Z244.1) provides a detailed framework for the safe control of hazardous energy sources—electrical, mechanical, hydraulic, pneumatic, chemical, thermal, gravitational or stored energy—when servicing or maintaining machines, equipment or processes. :contentReference[oaicite:0]{index=0}
While it is a voluntary consensus standard (not a regulation), it is widely used by safety professionals and referenced in relation to 29 CFR 1910.147 and other machine safety/energy control programs. :contentReference[oaicite:2]{index=2}

Scope & Purpose

ANSI Z244.1 applies to tasks such as construction, installation, adjustment, inspection, unjamming, testing, cleaning, dismantling, servicing or maintaining machines, equipment or processes when the unexpected energization or release of stored energy has the potential to cause harm. :contentReference[oaicite:3]{index=3}
The standard emphasizes the employer’s or machine owner’s responsibility to establish a hazardous energy control program, including procedures, training, audits and alternative methods when traditional lockout/tagout may not be practicable. :contentReference[oaicite:4]{index=4}

Key Elements & Themes

• Energy control program: Program elements include hazard identification, energy-isolation methods, verification of isolation, training, periodic audits, and maintaining a safe work environment. :contentReference[oaicite:5]{index=5}
• Lockout, Tagout, or Alternative Methods: The standard recognizes traditional lockout as the preferred method but allows tagout or other validated alternative methods when risk assessment justifies them. :contentReference[oaicite:6]{index=6}
• Risk assessment & justification: When using alternative methods, a documented risk assessment must demonstrate equivalent protection to traditional LOTO. :contentReference[oaicite:7]{index=7}
• Design and integration: The Z244.1 standard highlights the need for properly designed isolation devices, clear identification of energy sources, controlled transfer of isolation between shifts, and integration with existing safety control systems. :contentReference[oaicite:8]{index=8}
• Training and audits: Authorized employees must be trained, affected employees must be notified, and periodic inspections/audits must verify the program’s effectiveness over time. :contentReference[oaicite:9]{index=9}

Relation to OSHA

Although the standard is not enforceable by itself, Occupational Safety and Health Administration (OSHA) recognizes ANSI Z244.1 as a valuable consensus standard for guidance on energy control programs. :contentReference[oaicite:11]{index=11}
Compliance with 29 CFR 1910.147 remains mandatory, and using ANSI Z244.1 can help demonstrate a program meets recognized good practice or “RAGAGEP” (recognized and generally accepted good engineering practice).

Why It Matters

Unexpected machine startup or release of stored energy is a significant cause of serious injuries—including electrocutions, amputations, crushing, burns and fatalities. :contentReference[oaicite:12]{index=12}
Implementing ANSI Z244.1-based programs helps reduce these risks by ensuring controlled isolation of energy sources, validated procedures, trained personnel and audits to ensure ongoing safety.

FAQ
