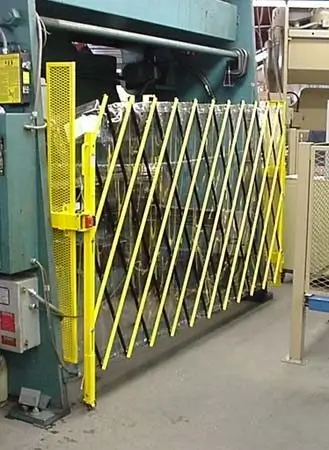

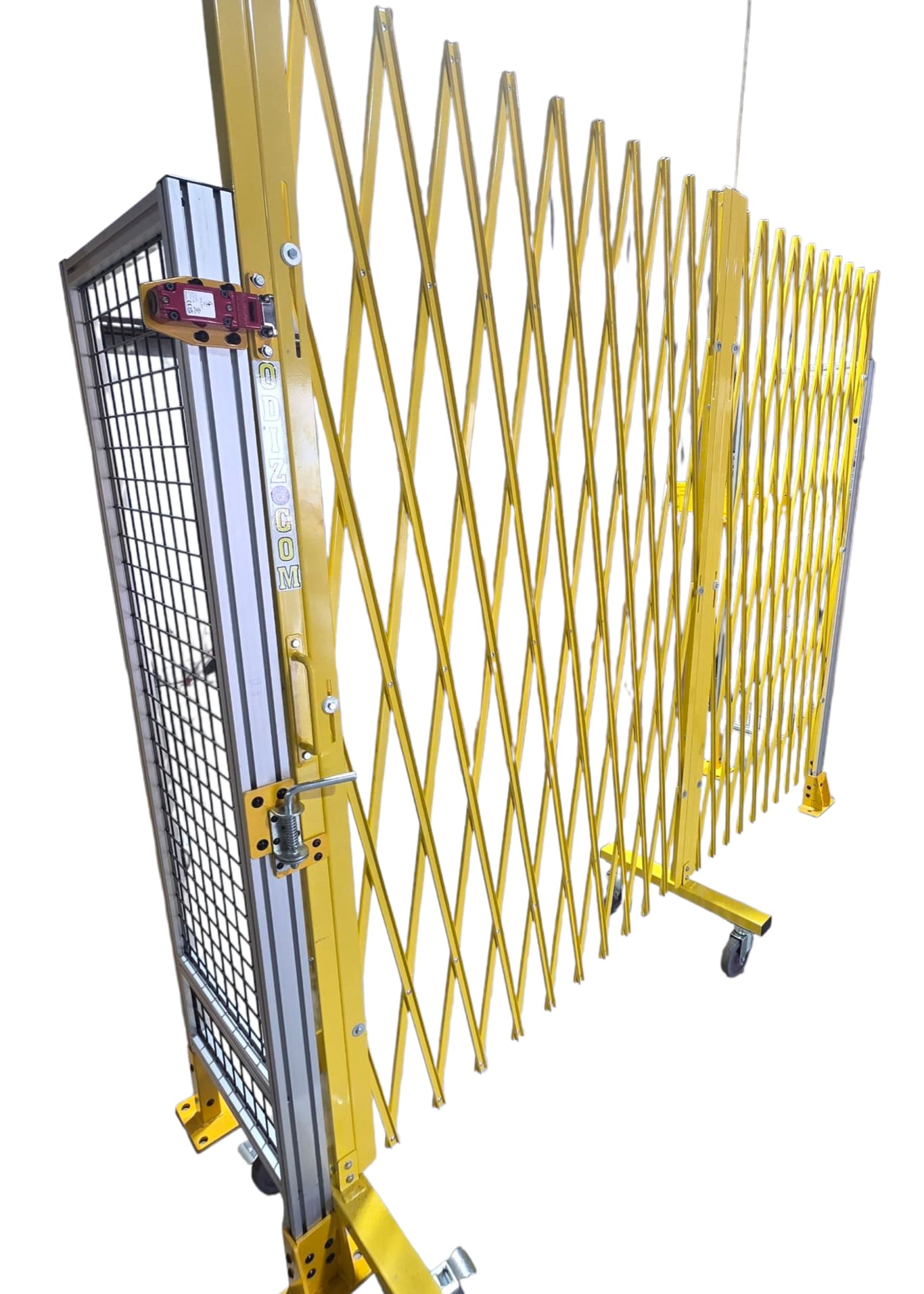

Press Brake Rear Guarding

OSHA 1910.212(a)(3) — Point of Operation Guarding

OSHA 29 CFR 1910.212(a)(3) sets forth the point of operation guarding requirements for machinery used in general industry.
The “point of operation” is the area on a machine where work is performed—such as cutting, shaping, boring, forming, or assembling a part.
This section requires that each machine have a guard or safeguarding device that prevents the operator from having any part of the body in the danger zone during operation.

Purpose and Scope

The purpose of 1910.212(a)(3) is to eliminate exposure to moving tools or dies that can cause crushing, amputation, laceration, or puncture injuries.
It applies to all machines with a point of operation hazard, regardless of size or industry.
Typical examples include presses, saws, milling machines, lathes, shears, and drills.

Key Requirements

• Every machine must be equipped with a guard that prevents the operator from reaching into the danger zone.
• Guards must be designed and constructed to provide maximum protection while allowing the machine to be operated safely and efficiently.
• Special hand tools may be used to handle materials when guarding at the point of operation is not practical.
• Guards must be securely fastened, maintained in place, and not easily removed or bypassed during operation.
• Safeguarding devices such as light curtains, presence-sensing devices, or two-hand controls may be used if they provide equivalent protection.

Examples of Point of Operation Hazards

• Cutting blades or rotating cutters that can amputate or lacerate fingers.
• Press dies or molds that can crush hands or fingers during operation.
• Drill bits, boring tools, or milling heads that can pierce or entangle body parts.
• Shearing or punching points that can sever material—and body parts—with the same force.

Acceptable Guarding Methods

• Fixed barrier guards enclosing the point of operation.
• Interlocked guards that stop machine motion when opened or removed.
• Adjustable or self-adjusting guards that move automatically to block access as material is fed.
• Two-hand controls requiring both hands to activate the cycle, keeping them out of danger.
• Electronic presence-sensing devices such as light curtains or safety mats that halt motion when triggered.

Common Violations

• Operating a machine with missing or disabled point of operation guards.
• Using hand-feeding where fixed or adjustable guards should be installed.
• Removing guards to increase production speed.
• Failure to provide safeguarding when machine design allows operator access to hazardous movement.

Compliance Tips

• Identify all machine points of operation and assess potential contact hazards.
• Install fixed guards where feasible; use engineered safety devices when full enclosure is not possible.
• Inspect all guards before each shift and re-secure after adjustments or maintenance.
• Train operators to recognize guarding deficiencies and to report missing or damaged safety devices immediately.

Why OSHA 1910.212(a)(3) Is Important

Point of operation injuries are among the most severe and preventable workplace incidents.
By enforcing 1910.212(a)(3), OSHA ensures that all machines have reliable guarding or safety devices that keep operators’ hands, fingers, and bodies outside the danger zone during work.
This rule remains one of the most frequently cited machine safety violations nationwide.

FAQ

OSHA 1910.212(a)(3)(i) — Guard Construction and Safety Design

OSHA 29 CFR 1910.212(a)(3)(i) outlines the design and performance requirements for point of operation guards.
This provision mandates that guards be designed and constructed so that no part of the operator’s body can enter the danger zone while the machine is in use.
It ensures guards are not merely present, but effective in eliminating exposure to mechanical hazards.

Purpose and Intent

The purpose of this section is to establish functional performance criteria for machine guards, rather than prescribing specific materials or configurations.
The employer has flexibility in choosing a guarding method, but the chosen system must physically prevent entry into the danger zone during operation and must withstand normal working conditions.

Key Guard Design Requirements

• Complete Coverage: The guard must fully enclose or block access to the hazard area where the operation takes place.
• Strength and Rigidity: Guards must be strong enough to resist mechanical stress, vibration, and accidental impact without failure or displacement.
• Visibility: Guards should allow clear observation of the work area when necessary, using materials such as mesh or transparent panels.
• Secure Installation: Guards must be firmly attached so they cannot be easily removed, loosened, or bypassed during operation.
• Usability: The guard must allow normal machine operation, feeding, and maintenance without creating additional hazards.

Examples of Guard Types Meeting 1910.212(a)(3)(i)

• Fixed steel enclosures surrounding the cutting or forming area.
• Interlocked access doors that stop the machine when opened.
• Transparent polycarbonate guards providing visibility and protection.
• Barrier guards with restricted openings preventing hand or arm entry.

Common Compliance Errors

• Using lightweight or flexible materials that can deform and allow contact.
• Guards not secured tightly to the machine or easily removed without tools.
• Guard openings large enough to allow finger or hand access to the danger zone.
• Guards that obstruct visibility or require removal for normal operation.

Best Practices

• Design guards that exceed minimum strength requirements and resist bending or vibration.
• Test guard designs under real operating conditions to ensure reliability and protection.
• Use standardized opening-size tables to determine acceptable distances between guards and hazards based on reach limitations.
• Document guard inspection results and repair or replace any that show wear, damage, or looseness.
• Train operators and maintenance staff on safe use and adjustment procedures for all guarding systems.

Why OSHA 1910.212(a)(3)(i) Is Important

Many guarding failures occur not because guards are absent, but because they are poorly designed or improperly installed.
OSHA 1910.212(a)(3)(i) ensures that guarding methods perform their intended function—keeping the operator’s body completely outside the danger zone while allowing safe, productive operation.
Proper guard design is the first line of defense against amputations, lacerations, and entanglement injuries.

FAQ

OSHA 1910.212(a)(3)(iii) — Guard Design for Operator Safety

OSHA 29 CFR 1910.212(a)(3)(iii) establishes the performance criteria for guard design and construction.
It requires that every machine guard be designed, built, and installed so that it effectively protects the operator from injury during machine operation.
This provision emphasizes that guard design must be functional, durable, and capable of providing full protection throughout the equipment’s use.

Purpose and Intent

The intent of 1910.212(a)(3)(iii) is to ensure that guarding effectiveness is not compromised by poor design or materials.
Even when a machine has guards, operators can still be injured if those guards fail under stress, vibration, or improper installation.
OSHA requires that guards maintain their protective function under all normal operating conditions.

Key Design Requirements

• Strength and Durability: Guards must resist impact, vibration, and deformation caused by routine use and environmental conditions.
• Secure Mounting: Guards must be firmly attached and cannot be easily removed, bypassed, or displaced during normal operation.
• Ergonomic Function: Guards should be designed to allow normal operation and maintenance without creating awkward or unsafe postures.
• Visibility: When feasible, guards should permit observation of the operation to ensure quality and alignment without removal.
• No New Hazards: Guard edges and surfaces must be smooth, free from sharp corners, and designed not to introduce new pinch points or catch hazards.

Acceptable Guarding Examples

• Fixed metal guards enclosing belts, pulleys, and gears.
• Transparent guards made of high-strength polycarbonate for visibility and impact resistance.
• Interlocked access doors that automatically shut off the machine when opened.
• Barrier guards preventing reach into moving parts while allowing visual monitoring.

Common Compliance Issues

• Guards that loosen or vibrate during machine operation, reducing protection.
• Materials that crack, warp, or deteriorate under heat or chemical exposure.
• Improperly designed openings that allow finger or hand access to moving parts.
• Guards that must be removed to complete normal adjustments or feeding.

Best Practices for Compliance

• Select guard materials suitable for the specific machine environment (e.g., metal for impact resistance, polycarbonate for visibility).
• Incorporate secure mounting brackets and fasteners that prevent accidental removal.
• Follow design guidelines for minimum safe distances between guard openings and hazard zones.
• Inspect and test guards periodically for wear, looseness, and stability under normal vibration and operation.
• Document guard designs, materials, and inspections as part of your facility’s machine safety program.

Why OSHA 1910.212(a)(3)(iii) Is Important

Even the best guarding concepts fail if the physical construction is inadequate.
OSHA 1910.212(a)(3)(iii) ensures that all guards are engineered for real-world performance, protecting operators and maintenance personnel from the severe hazards of rotating, cutting, or crushing machinery.
By emphasizing design integrity, this section reinforces the need for reliable, tested, and properly installed guarding systems that remain effective throughout the life of the equipment.

FAQ

OSHA 1910.212(a)(3)(iv)(a) — Guillotine Cutters

Guillotine cutters use a descending knife to shear material (e.g., paper, plastic, thin metal, gasket stock).
Because the point of operation exposes workers to a sharp blade and clamping action, OSHA lists guillotine cutters as equipment that usually requires point-of-operation guarding.
Proper safeguards must keep hands and other body parts out of the danger zone for every cycle.

Primary Hazards

• Amputation and deep lacerations from the descending knife.
• Crush and pinch injuries from the hold-down clamp or back-gauge movement.
• Unexpected cycling due to control or interlock failures.

Required Guarding Outcomes

• Inaccessible blade: Guards or devices must prevent hand entry into the cutting zone during any stroke.
• Safe clamping: Hold-down mechanisms must not create new pinch points or allow reach-around access.
• Secure, durable construction: Guards remain in place under vibration and normal use and cannot be easily bypassed.

Common Safeguarding Methods for Guillotine Cutters

• Fixed barrier or transparent hood covering the knife area with openings sized to block finger/hand access.
• Interlocked front shield that prevents a cycle unless the shield is closed; opening the shield stops motion.
• Two-hand controls (simultaneous actuation) that require both hands away from the blade to initiate each cut.
• Presence-sensing devices (where appropriate) that stop hazardous motion if the sensing field is interrupted.
• Rear guarding/back-gauge protection to eliminate reach-in from the back side of the table.
• Hold-down clamp guards or shrouds that prevent fingers from entering between the clamp and table.

Best Practices

• Use two-hand controls or interlocked shields as the primary safeguard; do not rely on procedures alone.
• Verify safety distance and opening sizes so that hands cannot reach the blade before motion stops.
• Provide anti-repeat controls and require a new two-hand command for each cut.
• Perform pre-shift checks of interlocks, guards, two-hand controls, and emergency stop.
• Lockout and tag out before changing knives, adjusting back-gauges, or clearing jams.
• Train operators on safe feeding techniques—never hand-hold small stock in front of the blade; use push sticks, guides, or fixtures.

Compliance Checklist

• Blade area guarded (fixed, interlocked, or device) — no hand access during the cut.
• Two-hand control or equivalent safeguarding installed and functional.
• Rear and side access points guarded; back-gauge movement not exposed.
• Hold-down clamp guarded or designed to prevent pinch access.
• Controls include anti-tie-down/anti-repeat; emergency stop accessible.
• Daily functional tests documented; damaged guards or failed interlocks remove machine from service until corrected.

FAQ

OSHA 1910.212(a)(3)(iv)(b) — Shears

Under OSHA 29 CFR 1910.212(a)(3)(iv)(b), shears are among the equipment types that “usually require point-of-operation guarding” because their operation typically presents significant hazards at the cut zone.
Shears, which cut material by a downward blade motion or sliding blade action, create high risk of hand or finger entrapment, lacerations, and amputations if not properly guarded.

Why Shears Require Point-of-Operation Guarding

• Cutting motion hazard: The shearing action of the blades converging presents a direct risk of severing.
• High force application: Shears often apply substantial force to cut material, increasing potential injury severity.
• Operator feed zone: Material is typically fed manually into the shear’s point of operation, creating exposure unless guard/interlock is in place.
• Pinch & crush points: In addition to blade exposure, hold-down clamps or back-gauges may expose workers to pinch points.

Typical Safeguarding Methods for Shears

• Fixed or adjustable barrier guards: To block access to the blade area during cutting, sized to prevent hand entry.
• Interlocked guard doors or gates: Stops the machine if the guard is opened or removed before the cycle completes.
• Two-hand controls or two-hand tripping devices: Forces operator’s hands to be away from the blade when a cut is initiated.
• Presence-sensing devices and light curtains: For operations where manual feeding is necessary but still must ensure no body part enters the danger zone.
• Back-gauge or hold-down clamp guarding: Shields the operator from pinch or crush hazards behind the blades or under the clamp.

Best Practice Compliance Checklist for Shears

• Verify the blade area is fully guarded during the entire cutting cycle.
• Ensure the guard prevents hand, finger, or body entry at any point of operation motion.
• Check that any guard openings are sized to prevent access to the hazard zone and do not introduce new hazards (sharp edges, pinch points).
• Confirm that interlocks, two-hand controls, or presence-sensing devices are in place and functioning correctly.
• Inspect hold-down clamp and back-gauge mechanisms to ensure they’re guarded and do not permit reach-behind entry.
• Document and test the safeguarding system prior to operation, especially after maintenance or blade changes.

FAQ

OSHA 1910.212(a)(3)(iv)(c) — Alligator Shears

OSHA 29 CFR 1910.212(a)(3)(iv)(c) identifies alligator shears as machines that usually require point-of-operation guarding.
Alligator shears, also known as lever shears, are used in scrap metal, recycling, and fabrication operations to cut bar stock, pipe, rebar, and other materials.
The hinged jaw mechanism, resembling an alligator’s mouth, creates a powerful shearing motion that can sever hands or limbs instantly if proper guarding is not installed.

Hazards of Alligator Shears

• Amputation and laceration risks: The closing blades present a direct shearing hazard to hands and arms during feeding or removal of material.
• Crush and pinch points: The hinge and clamping areas can trap body parts or clothing.
• Unexpected movement: Hydraulic or mechanical actuation can cause accidental cycling if controls are damaged or improperly adjusted.
• Flying debris: Fragments of cut material may be ejected from the cutting zone.

Required Guarding and Safeguarding Methods

• Fixed barrier guards: Install rigid guards that enclose the blade and hinge area, leaving only the minimum opening necessary for material feed.
• Adjustable feed guards: Use adjustable barriers or slots that allow different stock sizes while preventing hand entry into the cutting path.
• Interlocked shields or covers: Require closure of a hinged shield before the machine will cycle; opening the guard halts motion.
• Two-hand trip or control devices: For power-operated shears, controls must require both hands to activate, ensuring hands are away from the jaws during a cut.
• Foot pedals with guards or covers: Pedals must be shrouded to prevent accidental activation by falling objects or unintended contact.

Safe Operating Practices

• Feed stock with the free end down and away from the operator’s body to minimize kickback.
• Use tongs, clamps, or push sticks to position short or small pieces—never feed by hand.
• Inspect hydraulic and mechanical components daily for leaks, cracks, or control failures.
• Ensure emergency stop controls are clearly visible, tested daily, and unobstructed.
• Lockout and tag out before clearing jams, replacing blades, or performing maintenance.

Engineering and Design Considerations

• Guard openings must comply with reach-distance standards to prevent hand or finger access.
• Use impact-resistant materials or metal mesh for guards to contain flying fragments.
• Provide adequate lighting and visibility around the feed area so operators can safely align material without removing guards.
• Where possible, equip shears with automatic feed mechanisms or conveyors to eliminate manual placement of stock.

Common Violations

• Operating with guards removed or missing around the blade or hinge.
• Improper guard openings allowing finger or hand entry into the cutting zone.
• Foot pedal not guarded or located too close to the operator.
• Failure to use two-hand controls or interlocks where required.
• No inspection or maintenance records for guarding systems.

Why OSHA 1910.212(a)(3)(iv)(c) Is Important

Alligator shears combine high mechanical force with exposed cutting motion, making them among the most dangerous tools in metalworking and recycling.
OSHA 1910.212(a)(3)(iv)(c) ensures that operators and helpers remain protected from amputation and crushing hazards through fixed or interlocked guarding, controlled operation, and proper training.
Compliance with this section is essential to maintain a safe environment around cutting and shearing stations.

FAQ

OSHA 1910.212(a)(3)(iv)(d) — Power Presses

OSHA 29 CFR 1910.212(a)(3)(iv)(d) lists power presses among the machines that usually require point-of-operation guarding.
Power presses—whether mechanical, hydraulic, or pneumatic—use high force and rapid motion to punch, form, or shape metal and other materials.
Because the operator often works close to the die area, these machines present one of the highest risks of amputation, crushing, and pinch-point injuries in manufacturing.

Understanding the Hazard

The point of operation on a power press is where the upper die or ram descends to meet the lower die or workpiece.
Any body part entering this zone during cycling can be instantly crushed or severed.
OSHA requires employers to use physical guards or safeguarding devices that eliminate the possibility of hand or finger entry while the press is in motion.

Primary Safeguarding Methods for Power Presses

• Fixed barrier guards: Enclose the die area with openings too small for hand or finger access.
• Adjustable barrier guards: Allow different stock sizes while maintaining full coverage of the hazard zone.
• Interlocked barrier guards: Prevent press cycling unless the guard is closed; opening it stops motion immediately.
• Presence-sensing devices (light curtains): Stop the press stroke if the sensing field is interrupted before the die closes.
• Two-hand controls: Require the operator to press two buttons simultaneously to cycle the press, ensuring both hands are outside the danger zone.
• Pull-backs or restraint devices: Physically remove or restrict the operator’s hands from entering the die space during the stroke.

Design and Performance Requirements

• Safeguards must prevent any part of the body from entering the point of operation during the downstroke.
• Guards must be durable, securely attached, and tamper-resistant.
• Safeguarding devices must be fail-safe—a failure should stop the machine, not allow cycling.
• Controls must include anti-tie-down and anti-repeat features so operators cannot bypass protection.
• Emergency stop controls must be accessible and tested regularly.

Types of Power Presses Covered

• Mechanical stamping presses
• Hydraulic forming presses
• Pneumatic or air-powered presses
• Flywheel-driven punch presses
• Brake presses used for bending and forming

Common Violations

• Operating presses without point-of-operation guards or safety devices installed.
• Disabled or bypassed interlocks and light curtains.
• Failure to perform required safety device inspections and die-setting checks.
• Inadequate control reliability or anti-repeat functions.
• Improper use of hand tools instead of engineering controls for feeding or removing material.

Best Practices for Compliance

• Install and maintain engineered safeguarding—avoid relying solely on work rules or procedures.
• Conduct daily safety checks of guards, light curtains, and two-hand controls before production begins.
• Train die setters and operators on control system function, safe distances, and response testing.
• Inspect and document safety system function after every die change or maintenance event.
• Lockout and tag out power sources before clearing jams or making adjustments.

Related Considerations

In addition to 1910.212(a)(3)(iv)(d), OSHA maintains a specific standard—1910.217, Mechanical Power Presses—that details inspection, maintenance, and control reliability requirements for these machines.
Section 1910.212 remains applicable to all press types, including hydraulic and pneumatic models not covered by 1910.217, reinforcing the need for comprehensive point-of-operation safeguarding.

Why OSHA 1910.212(a)(3)(iv)(d) Is Important

Power presses are among the leading sources of workplace amputations in metal fabrication and stamping.

OSHA 1910.212(a)(3)(iv)(i) — Forming Rolls and Calenders

OSHA 29 CFR 1910.212(a)(3)(iv)(i) identifies forming rolls and calenders as machines that usually require point-of-operation guarding.
These machines shape, flatten, or finish materials such as metal, rubber, or plastic by passing them through a series of rotating cylinders or rollers.
The close spacing of the rolls creates in-running nip points capable of drawing in fingers, hands, or clothing with tremendous force.
Guarding is required to prevent any part of the body from entering these danger zones during operation.

Primary Hazards

• In-running nip points: The area where two or more rolls rotate toward each other can trap and crush body parts in seconds.
• Entanglement: Loose clothing, jewelry, gloves, or hair can be caught and drawn between rotating rolls.
• Crush injuries: The high pressure used in calendering operations can fracture or amputate limbs.
• Thermal burns: Heated calenders for rubber or plastic may reach temperatures over 300°F, adding severe burn risk.
• Unexpected startup: Can cause sudden motion while an operator’s hands or tools are near the rolls.

Required Guarding and Safety Controls

• Fixed barrier guards: Must physically prevent access to the in-running nip points between rolls.
• Adjustable barriers or gates: Allow controlled feeding of material while maintaining clearance to block body access.
• Pressure bars or feed tables: Designed to act as guards while assisting in material feeding.
• Emergency trip devices: Trip rods, cables, or pressure-sensitive bars located across the operator’s reach zone must stop the rolls immediately when activated.
• Interlocked access doors: If guards are removed or opened, the machine must automatically stop motion.
• Drive and gear guarding: All belts, chains, couplings, and gear trains must be enclosed to prevent secondary contact hazards.

Safe Operating Practices

• Keep hands and tools away from feed points; use push sticks, tongs, or automatic feeding systems when possible.
• Never wear gloves, ties, loose sleeves, or jewelry near rotating rolls.
• Ensure all trip rods and emergency stops are within easy reach and tested daily before use.
• Lockout and tag out all energy sources before cleaning, threading, or performing maintenance.
• Install audible and visual alarms that activate before the rolls start moving.
• Use secondary controls like foot pedals only when they include anti-tie-down and anti-repeat features.

Engineering and Administrative Controls

• Design guard openings according to ANSI B11.19 or equivalent reach-distance standards.
• Provide two-person roll threading systems or mechanical threading devices to prevent hand-feeding into rolls.
• Establish a lockout verification checklist specific to calender and forming roll setups.
• Provide operator training emphasizing nip-point hazards and emergency procedures.
• Maintain preventive maintenance records to ensure guards, trip devices, and interlocks remain functional.

Common Violations

• Missing or ineffective trip bars across roll front or rear.
• Fixed guards removed or bypassed during operation or cleaning.
• Manual threading of material without protective equipment or tools.
• Inadequate inspection or testing of safety trip mechanisms.
• No written procedure for lockout/tagout or verification of de-energization.

Best Practices for Compliance

• Install trip bars that stop rolls within one-quarter turn when activated.
• Ensure barriers extend across the full width of the rolls and are securely anchored.
• Implement automatic feed systems where feasible to eliminate manual threading.
• Test emergency stops and trip devices daily and record results.
• Provide refresher training every six months for all operators and maintenance personnel.

Why OSHA 1910.212(a)(3)(iv)(i) Is Important

Forming rolls and calenders are among the most hazardous types of rotating machinery due to their powerful in-running nip points.
OSHA 1910.212(a)(3)(iv)(i) ensures these machines are equipped with fixed guards, trip devices, and accessible emergency stops to prevent entanglement, crushing, and burn injuries.
Adhering to this standard is critical for compliance and for protecting employees in metalworking, rubber processing, and plastics manufacturing operations.

FAQ

OSHA 1910.213(a)(9) — Guarding of Belts, Pulleys, Gears, Shafts, and Moving Parts

OSHA 29 CFR 1910.213(a)(9) reinforces the general machine guarding principles of OSHA 1910.219 by requiring that all belts, pulleys, gears, shafts, and other moving parts of woodworking machinery be guarded effectively.
This rule ensures that operators and maintenance personnel are protected from entanglement, contact, and struck-by injuries caused by exposed power transmission components.

Regulatory Text

“All belts, pulleys, gears, shafts, and moving parts shall be guarded in accordance with the specific requirements of § 1910.219.”

Purpose and Intent

This provision links woodworking machinery safety to the broader OSHA mechanical power-transmission apparatus standard (1910.219).
While 1910.213 focuses on woodworking-specific hazards, 1910.219 details how power transmission components—such as belts and pulleys—must be enclosed or shielded to prevent accidental contact.
The intent is to create a comprehensive guarding system that protects against entanglement, amputation, and crushing injuries during normal operation and maintenance.

Key Requirements

• Complete guarding: All exposed belts, pulleys, chains, gears, shafts, flywheels, couplings, and similar moving parts must be enclosed or guarded.
• Compliance with 1910.219: Guard design, construction, and positioning must meet the material, clearance, and height standards defined in §1910.219.
• Secure installation: Guards must be firmly attached to prevent displacement or removal during vibration or operation.
• Accessibility for maintenance: Guards must allow safe access for lubrication and adjustment, or they must be removable only with tools.
• Training: Operators must be instructed on the purpose of the guards and prohibited from removing or bypassing them.

Common Hazards Controlled

• Entanglement: Clothing, hair, or jewelry caught in rotating parts.
• Crushing and pinching: Hands or fingers drawn into nip points between belts and pulleys.
• Impact: Contact with projecting shaft ends or spinning couplings.
• Flying debris: Fractured belts or thrown parts from failed components.
• Unexpected startup: Accidental motion during cleaning or adjustment.

Design and Guarding Specifications (Per §1910.219)

• Belt and pulley guards: Must fully enclose both the upper and lower runs, with openings small enough to prevent finger entry.
• Horizontal shafting: Must be enclosed or guarded by stationary shields if located within 7 feet of the floor or working platform.
• Flywheels: Guarded to a height of at least 15 inches from the floor with solid or mesh barriers.
• Gears and sprockets: Fully enclosed with metal guards that prevent hand contact.
• Set screws and keys: Must be recessed or covered to eliminate snagging points.
• Material strength: Guards must be constructed of metal or other durable material capable of withstanding normal impact and vibration.

Inspection and Maintenance Guidelines

• Inspect all guards weekly to ensure proper placement and attachment.
• Replace damaged, bent, or missing guards immediately.
• Lubricate bearings and adjust belts only after lockout/tagout has been performed.
• Check for frayed belts, loose pulleys, or exposed couplings during preventive maintenance.
• Train operators to report missing or defective guards before machine use.

Common Violations

• Missing or removed belt guards during maintenance or production.
• Improvised guards made of inadequate materials like cardboard or plastic sheeting.
• Exposed shaft ends or rotating couplings within 7 feet of the floor.
• Failure to reinstall guards after servicing the machine.

Best Practices for Compliance

• Use interlocked or hinged guards that automatically cut power when opened for maintenance.
• Label guards clearly with “Do Not Operate Without Guard in Place.”
• Develop a written machine guarding inspection checklist referencing both 1910.213 and 1910.219.
• Include guard verification in your lockout/tagout program before re-energizing equipment.
• Maintain a spare parts inventory for guard panels, fasteners, and safety shields.

Why OSHA 1910.213(a)(9) Is Important

Exposed power transmission components are one of the most common causes of amputations and caught-in injuries in woodworking facilities.
OSHA 1910.213(a)(9) reinforces compliance with §1910.219 by requiring all belts, pulleys, gears, and shafts to be properly guarded.
This integrated approach ensures that both woodworking-specific and general mechanical hazards are controlled through durable, securely mounted guarding systems.

FAQ

B11.11 — Safety Requirements for Gear and Spline Cutting Machines

The B11.11 standard (Safety Requirements for Gear and Spline Cutting Machines) provides industry consensus requirements for the safe design, construction, installation, operation, maintenance, modification, dismantling and transport of machines used to produce gears and splines. :contentReference[oaicite:0]{index=0}
Covered machines include single- or multiple-spindle gear-hobbing machines, milling, shaping or broaching machines used to produce gear teeth, spline teeth, sprocket or ratchet teeth, or operations that shave, hone, lap or chamfer such teeth. :contentReference[oaicite:1]{index=1}

Scope & Exclusions

B11.11 applies to machines specifically constructed for gear or spline cutting—such as hobbing, milling, shaping, broaching, shaving, honing or lapping of gear teeth or splines. :contentReference[oaicite:2]{index=2}
The standard excludes machines used for molding, rolling, flame cutting, gear-grinding, stamping, impact forming, forging and gear inspection. It also excludes portable hand-held tools. :contentReference[oaicite:3]{index=3}

Key Safety Topics Addressed

• Machine design & fabrication: Ensuring structural integrity, guarding of hazard zones, correct layout for gear cutting operations.
• Guarding & safeguarding: Covering moving parts, tool-spindles, feed mechanisms, indexing systems and workpiece motions to prevent contact or entanglement.
• Operation & maintenance: Safe startup/shutdown procedures, changeover, tooling, maintenance, adjustment, cleaning and inspection for gear/spline machines.
• Modification & retrofit: When machines are rebuilt or modified (e.g., to increase automation or change gear types), safeguards must be reviewed and updated to maintain safety performance.

Why It Matters

Gear and spline cutting machines involve multiple motions, high forces, rotating spindles and feed mechanisms. Operators, maintainers and support staff may be exposed to hazards such as contact with moving parts, entanglement, ejection of workpieces or tooling, and crushing or amputation risks.
By following B11.11, manufacturers and users of gear-cutting machines implement recognized good engineering practices for safeguarding, risk reduction and machine lifecycle management, which helps reduce injuries and supports regulatory compliance.

Relationship to Other Standards

Although B11.11 is voluntary, it is often used by safety professionals as guidance for achieving compliance with broader machine-safety standards such as B11.0 – Safety of Machinery and B11.19 – Performance Criteria for Safeguarding.
Regulatory bodies such as the Occupational Safety and Health Administration (OSHA) reference the B11 series for technical interpretation of machine guarding expectations. :contentReference[oaicite:5]{index=5}

FAQ

B11.12 — Safety Requirements for Roll Forming & Roll Bending Machines

B11.12 (Safety Requirements for Roll Forming and Roll Bending Machines) addresses the specific safety needs of machines used to form or bend metal by means of rolls or rotary tooling. :contentReference[oaicite:0]{index=0}
The standard applies to machines that reshape material by progressive forming or bending—such as roll-formers and roll-benders—and covers their full lifecycle: from design and installation through operation, maintenance, modification and dismantling. :contentReference[oaicite:1]{index=1}

Scope & Machine Types

This standard applies to powered machines that change the shape or direction of material by use of rolls, rotary forming dies and associated tooling. :contentReference[oaicite:2]{index=2}
Examples include roll-formers: continuous lineal forming machines where strip material passes through sets of rotating rolls; and roll-benders: machines producing bends across widths of flat or preformed material by one or more rotating rolls. :contentReference[oaicite:3]{index=3}
The standard also lists many exclusions—machinery types not covered under its scope—such as bar mills, power presses, shears, portable hand tools, etc. :contentReference[oaicite:4]{index=4}

Key Safety Topics Addressed

• Responsibility assignment: The standard outlines distinct responsibilities for suppliers (manufacturers, modifiers, integrators) and users (owners, operators) for hazard identification and risk reduction. :contentReference[oaicite:5]{index=5}
• Hazard identification & risk assessment: Users and suppliers must identify machine tasks and hazard scenarios, assess risk and apply appropriate safeguards. :contentReference[oaicite:6]{index=6}
• Design & construction: Machines must be designed and built to minimize exposure to hazards—including appropriate guarding, feed/exit systems, emergency stops, control integration. :contentReference[oaicite:7]{index=7}
• Installation, testing & start-up: Machines must be installed, tested and commissioned under safe conditions before full operation. :contentReference[oaicite:8]{index=8}
• Safeguarding of the production system: The standard emphasizes that in roll-forming/bending operations, safeguards must consider the full system: the machine, feeding/out-feed, tooling, roll sets and worker interaction. :contentReference[oaicite:9]{index=9}
• Operation & maintenance: Procedures must be established for safe operation, maintenance, change-over, inspection and training of personnel. :contentReference[oaicite:10]{index=10}

Why It Matters

Roll-forming and roll-bending machines involve high speeds, heavy tooling, upstream feeding mechanisms and large pieces of moving material. Without proper safeguarding these machines can cause crushing, entanglement, contact injuries, ejection of stock or tooling, severe lacerations or amputations.
B11.12 provides a comprehensive framework to help manufacturers and users apply recognized engineering practices to reduce these risks—and support regulatory compliance and best-practice machine safety programs.

Practical Implementation Tips

• During machine design or procurement, reference B11.12 for required safeguarding of roll sets, feed/in-feed/out-feed, emergency stops, guarding of points where material enters or exits.
• Perform a task-based risk assessment per B11.12 before start-up, especially for change-over or maintenance tasks where tooling is changed or material thickness varies.
• Ensure feeding and exit systems are integrated with machine safeguards so that operators cannot reach into hazard zones during operation or maintenance.
• Train operators and maintenance personnel in hazards specific to roll-forming/bending machines—feeding, bending, roll changes, material ejection and emergency response.
• Maintain documentation of modifications, maintenance, inspections and risk assessments to demonstrate alignment with recognized good practice (RAGAGEP).

FAQ

B11.13 — Safety Requirements for Single-Spindle or Multiple-Spindle Automatic Bar & Chucking Machines

The B11.13 standard (Safety Requirements for Single-Spindle or Multiple-Spindle Automatic Bar and Chucking Machines) addresses machines that automatically feed bar stock, chucked workpieces or blanks into high-speed turning, drilling, or milling operations.
These machines often integrate bar feed mechanisms, automatic loaders, multiple spindles, and complex tooling systems, which create multiple potential hazards such as high-speed rotating components, automatic work-transfer systems, chip ejection, and access to moving parts.

Scope & Exclusions

B11.13 covers automatic bar-feeding machines (single or multi-spindle) and chucking machines used to machine bar stock or blanks in automatic or semi-automatic machining centers.
It excludes machines not designed for automatic bar loading, non-chucking manual machines, portable tools, and machines outside the defined automation/classification.

Key Safety Topics Addressed

• Machine design & construction: Ensuring structural stability, guarding of high-speed spindles and feed mechanisms, containment of ejected parts or bar stock.
• Automatic feeding systems & work transfer: Safeguards for bar-feed units, transfer mechanisms, and automatic loaders to prevent entrapment, pinch points or unintended release of workpieces.
• Guarding & safeguarding: Covering hazard zones created by rotating spindles, live tooling, bar feed drives, chip ejection paths, and material handling.
• Operation, maintenance & change-over: Safe procedures for tooling changes, bar stock loading/unloading, maintenance, retrofits and machine modifications.
• Lifecycle responsibilities: Addressing supplier, integrator and user roles in machine installation, commissioning, modification, maintenance and dismantling phases.

Why It Matters

Automatic bar and chucking machines operate at high speed with numerous moving parts, automated feeding systems, and multiple spindle operations—this increases risk of severe injuries including entanglement, amputation, ejection of tooling or workpieces, and high-energy collisions.
Compliance with B11.13 helps manufacturers and users establish recognized best practices in safeguarding and aligns them with a standard widely referenced in machine-safety programs.

Relation to Other Standards

Although B11.13 is a voluntary consensus standard, it is part of the broader B11 series of machine-safety standards and supports interpretation of general requirements such as B11.0 – Safety of Machinery and B11.19 – Performance Criteria for Safeguarding.
Regulatory bodies such as Occupational Safety and Health Administration (OSHA) refer to the B11 series as authoritative guidance on machine guarding and safe machine tool practices. :contentReference[oaicite:1]{index=1}

FAQ

B11.15 — Safety Requirements for Bar, Pipe, Tube & Shape Bending Machines

The B11.15 standard (Safety Requirements for Bar, Pipe, Tube and Shape Bending Machines) applies to power-driven machines that bend bar, pipe, tube or other shaped material by means of bending dies, clamp or pressure dies, mandrels, wiper dies, vertical or horizontal bending punches, radius dies, wing dies, and associated tooling. :contentReference[oaicite:0]{index=0}

Scope & Exclusions

The most recent version, B11.15-2022, extends the standard’s coverage to machines designed for bending bar, pipe, tube, and shapes. :contentReference[oaicite:1]{index=1}
Excluded from the standard are machines such as bench presses, hydroforming machines, forging presses, four-slide machines, mechanical presses, roll benders and roll formers, and assembly machines. :contentReference[oaicite:2]{index=2}

Key Safety Topics Addressed

• Machine design & construction: Emphasizing structural stability, appropriate guarding of hazard zones, and control of high-force bending operations.
• Guarding & safeguarding: Requirements for guarding bending dies, clamp systems, pinch points, feed and exit systems, and material ejection paths.
• Installation, commissioning & maintenance: Safe installation practices, pre-start-up testing, tool change and maintenance procedures, and lifecycle responsibilities for suppliers and users.
• Operation & safe use: Procedures for setup, adjustment, changeover, and safe operation of both manual and automated bending machines to minimize exposure to hazards.
• Feeding, forming & auxiliary systems: Safeguards for feed mechanisms, material handling, automation, and integration of the bending machine into the production line context.

Why It Matters

Machines used to bend bar, pipe, tube and shapes operate under high force and involve moving feed mechanisms, rotating tooling, material transfer, and potential ejection or entrapment hazards.
Complying with B11.15 supports the use of recognized engineering practices to reduce risks of crush injuries, amputations, entanglement, and thrown material.
It also aligns safety design with broader machinery safety requirements such as those in B11.0 – Safety of Machinery.

Relation to Other Standards

While B11.15 is a voluntary consensus standard, it is part of the broader B11 family of machine safety standards and serves as technical guidance for machine-specific safeguarding. Regulatory bodies such as Occupational Safety and Health Administration (OSHA) recognize the B11 series as authoritative references for machine guarding practice. :contentReference[oaicite:4]{index=4}

FAQ

B11.2 — Safety Requirements for Hydraulic & Pneumatic Power Presses

The B11.2 standard (ANSI B11.2-2013 (R2020)) establishes safety requirements for machines powered by hydraulic or pneumatic systems that transmit force to cut, form, or assemble metal or other materials by means of tools or dies attached to or operated by plungers or slides. :contentReference[oaicite:0]{index=0}
It defines the obligations of machine builders, modifiers, integrators, and users across the machine life-cycle—from design, installation and commissioning to operation, maintenance, modification and dismantling.

Scope & Exclusions

This standard applies only to hydraulic or pneumatic power presses—commonly referred to as “hydraulic/pneumatic power presses”. :contentReference[oaicite:1]{index=1}
It explicitly excludes other machines such as mechanical power presses, powdered-metal presses, horizontal hydraulic extrusion presses, metal shears, pipe or tube bending machines, and other equipment where the principal force transmission is not hydraulic or pneumatic. :contentReference[oaicite:2]{index=2}

Key Safety Topics Addressed

• Risk Assessment & Lifecycle Responsibility: Requires that hazards associated with hydraulic/pneumatic presses are identified and evaluated, and that risk-reduction measures are applied throughout the machine lifecycle. :contentReference[oaicite:3]{index=3}
• Design & Construction of Press Systems: Ensures structural integrity, proper platen or slide design, safe closure, appropriate tooling attachment and safe ejection or unloading of workpieces or scrap.
• Guarding & Safeguarding of Point of Operation: Defines how operators must be separated or protected from the hazardous zones (such as the closure area of the slide/platen) using guards, interlocks or presence-sensing devices. :contentReference[oaicite:4]{index=4}
• Control Systems & Safe Operation: Requires that hydraulic/pneumatic circuits controlling hazardous motion be designed to meet safety-reliability criteria (e.g., preventing a single fault from losing the safety function). :contentReference[oaicite:5]{index=5}
• Modification, Maintenance & Retrofit: If a press is modified or rebuilt, it must be treated on the same basis as a new machine—risk-assessment revalidation, safeguarding updates, and verification of performance. :contentReference[oaicite:6]{index=6}

Why It Matters

Hydraulic and pneumatic power presses operate with high forces, require reliable control of motion, and possess unique hazards associated with fluid power systems (unexpected motion, leakage, contamination, high pressure, slide/ram ejection).
By following B11.2, manufacturers and users adopt recognized good engineering practice for design and safe use of these presses—and help demonstrate alignment with industry consensus safety standards and machine-safeguarding expectations.
The standard is also cited by regulatory bodies (for example Occupational Safety and Health Administration (OSHA) mentions B11.2 in its rulemaking notice for power presses). :contentReference[oaicite:8]{index=8}

Relation to Other Standards

Although B11.2 is voluntary, it is part of the broader B11 series of machine-safety standards and should be used in conjunction with:

• B11.0 – Safety of Machinery: General risk assessment and machine-safety terminology and methodology.
• B11.19 – Performance Requirements for Risk Reduction Measures: Performance criteria for guarding and control systems.
• Machine-specific guidance or other Type C standards if relevant (though B11.2 is itself a Type C standard for hydraulic/pneumatic presses).

FAQ

B11.24 — Safety Requirements for Transfer Machines

The B11.24 standard (Safety Requirements for Transfer Machines – ANSI B11.24-2002 (R2020)) applies to machines equipped with more than one processing station and one or more work-piece transport or transfer systems. These machines may perform machining, assembly, inspection, testing or combinations thereof in a predetermined sequence of operations. :contentReference[oaicite:0]{index=0}

Scope & Key Considerations

This standard is intended for transfer machines—a class of production equipment that moves workpieces between fixed stations (e.g., loading, machining, unloading) via shuttles, wheels, dials, conveyors or indexing mechanisms. :contentReference[oaicite:1]{index=1}
It excludes manufacturing systems/cells that consist of multiple machines integrated with material handling and controls (those are covered by other standards). :contentReference[oaicite:2]{index=2}

Key Safety Topics Addressed

• Machine design & construction: Structural integrity, safe access, work-piece transfer mechanisms, tool change/load zones and guarding of moving parts. :contentReference[oaicite:3]{index=3}
• Guarding & safeguarding: Protection of operators from tool stations, transfer mechanisms, pinch points, ejected parts and automatic motion between stations. :contentReference[oaicite:4]{index=4}
• Work-piece transport & transfer systems: Safe design of shuttle systems, indexing tables, in-feed/out-feed zones, prevention of access during movement, containment of ejected stock. :contentReference[oaicite:5]{index=5}
• Installation, testing, operation & maintenance: Requirements for start-up, routine maintenance, modification or rebuild, operator training, safe implementation of special modes or automatic sequences. :contentReference[oaicite:6]{index=6}
• Energy control & safety distance: Means for isolation of stored or residual energy, safe stopping, required safety distances for presence-sensing devices or guards when access to hazard zones is possible. :contentReference[oaicite:7]{index=7}

Why It Matters

Transfer machines are widely used in production for high-volume operations and typically involve multiple tools, motions, work-holding, handling and material transfers. Because of their complexity and automation, they present hazards such as entanglement, crushing, impact, ejection of parts, inadvertent access during transfer motion, and unexpected machine cycles. Using B11.24 helps manufacturers, integrators and users apply recognized safety practices focused specifically on these hazards, enhancing operator safety and aligning with engineering-best-practice risk reduction.

Practical Implementation Tips

• Map out all stations, transfer paths and mechanisms; identify zones where operators may interact or be exposed during loading, unloading, maintenance or automatic transfer motion.
• Ensure guards, interlocks or presence-sensing devices protect access to transfer motion or tool changes; transfer motion should not begin if an operator is in the zone.
• Integrate loading/unloading zones so that operator presence does not coincide with automatic motion; design safe access paths and interlocks accordingly.
• During maintenance or modification of a transfer machine, treat the machine as new: re-validate risk assessment, safeguard functions, control reliability, and ensure documentation is updated.
• Train operators and maintenance personnel on transfer machine-specific hazards: automatic motion, indexing, work-piece ejection, residual energy in feeding systems and locking out sources during servicing.

B11.3 — Safety Requirements for Power Press Brakes

The B11.3 standard (ANSI B11.3-2012 (R2020)) applies to machines classified as power press brakes — machines designed specifically to bend material by use of a ram, dies, tooling and associated feed/back-gauge systems. :contentReference[oaicite:0]{index=0}
Its primary objective is to eliminate, control or reduce hazards to individuals associated with power press brake use throughout the machine lifecycle. :contentReference[oaicite:1]{index=1}

Scope & Exclusions

B11.3 applies exclusively to press brakes—machines furnished for bending material (sheet, plate, etc.) by means of fixed or moving dies. :contentReference[oaicite:2]{index=2}
The standard specifically excludes mechanical power presses, hydraulic or pneumatic power presses (for other press types), powered folding machines, hand brakes, tangent benders, apron brakes and similar machines. :contentReference[oaicite:3]{index=3}

Key Safety Topics Addressed

• Point of operation safeguarding: Protecting the operator and helper from the die-closing area, material feed zones, back gauges and other pinch/crush hazards. :contentReference[oaicite:4]{index=4}
• Control modes & actuation systems: The standard distinguishes machine types (general-purpose vs special-purpose) and specifies required controls such as interlocks, two-hand controls, safe-speed, anti-repeat, single-stroke capability for certain machines. :contentReference[oaicite:5]{index=5}
• Safe distance & alternative safeguarding methods: Where fixed guards are not feasible, the standard allows “safe distance” methods under specific conditions—but as guidance requires methods to be substantiated. :contentReference[oaicite:6]{index=6}
• Die changeover, setup, maintenance & mode transitions: Requires safe practices for tooling installation, maintenance lock-out, guarding during non-production modes, and verification after modification or retrofit. :contentReference[oaicite:7]{index=7}
• Lifecyle and responsibility allocation: The standard addresses roles and obligations of machine builders/suppliers, integrators or modifiers, and users/owners in design, installation, operation, maintenance, modification and decommissioning. :contentReference[oaicite:8]{index=8}

Why It Matters

Power press brakes are high-force machines used in bending operations; they involve ram motion, tooling change, material feed/back-gauge, and potential exposure of hands or other body parts to pinch, crush, or ejection hazards.
Because of the variety in press-brake configurations (mechanical, hydraulic, servo) and workpiece handling methods, B11.3 gives a structured framework so employers and machine builders can apply recognized engineering practices to guard them effectively. :contentReference[oaicite:9]{index=9}

Practical Implementation Tips

• Perform a risk assessment specific to the press brake: consider material size/thickness, tooling change frequency, back-gauge accessibility, operator posture during loading/unloading.
• Identify machine type (general-purpose vs special-purpose) and ensure control system meets the standard’s requirement for that category (e.g., anti-repeat, safe-speed, two-hand control etc.).
• Evaluate guarding options: fixed barriers, adjustable guards, presence-sensing devices, two-hand controls, safe-speed monitoring. If barrier is infeasible, document justification for “safe-distance” method under the conditions allowed by the standard. :contentReference[oaicite:10]{index=10}
• Calculate or validate stopping time of the ram and safe distance if presence-sensing/light curtain is used; maintain records of stop-time measurements, testing and training. :contentReference[oaicite:11]{index=11}
• Train operators and maintenance personnel: focus on load/unload hazards, die changeover, back-gauge interaction, feeding methods, reach-in hazards, and safe practices when override or maintenance mode is used. :contentReference[oaicite:12]{index=12}
• Upon machine modification, rebuild or retrofit, treat the machine as effectively new: re-validate risk assessment, safeguards, controls, training and documentation. :contentReference[oaicite:13]{index=13}

B11.4 — Safety Requirements for Shears

The B11.4 standard (ANSI B11.4-2003 (R2020)) pertains to shears that are mechanically, hydraulically, hydro-mechanically or pneumatically powered, and that utilise a fixed blade(s) and a non-rotary moving blade for the shearing action. :contentReference[oaicite:0]{index=0}
It applies to machines used for metal shearing (e.g., squaring shears, crop shears, right-angle shears, non-rotary slitting shears) when the machine meets the defined configuration. :contentReference[oaicite:1]{index=1}

Scope & Exclusions

The standard covers machines used for shearing material by one fixed and one moving non-rotary blade (with a constant rake for a stroke) as used in stand-alone, automatic or process-line shears. :contentReference[oaicite:2]{index=2}
Excluded from B11.4 are: slitting-rotary shears, nibblers, coil slitters, portable hand tools, rotary-blade slitters and shears, alligator shears, angle bar/beam/channel shears, notching machines and manually powered “jump” shears. :contentReference[oaicite:3]{index=3}

Key Safety Topics Addressed

• Point of operation and hold-down guarding: The standard defines the shear’s point of operation and includes hazards associated with blade movement, workpiece ejection, and hold-down devices. :contentReference[oaicite:4]{index=4}
• Safeguarding methods: Requirements for barrier guards adjustable to stock thickness, presence sensing devices, two-hand controls or other safe-distance/protection methods. :contentReference[oaicite:5]{index=5}
• Stock handling & feed systems: Safe design of feed/infeed/outfeed zones, operator access, material ejection hazards, and ensuring the operator cannot reach into the danger zone during the cycle. :contentReference[oaicite:6]{index=6}
• Maintenance, setup & modification: Safe procedures for blade change, hold-down maintenance, guarding inspection, and when machines are modified or rebuilt they must be treated as new for risk assessment. :contentReference[oaicite:7]{index=7}
• Life-cycle responsibilities: The roles of machine builders/suppliers, integrators/modifiers, and users/owners in design, installation, commissioning, operation, maintenance, modification and decommissioning are clearly defined. :contentReference[oaicite:8]{index=8}

Why It Matters

Shears present serious hazards including crush, pinch, amputation, and ejection of workpieces — especially when stock is manually fed, hold-downs clamp with high force, and blade motion is fast and powerful. Guarding and control measures must prevent access to the danger zone and ensure safe operation during all modes. :contentReference[oaicite:9]{index=9}
By applying B11.4’s structured framework, manufacturers and users can apply recognized good engineering practice in shear design and safeguarding, support compliance with general machine guarding obligations (e.g., in OSHA 29 CFR 1910.212) and reduce risk of injury. :contentReference[oaicite:11]{index=11}

Practical Implementation Tips

• Conduct a specific task-based risk assessment: include stand-alone, automatic, and process-line shear operation; manual feed, automatic feed, maintenance and clean-up modes.
• Ensure blade guards and hold-down guards adjust for minimum stock thickness to prevent finger access — verify the guard is secured and runs with the blade. :contentReference[oaicite:12]{index=12}
• Assess operator reach distances and ensure presence-sensing, two-hand control or safe-distance systems are used when barrier guarding is impractical. :contentReference[oaicite:13]{index=13}
• Inspect ejection zones behind the shear and equivalent paths — implement fencing or barricades to prevent pedestrian access behind the drop zone. :contentReference[oaicite:14]{index=14}
• When modifying or rebuilding a shear (for example changing blade size, feeding mechanism, automation retrofits) treat the machine as new: re-validate risk assessment, update safeguarding and maintain documentation. :contentReference[oaicite:15]{index=15}

B11.TR7 — Designing for Safety & Lean Manufacturing

The B11.TR7-2007 (R2017) technical report provides practical guidance for machine tool suppliers, integrators and end-users to apply both safety and lean manufacturing concepts concurrently. :contentReference[oaicite:0]{index=0}
It emphasises that pursuing lean (faster changeovers, minimal waiting, reduced inventories) without considering machine-safety can create unexpected hazards; likewise implementing safety alone without lean thinking may add waste and reduce productivity. :contentReference[oaicite:1]{index=1}

Scope & Purpose

B11.TR7 is directed at guiding the integration of safety and lean within machine tools and manufacturing systems. It supports both retrofit improvement and new-design processes where safety and waste-reduction are addressed upfront. :contentReference[oaicite:2]{index=2}

Key Themes Addressed

• Lean manufacturing overview: Concepts like 5S, Kanban, Kaizen, pull systems and their relation to machine workflow and waste reduction. :contentReference[oaicite:3]{index=3}
• Safety-lean conflicts and resolutions: Examples where lean efforts removed guards, increased exposure, or shortened changeovers but increased hazard; the report highlights these pitfalls. :contentReference[oaicite:4]{index=4}
• Risk assessment aligned with waste-reduction: The report presents a framework to identify tasks, hazards *and* wastes, then assess both risk and waste together to arrive at solutions that minimise both. :contentReference[oaicite:5]{index=5}
• Design-guidelines for safety-lean synergy: Guidance for machine/cell layout, tooling change design, access, flow of parts, guard design, control integration – all with lean and safety in mind. :contentReference[oaicite:6]{index=6}
• Leadership & culture: Emphasises that successful implementation requires top-management commitment, cross-functional teams (engineering, safety, production) and continuous improvement mindset. :contentReference[oaicite:7]{index=7}

Why It Matters

In modern manufacturing, the drive for lean means machines and cells are redesigned for faster throughput, less setup time, higher flexibility. However, ignoring safety during that redesign can lead to increased risk of injury, downtime, regulatory non-compliance and hidden cost.
B11.TR7 provides a framework to make safety an integral part of lean initiatives rather than an afterthought. By doing so, companies can achieve “better, faster, safer” rather than “faster but riskier.”

Implementation Tips

• Map machine tasks and flows: For each machine or cell, list tasks (production, changeover, maintenance), identify wastes (waiting, motion, excess inventory) and hazards (pinch, entanglement, ejection). Use the dual-assessment approach. :contentReference[oaicite:8]{index=8}
• During design or retrofit, involve safety, production, maintenance and engineering teams early—so guard design, tooling change methods, material flow are all considered with lean & safety in mind. :contentReference[oaicite:9]{index=9}
• When changing machines/cells for lean improvements (e.g., faster changeovers, modular tooling, fewer handlings), always revisit risk assessment: ensure that faster access or fewer constraints haven’t removed essential safety features. :contentReference[oaicite:10]{index=10}
• Document “dual” objectives: For each improvement, capture both the waste-reduction metric (e.g., changeover time) and the safety-metric (e.g., guarding integrity, reduced access risk). Use that to verify that neither objective is compromised. :contentReference[oaicite:11]{index=11}
• Train personnel in the integrated view of lean and safety: emphasise that “lean isn’t just speed” and “safety isn’t just add guard”—they must work together. Include changeover teams, maintenance, operators. :contentReference[oaicite:12]{index=12}

ANSI Z244.1 — Control of Hazardous Energy: Lockout, Tagout & Alternative Methods

The ANSI Z244.1 standard (sometimes referenced as ANSI/ASSP Z244.1) provides a detailed framework for the safe control of hazardous energy sources—electrical, mechanical, hydraulic, pneumatic, chemical, thermal, gravitational or stored energy—when servicing or maintaining machines, equipment or processes. :contentReference[oaicite:0]{index=0}
While it is a voluntary consensus standard (not a regulation), it is widely used by safety professionals and referenced in relation to 29 CFR 1910.147 and other machine safety/energy control programs. :contentReference[oaicite:2]{index=2}

Scope & Purpose

ANSI Z244.1 applies to tasks such as construction, installation, adjustment, inspection, unjamming, testing, cleaning, dismantling, servicing or maintaining machines, equipment or processes when the unexpected energization or release of stored energy has the potential to cause harm. :contentReference[oaicite:3]{index=3}
The standard emphasizes the employer’s or machine owner’s responsibility to establish a hazardous energy control program, including procedures, training, audits and alternative methods when traditional lockout/tagout may not be practicable. :contentReference[oaicite:4]{index=4}

Key Elements & Themes

• Energy control program: Program elements include hazard identification, energy-isolation methods, verification of isolation, training, periodic audits, and maintaining a safe work environment. :contentReference[oaicite:5]{index=5}
• Lockout, Tagout, or Alternative Methods: The standard recognizes traditional lockout as the preferred method but allows tagout or other validated alternative methods when risk assessment justifies them. :contentReference[oaicite:6]{index=6}
• Risk assessment & justification: When using alternative methods, a documented risk assessment must demonstrate equivalent protection to traditional LOTO. :contentReference[oaicite:7]{index=7}
• Design and integration: The Z244.1 standard highlights the need for properly designed isolation devices, clear identification of energy sources, controlled transfer of isolation between shifts, and integration with existing safety control systems. :contentReference[oaicite:8]{index=8}
• Training and audits: Authorized employees must be trained, affected employees must be notified, and periodic inspections/audits must verify the program’s effectiveness over time. :contentReference[oaicite:9]{index=9}

Relation to OSHA

Although the standard is not enforceable by itself, Occupational Safety and Health Administration (OSHA) recognizes ANSI Z244.1 as a valuable consensus standard for guidance on energy control programs. :contentReference[oaicite:11]{index=11}
Compliance with 29 CFR 1910.147 remains mandatory, and using ANSI Z244.1 can help demonstrate a program meets recognized good practice or “RAGAGEP” (recognized and generally accepted good engineering practice).

Why It Matters

Unexpected machine startup or release of stored energy is a significant cause of serious injuries—including electrocutions, amputations, crushing, burns and fatalities. :contentReference[oaicite:12]{index=12}
Implementing ANSI Z244.1-based programs helps reduce these risks by ensuring controlled isolation of energy sources, validated procedures, trained personnel and audits to ensure ongoing safety.

FAQ
