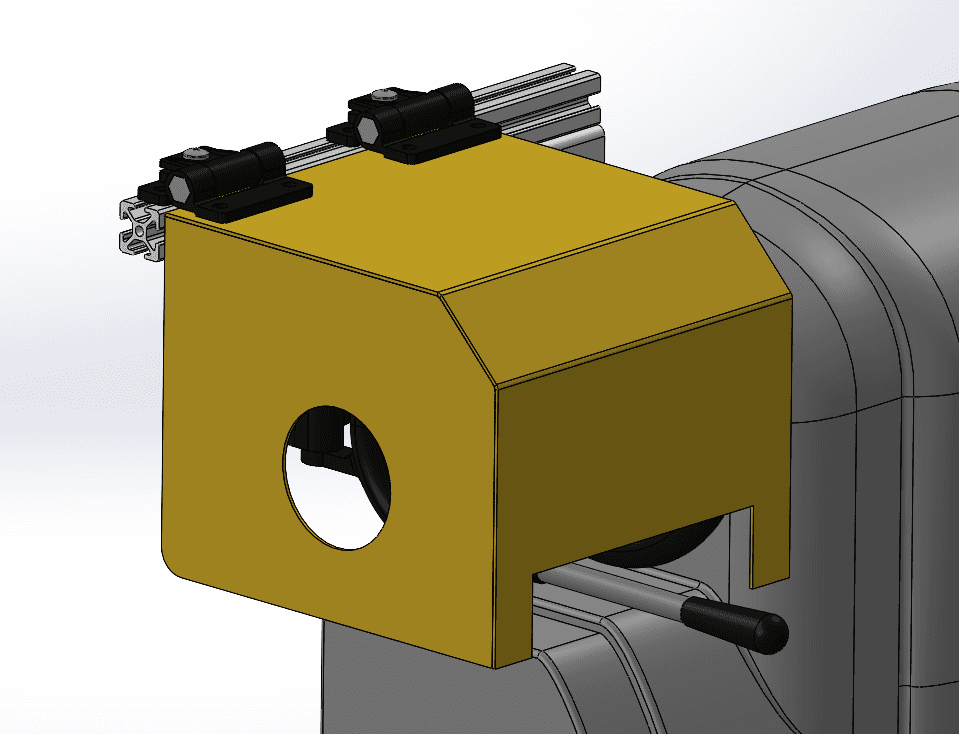

Hardinge Lathe Collect Guard

OSHA 1910.212(a) — General Machine Guarding Requirements

OSHA 29 CFR 1910.212(a) defines the core safety principles for machine guarding in general industry.
It requires employers to protect workers from mechanical hazards created by points of operation, rotating components, in-running nip points, and flying chips or sparks.
This paragraph serves as the primary enforcement reference for machinery that does not have its own specific OSHA standard.

Scope and Purpose

The goal of 1910.212(a) is to prevent contact injuries, entanglement, crushing, and amputation by ensuring all hazardous machine motions are either guarded or controlled.
It applies to virtually all machinery used in manufacturing, maintenance, fabrication, and processing operations.

Key Guarding Principles

• Comprehensive Protection: Guards must cover any moving part or area that could cause injury through contact or ejection of material.
• Design Flexibility: Employers may choose fixed, adjustable, or interlocked guards, provided they effectively prevent worker exposure.
• Performance Standard: The rule is performance-based rather than prescriptive—meaning the employer must demonstrate that the guarding method eliminates or controls the hazard.
• Continuity of Protection: Guards must remain in place and secure during operation and be adjusted only when the machine is off and locked out.
• Applicability: This paragraph acts as a “catch-all” requirement whenever a machine presents a hazard not addressed by another OSHA provision.

Examples of Covered Hazards

Machines governed by 1910.212(a) include drill presses, milling machines, conveyors, polishing lathes, grinders, and mechanical cutters.
Hazards may include rotating shafts, reciprocating arms, cutting surfaces, or points where material is inserted or removed.

Compliance Practices

• Install guards that physically prevent access to moving parts.
• Inspect guards routinely for secure attachment and effectiveness.
• Ensure that guard openings prevent any part of the body from reaching the danger zone.
• Prohibit operation when guards are missing or removed.
• Train employees on safe operation, inspection, and maintenance of guarded machines.

Why OSHA 1910.212(a) Is Important

Most serious machinery accidents occur because guards are missing, removed, or inadequate.
Section (a) establishes the baseline requirements that form the foundation of all machine safeguarding programs.
Compliance not only prevents injuries and amputations but also ensures alignment with national consensus standards such as ANSI B11 and ISO 12100.

FAQ

OSHA 1910.212(a)(1) — General Duty to Guard Machines

OSHA 29 CFR 1910.212(a)(1) establishes the primary obligation to guard machinery in general industry.
It requires employers to implement one or more methods of guarding that protect both the operator and nearby employees from hazards created by points of operation, rotating parts, flying chips, sparks, or any other dangerous mechanical motions.

Scope and Intent

This paragraph serves as the foundation of all machine guarding enforcement.
It mandates that every machine presenting a mechanical hazard must be safeguarded through a combination of physical barriers or engineered safety devices.
The employer may choose the guarding method, but it must completely prevent employee exposure to the moving part or hazard zone during normal operation.

Acceptable Guarding Methods

• Fixed guards: Rigid barriers that prevent access to hazardous areas.
• Interlocked guards: Guards that automatically shut off or disengage the machine when opened or removed.
• Adjustable guards: Barriers that can be positioned for different operations but remain securely in place during use.
• Self-adjusting guards: Guards that move automatically into position as the operator works, covering the danger area as material is fed.
• Electronic safeguarding devices: Light curtains, pressure-sensitive mats, and presence sensors that prevent access to moving parts.

Key Compliance Requirements

• Guarding must protect both operators and nearby personnel.
• Guards must be securely attached and durable enough to resist normal operation and vibration.
• Openings in guards must be small enough to prevent accidental contact with moving parts.
• Guards must not introduce new hazards such as sharp edges, pinch points, or visibility obstruction.
• All guards must be kept in place and functional when machines are operating.

Common Violations

• Machines operating without guards over exposed belts, pulleys, gears, or shafts.
• Removed or bypassed barrier guards during production or maintenance.
• Improper guard materials or openings that allow hand or finger access to moving parts.
• Lack of guarding for nearby employees who may be struck by flying material or sparks.

Practical Compliance Tips

• Conduct a full hazard assessment for all equipment to identify points of operation and motion hazards.
• Install fixed guards wherever possible; use interlocked or adjustable guards only when process requirements demand it.
• Include guarding checks in your preventive maintenance program.
• Train operators to recognize unsafe conditions and never remove or modify guards.

Why OSHA 1910.212(a)(1) Is Important

This paragraph represents OSHA’s general duty clause for machinery safety.
Most machine-related injuries occur when guards are removed or missing, and OSHA 1910.212(a)(1) gives inspectors the authority to cite any unguarded moving part that poses a risk.
Compliance ensures that workers remain protected from crushing, entanglement, amputation, and impact injuries.

FAQ

OSHA 1910.212(a)(2) — General Requirements for Machine Guards

OSHA 29 CFR 1910.212(a)(2) establishes the design and construction standards for machine guards.
This provision requires that guards be securely fastened to the machine and designed to protect operators and nearby employees from injury caused by moving parts, flying debris, or accidental contact.
The intent is to ensure that guarding not only provides protection but also does not create new hazards in the process.

Key Guard Design Requirements

• Secure Attachment: Guards must be firmly attached to the machine. If fastening directly to the machine is not possible, guards must be securely mounted elsewhere to provide equal protection.
• Structural Integrity: Guards must be made of materials strong enough to resist impact, vibration, and normal wear during operation.
• No New Hazards: Guards must not introduce additional risks such as pinch points, sharp edges, or visibility obstruction.
• Durability: Guard materials must withstand operational stresses and environmental factors like heat, coolant, or debris.
• Accessibility: Guards should allow safe maintenance, lubrication, and adjustments without requiring complete removal when possible.

Performance Intent

The focus of 1910.212(a)(2) is performance-based guarding design.
OSHA does not prescribe specific guard materials or thicknesses; instead, the guard must perform effectively under real-world conditions.
Employers have the flexibility to design guards suited to their machines—as long as the guarding prevents contact and remains in place during operation.

Examples of Guard Types Covered

• Fixed guards enclosing belts, pulleys, gears, and rotating shafts.
• Interlocked guards that shut off power when opened or removed.
• Adjustable guards for variable-sized stock or cutting operations.
• Self-adjusting guards that move automatically with the workpiece.

Best Practices for Compliance

• Inspect guards regularly for looseness, cracks, or corrosion.
• Use guard materials that match the operational environment (e.g., metal for high-impact areas, polycarbonate for visibility).
• Train employees to recognize damaged or missing guards and to report deficiencies immediately.
• Ensure all guards are reinstalled and secured after maintenance or adjustments.

Common Violations

• Guards loosely attached or easily removable during operation.
• Improvised guards made from inadequate materials such as thin sheet metal or plastic covers.
• Guards with sharp edges or openings large enough to allow finger or hand access.
• Removed or bypassed guards not replaced before restarting the machine.

Why OSHA 1910.212(a)(2) Is Important

Even when a guard is present, poor design or weak construction can fail to protect workers.
OSHA 1910.212(a)(2) ensures that guards are engineered and maintained to perform effectively throughout a machine’s life cycle.
Properly designed guards prevent crushing, amputation, and laceration injuries while maintaining usability and productivity.

FAQ

OSHA 1910.212(a)(3) — Point of Operation Guarding

OSHA 29 CFR 1910.212(a)(3) sets forth the point of operation guarding requirements for machinery used in general industry.
The “point of operation” is the area on a machine where work is performed—such as cutting, shaping, boring, forming, or assembling a part.
This section requires that each machine have a guard or safeguarding device that prevents the operator from having any part of the body in the danger zone during operation.

Purpose and Scope

The purpose of 1910.212(a)(3) is to eliminate exposure to moving tools or dies that can cause crushing, amputation, laceration, or puncture injuries.
It applies to all machines with a point of operation hazard, regardless of size or industry.
Typical examples include presses, saws, milling machines, lathes, shears, and drills.

Key Requirements

• Every machine must be equipped with a guard that prevents the operator from reaching into the danger zone.
• Guards must be designed and constructed to provide maximum protection while allowing the machine to be operated safely and efficiently.
• Special hand tools may be used to handle materials when guarding at the point of operation is not practical.
• Guards must be securely fastened, maintained in place, and not easily removed or bypassed during operation.
• Safeguarding devices such as light curtains, presence-sensing devices, or two-hand controls may be used if they provide equivalent protection.

Examples of Point of Operation Hazards

• Cutting blades or rotating cutters that can amputate or lacerate fingers.
• Press dies or molds that can crush hands or fingers during operation.
• Drill bits, boring tools, or milling heads that can pierce or entangle body parts.
• Shearing or punching points that can sever material—and body parts—with the same force.

Acceptable Guarding Methods

• Fixed barrier guards enclosing the point of operation.
• Interlocked guards that stop machine motion when opened or removed.
• Adjustable or self-adjusting guards that move automatically to block access as material is fed.
• Two-hand controls requiring both hands to activate the cycle, keeping them out of danger.
• Electronic presence-sensing devices such as light curtains or safety mats that halt motion when triggered.

Common Violations

• Operating a machine with missing or disabled point of operation guards.
• Using hand-feeding where fixed or adjustable guards should be installed.
• Removing guards to increase production speed.
• Failure to provide safeguarding when machine design allows operator access to hazardous movement.

Compliance Tips

• Identify all machine points of operation and assess potential contact hazards.
• Install fixed guards where feasible; use engineered safety devices when full enclosure is not possible.
• Inspect all guards before each shift and re-secure after adjustments or maintenance.
• Train operators to recognize guarding deficiencies and to report missing or damaged safety devices immediately.

Why OSHA 1910.212(a)(3) Is Important

Point of operation injuries are among the most severe and preventable workplace incidents.
By enforcing 1910.212(a)(3), OSHA ensures that all machines have reliable guarding or safety devices that keep operators’ hands, fingers, and bodies outside the danger zone during work.
This rule remains one of the most frequently cited machine safety violations nationwide.

FAQ

OSHA 1910.212(a)(3)(i) — Guard Construction and Safety Design

OSHA 29 CFR 1910.212(a)(3)(i) outlines the design and performance requirements for point of operation guards.
This provision mandates that guards be designed and constructed so that no part of the operator’s body can enter the danger zone while the machine is in use.
It ensures guards are not merely present, but effective in eliminating exposure to mechanical hazards.

Purpose and Intent

The purpose of this section is to establish functional performance criteria for machine guards, rather than prescribing specific materials or configurations.
The employer has flexibility in choosing a guarding method, but the chosen system must physically prevent entry into the danger zone during operation and must withstand normal working conditions.

Key Guard Design Requirements

• Complete Coverage: The guard must fully enclose or block access to the hazard area where the operation takes place.
• Strength and Rigidity: Guards must be strong enough to resist mechanical stress, vibration, and accidental impact without failure or displacement.
• Visibility: Guards should allow clear observation of the work area when necessary, using materials such as mesh or transparent panels.
• Secure Installation: Guards must be firmly attached so they cannot be easily removed, loosened, or bypassed during operation.
• Usability: The guard must allow normal machine operation, feeding, and maintenance without creating additional hazards.

Examples of Guard Types Meeting 1910.212(a)(3)(i)

• Fixed steel enclosures surrounding the cutting or forming area.
• Interlocked access doors that stop the machine when opened.
• Transparent polycarbonate guards providing visibility and protection.
• Barrier guards with restricted openings preventing hand or arm entry.

Common Compliance Errors

• Using lightweight or flexible materials that can deform and allow contact.
• Guards not secured tightly to the machine or easily removed without tools.
• Guard openings large enough to allow finger or hand access to the danger zone.
• Guards that obstruct visibility or require removal for normal operation.

Best Practices

• Design guards that exceed minimum strength requirements and resist bending or vibration.
• Test guard designs under real operating conditions to ensure reliability and protection.
• Use standardized opening-size tables to determine acceptable distances between guards and hazards based on reach limitations.
• Document guard inspection results and repair or replace any that show wear, damage, or looseness.
• Train operators and maintenance staff on safe use and adjustment procedures for all guarding systems.

Why OSHA 1910.212(a)(3)(i) Is Important

Many guarding failures occur not because guards are absent, but because they are poorly designed or improperly installed.
OSHA 1910.212(a)(3)(i) ensures that guarding methods perform their intended function—keeping the operator’s body completely outside the danger zone while allowing safe, productive operation.
Proper guard design is the first line of defense against amputations, lacerations, and entanglement injuries.

FAQ

OSHA 1910.213(a)(2) — Arbors and Mandrels (Secure Bearing Requirements)

OSHA 29 CFR 1910.213(a)(2) establishes safety requirements for the arbors and mandrels of woodworking machines.
These rotating components—used to hold and drive cutting tools such as saw blades, cutter heads, and sanding drums—must be constructed and maintained with firm, secure bearings and free from play or looseness to ensure safe, stable operation.

Regulatory Text

“Arbors and mandrels shall be constructed so as to have firm and secure bearing and be free from play.”

Purpose and Intent

The intent of this rule is to prevent dangerous movement or instability in rotating machinery components.
Any looseness (“play”) in an arbor or mandrel can cause vibration, tool wobble, or complete detachment of the cutting element, resulting in severe injury or equipment damage.
OSHA 1910.213(a)(2) ensures that rotating assemblies remain rigid, balanced, and true even under full operating load.

Key Requirements

• Secure bearings: Arbors and mandrels must be supported by bearings capable of maintaining alignment and resisting operational stress.
• No play or looseness: The spindle, shaft, or arbor must rotate without side-to-side or end-to-end movement that could cause vibration or misalignment.
• Proper fit: Cutting tools, flanges, and collars must fit tightly on the arbor shaft to prevent slippage during operation.
• Design integrity: Arbors must be made from materials strong enough to resist bending, deformation, or fatigue.
• Routine inspection: Bearings, bushings, and lock nuts should be regularly checked for wear and replaced when clearance exceeds manufacturer tolerances.

Typical Equipment with Arbors or Mandrels

• Table saws (main arbor for circular blades)
• Ripsaws and crosscut saws
• Planers and moulders (cutter head mandrels)
• Jointers (rotating cutter heads)
• Drum and disc sanders
• Lathes and shapers

Common Hazards from Worn or Loose Arbors

• Blade ejection: A loose blade can detach at high speed, becoming a deadly projectile.
• Vibration and noise: Looseness increases vibration, leading to inaccurate cuts and potential mechanical failure.
• Bearing failure: Poor alignment accelerates wear and overheating of bearings.
• Arbor breakage: Repeated stress from imbalance can crack or shear the shaft.

Inspection and Maintenance Practices

• Check for radial and axial play in arbors using a dial indicator or manufacturer-specified method.
• Lubricate bearings at recommended intervals using proper grade lubricants.
• Replace worn bushings, bearings, or sleeves that allow perceptible movement or noise during rotation.
• Verify that tool flanges and spacers are flat, clean, and free of burrs to ensure secure mounting.
• Tighten arbor nuts to manufacturer torque specifications without over-tightening, which may distort the blade or shaft.

Design and Safety Considerations

• Use precision-ground arbors with minimal runout (typically under 0.002 inches).
• Support longer mandrels with dual or extended bearing housings to maintain rigidity.
• Ensure all arbors and mandrels are balanced dynamically to reduce vibration during operation.
• Do not modify arbor diameters or threads; always use manufacturer-specified parts.
• Equip machines with guards that fully enclose rotating shafts to prevent entanglement.

Why OSHA 1910.213(a)(2) Is Important

A secure and properly balanced arbor or mandrel is the foundation of safe machine operation.
OSHA 1910.213(a)(2) prevents catastrophic failures by requiring rigid, vibration-free mounting of all rotating woodworking tools.
Compliance minimizes the risk of blade ejection, bearing seizure, and operator injury, ensuring long-term stability and performance of woodworking equipment.

FAQ

OSHA 1910.213(a)(9) — Guarding of Belts, Pulleys, Gears, Shafts, and Moving Parts

OSHA 29 CFR 1910.213(a)(9) reinforces the general machine guarding principles of OSHA 1910.219 by requiring that all belts, pulleys, gears, shafts, and other moving parts of woodworking machinery be guarded effectively.
This rule ensures that operators and maintenance personnel are protected from entanglement, contact, and struck-by injuries caused by exposed power transmission components.

Regulatory Text

“All belts, pulleys, gears, shafts, and moving parts shall be guarded in accordance with the specific requirements of § 1910.219.”

Purpose and Intent

This provision links woodworking machinery safety to the broader OSHA mechanical power-transmission apparatus standard (1910.219).
While 1910.213 focuses on woodworking-specific hazards, 1910.219 details how power transmission components—such as belts and pulleys—must be enclosed or shielded to prevent accidental contact.
The intent is to create a comprehensive guarding system that protects against entanglement, amputation, and crushing injuries during normal operation and maintenance.

Key Requirements

• Complete guarding: All exposed belts, pulleys, chains, gears, shafts, flywheels, couplings, and similar moving parts must be enclosed or guarded.
• Compliance with 1910.219: Guard design, construction, and positioning must meet the material, clearance, and height standards defined in §1910.219.
• Secure installation: Guards must be firmly attached to prevent displacement or removal during vibration or operation.
• Accessibility for maintenance: Guards must allow safe access for lubrication and adjustment, or they must be removable only with tools.
• Training: Operators must be instructed on the purpose of the guards and prohibited from removing or bypassing them.

Common Hazards Controlled

• Entanglement: Clothing, hair, or jewelry caught in rotating parts.
• Crushing and pinching: Hands or fingers drawn into nip points between belts and pulleys.
• Impact: Contact with projecting shaft ends or spinning couplings.
• Flying debris: Fractured belts or thrown parts from failed components.
• Unexpected startup: Accidental motion during cleaning or adjustment.

Design and Guarding Specifications (Per §1910.219)

• Belt and pulley guards: Must fully enclose both the upper and lower runs, with openings small enough to prevent finger entry.
• Horizontal shafting: Must be enclosed or guarded by stationary shields if located within 7 feet of the floor or working platform.
• Flywheels: Guarded to a height of at least 15 inches from the floor with solid or mesh barriers.
• Gears and sprockets: Fully enclosed with metal guards that prevent hand contact.
• Set screws and keys: Must be recessed or covered to eliminate snagging points.
• Material strength: Guards must be constructed of metal or other durable material capable of withstanding normal impact and vibration.

Inspection and Maintenance Guidelines

• Inspect all guards weekly to ensure proper placement and attachment.
• Replace damaged, bent, or missing guards immediately.
• Lubricate bearings and adjust belts only after lockout/tagout has been performed.
• Check for frayed belts, loose pulleys, or exposed couplings during preventive maintenance.
• Train operators to report missing or defective guards before machine use.

Common Violations

• Missing or removed belt guards during maintenance or production.
• Improvised guards made of inadequate materials like cardboard or plastic sheeting.
• Exposed shaft ends or rotating couplings within 7 feet of the floor.
• Failure to reinstall guards after servicing the machine.

Best Practices for Compliance

• Use interlocked or hinged guards that automatically cut power when opened for maintenance.
• Label guards clearly with “Do Not Operate Without Guard in Place.”
• Develop a written machine guarding inspection checklist referencing both 1910.213 and 1910.219.
• Include guard verification in your lockout/tagout program before re-energizing equipment.
• Maintain a spare parts inventory for guard panels, fasteners, and safety shields.

Why OSHA 1910.213(a)(9) Is Important

Exposed power transmission components are one of the most common causes of amputations and caught-in injuries in woodworking facilities.
OSHA 1910.213(a)(9) reinforces compliance with §1910.219 by requiring all belts, pulleys, gears, and shafts to be properly guarded.
This integrated approach ensures that both woodworking-specific and general mechanical hazards are controlled through durable, securely mounted guarding systems.

FAQ

B11.6 — Safety Requirements for Manual Turning Machines (Lathes) With or Without Automatic Control

The B11.6 standard (ANSI B11.6-2022) specifies safety requirements for the design, construction, installation, operation, maintenance, modification, transport and dismantling of horizontally or vertically oriented spindle turning machines (commonly called lathes) that are manually controlled or may include automatic control capabilities. :contentReference[oaicite:0]{index=0}

Scope & Application

This standard applies to manual turning machines in which the workpiece is clamped and rotated while the cutting tool is rather stationary (i.e., the cutting force is from the workpiece). These machines may include automatic features (such as feed drives or tool turret indexing) but do *not* include fully automatic part-handling or bar-feed mechanisms or automatic tool changers — those machines fall under separate standards. :contentReference[oaicite:1]{index=1}

Key Safety Topics Addressed

• Point of operation & rotating parts guarding: Guarding or protective devices for rotating spindles, chucks, work-holding, live tooling, and removal of chips or swarf to prevent contact, entanglement or ejection hazards. :contentReference[oaicite:2]{index=2}
• Machine control modes & automatic control interface: Safe transitions between manual operation, automatic feed, tool change or manual set-up modes; ensuring that automatic or semi-automatic features do not expose operators to hazards. :contentReference[oaicite:3]{index=3}
• Feed, back-gauge and tool systems: Safe design of workpiece feeding, tool turret or system, and back-gauge motions to prevent contact during automatic or manual operations. :contentReference[oaicite:4]{index=4}
• Lifecycle responsibilities: The standard assigns defined roles for machine builders/suppliers, integrators/modifiers and users/owners for all phases of the machine life cycle — design, installation, commissioning, operation, maintenance, modification and decommissioning. :contentReference[oaicite:5]{index=5}
• Risk assessment & modification/retrofit: The standard emphasizes that machines modified, rebuilt or converted must be treated as essentially new with respect to risk assessment, safeguarding and verification. :contentReference[oaicite:6]{index=6}

Why It Matters

Turning machines (lathes) remain ubiquitous in manufacturing and metalworking. They involve hazards from rotating workpieces, chucks, live tools, swarf and chips, feed/back-gauge motion, automatic features and manual operator interaction. Adhering to B11.6 helps ensure these machines are designed, installed and maintained in accordance with recognized engineering safety practices, supports risk reduction and strengthens a machine-safety program. :contentReference[oaicite:7]{index=7}

Implementation Tips

• Perform a task-based risk assessment considering manual turning, automatic feed modes, tool change settings, maintenance, set-up and clean-up operations.
• Ensure aftermarket or retrofit features (e.g., tool turrets, automatic feed) do not compromise guard integrity or operator protective distance.
• Verify that guards around the spindle, chuck and rotating workpiece prevent access during operation and that swarf/chip ejection zones are managed.
• Audit control mode logic to ensure safe state transitions — for example, automatic feed should not occur with operator hazard exposure; manual mode should have proper safeguards for setup/maintenance.
• Include records of maintenance, modification, training of operators and documentation of risk assessments and safeguarding changes — treating any machine changes as a redesign from safety perspective.
