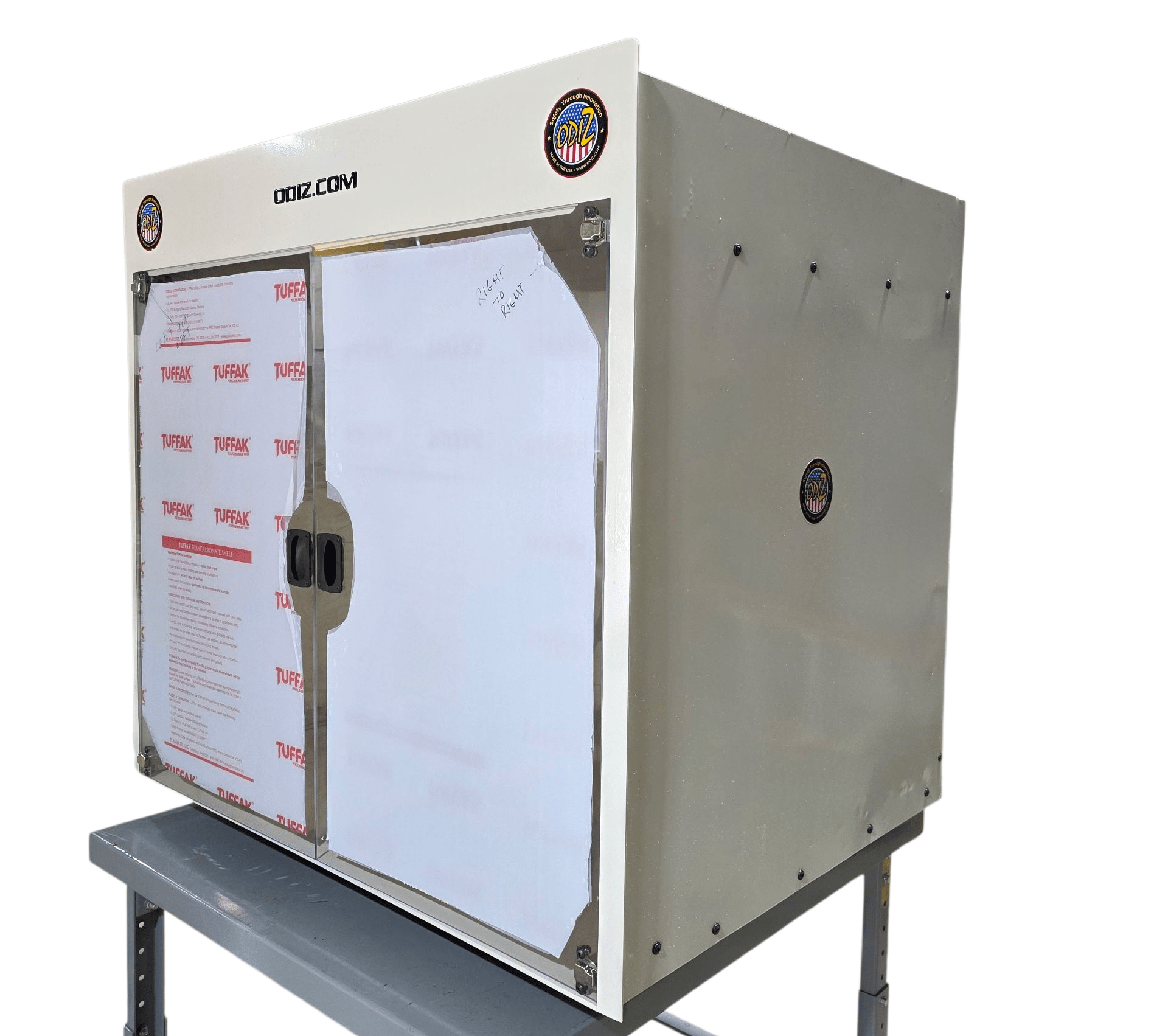

Custom Machinery Enclosures

OSHA 1910.212 — General Requirements for All Machines

OSHA 29 CFR 1910.212 is the core machine guarding standard that applies to nearly all machinery in general industry.
It requires employers to provide guards and protective devices to shield workers from points of operation, rotating parts, in-running nip points, flying chips, sparks, and other hazards.
As a “catch-all” standard, OSHA 1910.212 is often cited when no specific machine regulation exists, making it one of the most frequently enforced provisions in Subpart O.

Key Guarding Requirements

• Point of Operation: Machines must be guarded so operators are not exposed to the point where the work is performed.
• Rotating & Moving Parts: Guards must cover exposed belts, pulleys, gears, shafts, and flywheels to prevent accidental contact.
• In-Running Nip Points: Hazards created where two parts rotate toward each other or where one part moves past a stationary object must be guarded.
• Flying Chips & Sparks: Guards or shields must contain debris, sparks, and fragments generated during machine operation.
• Anchoring: Machines designed for fixed location use must be securely anchored to prevent movement or tipping.

Examples of Machines Covered

Because OSHA 1910.212 is a broad standard, it applies to a wide range of equipment including drill presses, lathes, milling machines, conveyors, punch presses, saws, and grinders.
If a machine has moving parts that could injure a worker, 1910.212 requires guarding.

Common Violations

• Missing point-of-operation guards on presses or saws.
• Exposed belts, pulleys, or rotating shafts without guarding.
• Improperly adjusted or removed guards during production.
• Lack of anchoring on floor-mounted equipment.
• Failure to contain sparks or flying material in grinding, cutting, or drilling operations.

Why OSHA 1910.212 Matters

Machine guarding violations are consistently among OSHA’s top cited standards.
Without proper guards, workers face severe risks of crushed fingers, amputations, lacerations, and eye injuries.
Compliance with OSHA 1910.212 helps facilities protect employees, avoid costly citations, and establish safer production environments.

Relation to Other Standards

OSHA 1910.212 is a general requirement that works in tandem with OSHA 1910.215 (Abrasive Wheel Machinery)
and machine-specific rules under Subpart O. It also aligns with ANSI B11 machine safety standards,
which provide technical safeguarding criteria.

Compliance Checklist

• Install guards at the point of operation on all applicable machines.
• Cover all rotating parts, belts, pulleys, gears, and shafts.
• Guard in-running nip points created by rollers, belts, or chains.
• Provide shields for flying chips, sparks, or debris.
• Anchor floor-mounted machines to prevent shifting.
• Train employees to use machines only with guards in place.

Internal Linking Opportunities

• Cross-link to Lockout/Tagout (OSHA 1910.147) for energy control.
• Link to Abrasive Wheel Machinery (OSHA 1910.215) for grinder rules.
• Connect to ANSI B11 for machine safeguarding performance standards.
• Promote relevant machine guarding products, light curtains, and safety devices.

FAQ

OSHA 1910.212(a) — General Machine Guarding Requirements

OSHA 29 CFR 1910.212(a) defines the core safety principles for machine guarding in general industry.
It requires employers to protect workers from mechanical hazards created by points of operation, rotating components, in-running nip points, and flying chips or sparks.
This paragraph serves as the primary enforcement reference for machinery that does not have its own specific OSHA standard.

Scope and Purpose

The goal of 1910.212(a) is to prevent contact injuries, entanglement, crushing, and amputation by ensuring all hazardous machine motions are either guarded or controlled.
It applies to virtually all machinery used in manufacturing, maintenance, fabrication, and processing operations.

Key Guarding Principles

• Comprehensive Protection: Guards must cover any moving part or area that could cause injury through contact or ejection of material.
• Design Flexibility: Employers may choose fixed, adjustable, or interlocked guards, provided they effectively prevent worker exposure.
• Performance Standard: The rule is performance-based rather than prescriptive—meaning the employer must demonstrate that the guarding method eliminates or controls the hazard.
• Continuity of Protection: Guards must remain in place and secure during operation and be adjusted only when the machine is off and locked out.
• Applicability: This paragraph acts as a “catch-all” requirement whenever a machine presents a hazard not addressed by another OSHA provision.

Examples of Covered Hazards

Machines governed by 1910.212(a) include drill presses, milling machines, conveyors, polishing lathes, grinders, and mechanical cutters.
Hazards may include rotating shafts, reciprocating arms, cutting surfaces, or points where material is inserted or removed.

Compliance Practices

• Install guards that physically prevent access to moving parts.
• Inspect guards routinely for secure attachment and effectiveness.
• Ensure that guard openings prevent any part of the body from reaching the danger zone.
• Prohibit operation when guards are missing or removed.
• Train employees on safe operation, inspection, and maintenance of guarded machines.

Why OSHA 1910.212(a) Is Important

Most serious machinery accidents occur because guards are missing, removed, or inadequate.
Section (a) establishes the baseline requirements that form the foundation of all machine safeguarding programs.
Compliance not only prevents injuries and amputations but also ensures alignment with national consensus standards such as ANSI B11 and ISO 12100.

FAQ

OSHA 1910.212(a)(1) — General Duty to Guard Machines

OSHA 29 CFR 1910.212(a)(1) establishes the primary obligation to guard machinery in general industry.
It requires employers to implement one or more methods of guarding that protect both the operator and nearby employees from hazards created by points of operation, rotating parts, flying chips, sparks, or any other dangerous mechanical motions.

Scope and Intent

This paragraph serves as the foundation of all machine guarding enforcement.
It mandates that every machine presenting a mechanical hazard must be safeguarded through a combination of physical barriers or engineered safety devices.
The employer may choose the guarding method, but it must completely prevent employee exposure to the moving part or hazard zone during normal operation.

Acceptable Guarding Methods

• Fixed guards: Rigid barriers that prevent access to hazardous areas.
• Interlocked guards: Guards that automatically shut off or disengage the machine when opened or removed.
• Adjustable guards: Barriers that can be positioned for different operations but remain securely in place during use.
• Self-adjusting guards: Guards that move automatically into position as the operator works, covering the danger area as material is fed.
• Electronic safeguarding devices: Light curtains, pressure-sensitive mats, and presence sensors that prevent access to moving parts.

Key Compliance Requirements

• Guarding must protect both operators and nearby personnel.
• Guards must be securely attached and durable enough to resist normal operation and vibration.
• Openings in guards must be small enough to prevent accidental contact with moving parts.
• Guards must not introduce new hazards such as sharp edges, pinch points, or visibility obstruction.
• All guards must be kept in place and functional when machines are operating.

Common Violations

• Machines operating without guards over exposed belts, pulleys, gears, or shafts.
• Removed or bypassed barrier guards during production or maintenance.
• Improper guard materials or openings that allow hand or finger access to moving parts.
• Lack of guarding for nearby employees who may be struck by flying material or sparks.

Practical Compliance Tips

• Conduct a full hazard assessment for all equipment to identify points of operation and motion hazards.
• Install fixed guards wherever possible; use interlocked or adjustable guards only when process requirements demand it.
• Include guarding checks in your preventive maintenance program.
• Train operators to recognize unsafe conditions and never remove or modify guards.

Why OSHA 1910.212(a)(1) Is Important

This paragraph represents OSHA’s general duty clause for machinery safety.
Most machine-related injuries occur when guards are removed or missing, and OSHA 1910.212(a)(1) gives inspectors the authority to cite any unguarded moving part that poses a risk.
Compliance ensures that workers remain protected from crushing, entanglement, amputation, and impact injuries.

FAQ

OSHA 1910.212(a)(2) — General Requirements for Machine Guards

OSHA 29 CFR 1910.212(a)(2) establishes the design and construction standards for machine guards.
This provision requires that guards be securely fastened to the machine and designed to protect operators and nearby employees from injury caused by moving parts, flying debris, or accidental contact.
The intent is to ensure that guarding not only provides protection but also does not create new hazards in the process.

Key Guard Design Requirements

• Secure Attachment: Guards must be firmly attached to the machine. If fastening directly to the machine is not possible, guards must be securely mounted elsewhere to provide equal protection.
• Structural Integrity: Guards must be made of materials strong enough to resist impact, vibration, and normal wear during operation.
• No New Hazards: Guards must not introduce additional risks such as pinch points, sharp edges, or visibility obstruction.
• Durability: Guard materials must withstand operational stresses and environmental factors like heat, coolant, or debris.
• Accessibility: Guards should allow safe maintenance, lubrication, and adjustments without requiring complete removal when possible.

Performance Intent

The focus of 1910.212(a)(2) is performance-based guarding design.
OSHA does not prescribe specific guard materials or thicknesses; instead, the guard must perform effectively under real-world conditions.
Employers have the flexibility to design guards suited to their machines—as long as the guarding prevents contact and remains in place during operation.

Examples of Guard Types Covered

• Fixed guards enclosing belts, pulleys, gears, and rotating shafts.
• Interlocked guards that shut off power when opened or removed.
• Adjustable guards for variable-sized stock or cutting operations.
• Self-adjusting guards that move automatically with the workpiece.

Best Practices for Compliance

• Inspect guards regularly for looseness, cracks, or corrosion.
• Use guard materials that match the operational environment (e.g., metal for high-impact areas, polycarbonate for visibility).
• Train employees to recognize damaged or missing guards and to report deficiencies immediately.
• Ensure all guards are reinstalled and secured after maintenance or adjustments.

Common Violations

• Guards loosely attached or easily removable during operation.
• Improvised guards made from inadequate materials such as thin sheet metal or plastic covers.
• Guards with sharp edges or openings large enough to allow finger or hand access.
• Removed or bypassed guards not replaced before restarting the machine.

Why OSHA 1910.212(a)(2) Is Important

Even when a guard is present, poor design or weak construction can fail to protect workers.
OSHA 1910.212(a)(2) ensures that guards are engineered and maintained to perform effectively throughout a machine’s life cycle.
Properly designed guards prevent crushing, amputation, and laceration injuries while maintaining usability and productivity.

FAQ

OSHA 1910.212(a)(3) — Point of Operation Guarding

OSHA 29 CFR 1910.212(a)(3) sets forth the point of operation guarding requirements for machinery used in general industry.
The “point of operation” is the area on a machine where work is performed—such as cutting, shaping, boring, forming, or assembling a part.
This section requires that each machine have a guard or safeguarding device that prevents the operator from having any part of the body in the danger zone during operation.

Purpose and Scope

The purpose of 1910.212(a)(3) is to eliminate exposure to moving tools or dies that can cause crushing, amputation, laceration, or puncture injuries.
It applies to all machines with a point of operation hazard, regardless of size or industry.
Typical examples include presses, saws, milling machines, lathes, shears, and drills.

Key Requirements

• Every machine must be equipped with a guard that prevents the operator from reaching into the danger zone.
• Guards must be designed and constructed to provide maximum protection while allowing the machine to be operated safely and efficiently.
• Special hand tools may be used to handle materials when guarding at the point of operation is not practical.
• Guards must be securely fastened, maintained in place, and not easily removed or bypassed during operation.
• Safeguarding devices such as light curtains, presence-sensing devices, or two-hand controls may be used if they provide equivalent protection.

Examples of Point of Operation Hazards

• Cutting blades or rotating cutters that can amputate or lacerate fingers.
• Press dies or molds that can crush hands or fingers during operation.
• Drill bits, boring tools, or milling heads that can pierce or entangle body parts.
• Shearing or punching points that can sever material—and body parts—with the same force.

Acceptable Guarding Methods

• Fixed barrier guards enclosing the point of operation.
• Interlocked guards that stop machine motion when opened or removed.
• Adjustable or self-adjusting guards that move automatically to block access as material is fed.
• Two-hand controls requiring both hands to activate the cycle, keeping them out of danger.
• Electronic presence-sensing devices such as light curtains or safety mats that halt motion when triggered.

Common Violations

• Operating a machine with missing or disabled point of operation guards.
• Using hand-feeding where fixed or adjustable guards should be installed.
• Removing guards to increase production speed.
• Failure to provide safeguarding when machine design allows operator access to hazardous movement.

Compliance Tips

• Identify all machine points of operation and assess potential contact hazards.
• Install fixed guards where feasible; use engineered safety devices when full enclosure is not possible.
• Inspect all guards before each shift and re-secure after adjustments or maintenance.
• Train operators to recognize guarding deficiencies and to report missing or damaged safety devices immediately.

Why OSHA 1910.212(a)(3) Is Important

Point of operation injuries are among the most severe and preventable workplace incidents.
By enforcing 1910.212(a)(3), OSHA ensures that all machines have reliable guarding or safety devices that keep operators’ hands, fingers, and bodies outside the danger zone during work.
This rule remains one of the most frequently cited machine safety violations nationwide.

FAQ

OSHA 1910.212(a)(3)(i) — Guard Construction and Safety Design

OSHA 29 CFR 1910.212(a)(3)(i) outlines the design and performance requirements for point of operation guards.
This provision mandates that guards be designed and constructed so that no part of the operator’s body can enter the danger zone while the machine is in use.
It ensures guards are not merely present, but effective in eliminating exposure to mechanical hazards.

Purpose and Intent

The purpose of this section is to establish functional performance criteria for machine guards, rather than prescribing specific materials or configurations.
The employer has flexibility in choosing a guarding method, but the chosen system must physically prevent entry into the danger zone during operation and must withstand normal working conditions.

Key Guard Design Requirements

• Complete Coverage: The guard must fully enclose or block access to the hazard area where the operation takes place.
• Strength and Rigidity: Guards must be strong enough to resist mechanical stress, vibration, and accidental impact without failure or displacement.
• Visibility: Guards should allow clear observation of the work area when necessary, using materials such as mesh or transparent panels.
• Secure Installation: Guards must be firmly attached so they cannot be easily removed, loosened, or bypassed during operation.
• Usability: The guard must allow normal machine operation, feeding, and maintenance without creating additional hazards.

Examples of Guard Types Meeting 1910.212(a)(3)(i)

• Fixed steel enclosures surrounding the cutting or forming area.
• Interlocked access doors that stop the machine when opened.
• Transparent polycarbonate guards providing visibility and protection.
• Barrier guards with restricted openings preventing hand or arm entry.

Common Compliance Errors

• Using lightweight or flexible materials that can deform and allow contact.
• Guards not secured tightly to the machine or easily removed without tools.
• Guard openings large enough to allow finger or hand access to the danger zone.
• Guards that obstruct visibility or require removal for normal operation.

Best Practices

• Design guards that exceed minimum strength requirements and resist bending or vibration.
• Test guard designs under real operating conditions to ensure reliability and protection.
• Use standardized opening-size tables to determine acceptable distances between guards and hazards based on reach limitations.
• Document guard inspection results and repair or replace any that show wear, damage, or looseness.
• Train operators and maintenance staff on safe use and adjustment procedures for all guarding systems.

Why OSHA 1910.212(a)(3)(i) Is Important

Many guarding failures occur not because guards are absent, but because they are poorly designed or improperly installed.
OSHA 1910.212(a)(3)(i) ensures that guarding methods perform their intended function—keeping the operator’s body completely outside the danger zone while allowing safe, productive operation.
Proper guard design is the first line of defense against amputations, lacerations, and entanglement injuries.

FAQ

B11.TR7 — Designing for Safety & Lean Manufacturing

The B11.TR7-2007 (R2017) technical report provides practical guidance for machine tool suppliers, integrators and end-users to apply both safety and lean manufacturing concepts concurrently. :contentReference[oaicite:0]{index=0}
It emphasises that pursuing lean (faster changeovers, minimal waiting, reduced inventories) without considering machine-safety can create unexpected hazards; likewise implementing safety alone without lean thinking may add waste and reduce productivity. :contentReference[oaicite:1]{index=1}

Scope & Purpose

B11.TR7 is directed at guiding the integration of safety and lean within machine tools and manufacturing systems. It supports both retrofit improvement and new-design processes where safety and waste-reduction are addressed upfront. :contentReference[oaicite:2]{index=2}

Key Themes Addressed

• Lean manufacturing overview: Concepts like 5S, Kanban, Kaizen, pull systems and their relation to machine workflow and waste reduction. :contentReference[oaicite:3]{index=3}
• Safety-lean conflicts and resolutions: Examples where lean efforts removed guards, increased exposure, or shortened changeovers but increased hazard; the report highlights these pitfalls. :contentReference[oaicite:4]{index=4}
• Risk assessment aligned with waste-reduction: The report presents a framework to identify tasks, hazards *and* wastes, then assess both risk and waste together to arrive at solutions that minimise both. :contentReference[oaicite:5]{index=5}
• Design-guidelines for safety-lean synergy: Guidance for machine/cell layout, tooling change design, access, flow of parts, guard design, control integration – all with lean and safety in mind. :contentReference[oaicite:6]{index=6}
• Leadership & culture: Emphasises that successful implementation requires top-management commitment, cross-functional teams (engineering, safety, production) and continuous improvement mindset. :contentReference[oaicite:7]{index=7}

Why It Matters

In modern manufacturing, the drive for lean means machines and cells are redesigned for faster throughput, less setup time, higher flexibility. However, ignoring safety during that redesign can lead to increased risk of injury, downtime, regulatory non-compliance and hidden cost.
B11.TR7 provides a framework to make safety an integral part of lean initiatives rather than an afterthought. By doing so, companies can achieve “better, faster, safer” rather than “faster but riskier.”

Implementation Tips

• Map machine tasks and flows: For each machine or cell, list tasks (production, changeover, maintenance), identify wastes (waiting, motion, excess inventory) and hazards (pinch, entanglement, ejection). Use the dual-assessment approach. :contentReference[oaicite:8]{index=8}
• During design or retrofit, involve safety, production, maintenance and engineering teams early—so guard design, tooling change methods, material flow are all considered with lean & safety in mind. :contentReference[oaicite:9]{index=9}
• When changing machines/cells for lean improvements (e.g., faster changeovers, modular tooling, fewer handlings), always revisit risk assessment: ensure that faster access or fewer constraints haven’t removed essential safety features. :contentReference[oaicite:10]{index=10}
• Document “dual” objectives: For each improvement, capture both the waste-reduction metric (e.g., changeover time) and the safety-metric (e.g., guarding integrity, reduced access risk). Use that to verify that neither objective is compromised. :contentReference[oaicite:11]{index=11}
• Train personnel in the integrated view of lean and safety: emphasise that “lean isn’t just speed” and “safety isn’t just add guard”—they must work together. Include changeover teams, maintenance, operators. :contentReference[oaicite:12]{index=12}

Z136.1 — Safe Use of Lasers

The Z136.1 standard (ANSI Z136.1-2014) is the foundational consensus standard for laser-safety programs in the United States. It provides guidance on how to classify laser systems, evaluate hazards, establish control measures, and administer training and operational oversight. :contentReference[oaicite:0]{index=0}
While newer editions exist (e.g., 2022), the 2014 edition remains widely referenced. :contentReference[oaicite:1]{index=1}

Scope & Purpose

Z136.1 covers lasers and laser systems across multiple settings—industrial manufacturing, research and development, education, healthcare, and aesthetic uses. It outlines hazard classes (Class 1 through Class 4) and provides maximum permissible exposures (MPEs), safe-distance considerations, engineering controls, administrative controls, and personal protective equipment (PPE). :contentReference[oaicite:2]{index=2}

Key Topics & Requirements

• Laser hazard classification: Defines laser classes (Class 1, 1M, 2, 2M, 3R, 3B, 4) based on biological risk to skin and eyes and sets associated control measures. :contentReference[oaicite:3]{index=3}
• Maximum permissible exposure (MPE): Establishes exposure limits to laser radiation for eyes and skin, considering wavelength, exposure time and beam characteristics. :contentReference[oaicite:4]{index=4}
• Control measures: Specifies engineering controls (enclosures, interlocks, shutters), administrative controls (training, signage, standard operating procedures), and PPE (laser safety eyewear, protective screens). :contentReference[oaicite:5]{index=5}
• Non-beam hazards: Addresses hazards beyond the beam: high voltage, chemical hazards, cooling fluids, fire, fumes, scattered radiation. :contentReference[oaicite:6]{index=6}
• Lasing system access control & safe mode verification: Requires key switches, emission delays, interlocked doors, occupant hazard zoning and documented safety program oversight. :contentReference[oaicite:7]{index=7}

Why It Matters

Because lasers can cause serious eye or skin injury, ignite materials, and produce secondary hazards (e.g., fumes, high voltage), a recognized framework like Z136.1 is vital for implementing a safe‐use program. Adoption of Z136.1 helps organizations align with recognized good engineering practices (RAGAGEP) and supports compliance when regulatory agencies reference these standards. :contentReference[oaicite:8]{index=8}

Practical Implementation Tips

• Conduct a laser hazard evaluation: determine beam path, worst‐case exposure, classification and applicable control measures.
• Establish an administrative laser safety program: designate a Laser Safety Officer (LSO), develop SOPs, warning signage, training and incident response procedures.
• Implement engineering controls: enclose beam paths, install interlocks on access panels, use proper beam stops, lenses and filters, ensure safe distances and barriers.
• Use appropriate PPE: select laser safety eyewear with optical density matched to wavelength and power, ensure skin protection where required.
• Manage non-beam hazards: ensure electrical safety, fluid/coolant containment, ventilation for fumes or airborne particles, fire prevention and emergency shutdown systems.
• Review changes or modifications: any changes to laser power, wavelength, beam path, exposure time or environment require re‐evaluation of classification and control measures under Z136.1 principles.

FAQ

Z136.4 — Recommended Practice for Laser Safety Measurements for Classification & Hazard Evaluation

The Z136.4-2010 standard (ANSI Z136.4-2010, later revised to 2021) offers guidance for performing optical measurements and evaluations required for accurate classification of lasers and laser systems, and for assessing hazard conditions. :contentReference[oaicite:0]{index=0}
It is intended as a companion document to the foundational laser-safety standard Z136.1, focusing specifically on measurement methodology rather than system design or operational controls. :contentReference[oaicite:1]{index=1}

Scope & Purpose

Z136.4 applies to the measurement of laser output parameters (such as wavelength, pulse duration, energy, radiant exposure, power density) and supports hazard evaluation of laser systems for classification (Class 1, 2, 3B, 4 etc) and determination of appropriate control measures. :contentReference[oaicite:2]{index=2}
It does not provide exposure limit values (those are in Z136.1) nor does it substitute for system-design or operational standards, but rather supports the technical task of measurement and evaluation.

Key Topics & Measurement Considerations

• Measurement methods: Selection and use of appropriate detectors, sensors, calibration methods, beam sampling techniques, pulse vs continuous wave, and temporal/spatial characterization of laser output. :contentReference[oaicite:3]{index=3}
• Beam parameters: Measurement of wavelength, output power or energy, repetition rate, pulse width, beam diameter/spot size, divergence, beam stability and temporal characteristics—all relevant for hazard assessment. :contentReference[oaicite:4]{index=4}
• Hazard evaluation support: Using measured data to determine maximum permissible exposure (MPE) zones, classification boundaries, engineering-control requirements and safe distances; enabling effective implementation of other Z136 standards. :contentReference[oaicite:5]{index=5}
• Documentation & traceability: Ensuring measurements are documented, measurement systems are calibrated, procedures are followed and results are traceable for audits, safety reviews or regulatory inspection.

Why It Matters

Laser systems pose unique hazards—eye/skin injury, beam reflections, high power pulses, unintended activation. Accurate and reliable measurement of lasers is critical to evaluate when, where and how hazards exist.
Without proper measurements, classification may be incorrect, control measures inadequate, and people may be exposed to unforeseen risks. Z136.4 helps safety professionals, laser-safety officers (LSOs) and machine builders conduct measurements to support safe system design and operation.

Practical Implementation Tips

• Before installation or commissioning, have a qualified person perform laser output measurement per Z136.4 methodology (pulse/continuous, beam profile, divergence, energy or power) so you can determine proper classification and control needs.
• Ensure infrastructure for measurements: calibrated sensors/detectors, proper beam sampling, alignment of measurement equipment, environmental conditions under control, shielding of stray beams and safe access for measurement tasks.
• Use measurement results to validate safety-zone boundaries, required protective eyewear optical densities, beam stop designs, enclosure interlocks or access controls that will be specified under Z136.1.
• Document measurement reports, sensor calibration, measurement dates, equipment used and any deviations. Retain records in your laser-safety program for future audits or modifications.
• When a laser system is modified (power upgraded, wavelength changed, beam path altered), repeat measurement per Z136.4 and re-evaluate classification and controls as if new.

Z136.9 — Safe Use of Lasers in Manufacturing Environments

The Z136.9-2013 standard (American National Standard for Safe Use of Lasers in Manufacturing Environments) offers consensus guidance for the safe use of lasers and laser systems in industrial/manufacturing operations, including manufacturing, fabrication, machine vision, alignment, metrology and other production-line applications. :contentReference[oaicite:0]{index=0}
It covers laser systems operating at wavelengths between 180 nm and 1 mm (i.e., ultraviolet, visible, infrared and CO₂/solid-state lasers) in manufacturing settings. :contentReference[oaicite:1]{index=1}

Scope & Application

Z136.9 applies to manufacturing environments where lasers are used for material processing, cutting, welding, engraving, metrology, alignment or inspection. :contentReference[oaicite:2]{index=2}
The standard emphasizes not only the direct beam hazards, but also non-beam hazards common in manufacturing (e.g., fire, fumes, high voltage, material ejection) and the need for laser safety programmes tailored to industrial settings. :contentReference[oaicite:3]{index=3}

Key Topics Addressed

• Hazard classification and control measures: The standard guides how to classify laser systems (especially Class 3B and Class 4) and specifies control strategies appropriate for manufacturing applications. :contentReference[oaicite:4]{index=4}
• Laser safety programme & training: Manufacturing operations must establish a laser safety programme, designate a Laser Safety Officer (LSO), provide training, perform incident investigation and documentation. :contentReference[oaicite:5]{index=5}
• Non-beam hazards: Since many industrial lasers include cutting, welding, or material ejection, Z136.9 draws attention to hazards like fire, explosion, fumes, flying debris and provides guidance for their mitigation. :contentReference[oaicite:6]{index=6}
• Control zones and access management: The standard recommends defining controlled areas, access restrictions, warning signs and engineered safeguards appropriate for production environments. :contentReference[oaicite:7]{index=7}

Why It Matters

Manufacturing laser systems often combine high-power beams, automation, robotic interfaces, conveyor systems, and human operators in proximity. Without a manufacturing-specific laser safety framework, hazards from beam misuse, scatter/reflection, automated cycles, or material ejection may be underestimated.
Z136.9 helps ensure that companies in manufacturing adopt recognized good engineering practices for laser safety, reduce the risk of eye/skin injury, fire, explosion, or equipment damage, and supports industrial-laser system integration safely.

Practical Implementation Tips

• In your manufacturing facility, perform a risk assessment of each laser-system workstation: identify beam path, scatter/reflection sources, automated cycles, human access, and non-beam hazards.
• Ensure a laser safety programme is in place: designate LSO, provide operator/training for maintenance staff, develop SOPs, manage changes to laser system and maintain incident/investigation logs.
• Define and enforce controlled access zones: use interlocked doors, barriers, warning lights/signage, presence-sensing where appropriate, especially on automated systems.
• Address non-beam hazards: incorporate exhaust ventilation for laser-generated air contaminants (LGACs), fire-suppression for operations involving high-power beams and combustible materials, secure high-voltage supplies, and manage material ejection.
• Document modifications or retrofits: if a laser system is upgraded, changes wavelength, power class or automation, treat it as a “new system” – re-evaluate hazards per Z136.9, update controls, retrain staff.

FAQ
