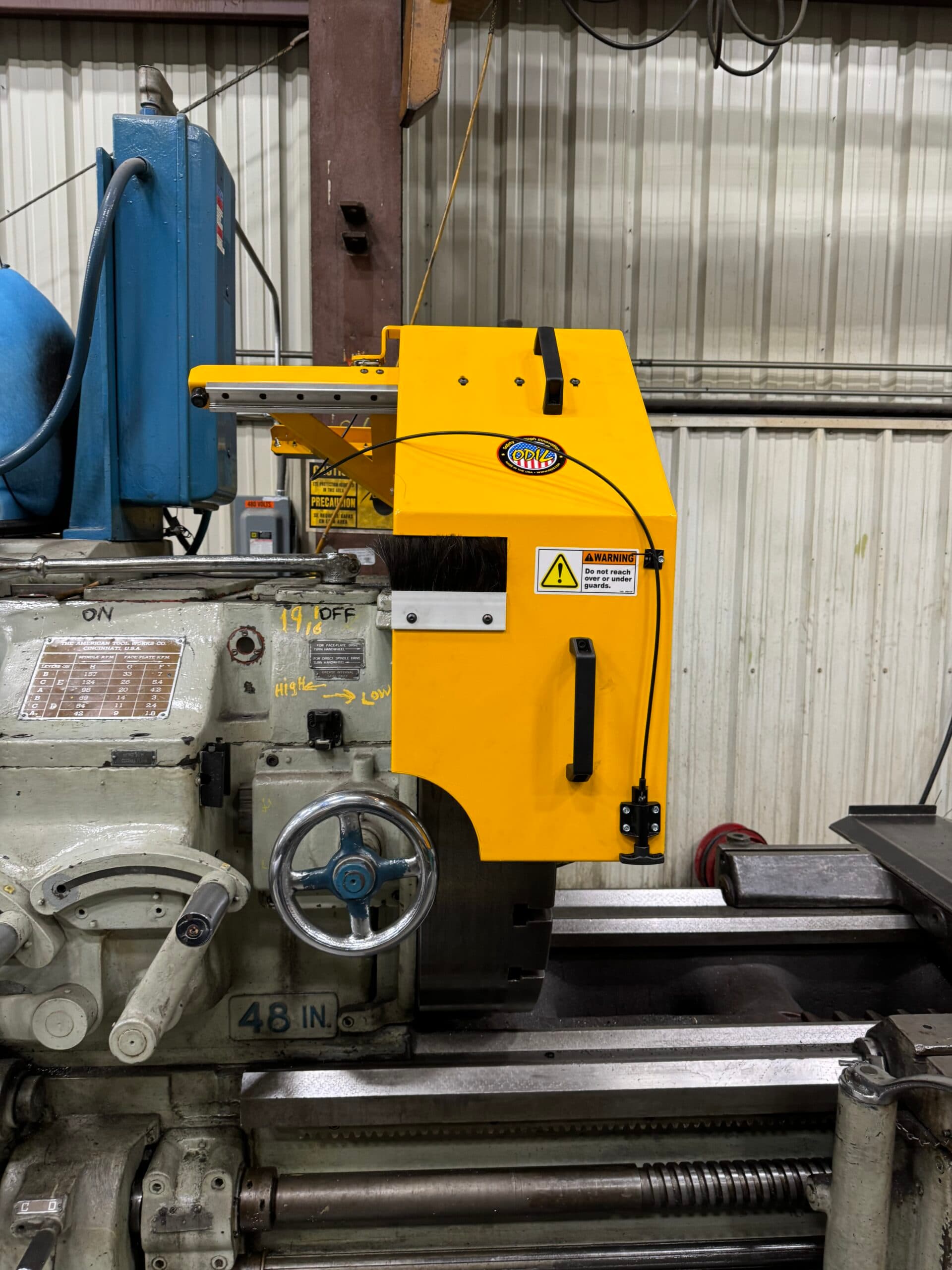

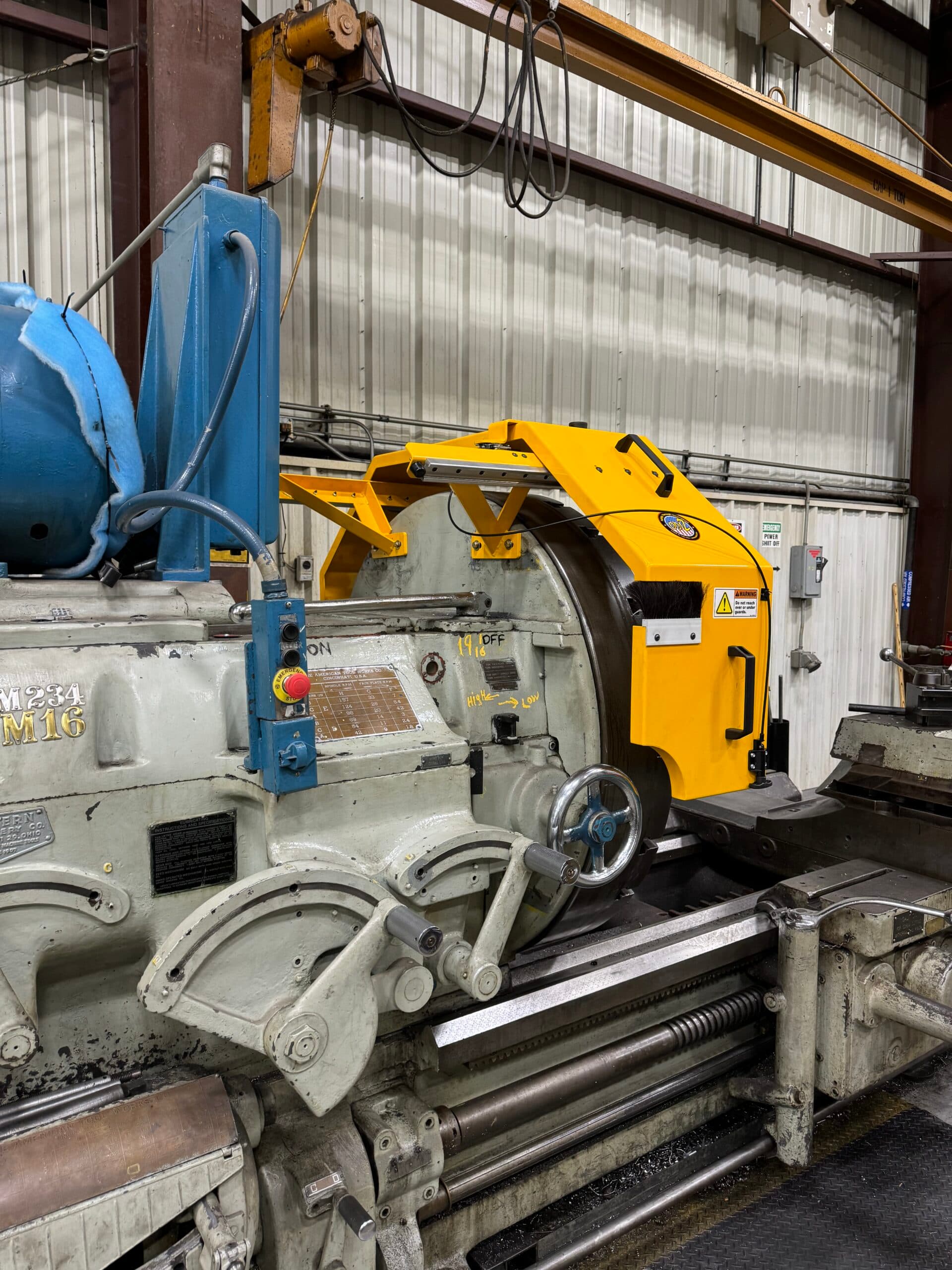

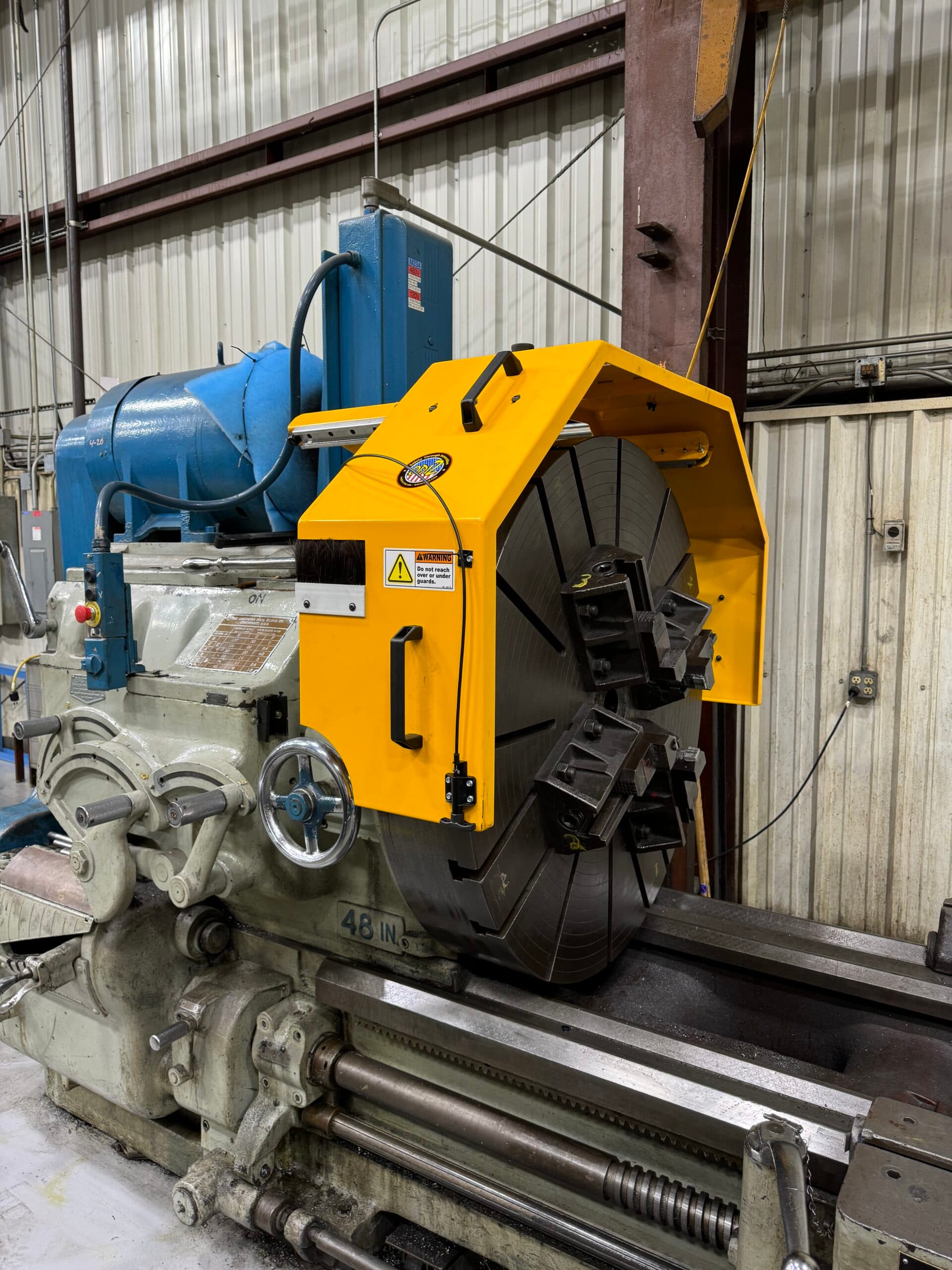

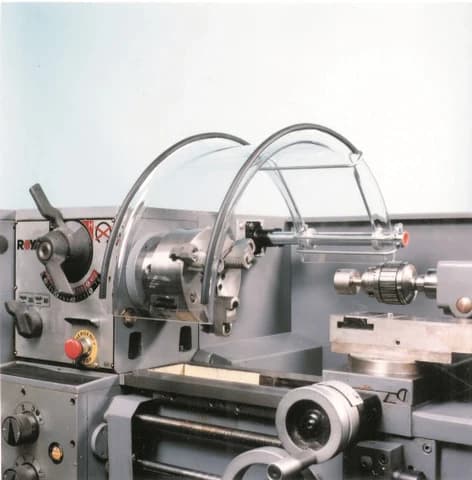

Custom Lathe Guards

OSHA 1910.212(a) — General Machine Guarding Requirements

OSHA 29 CFR 1910.212(a) defines the core safety principles for machine guarding in general industry.
It requires employers to protect workers from mechanical hazards created by points of operation, rotating components, in-running nip points, and flying chips or sparks.
This paragraph serves as the primary enforcement reference for machinery that does not have its own specific OSHA standard.

Scope and Purpose

The goal of 1910.212(a) is to prevent contact injuries, entanglement, crushing, and amputation by ensuring all hazardous machine motions are either guarded or controlled.
It applies to virtually all machinery used in manufacturing, maintenance, fabrication, and processing operations.

Key Guarding Principles

• Comprehensive Protection: Guards must cover any moving part or area that could cause injury through contact or ejection of material.
• Design Flexibility: Employers may choose fixed, adjustable, or interlocked guards, provided they effectively prevent worker exposure.
• Performance Standard: The rule is performance-based rather than prescriptive—meaning the employer must demonstrate that the guarding method eliminates or controls the hazard.
• Continuity of Protection: Guards must remain in place and secure during operation and be adjusted only when the machine is off and locked out.
• Applicability: This paragraph acts as a “catch-all” requirement whenever a machine presents a hazard not addressed by another OSHA provision.

Examples of Covered Hazards

Machines governed by 1910.212(a) include drill presses, milling machines, conveyors, polishing lathes, grinders, and mechanical cutters.
Hazards may include rotating shafts, reciprocating arms, cutting surfaces, or points where material is inserted or removed.

Compliance Practices

• Install guards that physically prevent access to moving parts.
• Inspect guards routinely for secure attachment and effectiveness.
• Ensure that guard openings prevent any part of the body from reaching the danger zone.
• Prohibit operation when guards are missing or removed.
• Train employees on safe operation, inspection, and maintenance of guarded machines.

Why OSHA 1910.212(a) Is Important

Most serious machinery accidents occur because guards are missing, removed, or inadequate.
Section (a) establishes the baseline requirements that form the foundation of all machine safeguarding programs.
Compliance not only prevents injuries and amputations but also ensures alignment with national consensus standards such as ANSI B11 and ISO 12100.

FAQ

OSHA 1910.212(a)(1) — General Duty to Guard Machines

OSHA 29 CFR 1910.212(a)(1) establishes the primary obligation to guard machinery in general industry.
It requires employers to implement one or more methods of guarding that protect both the operator and nearby employees from hazards created by points of operation, rotating parts, flying chips, sparks, or any other dangerous mechanical motions.

Scope and Intent

This paragraph serves as the foundation of all machine guarding enforcement.
It mandates that every machine presenting a mechanical hazard must be safeguarded through a combination of physical barriers or engineered safety devices.
The employer may choose the guarding method, but it must completely prevent employee exposure to the moving part or hazard zone during normal operation.

Acceptable Guarding Methods

• Fixed guards: Rigid barriers that prevent access to hazardous areas.
• Interlocked guards: Guards that automatically shut off or disengage the machine when opened or removed.
• Adjustable guards: Barriers that can be positioned for different operations but remain securely in place during use.
• Self-adjusting guards: Guards that move automatically into position as the operator works, covering the danger area as material is fed.
• Electronic safeguarding devices: Light curtains, pressure-sensitive mats, and presence sensors that prevent access to moving parts.

Key Compliance Requirements

• Guarding must protect both operators and nearby personnel.
• Guards must be securely attached and durable enough to resist normal operation and vibration.
• Openings in guards must be small enough to prevent accidental contact with moving parts.
• Guards must not introduce new hazards such as sharp edges, pinch points, or visibility obstruction.
• All guards must be kept in place and functional when machines are operating.

Common Violations

• Machines operating without guards over exposed belts, pulleys, gears, or shafts.
• Removed or bypassed barrier guards during production or maintenance.
• Improper guard materials or openings that allow hand or finger access to moving parts.
• Lack of guarding for nearby employees who may be struck by flying material or sparks.

Practical Compliance Tips

• Conduct a full hazard assessment for all equipment to identify points of operation and motion hazards.
• Install fixed guards wherever possible; use interlocked or adjustable guards only when process requirements demand it.
• Include guarding checks in your preventive maintenance program.
• Train operators to recognize unsafe conditions and never remove or modify guards.

Why OSHA 1910.212(a)(1) Is Important

This paragraph represents OSHA’s general duty clause for machinery safety.
Most machine-related injuries occur when guards are removed or missing, and OSHA 1910.212(a)(1) gives inspectors the authority to cite any unguarded moving part that poses a risk.
Compliance ensures that workers remain protected from crushing, entanglement, amputation, and impact injuries.

FAQ

OSHA 1910.212(a)(2) — General Requirements for Machine Guards

OSHA 29 CFR 1910.212(a)(2) establishes the design and construction standards for machine guards.
This provision requires that guards be securely fastened to the machine and designed to protect operators and nearby employees from injury caused by moving parts, flying debris, or accidental contact.
The intent is to ensure that guarding not only provides protection but also does not create new hazards in the process.

Key Guard Design Requirements

• Secure Attachment: Guards must be firmly attached to the machine. If fastening directly to the machine is not possible, guards must be securely mounted elsewhere to provide equal protection.
• Structural Integrity: Guards must be made of materials strong enough to resist impact, vibration, and normal wear during operation.
• No New Hazards: Guards must not introduce additional risks such as pinch points, sharp edges, or visibility obstruction.
• Durability: Guard materials must withstand operational stresses and environmental factors like heat, coolant, or debris.
• Accessibility: Guards should allow safe maintenance, lubrication, and adjustments without requiring complete removal when possible.

Performance Intent

The focus of 1910.212(a)(2) is performance-based guarding design.
OSHA does not prescribe specific guard materials or thicknesses; instead, the guard must perform effectively under real-world conditions.
Employers have the flexibility to design guards suited to their machines—as long as the guarding prevents contact and remains in place during operation.

Examples of Guard Types Covered

• Fixed guards enclosing belts, pulleys, gears, and rotating shafts.
• Interlocked guards that shut off power when opened or removed.
• Adjustable guards for variable-sized stock or cutting operations.
• Self-adjusting guards that move automatically with the workpiece.

Best Practices for Compliance

• Inspect guards regularly for looseness, cracks, or corrosion.
• Use guard materials that match the operational environment (e.g., metal for high-impact areas, polycarbonate for visibility).
• Train employees to recognize damaged or missing guards and to report deficiencies immediately.
• Ensure all guards are reinstalled and secured after maintenance or adjustments.

Common Violations

• Guards loosely attached or easily removable during operation.
• Improvised guards made from inadequate materials such as thin sheet metal or plastic covers.
• Guards with sharp edges or openings large enough to allow finger or hand access.
• Removed or bypassed guards not replaced before restarting the machine.

Why OSHA 1910.212(a)(2) Is Important

Even when a guard is present, poor design or weak construction can fail to protect workers.
OSHA 1910.212(a)(2) ensures that guards are engineered and maintained to perform effectively throughout a machine’s life cycle.
Properly designed guards prevent crushing, amputation, and laceration injuries while maintaining usability and productivity.

FAQ

ANSI B11 — Machine Safety & Machine Tool Standards

The ANSI B11 standards series comprises a robust framework for machinery and machine tool safety. It addresses risk assessment, design, guarding, control systems, risk reduction measures, and installation and maintenance of machines. Although not regulatory law, B11 standards are widely referenced by industry and used to interpret OSHA’s machine guarding rules (e.g. 29 CFR 1910.212). :contentReference[oaicite:2]{index=2}

Structure of the B11 Family

The B11 family is organized into three types of standards:

• Type A (Basic Safety Standards): e.g. ANSI B11.0 defines general concepts, terminology, risk assessment, and safety principles. :contentReference[oaicite:3]{index=3}
• Type B (Generic Safety Standards): These address safeguarding methods, performance, or safety aspects used across machines (for example, B11.19—Performance Criteria for Safeguarding). :contentReference[oaicite:4]{index=4}
• Type C (Machine-Specific Standards): Focused on individual machines or categories (e.g. B11.1 for power presses, B11.9 for grinding machines, B11.10 for sawing machines). :contentReference[oaicite:5]{index=5}

Core Themes & Provisions

• Risk Assessment / Reduction: B11 emphasizes identifying hazards, assessing risk, selecting and validating protective measures, and verifying that risk is reduced to acceptable levels. :contentReference[oaicite:6]{index=6}
• Safeguarding Methods: Fixed guards, interlocked guards, presence sensors, two-hand controls, light curtains, etc., are all covered with performance criteria. :contentReference[oaicite:7]{index=7}
• Performance Criteria: Guards and safety devices must meet minimum response times, strength, durability, fail-safe behavior, and integration with control systems. :contentReference[oaicite:8]{index=8}
• Safety in Existing (“Legacy”) Equipment: B11 encourages adaptation of older machines via retrofitting or supplementary safeguarding where feasible. :contentReference[oaicite:9]{index=9}
• Design, Modification & Integration: Covers requirements for design, safe modifications, wiring, control logic, maintenance access, risk during changeover, and system integration. :contentReference[oaicite:10]{index=10}

Relation to OSHA & Enforcement Context

OSHA itself does not mandate ANSI B11 by law, but OSHA’s machine guarding standards allow referencing consensus standards like B11 for technical interpretation. For example, OSHA’s eTool on machine guarding lists ANSI B11 standards as guidance resources. :contentReference[oaicite:11]{index=11}
Many safety professionals use B11 standards to design compliant machine guards and safety systems that satisfy both OSHA rules and best practices.

Common Substandards in the Series

• ANSI B11.0 — Safety of Machinery (baseline, risk methodology) :contentReference[oaicite:12]{index=12}
• ANSI B11.19 — Performance Criteria for Safeguarding (applies across many machines) :contentReference[oaicite:13]{index=13}
• ANSI B11.1 / B11.2 / B11.3 — Press, hydraulic, brake machines :contentReference[oaicite:14]{index=14}
• ANSI B11.10 — Metal sawing machines :contentReference[oaicite:15]{index=15}
• ANSI B11.9 — Grinding machines (ties into OSHA 1910.215 & 1910.213) :contentReference[oaicite:16]{index=16}

Internal Linking & Application Ideas

• Link to child categories like ANSI B11.0, ANSI B11.19, ANSI B11.9 (Grinding), etc.
• Cross-link to your OSHA machine guarding pages, e.g. OSHA 1910.212 General Machine Guarding.
• Link to safety device and guarding product pages: light curtains, interlocked guards, protective covers, control systems.

FAQ

ANSI B11.0 — Safety of Machinery

The ANSI B11.0 standard (Safety of Machinery) is the foundational “Type A” standard of the B11 series of American National Standards for machine safety.
It is intended to apply broadly to power-driven machines (new, existing, modified or rebuilt) and to machinery systems, not portable tools held in the hand. :contentReference[oaicite:0]{index=0}
ANSI B11.0 provides the essential framework: definitions, lifecycle responsibilities, risk assessment methodology, acceptable risk criteria, and guidance for using Type-C standards in conjunction with this general standard. :contentReference[oaicite:1]{index=1}

Scope & Purpose

ANSI B11.0-2020 covers machines and machinery systems used for material processing, moving or treating when at least one component moves and is actuated, controlled and powered. :contentReference[oaicite:2]{index=2}
The standard’s purpose is to help suppliers, integrators, and users of machinery identify hazards, estimate and evaluate risks, and implement sufficient risk reduction to achieve an “acceptable risk” level. :contentReference[oaicite:3]{index=3}
It also clarifies responsibilities across the machine lifecycle (supplier, user, modifier) and addresses legacy equipment, prevention through design (PtD) and use of alternative methods for energy control. :contentReference[oaicite:4]{index=4}

Key Concepts & Requirements

• Terminology & Definitions: Establishes key machine-safety terms (e.g., machine, hazard zone, safeguarding, risk, risk reduction). :contentReference[oaicite:5]{index=5}
• Risk Assessment Methodology: Describes how to identify hazards, estimate risk severity and probability, evaluate risk, and decide on corrective safeguards. :contentReference[oaicite:6]{index=6}
• Risk Reduction Principles: Focuses on designing out hazards, applying engineered controls, administrative controls and PPE only when higher-level measures aren’t feasible. :contentReference[oaicite:7]{index=7}
• Lifecycle Approach: Applies to design, construction, installation, commissioning, operation, maintenance, modification and dismantling of machines. :contentReference[oaicite:8]{index=8}
• Use of Type-C Standards: ANSI B11.0 explains how to use machine-specific Type-C standards (e.g., B11.9 for grinding machines) together with this standard for full compliance. :contentReference[oaicite:9]{index=9}

Why It Matters

ANSI B11.0 sets the groundwork for safe machine design and use. Without a consistent foundational standard, machine-specific standards may lack coherence or completeness in hazard control.
By following B11.0, manufacturers and users can build robust safety programs, ensure they cover all phases of machine use (including legacy equipment), and demonstrate that hazard identification, risk assessment and risk reduction are performed systematically.
Because the standard is widely referenced by regulatory authorities and industry best practices, compliance strengthens both safety performance and regulatory defensibility.

Relationship to OSHA & Other Standards

Although ANSI B11.0 is a voluntary consensus standard and not a regulation, it is widely acknowledged as “recognized and generally accepted good engineering practice (RAGAGEP)”.
Regulatory bodies like the Occupational Safety and Health Administration (OSHA) reference the B11 series for technical guidance in areas like machine guarding (e.g., 29 CFR 1910.212) and risk assessment. :contentReference[oaicite:11]{index=11}
Furthermore, ANSI B11.0 aligns with the international standard ISO 12100 (Safety of Machinery — General Principles for Design — Risk Assessment and Risk Reduction) but adds U.S.-specific supplier/user responsibilities and lifecycle responsibilities. :contentReference[oaicite:13]{index=13}

FAQ

B11.22 — Safety Requirements for Turning Centers & Automatic Numerically Controlled Turning Machines

The B11.22 standard applies to machine tools classified as automatic or numerically controlled turning machines—including modern turning centers—that machine bar stock or blanks on single or multiple spindles with automatic or semi-automatic loading, tool changes, and work-handling operations. It addresses safety across the full lifecycle: design, construction, installation, operation, maintenance, modification, dismantling, and transport.

Scope & Application

B11.22 covers hazards associated with rotating workpieces and spindles, chucking devices, live tooling, automatic loading and bar-feed systems, and part ejection. It focuses on safeguarding the point of operation and hazardous motion during production, setup/changeover, maintenance, and other special modes. Integrated manufacturing systems are outside the scope of this document and are addressed by separate system-level standards.

Key Safety Topics

• Guarding and enclosures: Interlocked or fixed guards for the cutting zone, rotating spindles, live tools, and chip/ejecta containment.
• Automatic loading and bar-feed: Protection against stock whip, pinch points, unintended access, and ejection hazards during automatic cycles.
• Control systems and modes: Clear mode selection (automatic, setup, maintenance), safe start/restart logic, emergency stop functions, and interlock integrity.
• Risk assessment and responsibilities: Defined roles for suppliers, integrators, and users to identify hazards, implement risk-reduction measures, verify performance, and maintain documentation.
• Modification and retrofit: Rebuilds or conversions must not degrade safety performance; safeguarding must be reviewed and validated after changes.

Why It Matters

Turning centers combine high rotational speeds, automatic handling, and multi-axis motions that can create severe risks such as entanglement, contact, ejection, and unintended motion. Applying B11.22 helps organizations engineer effective safeguards, validate safety-related controls, and maintain safe procedures for production and maintenance tasks.

Practical Implementation Tips

• Use a task-based risk assessment to identify exposure during production, setup, tool change, and maintenance.
• Verify enclosure integrity and interlock function; confirm chip and fragment containment at maximum spindle speed and material conditions.
• Evaluate bar-feed and parts-handling interfaces for access control, guarding, and emergency stop coverage across the machine boundary.
• Document mode selection logic and ensure reduced-speed/hold-to-run features where necessary during setup or teaching.
• Train operators and maintenance personnel on hazards unique to rotating stock, chuck changes, live-tool operations, and automated cycles.

B11.8 — Safety Requirements for Manual Milling, Drilling & Boring Machines (With or Without Automatic Control)

The B11.8 standard (ANSI B11.8-2021) specifies safety requirements for machines that perform milling, drilling or boring operations under manual control or partial automation — machines where the operator controls initiation of tasks, even if the machine has automatic features. :contentReference[oaicite:0]{index=0}
It applies to design, construction, installation, operation, maintenance, modification, dismantling and transport of such machines. :contentReference[oaicite:1]{index=1}

Scope & Application

B11.8 covers manual milling machines, drilling machines and boring machines where the operator uses manually-initiated steps to remove material via rotating cutters. Machines may include automatic controls but exclude full automatic part-handling systems or automatic tool changers. :contentReference[oaicite:2]{index=2}
The standard addresses both horizontal and vertical spindle machines and covers hazards from cutting tools, work-holding, chip ejection, coolant systems and operator access. :contentReference[oaicite:3]{index=3}

Key Safety Topics Addressed

• Guarding & Enclosure of Rotating Elements: Protecting against contact with spindles, cutters, chucks, feed mechanisms and moving parts.
• Point of Operation & Material Removal Hazards: Mitigating hazards such as chip/projectile ejection, coolant spray, entanglement, and reaching into tool/work zones. :contentReference[oaicite:4]{index=4}
• Feed & Hold-down Systems: Ensuring secure work-holding, guarding over feed paths, and safe adjustment/maintenance of hold-down devices.
• Control Modes & Safe Operation: Safe selection of manual vs automatic modes, preventing unintended motion, providing emergency stop, safe start/restart logic.
• Lifecycle Responsibilities: Defining obligations of machine suppliers, modifiers/integrators and users through design, installation, commissioning, maintenance, modification and decommissioning. :contentReference[oaicite:5]{index=5}

Why It Matters

Milling, drilling and boring machines are ubiquitous in metalworking and fabrication shops. They involve high-speed rotating cutters, moving tables/feed systems, potential for flying chips, coolant spray and operator exposure to rotating parts or tooling during setup or maintenance. Without robust safeguarding and control procedures, these machines can lead to serious injuries.
By following B11.8, organizations apply recognized engineering practice for safe machine design, operation and lifecycle management of these machines.

Practical Implementation Tips

• Conduct a task-based risk assessment: consider manual production operation, setup/tool change mode, maintenance mode and any automatic feature present.
• Ensure guarding covers spindle heads, rotating cutters, feed systems and chip ejection zones; check coolant spray containment and secondary hazards (chip buildup, slip/trip).
• For machines with automatic control features (but still manual-initiated), validate that operator access is restricted during automatic cycles and that mode selection safeguards are in place.
• Document machine modifications or rebuilds (e.g., adding automatic feed or control features) and treat them as new installations: re-validate risk assessment, revise guarding and controls.
• Train operators and maintenance staff on hazards: tool changes, coolant hazards, chip ejection, reaching into hazards, safe use of automatic/manual features and emergency procedures.
