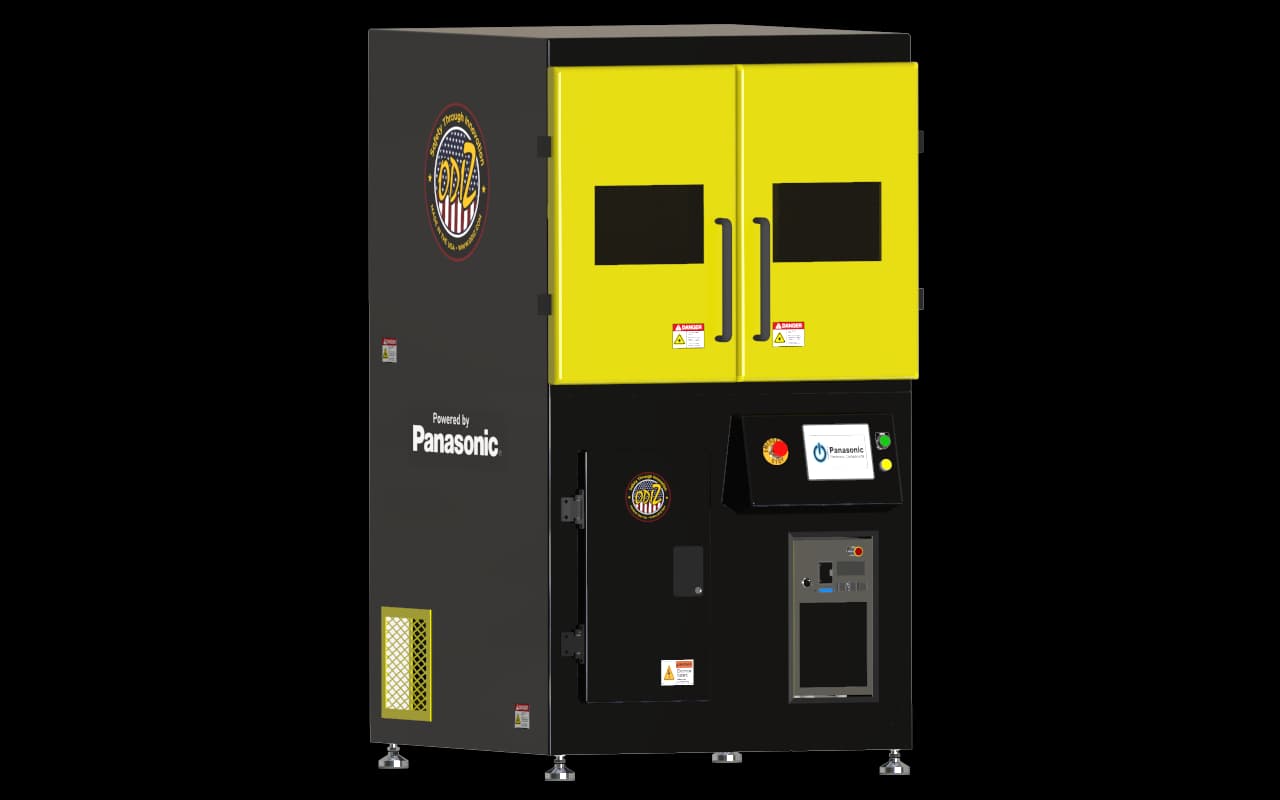

Custom Certified Laser Marker Machine

OSHA 1910.212 — General Requirements for All Machines

OSHA 29 CFR 1910.212 is the core machine guarding standard that applies to nearly all machinery in general industry.
It requires employers to provide guards and protective devices to shield workers from points of operation, rotating parts, in-running nip points, flying chips, sparks, and other hazards.
As a “catch-all” standard, OSHA 1910.212 is often cited when no specific machine regulation exists, making it one of the most frequently enforced provisions in Subpart O.

Key Guarding Requirements

• Point of Operation: Machines must be guarded so operators are not exposed to the point where the work is performed.
• Rotating & Moving Parts: Guards must cover exposed belts, pulleys, gears, shafts, and flywheels to prevent accidental contact.
• In-Running Nip Points: Hazards created where two parts rotate toward each other or where one part moves past a stationary object must be guarded.
• Flying Chips & Sparks: Guards or shields must contain debris, sparks, and fragments generated during machine operation.
• Anchoring: Machines designed for fixed location use must be securely anchored to prevent movement or tipping.

Examples of Machines Covered

Because OSHA 1910.212 is a broad standard, it applies to a wide range of equipment including drill presses, lathes, milling machines, conveyors, punch presses, saws, and grinders.
If a machine has moving parts that could injure a worker, 1910.212 requires guarding.

Common Violations

• Missing point-of-operation guards on presses or saws.
• Exposed belts, pulleys, or rotating shafts without guarding.
• Improperly adjusted or removed guards during production.
• Lack of anchoring on floor-mounted equipment.
• Failure to contain sparks or flying material in grinding, cutting, or drilling operations.

Why OSHA 1910.212 Matters

Machine guarding violations are consistently among OSHA’s top cited standards.
Without proper guards, workers face severe risks of crushed fingers, amputations, lacerations, and eye injuries.
Compliance with OSHA 1910.212 helps facilities protect employees, avoid costly citations, and establish safer production environments.

Relation to Other Standards

OSHA 1910.212 is a general requirement that works in tandem with OSHA 1910.215 (Abrasive Wheel Machinery)
and machine-specific rules under Subpart O. It also aligns with ANSI B11 machine safety standards,
which provide technical safeguarding criteria.

Compliance Checklist

• Install guards at the point of operation on all applicable machines.
• Cover all rotating parts, belts, pulleys, gears, and shafts.
• Guard in-running nip points created by rollers, belts, or chains.
• Provide shields for flying chips, sparks, or debris.
• Anchor floor-mounted machines to prevent shifting.
• Train employees to use machines only with guards in place.

Internal Linking Opportunities

• Cross-link to Lockout/Tagout (OSHA 1910.147) for energy control.
• Link to Abrasive Wheel Machinery (OSHA 1910.215) for grinder rules.
• Connect to ANSI B11 for machine safeguarding performance standards.
• Promote relevant machine guarding products, light curtains, and safety devices.

FAQ

ANSI B11 — Machine Safety & Machine Tool Standards

The ANSI B11 standards series comprises a robust framework for machinery and machine tool safety. It addresses risk assessment, design, guarding, control systems, risk reduction measures, and installation and maintenance of machines. Although not regulatory law, B11 standards are widely referenced by industry and used to interpret OSHA’s machine guarding rules (e.g. 29 CFR 1910.212). :contentReference[oaicite:2]{index=2}

Structure of the B11 Family

The B11 family is organized into three types of standards:

• Type A (Basic Safety Standards): e.g. ANSI B11.0 defines general concepts, terminology, risk assessment, and safety principles. :contentReference[oaicite:3]{index=3}
• Type B (Generic Safety Standards): These address safeguarding methods, performance, or safety aspects used across machines (for example, B11.19—Performance Criteria for Safeguarding). :contentReference[oaicite:4]{index=4}
• Type C (Machine-Specific Standards): Focused on individual machines or categories (e.g. B11.1 for power presses, B11.9 for grinding machines, B11.10 for sawing machines). :contentReference[oaicite:5]{index=5}

Core Themes & Provisions

• Risk Assessment / Reduction: B11 emphasizes identifying hazards, assessing risk, selecting and validating protective measures, and verifying that risk is reduced to acceptable levels. :contentReference[oaicite:6]{index=6}
• Safeguarding Methods: Fixed guards, interlocked guards, presence sensors, two-hand controls, light curtains, etc., are all covered with performance criteria. :contentReference[oaicite:7]{index=7}
• Performance Criteria: Guards and safety devices must meet minimum response times, strength, durability, fail-safe behavior, and integration with control systems. :contentReference[oaicite:8]{index=8}
• Safety in Existing (“Legacy”) Equipment: B11 encourages adaptation of older machines via retrofitting or supplementary safeguarding where feasible. :contentReference[oaicite:9]{index=9}
• Design, Modification & Integration: Covers requirements for design, safe modifications, wiring, control logic, maintenance access, risk during changeover, and system integration. :contentReference[oaicite:10]{index=10}

Relation to OSHA & Enforcement Context

OSHA itself does not mandate ANSI B11 by law, but OSHA’s machine guarding standards allow referencing consensus standards like B11 for technical interpretation. For example, OSHA’s eTool on machine guarding lists ANSI B11 standards as guidance resources. :contentReference[oaicite:11]{index=11}
Many safety professionals use B11 standards to design compliant machine guards and safety systems that satisfy both OSHA rules and best practices.

Common Substandards in the Series

• ANSI B11.0 — Safety of Machinery (baseline, risk methodology) :contentReference[oaicite:12]{index=12}
• ANSI B11.19 — Performance Criteria for Safeguarding (applies across many machines) :contentReference[oaicite:13]{index=13}
• ANSI B11.1 / B11.2 / B11.3 — Press, hydraulic, brake machines :contentReference[oaicite:14]{index=14}
• ANSI B11.10 — Metal sawing machines :contentReference[oaicite:15]{index=15}
• ANSI B11.9 — Grinding machines (ties into OSHA 1910.215 & 1910.213) :contentReference[oaicite:16]{index=16}

Internal Linking & Application Ideas

• Link to child categories like ANSI B11.0, ANSI B11.19, ANSI B11.9 (Grinding), etc.
• Cross-link to your OSHA machine guarding pages, e.g. OSHA 1910.212 General Machine Guarding.
• Link to safety device and guarding product pages: light curtains, interlocked guards, protective covers, control systems.

FAQ

Z136.1 — Safe Use of Lasers

The Z136.1 standard (ANSI Z136.1-2014) is the foundational consensus standard for laser-safety programs in the United States. It provides guidance on how to classify laser systems, evaluate hazards, establish control measures, and administer training and operational oversight. :contentReference[oaicite:0]{index=0}
While newer editions exist (e.g., 2022), the 2014 edition remains widely referenced. :contentReference[oaicite:1]{index=1}

Scope & Purpose

Z136.1 covers lasers and laser systems across multiple settings—industrial manufacturing, research and development, education, healthcare, and aesthetic uses. It outlines hazard classes (Class 1 through Class 4) and provides maximum permissible exposures (MPEs), safe-distance considerations, engineering controls, administrative controls, and personal protective equipment (PPE). :contentReference[oaicite:2]{index=2}

Key Topics & Requirements

• Laser hazard classification: Defines laser classes (Class 1, 1M, 2, 2M, 3R, 3B, 4) based on biological risk to skin and eyes and sets associated control measures. :contentReference[oaicite:3]{index=3}
• Maximum permissible exposure (MPE): Establishes exposure limits to laser radiation for eyes and skin, considering wavelength, exposure time and beam characteristics. :contentReference[oaicite:4]{index=4}
• Control measures: Specifies engineering controls (enclosures, interlocks, shutters), administrative controls (training, signage, standard operating procedures), and PPE (laser safety eyewear, protective screens). :contentReference[oaicite:5]{index=5}
• Non-beam hazards: Addresses hazards beyond the beam: high voltage, chemical hazards, cooling fluids, fire, fumes, scattered radiation. :contentReference[oaicite:6]{index=6}
• Lasing system access control & safe mode verification: Requires key switches, emission delays, interlocked doors, occupant hazard zoning and documented safety program oversight. :contentReference[oaicite:7]{index=7}

Why It Matters

Because lasers can cause serious eye or skin injury, ignite materials, and produce secondary hazards (e.g., fumes, high voltage), a recognized framework like Z136.1 is vital for implementing a safe‐use program. Adoption of Z136.1 helps organizations align with recognized good engineering practices (RAGAGEP) and supports compliance when regulatory agencies reference these standards. :contentReference[oaicite:8]{index=8}

Practical Implementation Tips

• Conduct a laser hazard evaluation: determine beam path, worst‐case exposure, classification and applicable control measures.
• Establish an administrative laser safety program: designate a Laser Safety Officer (LSO), develop SOPs, warning signage, training and incident response procedures.
• Implement engineering controls: enclose beam paths, install interlocks on access panels, use proper beam stops, lenses and filters, ensure safe distances and barriers.
• Use appropriate PPE: select laser safety eyewear with optical density matched to wavelength and power, ensure skin protection where required.
• Manage non-beam hazards: ensure electrical safety, fluid/coolant containment, ventilation for fumes or airborne particles, fire prevention and emergency shutdown systems.
• Review changes or modifications: any changes to laser power, wavelength, beam path, exposure time or environment require re‐evaluation of classification and control measures under Z136.1 principles.

FAQ

Z136.4 — Recommended Practice for Laser Safety Measurements for Classification & Hazard Evaluation

The Z136.4-2010 standard (ANSI Z136.4-2010, later revised to 2021) offers guidance for performing optical measurements and evaluations required for accurate classification of lasers and laser systems, and for assessing hazard conditions. :contentReference[oaicite:0]{index=0}
It is intended as a companion document to the foundational laser-safety standard Z136.1, focusing specifically on measurement methodology rather than system design or operational controls. :contentReference[oaicite:1]{index=1}

Scope & Purpose

Z136.4 applies to the measurement of laser output parameters (such as wavelength, pulse duration, energy, radiant exposure, power density) and supports hazard evaluation of laser systems for classification (Class 1, 2, 3B, 4 etc) and determination of appropriate control measures. :contentReference[oaicite:2]{index=2}
It does not provide exposure limit values (those are in Z136.1) nor does it substitute for system-design or operational standards, but rather supports the technical task of measurement and evaluation.

Key Topics & Measurement Considerations

• Measurement methods: Selection and use of appropriate detectors, sensors, calibration methods, beam sampling techniques, pulse vs continuous wave, and temporal/spatial characterization of laser output. :contentReference[oaicite:3]{index=3}
• Beam parameters: Measurement of wavelength, output power or energy, repetition rate, pulse width, beam diameter/spot size, divergence, beam stability and temporal characteristics—all relevant for hazard assessment. :contentReference[oaicite:4]{index=4}
• Hazard evaluation support: Using measured data to determine maximum permissible exposure (MPE) zones, classification boundaries, engineering-control requirements and safe distances; enabling effective implementation of other Z136 standards. :contentReference[oaicite:5]{index=5}
• Documentation & traceability: Ensuring measurements are documented, measurement systems are calibrated, procedures are followed and results are traceable for audits, safety reviews or regulatory inspection.

Why It Matters

Laser systems pose unique hazards—eye/skin injury, beam reflections, high power pulses, unintended activation. Accurate and reliable measurement of lasers is critical to evaluate when, where and how hazards exist.
Without proper measurements, classification may be incorrect, control measures inadequate, and people may be exposed to unforeseen risks. Z136.4 helps safety professionals, laser-safety officers (LSOs) and machine builders conduct measurements to support safe system design and operation.

Practical Implementation Tips

• Before installation or commissioning, have a qualified person perform laser output measurement per Z136.4 methodology (pulse/continuous, beam profile, divergence, energy or power) so you can determine proper classification and control needs.
• Ensure infrastructure for measurements: calibrated sensors/detectors, proper beam sampling, alignment of measurement equipment, environmental conditions under control, shielding of stray beams and safe access for measurement tasks.
• Use measurement results to validate safety-zone boundaries, required protective eyewear optical densities, beam stop designs, enclosure interlocks or access controls that will be specified under Z136.1.
• Document measurement reports, sensor calibration, measurement dates, equipment used and any deviations. Retain records in your laser-safety program for future audits or modifications.
• When a laser system is modified (power upgraded, wavelength changed, beam path altered), repeat measurement per Z136.4 and re-evaluate classification and controls as if new.

Z136.9 — Safe Use of Lasers in Manufacturing Environments

The Z136.9-2013 standard (American National Standard for Safe Use of Lasers in Manufacturing Environments) offers consensus guidance for the safe use of lasers and laser systems in industrial/manufacturing operations, including manufacturing, fabrication, machine vision, alignment, metrology and other production-line applications. :contentReference[oaicite:0]{index=0}
It covers laser systems operating at wavelengths between 180 nm and 1 mm (i.e., ultraviolet, visible, infrared and CO₂/solid-state lasers) in manufacturing settings. :contentReference[oaicite:1]{index=1}

Scope & Application

Z136.9 applies to manufacturing environments where lasers are used for material processing, cutting, welding, engraving, metrology, alignment or inspection. :contentReference[oaicite:2]{index=2}
The standard emphasizes not only the direct beam hazards, but also non-beam hazards common in manufacturing (e.g., fire, fumes, high voltage, material ejection) and the need for laser safety programmes tailored to industrial settings. :contentReference[oaicite:3]{index=3}

Key Topics Addressed

• Hazard classification and control measures: The standard guides how to classify laser systems (especially Class 3B and Class 4) and specifies control strategies appropriate for manufacturing applications. :contentReference[oaicite:4]{index=4}
• Laser safety programme & training: Manufacturing operations must establish a laser safety programme, designate a Laser Safety Officer (LSO), provide training, perform incident investigation and documentation. :contentReference[oaicite:5]{index=5}
• Non-beam hazards: Since many industrial lasers include cutting, welding, or material ejection, Z136.9 draws attention to hazards like fire, explosion, fumes, flying debris and provides guidance for their mitigation. :contentReference[oaicite:6]{index=6}
• Control zones and access management: The standard recommends defining controlled areas, access restrictions, warning signs and engineered safeguards appropriate for production environments. :contentReference[oaicite:7]{index=7}

Why It Matters

Manufacturing laser systems often combine high-power beams, automation, robotic interfaces, conveyor systems, and human operators in proximity. Without a manufacturing-specific laser safety framework, hazards from beam misuse, scatter/reflection, automated cycles, or material ejection may be underestimated.
Z136.9 helps ensure that companies in manufacturing adopt recognized good engineering practices for laser safety, reduce the risk of eye/skin injury, fire, explosion, or equipment damage, and supports industrial-laser system integration safely.

Practical Implementation Tips

• In your manufacturing facility, perform a risk assessment of each laser-system workstation: identify beam path, scatter/reflection sources, automated cycles, human access, and non-beam hazards.
• Ensure a laser safety programme is in place: designate LSO, provide operator/training for maintenance staff, develop SOPs, manage changes to laser system and maintain incident/investigation logs.
• Define and enforce controlled access zones: use interlocked doors, barriers, warning lights/signage, presence-sensing where appropriate, especially on automated systems.
• Address non-beam hazards: incorporate exhaust ventilation for laser-generated air contaminants (LGACs), fire-suppression for operations involving high-power beams and combustible materials, secure high-voltage supplies, and manage material ejection.
• Document modifications or retrofits: if a laser system is upgraded, changes wavelength, power class or automation, treat it as a “new system” – re-evaluate hazards per Z136.9, update controls, retrain staff.
