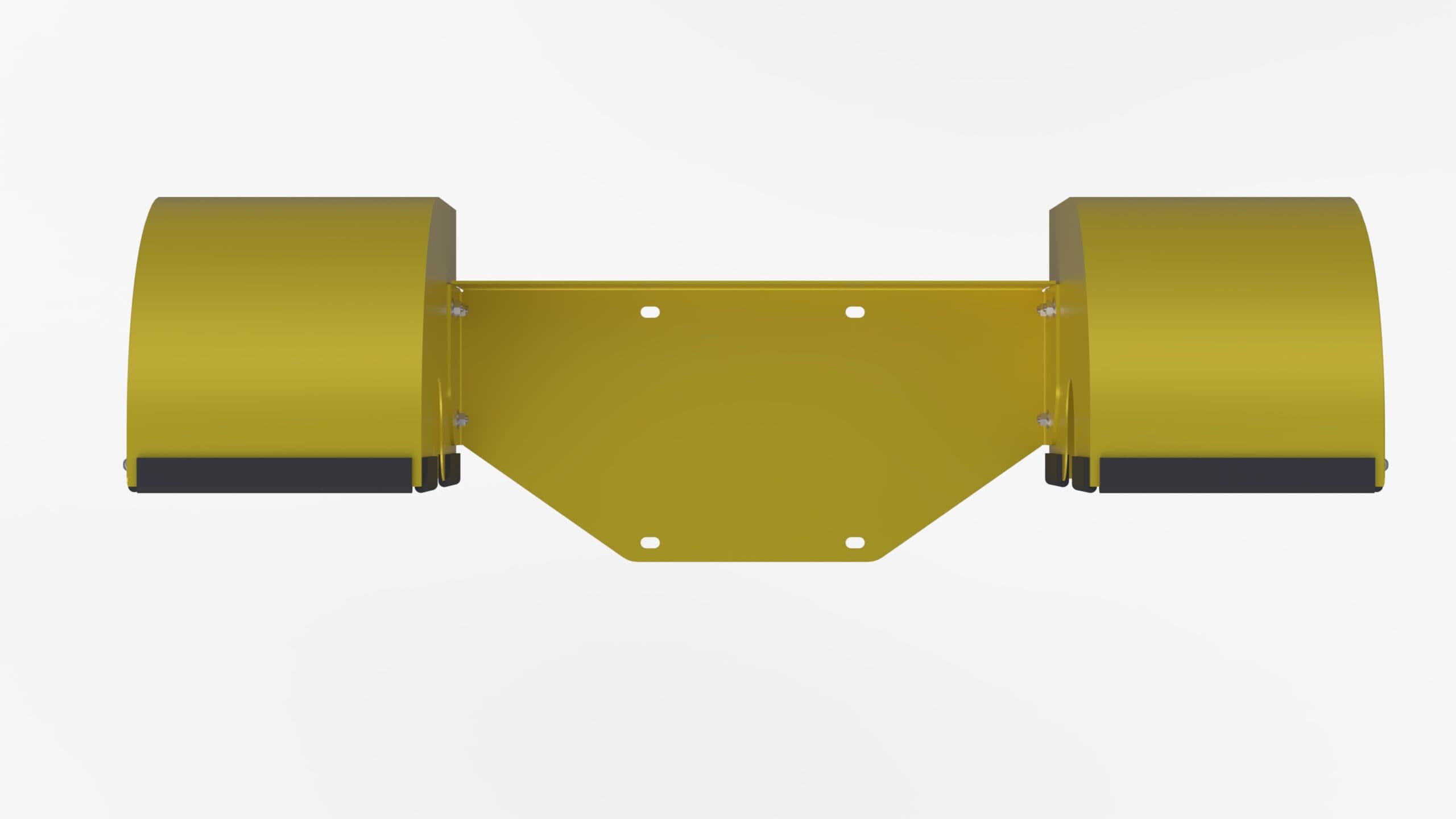

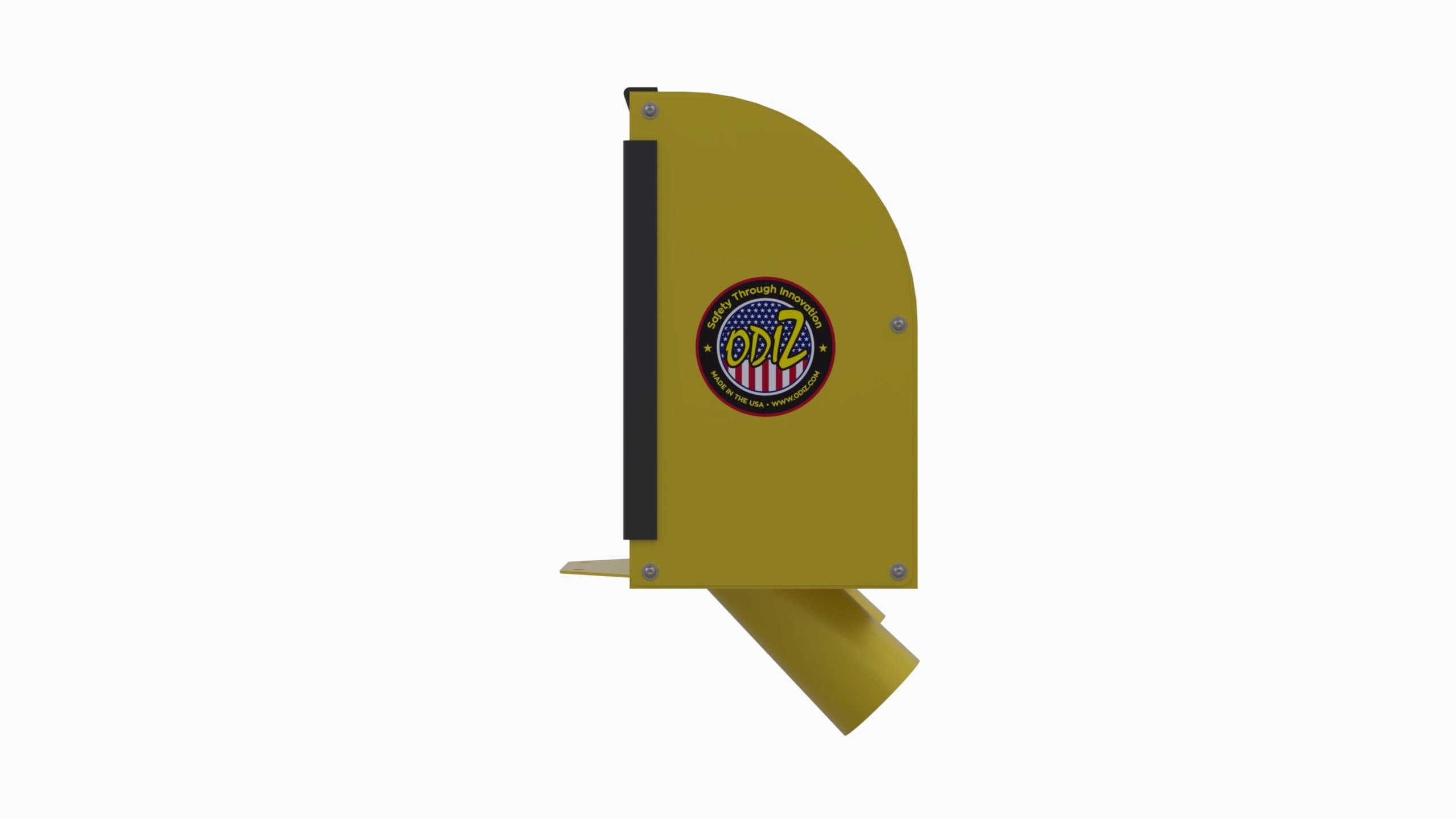

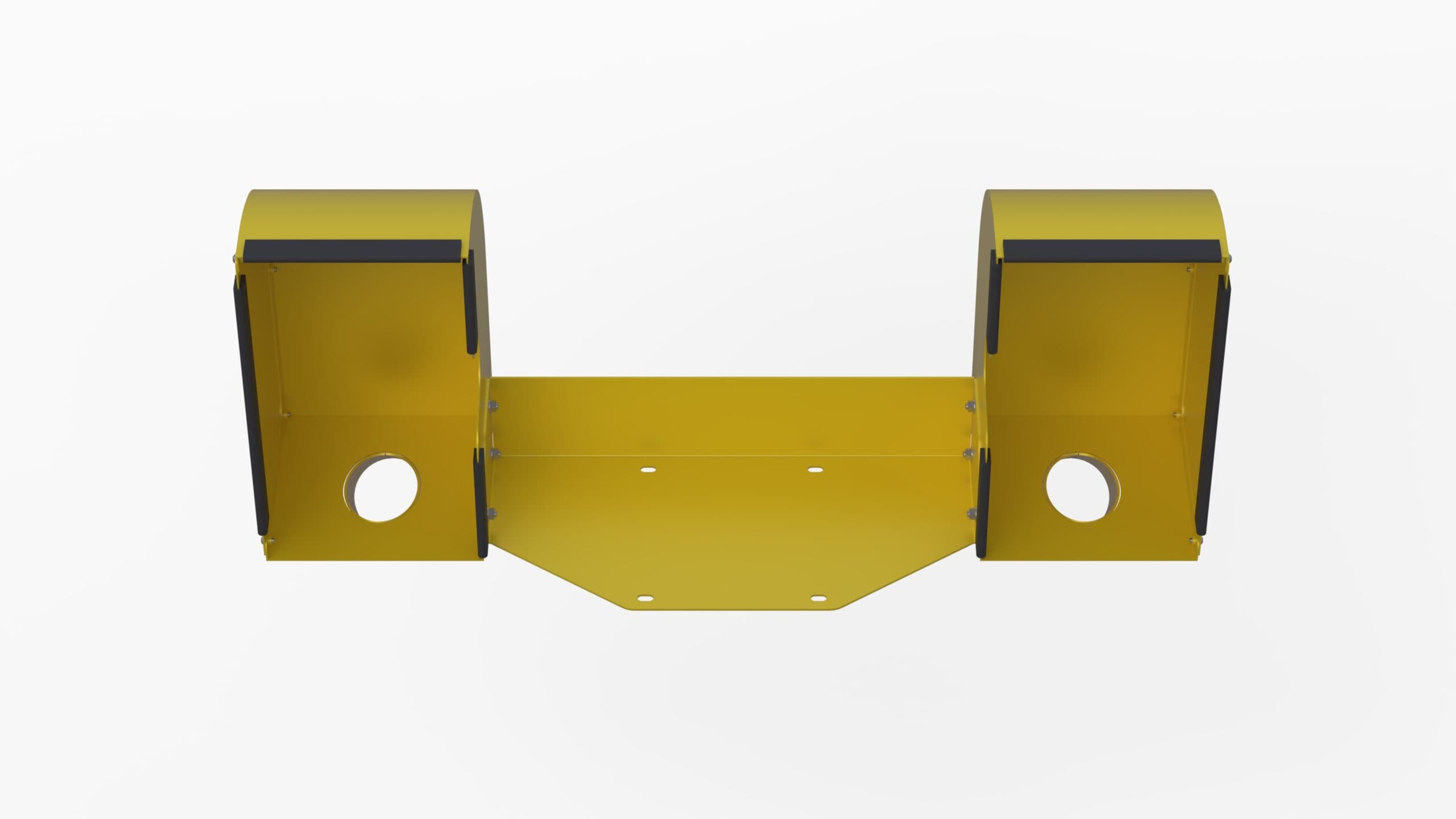

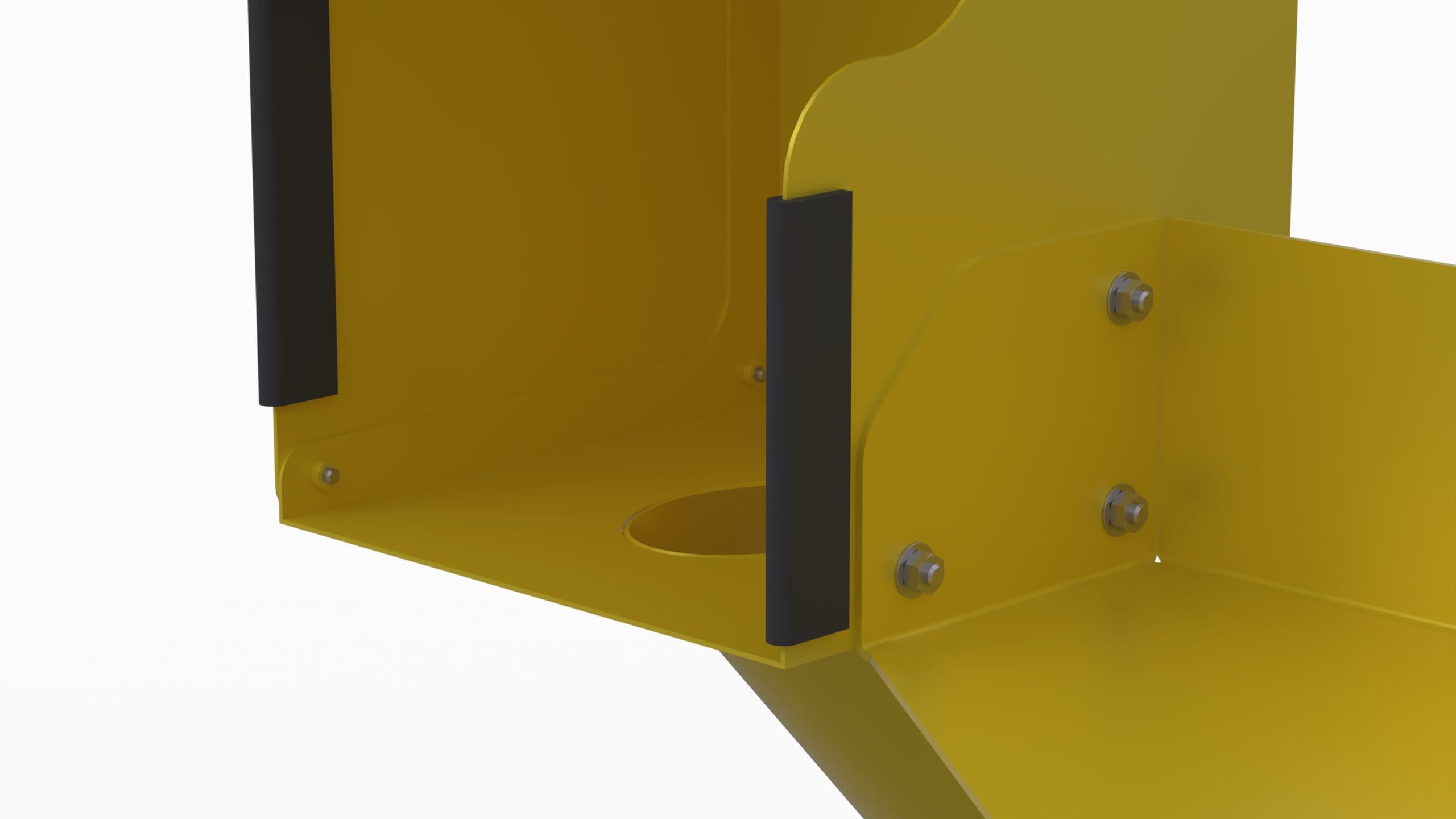

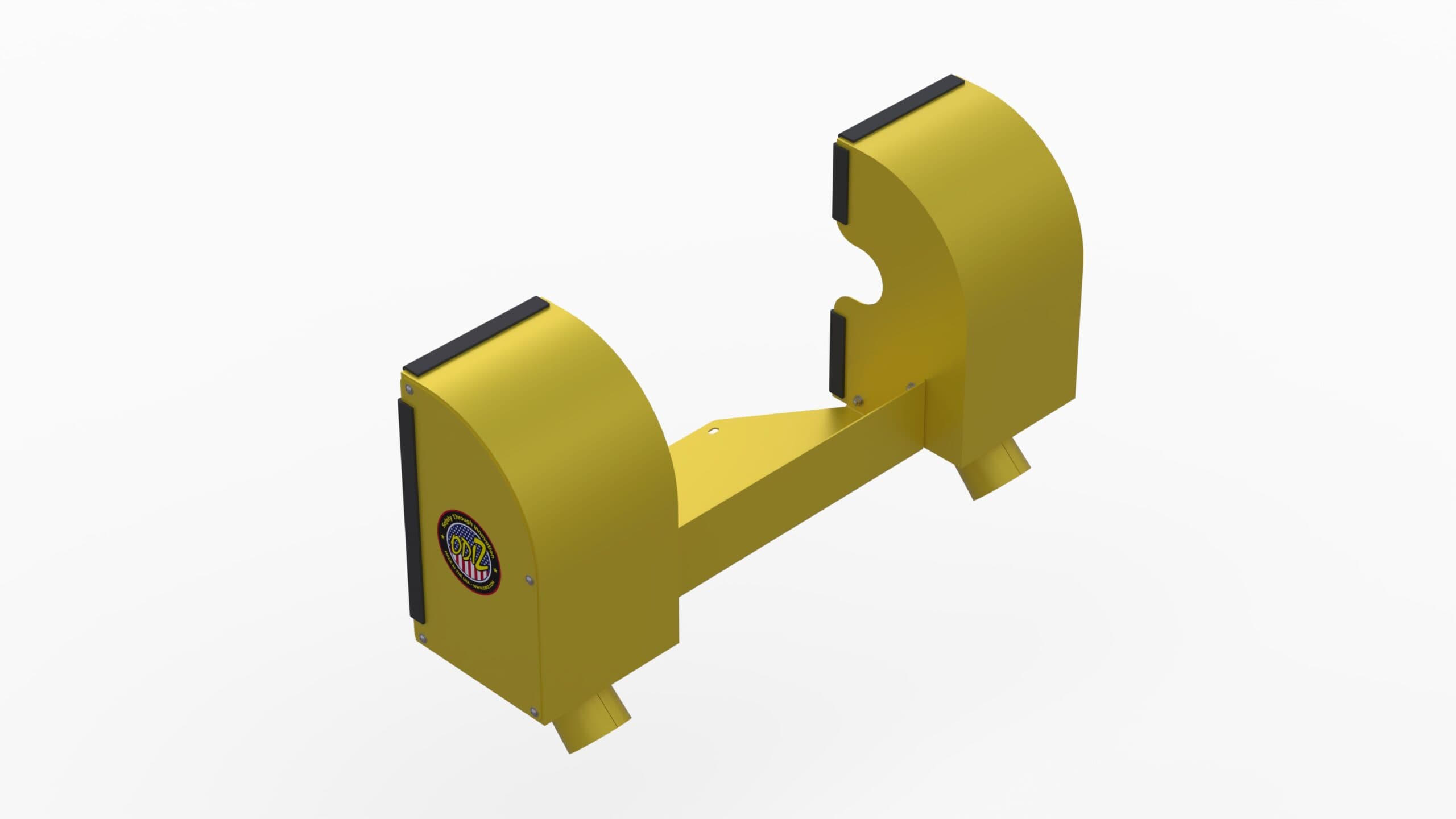

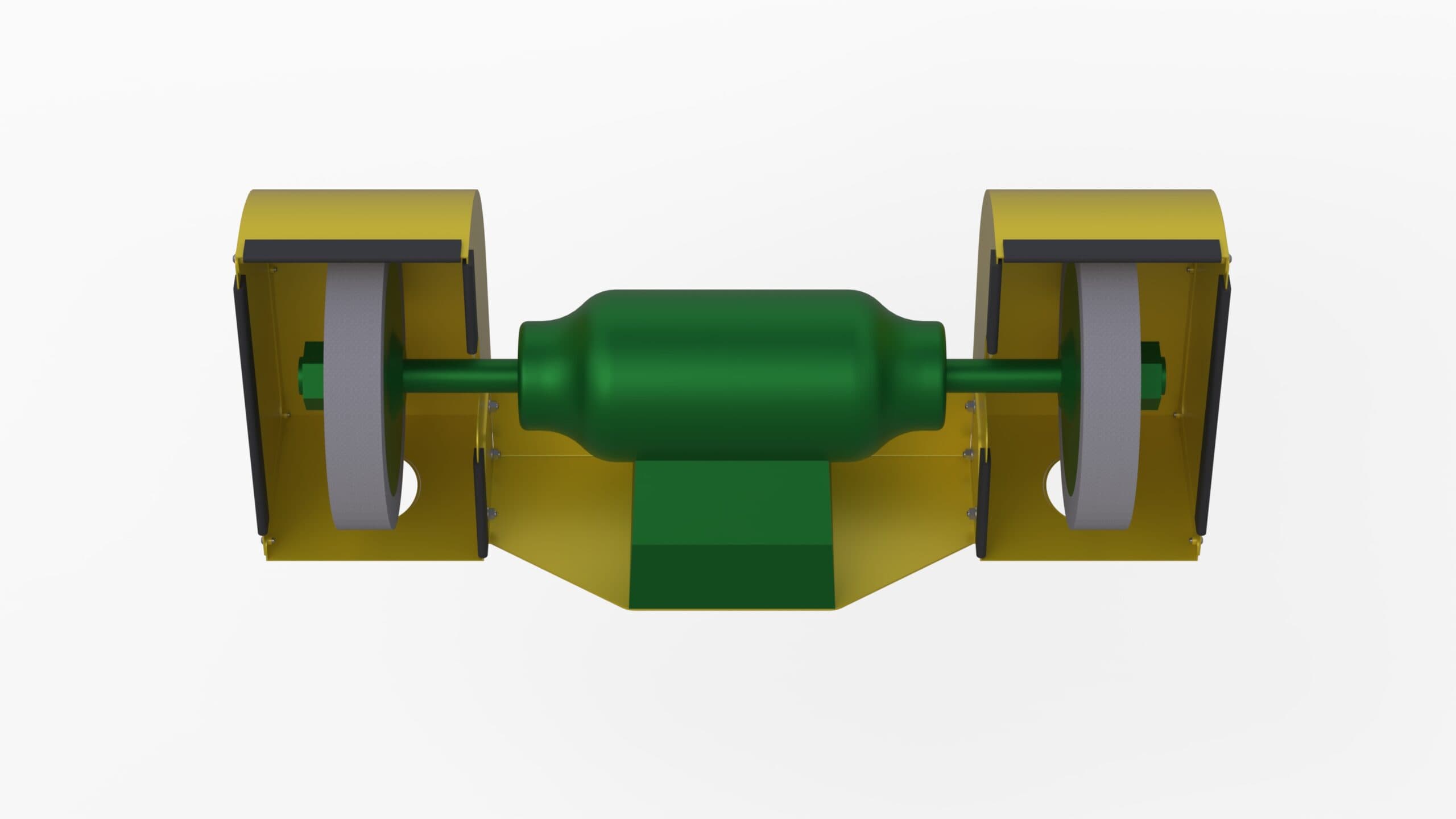

Custom Buffer dust collection hood mounted to Buffer machine

OSHA 1910.212 — General Requirements for All Machines

OSHA 29 CFR 1910.212 is the core machine guarding standard that applies to nearly all machinery in general industry.
It requires employers to provide guards and protective devices to shield workers from points of operation, rotating parts, in-running nip points, flying chips, sparks, and other hazards.
As a “catch-all” standard, OSHA 1910.212 is often cited when no specific machine regulation exists, making it one of the most frequently enforced provisions in Subpart O.

Key Guarding Requirements

• Point of Operation: Machines must be guarded so operators are not exposed to the point where the work is performed.
• Rotating & Moving Parts: Guards must cover exposed belts, pulleys, gears, shafts, and flywheels to prevent accidental contact.
• In-Running Nip Points: Hazards created where two parts rotate toward each other or where one part moves past a stationary object must be guarded.
• Flying Chips & Sparks: Guards or shields must contain debris, sparks, and fragments generated during machine operation.
• Anchoring: Machines designed for fixed location use must be securely anchored to prevent movement or tipping.

Examples of Machines Covered

Because OSHA 1910.212 is a broad standard, it applies to a wide range of equipment including drill presses, lathes, milling machines, conveyors, punch presses, saws, and grinders.
If a machine has moving parts that could injure a worker, 1910.212 requires guarding.

Common Violations

• Missing point-of-operation guards on presses or saws.
• Exposed belts, pulleys, or rotating shafts without guarding.
• Improperly adjusted or removed guards during production.
• Lack of anchoring on floor-mounted equipment.
• Failure to contain sparks or flying material in grinding, cutting, or drilling operations.

Why OSHA 1910.212 Matters

Machine guarding violations are consistently among OSHA’s top cited standards.
Without proper guards, workers face severe risks of crushed fingers, amputations, lacerations, and eye injuries.
Compliance with OSHA 1910.212 helps facilities protect employees, avoid costly citations, and establish safer production environments.

Relation to Other Standards

OSHA 1910.212 is a general requirement that works in tandem with OSHA 1910.215 (Abrasive Wheel Machinery)
and machine-specific rules under Subpart O. It also aligns with ANSI B11 machine safety standards,
which provide technical safeguarding criteria.

Compliance Checklist

• Install guards at the point of operation on all applicable machines.
• Cover all rotating parts, belts, pulleys, gears, and shafts.
• Guard in-running nip points created by rollers, belts, or chains.
• Provide shields for flying chips, sparks, or debris.
• Anchor floor-mounted machines to prevent shifting.
• Train employees to use machines only with guards in place.

Internal Linking Opportunities

• Cross-link to Lockout/Tagout (OSHA 1910.147) for energy control.
• Link to Abrasive Wheel Machinery (OSHA 1910.215) for grinder rules.
• Connect to ANSI B11 for machine safeguarding performance standards.
• Promote relevant machine guarding products, light curtains, and safety devices.

FAQ

OSHA 1910.212(a) — General Machine Guarding Requirements

OSHA 29 CFR 1910.212(a) defines the core safety principles for machine guarding in general industry.
It requires employers to protect workers from mechanical hazards created by points of operation, rotating components, in-running nip points, and flying chips or sparks.
This paragraph serves as the primary enforcement reference for machinery that does not have its own specific OSHA standard.

Scope and Purpose

The goal of 1910.212(a) is to prevent contact injuries, entanglement, crushing, and amputation by ensuring all hazardous machine motions are either guarded or controlled.
It applies to virtually all machinery used in manufacturing, maintenance, fabrication, and processing operations.

Key Guarding Principles

• Comprehensive Protection: Guards must cover any moving part or area that could cause injury through contact or ejection of material.
• Design Flexibility: Employers may choose fixed, adjustable, or interlocked guards, provided they effectively prevent worker exposure.
• Performance Standard: The rule is performance-based rather than prescriptive—meaning the employer must demonstrate that the guarding method eliminates or controls the hazard.
• Continuity of Protection: Guards must remain in place and secure during operation and be adjusted only when the machine is off and locked out.
• Applicability: This paragraph acts as a “catch-all” requirement whenever a machine presents a hazard not addressed by another OSHA provision.

Examples of Covered Hazards

Machines governed by 1910.212(a) include drill presses, milling machines, conveyors, polishing lathes, grinders, and mechanical cutters.
Hazards may include rotating shafts, reciprocating arms, cutting surfaces, or points where material is inserted or removed.

Compliance Practices

• Install guards that physically prevent access to moving parts.
• Inspect guards routinely for secure attachment and effectiveness.
• Ensure that guard openings prevent any part of the body from reaching the danger zone.
• Prohibit operation when guards are missing or removed.
• Train employees on safe operation, inspection, and maintenance of guarded machines.

Why OSHA 1910.212(a) Is Important

Most serious machinery accidents occur because guards are missing, removed, or inadequate.
Section (a) establishes the baseline requirements that form the foundation of all machine safeguarding programs.
Compliance not only prevents injuries and amputations but also ensures alignment with national consensus standards such as ANSI B11 and ISO 12100.

FAQ

OSHA 1910.212(a)(1) — General Duty to Guard Machines

OSHA 29 CFR 1910.212(a)(1) establishes the primary obligation to guard machinery in general industry.
It requires employers to implement one or more methods of guarding that protect both the operator and nearby employees from hazards created by points of operation, rotating parts, flying chips, sparks, or any other dangerous mechanical motions.

Scope and Intent

This paragraph serves as the foundation of all machine guarding enforcement.
It mandates that every machine presenting a mechanical hazard must be safeguarded through a combination of physical barriers or engineered safety devices.
The employer may choose the guarding method, but it must completely prevent employee exposure to the moving part or hazard zone during normal operation.

Acceptable Guarding Methods

• Fixed guards: Rigid barriers that prevent access to hazardous areas.
• Interlocked guards: Guards that automatically shut off or disengage the machine when opened or removed.
• Adjustable guards: Barriers that can be positioned for different operations but remain securely in place during use.
• Self-adjusting guards: Guards that move automatically into position as the operator works, covering the danger area as material is fed.
• Electronic safeguarding devices: Light curtains, pressure-sensitive mats, and presence sensors that prevent access to moving parts.

Key Compliance Requirements

• Guarding must protect both operators and nearby personnel.
• Guards must be securely attached and durable enough to resist normal operation and vibration.
• Openings in guards must be small enough to prevent accidental contact with moving parts.
• Guards must not introduce new hazards such as sharp edges, pinch points, or visibility obstruction.
• All guards must be kept in place and functional when machines are operating.

Common Violations

• Machines operating without guards over exposed belts, pulleys, gears, or shafts.
• Removed or bypassed barrier guards during production or maintenance.
• Improper guard materials or openings that allow hand or finger access to moving parts.
• Lack of guarding for nearby employees who may be struck by flying material or sparks.

Practical Compliance Tips

• Conduct a full hazard assessment for all equipment to identify points of operation and motion hazards.
• Install fixed guards wherever possible; use interlocked or adjustable guards only when process requirements demand it.
• Include guarding checks in your preventive maintenance program.
• Train operators to recognize unsafe conditions and never remove or modify guards.

Why OSHA 1910.212(a)(1) Is Important

This paragraph represents OSHA’s general duty clause for machinery safety.
Most machine-related injuries occur when guards are removed or missing, and OSHA 1910.212(a)(1) gives inspectors the authority to cite any unguarded moving part that poses a risk.
Compliance ensures that workers remain protected from crushing, entanglement, amputation, and impact injuries.

FAQ

OSHA 1910.212(a)(2) — General Requirements for Machine Guards

OSHA 29 CFR 1910.212(a)(2) establishes the design and construction standards for machine guards.
This provision requires that guards be securely fastened to the machine and designed to protect operators and nearby employees from injury caused by moving parts, flying debris, or accidental contact.
The intent is to ensure that guarding not only provides protection but also does not create new hazards in the process.

Key Guard Design Requirements

• Secure Attachment: Guards must be firmly attached to the machine. If fastening directly to the machine is not possible, guards must be securely mounted elsewhere to provide equal protection.
• Structural Integrity: Guards must be made of materials strong enough to resist impact, vibration, and normal wear during operation.
• No New Hazards: Guards must not introduce additional risks such as pinch points, sharp edges, or visibility obstruction.
• Durability: Guard materials must withstand operational stresses and environmental factors like heat, coolant, or debris.
• Accessibility: Guards should allow safe maintenance, lubrication, and adjustments without requiring complete removal when possible.

Performance Intent

The focus of 1910.212(a)(2) is performance-based guarding design.
OSHA does not prescribe specific guard materials or thicknesses; instead, the guard must perform effectively under real-world conditions.
Employers have the flexibility to design guards suited to their machines—as long as the guarding prevents contact and remains in place during operation.

Examples of Guard Types Covered

• Fixed guards enclosing belts, pulleys, gears, and rotating shafts.
• Interlocked guards that shut off power when opened or removed.
• Adjustable guards for variable-sized stock or cutting operations.
• Self-adjusting guards that move automatically with the workpiece.

Best Practices for Compliance

• Inspect guards regularly for looseness, cracks, or corrosion.
• Use guard materials that match the operational environment (e.g., metal for high-impact areas, polycarbonate for visibility).
• Train employees to recognize damaged or missing guards and to report deficiencies immediately.
• Ensure all guards are reinstalled and secured after maintenance or adjustments.

Common Violations

• Guards loosely attached or easily removable during operation.
• Improvised guards made from inadequate materials such as thin sheet metal or plastic covers.
• Guards with sharp edges or openings large enough to allow finger or hand access.
• Removed or bypassed guards not replaced before restarting the machine.

Why OSHA 1910.212(a)(2) Is Important

Even when a guard is present, poor design or weak construction can fail to protect workers.
OSHA 1910.212(a)(2) ensures that guards are engineered and maintained to perform effectively throughout a machine’s life cycle.
Properly designed guards prevent crushing, amputation, and laceration injuries while maintaining usability and productivity.

FAQ

OSHA 1910.213(a)(1) — Machine Vibration Control and Stability

OSHA 29 CFR 1910.213(a)(1) mandates that every woodworking machine be designed, constructed, and maintained to operate without sensible vibration when fitted with its largest tool and running idle at full speed.
This requirement ensures that machines operate smoothly and safely, reducing the risk of tool ejection, mechanical fatigue, and operator loss of control.

Regulatory Text

“Each machine shall be so constructed as to be free from sensible vibration when the largest size tool is mounted and run idle at full speed.”

Purpose and Intent

Excessive vibration in woodworking machinery can result from poor construction, unbalanced tools, worn bearings, or inadequate mounting.
Such vibration not only shortens equipment life but also creates serious safety hazards including tool breakage, flying parts, inaccurate cuts, and operator fatigue.
Section 1910.213(a)(1) establishes a performance requirement for machine stability and balance to prevent these dangers.

Key Requirements

• Machine design: All woodworking machines must be engineered to maintain stability and balance at full operating speed.
• Largest tool capacity: Machines must be capable of running smoothly even with the manufacturer’s largest rated tool attached (e.g., the largest saw blade, cutter head, or sanding drum).
• Operational test: Machines should be tested at full speed without load to verify that no excessive vibration, chatter, or mechanical oscillation occurs.
• Mounting and anchoring: Equipment must be properly secured to floors or foundations to prevent movement or shifting during operation.
• Maintenance: Bearings, arbors, and spindles must be maintained in proper alignment and condition to minimize imbalance.

Common Sources of Vibration

• Unbalanced or warped saw blades and cutter heads.
• Worn bearings or misaligned shafts.
• Improperly mounted motors or pulleys.
• Loose machine foundations or mounting bolts.
• Accumulated resin, dust, or pitch causing tool imbalance.

Inspection and Maintenance Practices

• Conduct a no-load spin test after each blade or cutter head change to confirm smooth operation.
• Inspect bearings and drive assemblies for wear or looseness on a regular schedule.
• Use precision balancing tools when installing large cutting heads or sanding drums.
• Tighten all fasteners, set screws, and motor mounts to prevent vibration over time.
• Replace worn or damaged blades immediately; never attempt to compensate for imbalance by adding weight.

Safety Implications of Excessive Vibration

• Tool failure: Cracked or unbalanced blades can fracture at high speed, creating projectile hazards.
• Loss of control: Vibrating tools or tables reduce operator precision and increase the chance of accidental contact.
• Fatigue and strain: Continuous vibration can cause muscle strain, numbness, and operator discomfort over time.
• Noise exposure: Vibration often contributes to elevated noise levels, which can exceed permissible exposure limits.

Testing and Compliance Tips

• Perform baseline vibration tests during commissioning and record acceptable levels per manufacturer specifications.
• Document vibration inspections in your preventive maintenance program.
• Anchor heavy woodworking machines (e.g., planers, moulders, sanders) to rigid foundations or vibration-dampening pads.
• Verify that rotating tools conform to the machine’s rated RPM—never exceed the manufacturer’s maximum speed rating.
• Ensure tool arbors and mounting surfaces are clean, true, and free from burrs or debris.

Why OSHA 1910.213(a)(1) Is Important

Vibration control is a fundamental element of machine safety.
OSHA 1910.213(a)(1) ensures that woodworking machines are structurally sound, well-balanced, and free from excessive oscillation when operating under normal conditions.
Compliance prevents mechanical failure, protects workers from struck-by and amputation hazards, and enhances product quality by ensuring consistent and accurate cuts.

FAQ

OSHA 1910.213(p) — Sanding Machines: Guarding and Safety Requirements

OSHA 29 CFR 1910.213(p) outlines mandatory safety standards for sanding machines used in woodworking, including disc sanders, belt sanders, drum sanders, and spindle sanders.
The purpose of this section is to prevent contact injuries, entanglement, and dust exposure by requiring guarding of moving parts, proper spacing between components, and effective dust control systems.
Sanding machines pose unique risks due to their continuous surface motion and abrasive nature, which can easily catch fingers, clothing, or hair if not properly guarded.

Purpose and Intent

OSHA 1910.213(p) ensures that all types of sanding machinery are designed and operated with adequate guarding, spacing, and exhaust systems to reduce the risk of injury and fire.
The rule applies to all woodworking sanding operations where abrasives are used to smooth, shape, or finish materials.
Key safety goals include preventing contact with moving belts or discs, avoiding nip point hazards between sanding surfaces and work supports, and minimizing airborne dust.

Key Requirements

• Guarding of contact points: All contact areas between sanding surfaces and work supports must be guarded to prevent operator contact with rotating or moving parts.
• Enclosure of unused portions: The unused run of sanding belts must be enclosed to eliminate exposure to the moving belt.
• Disc and drum guards: Sanding discs and drums must be enclosed or guarded to protect against accidental contact and to contain fragments in case of abrasive failure.
• Dust collection: All sanding machines must be equipped with an effective exhaust system to remove wood dust at its source.
• Spacing requirements: Tables and guards must be adjusted so openings between the abrasive surface and the table edge do not exceed OSHA-specified clearances (typically 1/4 inch for belt sanders).
• Power transmission guarding: Belts, pulleys, and shafts driving the sanding mechanism must be enclosed in compliance with OSHA 1910.219.

Types of Sanding Machines Covered

• Belt sanders: Require guards enclosing the unused run of the belt and nip points where the belt contacts pulleys or tables.
• Disc sanders: Must have guards enclosing the portion of the disc above the table unless the work is performed on both sides of the disc.
• Drum sanders: Require enclosures for all moving parts and exhaust systems to control dust and prevent accidental contact.
• Spindle sanders: Must have guards and table openings designed to prevent finger access to the spindle at the point of operation.

Common Hazards Controlled

• Contact with moving abrasives: Prevents lacerations, burns, and crushed fingers from accidental touch.
• Entanglement: Reduces risk of clothing, gloves, or jewelry being caught in moving belts or drums.
• Inhalation hazards: Dust collection minimizes exposure to fine particulate matter linked to respiratory issues and explosions.
• Flying debris: Guards contain loose material or failed abrasives.
• Kickback and binding: Proper work support and clearance prevent sudden material ejection.

Guard Design and Construction Guidelines

• Construct guards from heavy-gauge metal or equivalent materials that withstand impact and vibration.
• Provide clear visibility at the point of operation through open or transparent sections if necessary.
• Ensure all belt and disc enclosures allow easy access for adjustment and maintenance without removal of safety features.
• For horizontal belt sanders, guard both upper and lower runs of the belt wherever possible.
• Install emergency stop switches within reach of the operator’s normal working position.

Inspection and Maintenance Practices

• Inspect guards and exhaust hoods before each shift for proper placement and secure attachment.
• Clean dust collection ducts and filters regularly to prevent fire and maintain suction efficiency.
• Check belt and disc tracking, tension, and surface wear to prevent breakage or imbalance.
• Replace damaged abrasive belts or discs immediately; never operate with torn or frayed abrasives.
• Verify that openings between the abrasive and worktable do not exceed the OSHA clearance limit.

Best Practices for Compliance

• Use automatic dust extraction systems designed specifically for wood sanding applications.
• Train operators to adjust guards and tables before each operation to maintain proper clearance.
• Implement lockout/tagout procedures when changing belts, discs, or performing maintenance (per OSHA 1910.147).
• Provide hearing protection and dust masks to reduce exposure to noise and particulates.
• Post machine-specific operating instructions near each sanding station.

Why OSHA 1910.213(p) Is Important

OSHA 1910.213(p) plays a vital role in preventing the most common and severe injuries associated with sanding operations—such as finger amputations, entanglement, and respiratory illness.
Sanding machines operate at high speed and generate both mechanical and airborne hazards.
By requiring comprehensive guarding, dust collection, and controlled clearances, this standard ensures that operators can work safely without exposure to moving abrasives or hazardous dust.

Related Standards

• OSHA 1910.94(b): Ventilation requirements for abrasive blasting and sanding operations.
• OSHA 1910.215: Abrasive wheel machinery guarding.
• ANSI B11.8: Safety requirements for woodworking machinery, including sanding and finishing machines.

Share this:

• Facebook
• LinkedIn
• X
• Email
• Print

Related

OSHA 1910.213(p)(3) — Guarding and Exhaust Requirements for Disc Sanding Machines

OSHA 29 CFR 1910.213(p)(3) establishes specific safety requirements for disc sanding machines, focusing on the proper enclosure and exhaust ventilation of the revolving sanding disc.
The regulation mandates that each machine be equipped with an exhaust hood, or if no dust collection system is used, an equivalent guard, arranged to fully enclose the disc except for the portion above the table needed for sanding operations.

Regulatory Text

“Each disk sanding machine shall have the exhaust hood, or other guard if no exhaust system is required, so arranged as to enclose the revolving disk, except for that portion of the disk above the table, if a table is used, which may be necessary for the application of the material to be finished.”

Purpose and Intent

OSHA 1910.213(p)(3) aims to protect operators from accidental contact with rotating sanding discs and from the health hazards associated with airborne dust generated during sanding.
The exhaust hood or guard serves as both a physical barrier to prevent injury and a ventilation system component to remove fine dust and debris from the operator’s breathing zone.
These safety measures reduce risks of lacerations, abrasions, entanglement, and respiratory illness.

Key Requirements

• Mandatory hood or guard: Each disc sanding machine must have an exhaust hood or, if not connected to an exhaust system, a fixed guard enclosing the disc.
• Extent of enclosure: The guard or hood must cover all areas of the revolving disc except the upper section above the worktable used for sanding.
• Material construction: Guards and hoods must be made from heavy-duty metal or equivalent materials capable of withstanding vibration and abrasion.
• Exposed area limitation: Only the minimal area required for material application should remain open to reduce operator exposure.
• Dust control: When an exhaust system is in place, the hood must effectively capture dust at its point of generation and prevent accumulation within the enclosure.

Common Hazards Controlled

• Blade and disc contact: Prevents accidental hand or finger contact with the high-speed abrasive surface.
• Entanglement: Guards eliminate access to the rotating disc and prevent clothing or hair from being caught.
• Dust inhalation: Exhaust systems capture fine sanding dust to protect operator respiratory health.
• Fire and explosion risks: Dust removal prevents combustible dust buildup in the work area.
• Flying debris: Enclosures contain abrasive fragments or loose stock pieces thrown by the disc.

Design and Construction Guidelines

• Design exhaust hoods to enclose at least 180° of the disc, leaving only the operational section accessible to the operator.
• Mount guards securely to the machine frame to prevent movement or vibration during use.
• Position the exhaust port near the point where dust is generated — typically at the rear or side of the disc.
• Ensure the hood or guard allows for easy removal or hinged access during maintenance under lockout/tagout conditions.
• Maintain smooth interior surfaces to improve airflow and prevent dust accumulation inside the enclosure.

Inspection and Maintenance Practices

• Inspect the hood or guard daily for cracks, looseness, or deformation.
• Check the exhaust duct connection to ensure airtight seals and proper airflow.
• Clean dust and debris buildup from inside guards and hoods regularly to maintain visibility and air movement.
• Verify that only the required area of the disc is exposed during each sanding operation.
• Document inspection results and corrective actions in the machine safety log.

Best Practices for Compliance

• Integrate high-efficiency dust extraction systems designed for fine wood particulate collection.
• Train operators to adjust guards and tables properly before beginning work.
• Use abrasion-resistant steel or aluminum hoods for heavy-duty applications.
• Equip machines with emergency stop buttons within arm’s reach of the operator.
• In multi-disc sanders, ensure each disc has an individual exhaust hood or equivalent guarding system.

Why OSHA 1910.213(p)(3) Is Important

OSHA 1910.213(p)(3) is essential for preventing the most common injuries associated with disc sanding machines—namely, contact with moving discs and inhalation of fine wood dust.
These machines operate at high rotational speeds, and even a brief loss of concentration can result in serious lacerations or amputations if guards are missing or poorly designed.
The exhaust hood also plays a vital role in controlling airborne particulates, improving both air quality and fire safety within woodworking environments.

Related Standards

• OSHA 1910.213(p)(2): Guarding requirements for drum sanding machines.
• OSHA 1910.94(b): Ventilation for abrasive and sanding operations.
• ANSI B11.8: Safety requirements for woodworking and finishing machinery.
• NFPA 664: Fire and explosion prevention in wood processing facilities.

FAQ

OSHA 1910.215 — Abrasive Wheel Machinery: Guarding and Safety Requirements

OSHA 29 CFR 1910.215 establishes critical safety standards for abrasive wheel machinery—equipment such as bench grinders, pedestal grinders, surface grinders, and cutoff wheels.
This section is designed to protect operators from hazards associated with wheel breakage, contact injuries, and flying fragments by requiring appropriate wheel guards, tool rest spacing, ring testing, and maintenance practices.
Abrasive wheel machinery operates at extremely high speeds, and failure to meet these safety requirements can result in catastrophic injuries or fatalities.

Purpose and Intent

The intent of OSHA 1910.215 is to ensure that all abrasive wheel machines are equipped with properly designed guards and safety devices to contain fragments if a wheel breaks and to minimize the risk of operator contact with rotating parts.
This regulation also standardizes wheel mounting procedures, speed limits, and inspection routines to ensure that each wheel operates within its rated capabilities.

Key Requirements

• Wheel guards: All abrasive wheels must be enclosed by guards that cover the spindle end, nut, and flange projections to protect against wheel fragments.
• Tool rests: Tool rests must be adjusted closely to the wheel (no more than 1/8 inch away) to prevent workpieces from being pulled between the wheel and the rest.
• Work rests: Must be secure, adjustable, and maintained in good condition to support material during grinding.
• Flanges: Each wheel must be properly mounted with flanges of equal diameter and strength to distribute clamping force evenly.
• Ring testing: All vitrified wheels must undergo a “ring test” before mounting to detect cracks or defects.
• Speed control: Machines must not operate at speeds exceeding the maximum safe operating speed (MSOS) marked on the wheel.
• Guard openings: The guard’s exposure angle must not exceed limits based on wheel type and mounting (bench, floor stand, cylindrical, etc.).

Types of Abrasive Wheel Machinery Covered

• Bench and pedestal grinders: Must have upper wheel guards enclosing at least 75% of the wheel periphery.
• Surface grinders: Require guarding of the periphery and sides not used for grinding.
• Cylindrical and centerless grinders: Must have fixed and adjustable guards enclosing the wheel and regulating rollers.
• Portable grinders: Require wheel guards covering at least 180° of the wheel.
• Cutoff machines: Must include a fixed hood-type guard covering the wheel and spindle.

Common Hazards Controlled

• Wheel explosion: Containment of high-speed fragments from cracked or overspeed wheels.
• Contact injuries: Prevents accidental hand or body contact with rotating abrasive surfaces.
• Kickback: Reduces rebound of material due to poor work rest positioning or improper guarding.
• Flying debris: Contains sparks, dust, and fragments during grinding operations.
• Vibration and imbalance: Ensures safe wheel mounting and alignment to prevent shaft or bearing damage.

Guarding and Spacing Requirements

• Tool rests must be within 1/8 inch of the wheel surface.
• Adjustable tongue guards (spark deflectors) must be set no more than 1/4 inch from the wheel periphery.
• Bench and floor grinders must have wheel exposure limited to 90° or less of the periphery.
• All guards must be constructed of steel or equivalent material to contain wheel fragments at maximum operating speed.

Wheel Mounting and Inspection Procedures

• Perform a ring test on vitrified wheels before mounting to detect internal cracks.
• Ensure wheel flanges are of equal diameter, flat, and free from burrs or distortion.
• Use blotters (compressible paper washers) between the wheel and flange where specified by the manufacturer.
• Never force a wheel onto a spindle or use excessive pressure during mounting.
• Run the wheel at operating speed in a protected area for at least one minute before use to confirm stability.

Maintenance and Operation

• Inspect wheels and guards before each shift for cracks, wear, and secure attachment.
• Maintain speed governors and motor controls to prevent overspeeding.
• Clean guards and housings regularly to prevent buildup of grinding dust.
• Replace worn or damaged guards immediately—do not weld or patch wheel guards.
• Ensure work rests are properly adjusted after each wheel dressing or replacement.

Best Practices for Compliance

• Install clear signage showing wheel speed limits and mounting instructions near each machine.
• Train operators in safe grinding practices, including ring testing, guard adjustment, and PPE use.
• Provide eye and face protection such as safety glasses and face shields for all operators.
• Incorporate lockout/tagout procedures for wheel changes and maintenance (per OSHA 1910.147).
• Use ANSI B7.1-compliant abrasive wheels that meet manufacturing and performance standards.

Why OSHA 1910.215 Is Important

OSHA 1910.215 is one of the most critical standards in machine guarding because it addresses the hazards of high-speed rotating abrasive wheels.
Improperly guarded or mounted wheels can explode with tremendous force, causing severe lacerations, blindness, or death.
By enforcing uniform requirements for guards, tool rests, and inspection procedures, this regulation ensures that abrasive wheel machinery operates safely within its design limits, protecting both operators and nearby workers.

Related Standards

• OSHA 1910.212: General requirements for all machine guarding.
• ANSI B7.1: Safety requirements for the use, care, and protection of abrasive wheels.
• OSHA 1910.243(c): Portable powered tool safety standards.
• OSHA 1910.219: Mechanical power-transmission apparatus standards.

FAQ

OSHA 1910.215(a) — General Requirements for Abrasive Wheel Machinery

Paragraph (a) sets the baseline rules for using abrasive wheels: machines must have safety guards,
guards must be designed and fastened correctly, proper work rests are required on offhand grinders,
and some items are excluded from this section. Use this as the top-level guidance before drilling into
the subsection-specific requirements.

(a)(1) Machine guarding — When guards are required (and the limited exceptions)

Abrasive wheels may be used only on machines equipped with safety guards. Limited exceptions apply for:

• Internal work while the wheel is within the workpiece.
• Mounted wheels ≤ 2 in. diameter used in portable operations.
• Types 16, 17, 18, 18R, and 19 (cones, plugs, threaded-hole “pot balls”) when the work itself provides protection.

(a)(2) Guard design — What the guard must cover and how it’s secured

The guard must cover the spindle end, nut, and flange projections, stay aligned with the wheel, and be
secured so that the fastenings are stronger than the guard itself. Two narrow exceptions allow exposure of
the spindle end, nut, and outer flange where the work provides protection, and for portable saws.

(a)(3) Flanges — Cross-reference

Grinding machines must be equipped with flanges per §1910.215(c) (minimum diameters, types/exceptions, and mounting rules).
See your site’s child category for 1910.215(c) for the detailed tables and figures.

(a)(4) Work rests — Required on offhand grinders

• Use a rigid, adjustable rest to support the work.
• Keep the opening to the wheel at ≤ 1/8 in (3.2 mm) to prevent jamming and wheel breakage.
• Clamp after each adjustment; never adjust with the wheel in motion.

(a)(5) Excluded items

Natural sandstone wheels and metal/wooden/cloth/paper discs with abrasive layered on the surface are excluded from §1910.215.

Practical inspection cues (use for audits & training)

• Verify a guard is present unless one of the (a)(1) exceptions applies; document the exception if used.
• Confirm guard coverage encloses spindle end, nut, and flange projections and remains aligned during operation.
• Check that fasteners exceed guard strength (no loose, mismatched, or under-sized hardware).
• On bench/pedestal grinders, measure and record work-rest clearance ≤ 1/8″; re-adjust for wheel wear.
• Cross-check machine/wheel type against exclusions before applying §1910.215 requirements.

Link this category to:

• Your grinder guards, tongue guards, eye shields, and gap-gauge product pages.
• Child categories for 1910.215(b) (guarding specifics), 1910.215(c) (flanges), and 1910.215(d) (mounting/operation).
• Related categories: 1910.212 (general machine guarding), 1910 Subpart I (PPE).

FAQ

OSHA 1910.215(a)(1) — Machine Guarding Requirements for Abrasive Wheel Machinery

OSHA 29 CFR 1910.215(a)(1) establishes the fundamental rule for machine guarding on abrasive wheel machinery.
It requires that abrasive wheels be operated only on machines equipped with safety guards designed to contain wheel fragments and protect operators from contact, sparks, and debris.
These guards are mandatory unless the wheel type falls under a specific exemption defined elsewhere in the standard.

Regulatory Text

“Machine guarding. Abrasive wheels shall be used only on machines provided with safety guards as defined in the following paragraphs of this section, except:”

Purpose and Intent

The purpose of OSHA 1910.215(a)(1) is to ensure that all abrasive wheel machines are operated with guards capable of protecting workers from the violent failure of grinding wheels.
Abrasive wheels rotate at extremely high speeds—often exceeding 6,000 RPM—and a wheel failure can eject fragments at speeds approaching that of a bullet.
Proper machine guarding prevents these fragments from striking operators and reduces the risk of lacerations, amputations, and fatal injuries.

Key Requirements

• Mandatory guards: All abrasive wheels must be used only on machines that have safety guards conforming to 1910.215 design specifications.
• Guard design: Guards must fully enclose the wheel periphery and sides, except for the necessary exposure required for the work process.
• Exceptions: Certain wheel types—such as mounted wheels (two inches or smaller in diameter) and internal wheels used within workpieces—are exempt from the full guard requirement.
• Containment strength: Guards must be strong enough to withstand the force of wheel fragments if the wheel bursts at maximum operating speed.
• Secure installation: Guards must be rigidly mounted to the machine frame and positioned so that they do not interfere with work operations.

Common Hazards Controlled

• Wheel explosion: Guards contain high-velocity fragments from cracked or defective wheels.
• Operator contact: Prevents accidental hand or finger contact with the abrasive surface.
• Flying debris and sparks: Reduces risk of eye and face injuries caused by airborne particles.
• Kickback: Limits rebound of workpieces or fragments during grinding operations.

Guard Construction Guidelines

• Guards should be made of steel or equivalent material capable of containing wheel fragments under centrifugal force.
• Exposure openings must not exceed 90° for bench or floor grinders and 125° for cylindrical grinders, unless otherwise specified.
• Guards must include adjustable tongue deflectors set close to the wheel surface to deflect sparks and debris.
• Portable grinders must have guards enclosing at least 180° of the wheel periphery.
• Guards must be securely fastened to prevent shifting during vibration or wheel replacement.

Inspection and Maintenance Practices

• Verify that all abrasive wheels are properly guarded before operation.
• Check guard fasteners and mounting brackets regularly for tightness and damage.
• Inspect guards for cracks, corrosion, or metal fatigue caused by continuous vibration.
• Ensure that guard openings conform to OSHA’s exposure limits for the specific grinder type.
• Document inspection results as part of the facility’s machine safety program.

Best Practices for Compliance

• Use only guards provided or approved by the machine manufacturer to ensure proper fit and protection.
• Train all operators on guarding requirements and safe grinding techniques.
• Implement lockout/tagout procedures (per OSHA 1910.147) before adjusting or replacing guards.
• Ensure guards are replaced immediately after wheel dressing or maintenance activities.
• Post visible signage reminding workers to check wheel guards before operation.

Why OSHA 1910.215(a)(1) Is Important

OSHA 1910.215(a)(1) forms the cornerstone of abrasive wheel safety by requiring that no unguarded grinding wheels are ever used.
Wheel explosions, contact injuries, and flying debris incidents are among the most severe hazards in metalworking and manufacturing environments.
Proper machine guarding—using strong, securely mounted guards—provides essential protection for operators, dramatically reducing the likelihood of catastrophic injuries.

Related Standards

• OSHA 1910.212: General requirements for all machine guarding.
• OSHA 1910.215(b): Specific design and exposure requirements for abrasive wheel guards.
• ANSI B7.1: Safety code for the use, care, and protection of abrasive wheels.
• OSHA 1910.243(c): Portable powered tool safety requirements.

FAQ

ANSI B11 — Machine Safety & Machine Tool Standards

The ANSI B11 standards series comprises a robust framework for machinery and machine tool safety. It addresses risk assessment, design, guarding, control systems, risk reduction measures, and installation and maintenance of machines. Although not regulatory law, B11 standards are widely referenced by industry and used to interpret OSHA’s machine guarding rules (e.g. 29 CFR 1910.212). :contentReference[oaicite:2]{index=2}

Structure of the B11 Family

The B11 family is organized into three types of standards:

• Type A (Basic Safety Standards): e.g. ANSI B11.0 defines general concepts, terminology, risk assessment, and safety principles. :contentReference[oaicite:3]{index=3}
• Type B (Generic Safety Standards): These address safeguarding methods, performance, or safety aspects used across machines (for example, B11.19—Performance Criteria for Safeguarding). :contentReference[oaicite:4]{index=4}
• Type C (Machine-Specific Standards): Focused on individual machines or categories (e.g. B11.1 for power presses, B11.9 for grinding machines, B11.10 for sawing machines). :contentReference[oaicite:5]{index=5}

Core Themes & Provisions

• Risk Assessment / Reduction: B11 emphasizes identifying hazards, assessing risk, selecting and validating protective measures, and verifying that risk is reduced to acceptable levels. :contentReference[oaicite:6]{index=6}
• Safeguarding Methods: Fixed guards, interlocked guards, presence sensors, two-hand controls, light curtains, etc., are all covered with performance criteria. :contentReference[oaicite:7]{index=7}
• Performance Criteria: Guards and safety devices must meet minimum response times, strength, durability, fail-safe behavior, and integration with control systems. :contentReference[oaicite:8]{index=8}
• Safety in Existing (“Legacy”) Equipment: B11 encourages adaptation of older machines via retrofitting or supplementary safeguarding where feasible. :contentReference[oaicite:9]{index=9}
• Design, Modification & Integration: Covers requirements for design, safe modifications, wiring, control logic, maintenance access, risk during changeover, and system integration. :contentReference[oaicite:10]{index=10}

Relation to OSHA & Enforcement Context

OSHA itself does not mandate ANSI B11 by law, but OSHA’s machine guarding standards allow referencing consensus standards like B11 for technical interpretation. For example, OSHA’s eTool on machine guarding lists ANSI B11 standards as guidance resources. :contentReference[oaicite:11]{index=11}
Many safety professionals use B11 standards to design compliant machine guards and safety systems that satisfy both OSHA rules and best practices.

Common Substandards in the Series

• ANSI B11.0 — Safety of Machinery (baseline, risk methodology) :contentReference[oaicite:12]{index=12}
• ANSI B11.19 — Performance Criteria for Safeguarding (applies across many machines) :contentReference[oaicite:13]{index=13}
• ANSI B11.1 / B11.2 / B11.3 — Press, hydraulic, brake machines :contentReference[oaicite:14]{index=14}
• ANSI B11.10 — Metal sawing machines :contentReference[oaicite:15]{index=15}
• ANSI B11.9 — Grinding machines (ties into OSHA 1910.215 & 1910.213) :contentReference[oaicite:16]{index=16}

Internal Linking & Application Ideas

• Link to child categories like ANSI B11.0, ANSI B11.19, ANSI B11.9 (Grinding), etc.
• Cross-link to your OSHA machine guarding pages, e.g. OSHA 1910.212 General Machine Guarding.
• Link to safety device and guarding product pages: light curtains, interlocked guards, protective covers, control systems.

FAQ

ANSI B11.0 — Safety of Machinery

The ANSI B11.0 standard (Safety of Machinery) is the foundational “Type A” standard of the B11 series of American National Standards for machine safety.
It is intended to apply broadly to power-driven machines (new, existing, modified or rebuilt) and to machinery systems, not portable tools held in the hand. :contentReference[oaicite:0]{index=0}
ANSI B11.0 provides the essential framework: definitions, lifecycle responsibilities, risk assessment methodology, acceptable risk criteria, and guidance for using Type-C standards in conjunction with this general standard. :contentReference[oaicite:1]{index=1}

Scope & Purpose

ANSI B11.0-2020 covers machines and machinery systems used for material processing, moving or treating when at least one component moves and is actuated, controlled and powered. :contentReference[oaicite:2]{index=2}
The standard’s purpose is to help suppliers, integrators, and users of machinery identify hazards, estimate and evaluate risks, and implement sufficient risk reduction to achieve an “acceptable risk” level. :contentReference[oaicite:3]{index=3}
It also clarifies responsibilities across the machine lifecycle (supplier, user, modifier) and addresses legacy equipment, prevention through design (PtD) and use of alternative methods for energy control. :contentReference[oaicite:4]{index=4}

Key Concepts & Requirements

• Terminology & Definitions: Establishes key machine-safety terms (e.g., machine, hazard zone, safeguarding, risk, risk reduction). :contentReference[oaicite:5]{index=5}
• Risk Assessment Methodology: Describes how to identify hazards, estimate risk severity and probability, evaluate risk, and decide on corrective safeguards. :contentReference[oaicite:6]{index=6}
• Risk Reduction Principles: Focuses on designing out hazards, applying engineered controls, administrative controls and PPE only when higher-level measures aren’t feasible. :contentReference[oaicite:7]{index=7}
• Lifecycle Approach: Applies to design, construction, installation, commissioning, operation, maintenance, modification and dismantling of machines. :contentReference[oaicite:8]{index=8}
• Use of Type-C Standards: ANSI B11.0 explains how to use machine-specific Type-C standards (e.g., B11.9 for grinding machines) together with this standard for full compliance. :contentReference[oaicite:9]{index=9}

Why It Matters

ANSI B11.0 sets the groundwork for safe machine design and use. Without a consistent foundational standard, machine-specific standards may lack coherence or completeness in hazard control.
By following B11.0, manufacturers and users can build robust safety programs, ensure they cover all phases of machine use (including legacy equipment), and demonstrate that hazard identification, risk assessment and risk reduction are performed systematically.
Because the standard is widely referenced by regulatory authorities and industry best practices, compliance strengthens both safety performance and regulatory defensibility.

Relationship to OSHA & Other Standards

Although ANSI B11.0 is a voluntary consensus standard and not a regulation, it is widely acknowledged as “recognized and generally accepted good engineering practice (RAGAGEP)”.
Regulatory bodies like the Occupational Safety and Health Administration (OSHA) reference the B11 series for technical guidance in areas like machine guarding (e.g., 29 CFR 1910.212) and risk assessment. :contentReference[oaicite:11]{index=11}
Furthermore, ANSI B11.0 aligns with the international standard ISO 12100 (Safety of Machinery — General Principles for Design — Risk Assessment and Risk Reduction) but adds U.S.-specific supplier/user responsibilities and lifecycle responsibilities. :contentReference[oaicite:13]{index=13}

FAQ

B11.9 — Safety Requirements for Grinding Machines

The B11.9 standard (ANSI B11.9-2010 (R2020)) applies to all stationary grinding machines used in industrial or commercial applications that utilize abrasive products to change the shape, size or surface finish of any material (including glass, ceramics, plastics, rubber). :contentReference[oaicite:0]{index=0}
It excludes portable hand-held grinding machines, machines using loose abrasives, woodworking applications, concrete cutting operations, honing, lapping or polishing machines, and belt grinding machines. :contentReference[oaicite:1]{index=1}

Scope & Application

This standard covers stationary grinding machines—those that are fixed in position during operation and use abrasive products. :contentReference[oaicite:2]{index=2}
It encompasses peripheral, cylindrical, surface, tool-grinding, cutoff and similar machines where abrasive wheels or segments perform material removal by abrasive action.

Key Safety Topics Addressed

• Abrasive product guarding and work-zone enclosures: The standard sets requirements for guards around abrasive wheels and enclosures around work zones to prevent ejection of fragments. :contentReference[oaicite:3]{index=3}
• Design and construction of grinding machines: Ensures machines are built with structural integrity, appropriate guarding, safe access for maintenance, and safe arrangement of feed, coolant, and exhaust systems.
• Control functions and operator access: Addresses machine start-up/shutdown, safe modes, automatic cycles, operator access during loading/unloading, and ensuring motions stop when guards are opened or safety devices activated.
• Material removal, wheel mounting and speed considerations: Emphasizes that machines must be used only with wheels rated for the speed, must be mounted correctly and operated in safe conditions to avoid wheel failure or ejection. :contentReference[oaicite:4]{index=4}
• Lifecycle responsibilities: Assigns roles for machine builders/suppliers, integrators/modifiers and users across design, installation, commissioning, operation, maintenance, modification and decommissioning phases of grinding machines. :contentReference[oaicite:5]{index=5}
• Risk assessment and combination with other standards: The standard refers to general risk-assessment requirements (such as those in B11.0) and performance criteria for safeguarding (such as B11.19). :contentReference[oaicite:6]{index=6}

Why It Matters

Grinding machines operate at high speeds, often with abrasive wheels that can fail catastrophically, producing high-velocity fragments and ejected material. There are also hazards from rotating parts, coolant, dust, vibration, operator access to moving parts, setup/maintenance exposure and unexpected motion.
By applying the framework of B11.9, manufacturers, users and safety professionals can adopt recognized engineering practices for protecting personnel, maintaining safe machine conditions, and fulfilling an obligation to apply good engineering practice in machine safety programs.

Practical Implementation Tips

• Ensure that every abrasive wheel is correctly rated for speed, mounted properly, and that guards fully cover wheel mounting flanges and expose minimal openings required for the operation.
• Perform a detailed risk assessment considering loading/unloading, tool setup, wheel dressing/truing, automatic vs manual cycles, coolant spray, dust generation, ejection zones and maintenance access.
• Inspect and verify guards or enclosures around the grinding wheel, work-zone containment for chip/projectile ejection, and ensure interlocks or presence-sensing devices prevent operator exposure during motion.
• Train operators and maintenance personnel on hazards unique to grinding: wheel failure, kick-back, flashpoint of coolant/oils, dust inhalation, reaching into guarded zones, and safe changeover procedures.
• When machines are rebuilt, modified or retrofitted (for example new automation or loading/unloading device added), treat them as new from a safety standpoint: re-validate safeguards, perform fresh risk assessment, update documentation and ensure compliance with B11.9 requirements.

ANSI B7.1 — Safety Code for Abrasive Wheels

ANSI B7.1 is the consensus (industry) safety standard that governs the safe use, care, handling, mounting, guarding, and protection of abrasive wheels and the machines that use them. While OSHA regulations (like 1910.215) reference it, ANSI B7.1 provides the technical detail, definitions, and performance rules that shape how those OSHA provisions are implemented. :contentReference[oaicite:0]{index=0}

Scope & Definitions

The standard begins by defining terms (e.g. “grinding wheel,” “mounting,” “guard,” “modification”) and clarifies which types of abrasive products fall under its requirements (e.g. excluding natural sandstone, coated abrasives, etc.). :contentReference[oaicite:1]{index=1}
It also establishes the baseline of what is meant by “safe use, care, and protection” of these wheels. :contentReference[oaicite:2]{index=2}

Handling & Storage

• All abrasive wheels must be handled with care — chipping, dropping, bumping, or impact can cause internal defects. If a wheel is dropped or suspected of having damage, it must not be mounted. :contentReference[oaicite:3]{index=3}
• Do *not* roll wheels hoop-fashion; transport wheels on proper racks/trays or support means. :contentReference[oaicite:4]{index=4}
• Store wheels in dry conditions, with racks/bins/drawers, protected from high humidity, temperature cycling, freezing, or solvents. :contentReference[oaicite:5]{index=5}
• Use a first-in, first-out rotation method for inventory to avoid old stock being forgotten. :contentReference[oaicite:6]{index=6}

Machine Conditions & General Operating Rules

ANSI B7.1 emphasizes that wheels themselves are passive; accidents stem from poor machine design, misuse, or improper operating conditions. :contentReference[oaicite:7]{index=7}
The standard covers safe operating rules such as:

• Always check that the machine’s spindle speed does not exceed the wheel’s maximum rated speed. :contentReference[oaicite:8]{index=8}
• Before full operation, run a new or remounted wheel under guard for at least one minute in a safe zone to check for hidden defects. :contentReference[oaicite:9]{index=9}
• Inspect wheels for cracks, chips, or other damage (a “ring test” is commonly used on vitrified wheels) before mounting. :contentReference[oaicite:10]{index=10}
• Use proper PPE, maintain awareness of vibration, balance, truing/dressing procedures, and safe start-up/shutdown rules. :contentReference[oaicite:11]{index=11}

Guarding & Enclosures

One of the core roles of ANSI B7.1 is to describe guard requirements (coverage, strength, design criteria) to contain fragments if a wheel fails. :contentReference[oaicite:12]{index=12}
Key points include:

• Guards must cover the spindle end, nut, and flange projections and be aligned properly with the wheel. :contentReference[oaicite:13]{index=13}
• The strength of the guard’s fasteners must exceed the guard’s strength (i.e. fasteners should fail after the guard, not before). :contentReference[oaicite:14]{index=14}
• Design and construction of guards should consider worst-case wheel burst energy and use safety factors; ANSI gives example performance metrics (though users should default to manufacturer/consensus). :contentReference[oaicite:15]{index=15}
• In specific operations where the work itself shields the operator or for certain portable machines, limited guard exposure may be acceptable. :contentReference[oaicite:16]{index=16}

Flanges, Mounting & Wheel Assembly

Proper wheel mounting is essential for safe operation; ANSI B7.1 provides detailed criteria for flanges, mounting tolerances, and assembly. :contentReference[oaicite:17]{index=17}
Highlights:

• Flanges must be the correct diameter, thickness, and finish (flat, parallel, undamaged) for the wheel being used. :contentReference[oaicite:18]{index=18}
• Blotters or washers are allowed between wheel and flange where specified. :contentReference[oaicite:19]{index=19}
• Mounting should never force a wheel onto the arbor; wheels should seat freely, and arbor nut torque must be careful—not too loose or too tight. :contentReference[oaicite:20]{index=20}
• Reducing bushings (adapters) and “mount up / mount down” markings are specified in ANSI for certain wheel types. :contentReference[oaicite:21]{index=21}

Speeds, Special Applications & Conversions

ANSI B7.1 emphasizes that wheel speed is critical to safety. Because rotational energy rises with the square of angular velocity, exceeding wheel-rated RPMs is a major risk. :contentReference[oaicite:22]{index=22}
Additional points:

• If machines are converted or repurposed to run new wheel types or higher speeds, they must be designed or reengineered to meet ANSI guard, mounting, and speed criteria. :contentReference[oaicite:23]{index=23}
• For “special speed” wheels beyond common tables, extra safety margins and guard performance criteria should be evaluated. :contentReference[oaicite:24]{index=24}

Internal linking ideas

• Link from this category to your OSHA 1910.215 category (and subsections) since OSHA defers to ANSI B7.1 for design detail.
• Link to your product pages: safety guards, wheel flanges, mounting kits, blotters, reducing bushings, RPM testers.
• Cross-link to related standards categories: general machine guarding (1910.212), machine tools, and training/PPE standards.

FAQ
