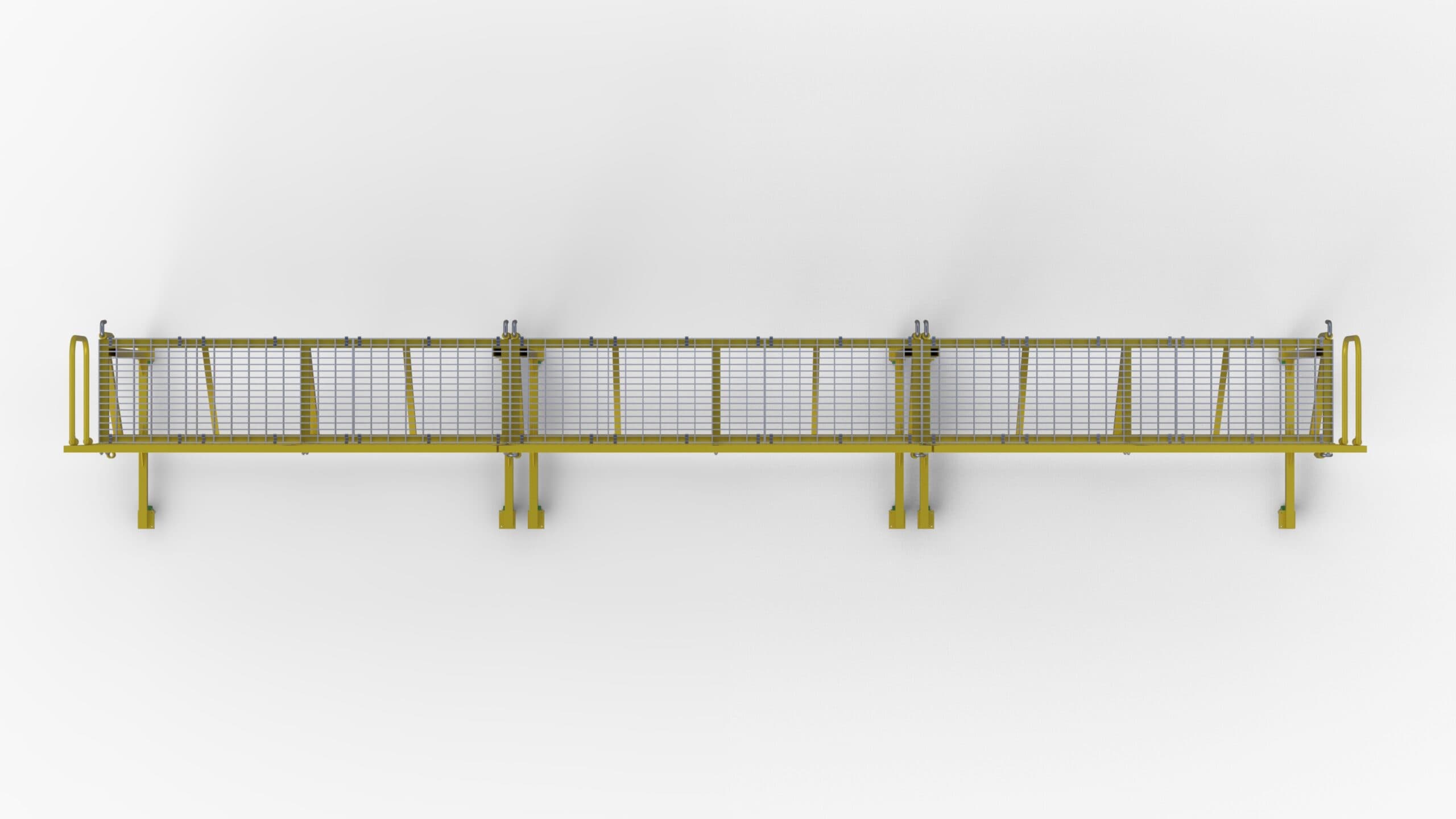

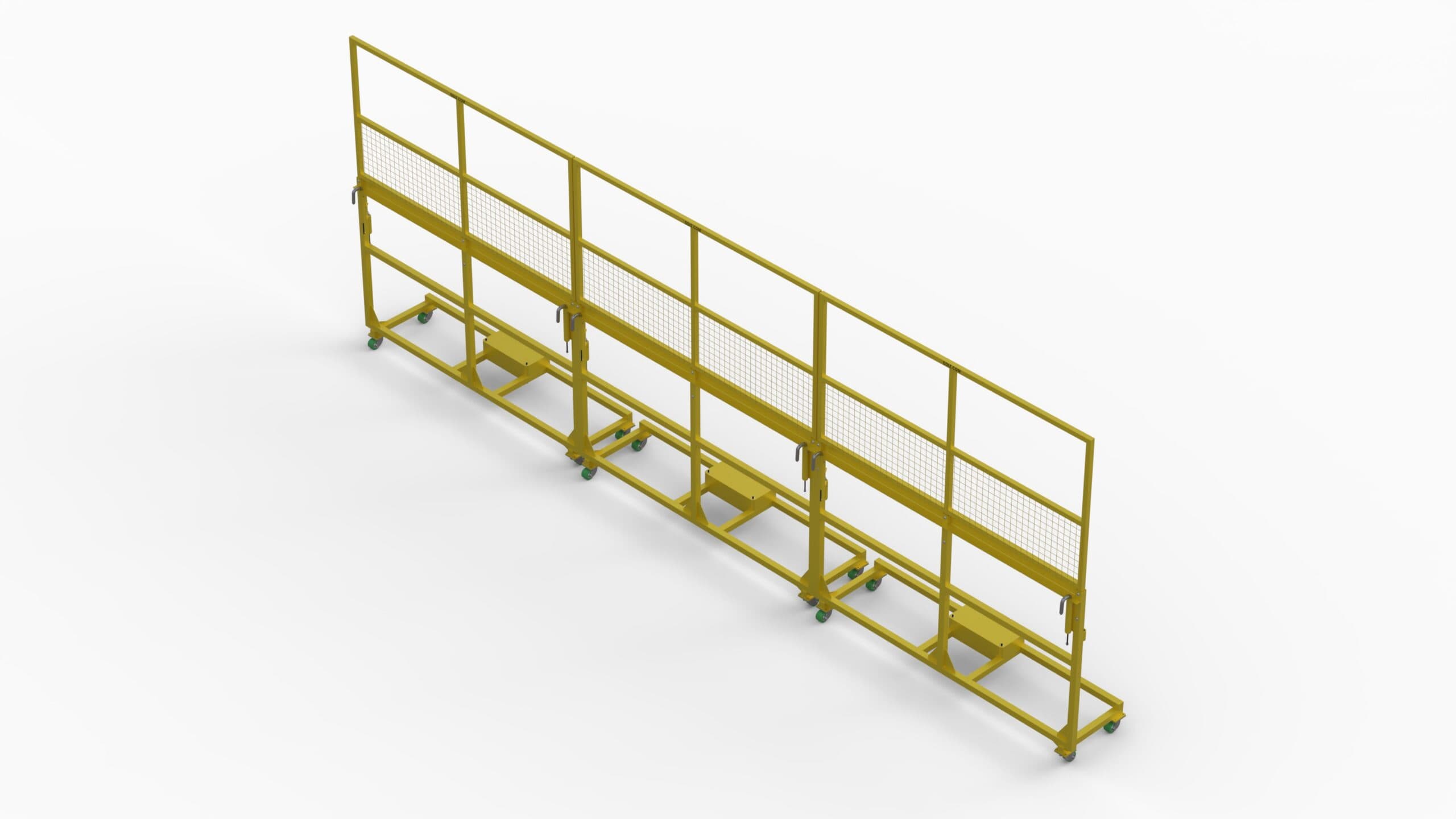

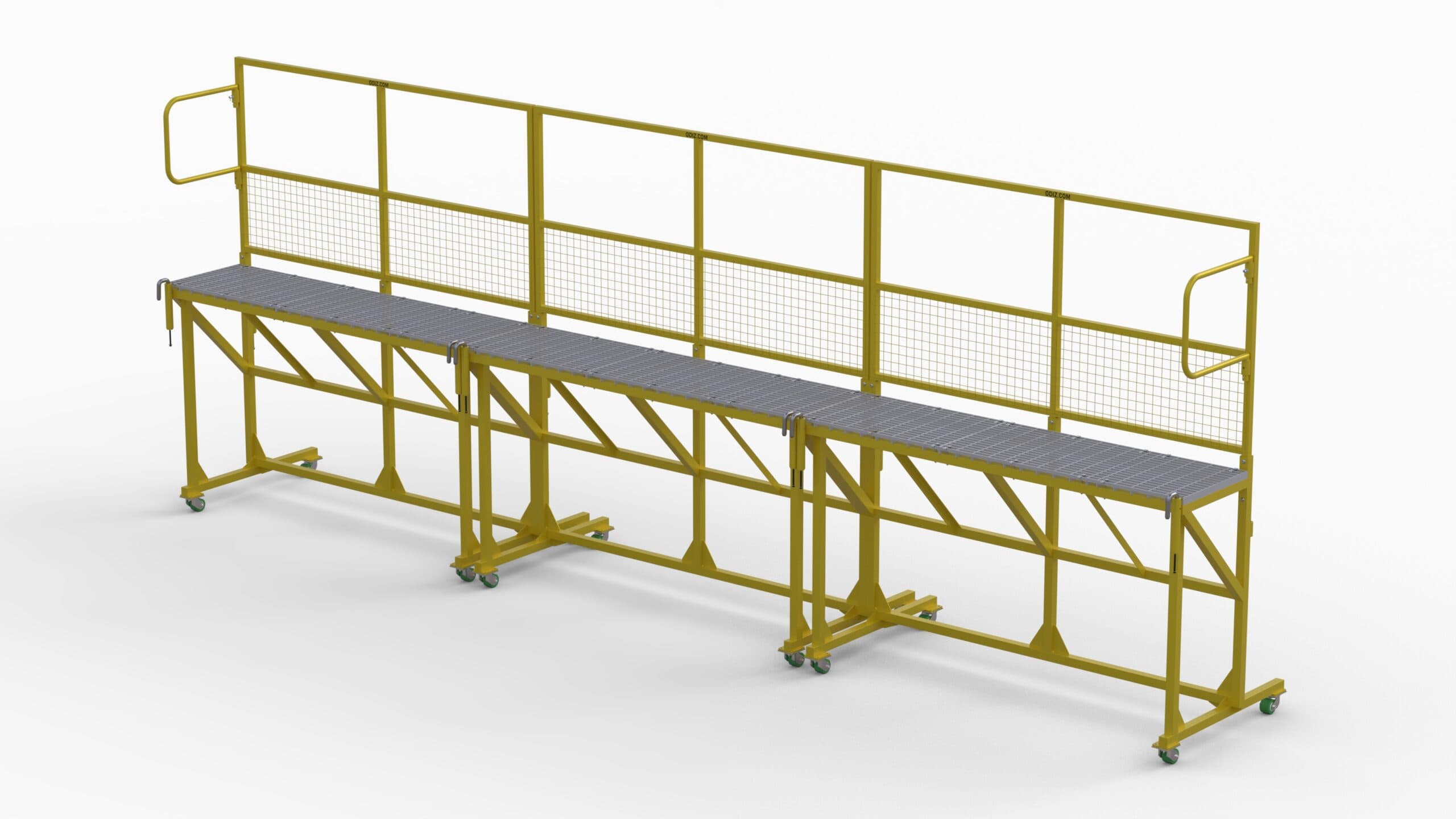

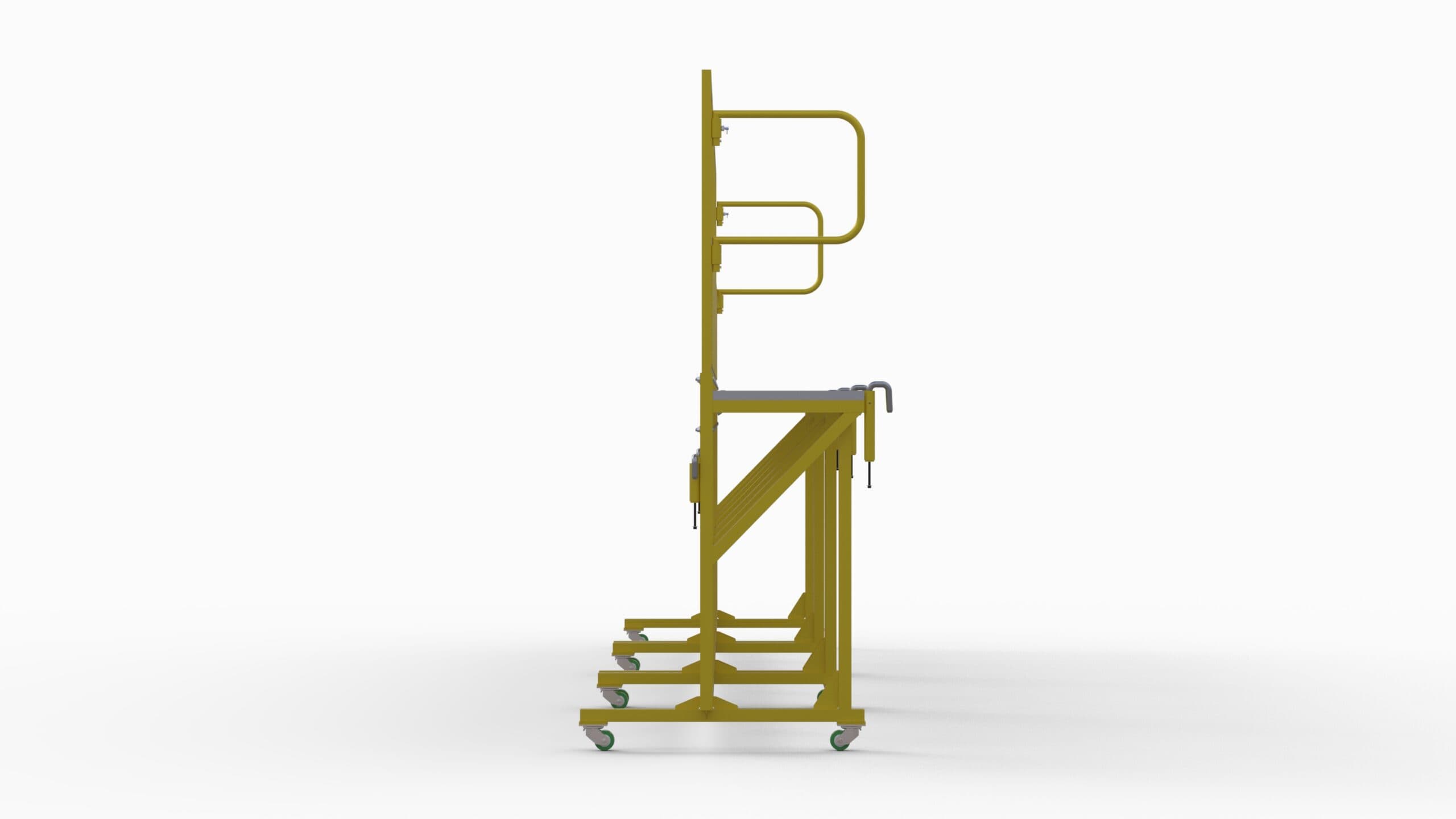

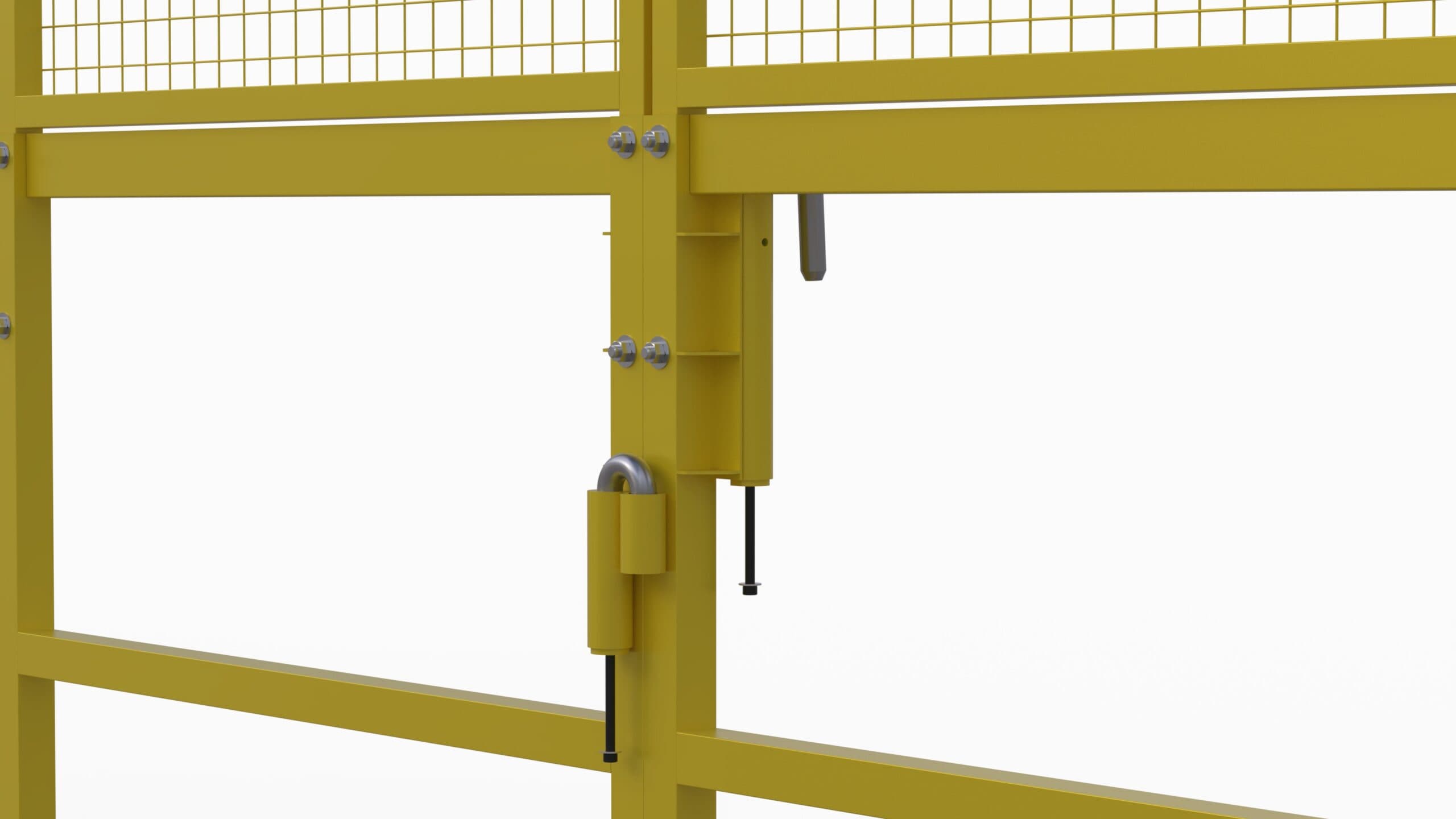

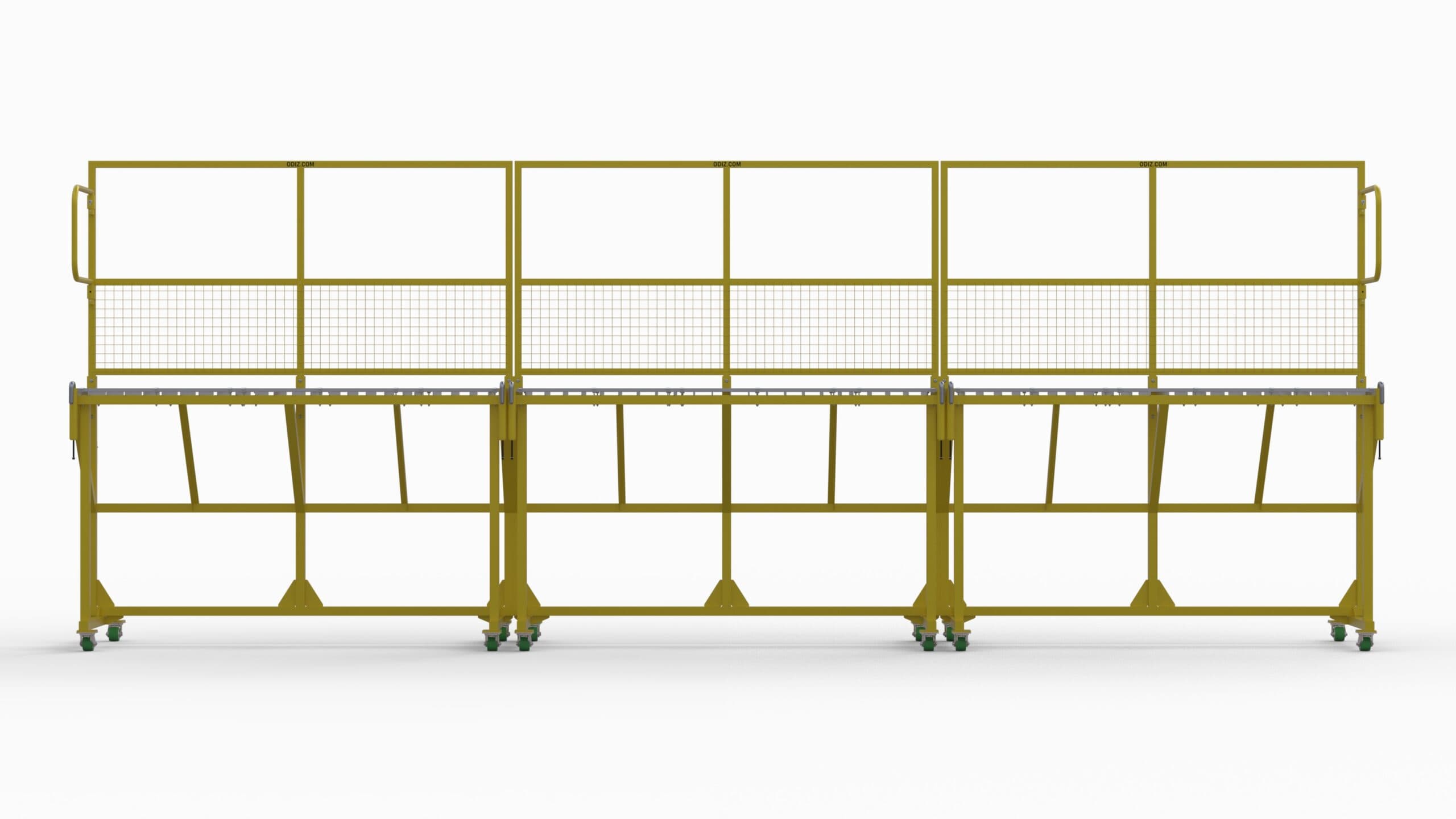

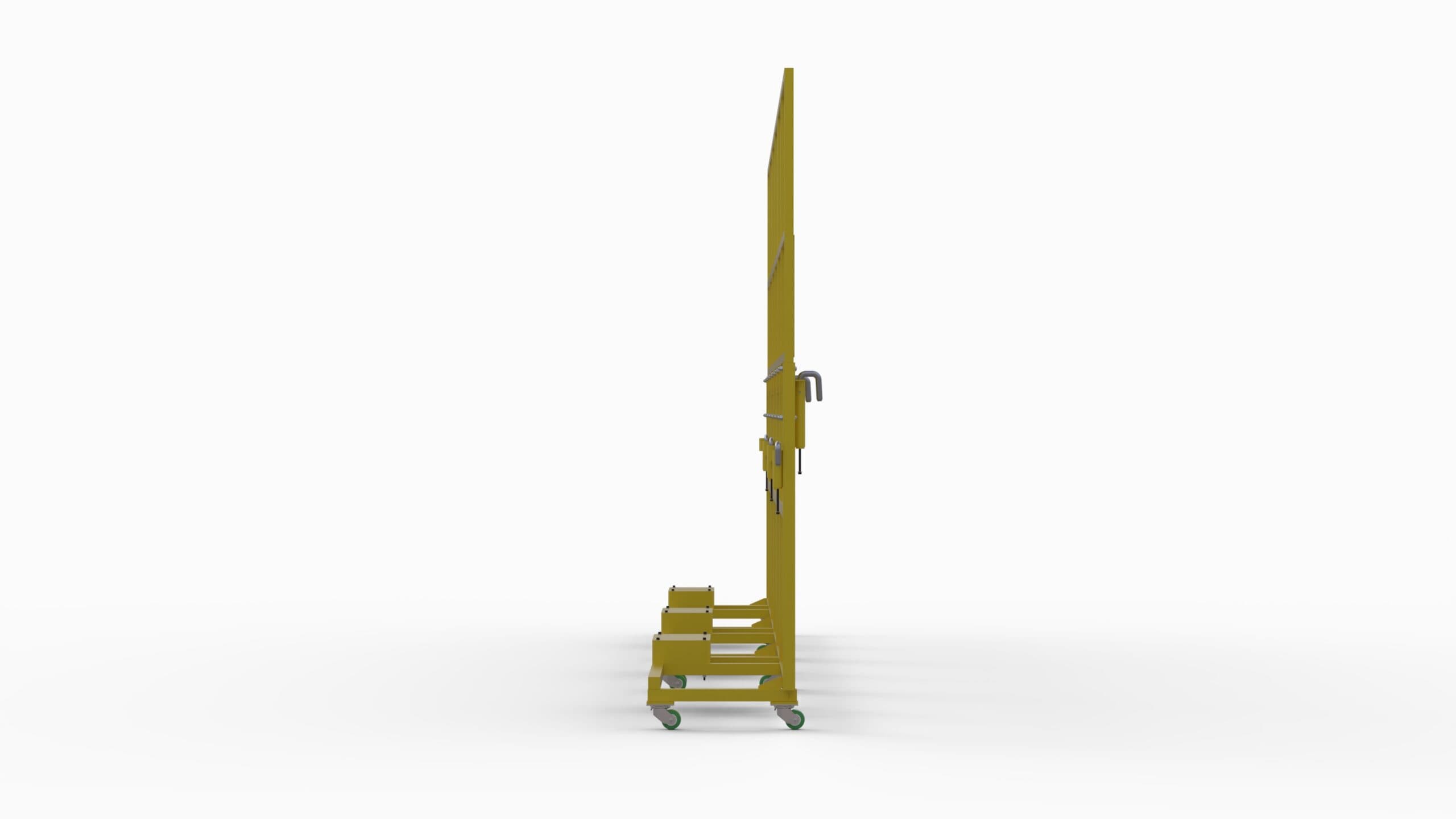

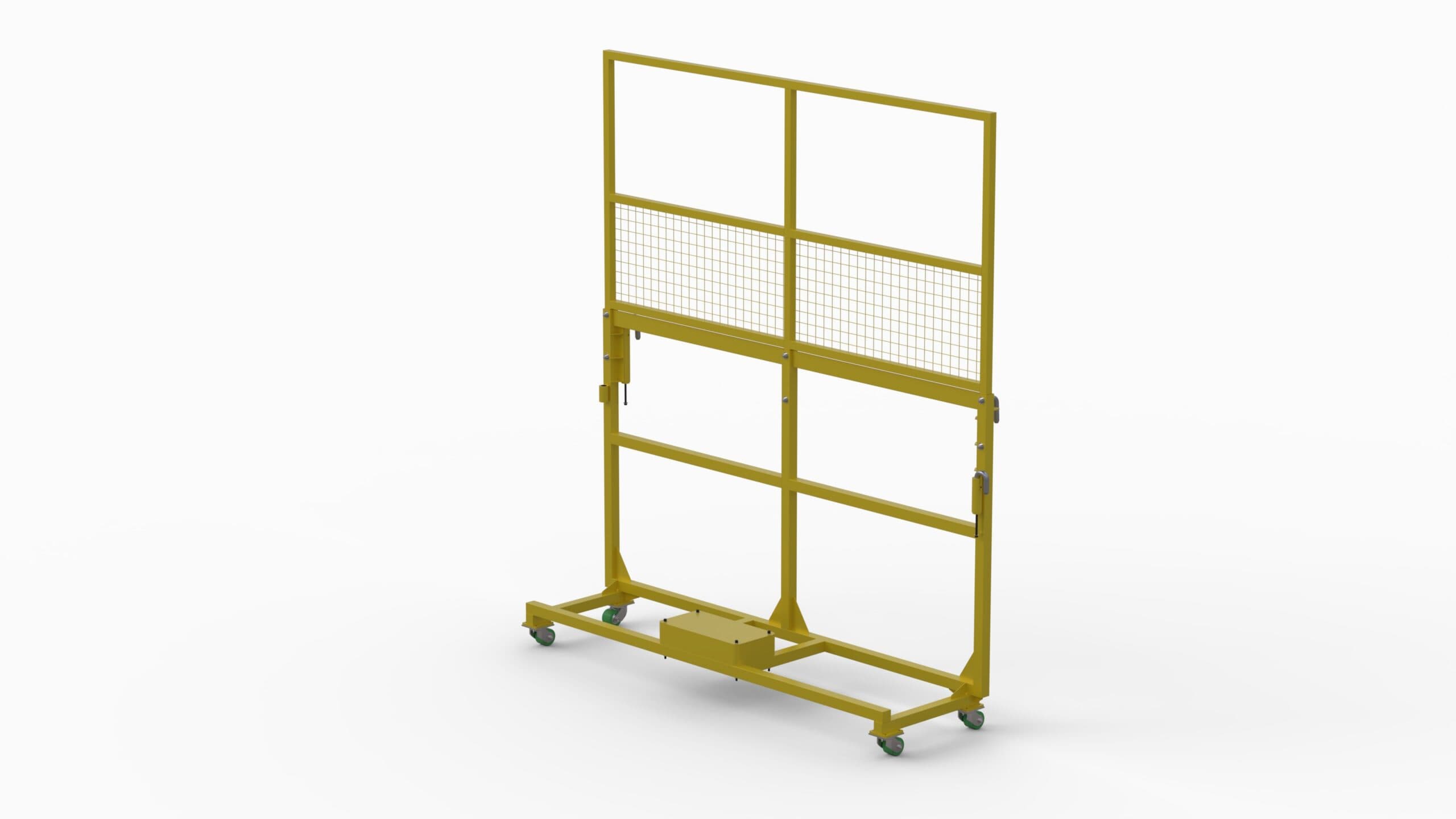

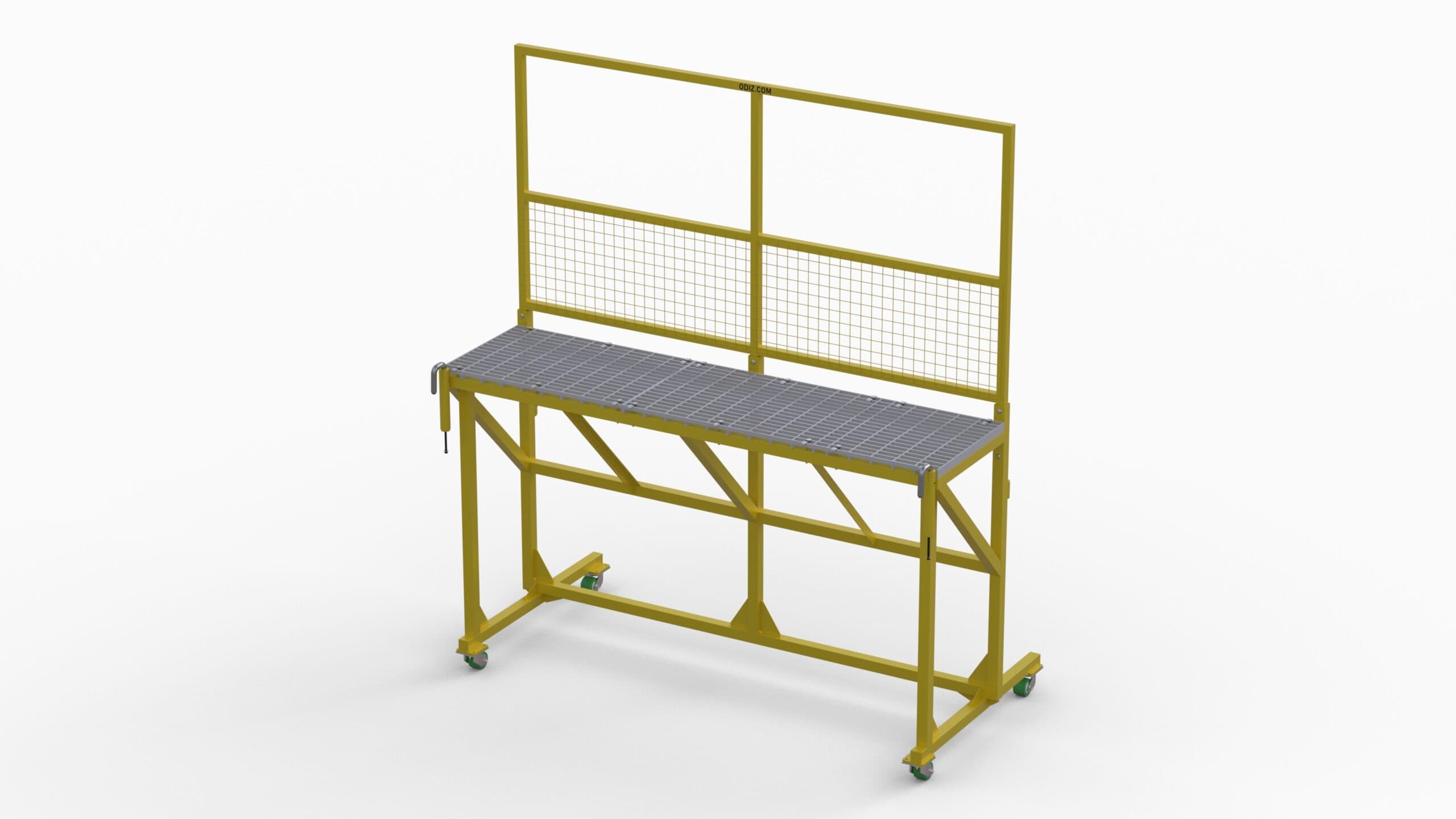

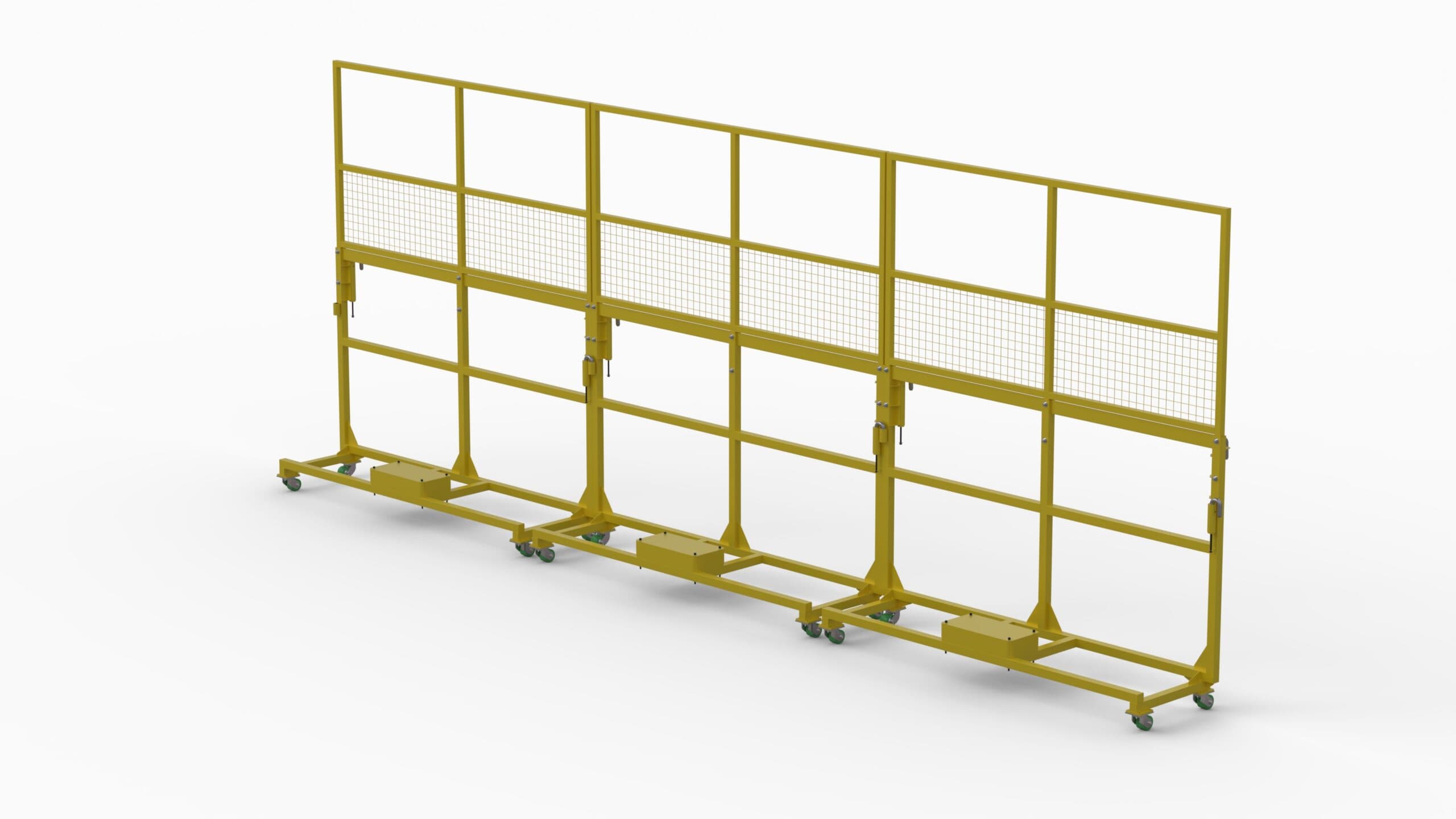

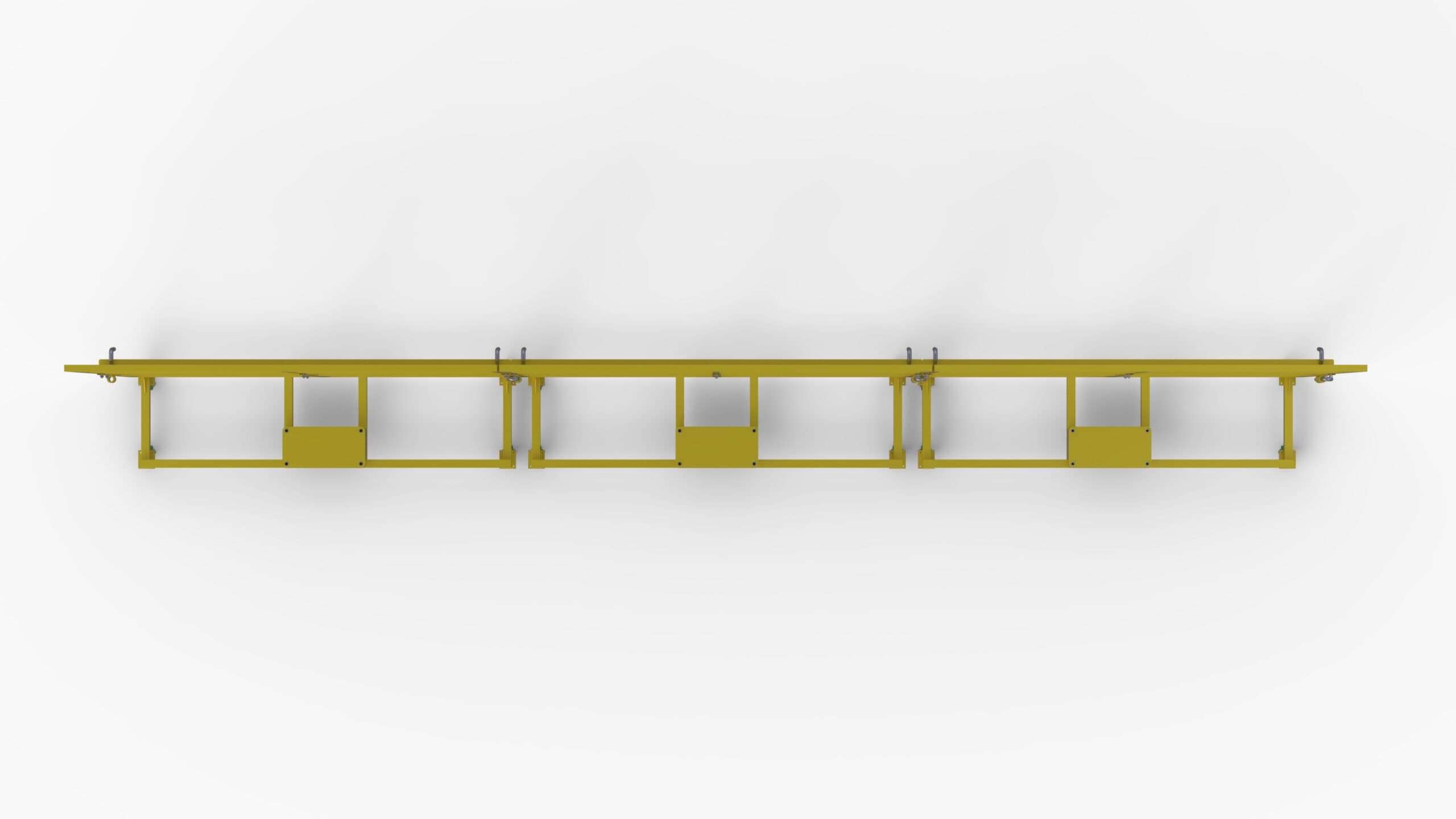

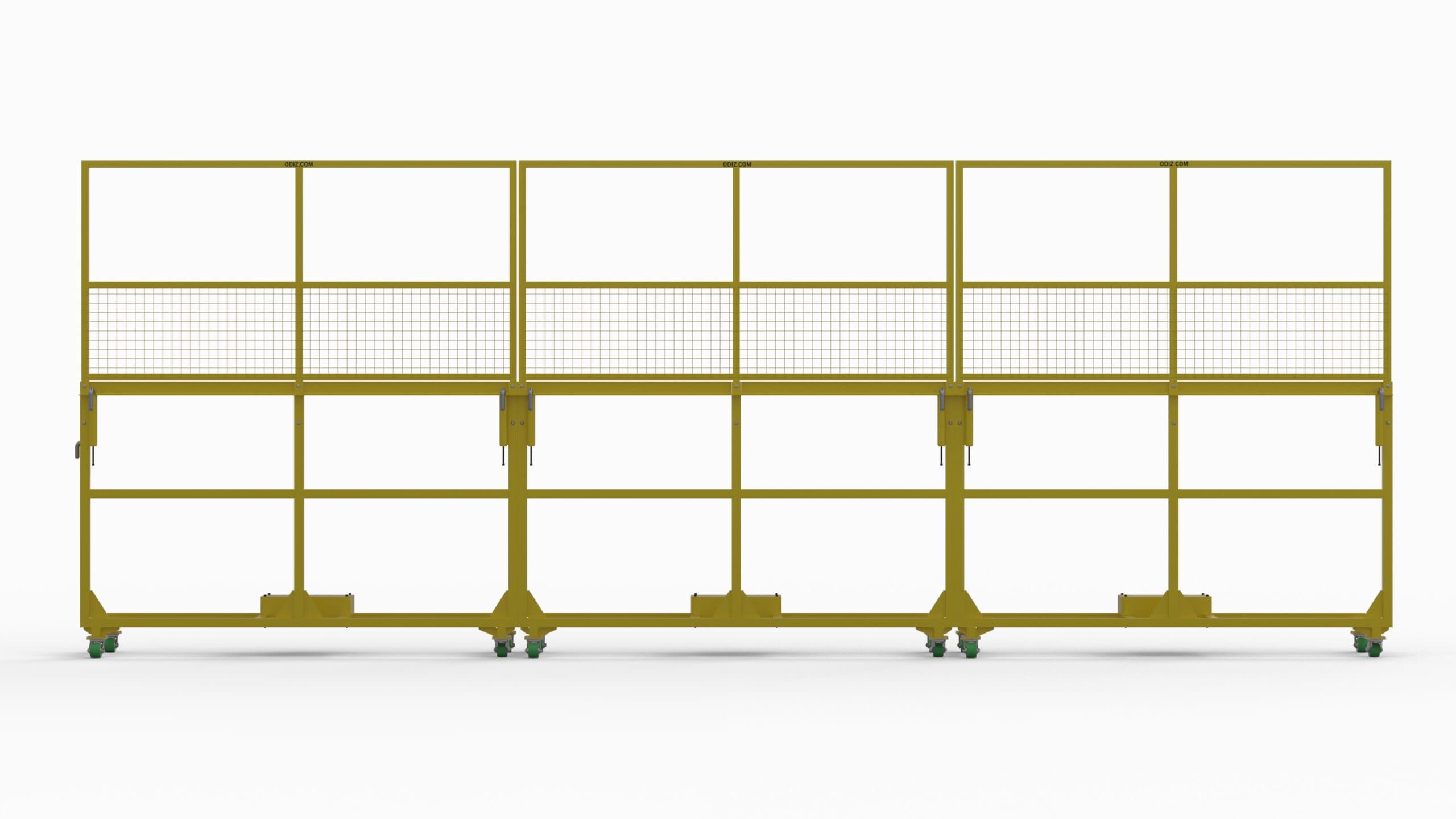

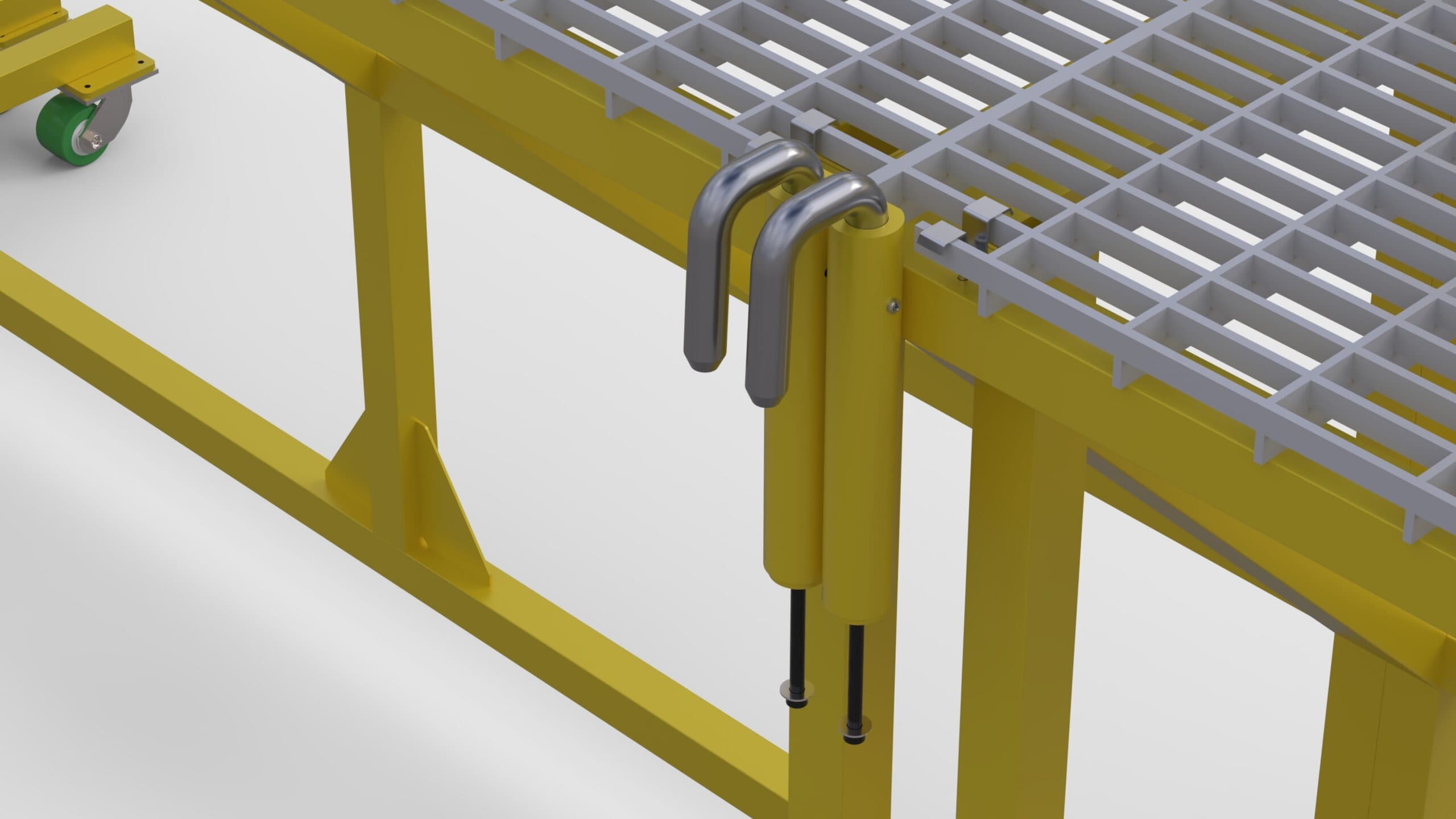

Shipping dock and Flatbed Truck Barrier Guard Fall Protection Solutions

OSHA 1910.212 — General Requirements for All Machines

OSHA 29 CFR 1910.212 is the core machine guarding standard that applies to nearly all machinery in general industry.
It requires employers to provide guards and protective devices to shield workers from points of operation, rotating parts, in-running nip points, flying chips, sparks, and other hazards.
As a “catch-all” standard, OSHA 1910.212 is often cited when no specific machine regulation exists, making it one of the most frequently enforced provisions in Subpart O.

Key Guarding Requirements

• Point of Operation: Machines must be guarded so operators are not exposed to the point where the work is performed.
• Rotating & Moving Parts: Guards must cover exposed belts, pulleys, gears, shafts, and flywheels to prevent accidental contact.
• In-Running Nip Points: Hazards created where two parts rotate toward each other or where one part moves past a stationary object must be guarded.
• Flying Chips & Sparks: Guards or shields must contain debris, sparks, and fragments generated during machine operation.
• Anchoring: Machines designed for fixed location use must be securely anchored to prevent movement or tipping.

Examples of Machines Covered

Because OSHA 1910.212 is a broad standard, it applies to a wide range of equipment including drill presses, lathes, milling machines, conveyors, punch presses, saws, and grinders.
If a machine has moving parts that could injure a worker, 1910.212 requires guarding.

Common Violations

• Missing point-of-operation guards on presses or saws.
• Exposed belts, pulleys, or rotating shafts without guarding.
• Improperly adjusted or removed guards during production.
• Lack of anchoring on floor-mounted equipment.
• Failure to contain sparks or flying material in grinding, cutting, or drilling operations.

Why OSHA 1910.212 Matters

Machine guarding violations are consistently among OSHA’s top cited standards.
Without proper guards, workers face severe risks of crushed fingers, amputations, lacerations, and eye injuries.
Compliance with OSHA 1910.212 helps facilities protect employees, avoid costly citations, and establish safer production environments.

Relation to Other Standards

OSHA 1910.212 is a general requirement that works in tandem with OSHA 1910.215 (Abrasive Wheel Machinery)
and machine-specific rules under Subpart O. It also aligns with ANSI B11 machine safety standards,
which provide technical safeguarding criteria.

Compliance Checklist

• Install guards at the point of operation on all applicable machines.
• Cover all rotating parts, belts, pulleys, gears, and shafts.
• Guard in-running nip points created by rollers, belts, or chains.
• Provide shields for flying chips, sparks, or debris.
• Anchor floor-mounted machines to prevent shifting.
• Train employees to use machines only with guards in place.

Internal Linking Opportunities

• Cross-link to Lockout/Tagout (OSHA 1910.147) for energy control.
• Link to Abrasive Wheel Machinery (OSHA 1910.215) for grinder rules.
• Connect to ANSI B11 for machine safeguarding performance standards.
• Promote relevant machine guarding products, light curtains, and safety devices.

FAQ

OSHA 1910.212(a) — General Machine Guarding Requirements

OSHA 29 CFR 1910.212(a) defines the core safety principles for machine guarding in general industry.
It requires employers to protect workers from mechanical hazards created by points of operation, rotating components, in-running nip points, and flying chips or sparks.
This paragraph serves as the primary enforcement reference for machinery that does not have its own specific OSHA standard.

Scope and Purpose

The goal of 1910.212(a) is to prevent contact injuries, entanglement, crushing, and amputation by ensuring all hazardous machine motions are either guarded or controlled.
It applies to virtually all machinery used in manufacturing, maintenance, fabrication, and processing operations.

Key Guarding Principles

• Comprehensive Protection: Guards must cover any moving part or area that could cause injury through contact or ejection of material.
• Design Flexibility: Employers may choose fixed, adjustable, or interlocked guards, provided they effectively prevent worker exposure.
• Performance Standard: The rule is performance-based rather than prescriptive—meaning the employer must demonstrate that the guarding method eliminates or controls the hazard.
• Continuity of Protection: Guards must remain in place and secure during operation and be adjusted only when the machine is off and locked out.
• Applicability: This paragraph acts as a “catch-all” requirement whenever a machine presents a hazard not addressed by another OSHA provision.

Examples of Covered Hazards

Machines governed by 1910.212(a) include drill presses, milling machines, conveyors, polishing lathes, grinders, and mechanical cutters.
Hazards may include rotating shafts, reciprocating arms, cutting surfaces, or points where material is inserted or removed.

Compliance Practices

• Install guards that physically prevent access to moving parts.
• Inspect guards routinely for secure attachment and effectiveness.
• Ensure that guard openings prevent any part of the body from reaching the danger zone.
• Prohibit operation when guards are missing or removed.
• Train employees on safe operation, inspection, and maintenance of guarded machines.

Why OSHA 1910.212(a) Is Important

Most serious machinery accidents occur because guards are missing, removed, or inadequate.
Section (a) establishes the baseline requirements that form the foundation of all machine safeguarding programs.
Compliance not only prevents injuries and amputations but also ensures alignment with national consensus standards such as ANSI B11 and ISO 12100.

FAQ

OSHA 1910.212(a)(1) — General Duty to Guard Machines

OSHA 29 CFR 1910.212(a)(1) establishes the primary obligation to guard machinery in general industry.
It requires employers to implement one or more methods of guarding that protect both the operator and nearby employees from hazards created by points of operation, rotating parts, flying chips, sparks, or any other dangerous mechanical motions.

Scope and Intent

This paragraph serves as the foundation of all machine guarding enforcement.
It mandates that every machine presenting a mechanical hazard must be safeguarded through a combination of physical barriers or engineered safety devices.
The employer may choose the guarding method, but it must completely prevent employee exposure to the moving part or hazard zone during normal operation.

Acceptable Guarding Methods

• Fixed guards: Rigid barriers that prevent access to hazardous areas.
• Interlocked guards: Guards that automatically shut off or disengage the machine when opened or removed.
• Adjustable guards: Barriers that can be positioned for different operations but remain securely in place during use.
• Self-adjusting guards: Guards that move automatically into position as the operator works, covering the danger area as material is fed.
• Electronic safeguarding devices: Light curtains, pressure-sensitive mats, and presence sensors that prevent access to moving parts.

Key Compliance Requirements

• Guarding must protect both operators and nearby personnel.
• Guards must be securely attached and durable enough to resist normal operation and vibration.
• Openings in guards must be small enough to prevent accidental contact with moving parts.
• Guards must not introduce new hazards such as sharp edges, pinch points, or visibility obstruction.
• All guards must be kept in place and functional when machines are operating.

Common Violations

• Machines operating without guards over exposed belts, pulleys, gears, or shafts.
• Removed or bypassed barrier guards during production or maintenance.
• Improper guard materials or openings that allow hand or finger access to moving parts.
• Lack of guarding for nearby employees who may be struck by flying material or sparks.

Practical Compliance Tips

• Conduct a full hazard assessment for all equipment to identify points of operation and motion hazards.
• Install fixed guards wherever possible; use interlocked or adjustable guards only when process requirements demand it.
• Include guarding checks in your preventive maintenance program.
• Train operators to recognize unsafe conditions and never remove or modify guards.

Why OSHA 1910.212(a)(1) Is Important

This paragraph represents OSHA’s general duty clause for machinery safety.
Most machine-related injuries occur when guards are removed or missing, and OSHA 1910.212(a)(1) gives inspectors the authority to cite any unguarded moving part that poses a risk.
Compliance ensures that workers remain protected from crushing, entanglement, amputation, and impact injuries.

FAQ

ANSI B11 — Machine Safety & Machine Tool Standards

The ANSI B11 standards series comprises a robust framework for machinery and machine tool safety. It addresses risk assessment, design, guarding, control systems, risk reduction measures, and installation and maintenance of machines. Although not regulatory law, B11 standards are widely referenced by industry and used to interpret OSHA’s machine guarding rules (e.g. 29 CFR 1910.212). :contentReference[oaicite:2]{index=2}

Structure of the B11 Family

The B11 family is organized into three types of standards:

• Type A (Basic Safety Standards): e.g. ANSI B11.0 defines general concepts, terminology, risk assessment, and safety principles. :contentReference[oaicite:3]{index=3}
• Type B (Generic Safety Standards): These address safeguarding methods, performance, or safety aspects used across machines (for example, B11.19—Performance Criteria for Safeguarding). :contentReference[oaicite:4]{index=4}
• Type C (Machine-Specific Standards): Focused on individual machines or categories (e.g. B11.1 for power presses, B11.9 for grinding machines, B11.10 for sawing machines). :contentReference[oaicite:5]{index=5}

Core Themes & Provisions

• Risk Assessment / Reduction: B11 emphasizes identifying hazards, assessing risk, selecting and validating protective measures, and verifying that risk is reduced to acceptable levels. :contentReference[oaicite:6]{index=6}
• Safeguarding Methods: Fixed guards, interlocked guards, presence sensors, two-hand controls, light curtains, etc., are all covered with performance criteria. :contentReference[oaicite:7]{index=7}
• Performance Criteria: Guards and safety devices must meet minimum response times, strength, durability, fail-safe behavior, and integration with control systems. :contentReference[oaicite:8]{index=8}
• Safety in Existing (“Legacy”) Equipment: B11 encourages adaptation of older machines via retrofitting or supplementary safeguarding where feasible. :contentReference[oaicite:9]{index=9}
• Design, Modification & Integration: Covers requirements for design, safe modifications, wiring, control logic, maintenance access, risk during changeover, and system integration. :contentReference[oaicite:10]{index=10}

Relation to OSHA & Enforcement Context

OSHA itself does not mandate ANSI B11 by law, but OSHA’s machine guarding standards allow referencing consensus standards like B11 for technical interpretation. For example, OSHA’s eTool on machine guarding lists ANSI B11 standards as guidance resources. :contentReference[oaicite:11]{index=11}
Many safety professionals use B11 standards to design compliant machine guards and safety systems that satisfy both OSHA rules and best practices.

Common Substandards in the Series

• ANSI B11.0 — Safety of Machinery (baseline, risk methodology) :contentReference[oaicite:12]{index=12}
• ANSI B11.19 — Performance Criteria for Safeguarding (applies across many machines) :contentReference[oaicite:13]{index=13}
• ANSI B11.1 / B11.2 / B11.3 — Press, hydraulic, brake machines :contentReference[oaicite:14]{index=14}
• ANSI B11.10 — Metal sawing machines :contentReference[oaicite:15]{index=15}
• ANSI B11.9 — Grinding machines (ties into OSHA 1910.215 & 1910.213) :contentReference[oaicite:16]{index=16}

Internal Linking & Application Ideas

• Link to child categories like ANSI B11.0, ANSI B11.19, ANSI B11.9 (Grinding), etc.
• Cross-link to your OSHA machine guarding pages, e.g. OSHA 1910.212 General Machine Guarding.
• Link to safety device and guarding product pages: light curtains, interlocked guards, protective covers, control systems.

FAQ

B11.TR1 — Ergonomic Guidelines for Design, Installation & Use

The B11.TR1-2016 technical report presents a consensus approach to ergonomic considerations for machine tools and associated systems—covering physical, cognitive, perceptual and environmental ergonomic factors during design, installation and use phases. :contentReference[oaicite:0]{index=0}

Scope & Purpose

B11.TR1 applies to individual machine tools, auxiliary components, or integrated manufacturing systems. It is intended to help designers, engineers, safety professionals and ergonomic specialists incorporate ergonomic risk-reduction principles into machine/system design, major modification, installation and operational use. :contentReference[oaicite:1]{index=1}
The goal: reduce fatigue, injury and errors, improve comfort, product quality and productivity. :contentReference[oaicite:2]{index=2}

Key Ergonomic Topics Addressed

• Ergonomic risk assessment & reduction flow: Provides framework to identify, assess and manage ergonomic risk factors in machine and system design. :contentReference[oaicite:3]{index=3}
• Physical ergonomic factors: Covers anthropometry, strength/force exertion, task design, workstation layout, maintenance accessibility. :contentReference[oaicite:4]{index=4}
• Cognitive/perceptual ergonomic factors: Addresses control layout, visual displays, operator‐machine interface, labeling, information presentation. :contentReference[oaicite:5]{index=5}
• Environmental ergonomic factors: Includes lighting/illumination, vibration, noise, temperature, and their effects on operator performance and comfort. :contentReference[oaicite:6]{index=6}
• Organizational and human‐system interaction factors: Considers task variation, operator rotation, breaks, training, and human‐machine system integration. :contentReference[oaicite:7]{index=7}

Why It Matters

Without ergonomically designed machine tools and manufacturing systems, operators may face repetitive motions, awkward postures, excessive force, vibration, or cognitive overload—leading to musculoskeletal disorders (MSDs), fatigue, errors or reduced productivity.
By following B11.TR1, organizations align with recognized good practice for ergonomics in machine safety and system design. :contentReference[oaicite:8]{index=8}

Practical Implementation Tips

• Integrate ergonomic design early in the lifecycle of machine/tools: during design or major modification rather than as afterthought. :contentReference[oaicite:9]{index=9}
• Use anthropometric data and task analysis to layout controls, workpiece height, feed/unload reach zones to match 5th–95th percentile operators or provide adjustability. :contentReference[oaicite:10]{index=10}
• Design control interfaces for clarity and minimal cognitive load: ergonomic button placement, clear labeling, standard symbol use, minimal reach. :contentReference[oaicite:11]{index=11}
• Manage environmental factors: ensure good lighting, minimize noise/vibration, optimize temperature, locate machine for safe human access and maintenance. :contentReference[oaicite:12]{index=12}
• Provide training and ensure operators understand ergonomic risks, correct use of adjustability, proper posture, task rotation and maintenance access. :contentReference[oaicite:13]{index=13}

B11.TR7 — Designing for Safety & Lean Manufacturing

The B11.TR7-2007 (R2017) technical report provides practical guidance for machine tool suppliers, integrators and end-users to apply both safety and lean manufacturing concepts concurrently. :contentReference[oaicite:0]{index=0}
It emphasises that pursuing lean (faster changeovers, minimal waiting, reduced inventories) without considering machine-safety can create unexpected hazards; likewise implementing safety alone without lean thinking may add waste and reduce productivity. :contentReference[oaicite:1]{index=1}

Scope & Purpose

B11.TR7 is directed at guiding the integration of safety and lean within machine tools and manufacturing systems. It supports both retrofit improvement and new-design processes where safety and waste-reduction are addressed upfront. :contentReference[oaicite:2]{index=2}

Key Themes Addressed

• Lean manufacturing overview: Concepts like 5S, Kanban, Kaizen, pull systems and their relation to machine workflow and waste reduction. :contentReference[oaicite:3]{index=3}
• Safety-lean conflicts and resolutions: Examples where lean efforts removed guards, increased exposure, or shortened changeovers but increased hazard; the report highlights these pitfalls. :contentReference[oaicite:4]{index=4}
• Risk assessment aligned with waste-reduction: The report presents a framework to identify tasks, hazards *and* wastes, then assess both risk and waste together to arrive at solutions that minimise both. :contentReference[oaicite:5]{index=5}
• Design-guidelines for safety-lean synergy: Guidance for machine/cell layout, tooling change design, access, flow of parts, guard design, control integration – all with lean and safety in mind. :contentReference[oaicite:6]{index=6}
• Leadership & culture: Emphasises that successful implementation requires top-management commitment, cross-functional teams (engineering, safety, production) and continuous improvement mindset. :contentReference[oaicite:7]{index=7}

Why It Matters

In modern manufacturing, the drive for lean means machines and cells are redesigned for faster throughput, less setup time, higher flexibility. However, ignoring safety during that redesign can lead to increased risk of injury, downtime, regulatory non-compliance and hidden cost.
B11.TR7 provides a framework to make safety an integral part of lean initiatives rather than an afterthought. By doing so, companies can achieve “better, faster, safer” rather than “faster but riskier.”

Implementation Tips

• Map machine tasks and flows: For each machine or cell, list tasks (production, changeover, maintenance), identify wastes (waiting, motion, excess inventory) and hazards (pinch, entanglement, ejection). Use the dual-assessment approach. :contentReference[oaicite:8]{index=8}
• During design or retrofit, involve safety, production, maintenance and engineering teams early—so guard design, tooling change methods, material flow are all considered with lean & safety in mind. :contentReference[oaicite:9]{index=9}
• When changing machines/cells for lean improvements (e.g., faster changeovers, modular tooling, fewer handlings), always revisit risk assessment: ensure that faster access or fewer constraints haven’t removed essential safety features. :contentReference[oaicite:10]{index=10}
• Document “dual” objectives: For each improvement, capture both the waste-reduction metric (e.g., changeover time) and the safety-metric (e.g., guarding integrity, reduced access risk). Use that to verify that neither objective is compromised. :contentReference[oaicite:11]{index=11}
• Train personnel in the integrated view of lean and safety: emphasise that “lean isn’t just speed” and “safety isn’t just add guard”—they must work together. Include changeover teams, maintenance, operators. :contentReference[oaicite:12]{index=12}
