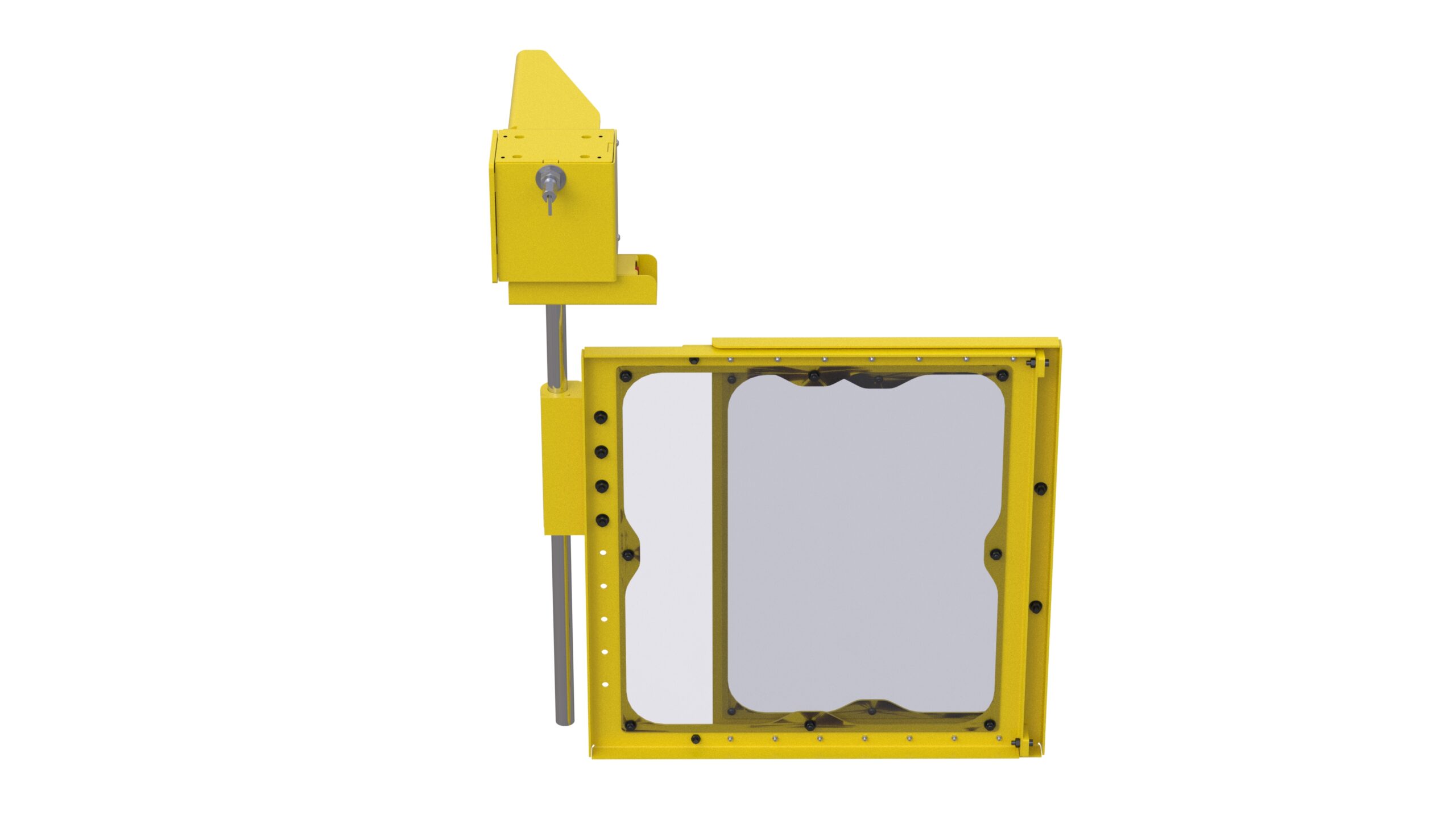

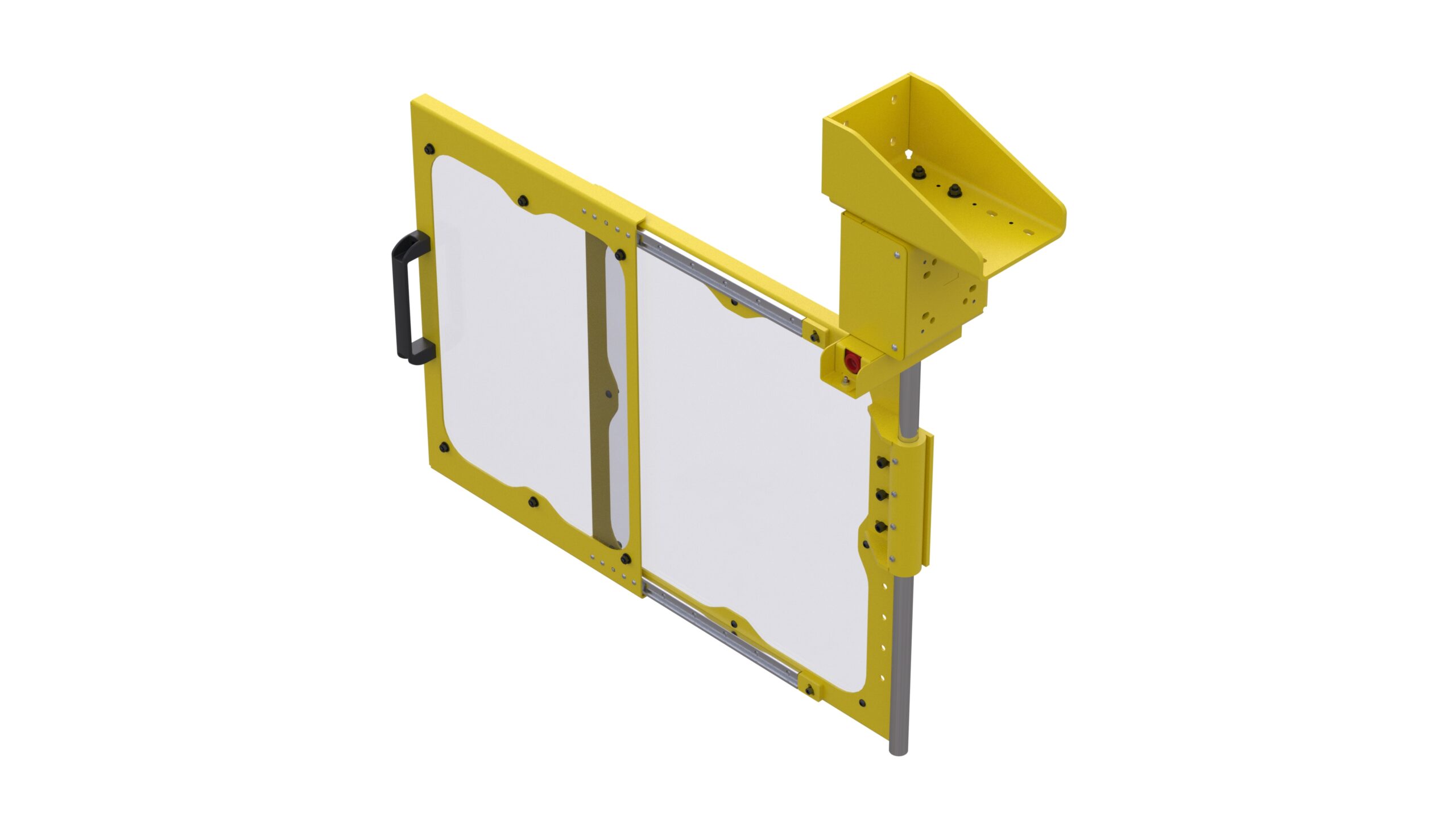

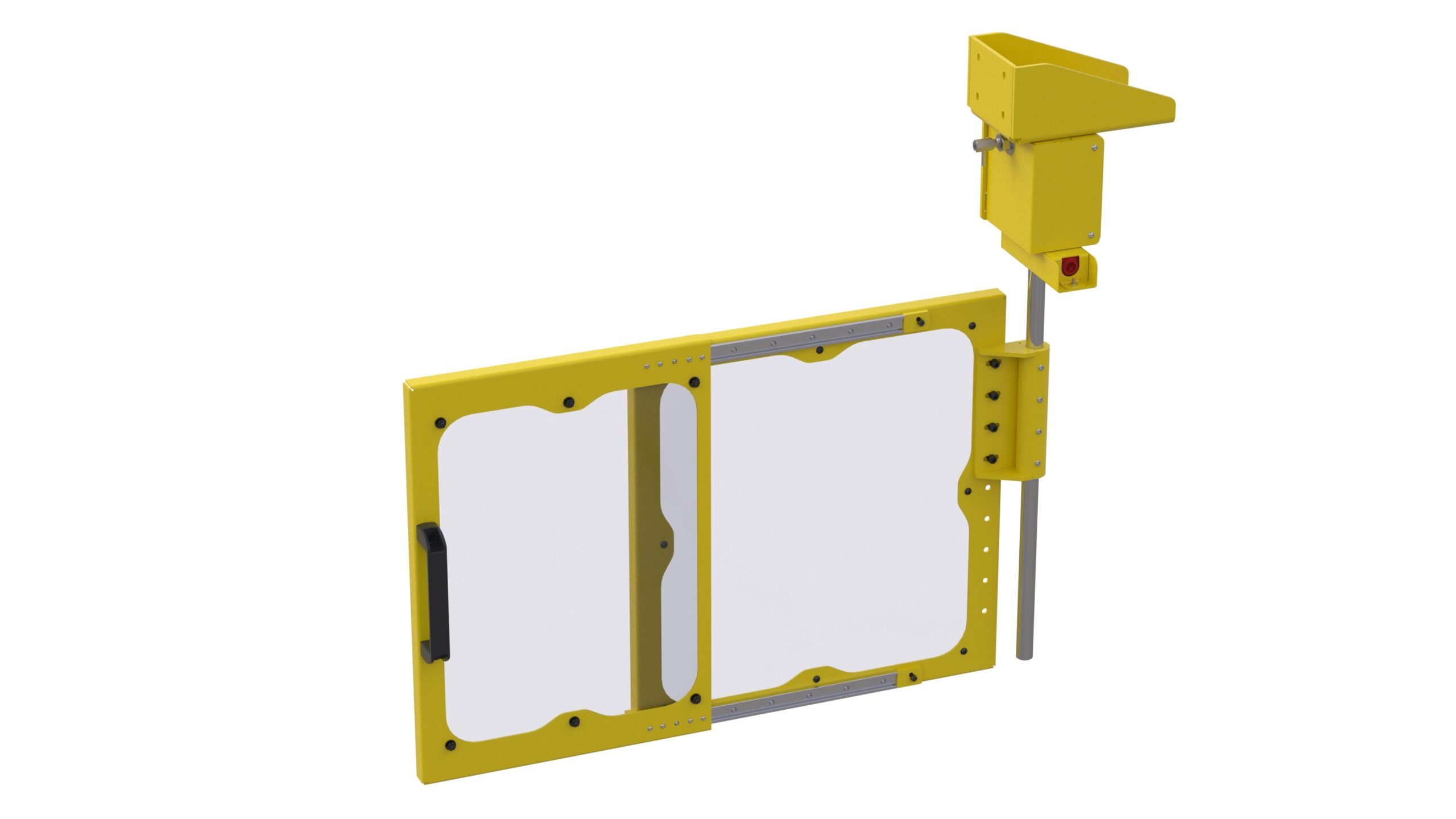

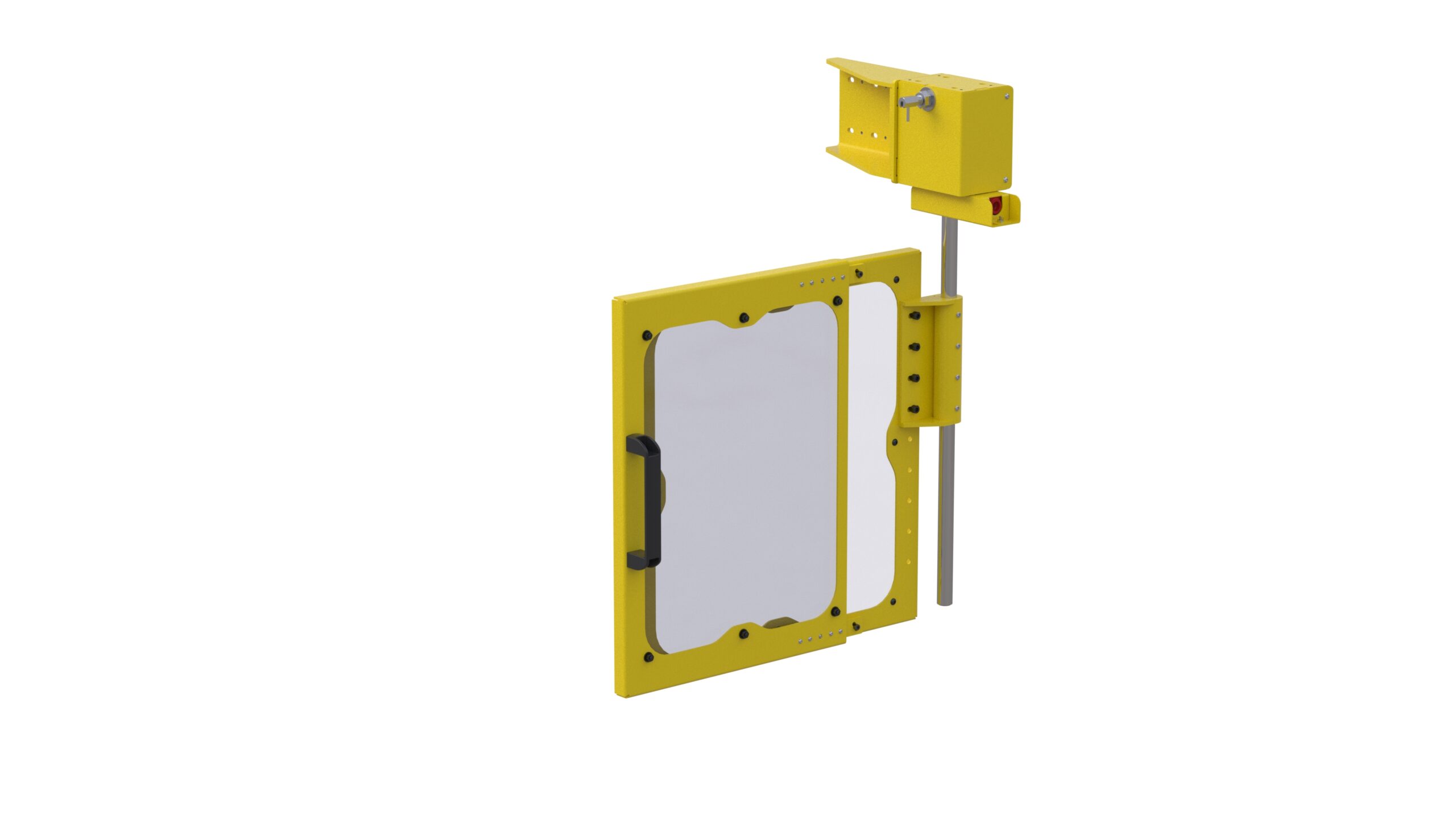

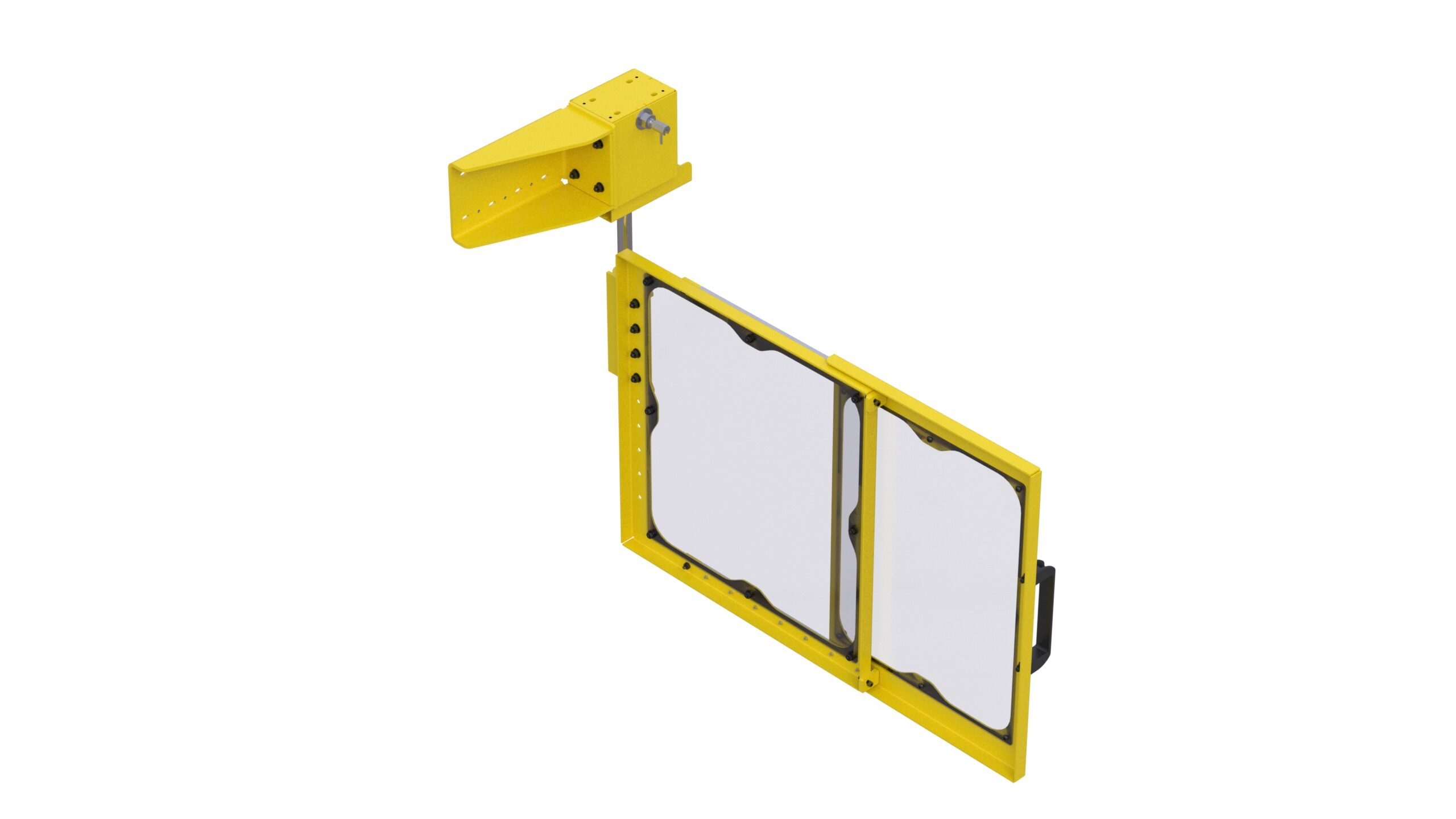

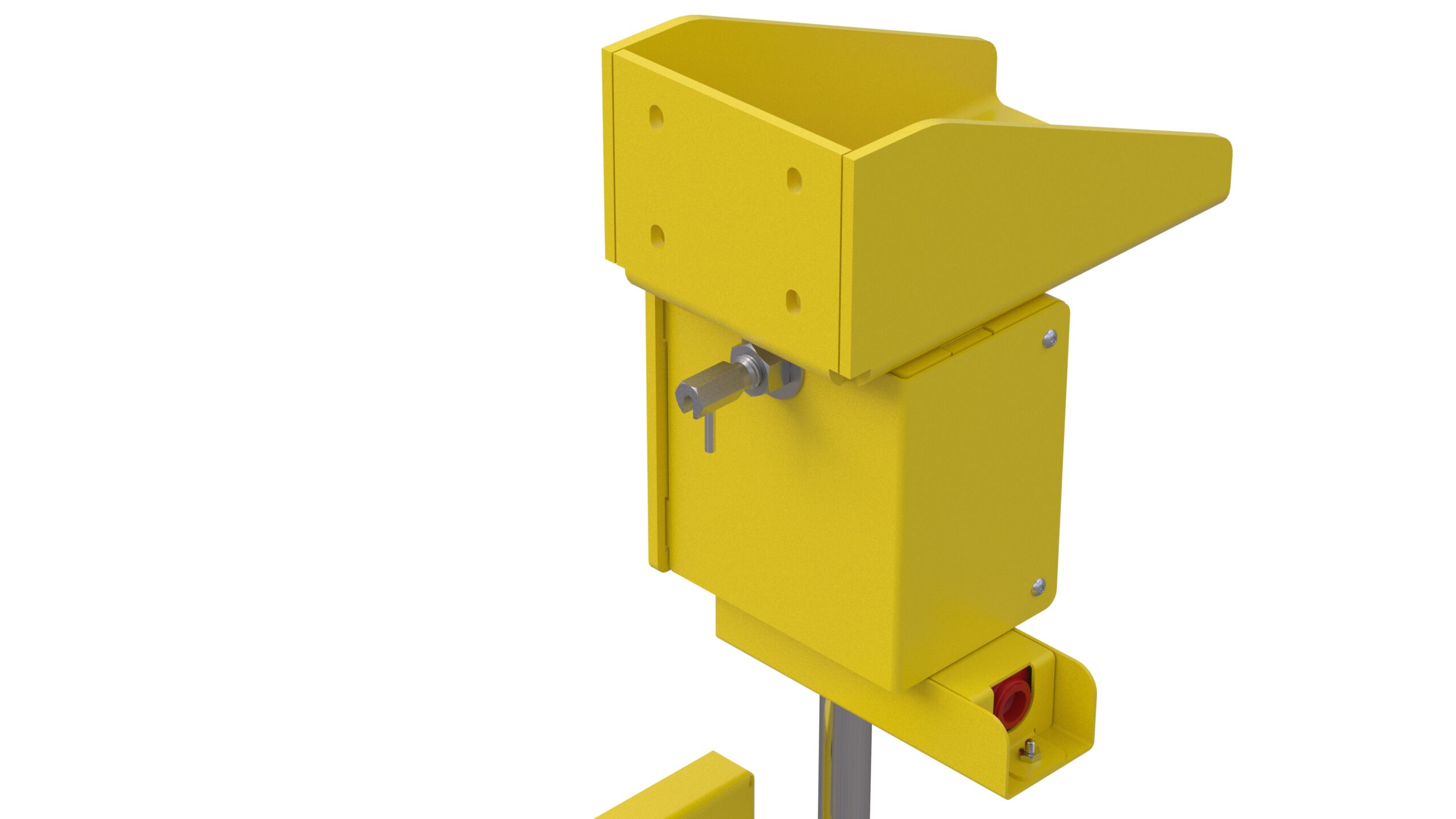

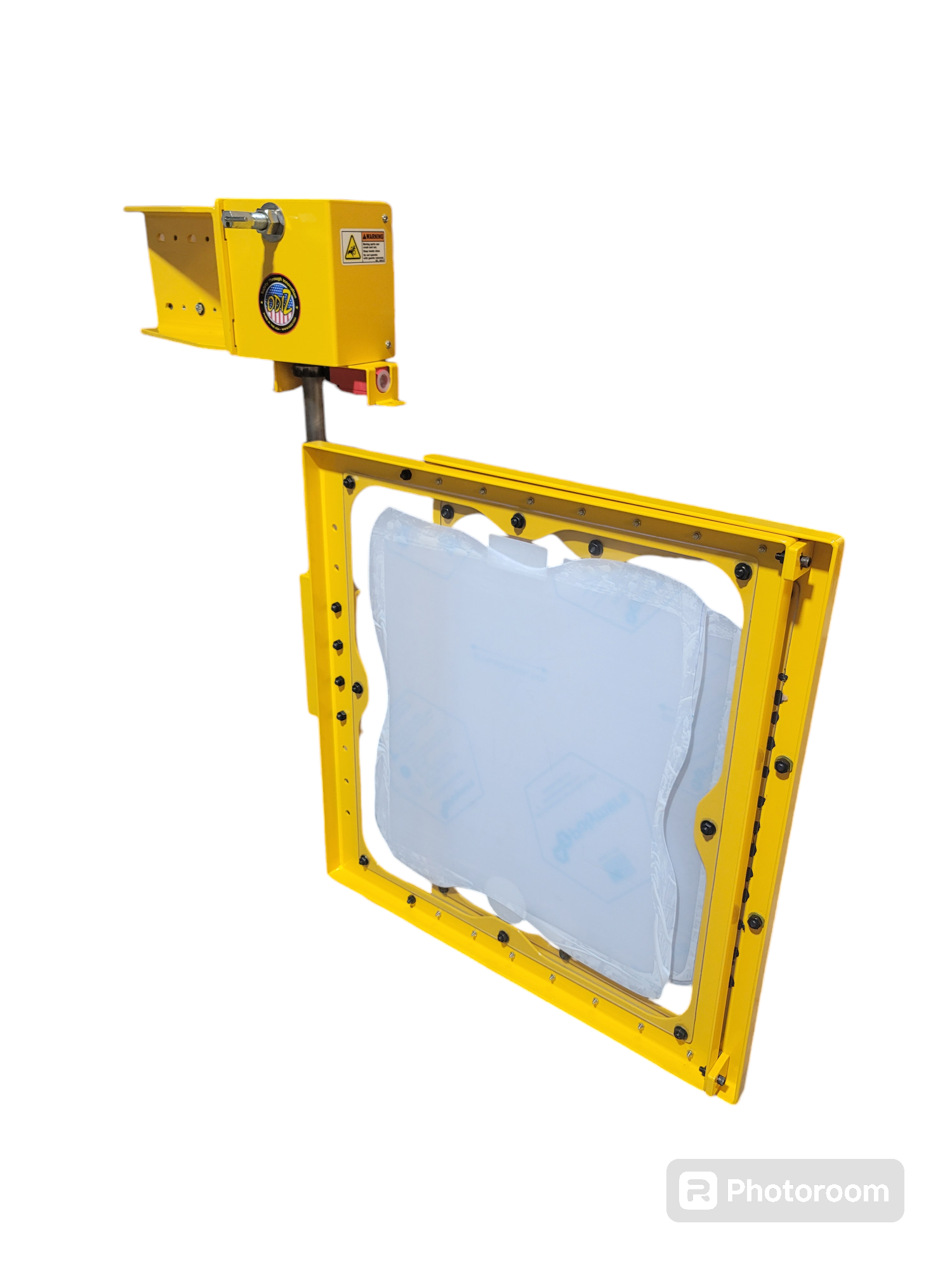

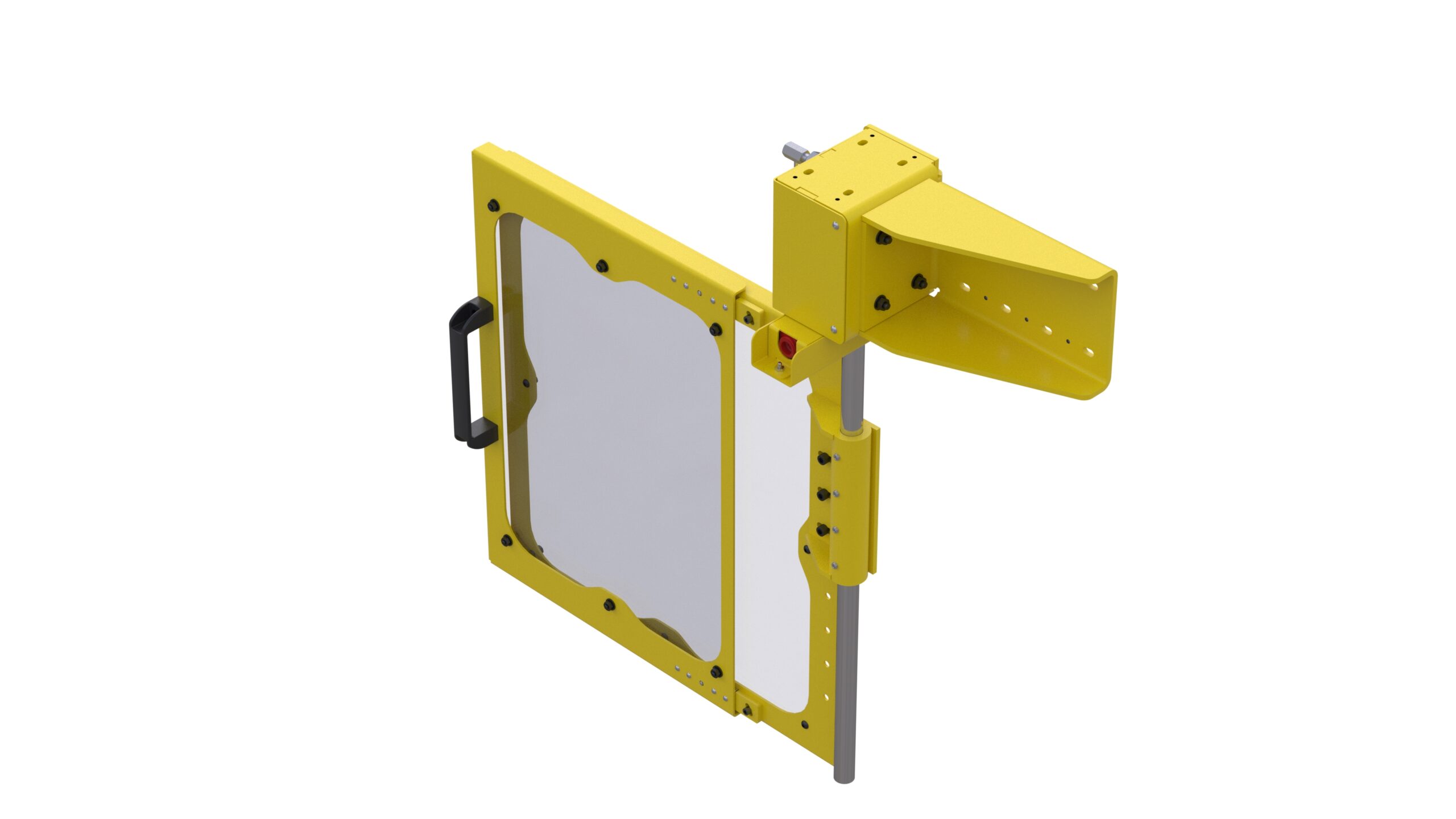

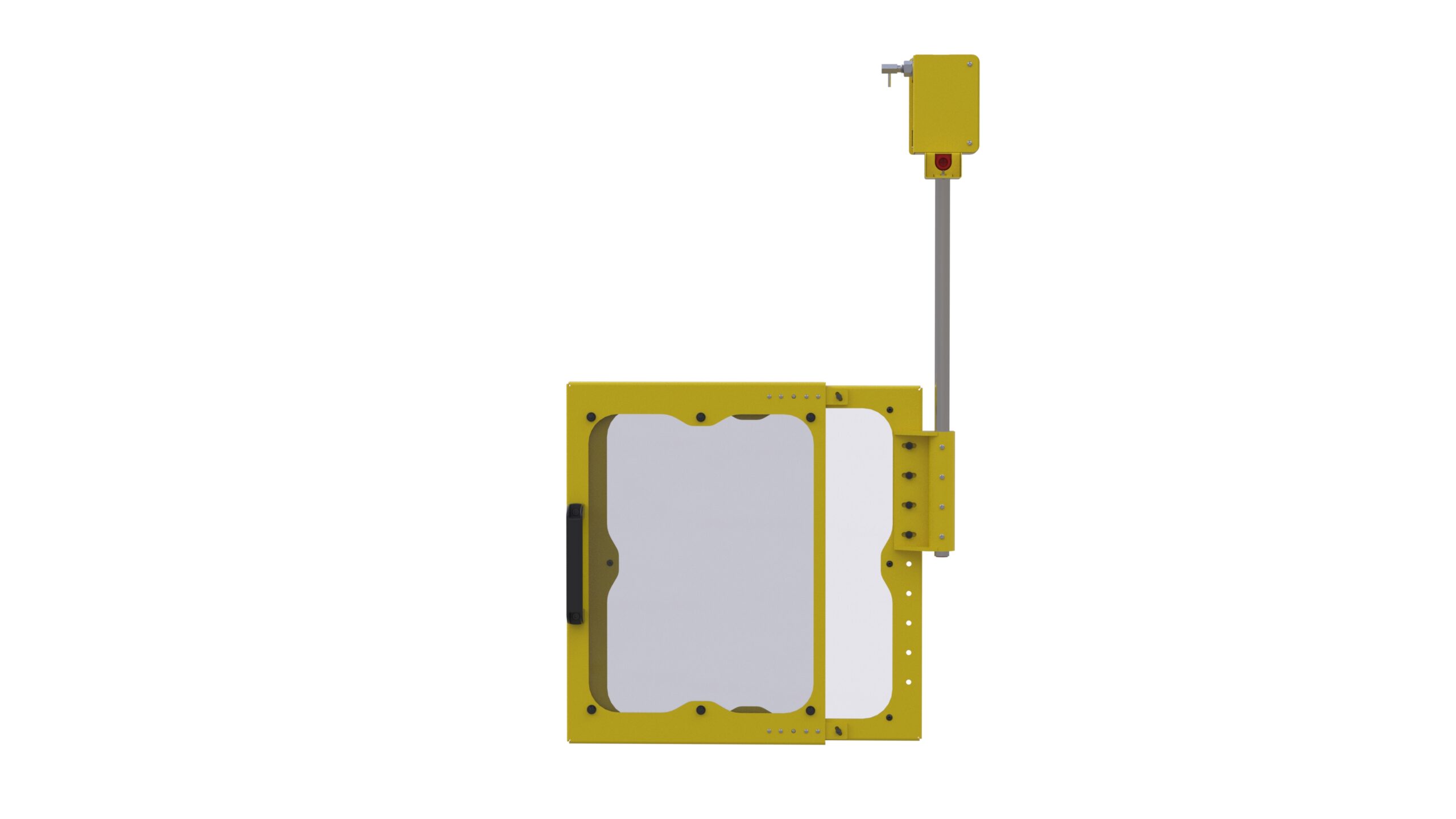

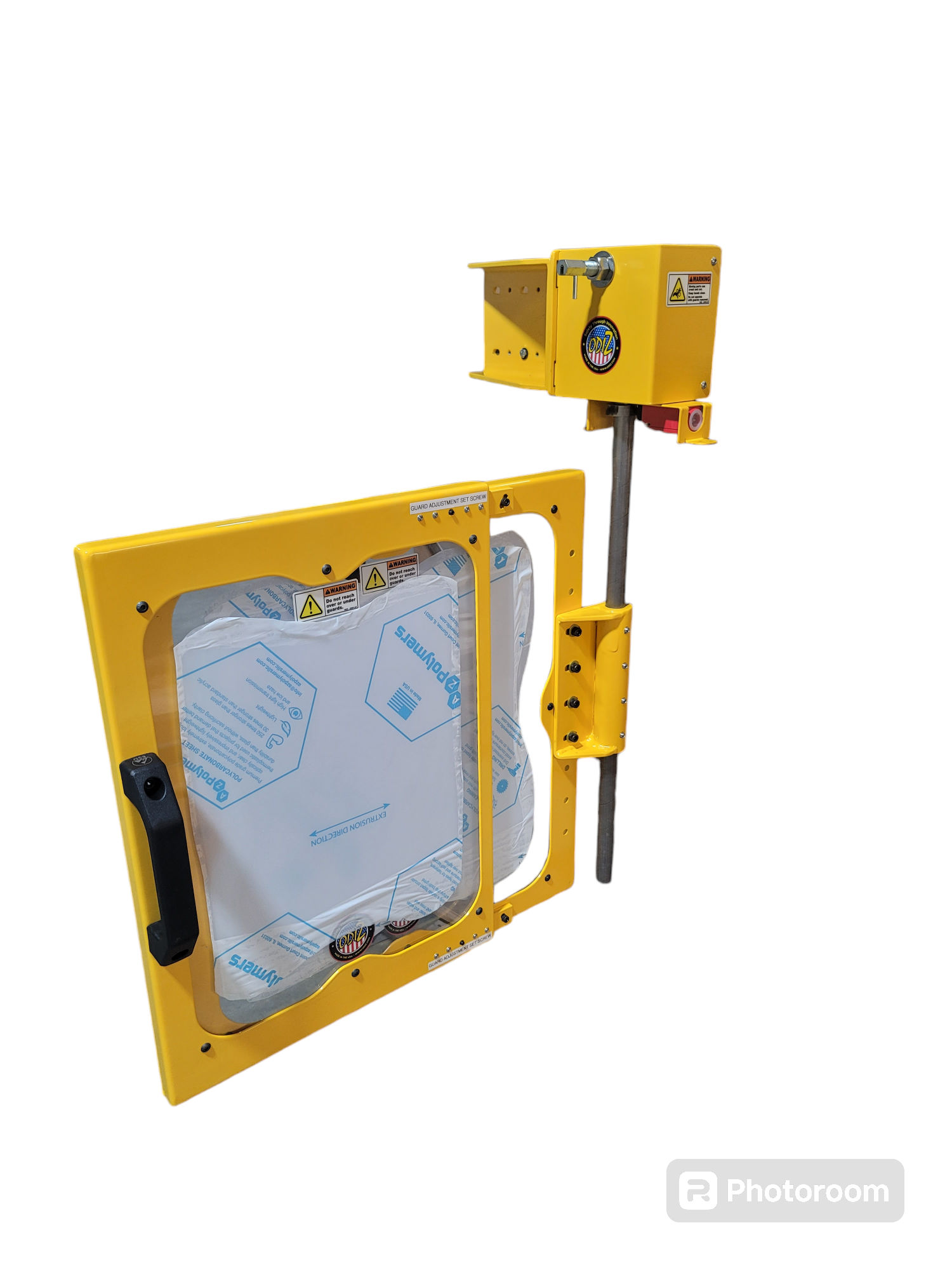

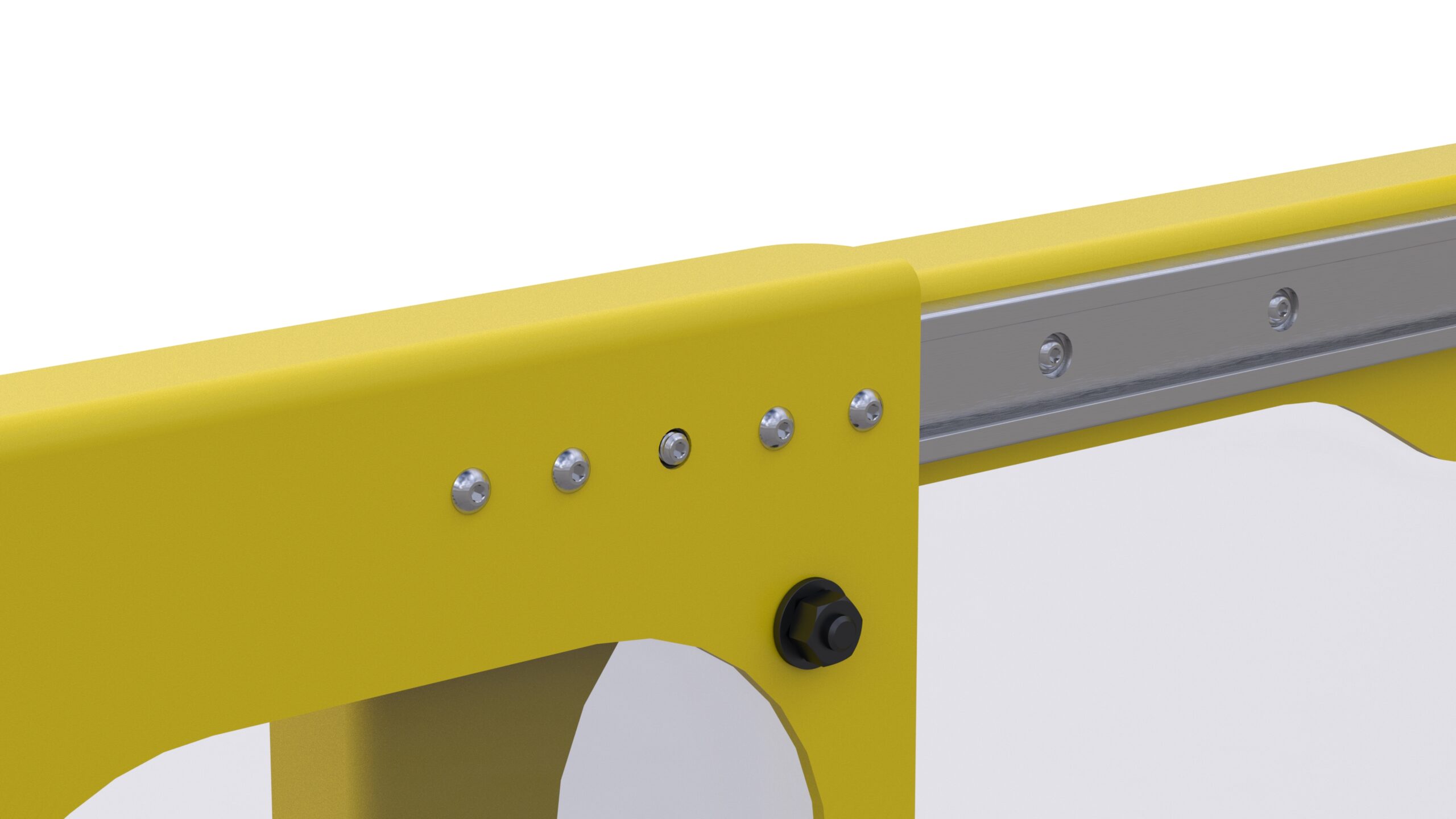

Horizontal Boring Mill Chuck Guard

OSHA 1910.212 — General Requirements for All Machines

OSHA 29 CFR 1910.212 is the core machine guarding standard that applies to nearly all machinery in general industry.
It requires employers to provide guards and protective devices to shield workers from points of operation, rotating parts, in-running nip points, flying chips, sparks, and other hazards.
As a “catch-all” standard, OSHA 1910.212 is often cited when no specific machine regulation exists, making it one of the most frequently enforced provisions in Subpart O.

Key Guarding Requirements

• Point of Operation: Machines must be guarded so operators are not exposed to the point where the work is performed.
• Rotating & Moving Parts: Guards must cover exposed belts, pulleys, gears, shafts, and flywheels to prevent accidental contact.
• In-Running Nip Points: Hazards created where two parts rotate toward each other or where one part moves past a stationary object must be guarded.
• Flying Chips & Sparks: Guards or shields must contain debris, sparks, and fragments generated during machine operation.
• Anchoring: Machines designed for fixed location use must be securely anchored to prevent movement or tipping.

Examples of Machines Covered

Because OSHA 1910.212 is a broad standard, it applies to a wide range of equipment including drill presses, lathes, milling machines, conveyors, punch presses, saws, and grinders.
If a machine has moving parts that could injure a worker, 1910.212 requires guarding.

Common Violations

• Missing point-of-operation guards on presses or saws.
• Exposed belts, pulleys, or rotating shafts without guarding.
• Improperly adjusted or removed guards during production.
• Lack of anchoring on floor-mounted equipment.
• Failure to contain sparks or flying material in grinding, cutting, or drilling operations.

Why OSHA 1910.212 Matters

Machine guarding violations are consistently among OSHA’s top cited standards.
Without proper guards, workers face severe risks of crushed fingers, amputations, lacerations, and eye injuries.
Compliance with OSHA 1910.212 helps facilities protect employees, avoid costly citations, and establish safer production environments.

Relation to Other Standards

OSHA 1910.212 is a general requirement that works in tandem with OSHA 1910.215 (Abrasive Wheel Machinery)
and machine-specific rules under Subpart O. It also aligns with ANSI B11 machine safety standards,
which provide technical safeguarding criteria.

Compliance Checklist

• Install guards at the point of operation on all applicable machines.
• Cover all rotating parts, belts, pulleys, gears, and shafts.
• Guard in-running nip points created by rollers, belts, or chains.
• Provide shields for flying chips, sparks, or debris.
• Anchor floor-mounted machines to prevent shifting.
• Train employees to use machines only with guards in place.

Internal Linking Opportunities

• Cross-link to Lockout/Tagout (OSHA 1910.147) for energy control.
• Link to Abrasive Wheel Machinery (OSHA 1910.215) for grinder rules.
• Connect to ANSI B11 for machine safeguarding performance standards.
• Promote relevant machine guarding products, light curtains, and safety devices.

FAQ

OSHA 1910.212(a) — General Machine Guarding Requirements

OSHA 29 CFR 1910.212(a) defines the core safety principles for machine guarding in general industry.
It requires employers to protect workers from mechanical hazards created by points of operation, rotating components, in-running nip points, and flying chips or sparks.
This paragraph serves as the primary enforcement reference for machinery that does not have its own specific OSHA standard.

Scope and Purpose

The goal of 1910.212(a) is to prevent contact injuries, entanglement, crushing, and amputation by ensuring all hazardous machine motions are either guarded or controlled.
It applies to virtually all machinery used in manufacturing, maintenance, fabrication, and processing operations.

Key Guarding Principles

• Comprehensive Protection: Guards must cover any moving part or area that could cause injury through contact or ejection of material.
• Design Flexibility: Employers may choose fixed, adjustable, or interlocked guards, provided they effectively prevent worker exposure.
• Performance Standard: The rule is performance-based rather than prescriptive—meaning the employer must demonstrate that the guarding method eliminates or controls the hazard.
• Continuity of Protection: Guards must remain in place and secure during operation and be adjusted only when the machine is off and locked out.
• Applicability: This paragraph acts as a “catch-all” requirement whenever a machine presents a hazard not addressed by another OSHA provision.

Examples of Covered Hazards

Machines governed by 1910.212(a) include drill presses, milling machines, conveyors, polishing lathes, grinders, and mechanical cutters.
Hazards may include rotating shafts, reciprocating arms, cutting surfaces, or points where material is inserted or removed.

Compliance Practices

• Install guards that physically prevent access to moving parts.
• Inspect guards routinely for secure attachment and effectiveness.
• Ensure that guard openings prevent any part of the body from reaching the danger zone.
• Prohibit operation when guards are missing or removed.
• Train employees on safe operation, inspection, and maintenance of guarded machines.

Why OSHA 1910.212(a) Is Important

Most serious machinery accidents occur because guards are missing, removed, or inadequate.
Section (a) establishes the baseline requirements that form the foundation of all machine safeguarding programs.
Compliance not only prevents injuries and amputations but also ensures alignment with national consensus standards such as ANSI B11 and ISO 12100.

FAQ

OSHA 1910.212(a)(1) — General Duty to Guard Machines

OSHA 29 CFR 1910.212(a)(1) establishes the primary obligation to guard machinery in general industry.
It requires employers to implement one or more methods of guarding that protect both the operator and nearby employees from hazards created by points of operation, rotating parts, flying chips, sparks, or any other dangerous mechanical motions.

Scope and Intent

This paragraph serves as the foundation of all machine guarding enforcement.
It mandates that every machine presenting a mechanical hazard must be safeguarded through a combination of physical barriers or engineered safety devices.
The employer may choose the guarding method, but it must completely prevent employee exposure to the moving part or hazard zone during normal operation.

Acceptable Guarding Methods

• Fixed guards: Rigid barriers that prevent access to hazardous areas.
• Interlocked guards: Guards that automatically shut off or disengage the machine when opened or removed.
• Adjustable guards: Barriers that can be positioned for different operations but remain securely in place during use.
• Self-adjusting guards: Guards that move automatically into position as the operator works, covering the danger area as material is fed.
• Electronic safeguarding devices: Light curtains, pressure-sensitive mats, and presence sensors that prevent access to moving parts.

Key Compliance Requirements

• Guarding must protect both operators and nearby personnel.
• Guards must be securely attached and durable enough to resist normal operation and vibration.
• Openings in guards must be small enough to prevent accidental contact with moving parts.
• Guards must not introduce new hazards such as sharp edges, pinch points, or visibility obstruction.
• All guards must be kept in place and functional when machines are operating.

Common Violations

• Machines operating without guards over exposed belts, pulleys, gears, or shafts.
• Removed or bypassed barrier guards during production or maintenance.
• Improper guard materials or openings that allow hand or finger access to moving parts.
• Lack of guarding for nearby employees who may be struck by flying material or sparks.

Practical Compliance Tips

• Conduct a full hazard assessment for all equipment to identify points of operation and motion hazards.
• Install fixed guards wherever possible; use interlocked or adjustable guards only when process requirements demand it.
• Include guarding checks in your preventive maintenance program.
• Train operators to recognize unsafe conditions and never remove or modify guards.

Why OSHA 1910.212(a)(1) Is Important

This paragraph represents OSHA’s general duty clause for machinery safety.
Most machine-related injuries occur when guards are removed or missing, and OSHA 1910.212(a)(1) gives inspectors the authority to cite any unguarded moving part that poses a risk.
Compliance ensures that workers remain protected from crushing, entanglement, amputation, and impact injuries.

FAQ

OSHA 1910.212(a)(2) — General Requirements for Machine Guards

OSHA 29 CFR 1910.212(a)(2) establishes the design and construction standards for machine guards.
This provision requires that guards be securely fastened to the machine and designed to protect operators and nearby employees from injury caused by moving parts, flying debris, or accidental contact.
The intent is to ensure that guarding not only provides protection but also does not create new hazards in the process.

Key Guard Design Requirements

• Secure Attachment: Guards must be firmly attached to the machine. If fastening directly to the machine is not possible, guards must be securely mounted elsewhere to provide equal protection.
• Structural Integrity: Guards must be made of materials strong enough to resist impact, vibration, and normal wear during operation.
• No New Hazards: Guards must not introduce additional risks such as pinch points, sharp edges, or visibility obstruction.
• Durability: Guard materials must withstand operational stresses and environmental factors like heat, coolant, or debris.
• Accessibility: Guards should allow safe maintenance, lubrication, and adjustments without requiring complete removal when possible.

Performance Intent

The focus of 1910.212(a)(2) is performance-based guarding design.
OSHA does not prescribe specific guard materials or thicknesses; instead, the guard must perform effectively under real-world conditions.
Employers have the flexibility to design guards suited to their machines—as long as the guarding prevents contact and remains in place during operation.

Examples of Guard Types Covered

• Fixed guards enclosing belts, pulleys, gears, and rotating shafts.
• Interlocked guards that shut off power when opened or removed.
• Adjustable guards for variable-sized stock or cutting operations.
• Self-adjusting guards that move automatically with the workpiece.

Best Practices for Compliance

• Inspect guards regularly for looseness, cracks, or corrosion.
• Use guard materials that match the operational environment (e.g., metal for high-impact areas, polycarbonate for visibility).
• Train employees to recognize damaged or missing guards and to report deficiencies immediately.
• Ensure all guards are reinstalled and secured after maintenance or adjustments.

Common Violations

• Guards loosely attached or easily removable during operation.
• Improvised guards made from inadequate materials such as thin sheet metal or plastic covers.
• Guards with sharp edges or openings large enough to allow finger or hand access.
• Removed or bypassed guards not replaced before restarting the machine.

Why OSHA 1910.212(a)(2) Is Important

Even when a guard is present, poor design or weak construction can fail to protect workers.
OSHA 1910.212(a)(2) ensures that guards are engineered and maintained to perform effectively throughout a machine’s life cycle.
Properly designed guards prevent crushing, amputation, and laceration injuries while maintaining usability and productivity.

FAQ

OSHA 1910.212(a)(3) — Point of Operation Guarding

OSHA 29 CFR 1910.212(a)(3) sets forth the point of operation guarding requirements for machinery used in general industry.
The “point of operation” is the area on a machine where work is performed—such as cutting, shaping, boring, forming, or assembling a part.
This section requires that each machine have a guard or safeguarding device that prevents the operator from having any part of the body in the danger zone during operation.

Purpose and Scope

The purpose of 1910.212(a)(3) is to eliminate exposure to moving tools or dies that can cause crushing, amputation, laceration, or puncture injuries.
It applies to all machines with a point of operation hazard, regardless of size or industry.
Typical examples include presses, saws, milling machines, lathes, shears, and drills.

Key Requirements

• Every machine must be equipped with a guard that prevents the operator from reaching into the danger zone.
• Guards must be designed and constructed to provide maximum protection while allowing the machine to be operated safely and efficiently.
• Special hand tools may be used to handle materials when guarding at the point of operation is not practical.
• Guards must be securely fastened, maintained in place, and not easily removed or bypassed during operation.
• Safeguarding devices such as light curtains, presence-sensing devices, or two-hand controls may be used if they provide equivalent protection.

Examples of Point of Operation Hazards

• Cutting blades or rotating cutters that can amputate or lacerate fingers.
• Press dies or molds that can crush hands or fingers during operation.
• Drill bits, boring tools, or milling heads that can pierce or entangle body parts.
• Shearing or punching points that can sever material—and body parts—with the same force.

Acceptable Guarding Methods

• Fixed barrier guards enclosing the point of operation.
• Interlocked guards that stop machine motion when opened or removed.
• Adjustable or self-adjusting guards that move automatically to block access as material is fed.
• Two-hand controls requiring both hands to activate the cycle, keeping them out of danger.
• Electronic presence-sensing devices such as light curtains or safety mats that halt motion when triggered.

Common Violations

• Operating a machine with missing or disabled point of operation guards.
• Using hand-feeding where fixed or adjustable guards should be installed.
• Removing guards to increase production speed.
• Failure to provide safeguarding when machine design allows operator access to hazardous movement.

Compliance Tips

• Identify all machine points of operation and assess potential contact hazards.
• Install fixed guards where feasible; use engineered safety devices when full enclosure is not possible.
• Inspect all guards before each shift and re-secure after adjustments or maintenance.
• Train operators to recognize guarding deficiencies and to report missing or damaged safety devices immediately.

Why OSHA 1910.212(a)(3) Is Important

Point of operation injuries are among the most severe and preventable workplace incidents.
By enforcing 1910.212(a)(3), OSHA ensures that all machines have reliable guarding or safety devices that keep operators’ hands, fingers, and bodies outside the danger zone during work.
This rule remains one of the most frequently cited machine safety violations nationwide.

FAQ

OSHA 1910.212(a)(3)(iii) — Guard Design for Operator Safety

OSHA 29 CFR 1910.212(a)(3)(iii) establishes the performance criteria for guard design and construction.
It requires that every machine guard be designed, built, and installed so that it effectively protects the operator from injury during machine operation.
This provision emphasizes that guard design must be functional, durable, and capable of providing full protection throughout the equipment’s use.

Purpose and Intent

The intent of 1910.212(a)(3)(iii) is to ensure that guarding effectiveness is not compromised by poor design or materials.
Even when a machine has guards, operators can still be injured if those guards fail under stress, vibration, or improper installation.
OSHA requires that guards maintain their protective function under all normal operating conditions.

Key Design Requirements

• Strength and Durability: Guards must resist impact, vibration, and deformation caused by routine use and environmental conditions.
• Secure Mounting: Guards must be firmly attached and cannot be easily removed, bypassed, or displaced during normal operation.
• Ergonomic Function: Guards should be designed to allow normal operation and maintenance without creating awkward or unsafe postures.
• Visibility: When feasible, guards should permit observation of the operation to ensure quality and alignment without removal.
• No New Hazards: Guard edges and surfaces must be smooth, free from sharp corners, and designed not to introduce new pinch points or catch hazards.

Acceptable Guarding Examples

• Fixed metal guards enclosing belts, pulleys, and gears.

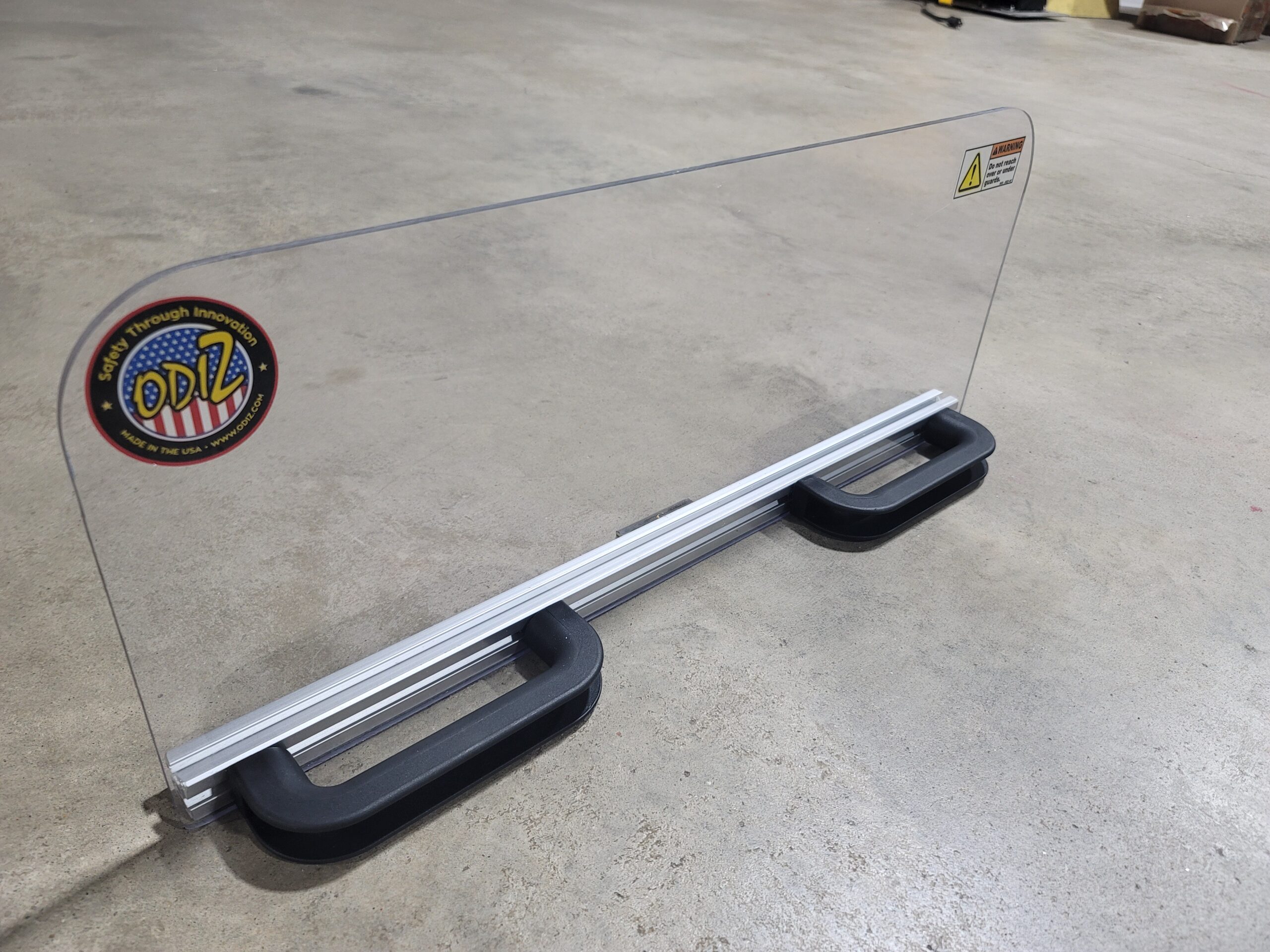

• Transparent guards made of high-strength polycarbonate for visibility and impact resistance.
• Interlocked access doors that automatically shut off the machine when opened.
• Barrier guards preventing reach into moving parts while allowing visual monitoring.

Common Compliance Issues

• Guards that loosen or vibrate during machine operation, reducing protection.
• Materials that crack, warp, or deteriorate under heat or chemical exposure.
• Improperly designed openings that allow finger or hand access to moving parts.
• Guards that must be removed to complete normal adjustments or feeding.

Best Practices for Compliance

• Select guard materials suitable for the specific machine environment (e.g., metal for impact resistance, polycarbonate for visibility).
• Incorporate secure mounting brackets and fasteners that prevent accidental removal.
• Follow design guidelines for minimum safe distances between guard openings and hazard zones.
• Inspect and test guards periodically for wear, looseness, and stability under normal vibration and operation.
• Document guard designs, materials, and inspections as part of your facility’s machine safety program.

Why OSHA 1910.212(a)(3)(iii) Is Important

Even the best guarding concepts fail if the physical construction is inadequate.
OSHA 1910.212(a)(3)(iii) ensures that all guards are engineered for real-world performance, protecting operators and maintenance personnel from the severe hazards of rotating, cutting, or crushing machinery.
By emphasizing design integrity, this section reinforces the need for reliable, tested, and properly installed guarding systems that remain effective throughout the life of the equipment.

FAQ

OSHA 1910.212(a)(3)(iv)(a) — Guillotine Cutters

Guillotine cutters use a descending knife to shear material (e.g., paper, plastic, thin metal, gasket stock).
Because the point of operation exposes workers to a sharp blade and clamping action, OSHA lists guillotine cutters as equipment that usually requires point-of-operation guarding.
Proper safeguards must keep hands and other body parts out of the danger zone for every cycle.

Primary Hazards

• Amputation and deep lacerations from the descending knife.
• Crush and pinch injuries from the hold-down clamp or back-gauge movement.
• Unexpected cycling due to control or interlock failures.

Required Guarding Outcomes

• Inaccessible blade: Guards or devices must prevent hand entry into the cutting zone during any stroke.
• Safe clamping: Hold-down mechanisms must not create new pinch points or allow reach-around access.
• Secure, durable construction: Guards remain in place under vibration and normal use and cannot be easily bypassed.

Common Safeguarding Methods for Guillotine Cutters

• Fixed barrier or transparent hood covering the knife area with openings sized to block finger/hand access.
• Interlocked front shield that prevents a cycle unless the shield is closed; opening the shield stops motion.
• Two-hand controls (simultaneous actuation) that require both hands away from the blade to initiate each cut.
• Presence-sensing devices (where appropriate) that stop hazardous motion if the sensing field is interrupted.
• Rear guarding/back-gauge protection to eliminate reach-in from the back side of the table.
• Hold-down clamp guards or shrouds that prevent fingers from entering between the clamp and table.

Best Practices

• Use two-hand controls or interlocked shields as the primary safeguard; do not rely on procedures alone.
• Verify safety distance and opening sizes so that hands cannot reach the blade before motion stops.
• Provide anti-repeat controls and require a new two-hand command for each cut.
• Perform pre-shift checks of interlocks, guards, two-hand controls, and emergency stop.
• Lockout and tag out before changing knives, adjusting back-gauges, or clearing jams.
• Train operators on safe feeding techniques—never hand-hold small stock in front of the blade; use push sticks, guides, or fixtures.

Compliance Checklist

• Blade area guarded (fixed, interlocked, or device) — no hand access during the cut.
• Two-hand control or equivalent safeguarding installed and functional.
• Rear and side access points guarded; back-gauge movement not exposed.
• Hold-down clamp guarded or designed to prevent pinch access.
• Controls include anti-tie-down/anti-repeat; emergency stop accessible.
• Daily functional tests documented; damaged guards or failed interlocks remove machine from service until corrected.

FAQ

OSHA 1910.212(a)(3)(iv)(e) — Milling Machines

OSHA 29 CFR 1910.212(a)(3)(iv)(e) identifies milling machines as equipment that usually requires point-of-operation guarding.
Milling machines use rotating multi-edge cutters to remove material from workpieces, producing high-speed motion, sharp tool exposure, and ejected metal chips.
Without proper guarding, operators are at risk of lacerations, entanglement, impact, and eye injuries.

Primary Hazards of Milling Machines

• Contact with rotating cutters: Exposed cutting tools can easily catch hands, gloves, or clothing.
• Flying chips and debris: High-speed cutting generates chips that can injure eyes or skin.
• Entanglement: Long hair, gloves, or sleeves can be drawn into the rotating spindle or workpiece.
• Crushing and pinch points: Created between the moving table, vise, and workpiece.
• Unexpected startup: Occurs if power is applied during maintenance or setup without lockout/tagout procedures.

Required Guarding Methods

• Point-of-operation guards: Fixed or adjustable guards must prevent hand or finger access to the cutting zone.
• Chip and splash guards: Transparent shields or enclosures protect operators from flying metal fragments and coolant spray.
• Rotating spindle guards: Shields or covers must enclose exposed spindle and arbor ends.
• Feed mechanism protection: Power feeds, lead screws, and drive belts must be covered to prevent entanglement.
• Interlocked doors or covers: Automatic shutoffs when the enclosure is opened during operation are strongly recommended.

Safe Work Practices

• Never reach near the cutter or remove chips by hand while the machine is running.
• Use brushes or hooks to clear chips and debris—never compressed air directed at the operator or unguarded surfaces.
• Wear eye and face protection rated for high-velocity impact and coolant resistance.
• Ensure guards remain in place during setup and production; only remove them under full lockout/tagout.
• Secure long hair, jewelry, and loose clothing before machine operation.
• Perform routine inspections of guards, interlocks, and emergency stop buttons before each shift.

Types of Guards Commonly Used

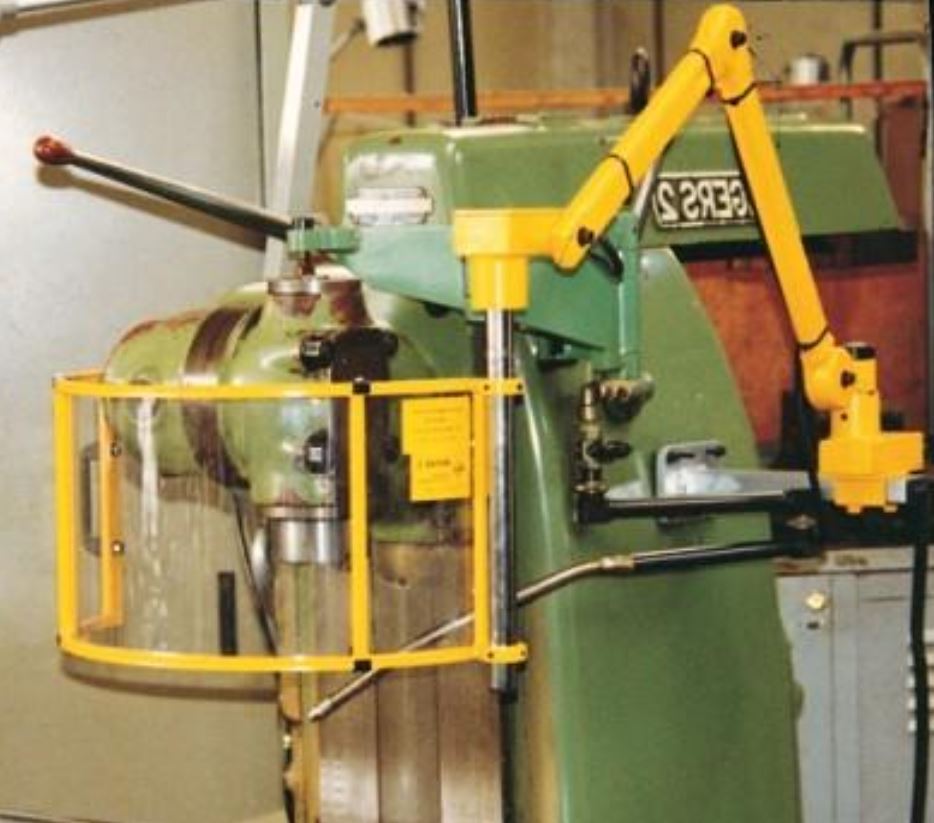

• Adjustable transparent guards mounted over the spindle and cutter to provide visibility while preventing access.
• Enclosing guards for CNC or automated milling centers to protect operators during unattended cycles.
• Telescoping way covers that shield moving tables and leadscrews from accidental contact.
• Barrier guards or fencing systems for larger production mills to keep personnel out of hazardous zones.

Common Violations

• Operating a milling machine with the cutter exposed and no protective shield installed.
• Removed or bypassed chip guards to improve visibility.
• Failure to guard moving lead screws, gears, or belt drives.
• Lack of PPE or missing splash shields causing eye injuries.
• Failure to follow lockout/tagout during tool changes or maintenance.

Engineering and Administrative Controls

• Install automatic door interlocks on CNC machines to prevent motion when open.
• Use remote controls or pendant stations to keep operators clear during testing and setup.
• Implement written safe-operating procedures specific to manual and CNC milling operations.
• Include machine guarding checks in preventive maintenance and supervisor inspections.

Why OSHA 1910.212(a)(3)(iv)(e) Is Important

Milling machines are among the most common and versatile metal-cutting tools in manufacturing—and among the most hazardous if unguarded.
OSHA 1910.212(a)(3)(iv)(e) ensures that all milling operations include effective physical guards, shields, and safe work procedures to protect operators from contact with rotating cutters, flying debris, and moving components.
Compliance with this standard significantly reduces the risk of serious injury and ensures a safer machining environment.

FAQ

OSHA 1910.213(a)(2) — Arbors and Mandrels (Secure Bearing Requirements)

OSHA 29 CFR 1910.213(a)(2) establishes safety requirements for the arbors and mandrels of woodworking machines.
These rotating components—used to hold and drive cutting tools such as saw blades, cutter heads, and sanding drums—must be constructed and maintained with firm, secure bearings and free from play or looseness to ensure safe, stable operation.

Regulatory Text

“Arbors and mandrels shall be constructed so as to have firm and secure bearing and be free from play.”

Purpose and Intent

The intent of this rule is to prevent dangerous movement or instability in rotating machinery components.
Any looseness (“play”) in an arbor or mandrel can cause vibration, tool wobble, or complete detachment of the cutting element, resulting in severe injury or equipment damage.
OSHA 1910.213(a)(2) ensures that rotating assemblies remain rigid, balanced, and true even under full operating load.

Key Requirements

• Secure bearings: Arbors and mandrels must be supported by bearings capable of maintaining alignment and resisting operational stress.
• No play or looseness: The spindle, shaft, or arbor must rotate without side-to-side or end-to-end movement that could cause vibration or misalignment.
• Proper fit: Cutting tools, flanges, and collars must fit tightly on the arbor shaft to prevent slippage during operation.
• Design integrity: Arbors must be made from materials strong enough to resist bending, deformation, or fatigue.
• Routine inspection: Bearings, bushings, and lock nuts should be regularly checked for wear and replaced when clearance exceeds manufacturer tolerances.

Typical Equipment with Arbors or Mandrels

• Table saws (main arbor for circular blades)
• Ripsaws and crosscut saws
• Planers and moulders (cutter head mandrels)
• Jointers (rotating cutter heads)
• Drum and disc sanders
• Lathes and shapers

Common Hazards from Worn or Loose Arbors

• Blade ejection: A loose blade can detach at high speed, becoming a deadly projectile.
• Vibration and noise: Looseness increases vibration, leading to inaccurate cuts and potential mechanical failure.
• Bearing failure: Poor alignment accelerates wear and overheating of bearings.
• Arbor breakage: Repeated stress from imbalance can crack or shear the shaft.

Inspection and Maintenance Practices

• Check for radial and axial play in arbors using a dial indicator or manufacturer-specified method.
• Lubricate bearings at recommended intervals using proper grade lubricants.
• Replace worn bushings, bearings, or sleeves that allow perceptible movement or noise during rotation.
• Verify that tool flanges and spacers are flat, clean, and free of burrs to ensure secure mounting.
• Tighten arbor nuts to manufacturer torque specifications without over-tightening, which may distort the blade or shaft.

Design and Safety Considerations

• Use precision-ground arbors with minimal runout (typically under 0.002 inches).
• Support longer mandrels with dual or extended bearing housings to maintain rigidity.
• Ensure all arbors and mandrels are balanced dynamically to reduce vibration during operation.
• Do not modify arbor diameters or threads; always use manufacturer-specified parts.
• Equip machines with guards that fully enclose rotating shafts to prevent entanglement.

Why OSHA 1910.213(a)(2) Is Important

A secure and properly balanced arbor or mandrel is the foundation of safe machine operation.
OSHA 1910.213(a)(2) prevents catastrophic failures by requiring rigid, vibration-free mounting of all rotating woodworking tools.
Compliance minimizes the risk of blade ejection, bearing seizure, and operator injury, ensuring long-term stability and performance of woodworking equipment.

FAQ

OSHA 1910.213(a)(9) — Guarding of Belts, Pulleys, Gears, Shafts, and Moving Parts

OSHA 29 CFR 1910.213(a)(9) reinforces the general machine guarding principles of OSHA 1910.219 by requiring that all belts, pulleys, gears, shafts, and other moving parts of woodworking machinery be guarded effectively.
This rule ensures that operators and maintenance personnel are protected from entanglement, contact, and struck-by injuries caused by exposed power transmission components.

Regulatory Text

“All belts, pulleys, gears, shafts, and moving parts shall be guarded in accordance with the specific requirements of § 1910.219.”

Purpose and Intent

This provision links woodworking machinery safety to the broader OSHA mechanical power-transmission apparatus standard (1910.219).
While 1910.213 focuses on woodworking-specific hazards, 1910.219 details how power transmission components—such as belts and pulleys—must be enclosed or shielded to prevent accidental contact.
The intent is to create a comprehensive guarding system that protects against entanglement, amputation, and crushing injuries during normal operation and maintenance.

Key Requirements

• Complete guarding: All exposed belts, pulleys, chains, gears, shafts, flywheels, couplings, and similar moving parts must be enclosed or guarded.
• Compliance with 1910.219: Guard design, construction, and positioning must meet the material, clearance, and height standards defined in §1910.219.
• Secure installation: Guards must be firmly attached to prevent displacement or removal during vibration or operation.
• Accessibility for maintenance: Guards must allow safe access for lubrication and adjustment, or they must be removable only with tools.
• Training: Operators must be instructed on the purpose of the guards and prohibited from removing or bypassing them.

Common Hazards Controlled

• Entanglement: Clothing, hair, or jewelry caught in rotating parts.
• Crushing and pinching: Hands or fingers drawn into nip points between belts and pulleys.
• Impact: Contact with projecting shaft ends or spinning couplings.
• Flying debris: Fractured belts or thrown parts from failed components.
• Unexpected startup: Accidental motion during cleaning or adjustment.

Design and Guarding Specifications (Per §1910.219)

• Belt and pulley guards: Must fully enclose both the upper and lower runs, with openings small enough to prevent finger entry.
• Horizontal shafting: Must be enclosed or guarded by stationary shields if located within 7 feet of the floor or working platform.
• Flywheels: Guarded to a height of at least 15 inches from the floor with solid or mesh barriers.
• Gears and sprockets: Fully enclosed with metal guards that prevent hand contact.
• Set screws and keys: Must be recessed or covered to eliminate snagging points.
• Material strength: Guards must be constructed of metal or other durable material capable of withstanding normal impact and vibration.

Inspection and Maintenance Guidelines

• Inspect all guards weekly to ensure proper placement and attachment.
• Replace damaged, bent, or missing guards immediately.
• Lubricate bearings and adjust belts only after lockout/tagout has been performed.
• Check for frayed belts, loose pulleys, or exposed couplings during preventive maintenance.
• Train operators to report missing or defective guards before machine use.

Common Violations

• Missing or removed belt guards during maintenance or production.
• Improvised guards made of inadequate materials like cardboard or plastic sheeting.
• Exposed shaft ends or rotating couplings within 7 feet of the floor.
• Failure to reinstall guards after servicing the machine.

Best Practices for Compliance

• Use interlocked or hinged guards that automatically cut power when opened for maintenance.
• Label guards clearly with “Do Not Operate Without Guard in Place.”
• Develop a written machine guarding inspection checklist referencing both 1910.213 and 1910.219.
• Include guard verification in your lockout/tagout program before re-energizing equipment.
• Maintain a spare parts inventory for guard panels, fasteners, and safety shields.

Why OSHA 1910.213(a)(9) Is Important

Exposed power transmission components are one of the most common causes of amputations and caught-in injuries in woodworking facilities.
OSHA 1910.213(a)(9) reinforces compliance with §1910.219 by requiring all belts, pulleys, gears, and shafts to be properly guarded.
This integrated approach ensures that both woodworking-specific and general mechanical hazards are controlled through durable, securely mounted guarding systems.

FAQ

B11.23 — Safety Requirements for Machining Centers & Automatic Numerically Controlled Milling, Drilling & Boring Machines

The B11.23 standard (ANSI B11.23-2002 (R2020)) provides consensus safety requirements for machining centers and automatic NC/CNC machines used for milling, drilling and boring operations. It applies to machines where the axes of travel are not greater than 1 m × 1 m × 1 m (39 in × 39 in × 39 in). :contentReference[oaicite:0]{index=0}

Scope & Purpose

This standard covers the design, construction, installation, operation, maintenance, dismantling and transport of machining centers and automatic NC milling, drilling and boring machines. :contentReference[oaicite:1]{index=1}
It is intended to help manufacturers, integrators and users control hazards such as rotating cutters, automatic tool changes, work-piece handling, ejection of parts, access to moving axes, and machine modification. :contentReference[oaicite:2]{index=2}

Key Safety Topics Addressed

• Supplier/User Responsibilities: Defines roles of the machine builder, integrator/modifier and end-user in hazard identification, risk assessment, design, installation, maintenance and modification. :contentReference[oaicite:3]{index=3}
• Risk Assessment & Life Cycle: The standard emphasizes identifying hazards during all phases of machine life (design, installation, operation, maintenance, dismantling) and applying risk reduction measures. :contentReference[oaicite:4]{index=4}
• Guarding & Safeguarding: Covers protection for moving tool spindles, automatic tool changers, work-handling systems, rotating workpieces, and prevents access during automatic cycles. :contentReference[oaicite:5]{index=5}
• Machine Size Limitation: Specifies that the standard applies to machines with travel axes not exceeding 1 m × 1 m × 1 m (approximately 39 in ×39 in ×39 in). :contentReference[oaicite:6]{index=6}

Why It Matters

Machining centers and automatic NC drilling/boreding machines combine high-speed tool rotation, automatic tool changers, multi-axis motion and often automatic workpiece feeding. These features create multiple hazard pathways: contact with cutters or spindles, ejection of tools or workpieces, inadvertent access during motion or changeover, and hazards during maintenance or modification.
Following B11.23 helps machine builders and users adopt recognized good engineering practice for safeguarding these complex machines, reducing injuries and supporting safety-compliance programs.

Practical Implementation Tips

• Perform a full task-based risk assessment covering automatic production, manual loading/unloading, tool changeover, maintenance and mode switching.
• Ensure guards or interlocks are applied around the spindle area, automatic tool changer, and work-handling sections; verify that access is prevented during motion and that ejection is mitigated.
• Confirm that documentation defines responsibilities for machine build, installation, user training, maintenance and modification; maintain records of risk assessments and modifications.
• Review machine modifications or rebuilds as if they were new machines—risk assessment must be re-validated and safeguarding may need upgrade.\li>

B11.6 — Safety Requirements for Manual Turning Machines (Lathes) With or Without Automatic Control

The B11.6 standard (ANSI B11.6-2022) specifies safety requirements for the design, construction, installation, operation, maintenance, modification, transport and dismantling of horizontally or vertically oriented spindle turning machines (commonly called lathes) that are manually controlled or may include automatic control capabilities. :contentReference[oaicite:0]{index=0}

Scope & Application

This standard applies to manual turning machines in which the workpiece is clamped and rotated while the cutting tool is rather stationary (i.e., the cutting force is from the workpiece). These machines may include automatic features (such as feed drives or tool turret indexing) but do *not* include fully automatic part-handling or bar-feed mechanisms or automatic tool changers — those machines fall under separate standards. :contentReference[oaicite:1]{index=1}

Key Safety Topics Addressed

• Point of operation & rotating parts guarding: Guarding or protective devices for rotating spindles, chucks, work-holding, live tooling, and removal of chips or swarf to prevent contact, entanglement or ejection hazards. :contentReference[oaicite:2]{index=2}
• Machine control modes & automatic control interface: Safe transitions between manual operation, automatic feed, tool change or manual set-up modes; ensuring that automatic or semi-automatic features do not expose operators to hazards. :contentReference[oaicite:3]{index=3}
• Feed, back-gauge and tool systems: Safe design of workpiece feeding, tool turret or system, and back-gauge motions to prevent contact during automatic or manual operations. :contentReference[oaicite:4]{index=4}
• Lifecycle responsibilities: The standard assigns defined roles for machine builders/suppliers, integrators/modifiers and users/owners for all phases of the machine life cycle — design, installation, commissioning, operation, maintenance, modification and decommissioning. :contentReference[oaicite:5]{index=5}
• Risk assessment & modification/retrofit: The standard emphasizes that machines modified, rebuilt or converted must be treated as essentially new with respect to risk assessment, safeguarding and verification. :contentReference[oaicite:6]{index=6}

Why It Matters

Turning machines (lathes) remain ubiquitous in manufacturing and metalworking. They involve hazards from rotating workpieces, chucks, live tools, swarf and chips, feed/back-gauge motion, automatic features and manual operator interaction. Adhering to B11.6 helps ensure these machines are designed, installed and maintained in accordance with recognized engineering safety practices, supports risk reduction and strengthens a machine-safety program. :contentReference[oaicite:7]{index=7}

Implementation Tips

• Perform a task-based risk assessment considering manual turning, automatic feed modes, tool change settings, maintenance, set-up and clean-up operations.
• Ensure aftermarket or retrofit features (e.g., tool turrets, automatic feed) do not compromise guard integrity or operator protective distance.
• Verify that guards around the spindle, chuck and rotating workpiece prevent access during operation and that swarf/chip ejection zones are managed.
• Audit control mode logic to ensure safe state transitions — for example, automatic feed should not occur with operator hazard exposure; manual mode should have proper safeguards for setup/maintenance.
• Include records of maintenance, modification, training of operators and documentation of risk assessments and safeguarding changes — treating any machine changes as a redesign from safety perspective.

B11.8 — Safety Requirements for Manual Milling, Drilling & Boring Machines (With or Without Automatic Control)

The B11.8 standard (ANSI B11.8-2021) specifies safety requirements for machines that perform milling, drilling or boring operations under manual control or partial automation — machines where the operator controls initiation of tasks, even if the machine has automatic features. :contentReference[oaicite:0]{index=0}
It applies to design, construction, installation, operation, maintenance, modification, dismantling and transport of such machines. :contentReference[oaicite:1]{index=1}

Scope & Application

B11.8 covers manual milling machines, drilling machines and boring machines where the operator uses manually-initiated steps to remove material via rotating cutters. Machines may include automatic controls but exclude full automatic part-handling systems or automatic tool changers. :contentReference[oaicite:2]{index=2}
The standard addresses both horizontal and vertical spindle machines and covers hazards from cutting tools, work-holding, chip ejection, coolant systems and operator access. :contentReference[oaicite:3]{index=3}

Key Safety Topics Addressed

• Guarding & Enclosure of Rotating Elements: Protecting against contact with spindles, cutters, chucks, feed mechanisms and moving parts.
• Point of Operation & Material Removal Hazards: Mitigating hazards such as chip/projectile ejection, coolant spray, entanglement, and reaching into tool/work zones. :contentReference[oaicite:4]{index=4}
• Feed & Hold-down Systems: Ensuring secure work-holding, guarding over feed paths, and safe adjustment/maintenance of hold-down devices.
• Control Modes & Safe Operation: Safe selection of manual vs automatic modes, preventing unintended motion, providing emergency stop, safe start/restart logic.
• Lifecycle Responsibilities: Defining obligations of machine suppliers, modifiers/integrators and users through design, installation, commissioning, maintenance, modification and decommissioning. :contentReference[oaicite:5]{index=5}

Why It Matters

Milling, drilling and boring machines are ubiquitous in metalworking and fabrication shops. They involve high-speed rotating cutters, moving tables/feed systems, potential for flying chips, coolant spray and operator exposure to rotating parts or tooling during setup or maintenance. Without robust safeguarding and control procedures, these machines can lead to serious injuries.
By following B11.8, organizations apply recognized engineering practice for safe machine design, operation and lifecycle management of these machines.

Practical Implementation Tips

• Conduct a task-based risk assessment: consider manual production operation, setup/tool change mode, maintenance mode and any automatic feature present.
• Ensure guarding covers spindle heads, rotating cutters, feed systems and chip ejection zones; check coolant spray containment and secondary hazards (chip buildup, slip/trip).
• For machines with automatic control features (but still manual-initiated), validate that operator access is restricted during automatic cycles and that mode selection safeguards are in place.
• Document machine modifications or rebuilds (e.g., adding automatic feed or control features) and treat them as new installations: re-validate risk assessment, revise guarding and controls.
• Train operators and maintenance staff on hazards: tool changes, coolant hazards, chip ejection, reaching into hazards, safe use of automatic/manual features and emergency procedures.
