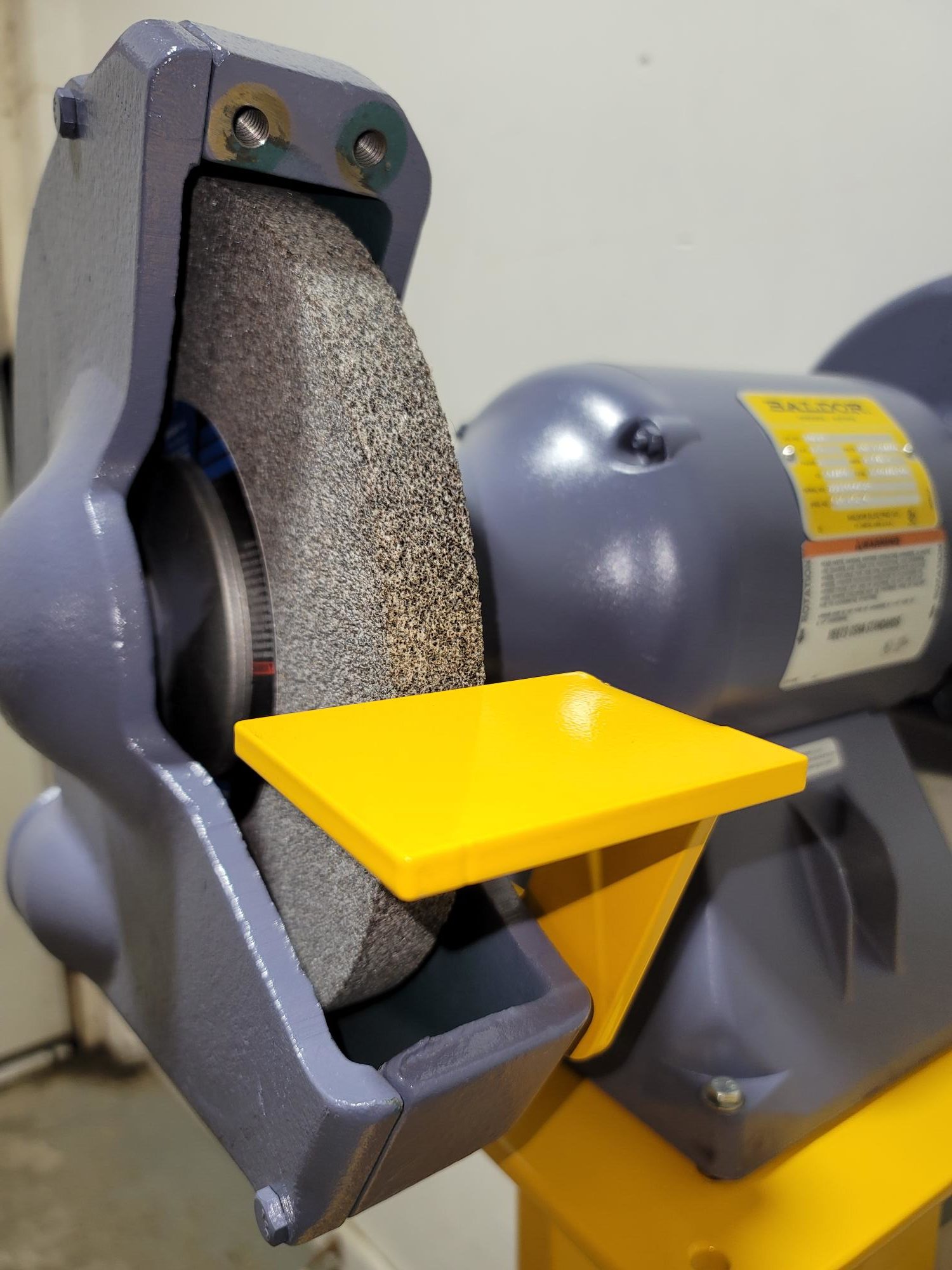

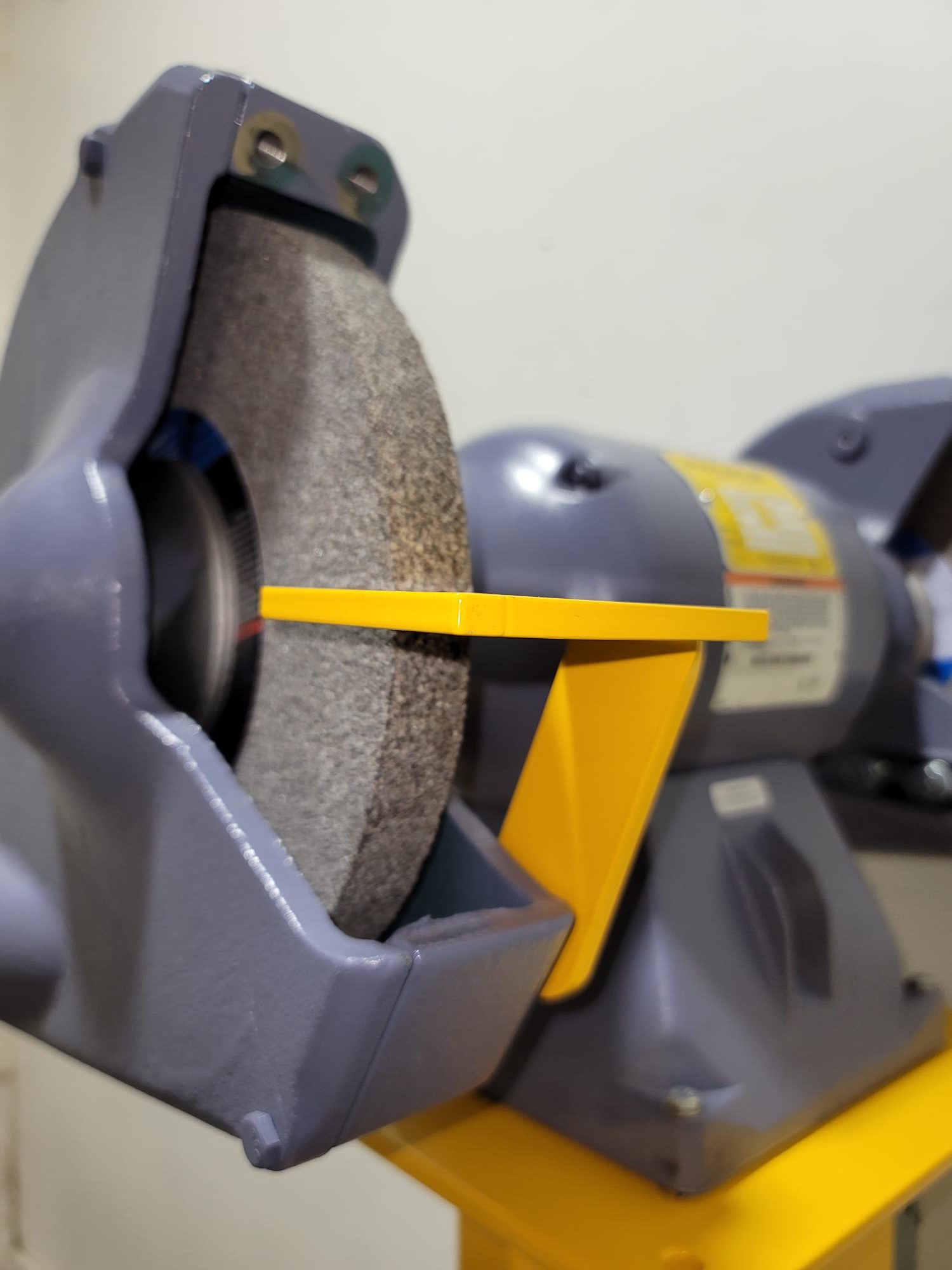

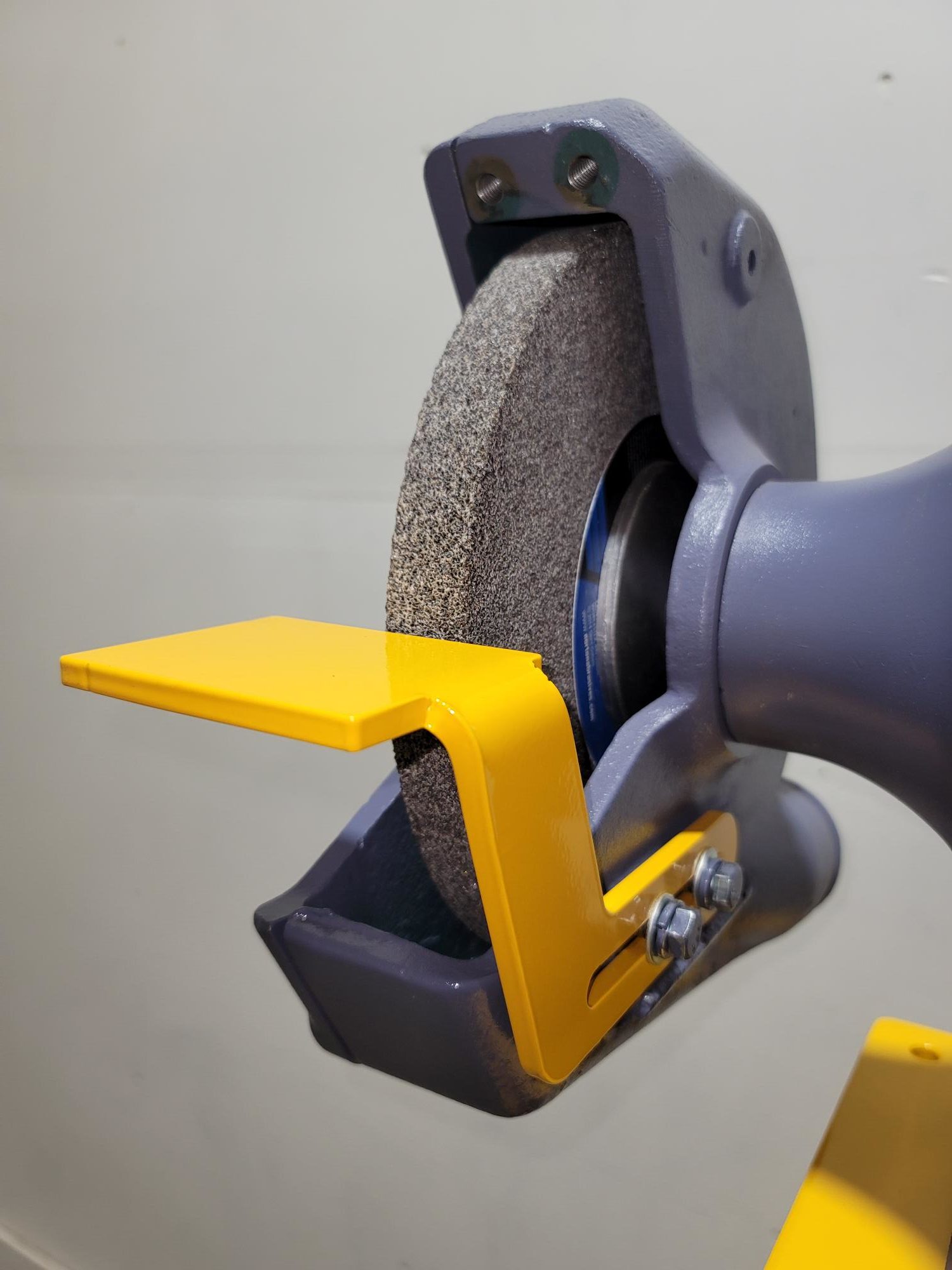

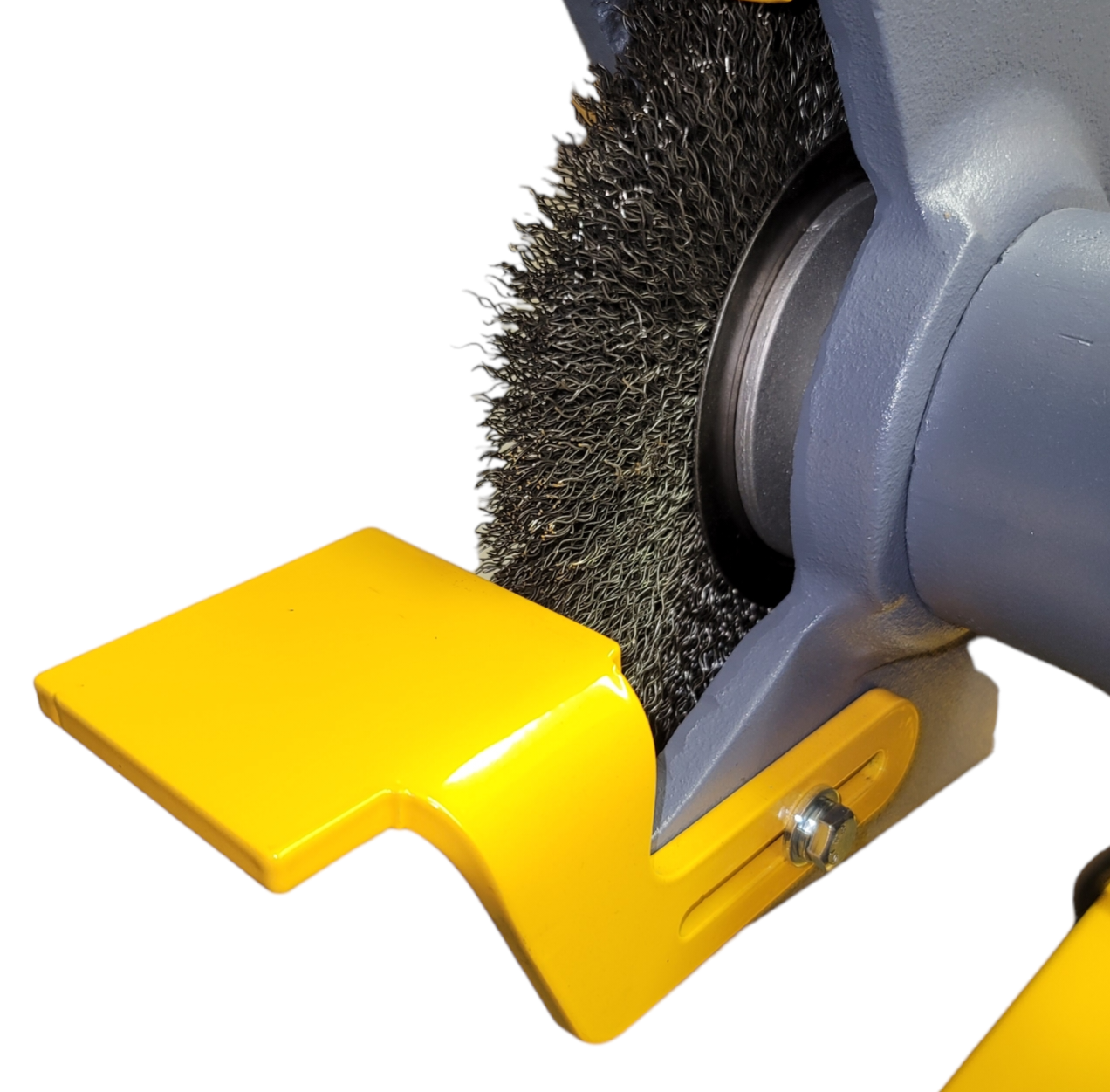

Baldor 7″ 8″ 10″ Work Tool Rest Replacement Parts

OSHA 1910.215 — Abrasive Wheel Machinery: Guarding and Safety Requirements

OSHA 29 CFR 1910.215 establishes critical safety standards for abrasive wheel machinery—equipment such as bench grinders, pedestal grinders, surface grinders, and cutoff wheels.
This section is designed to protect operators from hazards associated with wheel breakage, contact injuries, and flying fragments by requiring appropriate wheel guards, tool rest spacing, ring testing, and maintenance practices.
Abrasive wheel machinery operates at extremely high speeds, and failure to meet these safety requirements can result in catastrophic injuries or fatalities.

Purpose and Intent

The intent of OSHA 1910.215 is to ensure that all abrasive wheel machines are equipped with properly designed guards and safety devices to contain fragments if a wheel breaks and to minimize the risk of operator contact with rotating parts.
This regulation also standardizes wheel mounting procedures, speed limits, and inspection routines to ensure that each wheel operates within its rated capabilities.

Key Requirements

• Wheel guards: All abrasive wheels must be enclosed by guards that cover the spindle end, nut, and flange projections to protect against wheel fragments.
• Tool rests: Tool rests must be adjusted closely to the wheel (no more than 1/8 inch away) to prevent workpieces from being pulled between the wheel and the rest.
• Work rests: Must be secure, adjustable, and maintained in good condition to support material during grinding.
• Flanges: Each wheel must be properly mounted with flanges of equal diameter and strength to distribute clamping force evenly.
• Ring testing: All vitrified wheels must undergo a “ring test” before mounting to detect cracks or defects.
• Speed control: Machines must not operate at speeds exceeding the maximum safe operating speed (MSOS) marked on the wheel.
• Guard openings: The guard’s exposure angle must not exceed limits based on wheel type and mounting (bench, floor stand, cylindrical, etc.).

Types of Abrasive Wheel Machinery Covered

• Bench and pedestal grinders: Must have upper wheel guards enclosing at least 75% of the wheel periphery.
• Surface grinders: Require guarding of the periphery and sides not used for grinding.
• Cylindrical and centerless grinders: Must have fixed and adjustable guards enclosing the wheel and regulating rollers.
• Portable grinders: Require wheel guards covering at least 180° of the wheel.
• Cutoff machines: Must include a fixed hood-type guard covering the wheel and spindle.

Common Hazards Controlled

• Wheel explosion: Containment of high-speed fragments from cracked or overspeed wheels.
• Contact injuries: Prevents accidental hand or body contact with rotating abrasive surfaces.
• Kickback: Reduces rebound of material due to poor work rest positioning or improper guarding.
• Flying debris: Contains sparks, dust, and fragments during grinding operations.
• Vibration and imbalance: Ensures safe wheel mounting and alignment to prevent shaft or bearing damage.

Guarding and Spacing Requirements

• Tool rests must be within 1/8 inch of the wheel surface.
• Adjustable tongue guards (spark deflectors) must be set no more than 1/4 inch from the wheel periphery.
• Bench and floor grinders must have wheel exposure limited to 90° or less of the periphery.
• All guards must be constructed of steel or equivalent material to contain wheel fragments at maximum operating speed.

Wheel Mounting and Inspection Procedures

• Perform a ring test on vitrified wheels before mounting to detect internal cracks.
• Ensure wheel flanges are of equal diameter, flat, and free from burrs or distortion.
• Use blotters (compressible paper washers) between the wheel and flange where specified by the manufacturer.
• Never force a wheel onto a spindle or use excessive pressure during mounting.
• Run the wheel at operating speed in a protected area for at least one minute before use to confirm stability.

Maintenance and Operation

• Inspect wheels and guards before each shift for cracks, wear, and secure attachment.
• Maintain speed governors and motor controls to prevent overspeeding.
• Clean guards and housings regularly to prevent buildup of grinding dust.
• Replace worn or damaged guards immediately—do not weld or patch wheel guards.
• Ensure work rests are properly adjusted after each wheel dressing or replacement.

Best Practices for Compliance

• Install clear signage showing wheel speed limits and mounting instructions near each machine.
• Train operators in safe grinding practices, including ring testing, guard adjustment, and PPE use.
• Provide eye and face protection such as safety glasses and face shields for all operators.
• Incorporate lockout/tagout procedures for wheel changes and maintenance (per OSHA 1910.147).
• Use ANSI B7.1-compliant abrasive wheels that meet manufacturing and performance standards.

Why OSHA 1910.215 Is Important

OSHA 1910.215 is one of the most critical standards in machine guarding because it addresses the hazards of high-speed rotating abrasive wheels.
Improperly guarded or mounted wheels can explode with tremendous force, causing severe lacerations, blindness, or death.
By enforcing uniform requirements for guards, tool rests, and inspection procedures, this regulation ensures that abrasive wheel machinery operates safely within its design limits, protecting both operators and nearby workers.

Related Standards

• OSHA 1910.212: General requirements for all machine guarding.
• ANSI B7.1: Safety requirements for the use, care, and protection of abrasive wheels.
• OSHA 1910.243(c): Portable powered tool safety standards.
• OSHA 1910.219: Mechanical power-transmission apparatus standards.

FAQ

OSHA 1910.215(a) — General Requirements for Abrasive Wheel Machinery

Paragraph (a) sets the baseline rules for using abrasive wheels: machines must have safety guards,
guards must be designed and fastened correctly, proper work rests are required on offhand grinders,
and some items are excluded from this section. Use this as the top-level guidance before drilling into
the subsection-specific requirements.

(a)(1) Machine guarding — When guards are required (and the limited exceptions)

Abrasive wheels may be used only on machines equipped with safety guards. Limited exceptions apply for:

• Internal work while the wheel is within the workpiece.
• Mounted wheels ≤ 2 in. diameter used in portable operations.
• Types 16, 17, 18, 18R, and 19 (cones, plugs, threaded-hole “pot balls”) when the work itself provides protection.

(a)(2) Guard design — What the guard must cover and how it’s secured

The guard must cover the spindle end, nut, and flange projections, stay aligned with the wheel, and be
secured so that the fastenings are stronger than the guard itself. Two narrow exceptions allow exposure of
the spindle end, nut, and outer flange where the work provides protection, and for portable saws.

(a)(3) Flanges — Cross-reference

Grinding machines must be equipped with flanges per §1910.215(c) (minimum diameters, types/exceptions, and mounting rules).
See your site’s child category for 1910.215(c) for the detailed tables and figures.

(a)(4) Work rests — Required on offhand grinders

• Use a rigid, adjustable rest to support the work.
• Keep the opening to the wheel at ≤ 1/8 in (3.2 mm) to prevent jamming and wheel breakage.
• Clamp after each adjustment; never adjust with the wheel in motion.

(a)(5) Excluded items

Natural sandstone wheels and metal/wooden/cloth/paper discs with abrasive layered on the surface are excluded from §1910.215.

Practical inspection cues (use for audits & training)

• Verify a guard is present unless one of the (a)(1) exceptions applies; document the exception if used.
• Confirm guard coverage encloses spindle end, nut, and flange projections and remains aligned during operation.
• Check that fasteners exceed guard strength (no loose, mismatched, or under-sized hardware).
• On bench/pedestal grinders, measure and record work-rest clearance ≤ 1/8″; re-adjust for wheel wear.
• Cross-check machine/wheel type against exclusions before applying §1910.215 requirements.

Link this category to:

• Your grinder guards, tongue guards, eye shields, and gap-gauge product pages.
• Child categories for 1910.215(b) (guarding specifics), 1910.215(c) (flanges), and 1910.215(d) (mounting/operation).
• Related categories: 1910.212 (general machine guarding), 1910 Subpart I (PPE).

FAQ

OSHA 1910.215(a)(1) — Machine Guarding Requirements for Abrasive Wheel Machinery

OSHA 29 CFR 1910.215(a)(1) establishes the fundamental rule for machine guarding on abrasive wheel machinery.
It requires that abrasive wheels be operated only on machines equipped with safety guards designed to contain wheel fragments and protect operators from contact, sparks, and debris.
These guards are mandatory unless the wheel type falls under a specific exemption defined elsewhere in the standard.

Regulatory Text

“Machine guarding. Abrasive wheels shall be used only on machines provided with safety guards as defined in the following paragraphs of this section, except:”

Purpose and Intent

The purpose of OSHA 1910.215(a)(1) is to ensure that all abrasive wheel machines are operated with guards capable of protecting workers from the violent failure of grinding wheels.
Abrasive wheels rotate at extremely high speeds—often exceeding 6,000 RPM—and a wheel failure can eject fragments at speeds approaching that of a bullet.
Proper machine guarding prevents these fragments from striking operators and reduces the risk of lacerations, amputations, and fatal injuries.

Key Requirements

• Mandatory guards: All abrasive wheels must be used only on machines that have safety guards conforming to 1910.215 design specifications.
• Guard design: Guards must fully enclose the wheel periphery and sides, except for the necessary exposure required for the work process.
• Exceptions: Certain wheel types—such as mounted wheels (two inches or smaller in diameter) and internal wheels used within workpieces—are exempt from the full guard requirement.
• Containment strength: Guards must be strong enough to withstand the force of wheel fragments if the wheel bursts at maximum operating speed.
• Secure installation: Guards must be rigidly mounted to the machine frame and positioned so that they do not interfere with work operations.

Common Hazards Controlled

• Wheel explosion: Guards contain high-velocity fragments from cracked or defective wheels.
• Operator contact: Prevents accidental hand or finger contact with the abrasive surface.
• Flying debris and sparks: Reduces risk of eye and face injuries caused by airborne particles.
• Kickback: Limits rebound of workpieces or fragments during grinding operations.

Guard Construction Guidelines

• Guards should be made of steel or equivalent material capable of containing wheel fragments under centrifugal force.
• Exposure openings must not exceed 90° for bench or floor grinders and 125° for cylindrical grinders, unless otherwise specified.
• Guards must include adjustable tongue deflectors set close to the wheel surface to deflect sparks and debris.
• Portable grinders must have guards enclosing at least 180° of the wheel periphery.
• Guards must be securely fastened to prevent shifting during vibration or wheel replacement.

Inspection and Maintenance Practices

• Verify that all abrasive wheels are properly guarded before operation.
• Check guard fasteners and mounting brackets regularly for tightness and damage.
• Inspect guards for cracks, corrosion, or metal fatigue caused by continuous vibration.
• Ensure that guard openings conform to OSHA’s exposure limits for the specific grinder type.
• Document inspection results as part of the facility’s machine safety program.

Best Practices for Compliance

• Use only guards provided or approved by the machine manufacturer to ensure proper fit and protection.
• Train all operators on guarding requirements and safe grinding techniques.
• Implement lockout/tagout procedures (per OSHA 1910.147) before adjusting or replacing guards.
• Ensure guards are replaced immediately after wheel dressing or maintenance activities.
• Post visible signage reminding workers to check wheel guards before operation.

Why OSHA 1910.215(a)(1) Is Important

OSHA 1910.215(a)(1) forms the cornerstone of abrasive wheel safety by requiring that no unguarded grinding wheels are ever used.
Wheel explosions, contact injuries, and flying debris incidents are among the most severe hazards in metalworking and manufacturing environments.
Proper machine guarding—using strong, securely mounted guards—provides essential protection for operators, dramatically reducing the likelihood of catastrophic injuries.

Related Standards

• OSHA 1910.212: General requirements for all machine guarding.
• OSHA 1910.215(b): Specific design and exposure requirements for abrasive wheel guards.
• ANSI B7.1: Safety code for the use, care, and protection of abrasive wheels.
• OSHA 1910.243(c): Portable powered tool safety requirements.

FAQ

OSHA 1910.215(a)(1)(i) — Exception: Internal Wheels Used Within the Workpiece

OSHA 29 CFR 1910.215(a)(1)(i) identifies a specific exception to the general machine guarding requirement for abrasive wheels.
This exception applies to wheels used for internal grinding—operations in which the abrasive wheel functions inside the workpiece itself, such as in precision bore or cavity finishing.
Because the workpiece naturally encloses the rotating wheel during operation, an external guard would serve no practical purpose and could interfere with the process.

Regulatory Text

“Wheels used for internal work while within the work being ground;”

Purpose and Intent

The intent of OSHA 1910.215(a)(1)(i) is to recognize that in internal grinding applications, the workpiece itself acts as a functional guard.
Internal grinding wheels are often small, high-speed tools that operate inside a confined bore or cavity, where additional external guarding is neither practical nor effective.
This exemption ensures flexibility for precision machining operations while maintaining overall worker safety.

Key Points

• Applicable operations: Applies only to internal grinding wheels used inside the workpiece being ground.
• Guard exemption: A standard external wheel guard is not required while the wheel is operating within the workpiece.
• Machine design: The grinding machine must still include appropriate housings, shields, or covers for the spindle and drive components.
• Operator protection: Additional enclosures or barriers may be needed when the wheel is retracted from the workpiece or during setup.
• Wheel integrity: All internal wheels must meet the same manufacturing and mounting requirements as standard abrasive wheels, including rated speed compliance.

Common Applications

• Internal cylindrical grinders: Used to finish the inside diameter of hollow components such as bushings, bearings, and sleeves.
• Bore polishing machines: Precision tools for fine finishing in aerospace or automotive components.
• Die and mold finishing: Used in shaping cavities and internal geometries.

Safety Considerations

• Ensure the wheel is entirely within the workpiece before rotation begins.
• Maintain proper machine enclosures to protect against debris when retracting the wheel.
• Inspect internal wheels for cracks and perform a ring test where applicable before mounting.
• Use a spindle guard or housing to cover drive components outside the workpiece.
• Provide eye and face protection for all operators, even with the exemption in place.

Hazards Controlled

• Wheel breakage containment: The workpiece acts as a barrier during internal grinding operations.
• Debris projection: Enclosures and housings protect operators from small fragments and dust when retracting tools.
• Contact injury prevention: The confined geometry of internal grinding eliminates direct operator exposure to the abrasive surface.

Best Practices for Compliance

• Confirm that this exemption applies only when the wheel is operating entirely within the workpiece cavity.
• Use machine-mounted shields or sliding covers when setting up or removing parts.
• Train operators on safe mounting, alignment, and dressing procedures for internal wheels.
• Monitor spindle speed to ensure it does not exceed the wheel’s maximum safe operating speed (MSOS).
• Follow ANSI B7.1 for wheel selection, speed control, and safety labeling of internal grinding tools.

Why OSHA 1910.215(a)(1)(i) Is Important

OSHA 1910.215(a)(1)(i) provides a practical and necessary exception for internal grinding operations, balancing safety with functional design.
Because the wheel operates within the workpiece cavity, conventional guards cannot be applied without obstructing the process.
The rule ensures that manufacturers can perform precision internal grinding safely while maintaining compliance through proper inspection, setup, and operator protection measures.

Related Standards

• OSHA 1910.215(a)(1): General machine guarding requirements for abrasive wheel machinery.
• ANSI B7.1: Safety code for the use, care, and protection of abrasive wheels.
• OSHA 1910.212: General machine guarding standards for all rotating machinery.

FAQ

OSHA 1910.215(a)(1)(ii) — Exception: Mounted Wheels Used in Portable Operations (2 Inches and Smaller)

OSHA 29 CFR 1910.215(a)(1)(ii) identifies an important exception within the abrasive wheel machinery guarding standard.
It applies to mounted wheels used in portable grinding, polishing, or finishing operations that are 2 inches or smaller in diameter.
Due to their compact size, low mass, and unique design, these small wheels present significantly less risk of fragmentation or operator injury compared to larger abrasive wheels.
As such, OSHA does not require them to be equipped with conventional machine guards.

Regulatory Text

“Mounted wheels, used in portable operations, 2 inches and smaller in diameter; and”

Purpose and Intent

The intent of OSHA 1910.215(a)(1)(ii) is to acknowledge that miniature mounted wheels—commonly used in hand-held or portable tools such as die grinders, Dremel-type tools, and precision polishers—operate under different mechanical conditions than full-size abrasive wheels.
The small diameter and lightweight design minimize centrifugal force and fragment energy in the rare event of wheel failure, making a full wheel guard unnecessary and impractical for these operations.

Key Points

• Wheel size limit: Applies only to abrasive wheels 2 inches or smaller in diameter.
• Mounted wheel definition: A wheel bonded or pressed onto a mandrel, spindle, or shaft designed for handheld or portable grinding tools.
• Portable operation requirement: The exemption applies exclusively to portable tools—not stationary machines or bench-mounted grinders.
• Guard exemption: These small wheels are exempt from the full guarding requirement of OSHA 1910.215 but must still be used safely in accordance with manufacturer recommendations.
• Operator protection: Eye and face protection remain mandatory under OSHA 1910.133.

Common Applications

• Die grinding: Removing burrs, flash, or weld seams in confined areas.
• Tool and die work: Precision finishing and polishing of molds or cavities.
• Deburring and chamfering: Cleaning edges or surfaces on small metal components.
• Portable maintenance grinding: Light-duty cleaning, smoothing, or finishing work in field applications.

Safety Considerations

• Even though guards are not required, operators must wear ANSI Z87.1–compliant eye protection and face shields.
• Inspect mounted wheels for cracks, looseness, or mandrel defects before each use.
• Verify the tool’s rotational speed (RPM) does not exceed the wheel’s maximum safe operating speed (MSOS).
• Maintain a firm grip on portable tools and ensure stable positioning during use.
• Store mounted wheels properly to prevent chipping, contamination, or bond degradation.

Hazards Controlled

• Fragmentation injuries: Reduced by small wheel size and low mass.
• Contact hazards: Controlled through careful handling and safe operating techniques.
• Flying particles: Mitigated by proper PPE and secure work positioning.
• Kickback and loss of control: Minimized through proper tool maintenance and operator training.

Best Practices for Compliance

• Use only mounted wheels labeled and rated for the specific tool and speed.
• Ensure mandrels and collets are free from wear and securely hold the wheel in place.
• Train operators to avoid side-loading or excessive pressure that could fracture small wheels.
• Keep work areas clear of flammable materials to avoid ignition from grinding sparks.
• Replace mounted wheels at the first sign of cracking, imbalance, or vibration.

Why OSHA 1910.215(a)(1)(ii) Is Important

OSHA 1910.215(a)(1)(ii) balances operator safety and tool functionality by recognizing that small mounted wheels used in portable tools present a lower risk than larger abrasive wheels.
While traditional guards are impractical for such miniature wheels, OSHA still emphasizes inspection, speed control, and PPE use as essential safety measures.
This exception ensures flexibility for maintenance, finishing, and precision work while maintaining overall compliance with abrasive wheel safety principles.

Related Standards

• OSHA 1910.215(a)(1): General machine guarding requirement for abrasive wheels.
• OSHA 1910.215(a)(1)(i): Exception for internal grinding wheels within workpieces.
• OSHA 1910.243(c): Portable powered tool safety requirements.
• ANSI B7.1: Safety code for the use, care, and protection of abrasive wheels.

FAQ

OSHA 1910.215(a)(1)(iii) — Exception: Cones, Plugs, and Threaded Hole Pot Balls Where the Work Offers Protection

OSHA 29 CFR 1910.215(a)(1)(iii) establishes an exception to the standard machine guarding requirement for certain small abrasive wheel types—specifically Types 16, 17, 18, 18R, and 19 cones, plugs, and threaded hole pot balls—used in operations where the workpiece itself provides effective protection.
These wheel types are typically small, compact shapes designed for internal or recessed grinding, finishing, and smoothing surfaces in tight or confined areas.

Regulatory Text

“Types 16, 17, 18, 18R, and 19 cones, plugs, and threaded hole pot balls where the work offers protection.”

Purpose and Intent

The intent of OSHA 1910.215(a)(1)(iii) is to acknowledge that certain abrasive wheel shapes and applications naturally provide protection through the workpiece’s geometry.
When these specialized wheels are used within recesses, cavities, or internal spaces, the surrounding material acts as a natural guard, effectively containing the wheel and preventing operator contact or fragment ejection.

Applicable Wheel Types

• Type 16: Straight-sided cones used for heavy-duty snagging and rough grinding in confined areas.
• Type 17: Tapered cones designed for grinding fillets, corners, and curved surfaces.
• Type 18 and 18R: Plug wheels with a round or oval face, often used for smoothing foundry castings or deburring holes.
• Type 19: Threaded hole pot balls with a spherical or cup-like shape used for inside radius or concave surface grinding.

Conditions for the Exception

• The wheel must be one of the specified types (16, 17, 18, 18R, or 19).
• The operation must occur within or against a workpiece that surrounds the wheel sufficiently to act as a barrier.
• The workpiece must fully or partially enclose the wheel, preventing the operator from direct contact.
• If the workpiece does not offer full protection, a supplementary guard or shield must still be used.
• The wheel must be properly mounted on a threaded mandrel or arbor and secured per manufacturer instructions.

Common Applications

• Foundry finishing: Removing risers, burrs, and rough edges from castings.
• Weld dressing: Smoothing and blending weld beads in confined areas.
• Maintenance grinding: Cleaning and polishing internal surfaces of equipment housings or pipes.
• Die and mold repair: Finishing cavities or internal contours.

Safety Considerations

• Ensure the workpiece provides complete coverage of the wheel during operation.
• Use tools that are rated for the wheel’s maximum safe operating speed (MSOS).
• Inspect each wheel for cracks, looseness, or improper thread engagement before use.
• Wear appropriate eye and face protection (OSHA 1910.133) and hand protection to guard against debris.
• Maintain a firm grip and control of the tool to prevent kickback or misalignment in tight areas.

Hazards Controlled

• Fragment ejection: The workpiece confines debris and fragments if the wheel fails.
• Contact injury: The geometry of the task and the workpiece acts as a barrier against operator contact.
• Overexposure to rotating parts: Only a minimal portion of the wheel is exposed during use.
• Loss of control: Reduced risk due to the small size and low mass of these wheel types.

Best Practices for Compliance

• Verify that the workpiece truly provides protection before applying this exemption.
• Use tools equipped with side handles or vibration-dampening grips for better control.
• Follow ANSI B7.1 guidelines for cone and plug wheel installation and use.
• Train operators to recognize when an additional guard or shield is required.
• Inspect the threaded hole and mandrel for wear or cross-threading before installation.

Why OSHA 1910.215(a)(1)(iii) Is Important

OSHA 1910.215(a)(1)(iii) allows flexibility for operations using specialty cone, plug, and pot ball wheels by recognizing situations where traditional guards are redundant.
These wheel types are designed for use in recessed areas where the workpiece inherently restricts exposure to moving parts.
However, the exemption places responsibility on the employer to ensure that the work truly offers protection and that operators maintain proper PPE, inspection, and mounting practices.

Related Standards

• OSHA 1910.215(a)(1): General machine guarding requirements for abrasive wheels.
• OSHA 1910.215(b): Detailed guard design and exposure limitations.
• ANSI B7.1: Safety code for the use, care, and protection of abrasive wheels (includes specifications for cone and plug types).
• OSHA 1910.243(c): Portable powered tool safety requirements.

FAQ

OSHA 1910.215(a)(2) — Guard Design Requirements for Abrasive Wheel Machinery

OSHA 29 CFR 1910.215(a)(2) establishes the engineering and construction requirements for abrasive wheel machine guards.
These guards serve as the primary line of defense against the dangers of wheel breakage and high-speed fragment ejection.
The regulation specifies that guards must fully enclose the spindle end, nut, and flange projections—areas that are often exposed to operators during grinding—and that they must be securely mounted and properly aligned with the wheel to maintain consistent protection throughout operation.

Regulatory Text

“Guard design. The safety guard shall cover the spindle end, nut, and flange projections. The safety guard shall be mounted so as to maintain proper alignment with the wheel, and the strength of the fastenings shall exceed the strength of the guard, except:”

Purpose and Intent

The purpose of OSHA 1910.215(a)(2) is to ensure that abrasive wheel guards are designed and attached in a way that maximizes operator safety and prevents catastrophic failure in the event of wheel breakage.
Because abrasive wheels rotate at high speeds—often exceeding 6,000 RPM—the guard must be strong enough to contain fragments and resist vibration while remaining securely aligned with the wheel’s rotational plane.

Key Requirements

• Comprehensive coverage: Guards must enclose the spindle end, nut, and flange projections to prevent exposure to rotating components.
• Alignment: The guard must maintain constant alignment with the wheel during all phases of operation, even under vibration or load.
• Fastening strength: The bolts, screws, or clamps securing the guard must have greater strength than the guard itself to prevent detachment during wheel failure.
• Durability: Guards must be constructed from metal or equivalent high-strength material capable of withstanding the impact of fragments.
• Exceptions: Limited exceptions apply for specific wheel types where guarding would interfere with safe operation (detailed in subsections that follow).

Guard Construction Guidelines

• Use heavy-gauge steel, ductile iron, or approved composite materials designed to contain high-energy wheel fragments.
• Ensure guard seams and joints are reinforced or welded to prevent rupture under impact stress.
• Design guards to enclose at least 75% of the wheel periphery for bench and floor grinders, or 180° for portable grinders.
• Use fasteners rated above the guard’s tensile strength, such as high-grade steel bolts or locking clamps.
• Provide access panels or removable sections for wheel replacement that cannot loosen during operation.

Hazards Controlled

• Fragment ejection: Guards contain high-speed fragments from wheel breakage.
• Contact with rotating parts: Prevents hands, clothing, or tools from contacting the spindle, flanges, or nuts.
• Kickback or rebound: Reduces injury risk from material deflection during grinding.
• Structural failure: Ensures guards remain intact and properly secured even under impact or vibration.

Inspection and Maintenance Practices

• Inspect guards daily for cracks, distortion, or loosened fasteners.
• Verify that guards remain in alignment with the wheel after wheel changes or dressing operations.
• Replace or repair guards that show signs of corrosion, fatigue, or deformation.
• Ensure all guard fasteners are torqued to manufacturer specifications and use lock nuts or thread-locking compounds to prevent vibration loosening.
• Perform documented inspections per facility machine guarding safety programs.

Best Practices for Compliance

• Use guards supplied or certified by the original equipment manufacturer (OEM).
• Train operators to check guard alignment before every grinding operation.
• Install anti-vibration mounts to reduce stress on guard fastenings.
• Follow ANSI B7.1 design recommendations for guard materials, thickness, and containment standards.
• Document all modifications or guard replacements for traceability and compliance.

Why OSHA 1910.215(a)(2) Is Important

OSHA 1910.215(a)(2) provides the foundation for how abrasive wheel guards must be constructed and secured.
Proper guard design prevents the most severe outcomes of wheel failure—high-velocity fragment ejection and contact injuries.
The requirement that fastenings exceed the strength of the guard ensures that the guard itself remains attached during a failure event, providing full containment and protecting the operator from fatal injuries.
In short, this subsection transforms guarding from a passive shield into a robust, structural safety barrier.

Related Standards

• OSHA 1910.215(a)(1): General machine guarding requirements for abrasive wheels.
• OSHA 1910.215(b): Specific exposure and design limits for guards on different wheel types.
• ANSI B7.1: Safety code for the use, care, and protection of abrasive wheels (guarding design specifications).
• OSHA 1910.212: General machine guarding requirements for rotating equipment.

FAQ

B11.9 — Safety Requirements for Grinding Machines

The B11.9 standard (ANSI B11.9-2010 (R2020)) applies to all stationary grinding machines used in industrial or commercial applications that utilize abrasive products to change the shape, size or surface finish of any material (including glass, ceramics, plastics, rubber). :contentReference[oaicite:0]{index=0}
It excludes portable hand-held grinding machines, machines using loose abrasives, woodworking applications, concrete cutting operations, honing, lapping or polishing machines, and belt grinding machines. :contentReference[oaicite:1]{index=1}

Scope & Application

This standard covers stationary grinding machines—those that are fixed in position during operation and use abrasive products. :contentReference[oaicite:2]{index=2}
It encompasses peripheral, cylindrical, surface, tool-grinding, cutoff and similar machines where abrasive wheels or segments perform material removal by abrasive action.

Key Safety Topics Addressed

• Abrasive product guarding and work-zone enclosures: The standard sets requirements for guards around abrasive wheels and enclosures around work zones to prevent ejection of fragments. :contentReference[oaicite:3]{index=3}
• Design and construction of grinding machines: Ensures machines are built with structural integrity, appropriate guarding, safe access for maintenance, and safe arrangement of feed, coolant, and exhaust systems.
• Control functions and operator access: Addresses machine start-up/shutdown, safe modes, automatic cycles, operator access during loading/unloading, and ensuring motions stop when guards are opened or safety devices activated.
• Material removal, wheel mounting and speed considerations: Emphasizes that machines must be used only with wheels rated for the speed, must be mounted correctly and operated in safe conditions to avoid wheel failure or ejection. :contentReference[oaicite:4]{index=4}
• Lifecycle responsibilities: Assigns roles for machine builders/suppliers, integrators/modifiers and users across design, installation, commissioning, operation, maintenance, modification and decommissioning phases of grinding machines. :contentReference[oaicite:5]{index=5}
• Risk assessment and combination with other standards: The standard refers to general risk-assessment requirements (such as those in B11.0) and performance criteria for safeguarding (such as B11.19). :contentReference[oaicite:6]{index=6}

Why It Matters

Grinding machines operate at high speeds, often with abrasive wheels that can fail catastrophically, producing high-velocity fragments and ejected material. There are also hazards from rotating parts, coolant, dust, vibration, operator access to moving parts, setup/maintenance exposure and unexpected motion.
By applying the framework of B11.9, manufacturers, users and safety professionals can adopt recognized engineering practices for protecting personnel, maintaining safe machine conditions, and fulfilling an obligation to apply good engineering practice in machine safety programs.

Practical Implementation Tips

• Ensure that every abrasive wheel is correctly rated for speed, mounted properly, and that guards fully cover wheel mounting flanges and expose minimal openings required for the operation.
• Perform a detailed risk assessment considering loading/unloading, tool setup, wheel dressing/truing, automatic vs manual cycles, coolant spray, dust generation, ejection zones and maintenance access.
• Inspect and verify guards or enclosures around the grinding wheel, work-zone containment for chip/projectile ejection, and ensure interlocks or presence-sensing devices prevent operator exposure during motion.
• Train operators and maintenance personnel on hazards unique to grinding: wheel failure, kick-back, flashpoint of coolant/oils, dust inhalation, reaching into guarded zones, and safe changeover procedures.
• When machines are rebuilt, modified or retrofitted (for example new automation or loading/unloading device added), treat them as new from a safety standpoint: re-validate safeguards, perform fresh risk assessment, update documentation and ensure compliance with B11.9 requirements.
